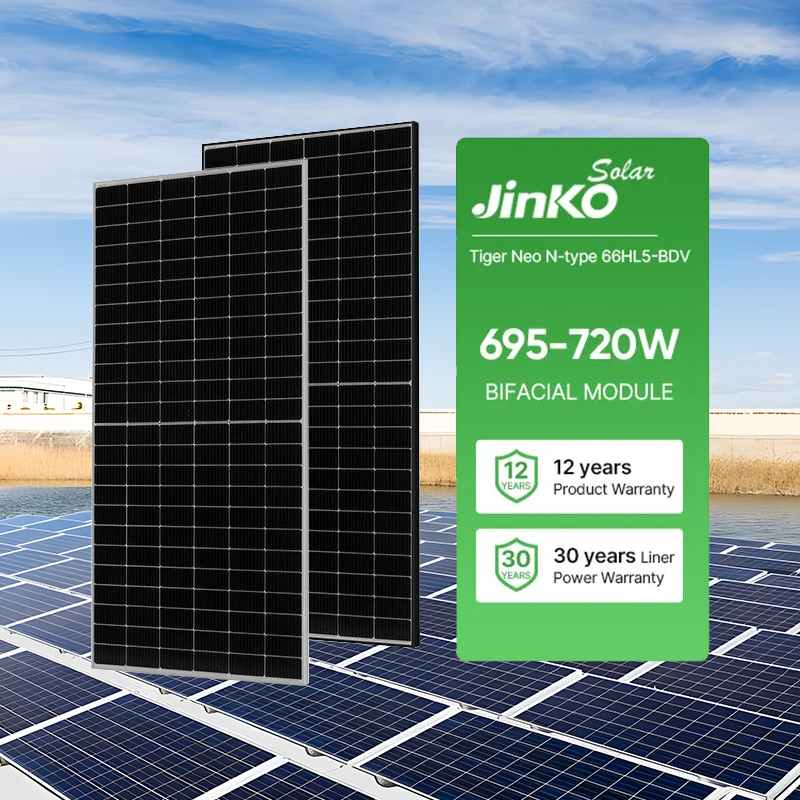

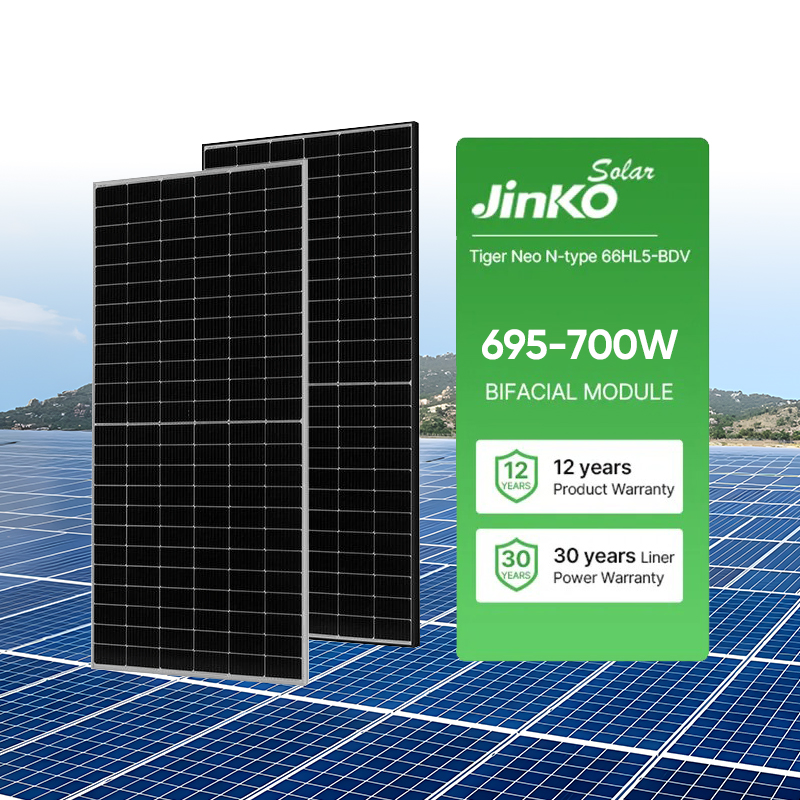

Jinko 700W 66hl5-Bdv Solar Panel 700W 156 Cell Solar Panel Topcon N Type Bifacial Photovoltaic Panel Monocrystalline 700W 710W 720W PV Module for Sale

1 / 5

Jinko 700W 66hl5-Bdv Solar Panel 700W 156 Cell Solar Panel Topcon N Type Bifacial Photovoltaic Panel Monocrystalline 700W 710W 720W PV Module for Sale

Customization:	Available
After-sales Service:	Yes
Warranty:	30years

Send Inquiry

Product Description

Basic Information

Model NO.:66HL5-BDV

Number of Cells:156

Application:Industrial

Condition:New

Certification:ISO, CE

Material:Monocrystalline Silicon

Model No.:66hl5-Bdv 700-720W

Cell Type:N Type Mono-Crystalline

Weight:34.6kg

Front Glass:2.0mm, Anti-Reflection Coating

Back Glass:2.0mm, Heat Strengthened Glass

Junction Box:IP68 Rated

Output Cables:TUV 1×4.0mm2

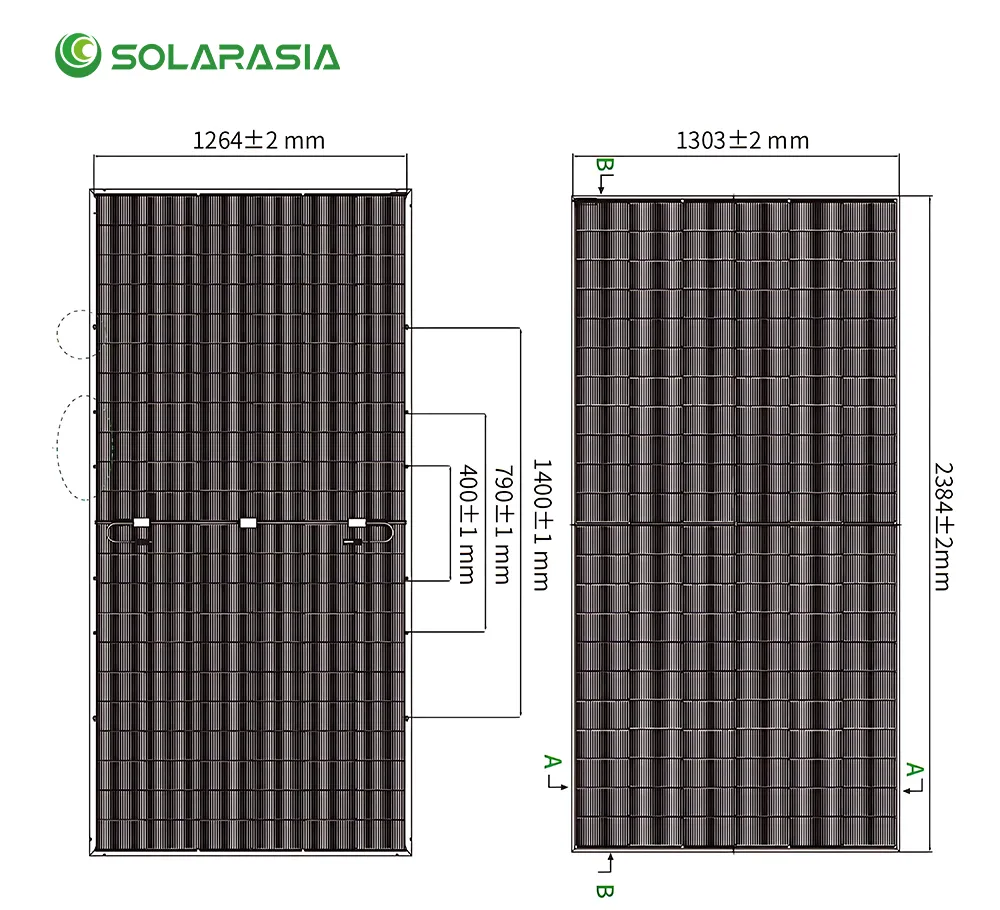

Package Size:246.50cm * 113.40cm * 3.00cm

Gross Weight:34.600kg

★

Product Description

⚙

Product Parameters

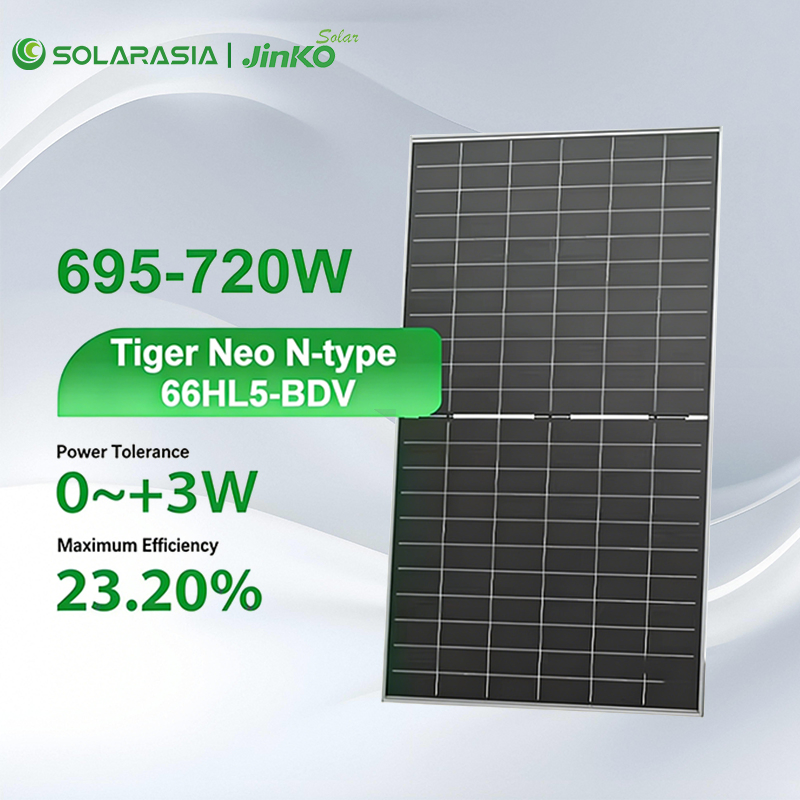

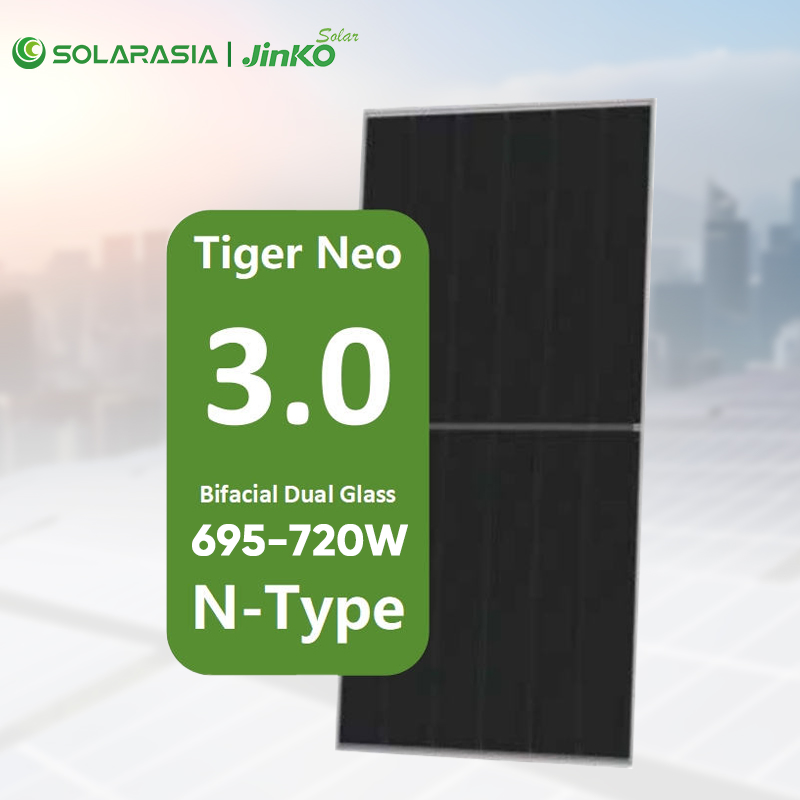

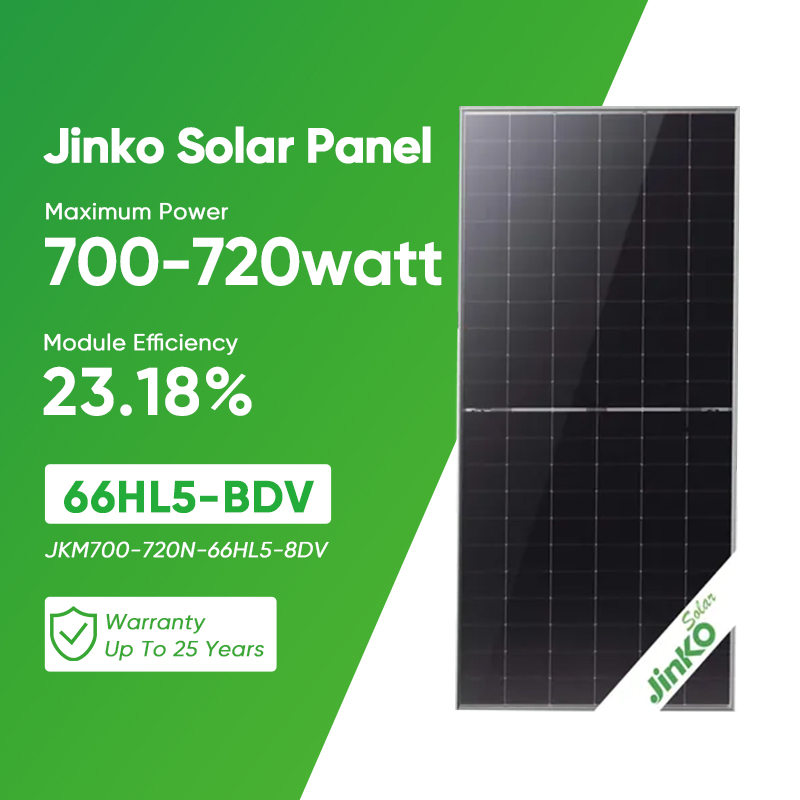

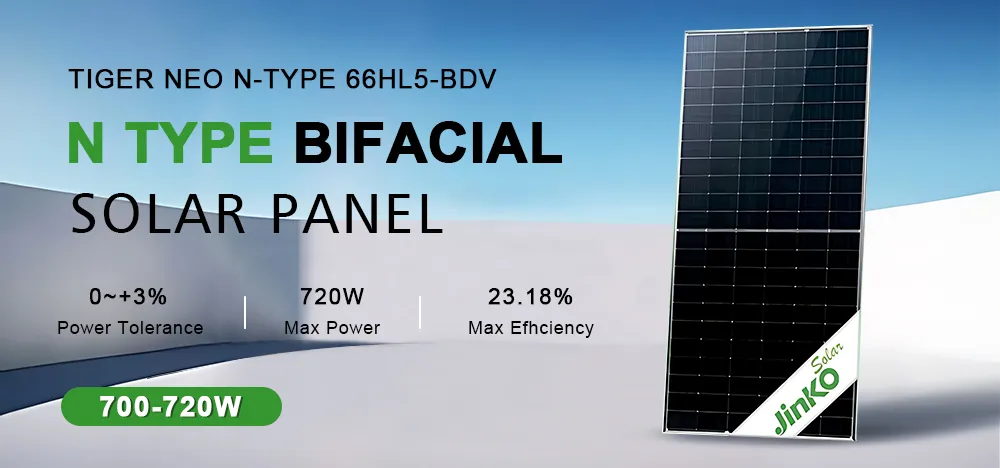

TiGER Neo BIFACIAL MODULE WITH DUAL GLASS JKM700-720N-66HL5-BDV
Specifications(STC)	695W	700W	705W	710W	715W	720W
Maximum Power-Pmax [Wp]	695	700	705	710	715	720
Maximum Power Voltage-Vmp [V]	40.29	40.42	40.53	40.56	40.77	40.89
Maximum Power Current-Imp [A]	17.25	17.32	17.40	17.47	17.54	17.61
Open-circuit Voltage-Voc [M]	48.24	48.40	45.56	48.73	48.88	49.04
Short-circuit Current-Isc [A]	18.33	18.40	18.46	18.53	18.60	18.67
Module Efficiency STC [%]	22.37	22.54	22.70	22.86	23.02	23.18
Power Tolerance	0~+3%
Specifications(BNPI)	767W	733W	779W	784W	790W	795W
Maximum Power-Pmax [Wp]	767	733	779	784	790	795

✓

Certifications

📦

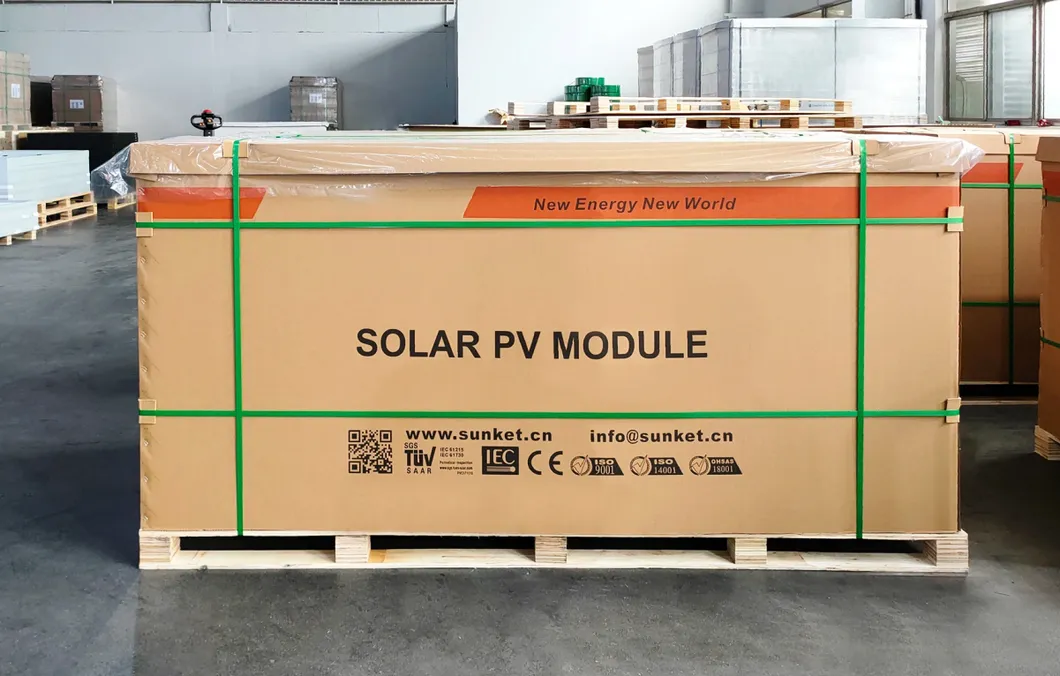

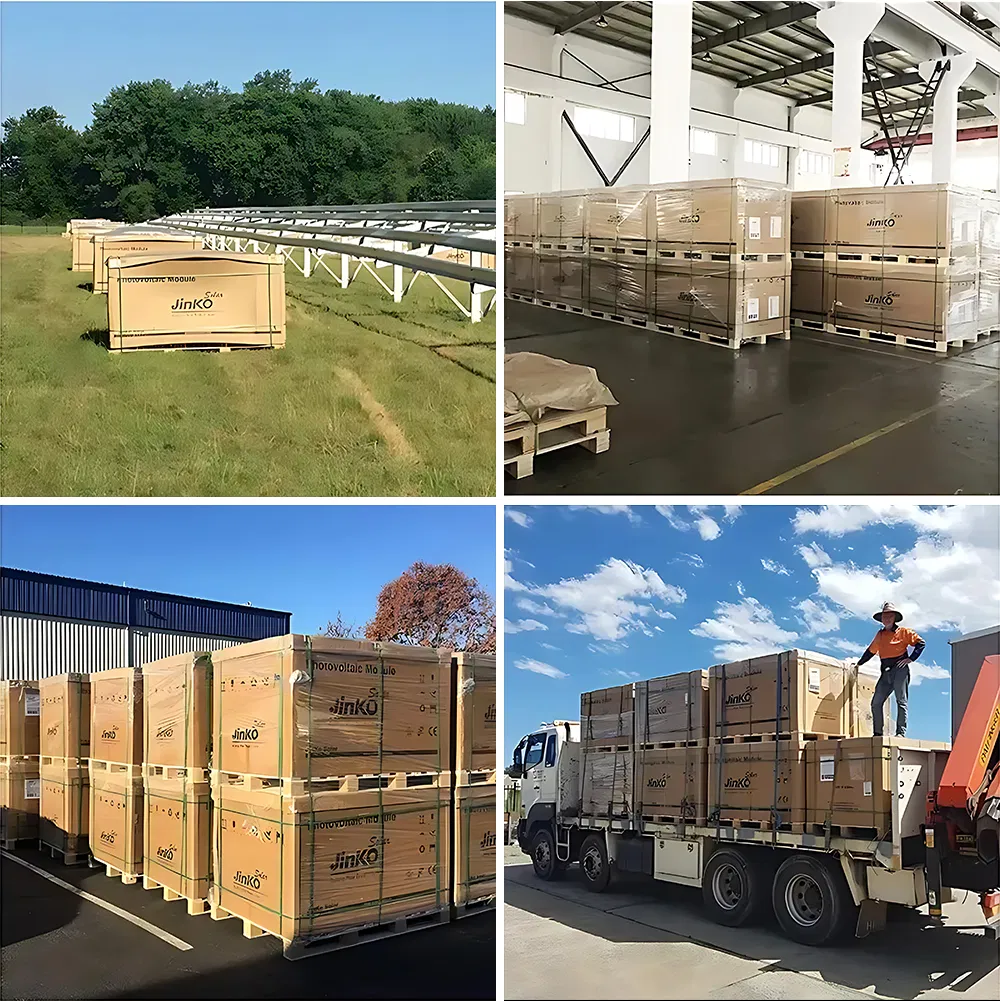

Packaging & Shipping

▤

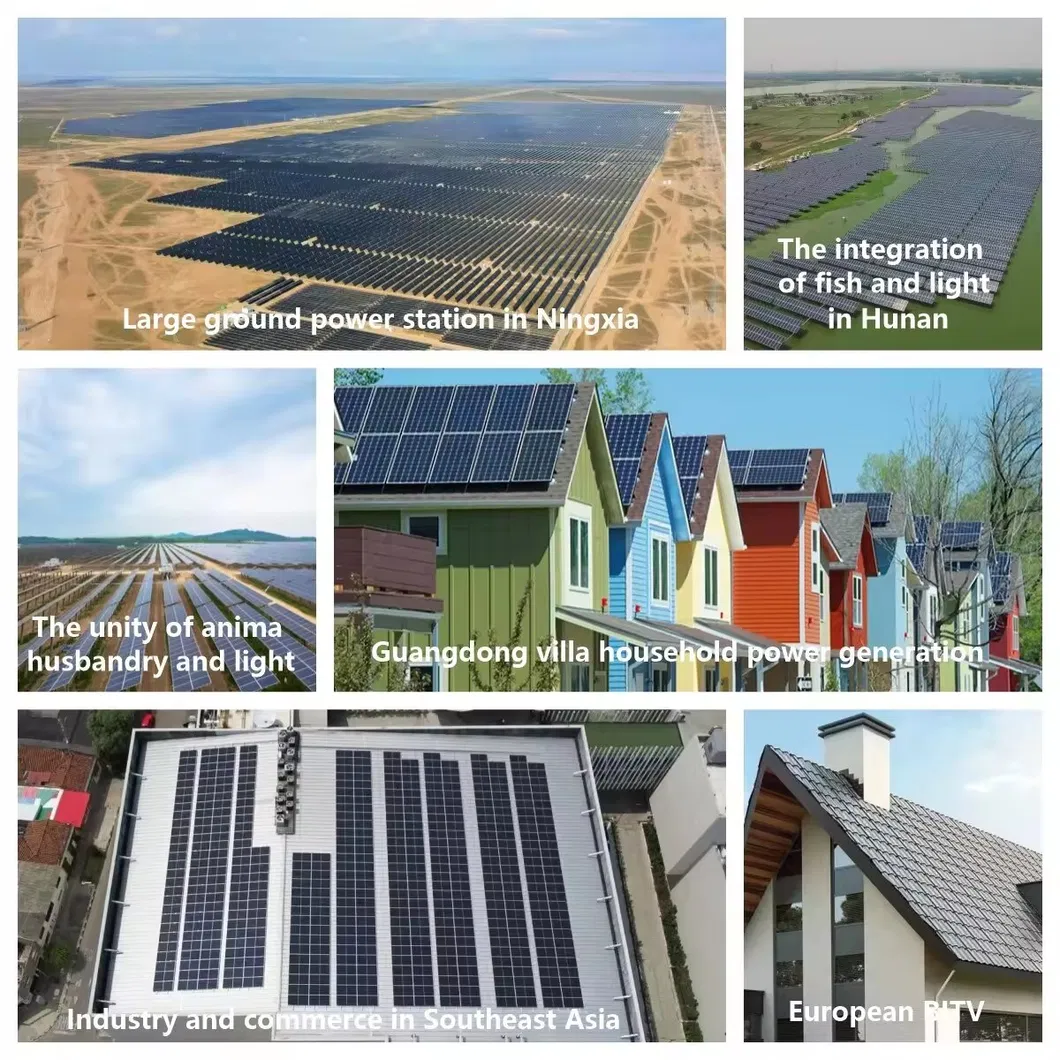

Project Case

🏢

Manufacturing & Facilities

Frequently Asked Questions

How to choose the right panel?

Tell us your demand, then our team will recommend a suitable panel for you based on your power requirements and installation site.

What's the difference between Mono and Poly panel?

Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. Polycrystalline processes are simpler and cost less, but generally offer slightly lower efficiency.

How about the delivery time?

Delivery time is typically 7 days for samples and 15 days for bulk orders, depending on current production capacity.

What is the warranty for solar panels?

Generally, the warranty for solar panels is 10 years for materials and workmanship, and we offer a 25-year linear output power warranty.

What kind of technical support do you provide?

We have a professional engineer team that can provide support based on your requirements. We offer 2 hours online service and aim to address issues within 1 hour.

Are the panels suitable for industrial applications?

Yes, these N-Type bifacial modules are specifically designed for high-performance industrial and commercial projects.
