ISO Approved Commercial Br Solar Container 20FT /40FT 12192mm (L) 2438mm (W) 2591mm (H) Lithium Battery Energy Storage

Send Inquiry

Product Description

📋 Basic Specifications

Condition: New

Certification: ISO, CB, CE, TUV

Application: Industrial, Commercial

Battery Type: LFP 3.2V314ah

Grid Connection: Off Grid, Hybrid Grid

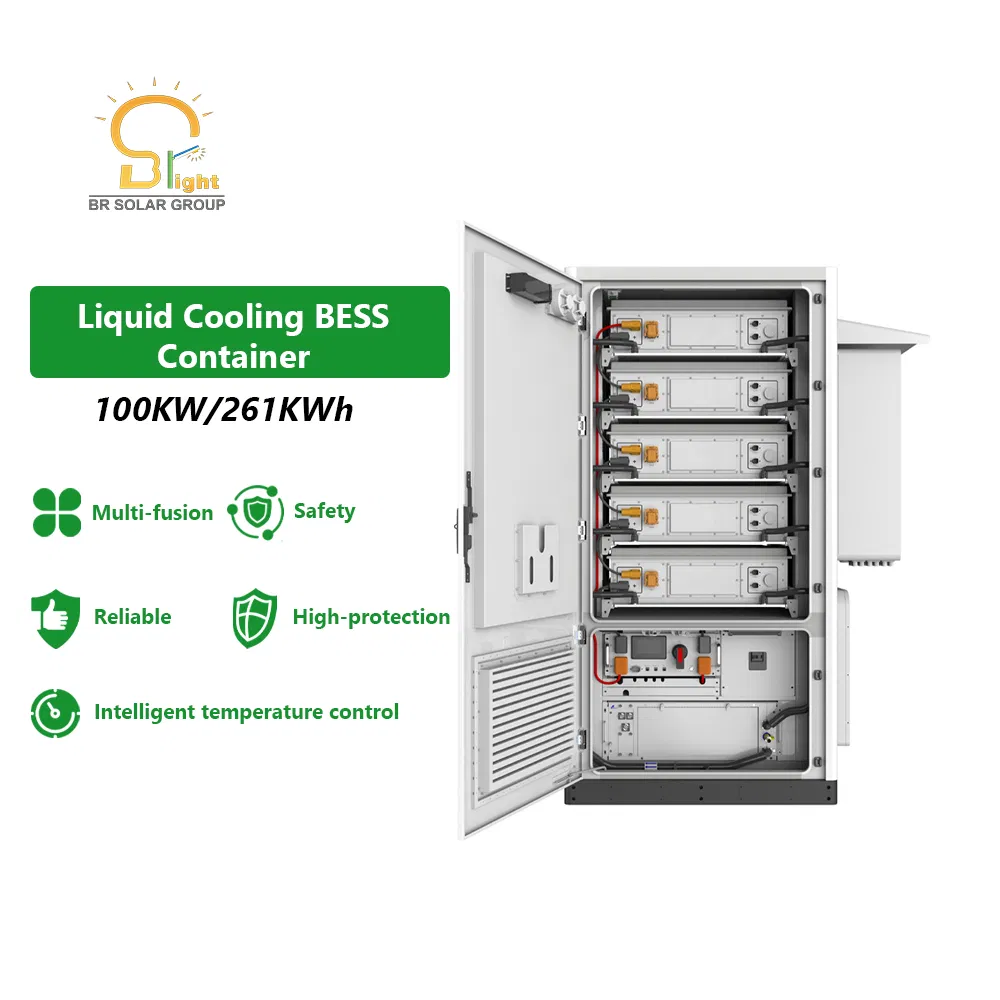

Cooling: Liquid Cooling

Protection: IP55 / C4 Corrosion Level

Capacity: 261 kWh

⚙️ Technical Parameters

System Parameters
Rated output power(kW)	100
AC output frequency/voltage	50/60Hz: 380/400Vac
Capacity(kWh)	261
Dimensions(W/D/H, mm)	1100×1400×2380
Maximum cycle efficiency	92%
Converter Parameters
Rated output current(A)	144
Maximum number of parallel machines	8
Power factor	−0.99~+0.99
Battery Technical Parameters
Cell type	LFP 3.2V314Ah
Cycle life	≥6000 (@25ºC±2ºC, 0.5C/0.5C, 70%EOL)
Operating temperature	Charge: 0~55ºC / Discharge: −20~55ºC

🖼️ Product Gallery

❓ Frequently Asked Questions

What is the total capacity of this energy storage system?

The system provides a robust capacity of 261 kWh, suitable for commercial and industrial applications.

What type of battery cells are used in the container?

The system utilizes high-quality LFP (Lithium Iron Phosphate) 3.2V 314Ah cells, known for their safety and longevity.

What is the expected cycle life of the battery modules?

The battery offers a cycle life of ≥6000 cycles at 25ºC with 0.5C charge/discharge rates before reaching 70% of its end-of-life (EOL).

Is the system protected against outdoor environmental conditions?

Yes, it features an IP55 protection rating and a C4 corrosion protection level, making it ideal for ground-mounted outdoor installations.

What cooling method is employed for thermal management?

The system uses advanced Liquid Cooling technology to ensure optimal operating temperatures and battery efficiency.

Can multiple units be connected in parallel?

Yes, the system supports a maximum of 8 parallel machines to scale up the power output according to your requirements.
