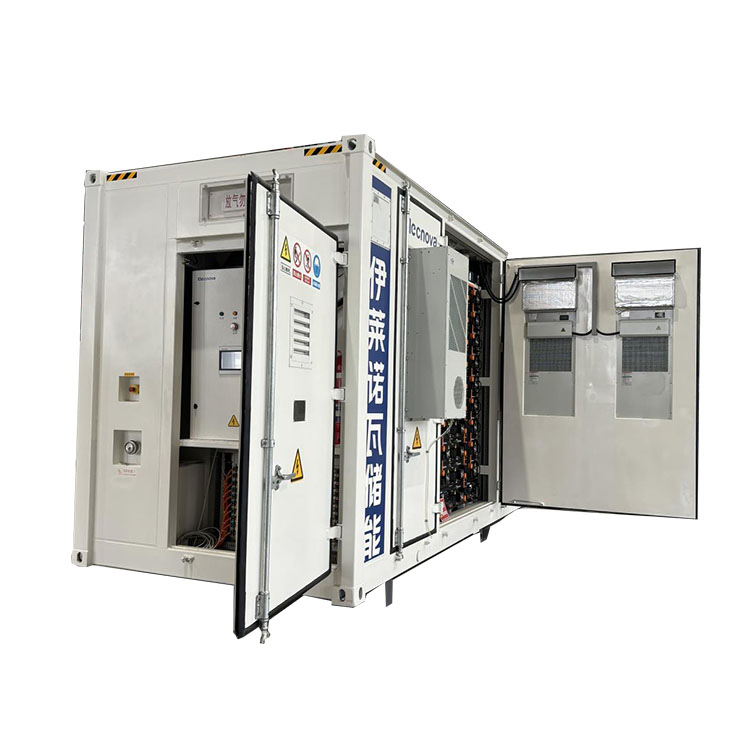

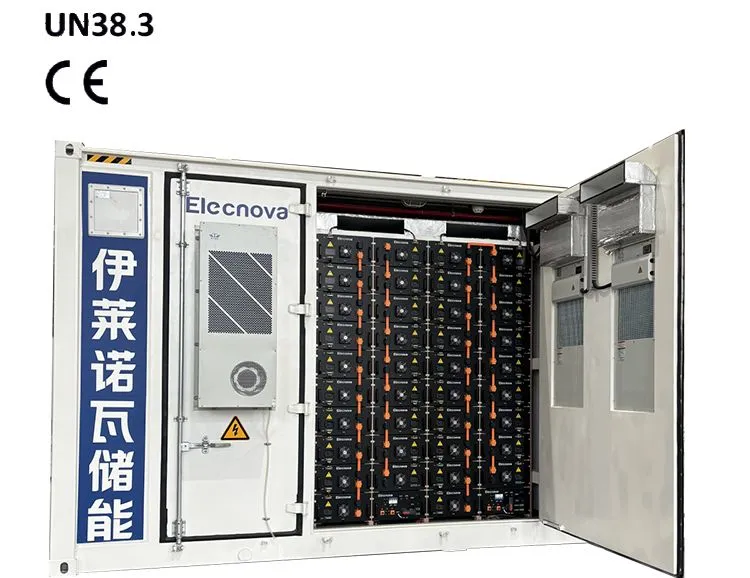

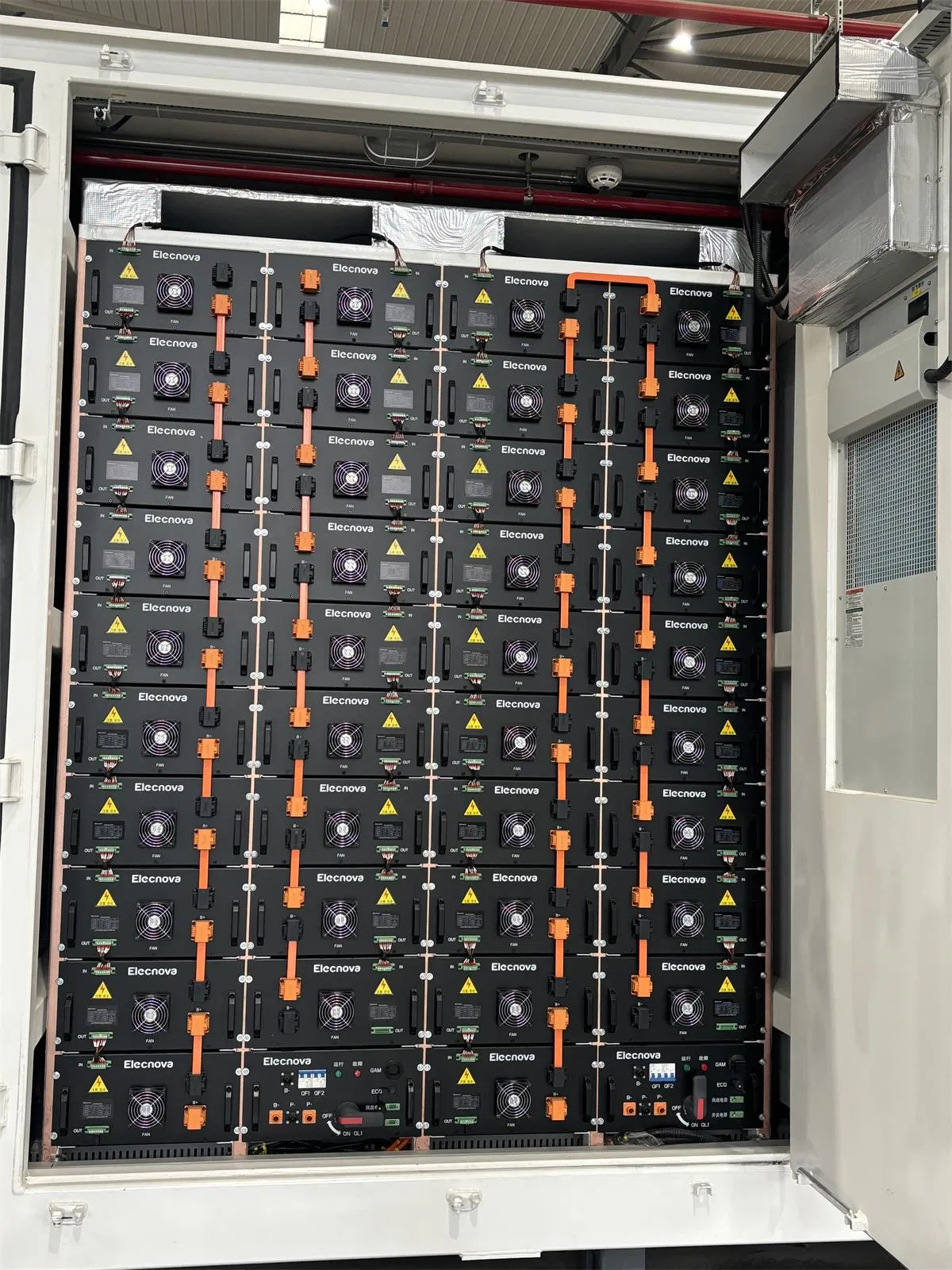

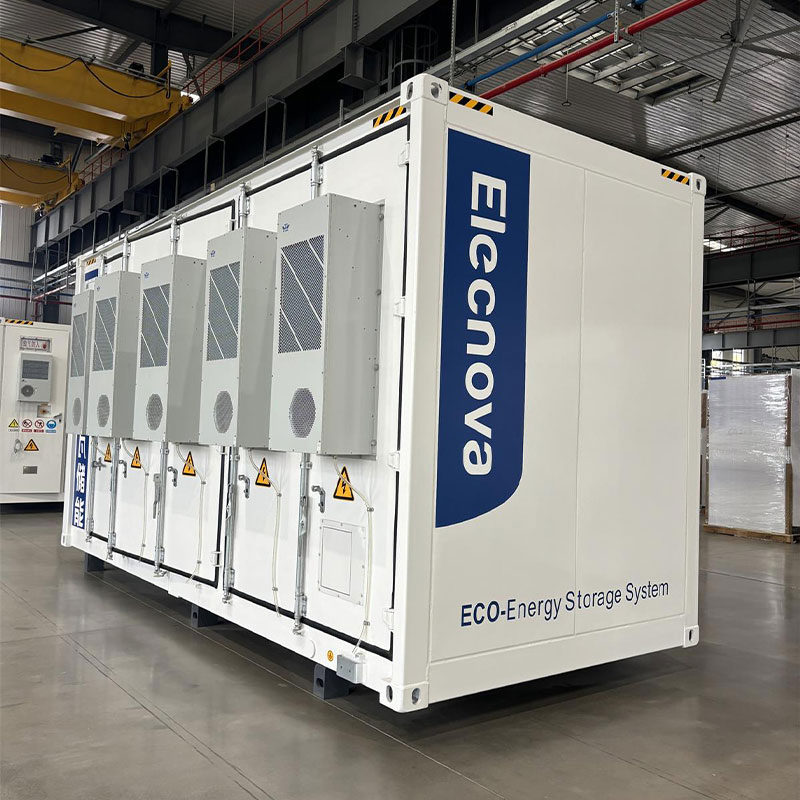

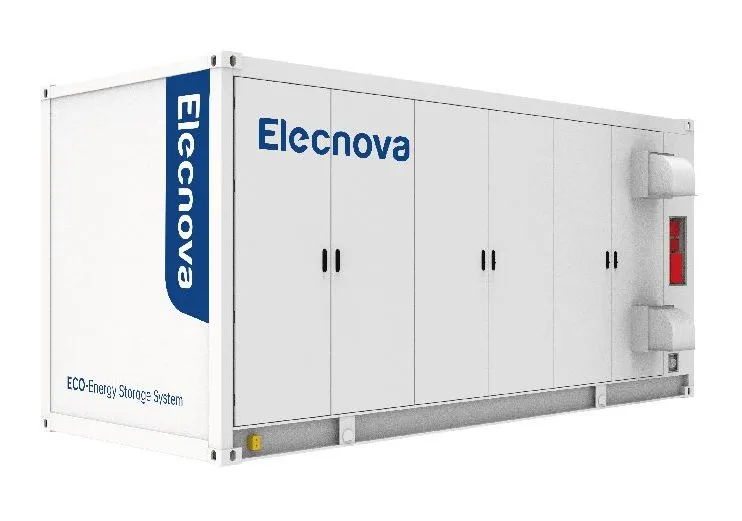

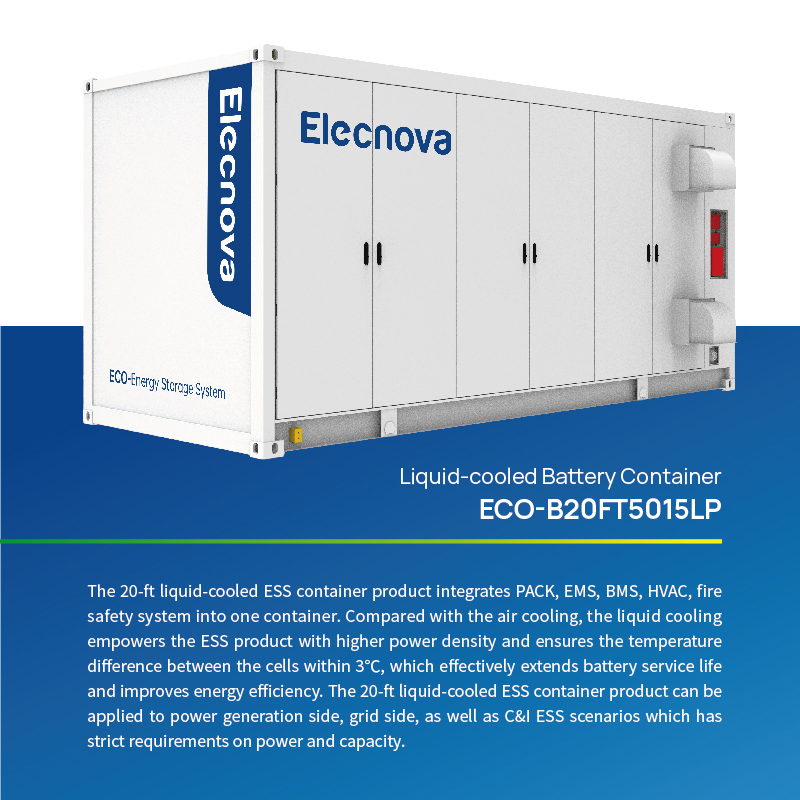

The 20-ft liquid-cooled ESS container product integrates PACK, EMS, BMS, HVAC, and fire safety systems into one unified container. Compared with air cooling, liquid cooling empowers the product with higher power density and ensures a cell temperature difference within 3ºC, effectively extending battery service life and improving energy efficiency.

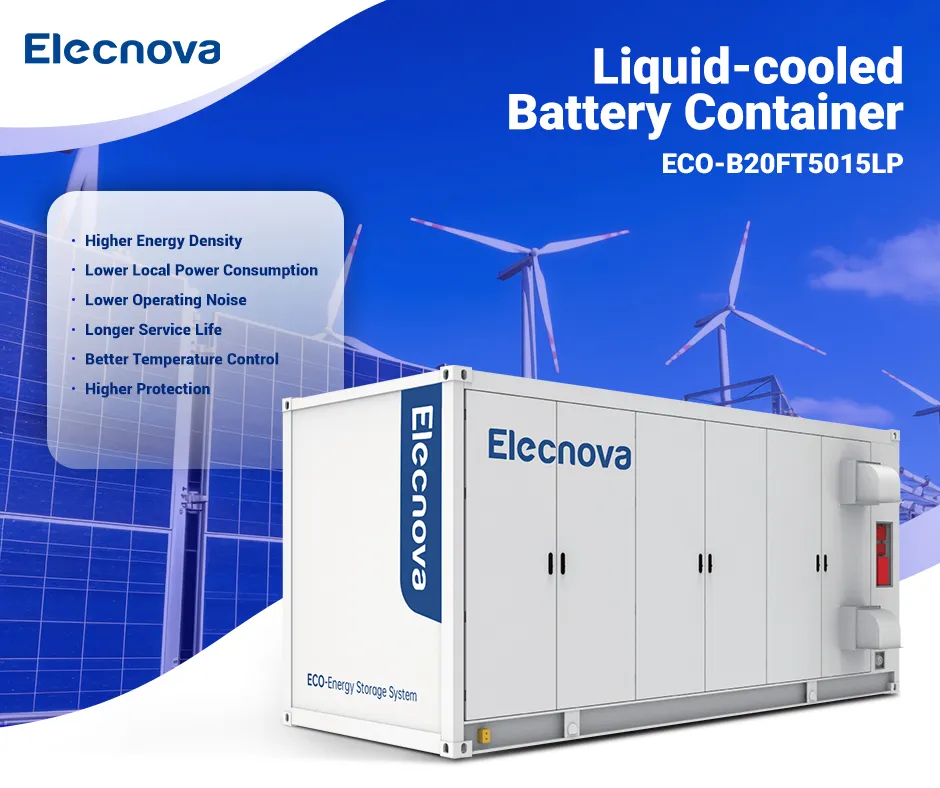

Product Advantages:
*Higher Energy Density
*Higher Protection
*Lower Local Power Consumption
*Lower Operating Noise
*Longer Service Life
*Better Temperature Control

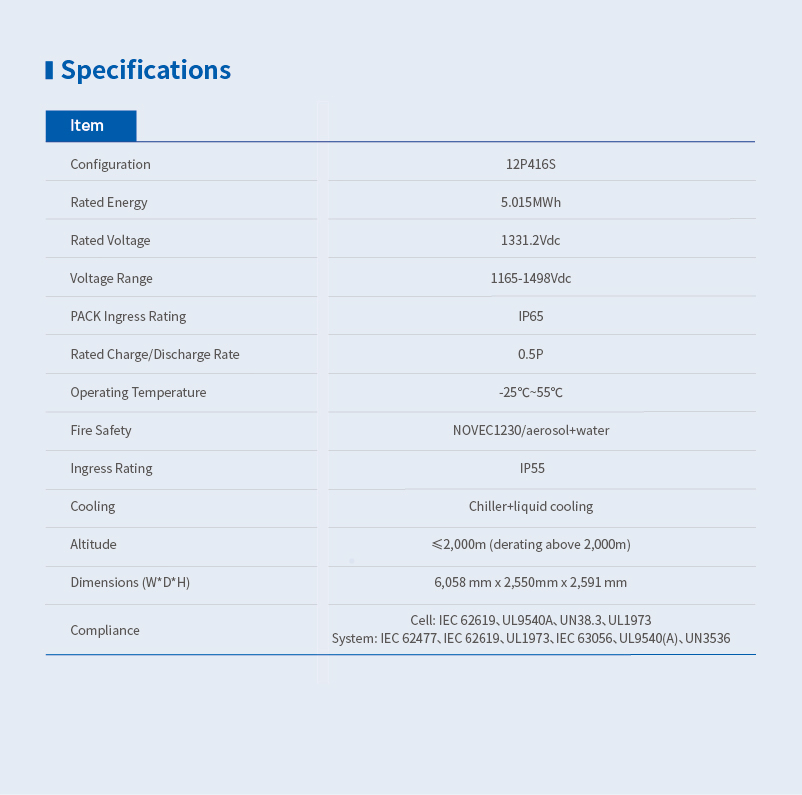

| Item | Specification |
|---|---|
| Cell type | LFP314Ah |
| Configuration | 12P416S |
| Rated Energy | 5.015MWh |
| Rated Voltage | 1331.2Vdc |
| Voltage Range | 1165-1498Vdc |
| PACK Ingress Rating | IP65 |
| Rated Charge/Discharge Rate | 0.5P |
| Operating Temperature | -25ºC~55ºC |
| Fire Safety | Aerosol+water |
| Ingress Rating | IP55 |
| Cooling | Chiller+liquid cooling |
| Dimensions (W*D*H) | 6,058 mm x 2,550mm x 2,896 mm |
| Weight | 45 t |
| Compliance | Pack: UN38.3, IEC62477, IEC61000, IEC62619, IEC63056 System: IEC62477, IEC61000, IEC62619, IEC63056, UL9540A |

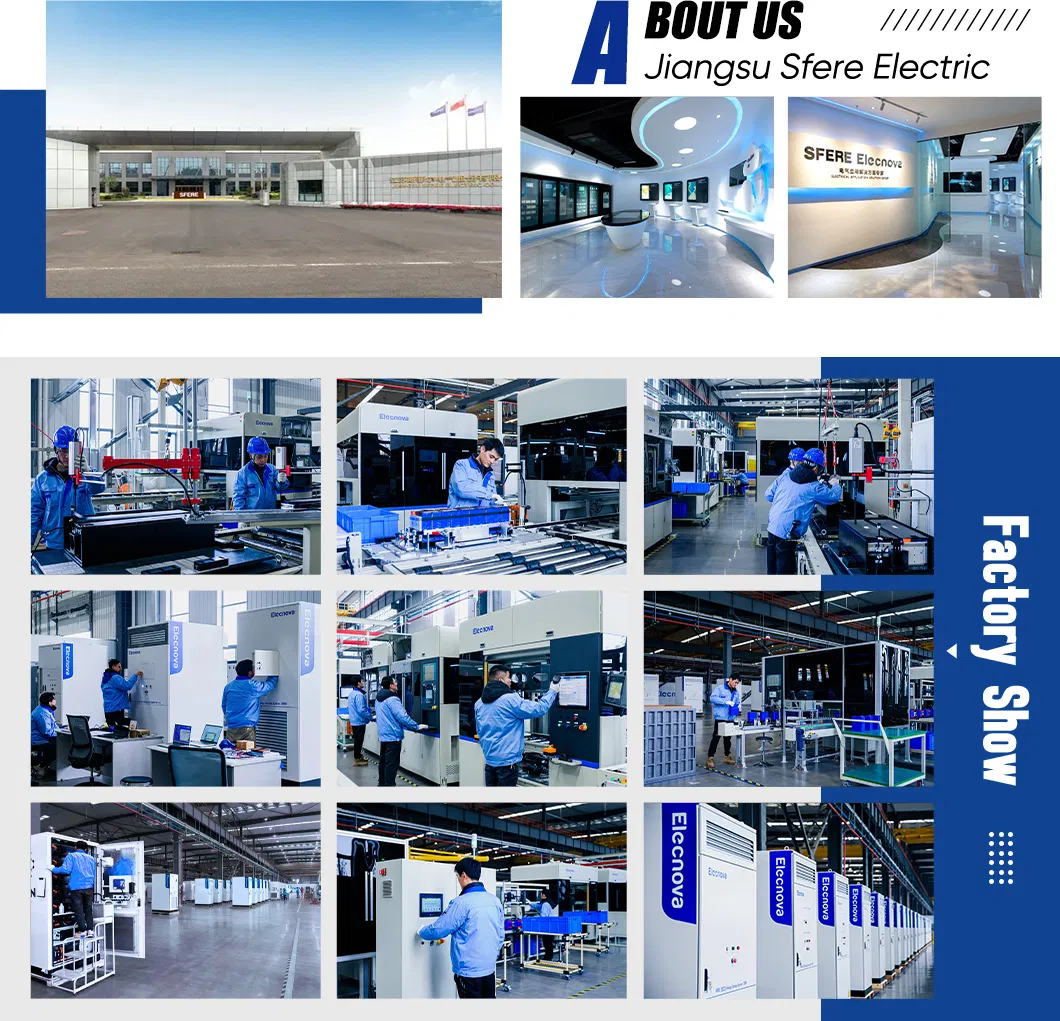

Our company integrates R&D, manufacturing, sales and service, offering a complete product ecosystem from smart terminal components to Internet of Things platforms. Our electrical application solutions empower users with intelligent and digital energy management, providing reliable data for energy saving and refined energy management.
Over the past decade, we have been honored with many awards, including High-tech Enterprise and Famous Brand certifications. We have obtained 122 invention and utility model patents and 42 software copyrights. We aim to meet diversified energy requirements with quality as our cornerstone, providing customized products for power generation, grid, and user-side scenarios.
