IP65 Single Phase 5kw Home Power System on off Grid Hybrid Inverter with MPPT Solar Charge Controller

1 / 5

IP65 Single Phase 5kw Home Power System on off Grid Hybrid Inverter with MPPT Solar Charge Controller

Customization:	Available
Nature of Source Flow:	Active Inverter
Certification:	ISO9001, CE

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.FR-5K

Output Power501 - 1000W

Grid TypeHybrid

Output TypeMultiple

Circuit TopologiesFull-Bridge Type

Nature of Wave StringSine Wave Inverter

Battery TypeLead-Acid or Lithium-Ion

MPPT Efficiency99.90%

Noise(dB)<40

CommunicationRS485; CAN

Max. Efficiency97.60%

Dimensions440x300x120mm

💡

Product Introduction

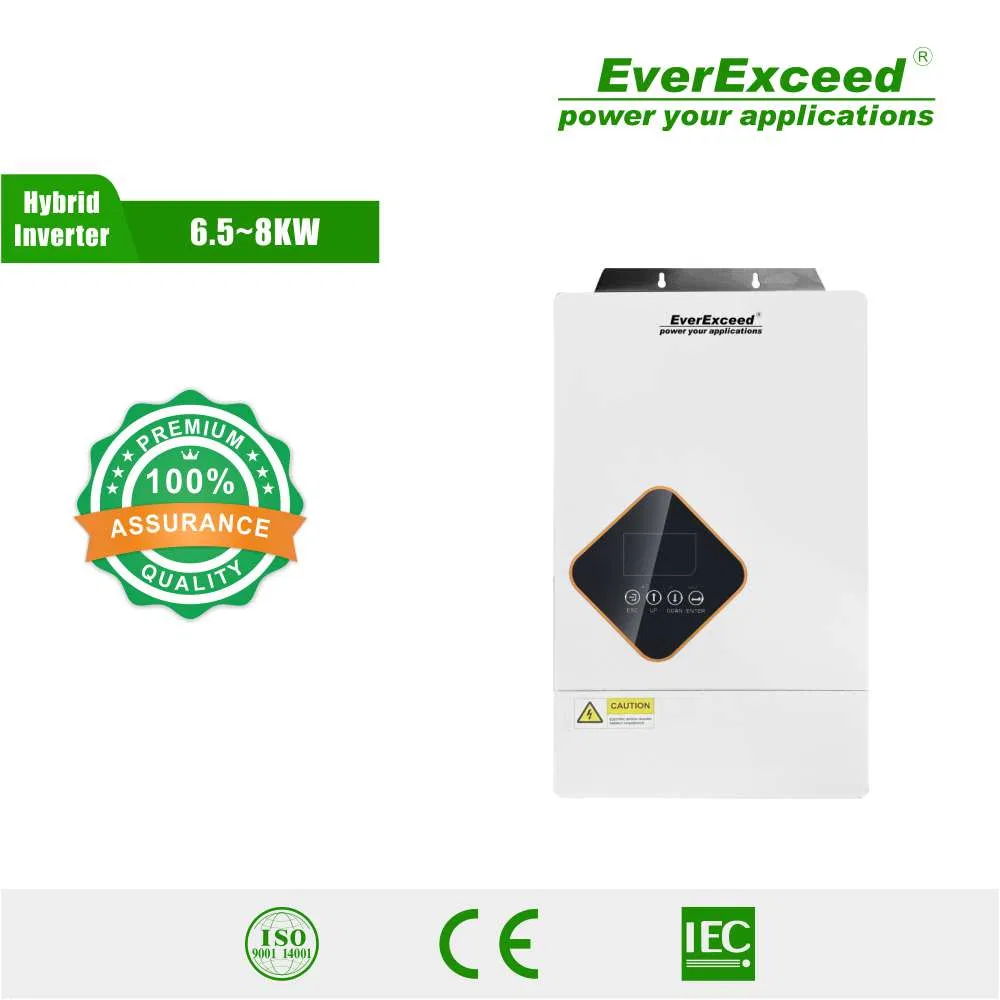

6kW / 8kW Hybrid Solar Inverter for Home & Commercial Use | Single & Three Phase | WiFi Monitoring Supported

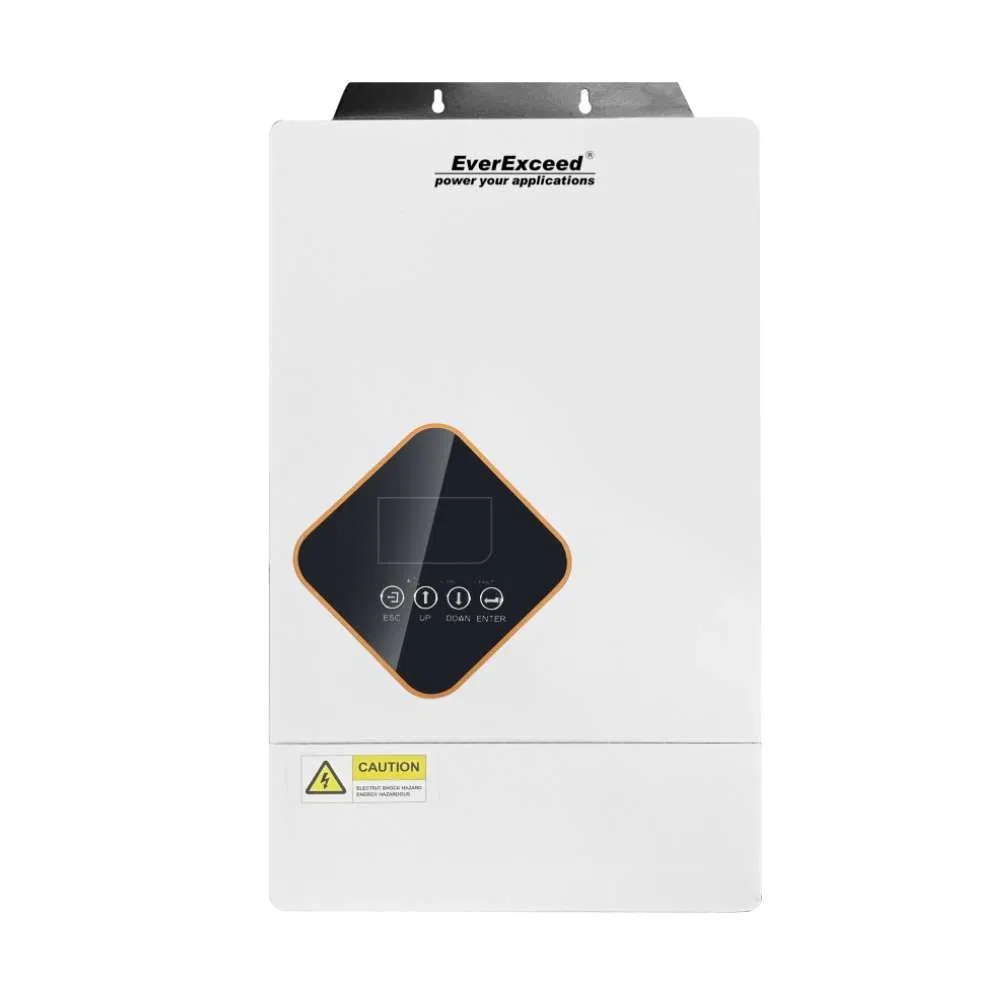

The EHCS series inverter is a high-end solar hybrid inverter designed for households and small commercial solar power plants. It utilizes solar power, batteries, and utility grid for hybrid power supply to ensure uninterrupted power supply. It helps maximize solar consumption, cut energy costs permanently, and reduces dependence on energy providers.

🛠️

Technical Features

✔

High Performance: Pure sine wave output, selectable charging current based on application.

✔

High Compatibility: Perfect match for a variety of batteries: Lithium, AGM, GEL, etc.

✔

Full Protection: Short circuit, over voltage, over temperature, overload, and reverse current protection.

✔

Smart Monitoring: Supports APP remote monitoring with optional WIFI module.

✔

Flexible Expansion: Up to 9 units in parallel for fast capacity expansion.

✔

Fast Charging: Maximum support of 80A for rapid battery charging.

📋

Detailed Parameters

Models		EHCS-6.5K-Pro	EHCS-8K-Pro
AC Input	Input Voltage	90-264VAC (Normal) / 170-264VAC (UPS)
	Voltage Range	230VAC
	Frequency	50/60Hz
AC Output	Rated Power	6500W	8000W
	Output Voltage	208/220/230/240VAC
	Waveform	Pure Sine Wave
	Efficiency	≥92%
Battery	Rated Voltage	48VDC
	Constant Charge	56.4VDC
	Float Charge	54.0VDC
Solar Charge	Max. PV Power	6500W	7000W
	Max. PV Voltage	450VDC
	MPPT Range	60-430VDC
	Max. Charge Current	100A	110A

⚙️

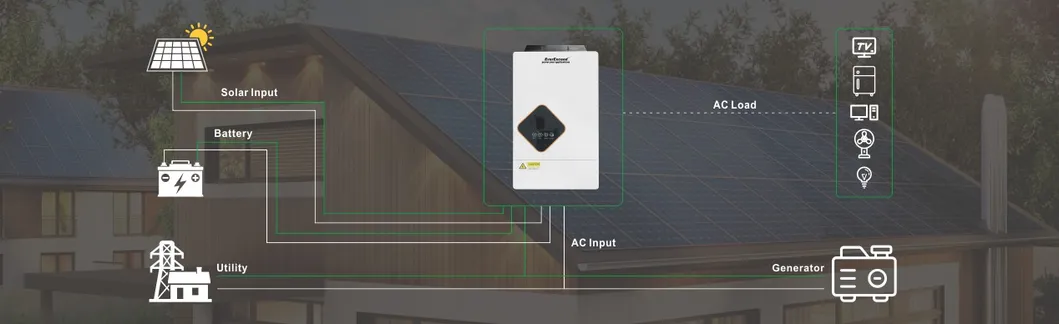

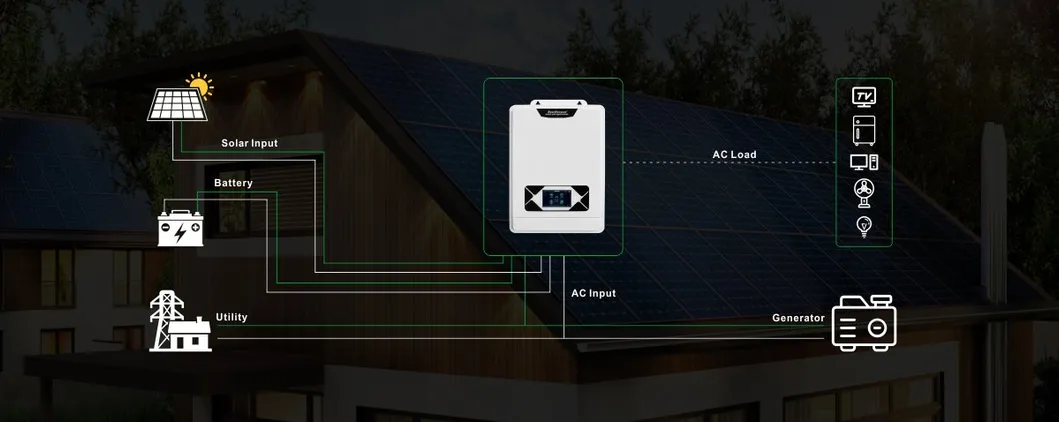

Operational Diagram

Shipping & Payment

PaymentT/T, L/C, Cash, Western Union

DeliverySea, Air, Train, Truck

Lead TimeNormally 4 weeks ex-factory

PackingCarton box with wooden pallets

Service Quality

Support24/7 Pre-sales & After-sales

WarrantyStandard 2 years (5+ on request)

Experience30+ years manufacturing experience

❓

Frequently Asked Questions

1. What types of batteries are compatible with this hybrid inverter?

The system is highly compatible and works perfectly with Lithium-Ion, AGM, and GEL batteries.

2. Can I monitor my solar power production remotely?

Yes, the inverter supports smart monitoring. You can use an optional WiFi module to monitor the system via a mobile APP.

3. Is it possible to expand the system if my power needs increase?

Absolutely. The inverter supports parallel connection for up to 9 units, allowing for easy and flexible capacity expansion.

4. What is the efficiency of the MPPT solar charge controller?

The integrated MPPT controller features an extremely high efficiency of 99.90%, ensuring maximum energy harvest from your solar panels.

5. Does the inverter provide protection against electrical faults?

Yes, it includes full protection functions such as short circuit, over voltage, over temperature, overload, and battery reverse connection protection.

6. What is the typical transfer time during a power outage?

In UPS mode, the transfer time is less than 10ms, ensuring that your home appliances continue to run without interruption.
