Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System

1 / 5

Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

MPPT-R

Condition

New

Certification

ISO, CB, CE

Rated Voltage

12/24/36/48V

Color

Black

Package Size

280.00cm * 204.00cm * 101.00cm

HS Code

9032899090

Application

Solar System Controller, Charger Controller, Lighting, etc.

Product Features

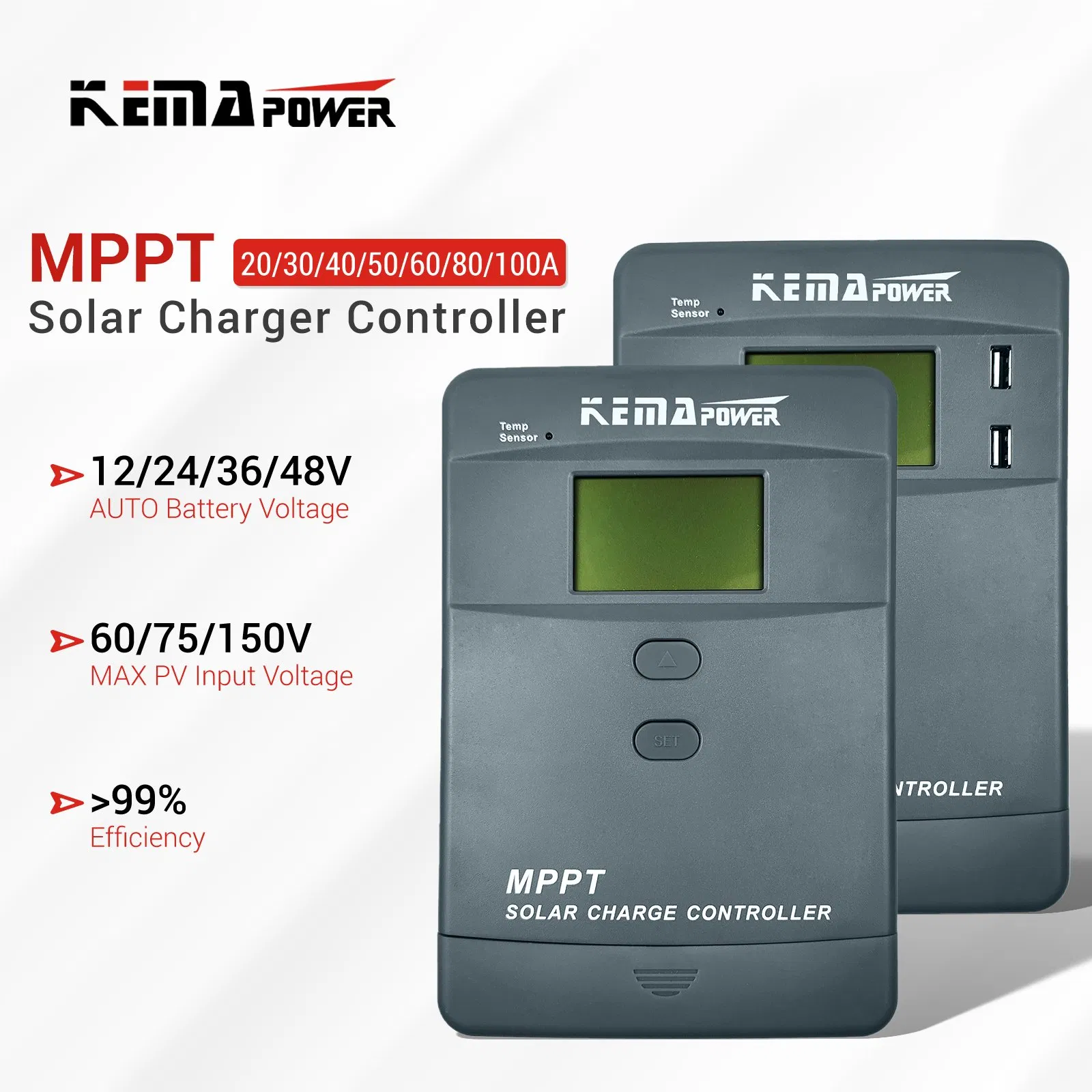

MPPT Solar Charge Controller - MPPT-R Series

MPPT solar charge controller 12/24V 20-60A and 12/24/36/48V 30-100A
Common Positive, Max PV input 60/75/150V, efficiency >99%
LCD display for PV Bat Load parameter setup and working status
Multi-stages charging: Bulk, Absorption, Float, Equalization, CV
Supports GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2, and customization
Temperature Compensation and current limiting charging
Integrated Lithium battery activation function
Internal Bluetooth or External WIFI Communication optional
Dual 2A/5V USB ports (available for 12/24V 20-40A models)

Technical Specifications

Model	MPPT2420R	MPPT2440R	MPPT2460R	MPPT4860R	MPPT4880R	MPPT48100R
System voltage	12 / 24V Auto			12 / 24 / 48V Auto
Rated charging current	20A	40A	60A	60A	80A	100A
Max PV VOC	<60V	<100V	<100V	<150V
Max Input (12V)	260W	520W	780W	780W	1040W	1300W
Max Input (24V)	520W	1040W	1560W	1560W	2080W	2600W
Max Input (48V)	/	/	/	3120W	4160W	5200W
Battery type	GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2, customization
Lithium activation	YES
Protection class	IP30
Cooling mode	Natural		Fan	Fan

* 24V system 2x; 36V system 3x; 48V system 4x of parameters mentioned above.

Product Display

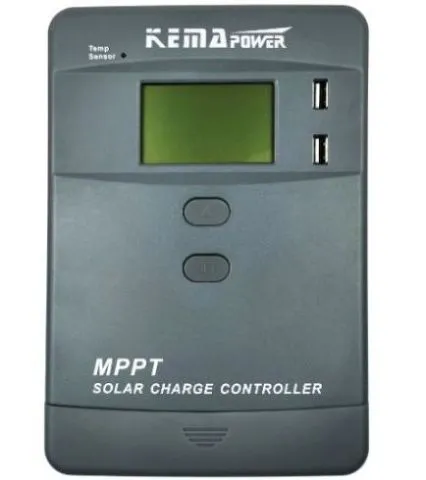

MPPT-R 20A - 40A Models

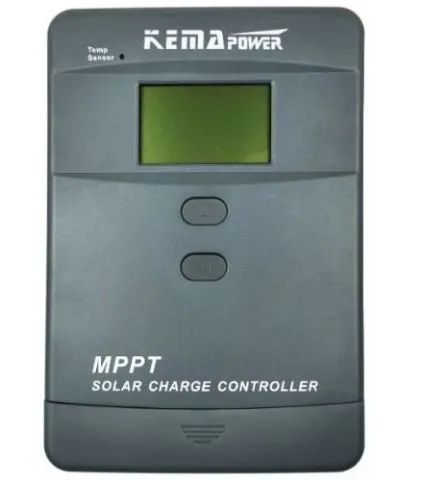

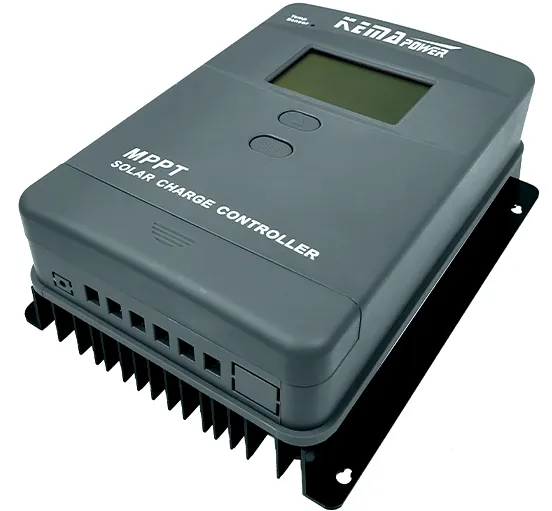

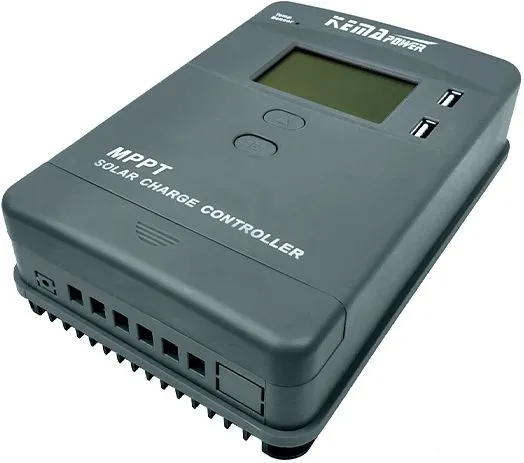

MPPT-R 50A - 60A Models

Cooling Systems & Interfaces

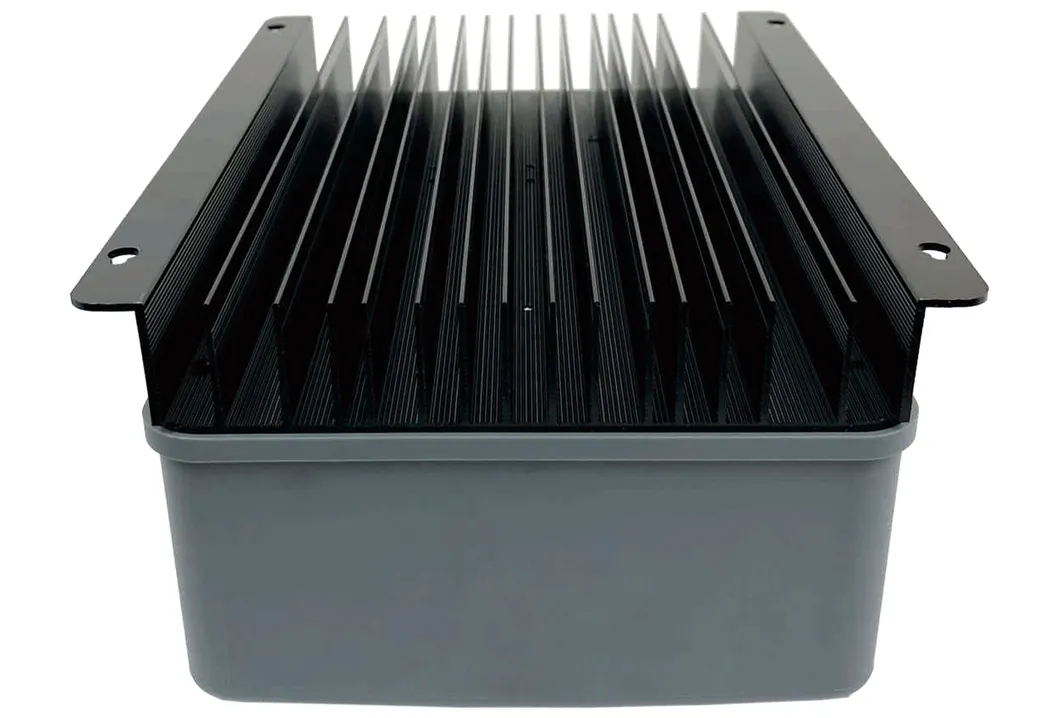

20-40A Natural Cooling

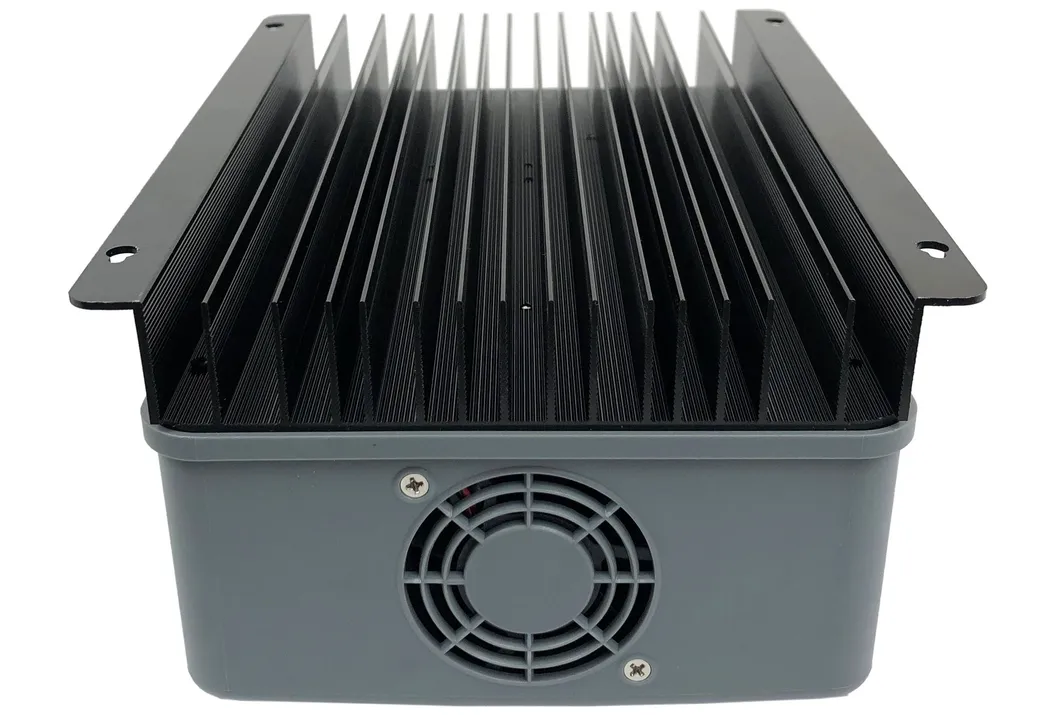

50-100A Fan Cooling

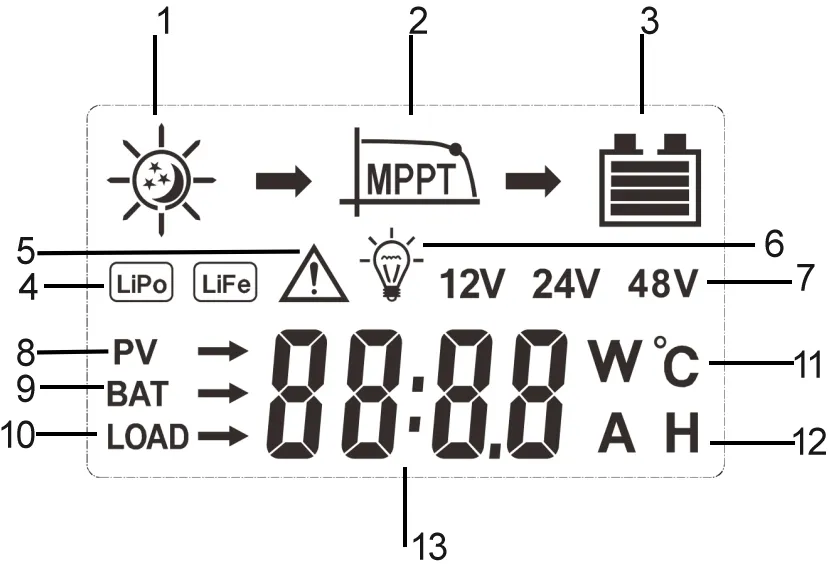

Intelligent LCD Display

Frequently Asked Questions

What is the conversion efficiency of the MPPT-R controller?

The MPPT-R series features advanced Maximum Power Point Tracking technology with a tracking efficiency of over 99%, ensuring maximum energy harvest from your solar panels.

Does this controller support lithium batteries?

Yes, it is fully compatible with various battery types including LiFePO4, Li(NiCoMn)O2, GEL, Sealed, and Flooded batteries. It also features a dedicated lithium battery activation function.

Can I monitor the system remotely via my smartphone?

Yes, the controller supports optional internal Bluetooth or external WIFI communication modules, allowing you to monitor and set parameters through a mobile app.

What kind of protection does the MPPT-R offer?

It includes comprehensive protection features such as PV reverse connection protection, battery reverse connection protection, battery over/low voltage protection, and overload protection.

How do the cooling systems differ between models?

Models ranging from 20A to 40A utilize natural convection cooling (silent), while high-power models from 50A to 100A are equipped with intelligent fan cooling to maintain optimal operating temperatures.

Does the controller provide USB charging ports?

The 12/24V 20A-40A models are equipped with two 5V/2A USB ports, making it convenient to charge mobile devices directly from the solar system.
