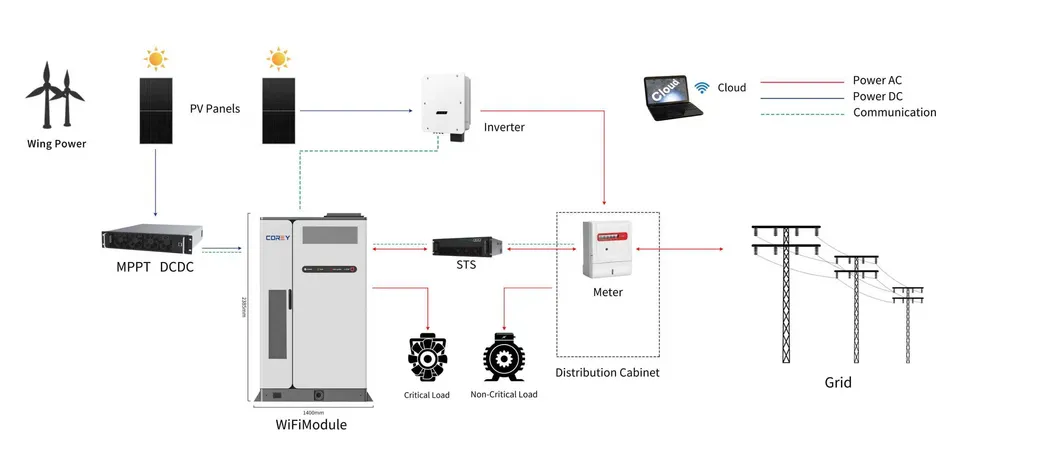

Based on German wholesale time-of-use electricity prices, the net income through peak and valley electricity arbitrage can reach €7,447 per year, with a static payback period of approximately 4.4 years.
| Project | Unit | Numerical Value |
|---|---|---|
| System Capacity | kWh | 100 |
| Total Investment | € | 32,609 |
| Peak and Valley Differential | €/kWh | 0.238 |
| Annual Electricity Savings | €/year | 8,099 |
| Annual Maintenance Cost | €/year | 652 |
| Static Payback Period | year | 4.4 |

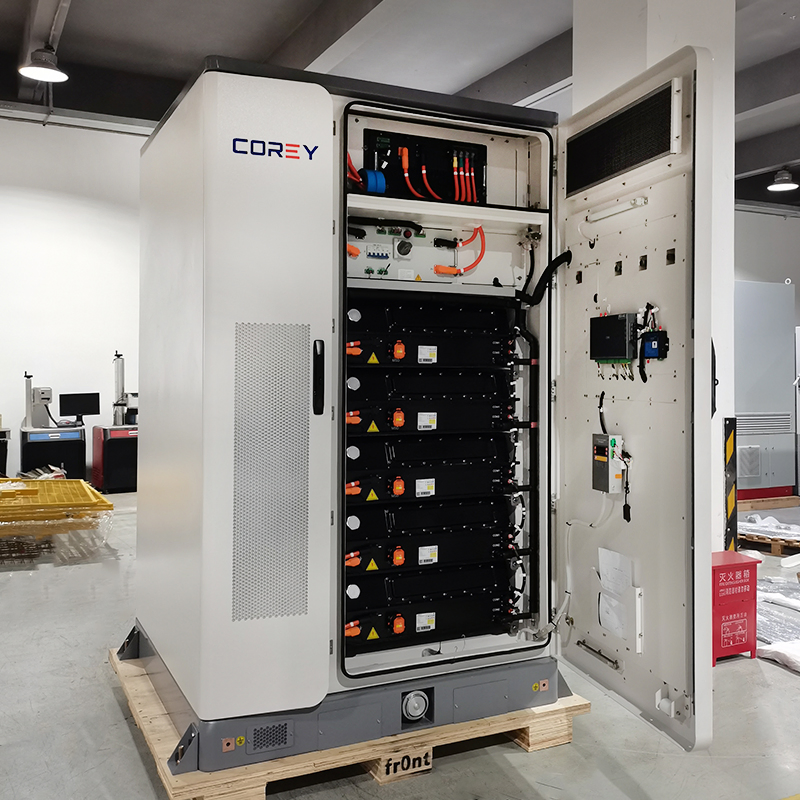

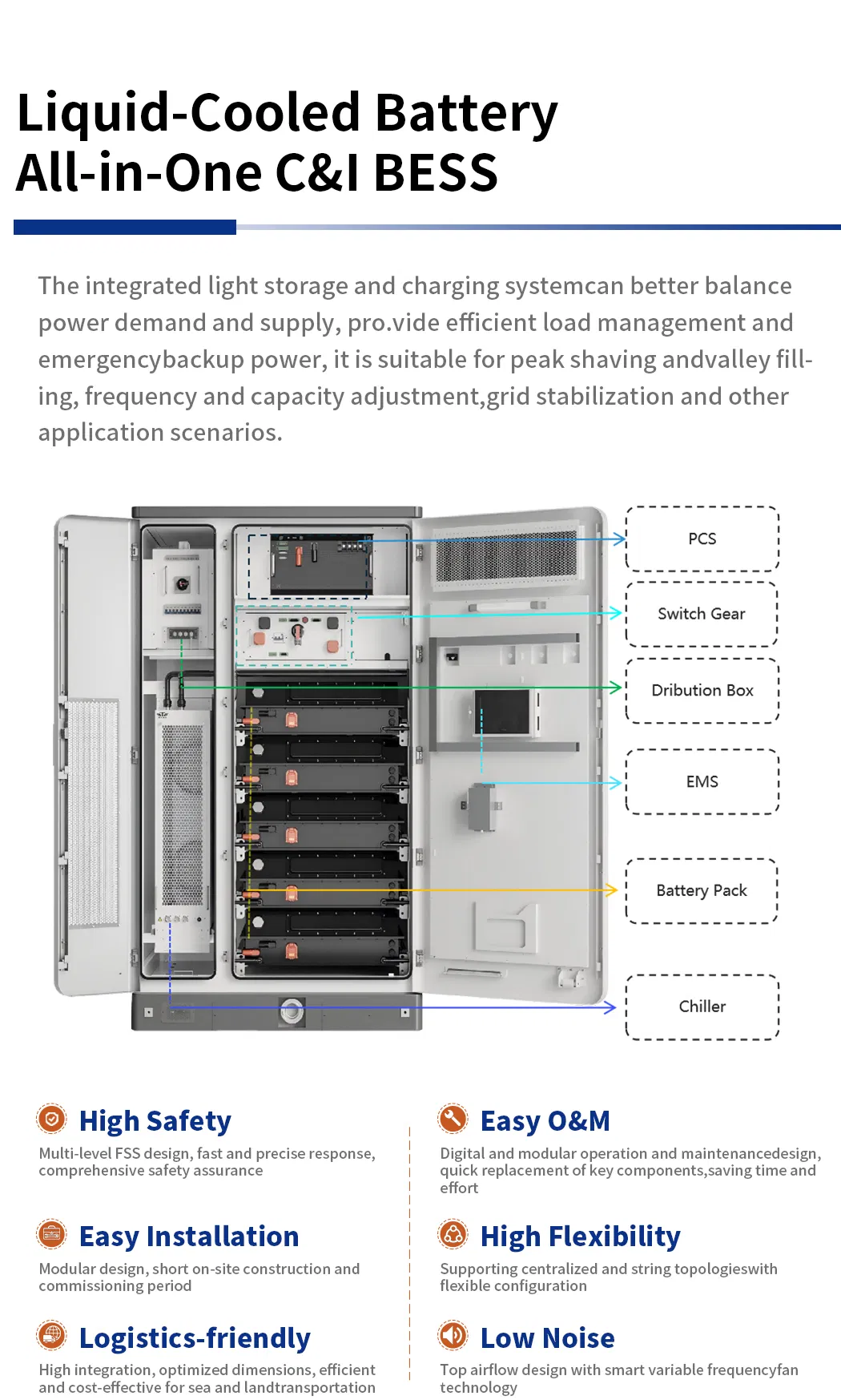

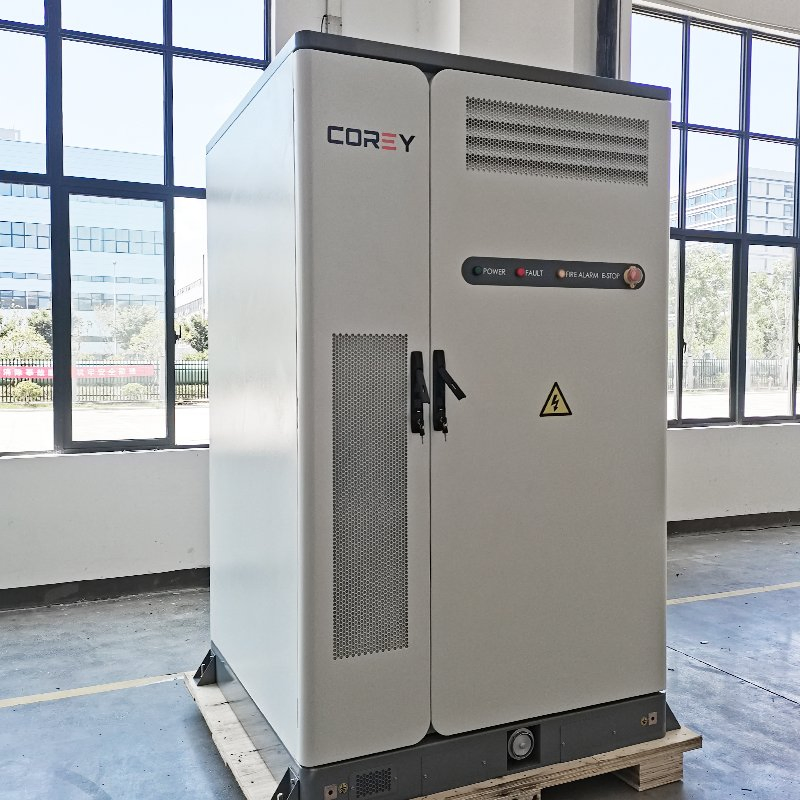

This industrial storage cabinet system utilizes multi-stage protection for battery packs and clusters to isolate faults effectively. The three-tier intelligent fire safety design ensures maximum safety for personnel and assets.
| System Parameter | Specification | |
| Battery System | Battery Cell | LFP (LiFePO4) 3.2V 280Ah |
| System Capacity | 233kWh | |
| Rated Power | 105kW | |
| Cooling Method | Intelligent Liquid Cooling | |
| AC Side | Rated Voltage | 230V/400V (±15%) |
| Rated Frequency | 50/60 Hz | |
| Maximum Current | 167A | |
| Switching Time | 20ms (Optional) | |
| General | Dimensions | L1560mm*D1380mm*H2385mm |
Ideally suited for commercial buildings, factory complexes, remote areas, and regions experiencing power shortages.

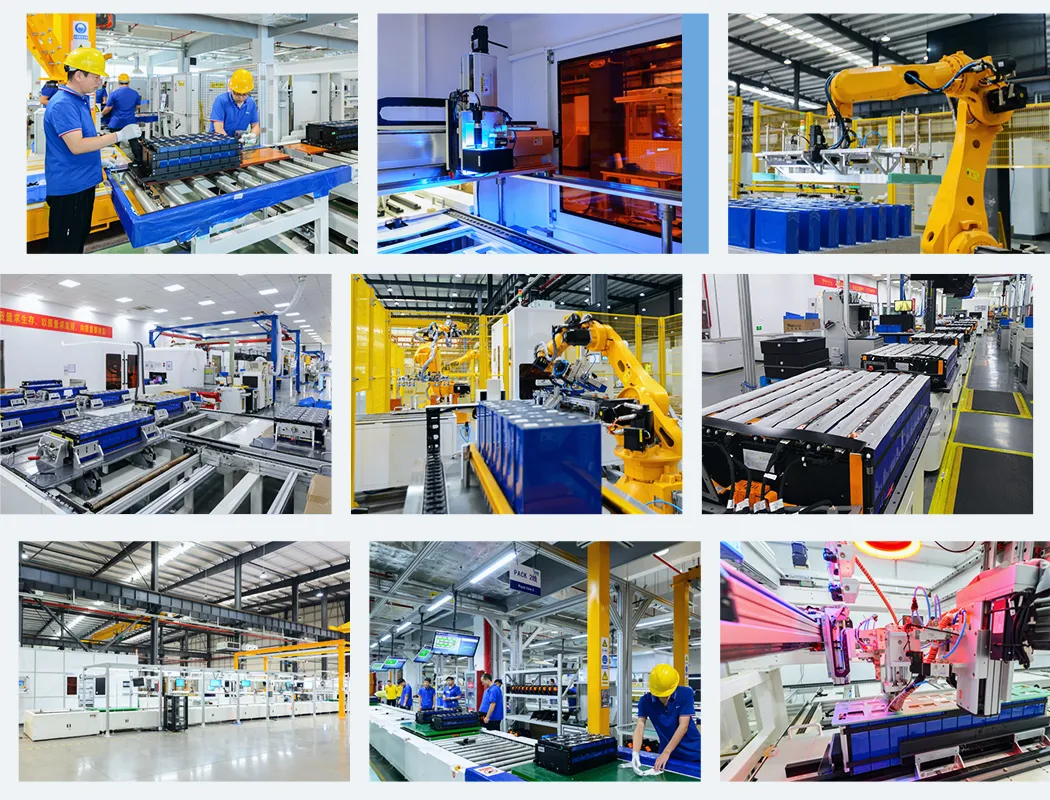

Specializing in automated intelligent equipment and laser welding technologies for lithium battery modules. We provide one-stop green power station solutions including turnkey service, microgrid solutions, and large-scale energy storage projects.
