The solar photovoltaic power system connected to the public grid is called an on-grid photovoltaic power generation system. The system structure includes solar battery arrays, DC/DC converters, DC/AC inverters, AC loads, transformers, and other vital components.

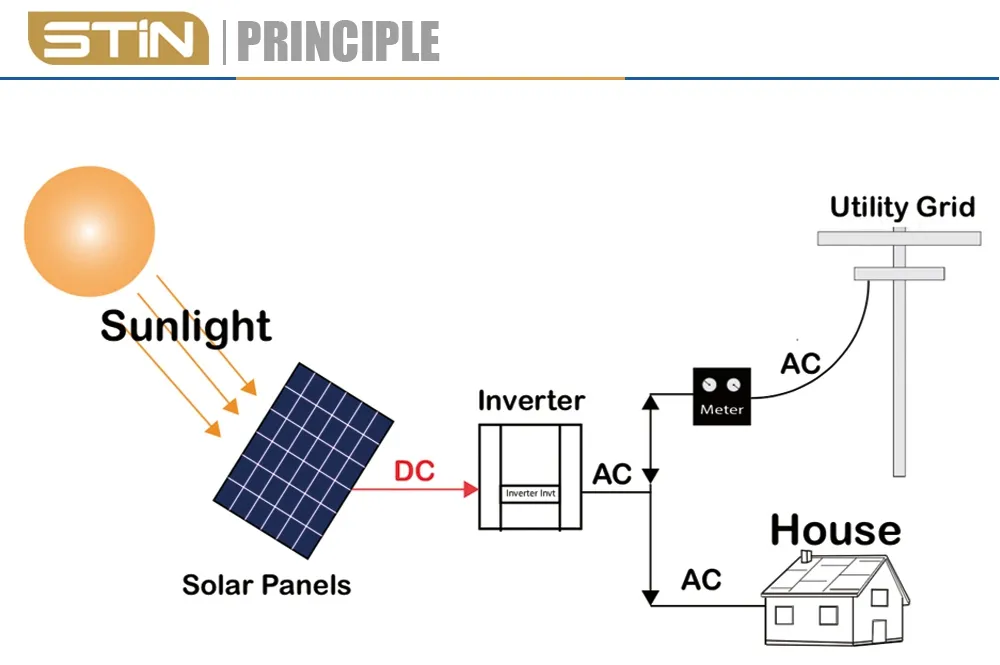

The grid-connected system converts the DC power from solar cells into AC power synchronized with the grid's voltage and frequency. When sunlight is strong, the system supplies the local load and feeds excess energy into the grid. During low sunlight periods, the grid provides the necessary power to the load, ensuring continuous operation.

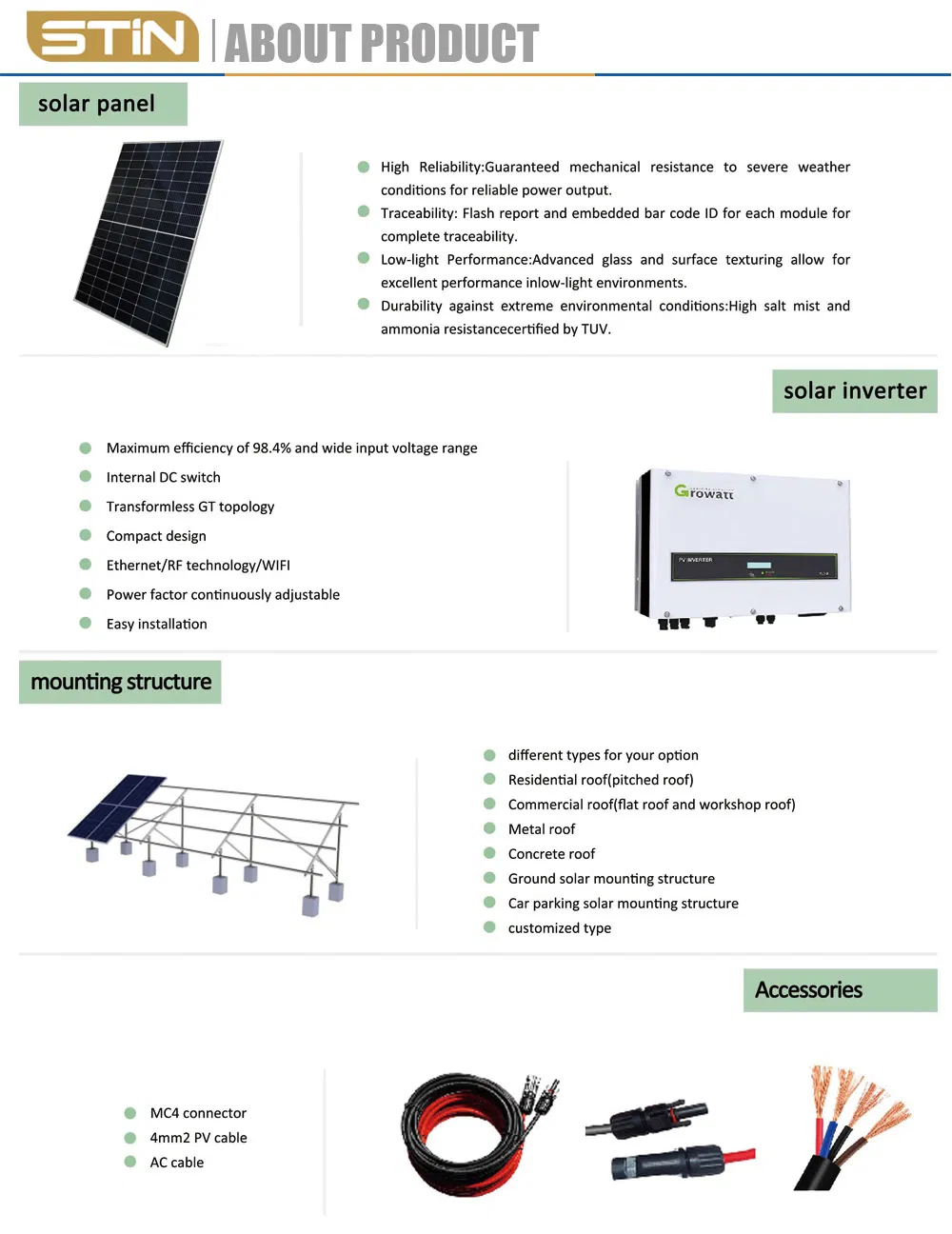

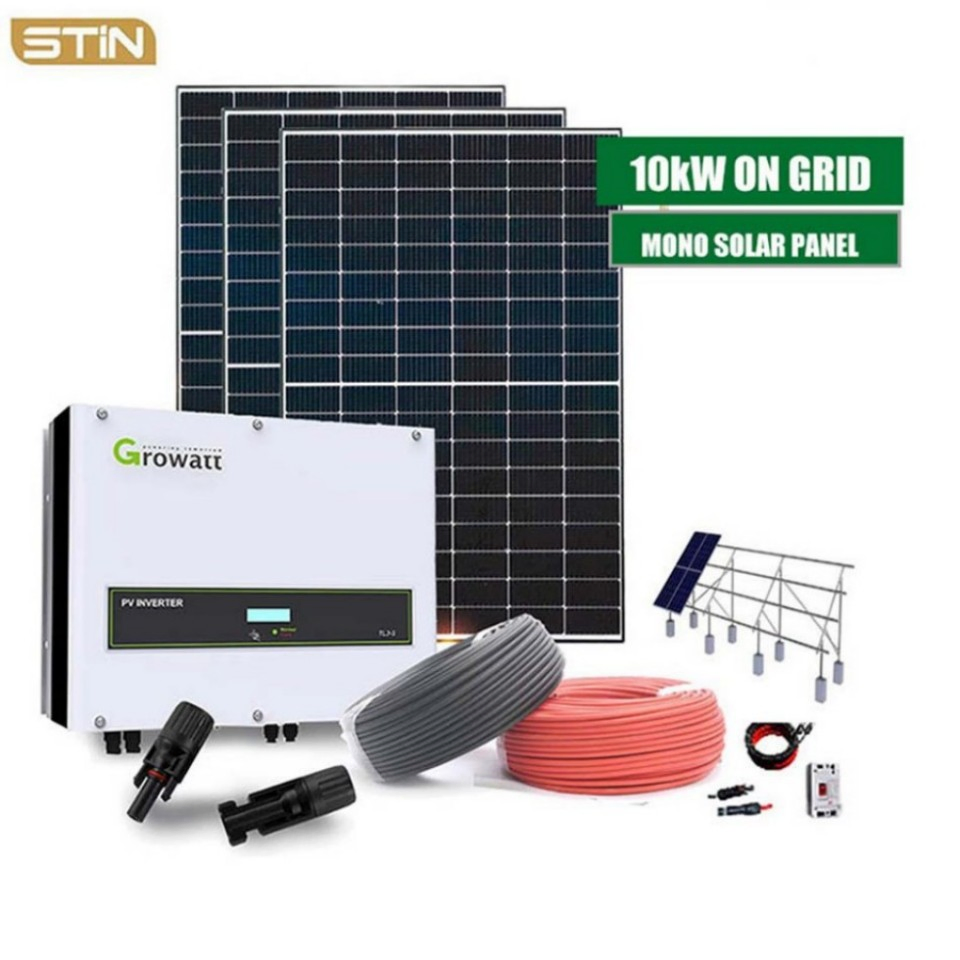

| Item | Part | Specification | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Solar Panel | Mono 410W | 26 PCS | 13 in string, 2 strings in parallel |

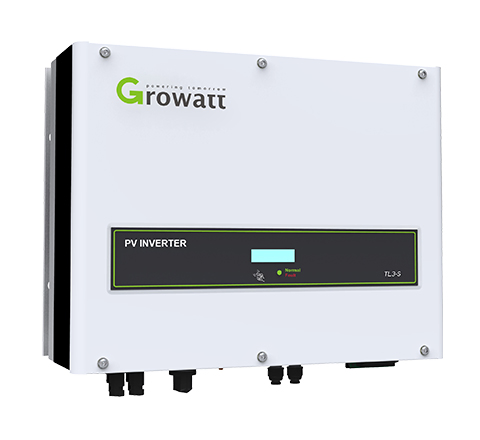

| 2 | Inverter | 10000TL3-S | 1 SET | Three phase output |

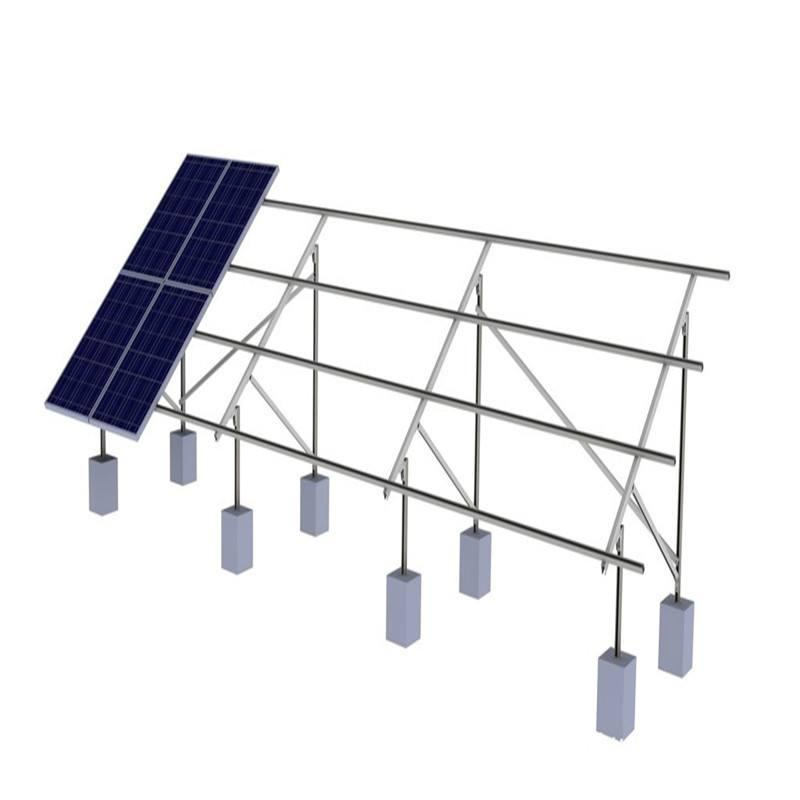

| 3 | Bracket | C-shaped steel | 1 SET | Hot-dip galvanized zinc |

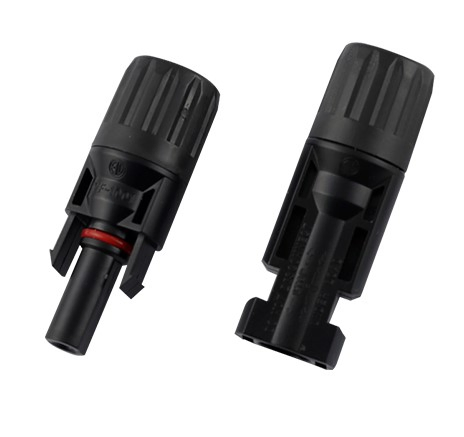

| 4 | Connector | MC4 | 3 Pairs | Standard PV connector |
| 5 | GPRS Module | Monitoring Device | 1 PC | Remote system monitoring |
| 6 | AC Cables | 4*4mm² | 20 M | High quality copper |

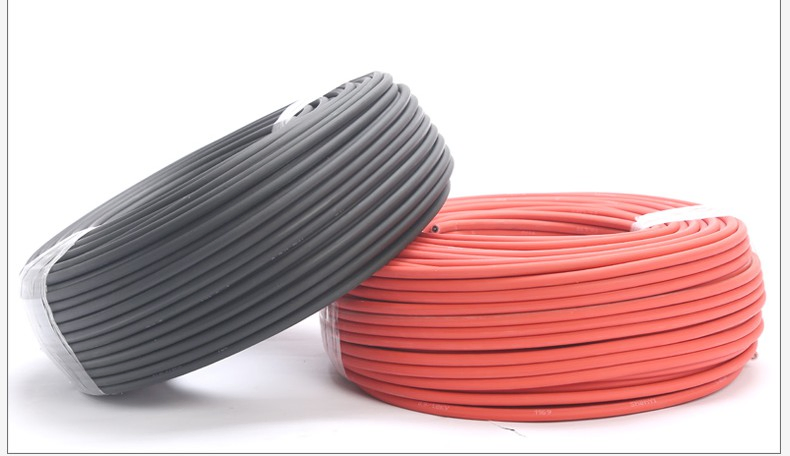

| 7 | PV Cables | 4mm² | 200 M | Panel to inverter connection |
| 8 | Distribution Box | AC with Breaker | 1 SET | Includes SPD protection |
