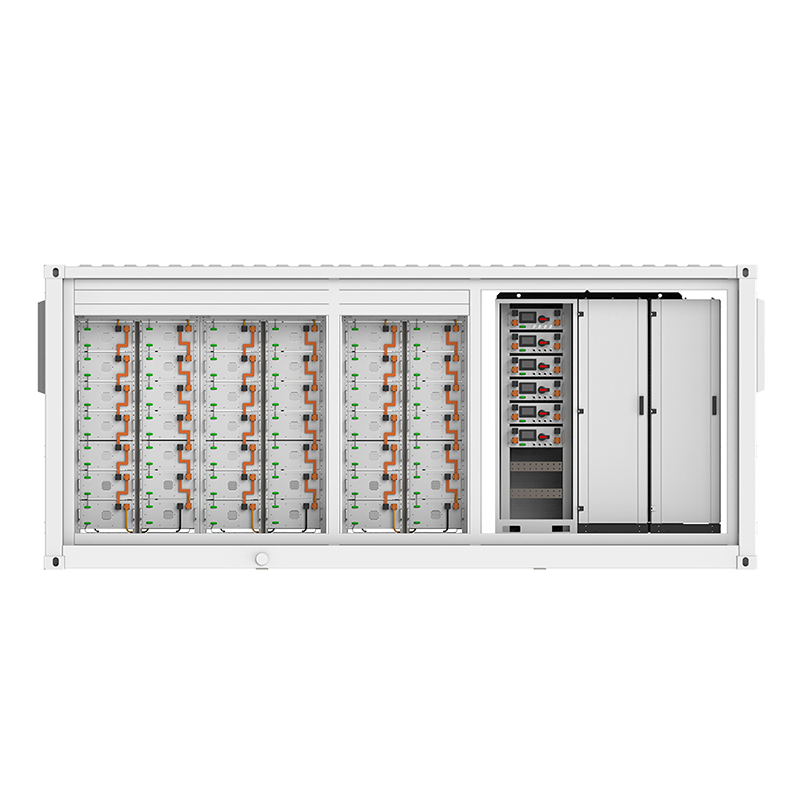

Home Br Solar Containerized Energy Hybrid Inverter Storage System with ISO

1 / 5

Home Br Solar Containerized Energy Hybrid Inverter Storage System with ISO

Customization:	Available
After-sales Service:	After- Sales Service
Warranty:	3 Years, 5 Years

Send Inquiry

Product Description

Basic Information

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial, School, Factory

Specification

100kwh, 233kwh

Type of Cell

Lithium Iron Phosphate (LFP)

Cell Parameter

3.2V/314ah

Cooling

Liquid Cooling

Protection Class

IP55

Max Charge/Discharge

0.5c

Rated Capacity

5.01 Mwh

Rated Voltage

1331.2V

Origin

China

HS Code

8501310000

Production Capacity

1000set/Month

Packaging & Delivery

Package Size

110.00cm * 140.00cm * 238.00cm

Gross Weight

2000.000kg

Transport Package

Carton and Pallet

Technical Specifications

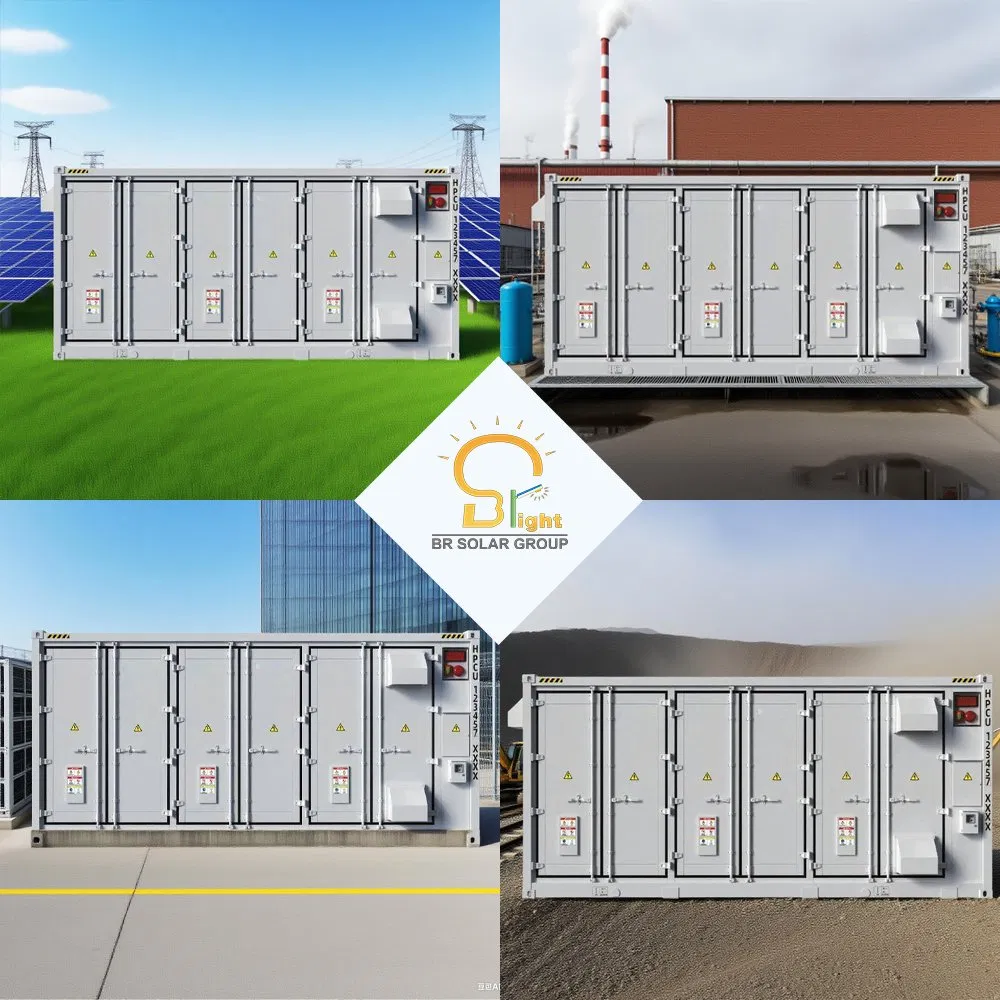

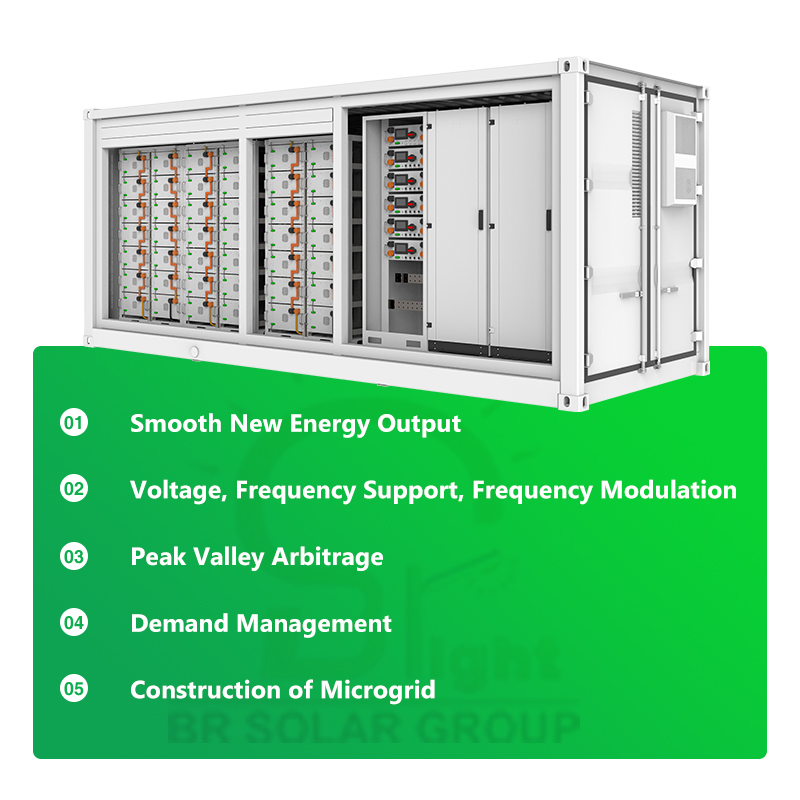

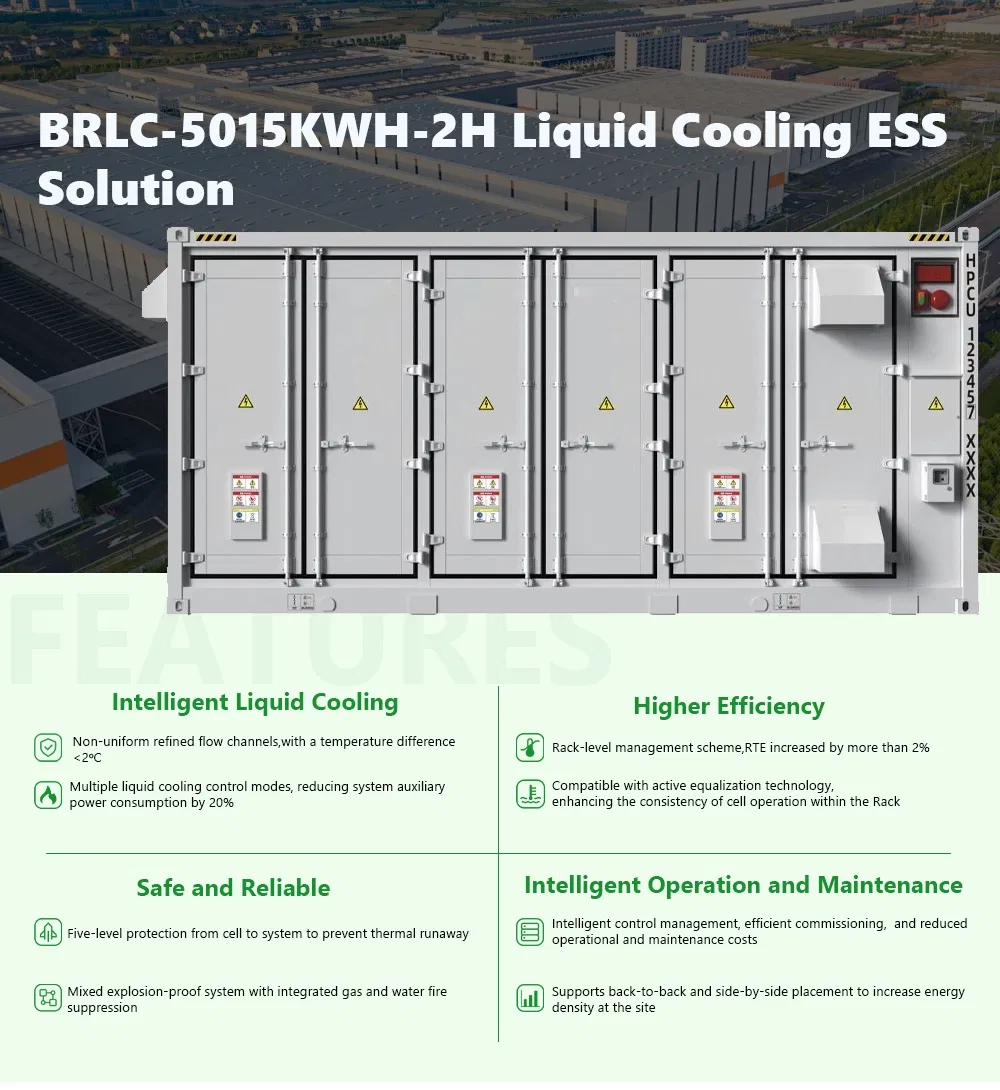

Containerized Energy Hybrid Inverter Storage System

Items	Parameters
Type of cell	Lithium Iron Phosphate(LFP)
Cell parameter	3.2V/314Ah
Max. charge/discharge power	0.5C
Configuration of system	1P416S×12
Rated capacity	5.01 MWh
Rated voltage	1331.2V
Voltage range	1164.8~1497.6V
Cooling method	Liquid Cooling
Operating temperature	−30~50ºC
Humidity	≤95%RH, no condensation
Altitude	≤3000m
Noise level	≤80dB(A), @1m / 75dB(optional)
IP grade	IP55
Storage temperature	−20~45ºC
Corrosion-proof grade	C4/C5(optional)
Fire protection	Temperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communication	Ethernet/CAN/RS485
Dimension(L×W×H)	6058×2438×2896mm
Weight	≈42000 kg

Product Display

Frequently Asked Questions

What type of battery cells are used in this system?

The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, specifically 3.2V/314Ah parameters, known for their safety and long cycle life.

How does the cooling system work?

This energy storage system uses advanced Liquid Cooling technology to maintain optimal operating temperatures between -30°C and 50°C.

What is the protection rating for outdoor use?

The system is rated at IP55, providing excellent protection against dust and water, making it suitable for various industrial and commercial environments.

What fire safety features are integrated?

Safety is a priority; it includes temperature sensors, smoke and combustible gas detectors, deflagration venting, fire extinguishing gas, and a water sprinkler system.

What is the rated capacity of the containerized system?

The system has a substantial rated capacity of 5.01 MWh, designed for large-scale energy storage requirements.

What communication interfaces are supported?

It features multiple external communication interfaces, including Ethernet, CAN, and RS485, for seamless integration with monitoring systems.

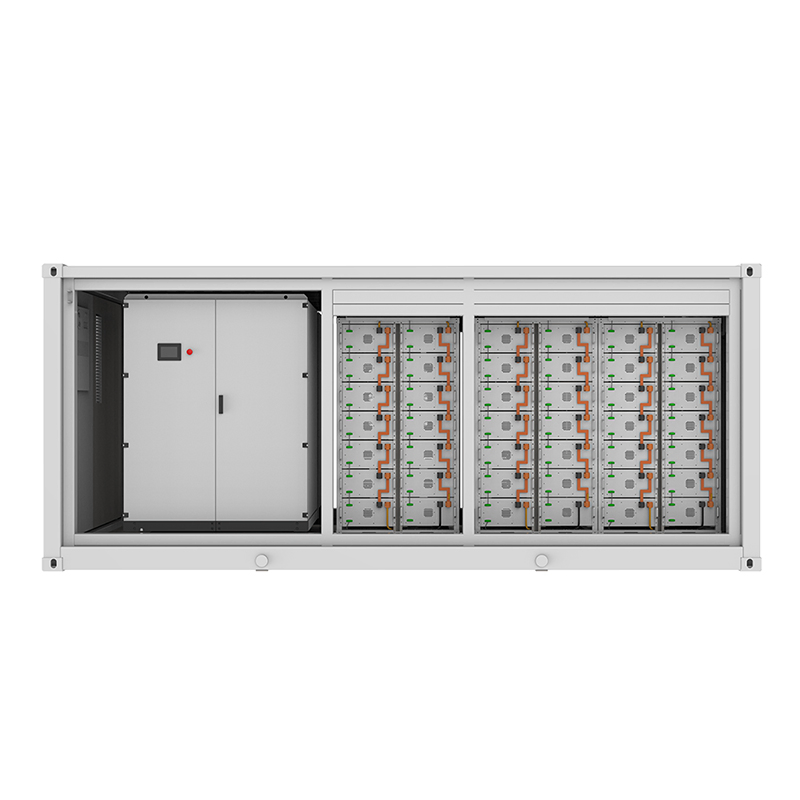

Home Br Solar Containerized Energy Hybrid Inverter Storage System with ISO
