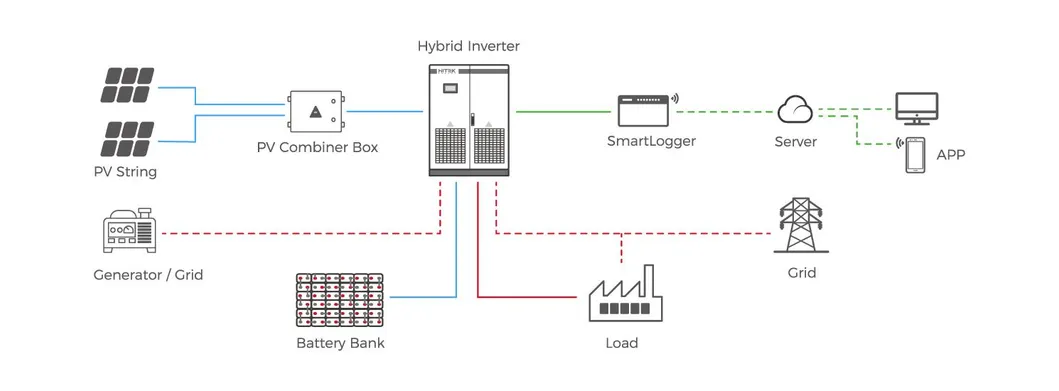

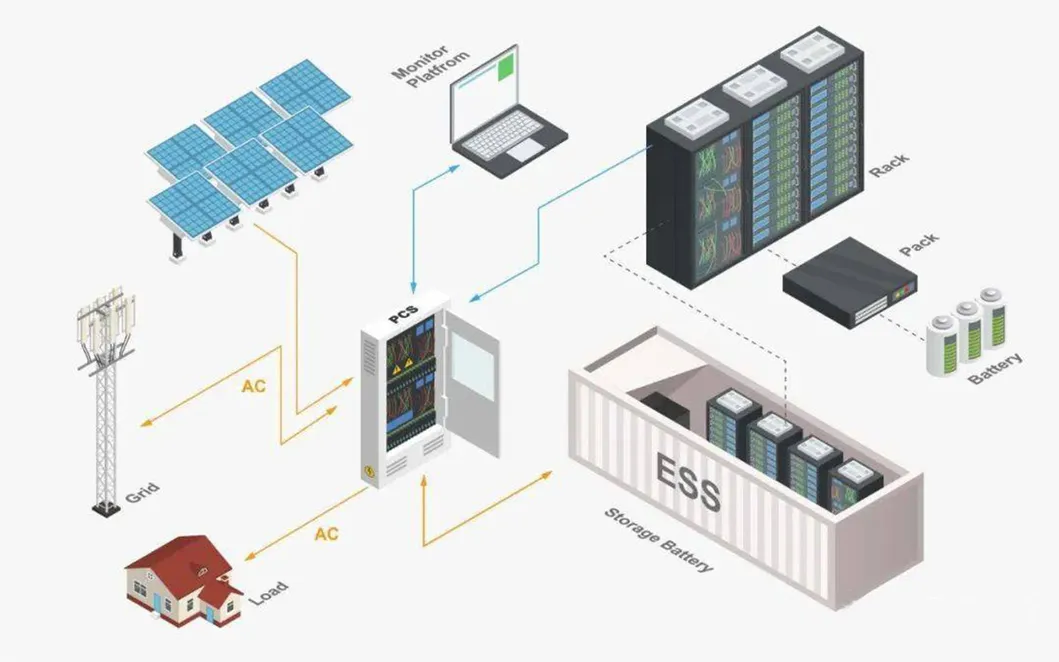

The hybrid solar system is a renewable energy solution that is grid-tied and includes battery storage. The system uses solar panels to produce energy during the day, while the batteries store excess energy for use at night or during power outages. These systems have both on-grid and off-grid capabilities.

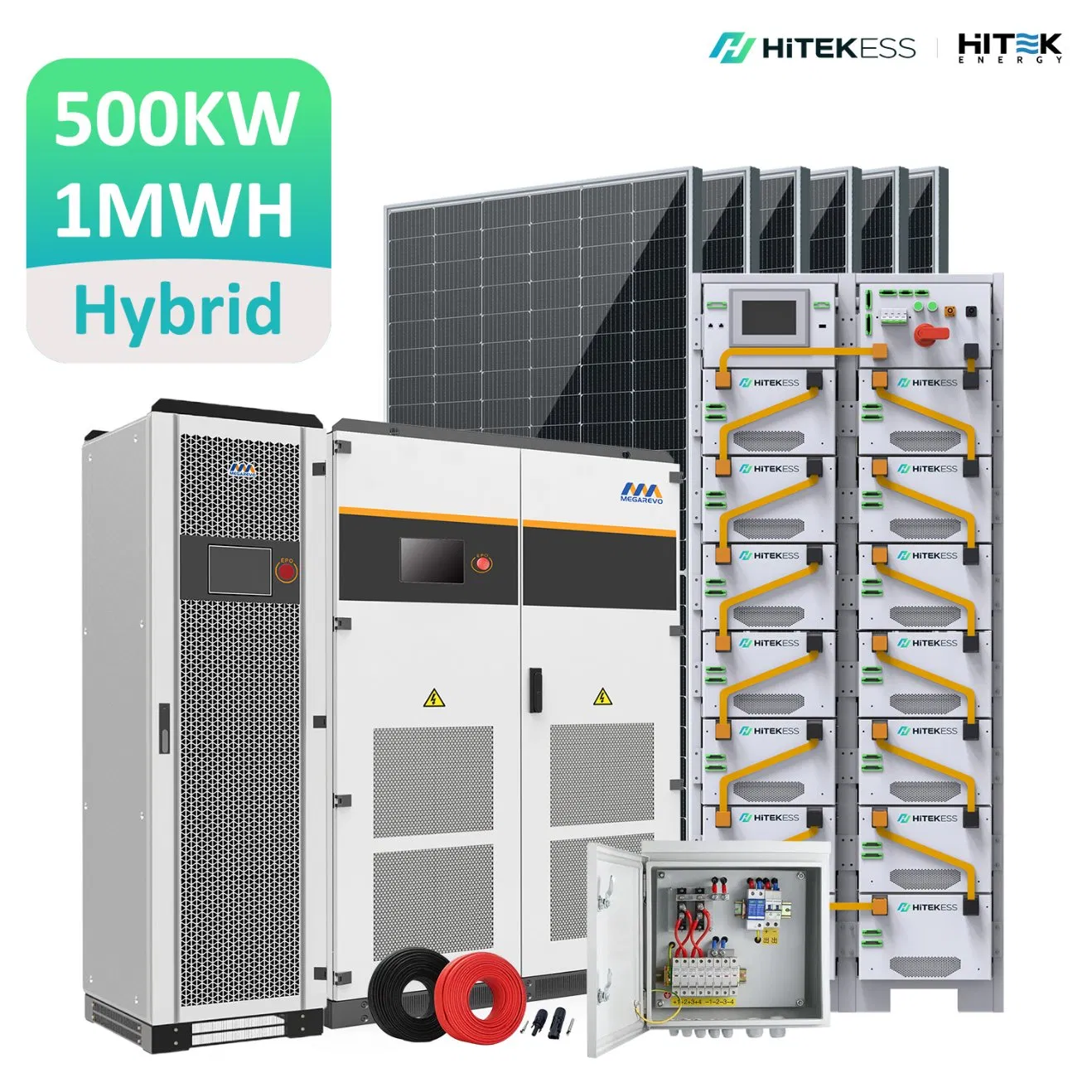

| Parameter | HT30KW-HY | HT50KW-HY | HT100KW-HY | HT250KW-HY | HT500KW-HY |
|---|---|---|---|---|---|
| AC Rated Power | 30KW | 50KW | 100KW | 250KW | 500KW |
| Solar Panels | 68 PCS | 102 PCS | 204 PCS | 510 PCS | 1020 PCS |
| Total PV Power | 38.08KW | 57.1KW | 114.24KW | 285.6KW | 571.2KW |
| Inverter Model | HTMPS30 | HTMPS50 | HTMPS100 | HTMPS250 | HTMPS500 |
| Battery Bank | 40.96KWH | 100.35KWH | 200.70KWH | 473.08KWH | 946.17KWH |
| Grid Voltage | 380/400VAC, 50/60HZ | ||||

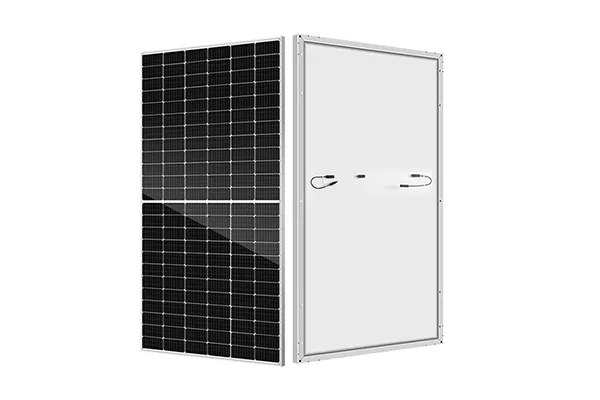

High efficiency 560Wp panels with 41.08V maximum power voltage. Robust dimensions for maximum yield.

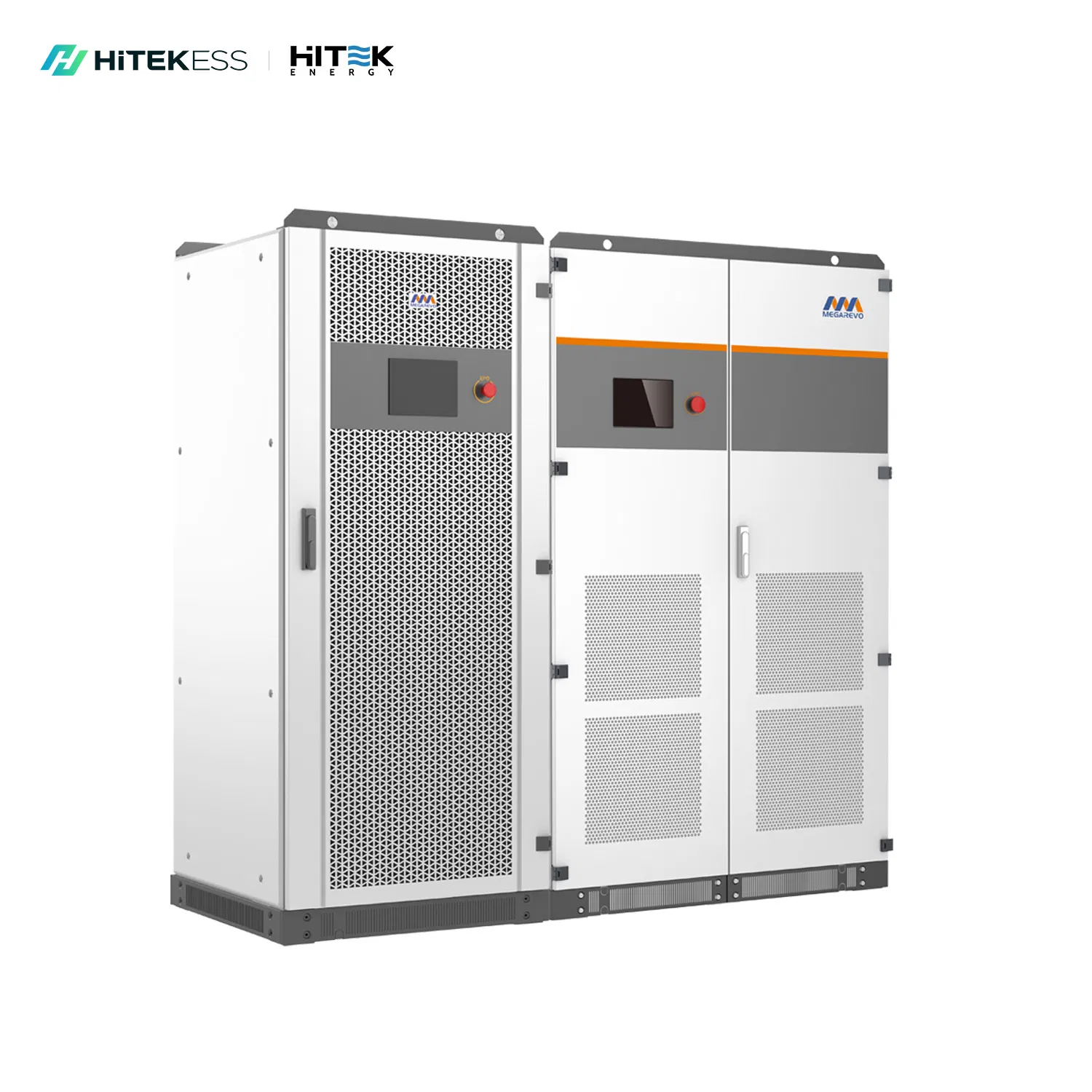

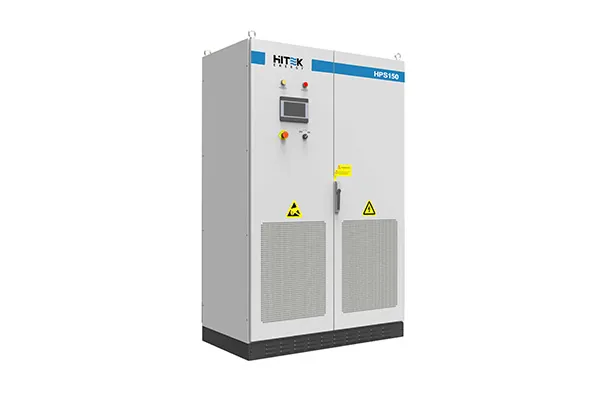

Programmable working modes, touchscreen LCD, seamless transfer, and scalable design for up to 4 units in parallel.

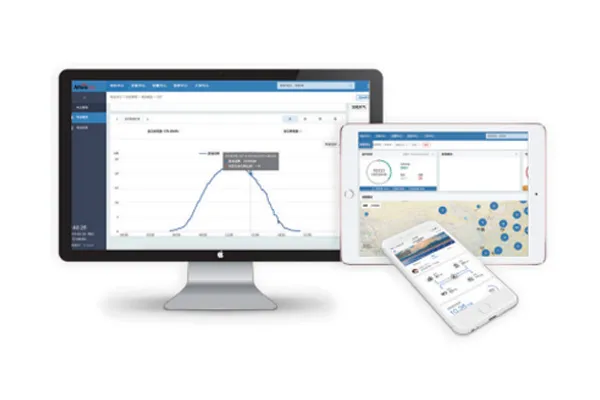

Supports full lifecycle data storage, real-time tracking, and safe operation traceable logs.

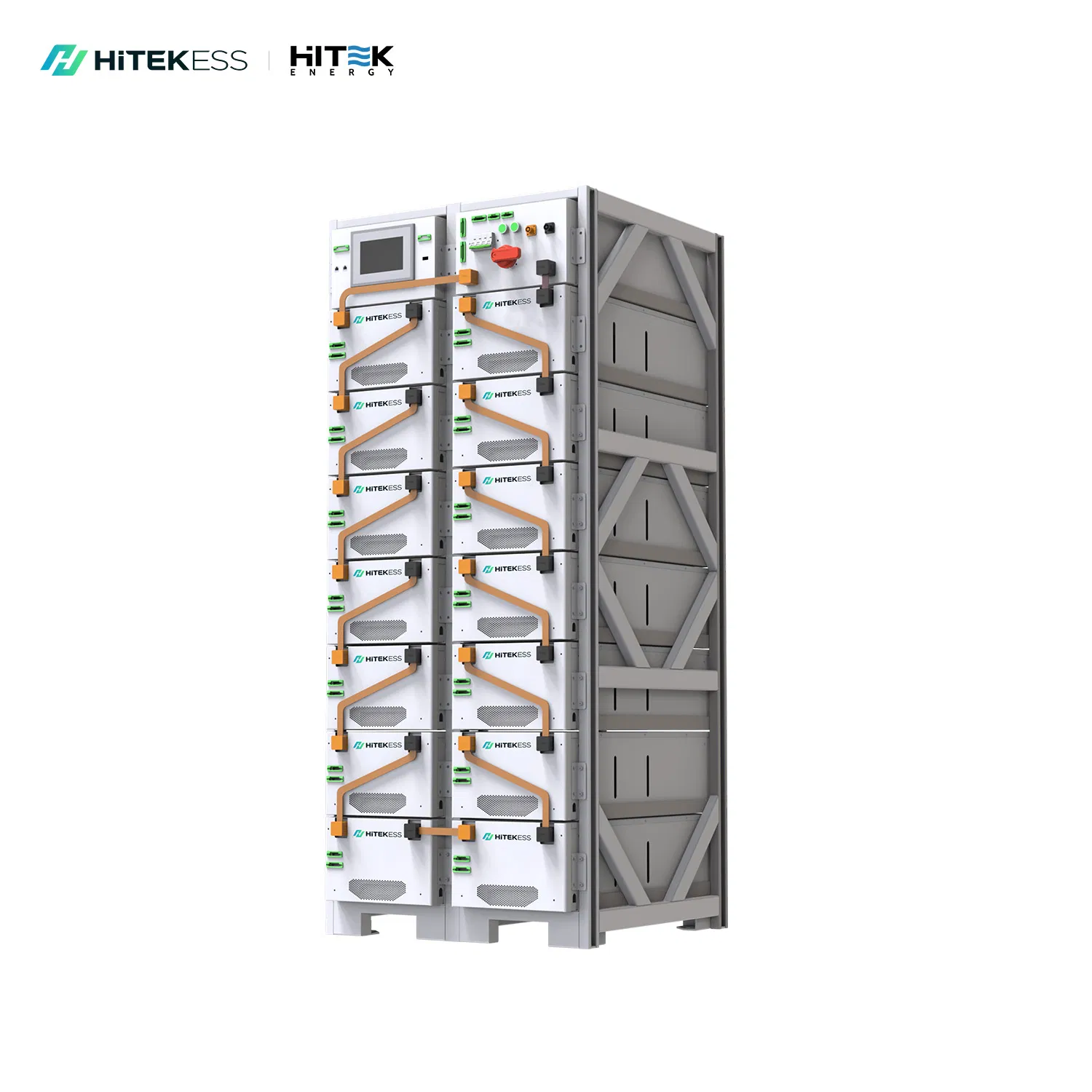

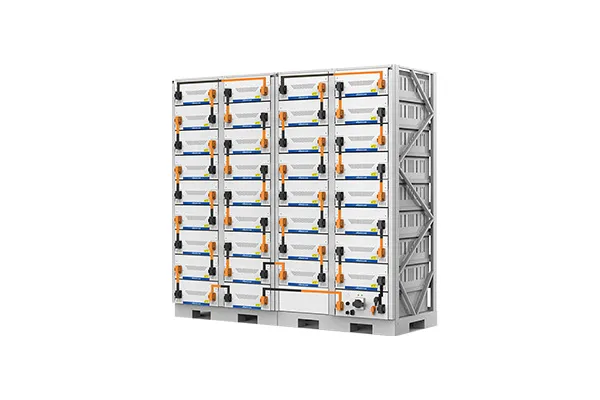

Deep cycle LiFePO4 / Lithium Ion types. Over 6000 cycles with up to 90% Depth of Discharge.
Dedicated to providing sustainable and renewable energy solutions for homes, businesses, and factories. We provide tailored solar energy solutions for backup, residential, and commercial needs using only reliable, approved equipment.
Working together for a better, brighter and greener future.
