Leverage the differential between peak and valley electricity prices, charging during low-cost periods and discharging during high-cost peak periods to cut expenses.
Functions as a backup power source to deliver uninterrupted power to commercial and industrial facilities during grid outages.
Mitigate power load fluctuations, minimize voltage and frequency deviations, and ensure stable operation of electrical equipment.
Modify electricity usage patterns in response to grid requirements and earn corresponding financial incentives.

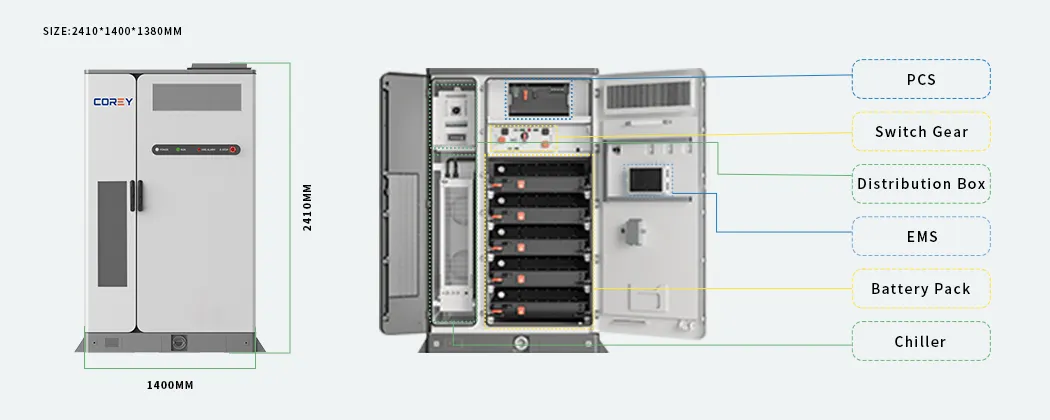

The commercial and industrial storage cabinet system uses a multi-stage protection design of battery packs and battery clusters to effectively isolate faults and prevent fault spread. Divided system design and three-tier intelligent fire safety design minimize the risk of fire spread, ensuring the safety of people and assets.

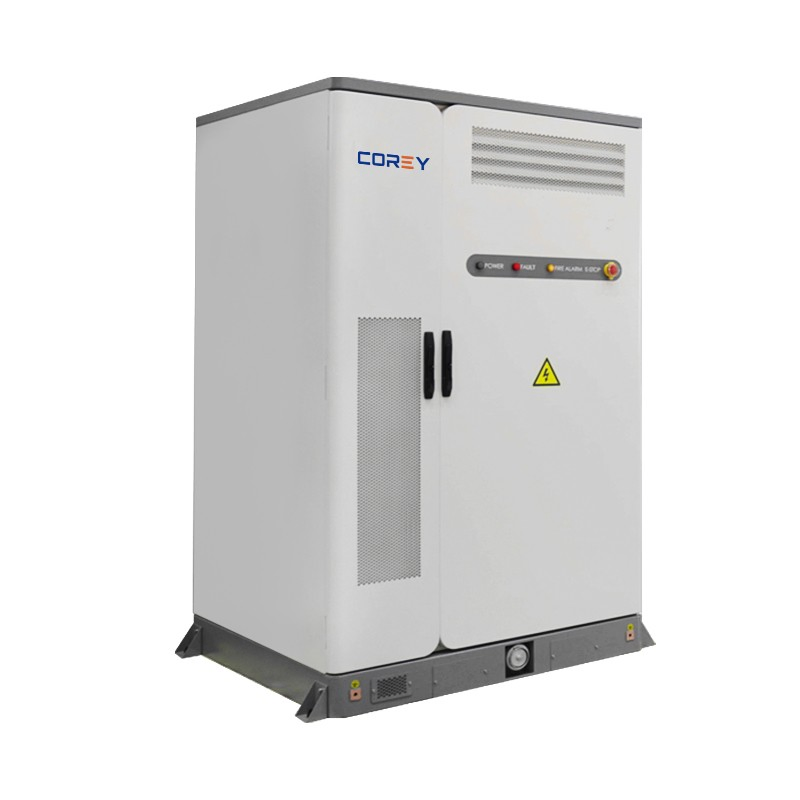

| System Specification | COREY 233CE Details | |
|---|---|---|
| System | Battery Cell | LFP (LiFePO4) 3.2V 280Ah |
| System Capacity | 233kWh | |
| Rated Power | 105kW | |
| Communication | CAN/RS485/Ethernet/4G | |
| Cooling Method | Intelligent Liquid Cooling | |
| Fire Fighting | Aerosol (Pack-level) + Water (Cabinet-level) | |
| AC Side | Rated Voltage | 230V/400V (±15%) |
| Maximum Current | 167A | |
| Switching Time | 20ms (Optional) | |
| Overload Capability | 1.1 times for long-term | |
| Physical | Weight | 2800kg ± 50kg |
| Protection | IP54 / C4 Anti-corrosion | |

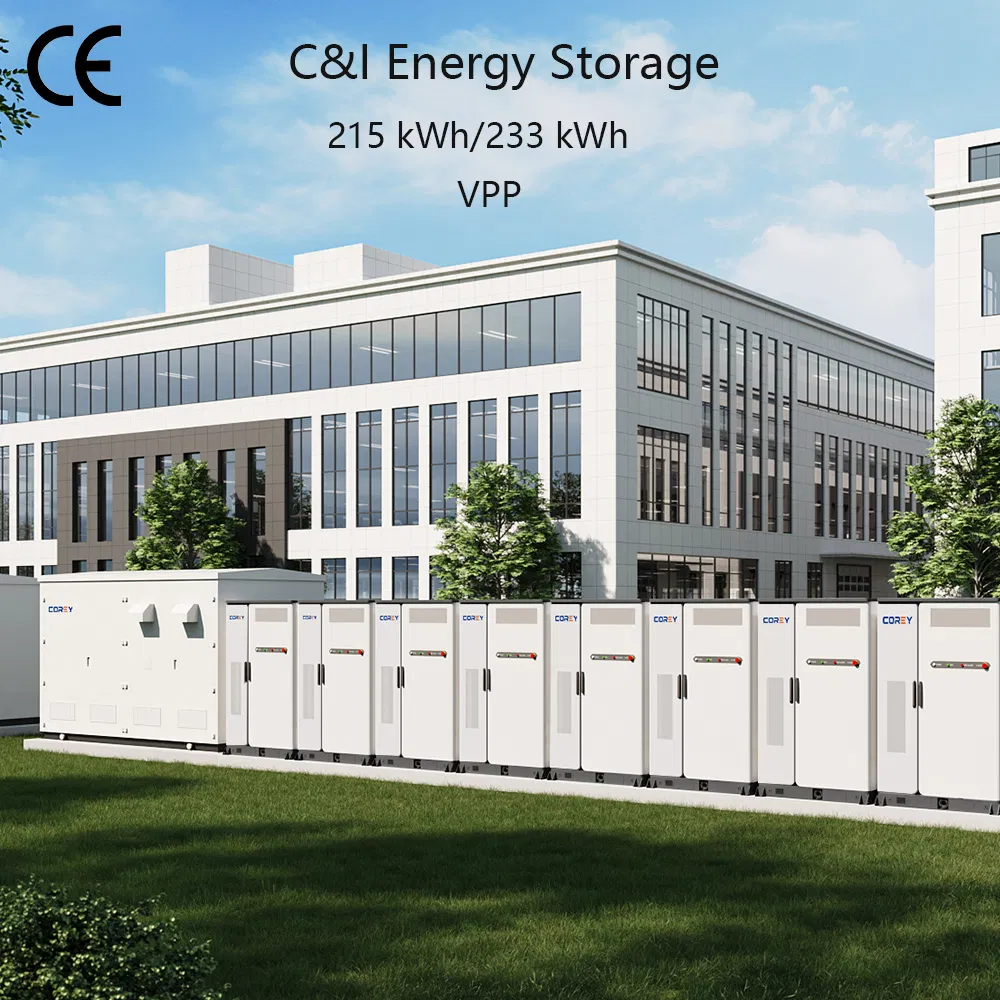

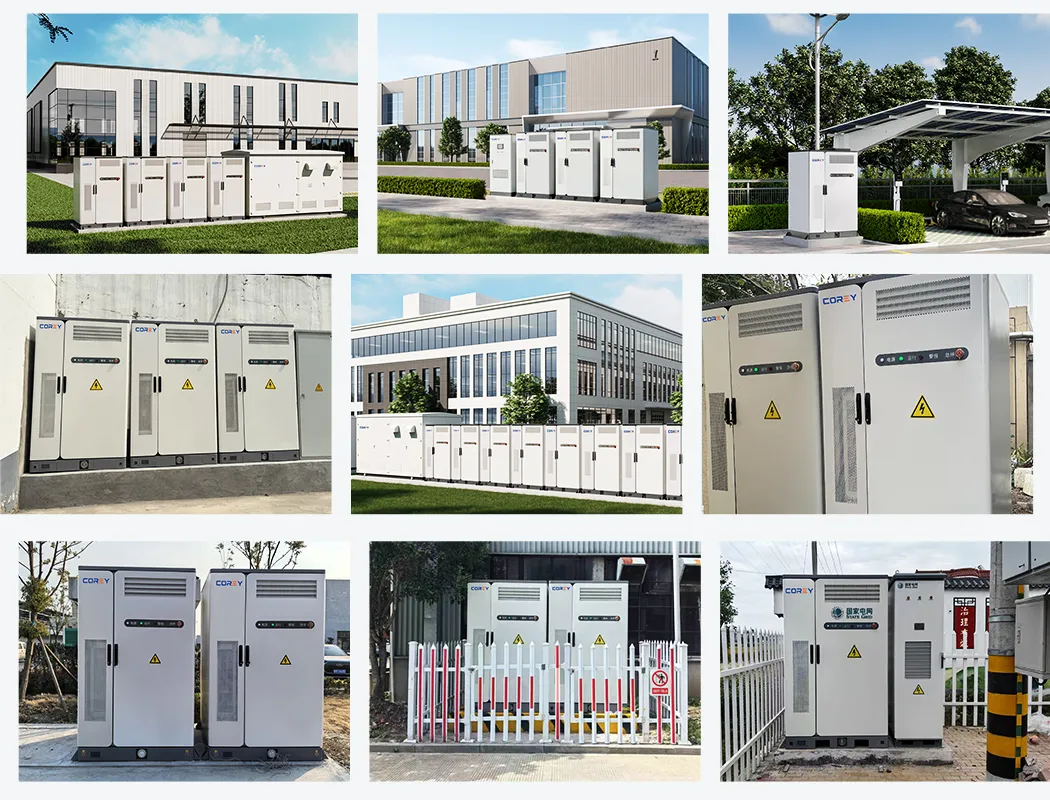

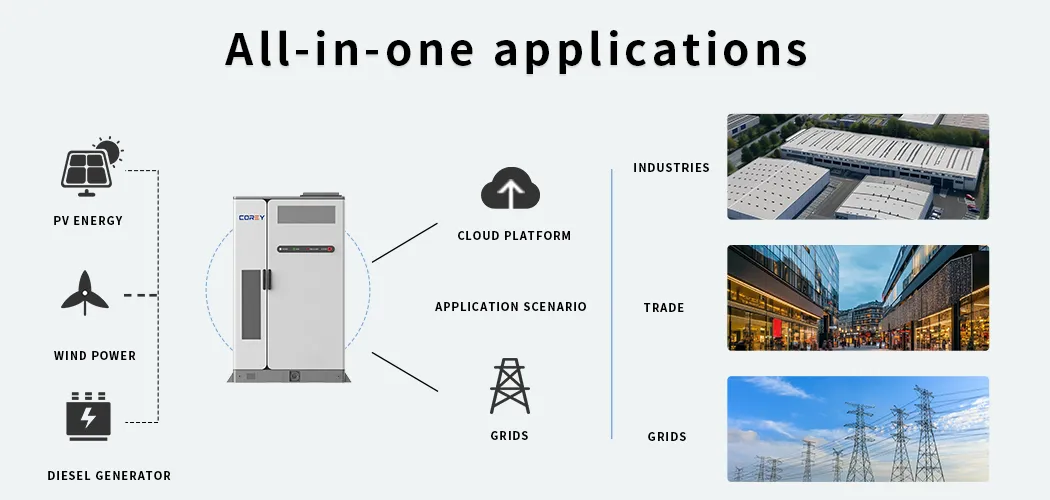

Suitable for commercial buildings, factory buildings, remote areas, and regions experiencing power shortages.
