Established in 2016, our facility is a professional and leading manufacturer of quality solar modules. Located in a major photovoltaic industry production base, our operations cover R&D, production, and sales of PV modules for residential, commercial, and large-scale solar plants. We supply turnkey services for domestic customers and comprehensive materials for overseas markets.
With 3 production lines and an annual capacity of 1.2GW, we ensure efficient production lead times. Our sophisticated production experience and global sales network attract customers worldwide. In 2022, the company achieved a significant sales volume and was listed as a top producer and exporter in the region. We cooperate with famous brands to supply quality materials, adhering to our principles of Integrity, Win-Win, and Innovation.

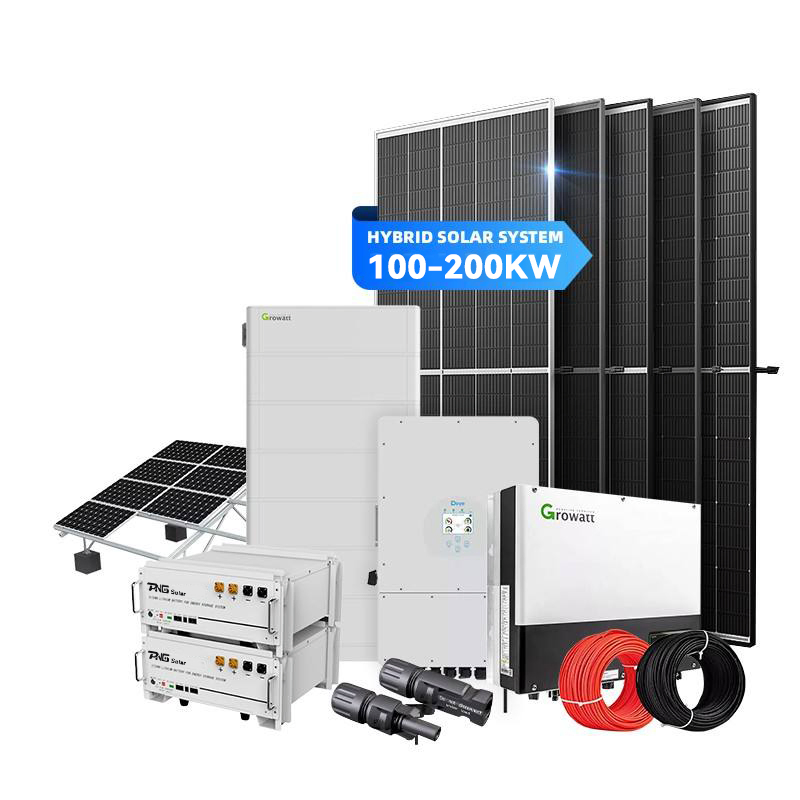

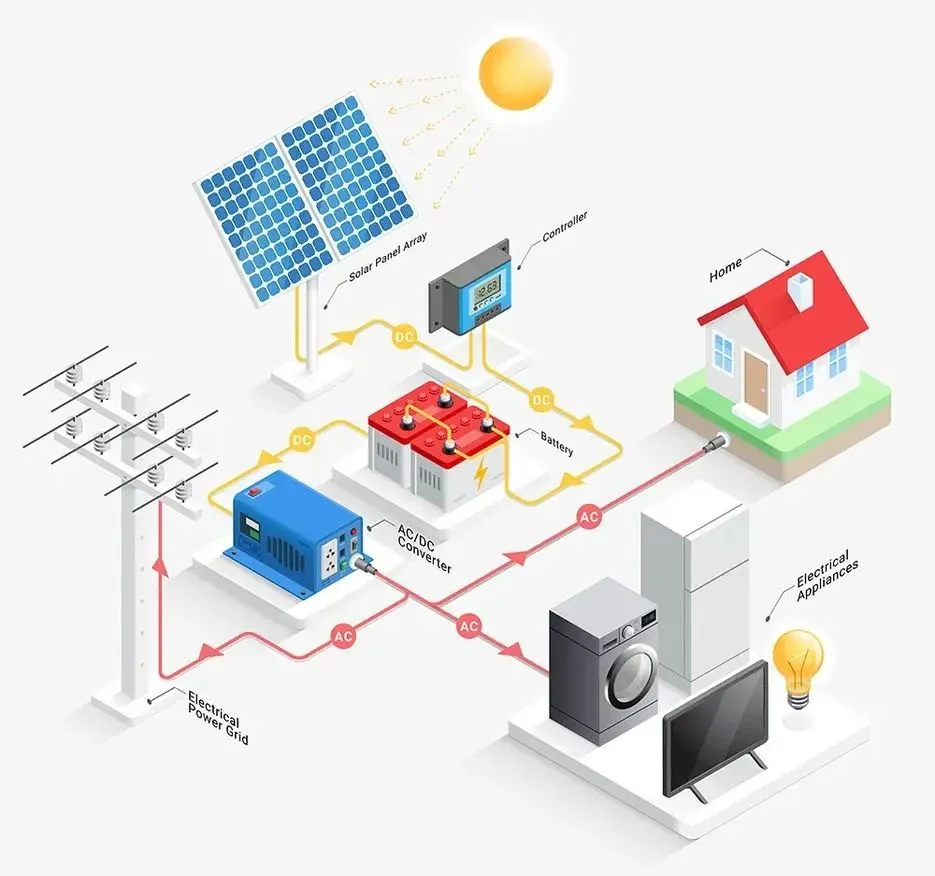

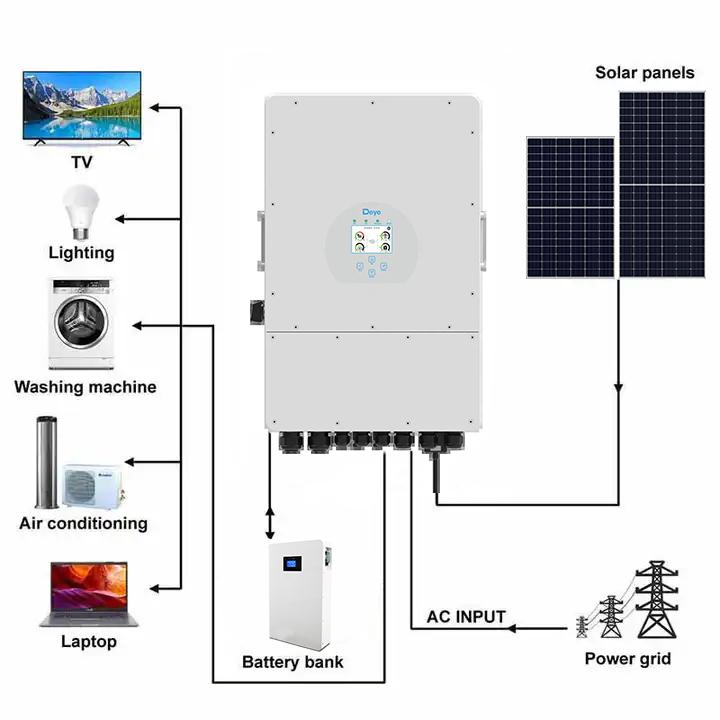

| Model | 100KW Hybrid System | 150KW Hybrid System | 200KW Hybrid System |
|---|---|---|---|

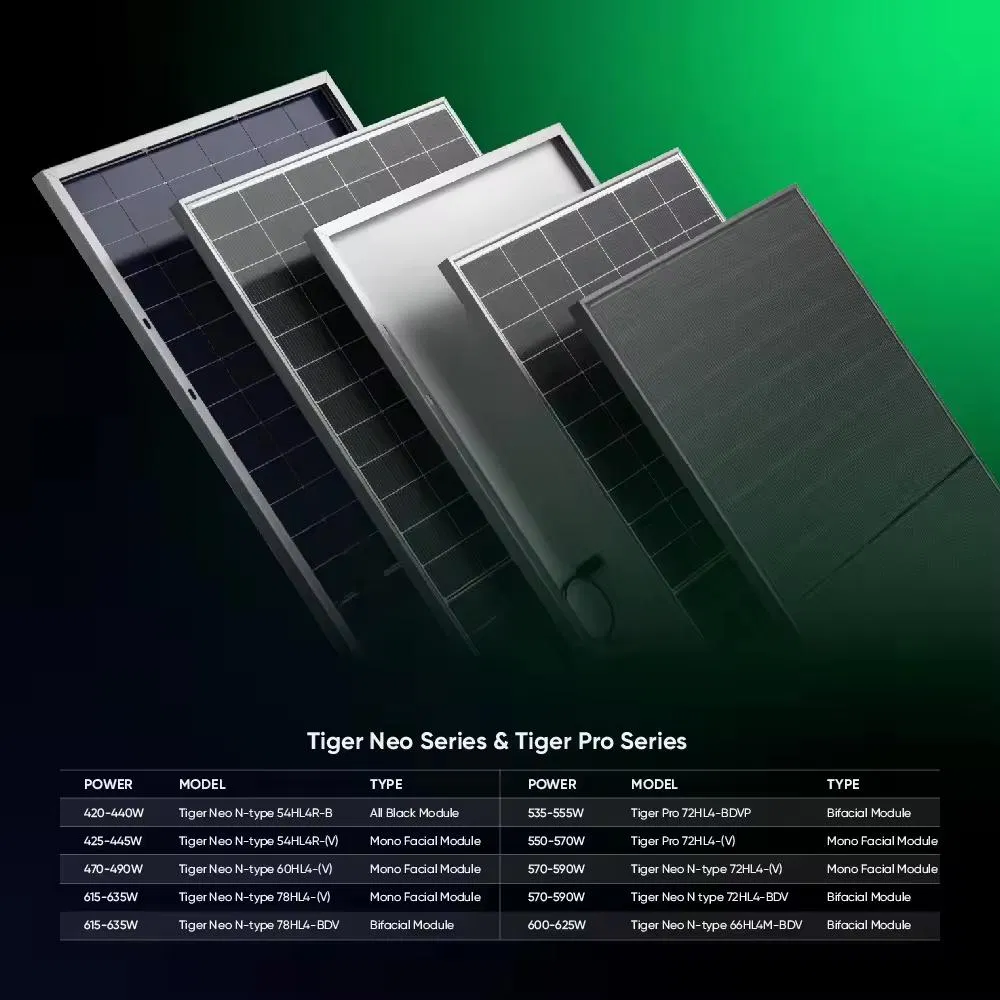

| Solar Panel | N type Topcon, 580W*172pcs | N type Topcon, 580W*258pcs | N type Topcon, 580W*345pcs |

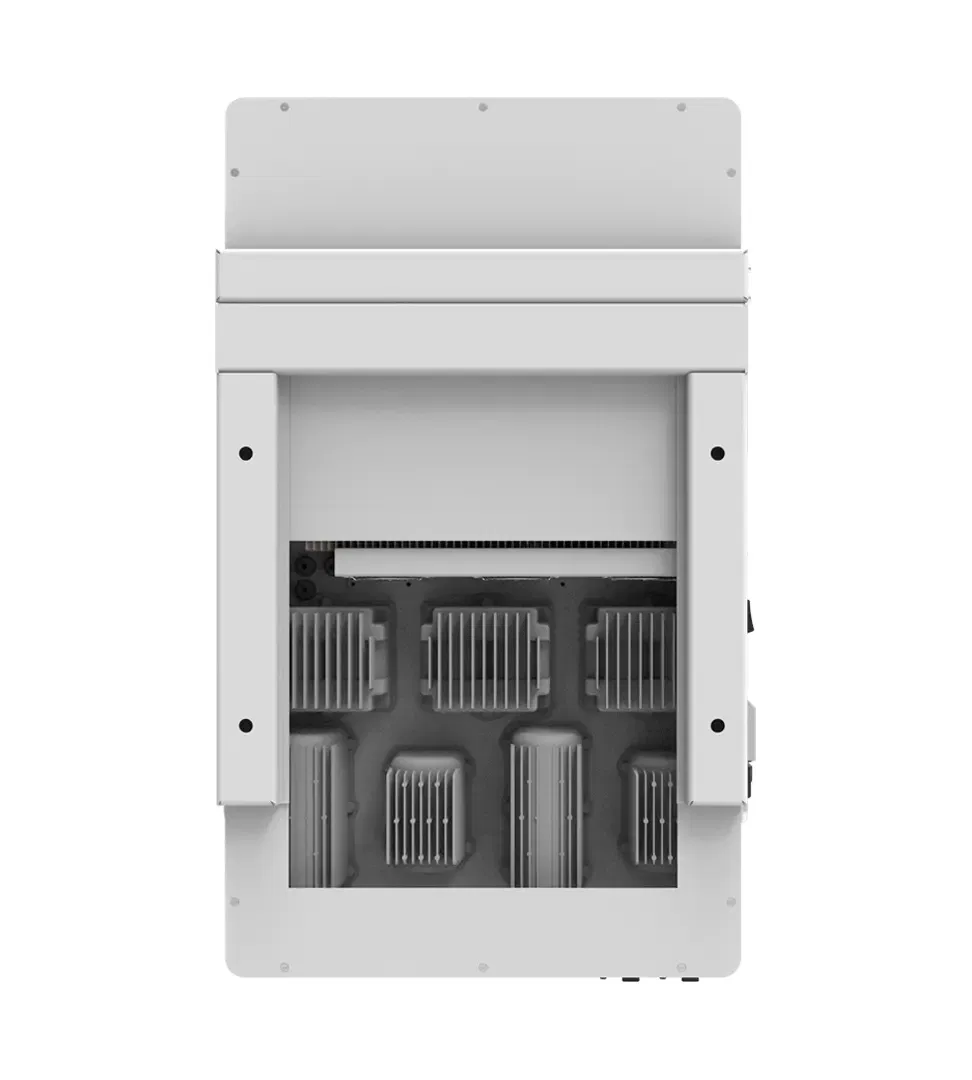

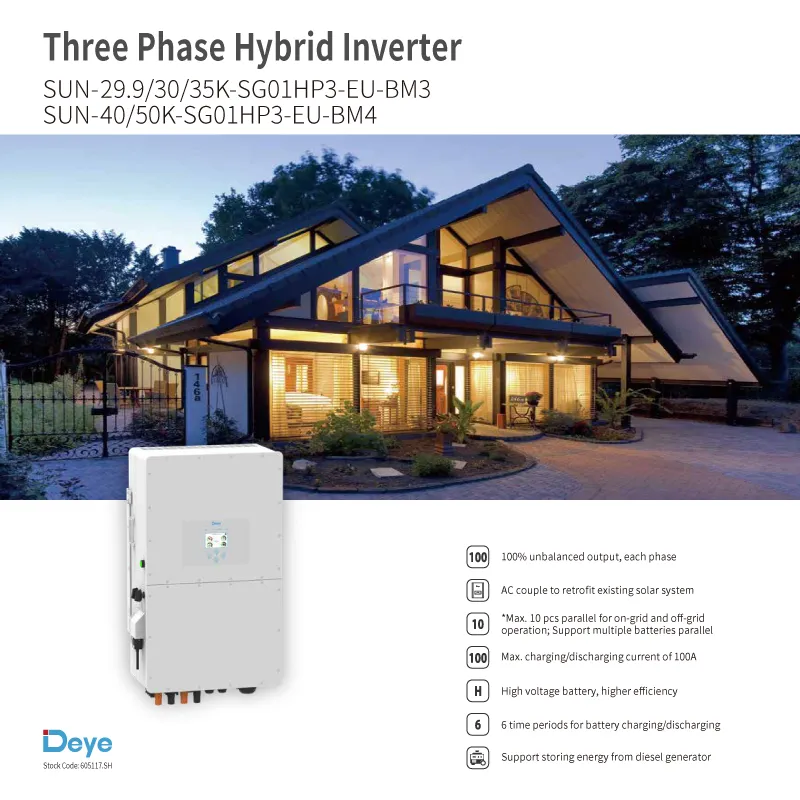

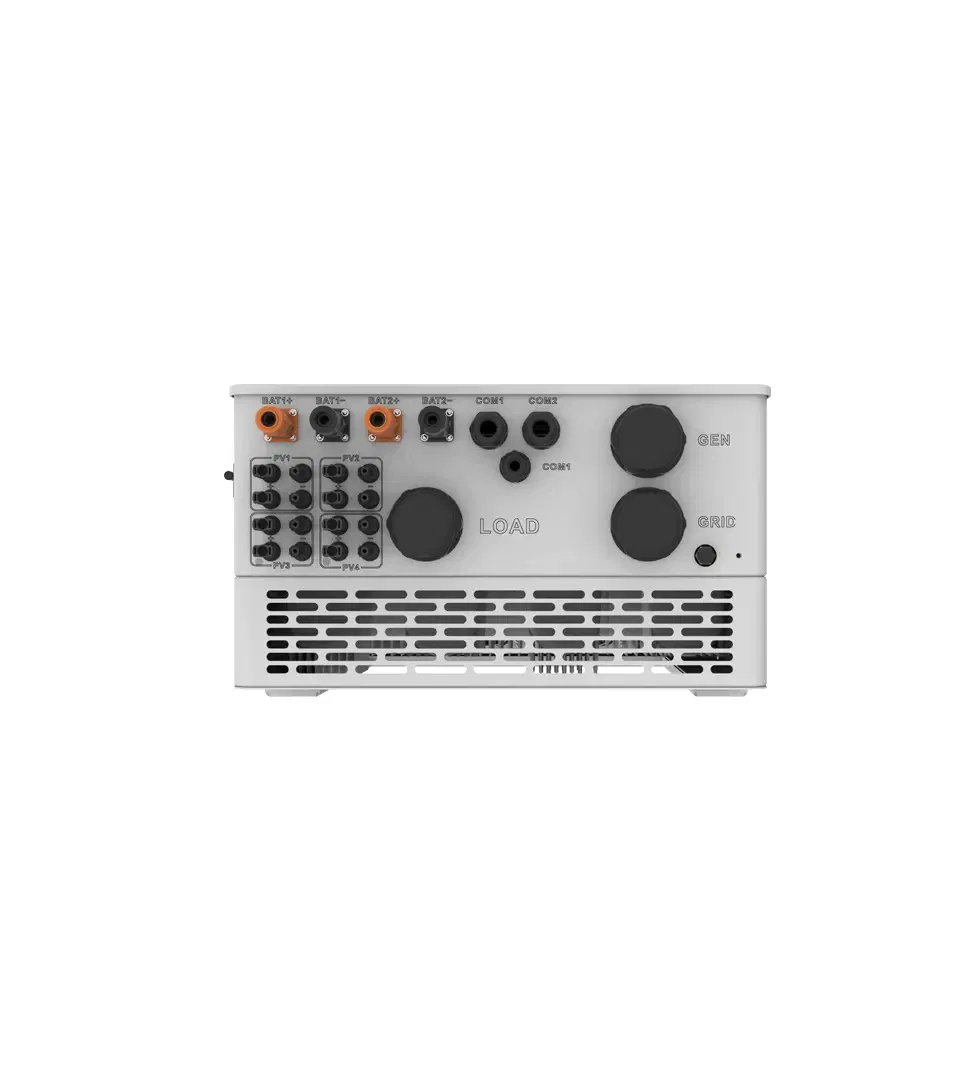

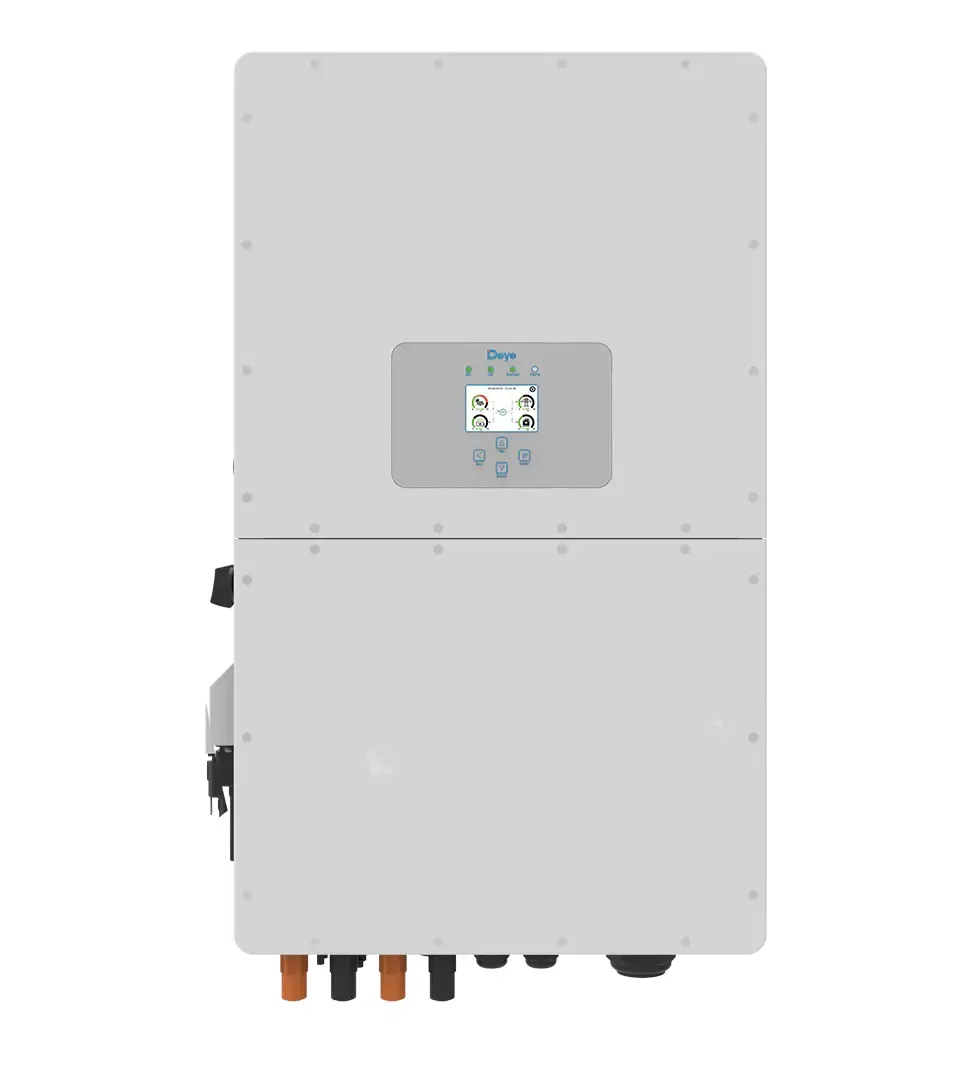

| Hybrid Inverter | 50KW*2pcs, 4 MPPT | 50KW*2pcs, 4 MPPT | 50KW*2pcs, 4 MPPT |

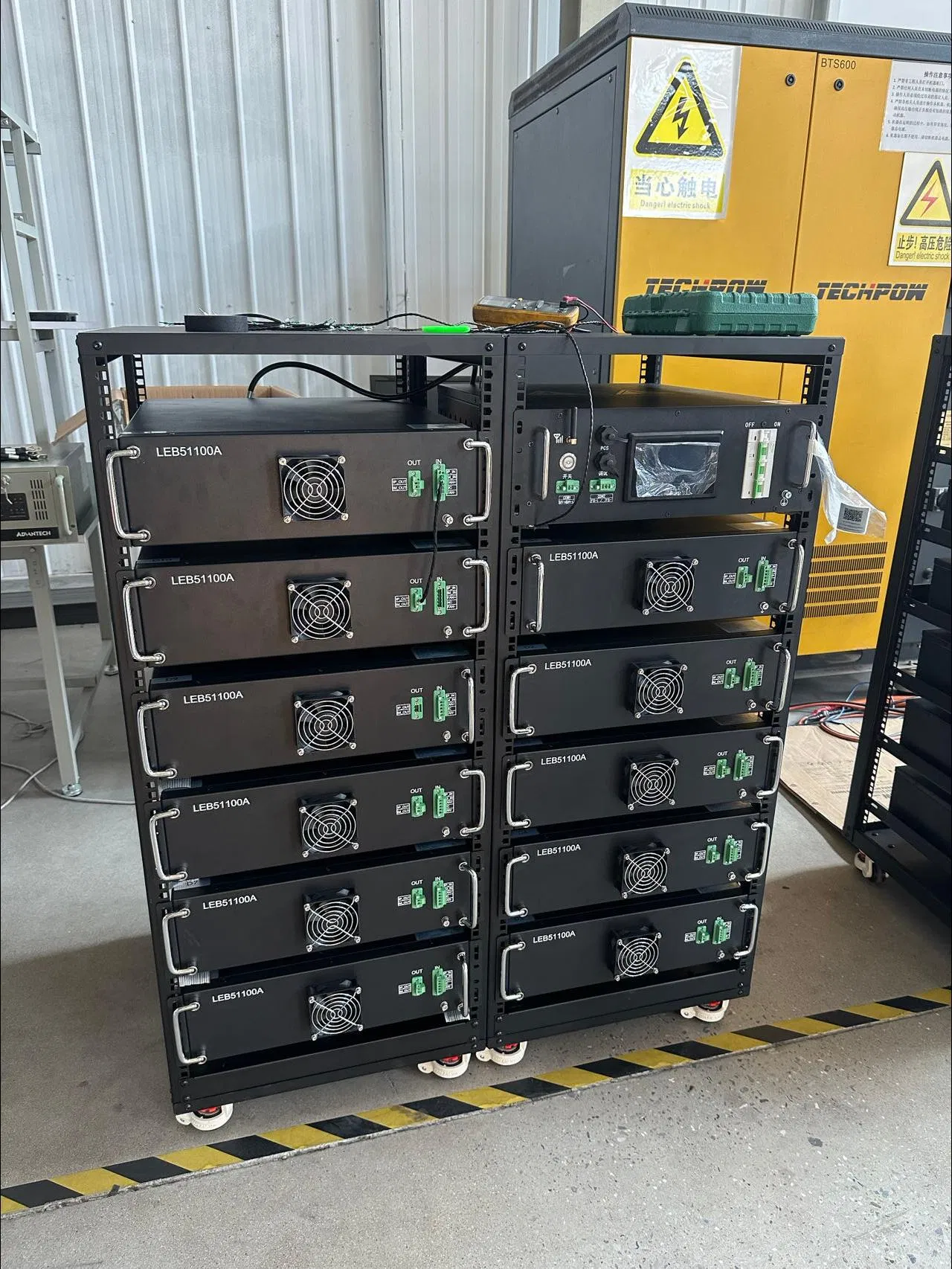

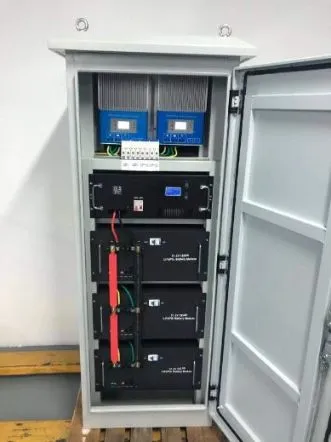

| Lithium Battery | 51.2V 102AH*4pcs | 51.2V 102AH*6pcs | 51.2V 102AH*8pcs |

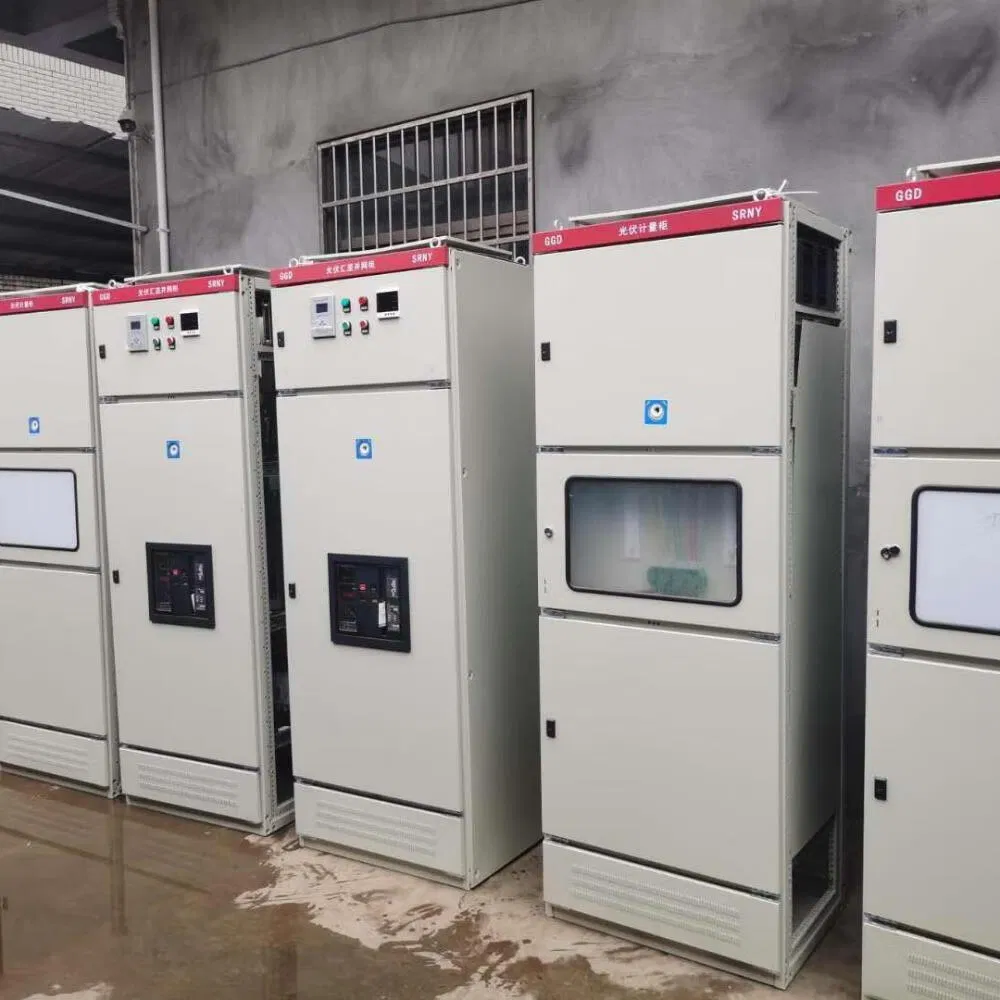

| Grid Cabinet | SPD, breakers, switchers and etc. | ||
| Cables & Mounting | PV1-F 4mm2, standard mounting bracket (Alu/Carbon Steel) | ||

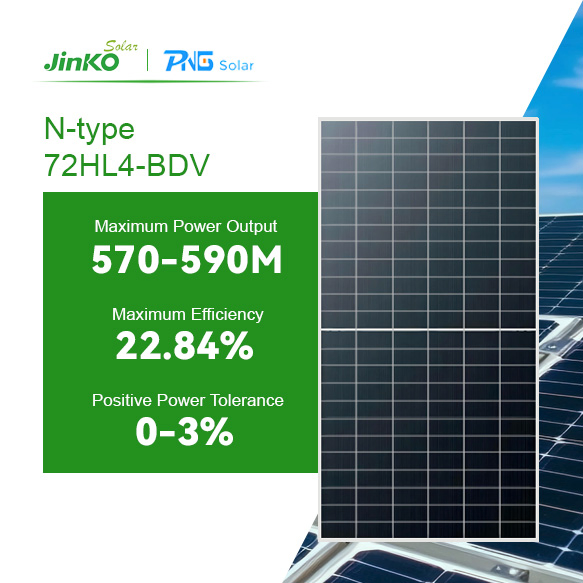

| Condition | STC | NOCT |
|---|---|---|
| Max. Power (Pmax) | 580W | 436W |
| Open Circuit Voltage (Voc) | 42.37V | 39.69V |
| Short Circuit Current (Isc) | 13.69A | 10.99A |
| Module Efficiency | 22.45% | |
| Nominal Voltage | 51.2V | Usable Capacity | 4608WH |
| Working Temp | 0-40ºC | Cycle Life | >6000 @ 90% DOD |
| Communication | RS485/CAN | Certification | CE/IEC/UN38.3 |
