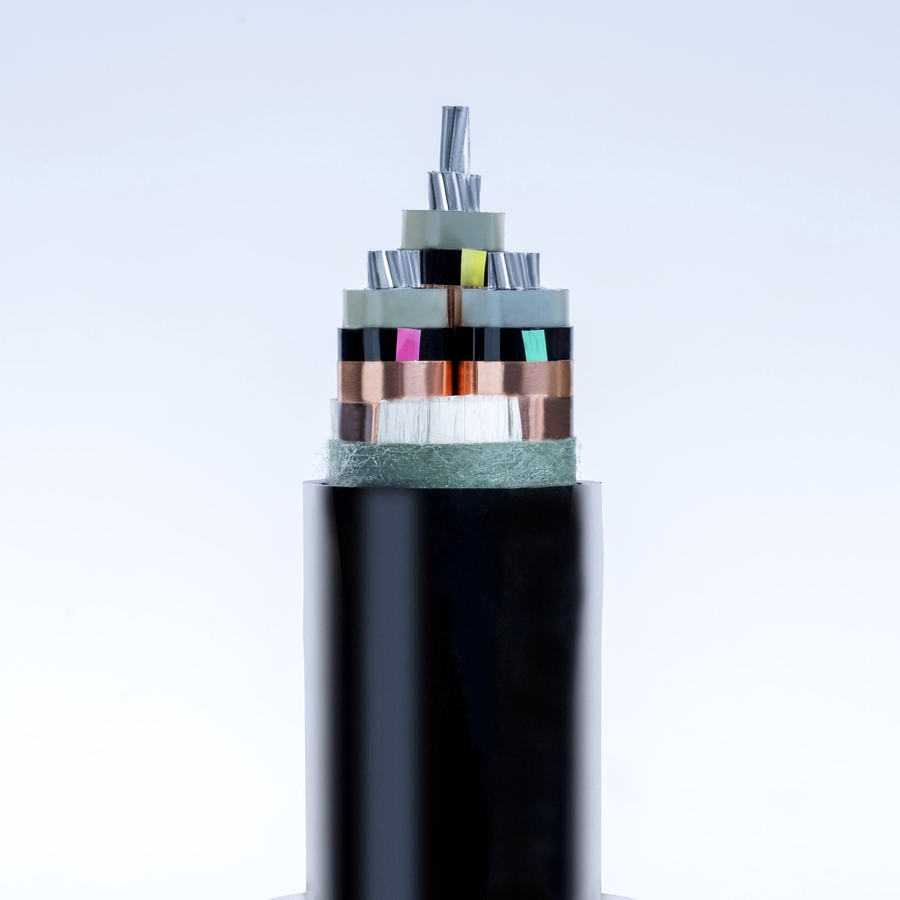

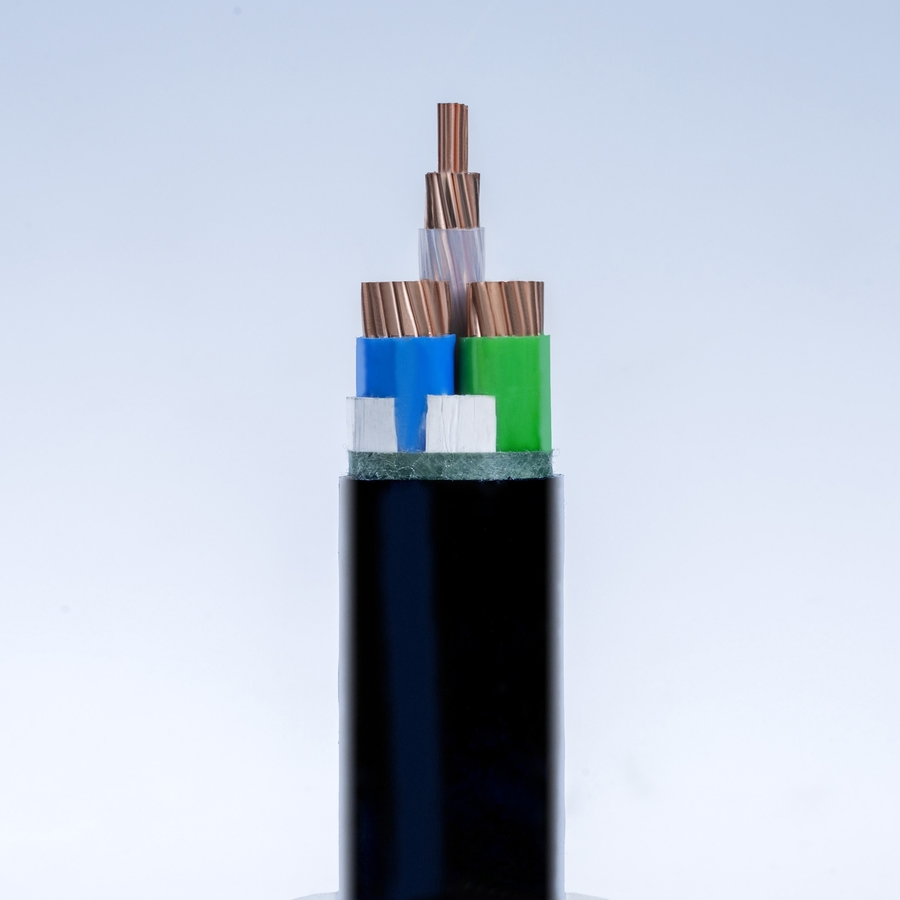

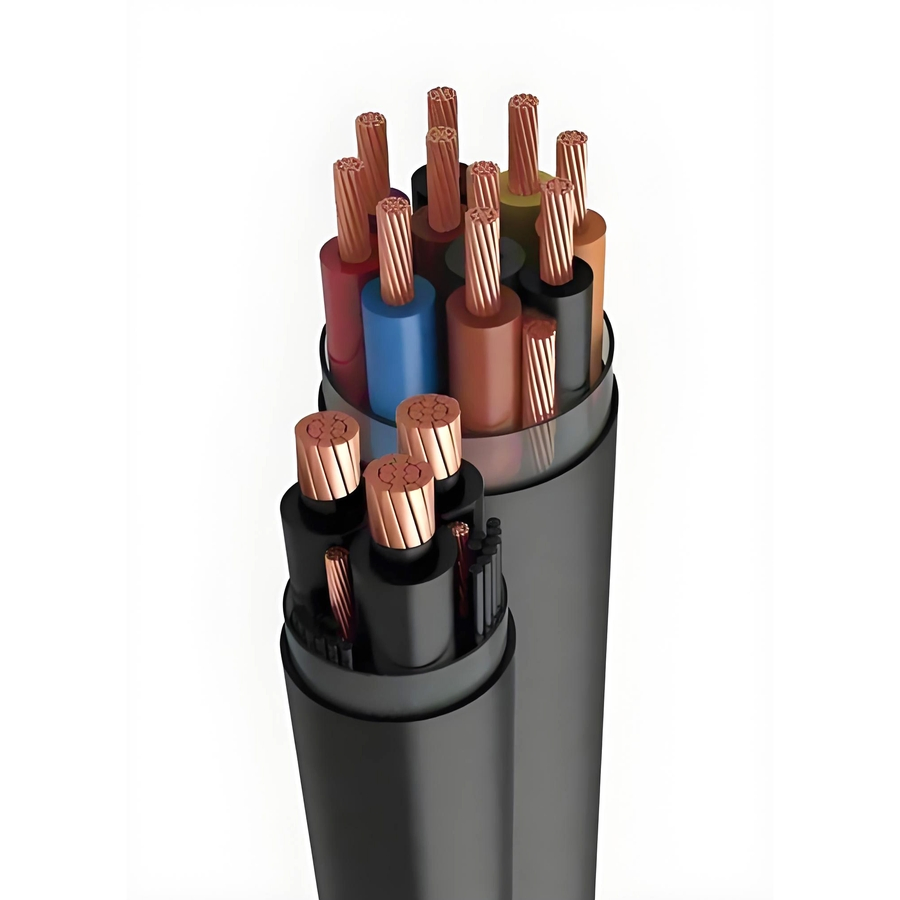

PHOTOVOLTAIC POWER CABLE
Photovoltaic cable is an indispensable and important part of the photovoltaic system. It is mainly used to connect solar cell modules, inverters, and other related equipment to ensure that the electricity generated by solar energy can be transmitted efficiently and stably. This type of cable usually uses special insulation materials and sheath materials, and has excellent weather resistance, UV resistance, ozone resistance, and chemical corrosion resistance.
It can adapt to complex and changeable outdoor environmental conditions, such as high temperature, low temperature, humidity, UV radiation, etc., so as to ensure long-term stable operation and provide a reliable transmission guarantee for the normal power generation of photovoltaic power stations.
Photovoltaic cables are unique in structural design. Their conductors are usually made of multiple strands of fine copper wires. This structure not only ensures the flexibility of the cable but also effectively reduces resistance and improves current carrying capacity. In addition, photovoltaic cables also have certain flame-retardant properties, which can effectively reduce the risk of fire and improve the safety of photovoltaic systems.
| TECHNICAL PARAMETERS | |
|---|---|
| Product Name | Photovoltaic Power Cable |
| Keywords | Power Cable |
| Rated Voltage | AC 0.6/1kv, DC 1.8kv, AC 1.0/1.0kv, DC 1.5KV |
| Operating Temperature | -40-90 Celsius |
| Max. Short Circuit Temp. | +/-120 Celsius |
| Max. Conductor Temp. | +/-120 Celsius |
| Bending Radius of Cable | 4D |
| Payment Methods | T/T, L/C, Western Union |
| MOQ | Low MOQ |
| Nominal Area (mm²) | Tinned Copper Type | Conductor Dia. (mm) | Overall Dia. (mm) | Weight (kg/km) | Max Resistance (20ºC) |
| 1.5 | 5 | 1.6 | 5.1 | 41 | 13.7 |
| 2.5 | 5 | 2.0 | 5.5 | 53 | 8.21 |
| 4 | 5 | 2.6 | 6.2 | 73 | 5.09 |
| 6 | 5 | 3.2 | 6.8 | 96 | 3.39 |
| 10 | 5 | 4.2 | 7.9 | 149 | 1.95 |
| 16 | 5 | 5.5 | 9.2 | 208 | 1.24 |
| 25 | 5 | 7.2 | 11.2 | 310 | 0.795 |
| 35 | 5 | 8.2 | 12.2 | 411 | 0.565 |

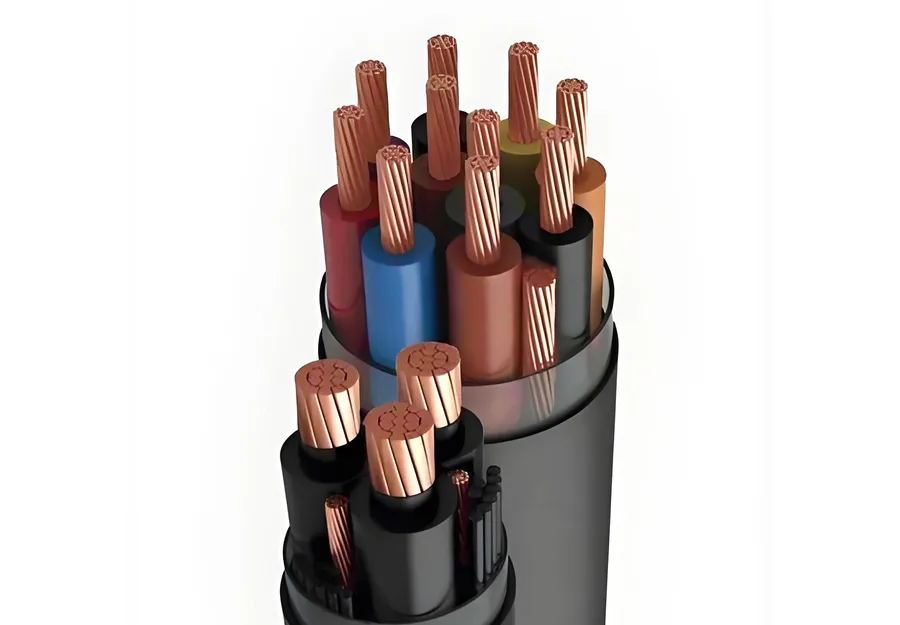

Photovoltaic cables can operate stably for a long time in harsh outdoor environments. The insulation layer and sheath layer are made of special materials with excellent resistance to UV, ozone, chemical corrosion, and weathering.

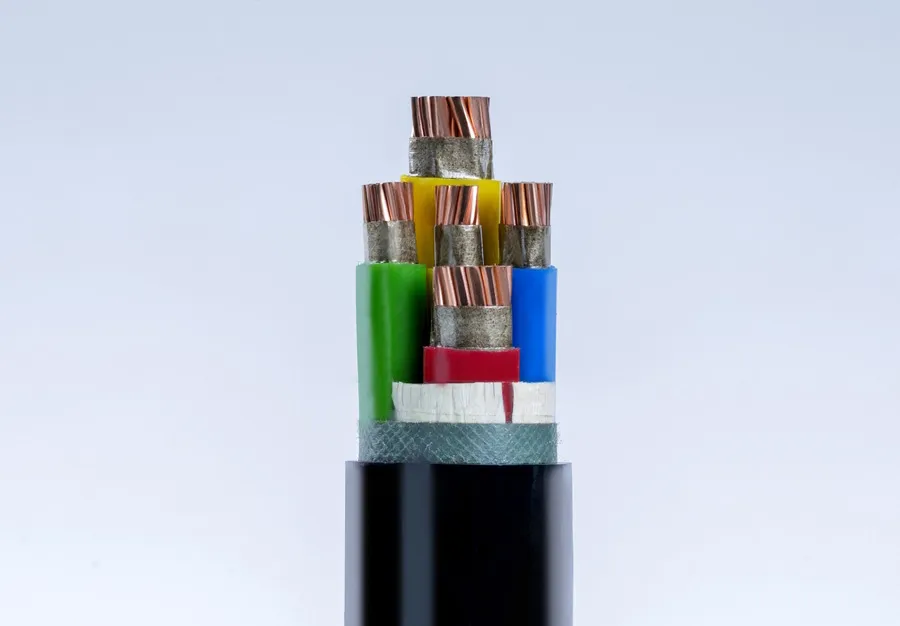

Its insulating material has high electrical insulation performance, can withstand higher voltages, prevent leakage and short circuits, and ensure the efficiency and safety of power transmission.
The flexible design makes it more adjustable during the laying process and can adapt to various complex installation environments and path requirements.

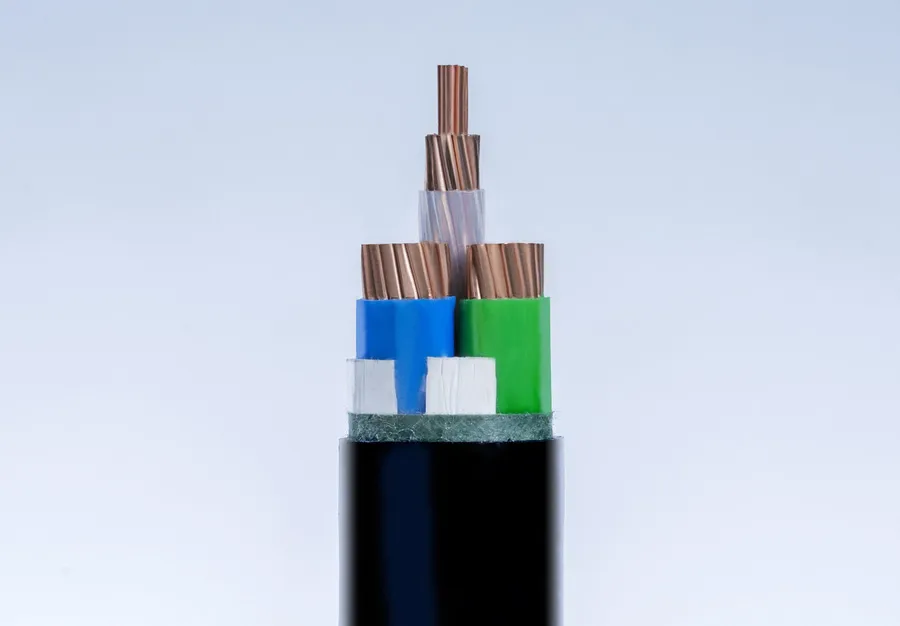

Used in large-scale ground power stations, distributed power generation systems, building integration projects, and small solar devices in remote areas.

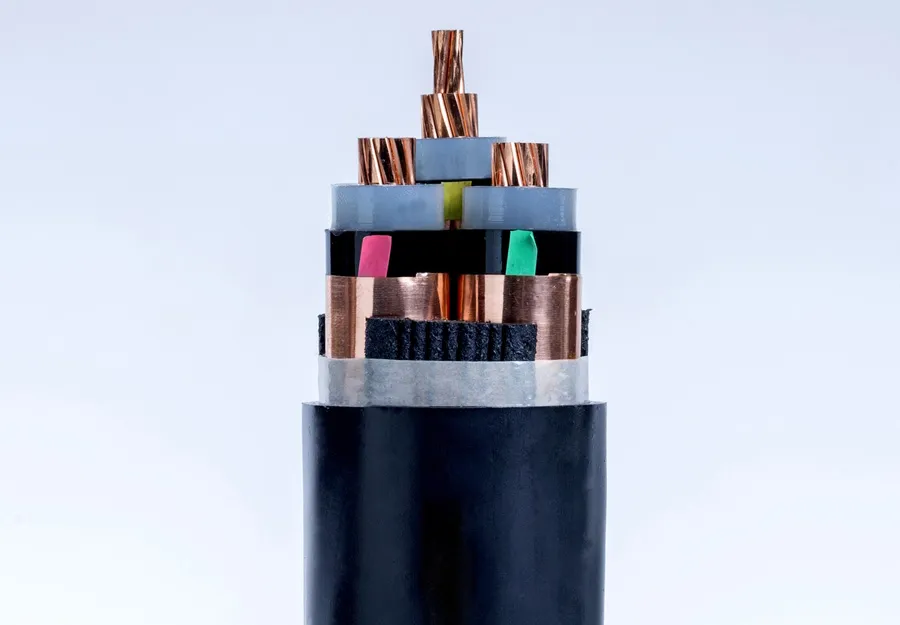

Environmentally friendly materials reduce pollution. Efficient performance helps improve power generation efficiency and reduce energy loss.
