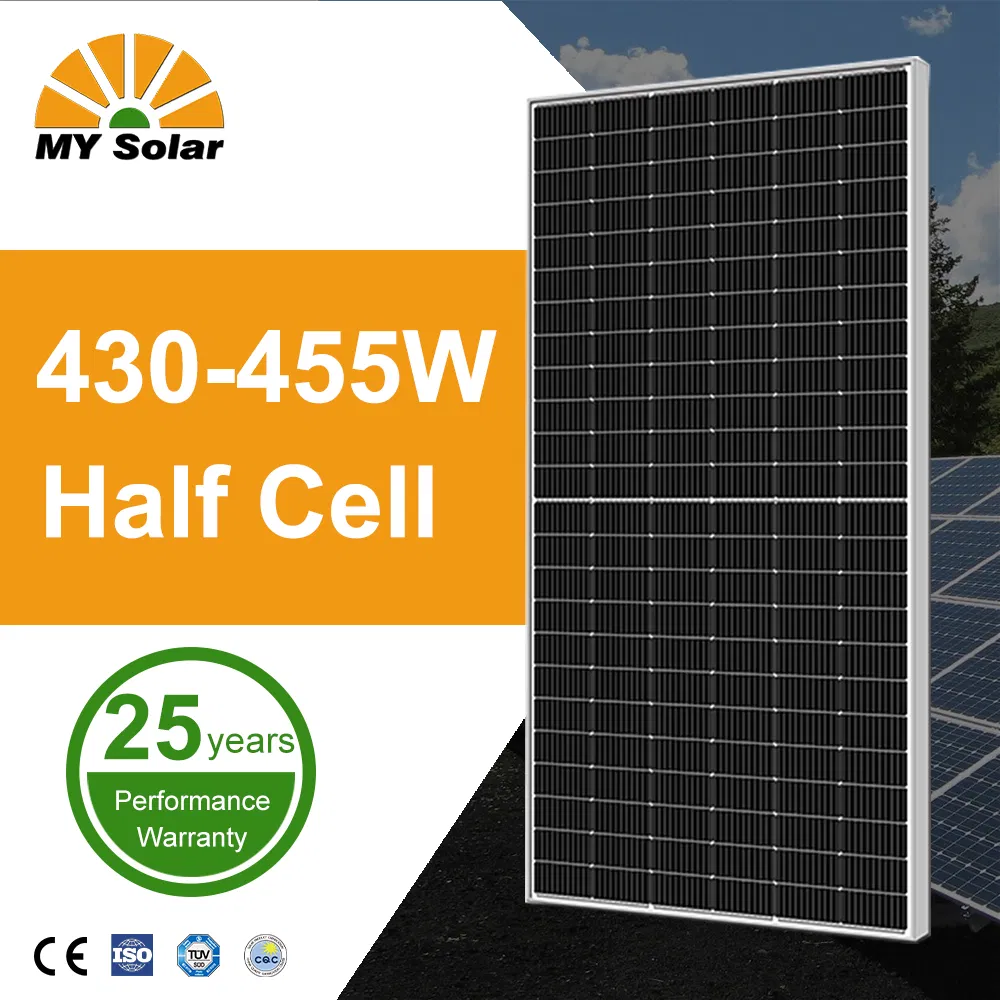

High Power Ja Longi Jaso Jinko Trina Half Perc 144 Cells 9bb Monocrystalline Module 450W 460W 480W 500W 600W 700W 1000W 182mm Mono PV Solar Energy Panel

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
MY-M6/144-450
Application
Solar Panel System/Solar Pump/Power Station
Condition
New
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Weight
25.6 Kg (56.43 Ibs)
Efficiency
20.37%
Frame
Silver/Black Anodized Aluminium Alloy
Solar Cell
5/6/9bb Mono Perc 158.75X158.75mm
Glass
3.2mm, Anti-Reflection Coating High Transmission
No. of Cells
144
Backsheet
White/Black Backsheet
Connector
MC4
Junction Box
IP67 Rated
Dimensions
1666x1000x35mm
📦 Packaging & Delivery
Package Size
227.00cm * 113.00cm * 3.50cm
Gross Weight
28.000kg
Transport
Carton with Pallet
🔍 Product Overview

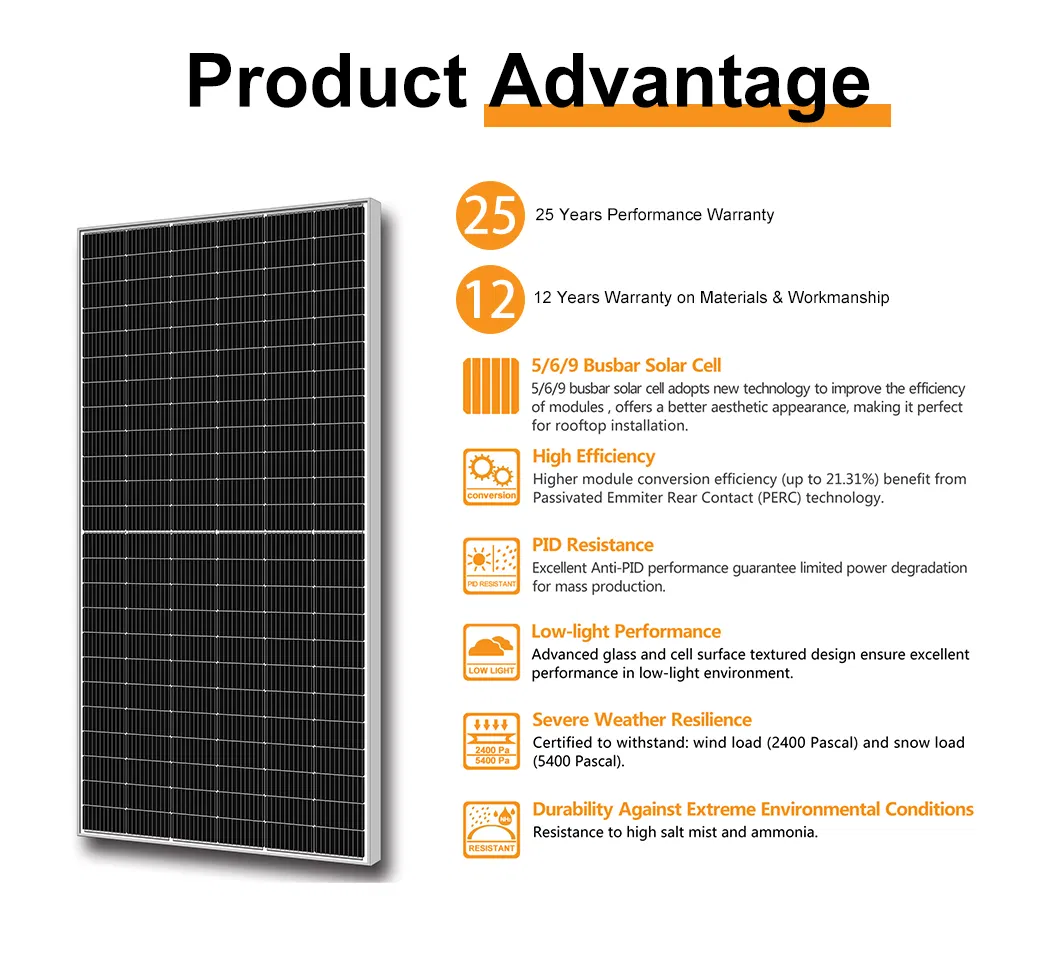

Solar Panel Module Module Details

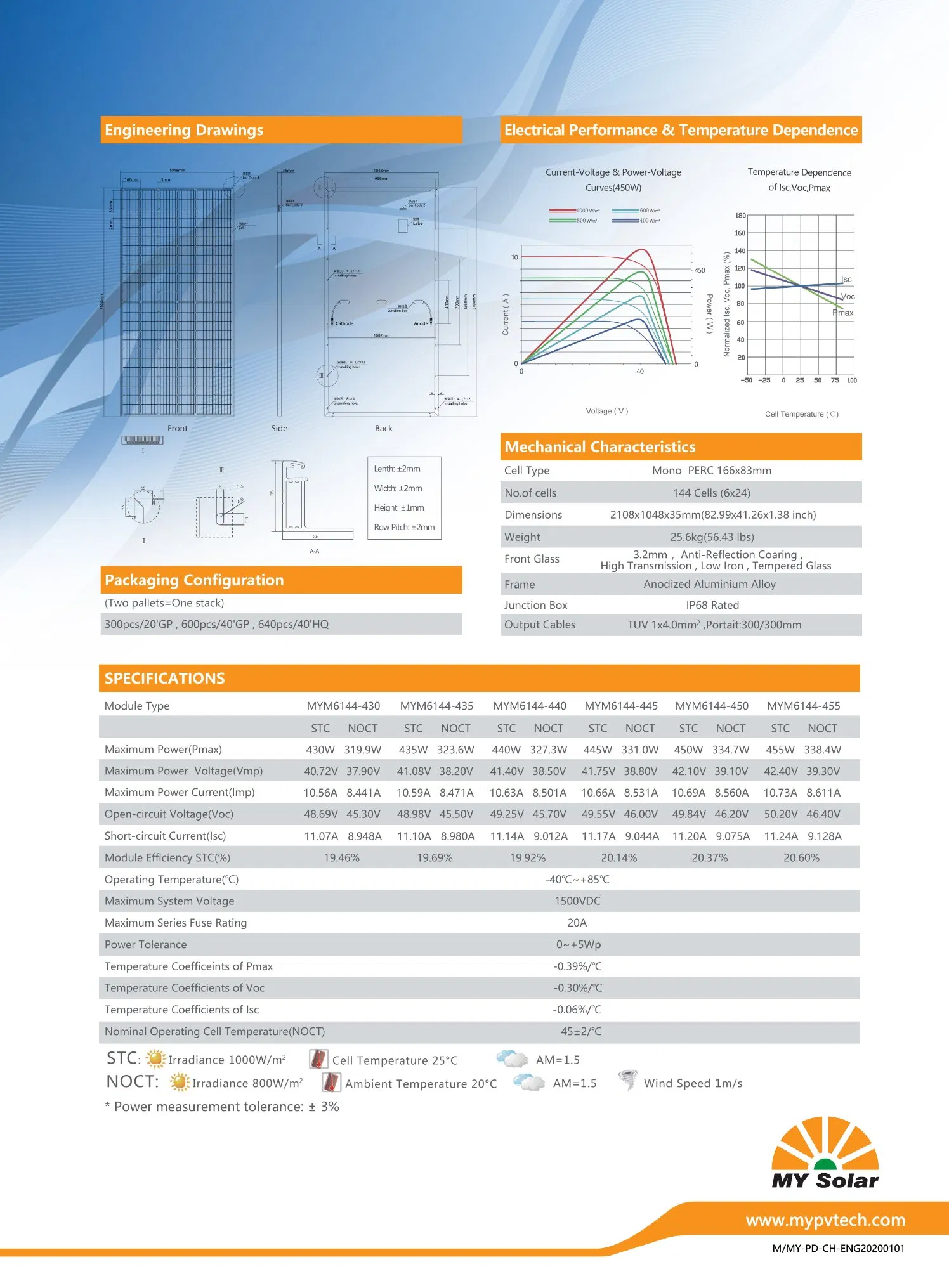

📊 Technical Specifications
Module Type (MY-M6/144) 430W 435W 440W 445W 450W 455W
Maximum Power (Pmax) 430 435 440 445 450 455
Max Power Voltage (Vmp) 40.72V 41.08V 41.4V 41.75V 42.1V 42.4V
Max Power Current (Imp) 10.56A 10.59A 10.63A 10.66A 10.69A 10.73A
Open-circuit Voltage (Voc) 48.69V 48.98V 49.25V 49.55V 49.84V 50.2V
Module Efficiency 19.46% 19.69% 19.92% 20.14% 20.37% 20.60%

💡 Understanding Tier 1 Solar Panels

The main difference in solar panel pricing lies between Tier 1 Solar Panels and non-Tier 1 options. Mainstream sizes like 166mm or 182mm (with 54, 60, or 72 cells) often offer lower prices due to high factory stock availability. We offer customized orders including IBC, P-PERC, or N-Type TOPCON cells, available in monofacial or bifacial configurations.

🛠️ Selection Guide
Power Range 310 - 410W 400 - 455W 455 - 670W
Best Fit For Residential & Household Large roofs, Commercial, Industry Utility-scale projects
Efficiency 19.2% to 21% 20% to 21.1% 20% to 21.57%
Warranty 10 Years Product Warranty / 25 Years Power Output Warranty
Frequently Asked Questions
Q: What are your primary payment terms?
A: We accept T/T, L/C, PayPal, and Western Union for our orders.
Q: What are the advantages of choosing your solar modules?

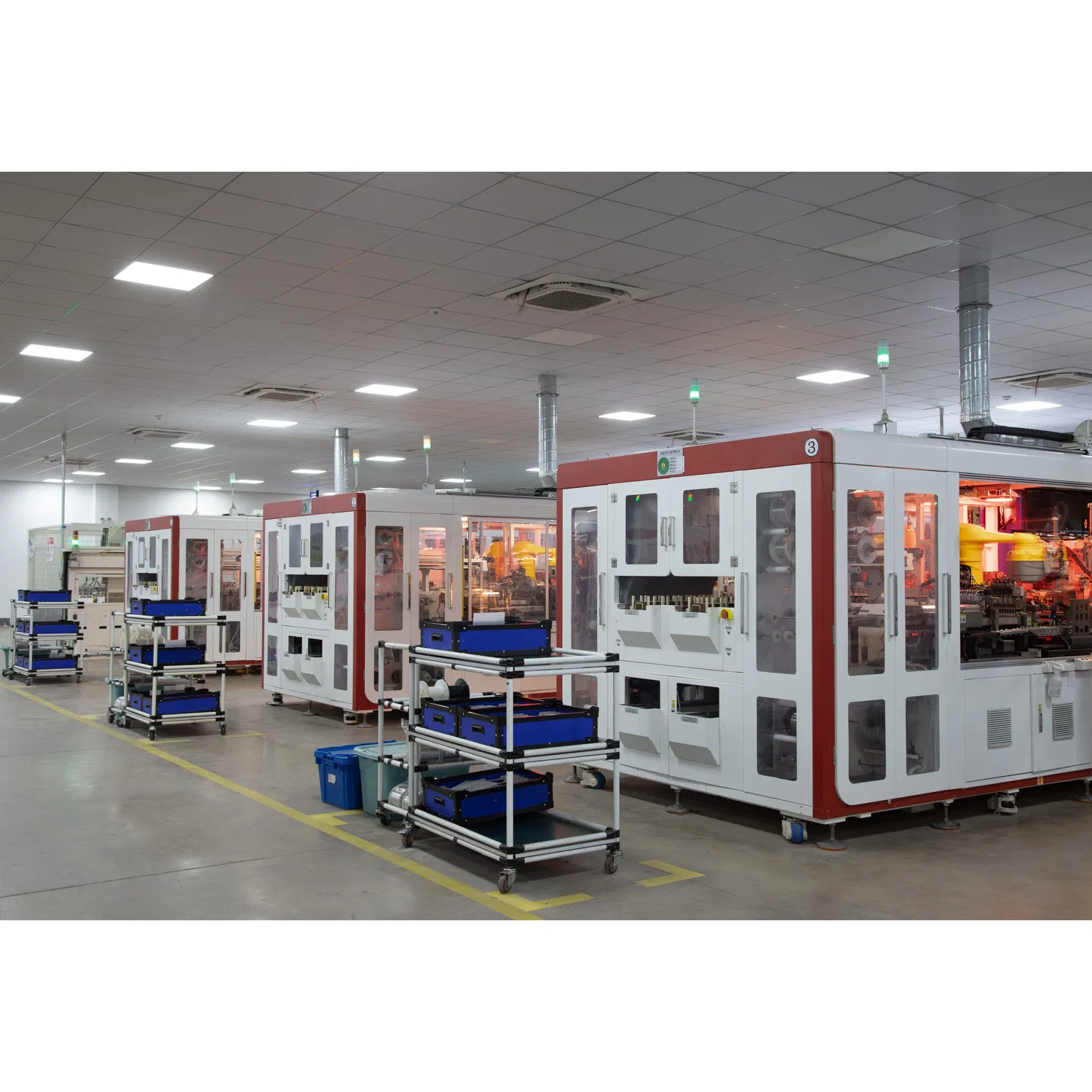

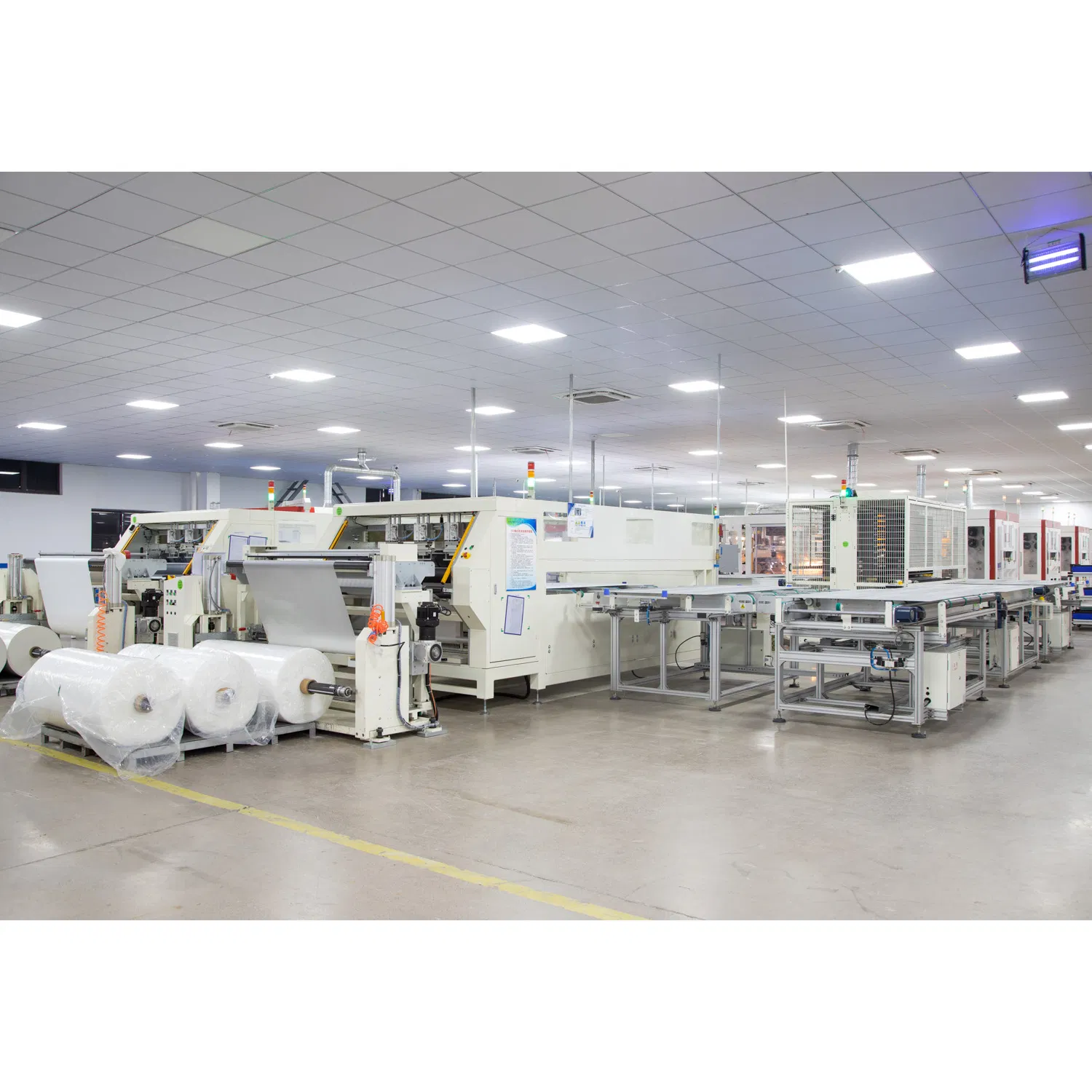

A: We operate our own factory and maintain strategic partnerships with top-tier brands like Longi, JA Solar, Jinko, and Trina to provide customers with competitive pricing and a wider range of technology choices.
Q: Can I request a sample to verify the product quality?
A: Yes, we welcome sample orders for quality verification and technical testing before bulk purchasing.
Q: What is the typical delivery timeframe?
A: Standard delivery takes 15-20 days after receiving payment, depending on the specific items and total order quantity.
Q: Which ports do you typically use for loading?
A: Our primary loading ports are Shanghai and Ningbo, China.
Q: Do you offer OEM and ODM services?
A: Yes, we fully support OEM and ODM services to meet your specific branding and technical requirements.
