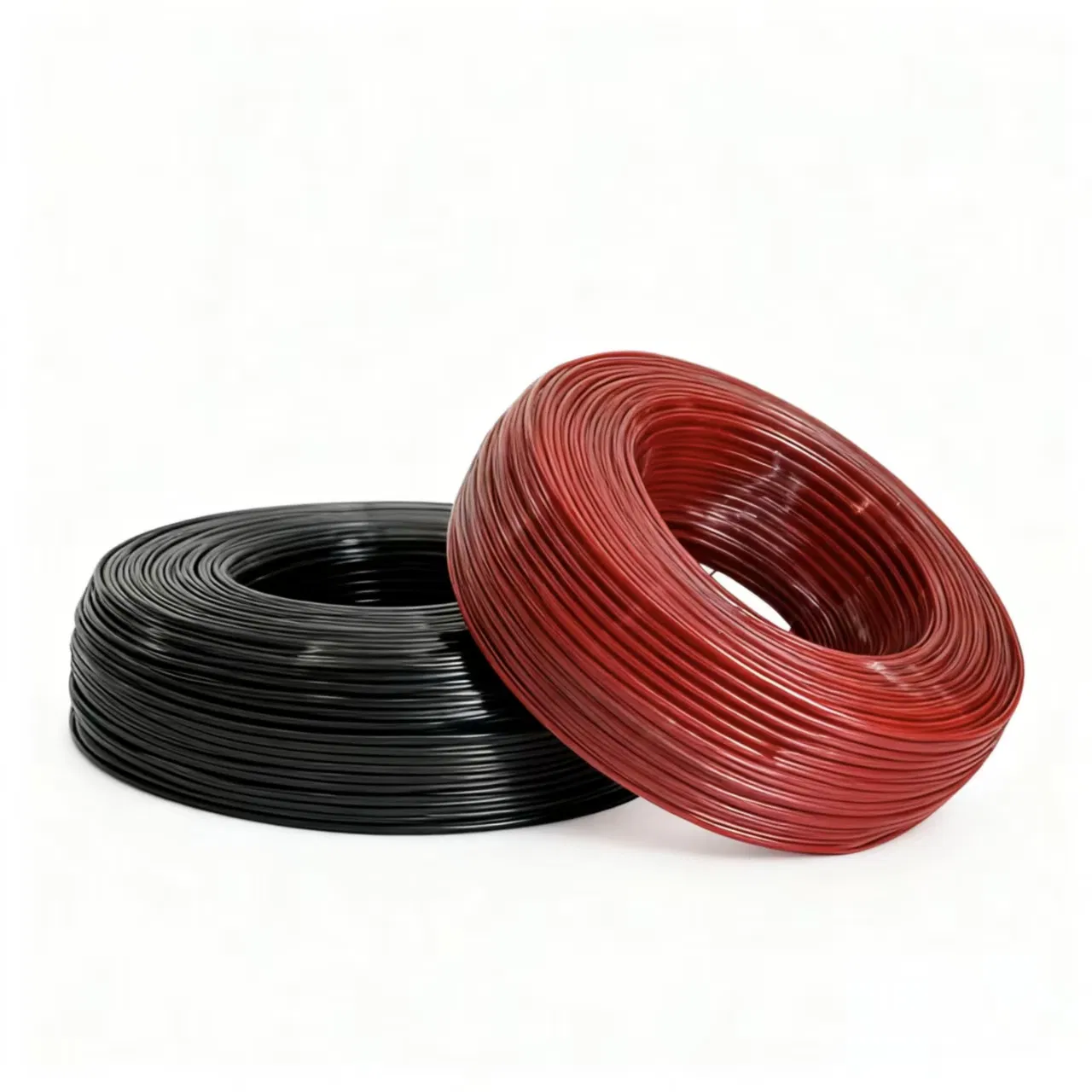

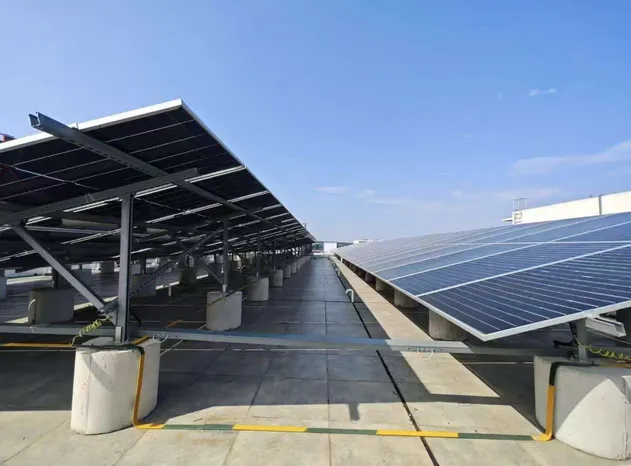

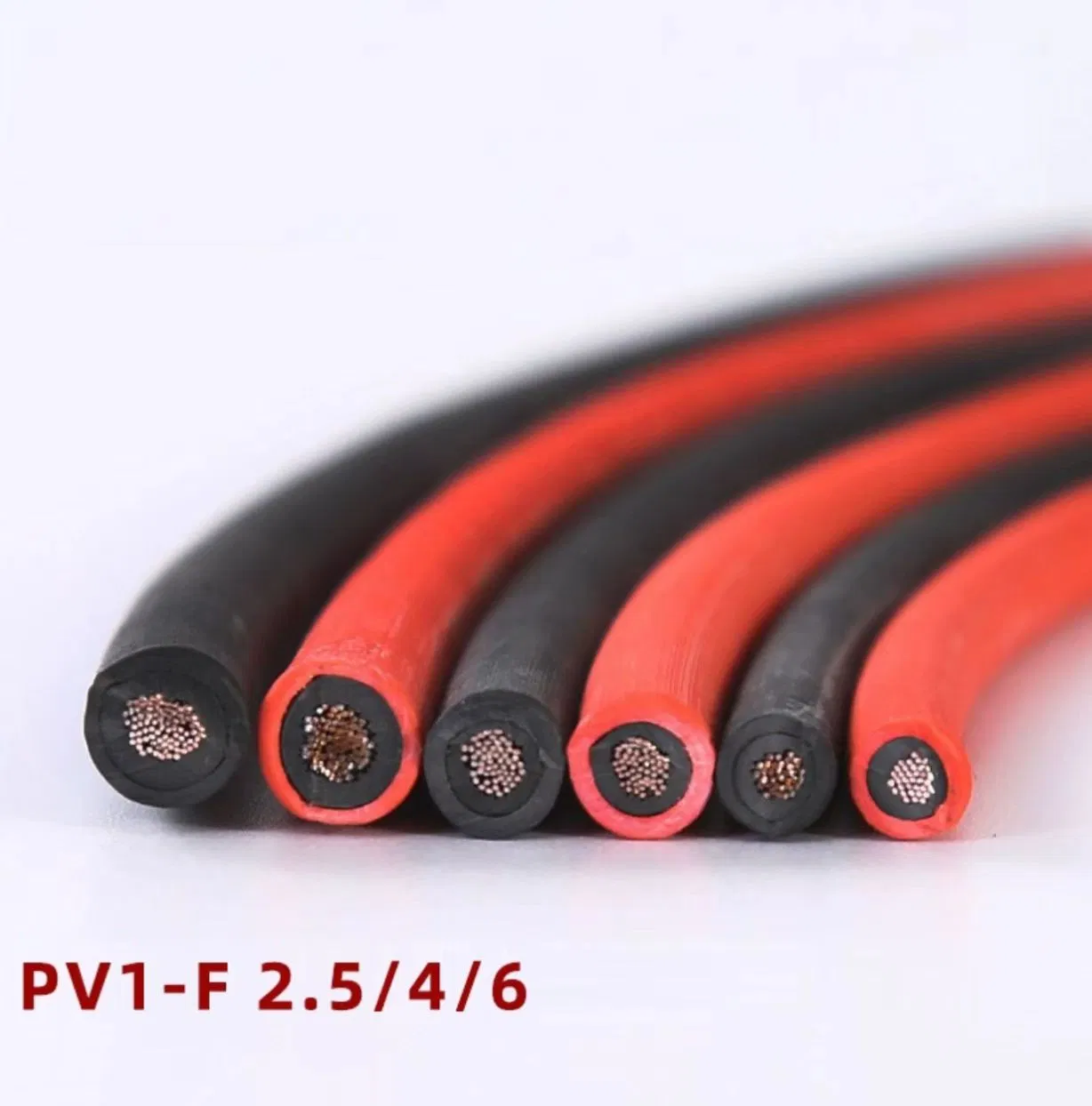

Solar cables are vital in photovoltaic (PV) power setups, linking panels to other components. Designed with UV and weather resistance, they operate across a broad temperature range, making them ideal for outdoor installations. Conductor materials feature high-purity tinned copper to ensure maximum conductivity and longevity.

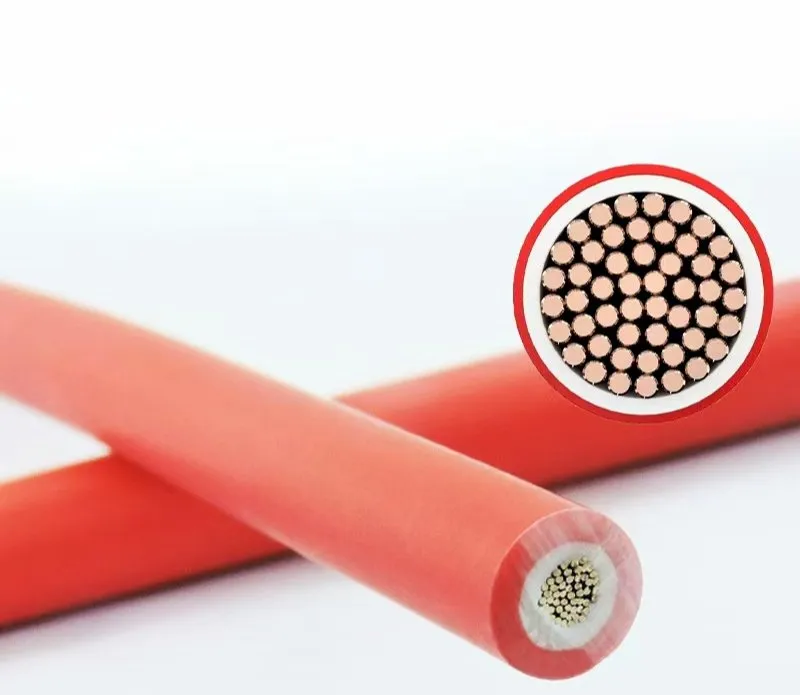

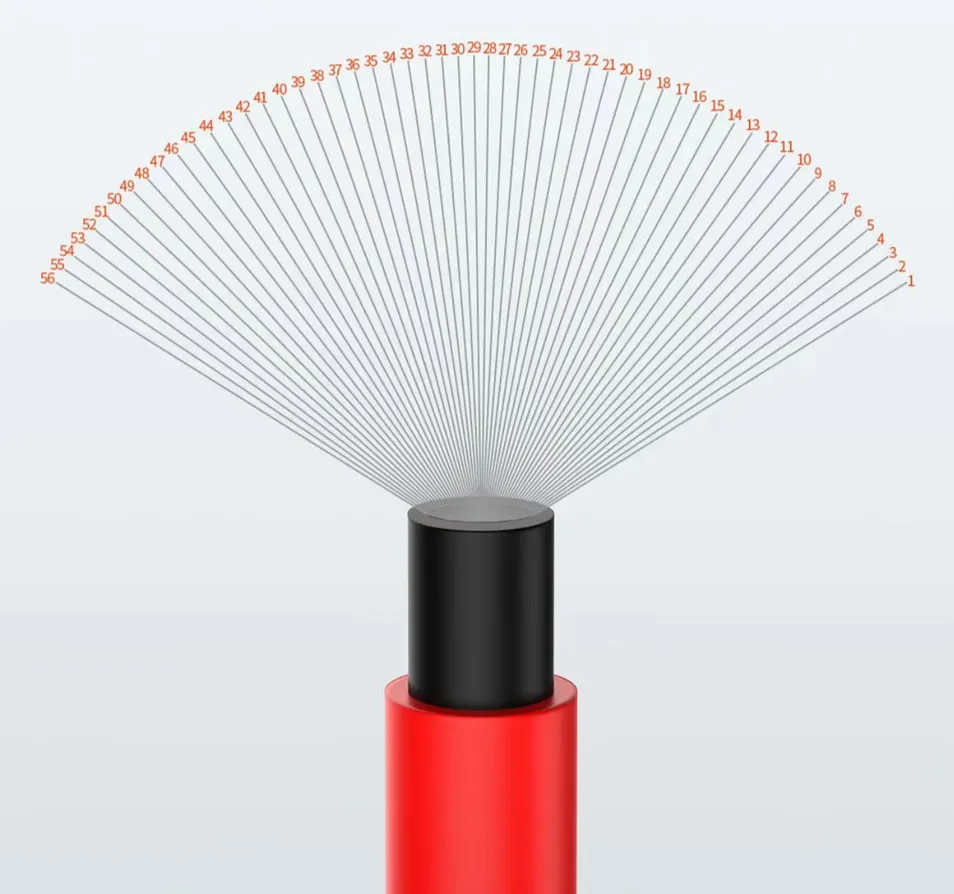

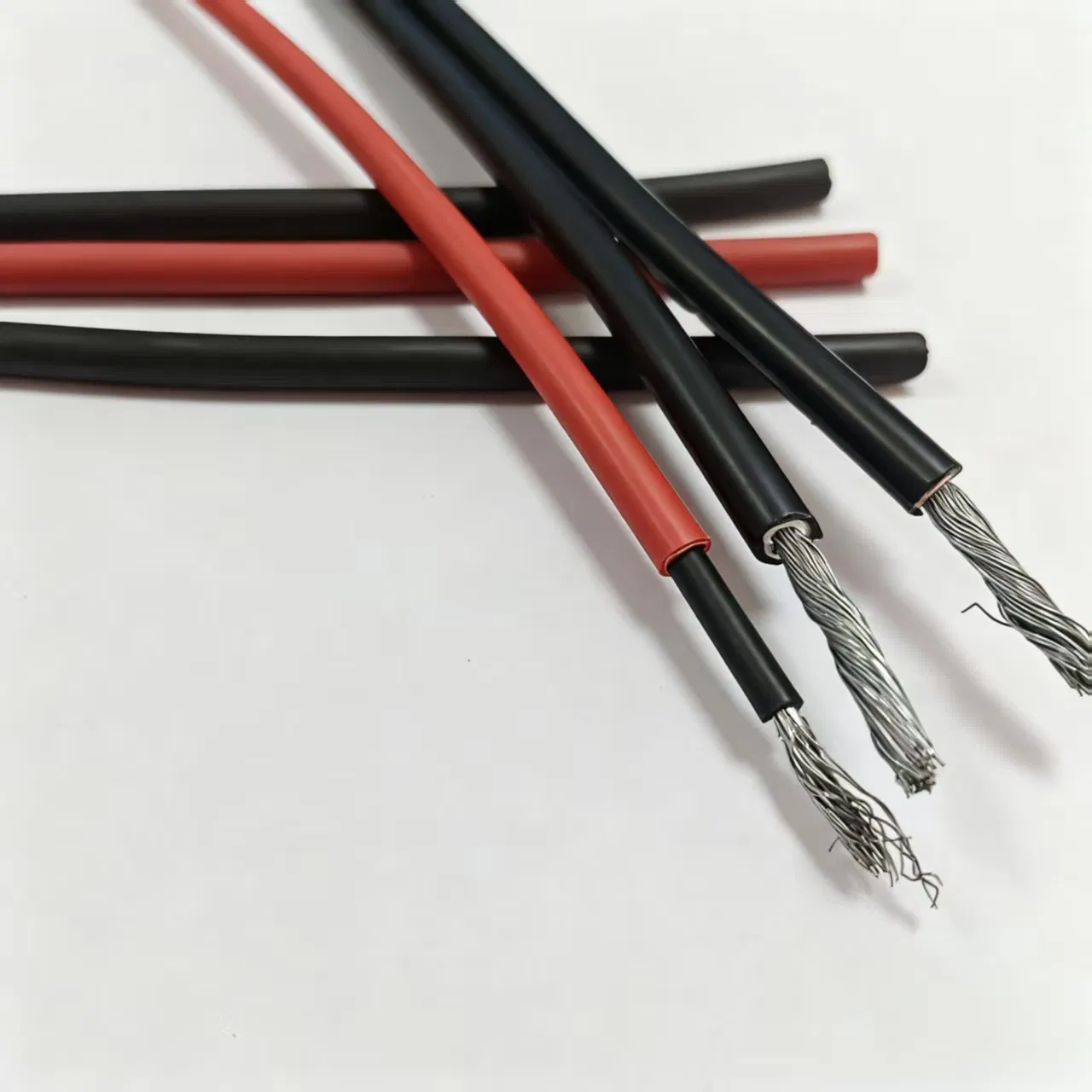

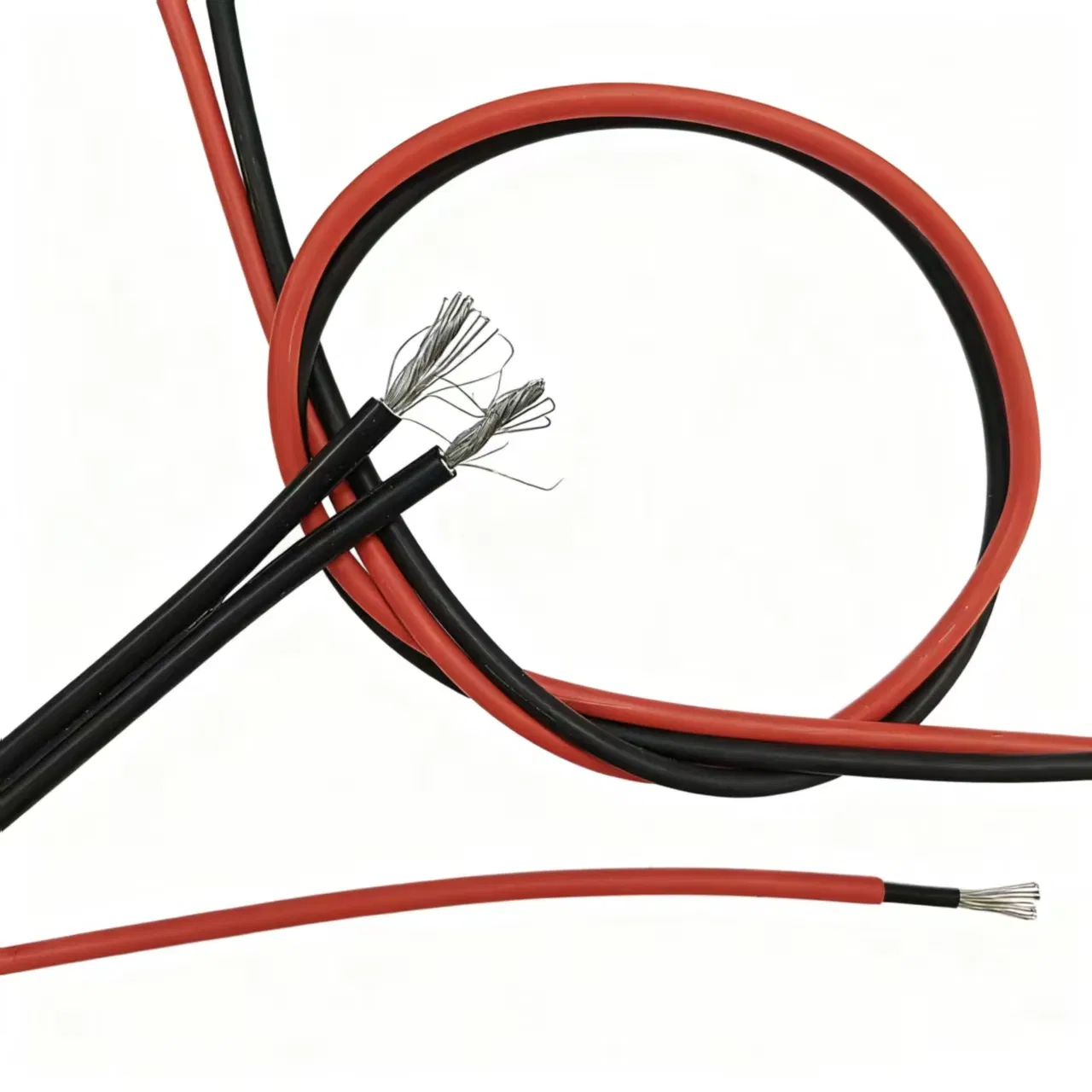

Features strands of tin-plated pure copper, offering anti-aging properties, superior electrical conductivity, low power loss, and high current capacity.

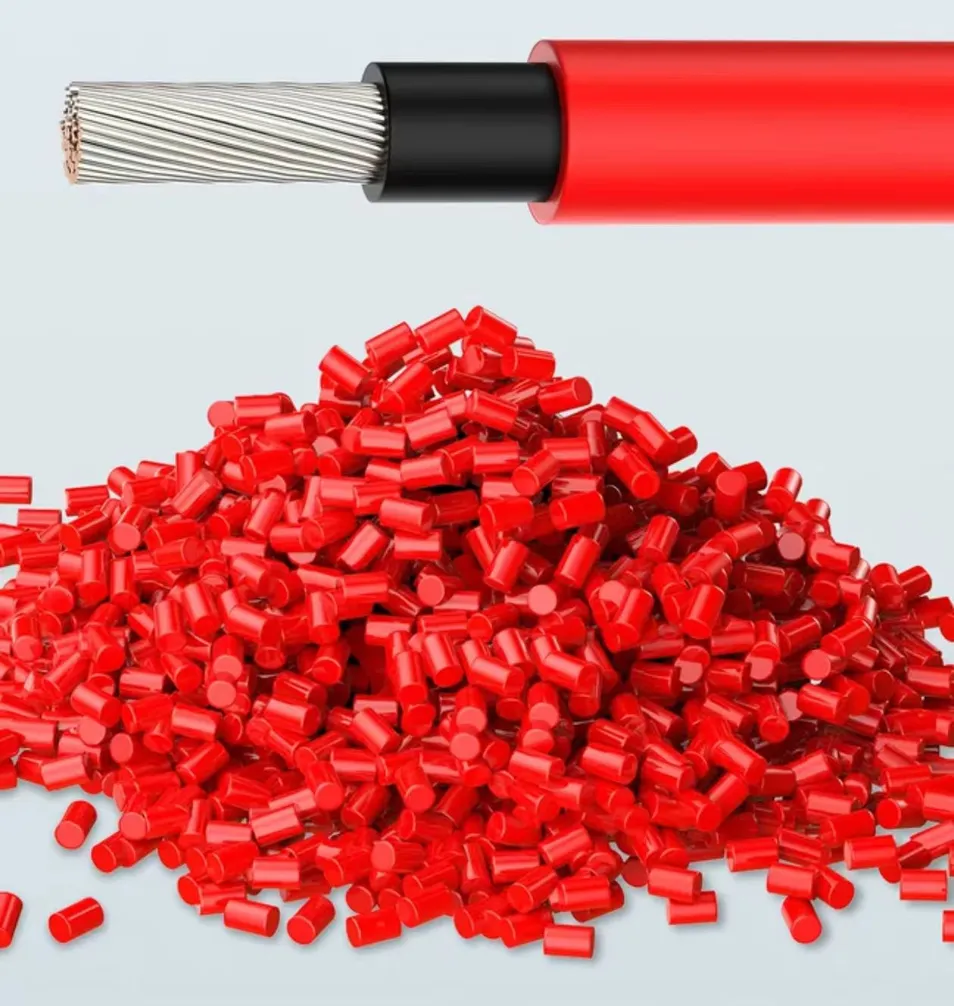

Crafted from irradiated cross-linked polyolefin (XLPO/XLPE), low smoke and halogen-free. It endures up to 125℃ and is self-extinguishing.
Manufactured with cutting-edge equipment to ensure uniform thickness, preventing current leakage and potential breakdowns.

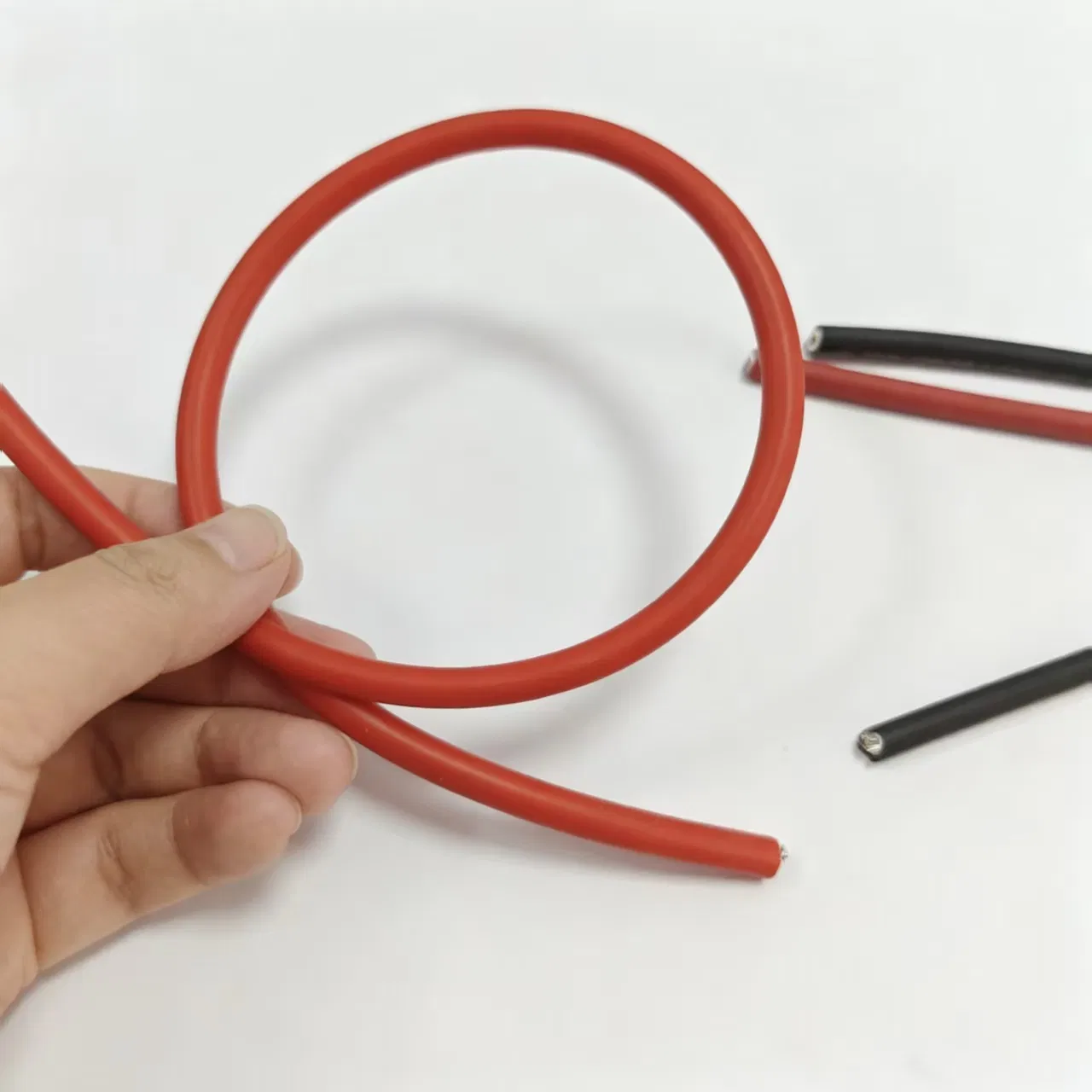

Strong resistance to pressure, folding, and bending, making it easy to install in complex environments without tearing.
| Model | Nominal Area (mm²) | Conductor Structure (mm) | Conductor Dia. (mm) | Insulation Thick. (mm) | Sheath Thick. (mm) | Cable Dia. (mm) | DC Resistance (20°C Ω/km) |
|---|---|---|---|---|---|---|---|
| PV1-F | 1.5 | 30/0.2 | 1.6 | 1.0 | 0.8 | 5.2 | 12.2 |
| PV1-F | 2.5 | 50/0.2 | 2.0 | 1.0 | 0.8 | 5.6 | 7.56 |
| PV1-F | 4 | 56/0.3 | 2.6 | 1.0 | 0.9 | 6.4 | 4.7 |
| PV1-F | 6 | 84/0.3 | 3.2 | 1.0 | 0.9 | 7 | 3.11 |
| PV1-F | 10 | 142/0.41 | 4.4 | 1.0 | 0.9 | 8.2 | 1.84 |
| PV1-F | 16 | 228/0.41 | 5.5 | 1.0 | 1.1 | 9.7 | 1.16 |
| PV1-F | 25 | 361/0.41 | 6.5 | 1.2 | 1.2 | 11.3 | 0.734 |

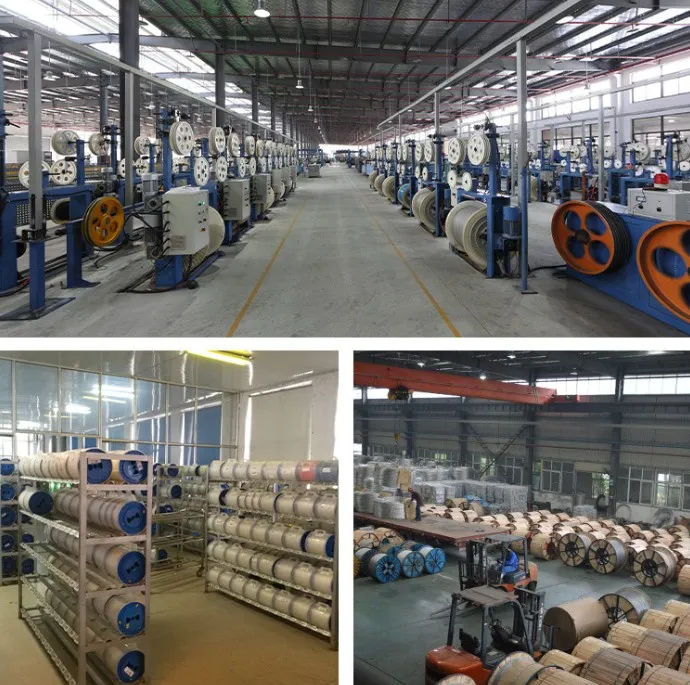

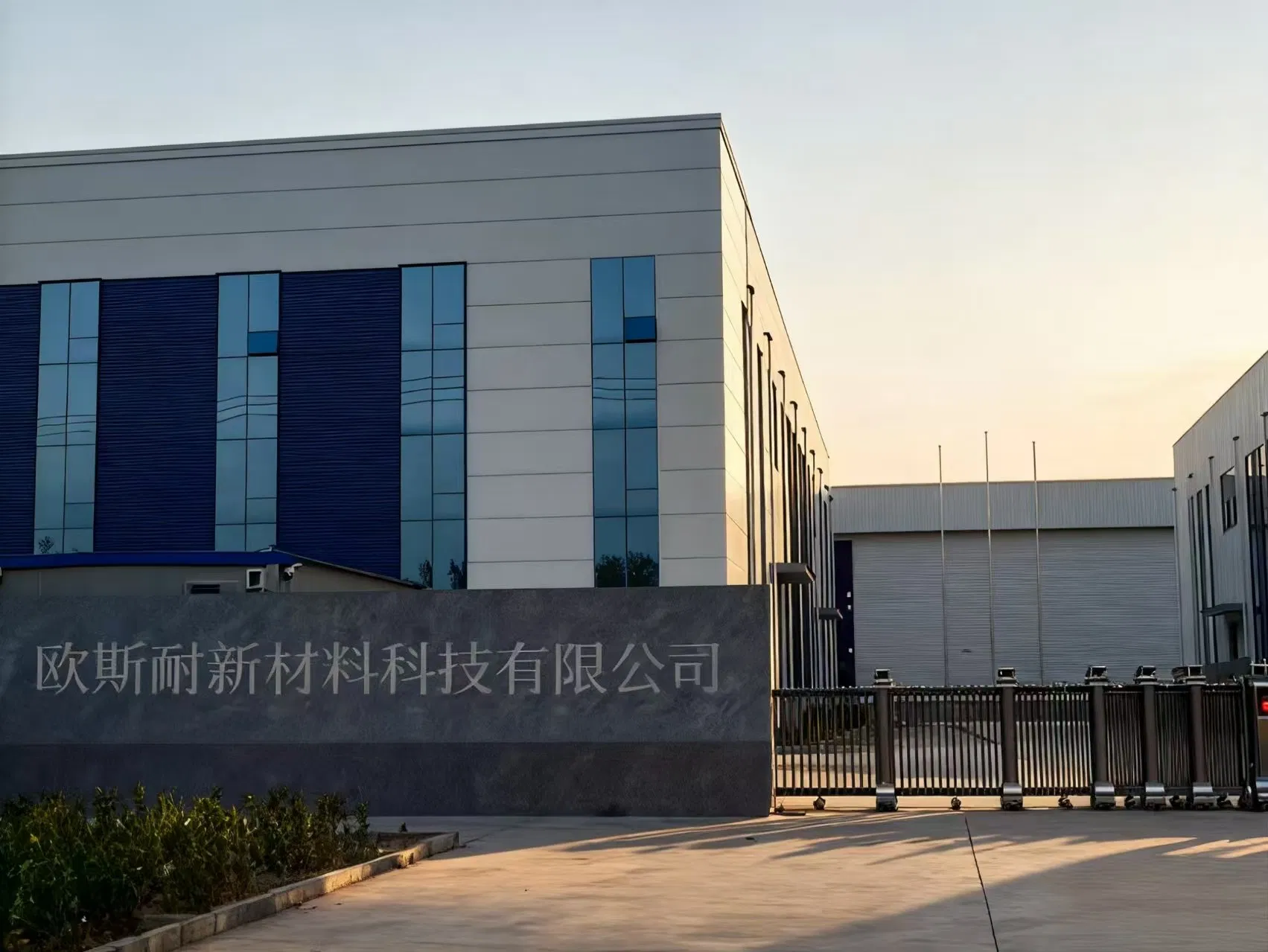

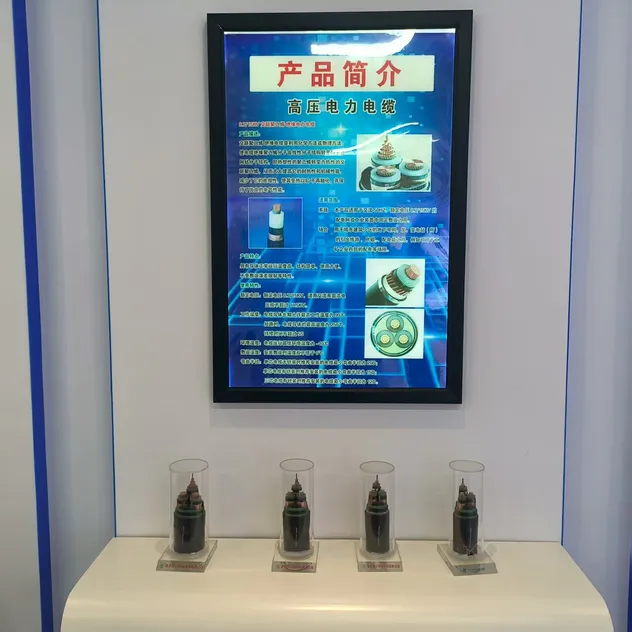

Our manufacturing facility is a cutting-edge high-tech enterprise. Driven by the philosophy of "R&D as the core and quality as the foundation," we maintain a comprehensive industrial chain from core cable material R&D to customized production and full-service sales.
