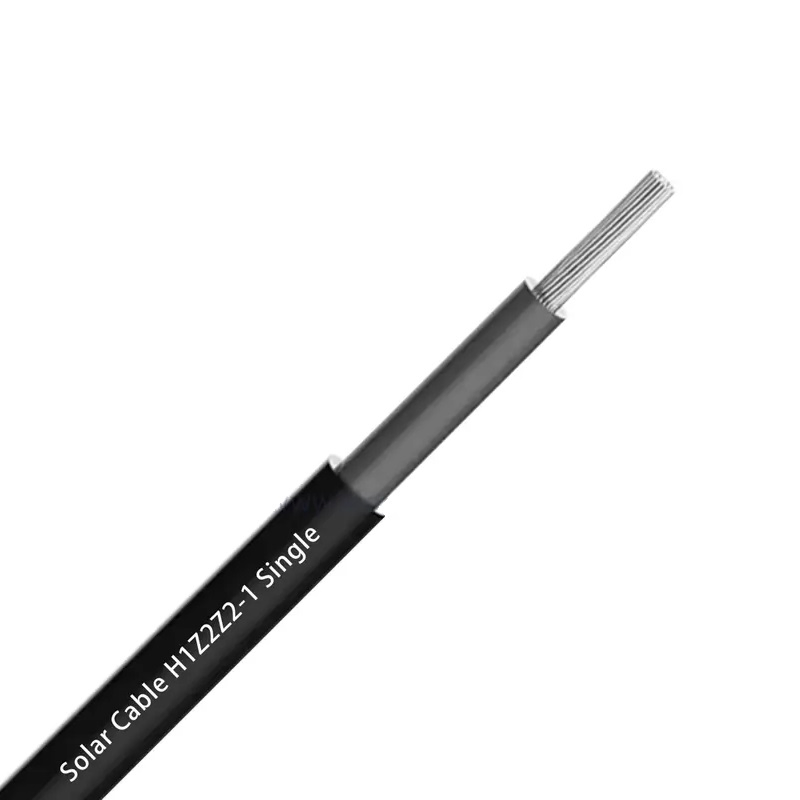

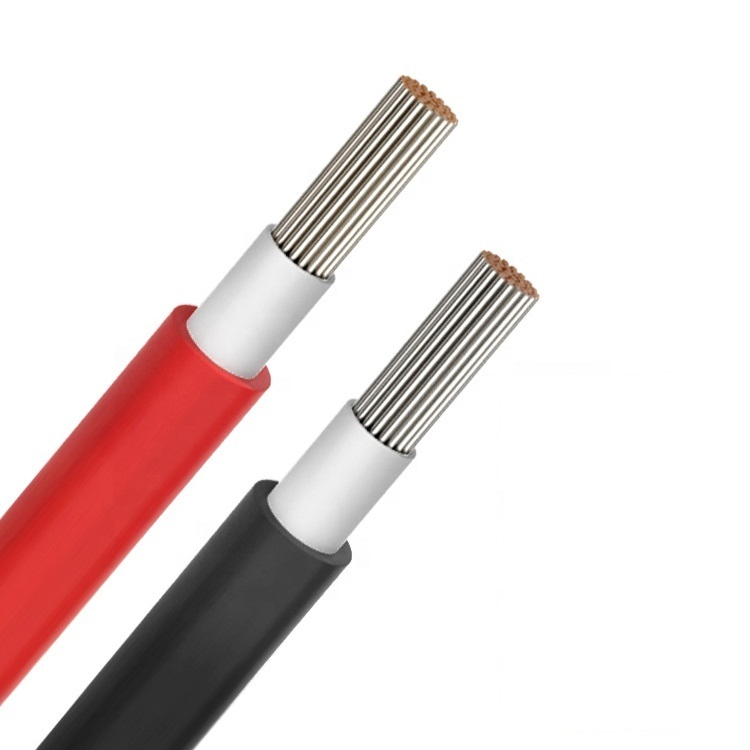

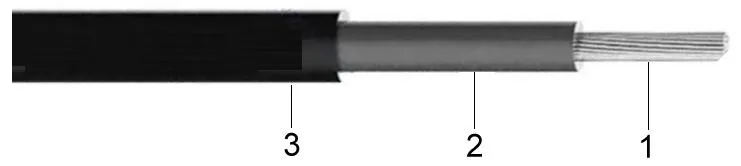

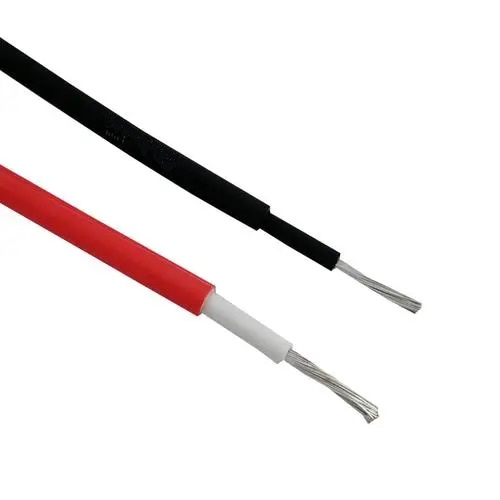

Application: Photovoltaic solar cables are intended for interconnecting power supplies within renewable energy photovoltaic systems such as solar panel arrays in solar energy farms. PV cables are manufactured in accordance with standard BS EN 50618 or UL4703 and are suitable for fixed installations, internal and external with conduit or systems or direct burial applications.
Standard: EN50618, UL4703
| Sectional Area (mm²) | Insulation Thickness (mm) | Sheath Thickness (mm) | Max Resistance at 20ºC (Ω/km) | Current Capacity (A) |
|---|---|---|---|---|
| 1x1.5 | 0.7 | 0.8 | 13.7 | 30 |
| 1x2.5 | 0.7 | 0.8 | 8.21 | 41 |
| 1x4 | 0.7 | 0.8 | 5.09 | 55 |
| 1x6 | 0.7 | 0.8 | 3.39 | 70 |
| 1x10 | 0.7 | 0.8 | 1.95 | 98 |
| 1x16 | 0.7 | 0.9 | 1.24 | 132 |
| 1x25 | 0.9 | 1.0 | 0.795 | 176 |
| 1x35 | 0.9 | 1.1 | 0.565 | 218 |
| 1x50 | 1.0 | 1.2 | 0.393 | 276 |
| 1x70 | 1.1 | 1.2 | 0.277 | 347 |
| 1x95 | 1.1 | 1.3 | 0.210 | 416 |
| 1x120 | 1.2 | 1.3 | 0.164 | 488 |
| 1x150 | 1.4 | 1.4 | 0.132 | 566 |
| 1x185 | 1.6 | 1.6 | 0.108 | 644 |
| 1x240 | 1.7 | 1.7 | 0.817 | 775 |
