High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
1 / 5
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh
High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh

High-Efficiency Hybrid Solar Battery Storage for 100kwh & 200kwh

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Product Overview

Model NO.
ATESSOT100-215KWH
Nominal Capacity
100~215kwh
Cycle Life
More Than 6000 Cycles
Battery Type
Lithium Iron Phosphate (LiFePO4)
Degree of Protection
IP54
Cooling System
Air Conditioning Air Cooling
Designed Life
More Than 10 Years
Certification
IEC62619, IEC61000, UN38.3, MSDS
📝

Product Description

Hybrid Solar Battery Storage
Distributed air-cooled outdoor cabinet is an energy storage system used in industry and commerce widely. It can store electricity converted from solar energy, wind energy and other renewable energy sources. It adopts air/liquid cooling technology, which is cost-effective and easy to maintain and repair.
⚙️

Technical Parameters

INTELLIGENT ENERGY STORAGE SYSTEM

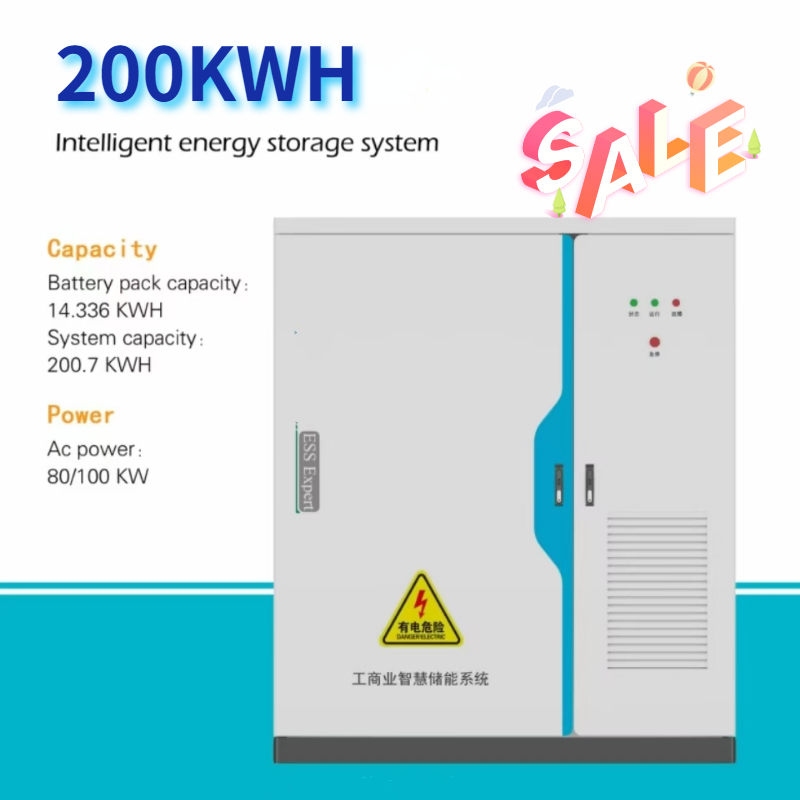

Model ATESSOT50-100KWH ATESSOT100-200KWH
Dimension(WxDxH)1500x1100x2080 mm1760x1100x2080 mm
Weight (incl. battery)1.25 t2.05 t
Rated Power30/50 KW80/100 KW
System Capacity100.352 KWH (MAX)200.7 KWH
DC Voltage Range560~850 V615~900 V
AC Voltage Range320~460 V320~460 V
Battery TypeLithium Iron Phosphate
Protection RatingIP54
Operating Temp-25°C ~ +50°C
Cycle Times≥6000 @25ºC
🚀

Performance Advantages

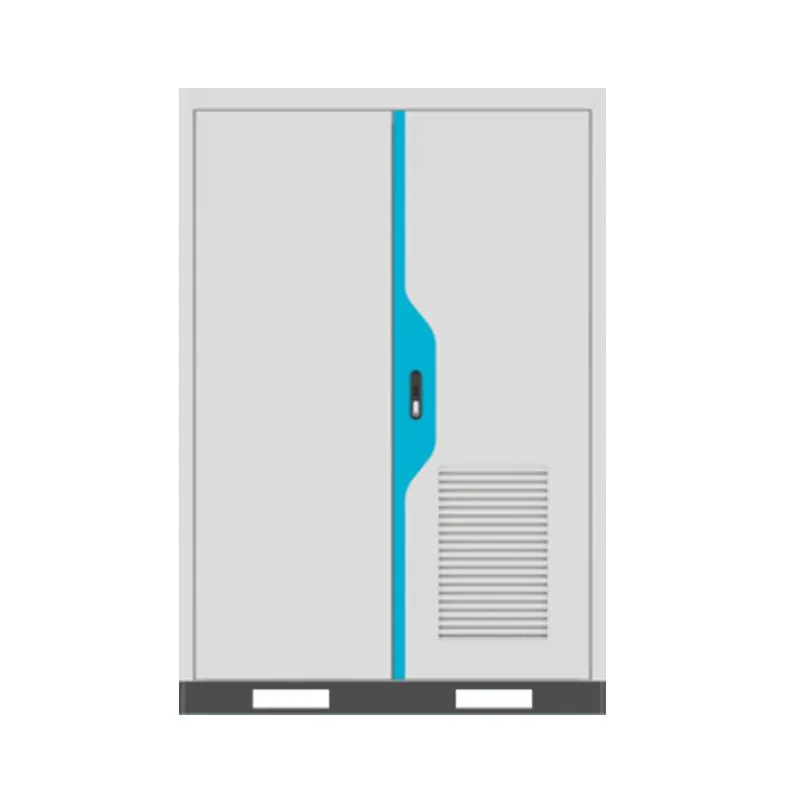

Capacity 100KWH

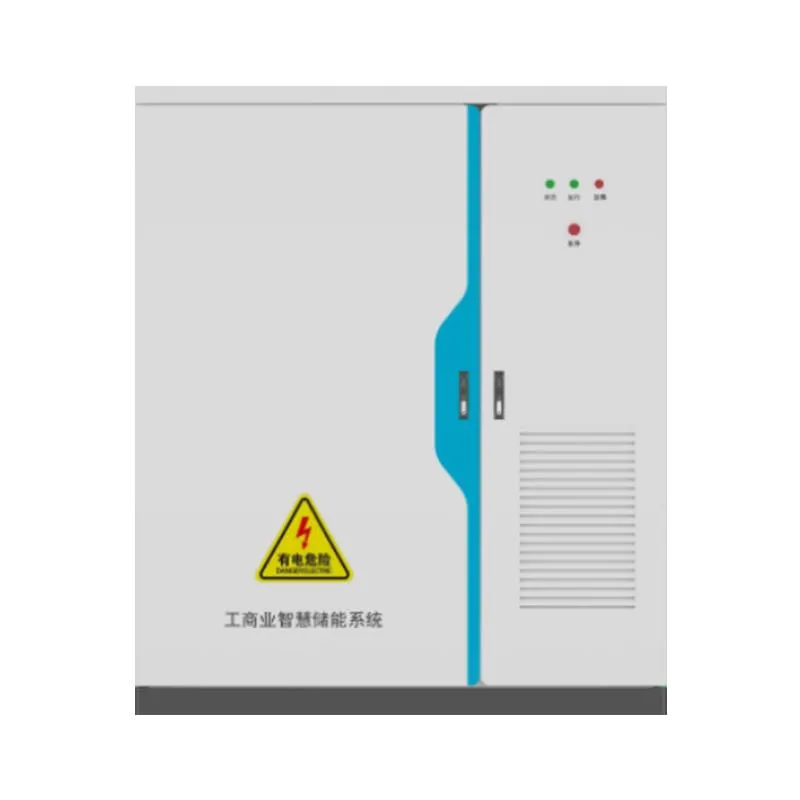

Capacity 200KWH
Building block design
Flexible arrangement
Hierarchical management
Real-time monitoring
Double-layer insulation design
Multiple intelligent security
Smoke & temperature sensing
BMS and EMS monitoring
Professional design integration

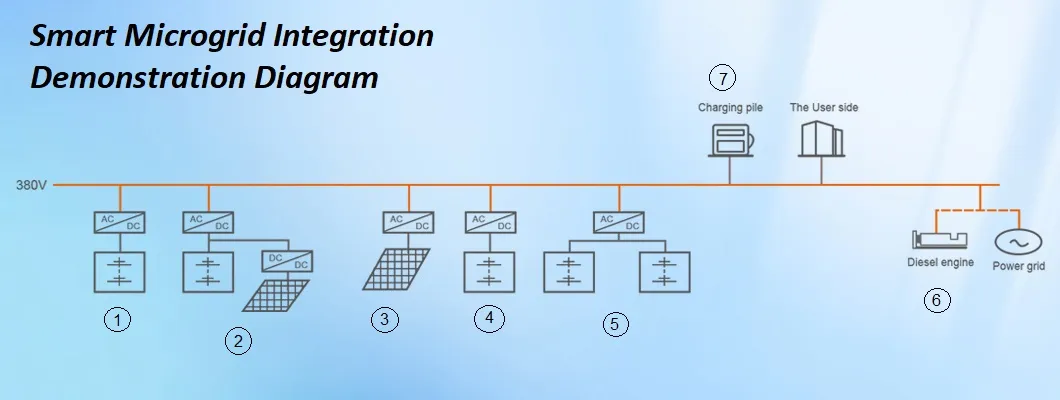

Operation Logic
📷

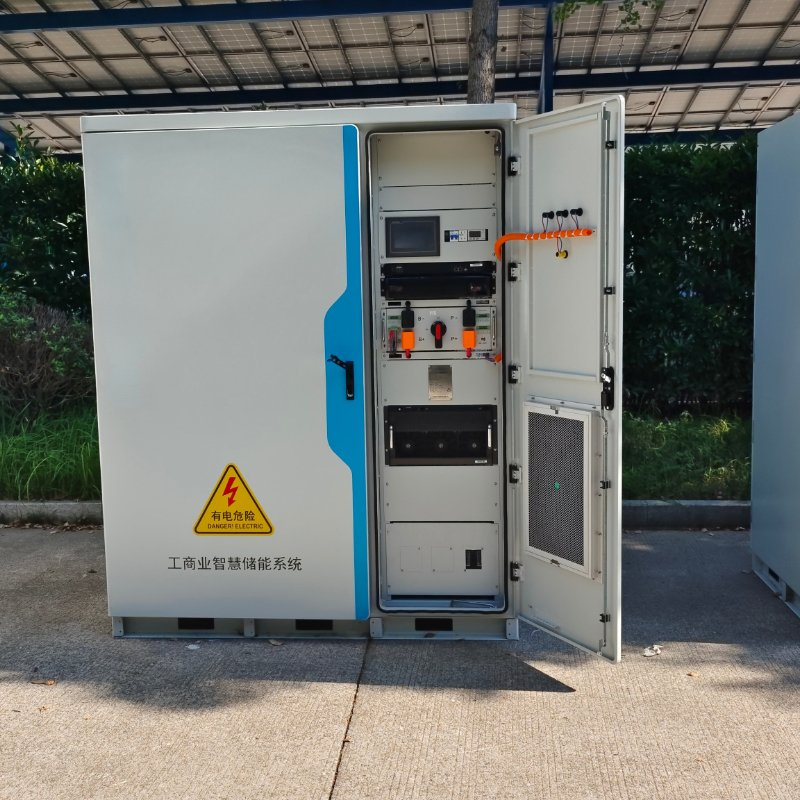

Detailed Photos

Detail 1
Detail 2

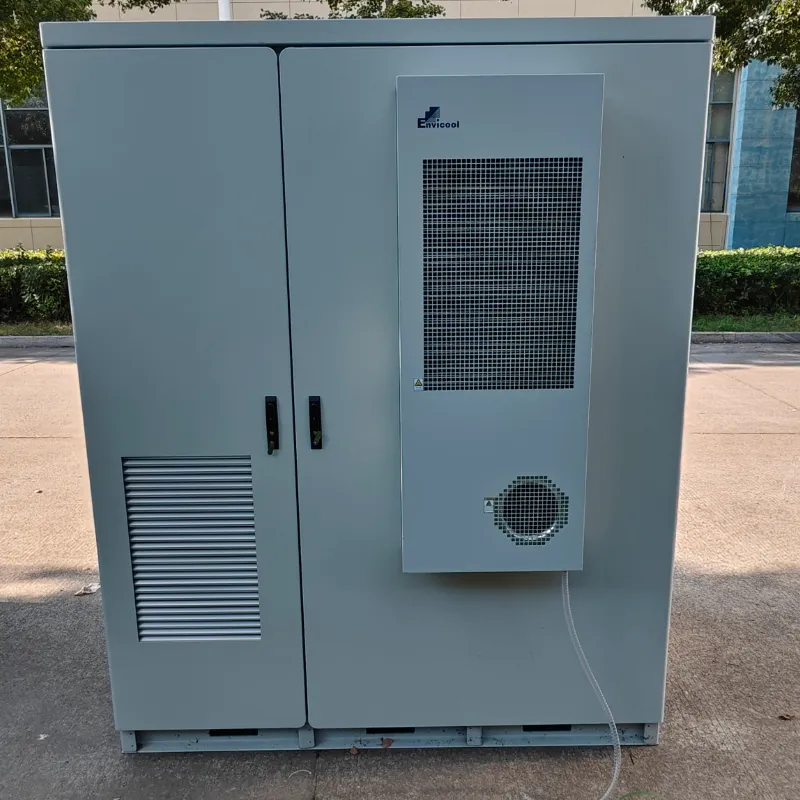

Detail 3

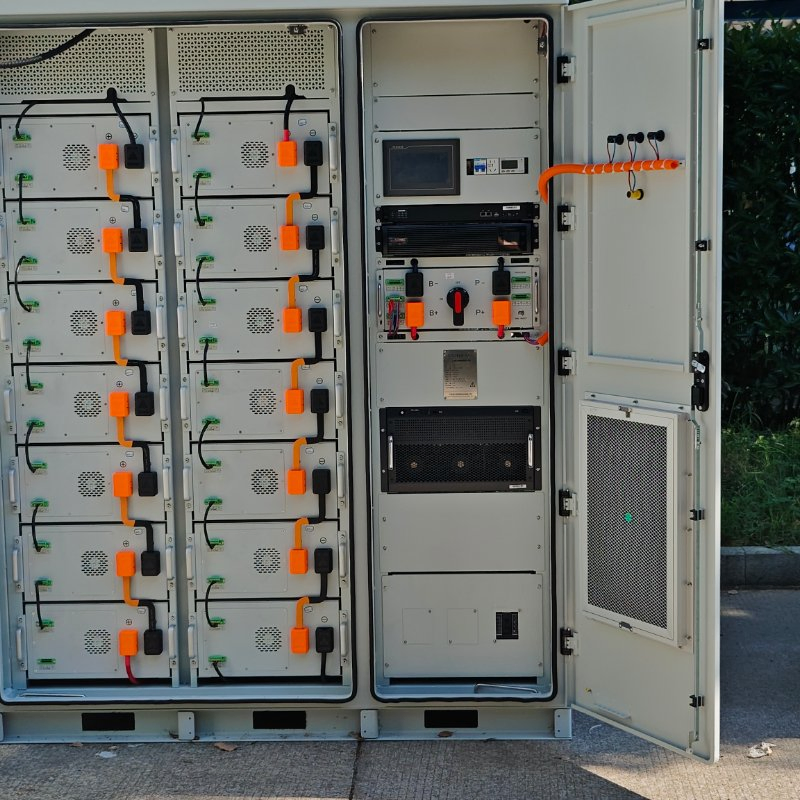

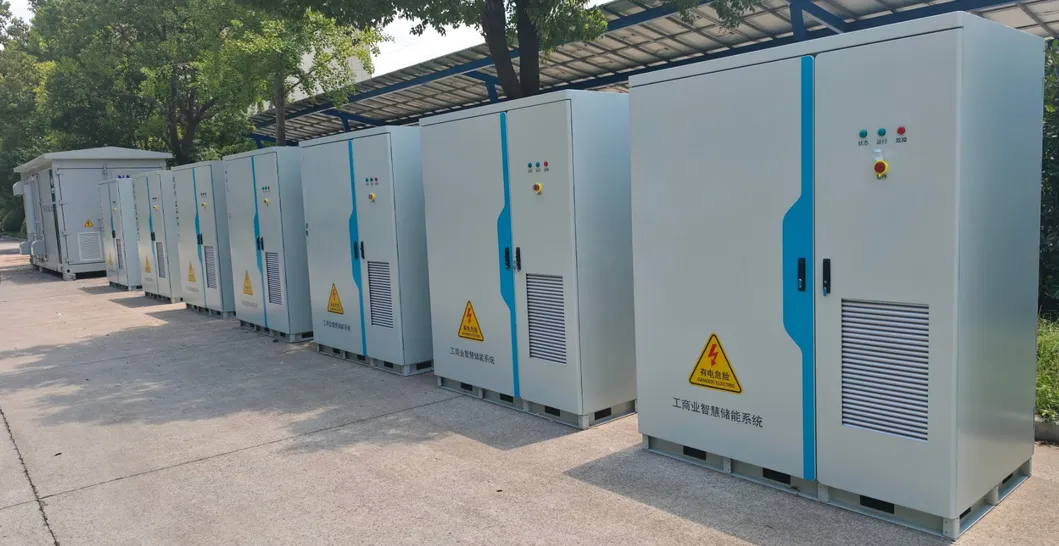

Internal Structure
📦

Packaging & Shipping

Packing 1

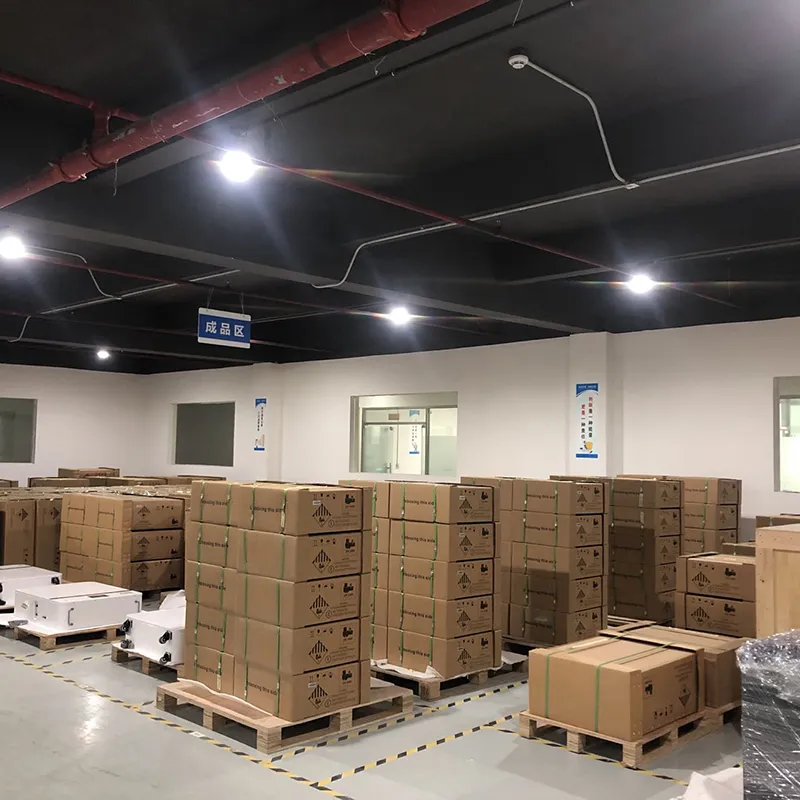

Packing 2

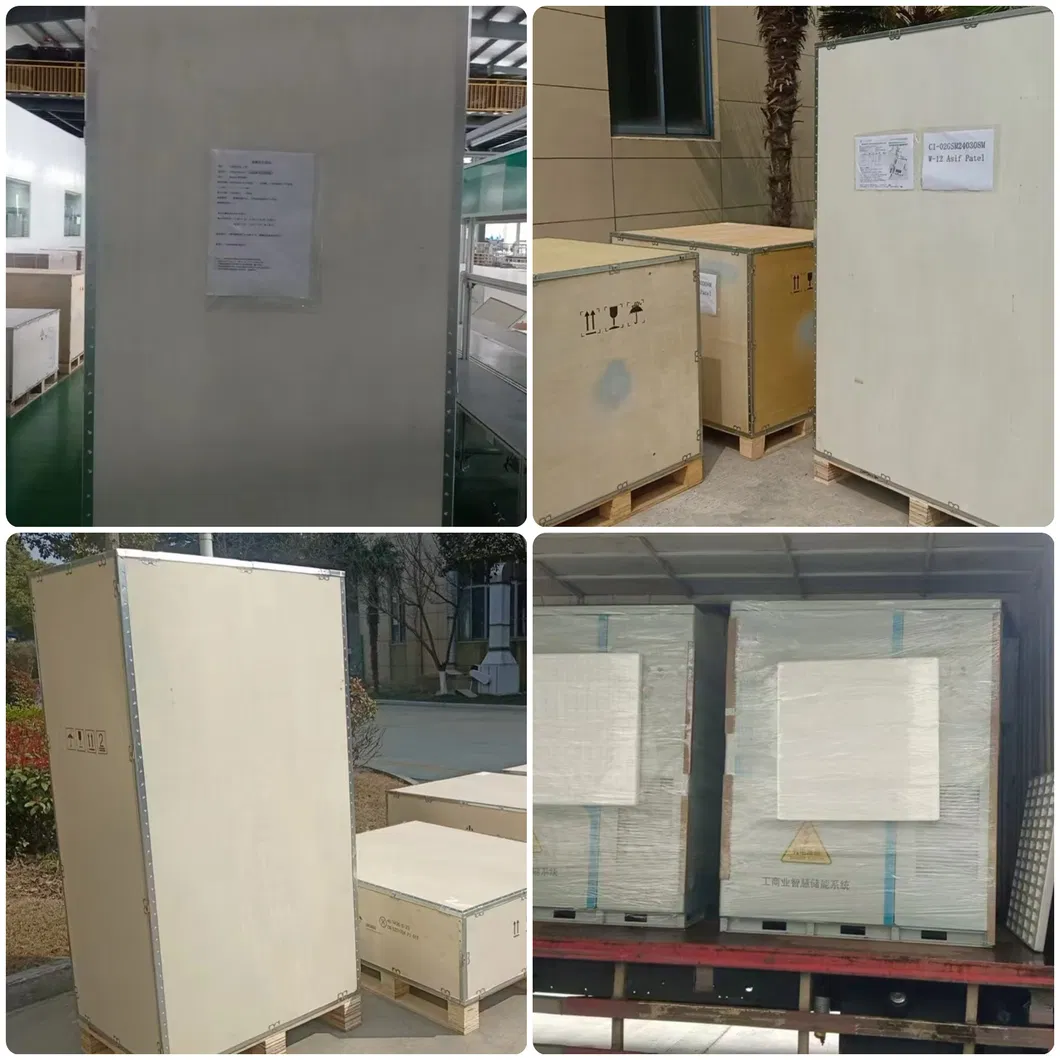

Shipping
🌐

Project Case

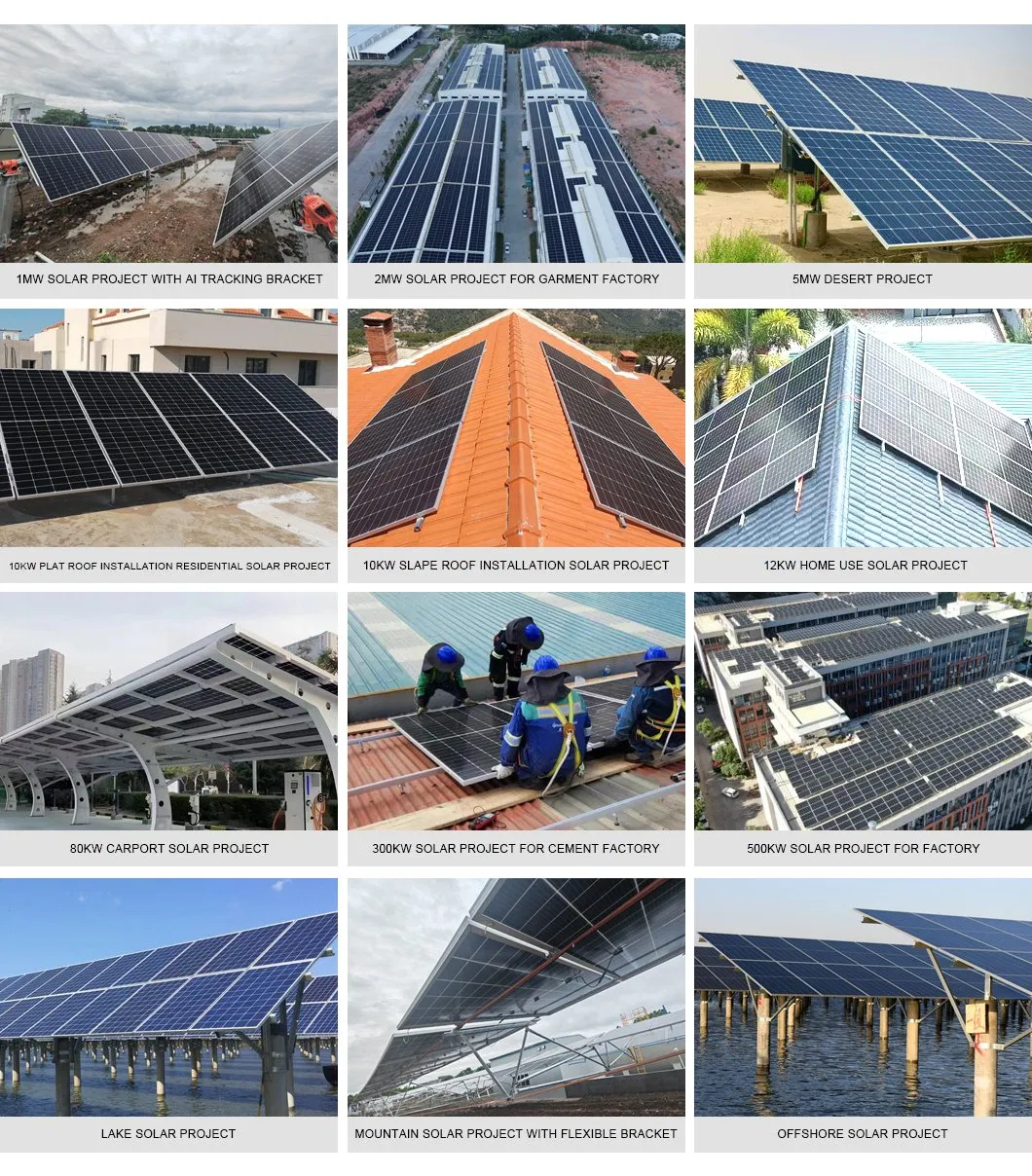

Case Study
📜

Certifications

Certificates
❓

Frequently Asked Questions

1. What is the expected cycle life of the battery system?
The system utilizes high-quality Lithium Iron Phosphate cells, providing a cycle life of more than 6,000 cycles at 25ºC.
2. Is this energy storage cabinet suitable for outdoor installation?
Yes, it is specifically designed for outdoor industrial and commercial applications with an IP54 protection rating.
3. How is the temperature regulated inside the cabinet?
The system features an integrated industrial-grade air conditioning and air cooling system to maintain optimal operating temperatures.
4. What safety features are included in the design?
The cabinet includes a multiple intelligent security system, real-time smoke and temperature monitoring, and multi-point monitoring via BMS and EMS.
5. Can the capacity be customized for different project needs?
The system supports flexible arrangement and building block design, with standard capacities ranging from 100kWh to over 200kWh per unit.
6. What certifications does the product hold?
The system is fully certified according to international standards including IEC62619, IEC61000, UN38.3, and MSDS.
