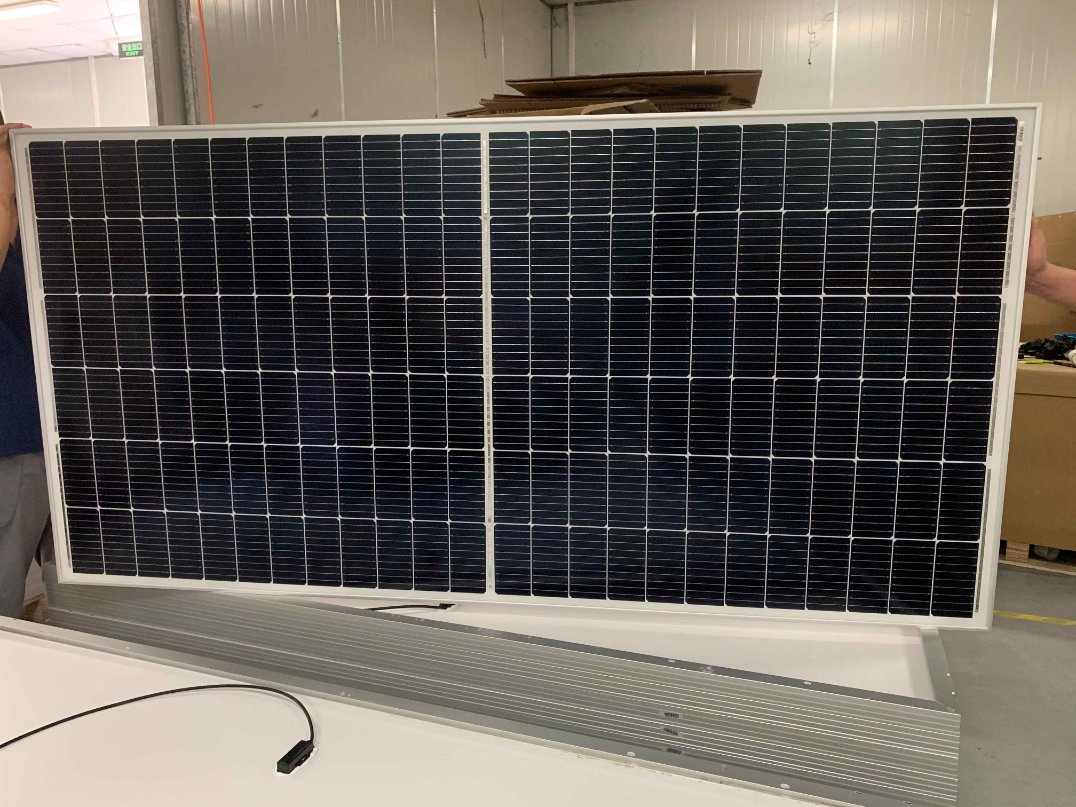

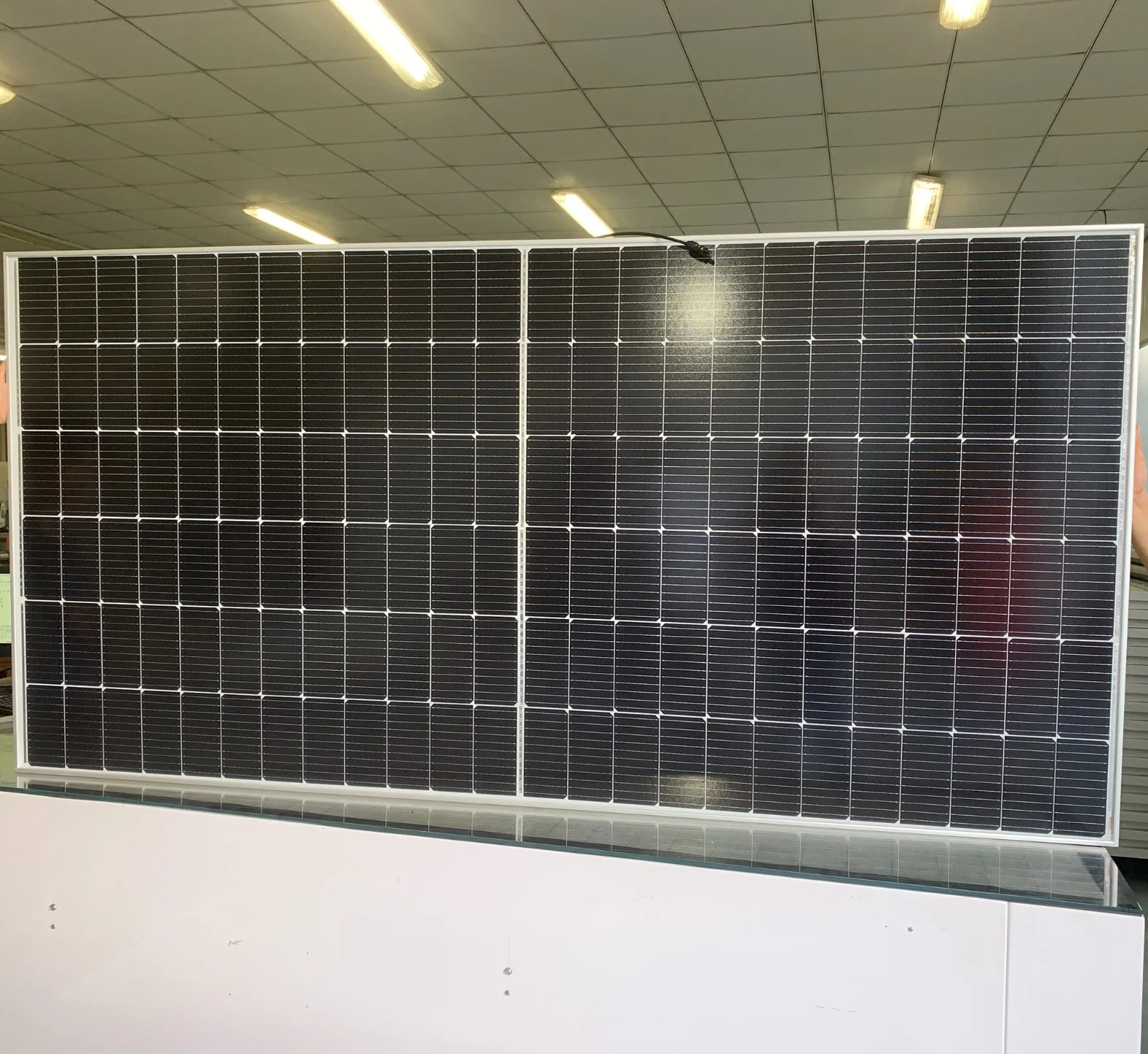

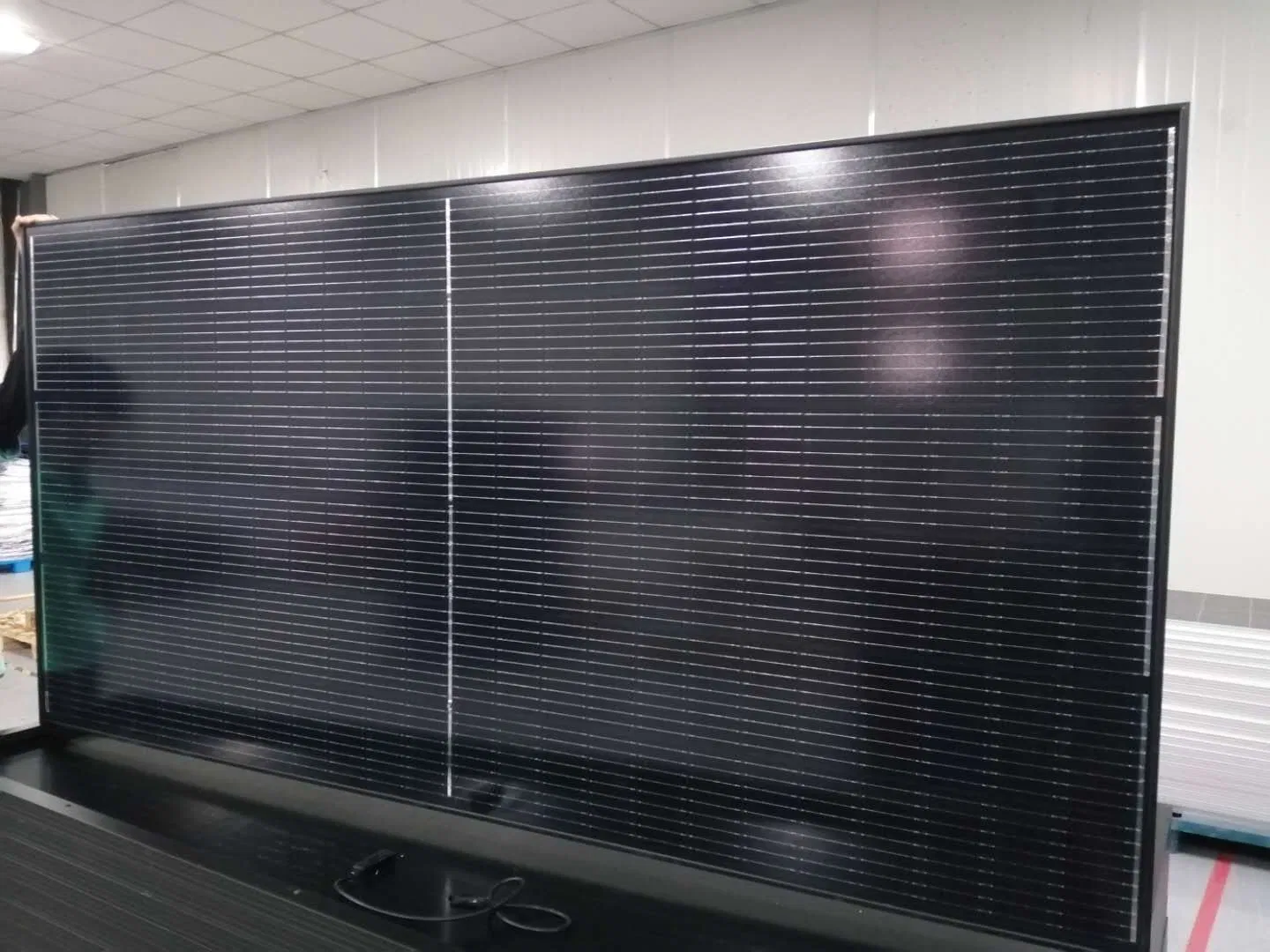

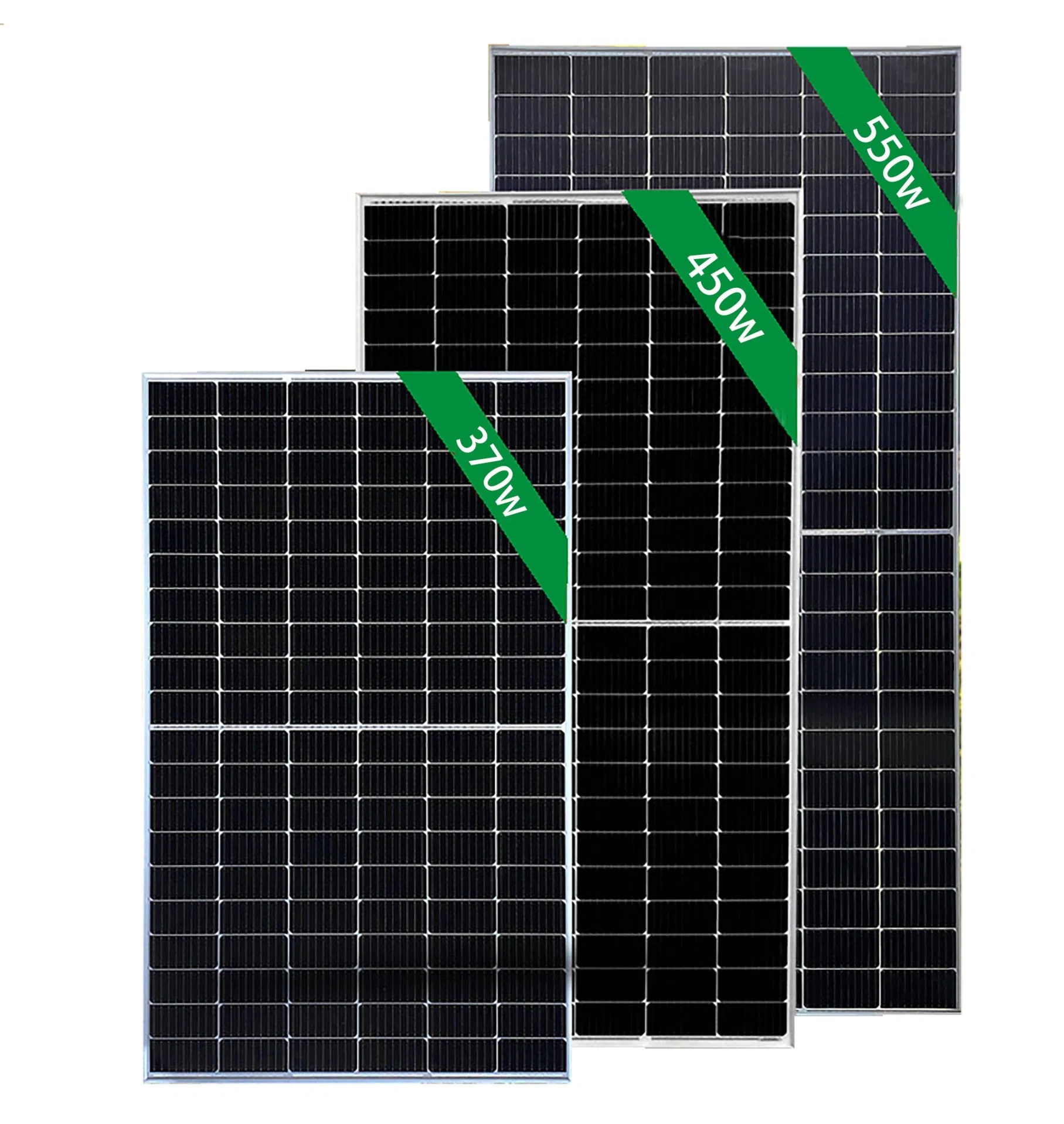

High Efficiency Jinko/Longi/Ja/Trina 370W 450W 540W Full-Black Bifacial Solar Power PV Module Panels

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
FSM-450W
Number of Cells
144PCS
Application
Solar Panel System/Solar Pump/Power Station
Material
Monocrystalline Silicon
Solar Cell
182*182mm, Anti-Pid
Efficiency
More Than 21% Efficiency
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Water Proof
Certification
ISO, CE
HS Code
8541402000
Production Capacity
100MW/Year
Technical Specifications
Mechanical Parameters
Weight29kg
Dimensions2279mm*1134mm*35mm (1.5mm Cell Gap)
Cell Amount72*2 pcs
Maximum System Voltage1500V
Cable4mm2, Landscape: 1400mm / Portrait: 200-300mm
ConnectorMC4 compatible
Electrical Parameters (STC) 530W 540W 550W
Open Circuit Voltage (Voc)49.00V49.40V49.80V
Short Circuit Current (Isc)13.76A13.87A13.99A
Max Power Voltage (Vmp)40.80V41.20V41.60V
Module Efficiency20.7%21.1%21.5%

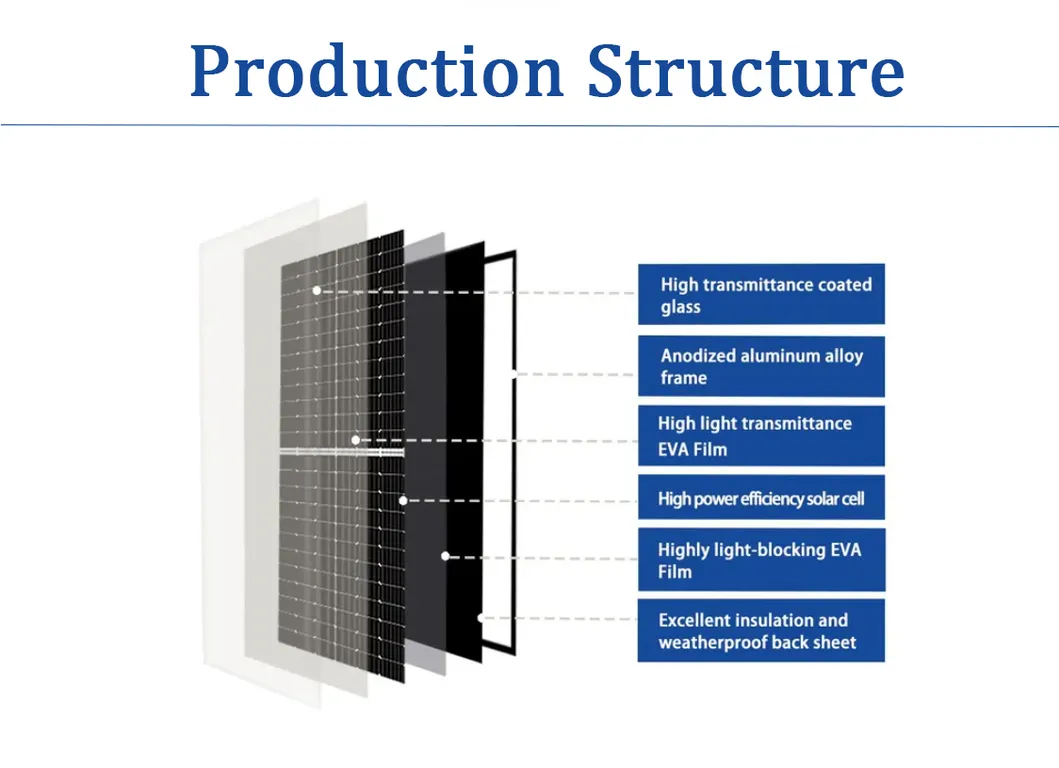

Product Features
GRADE A SOLAR CELLSHigh efficiency grade A solar cells ensure optimal energy conversion.

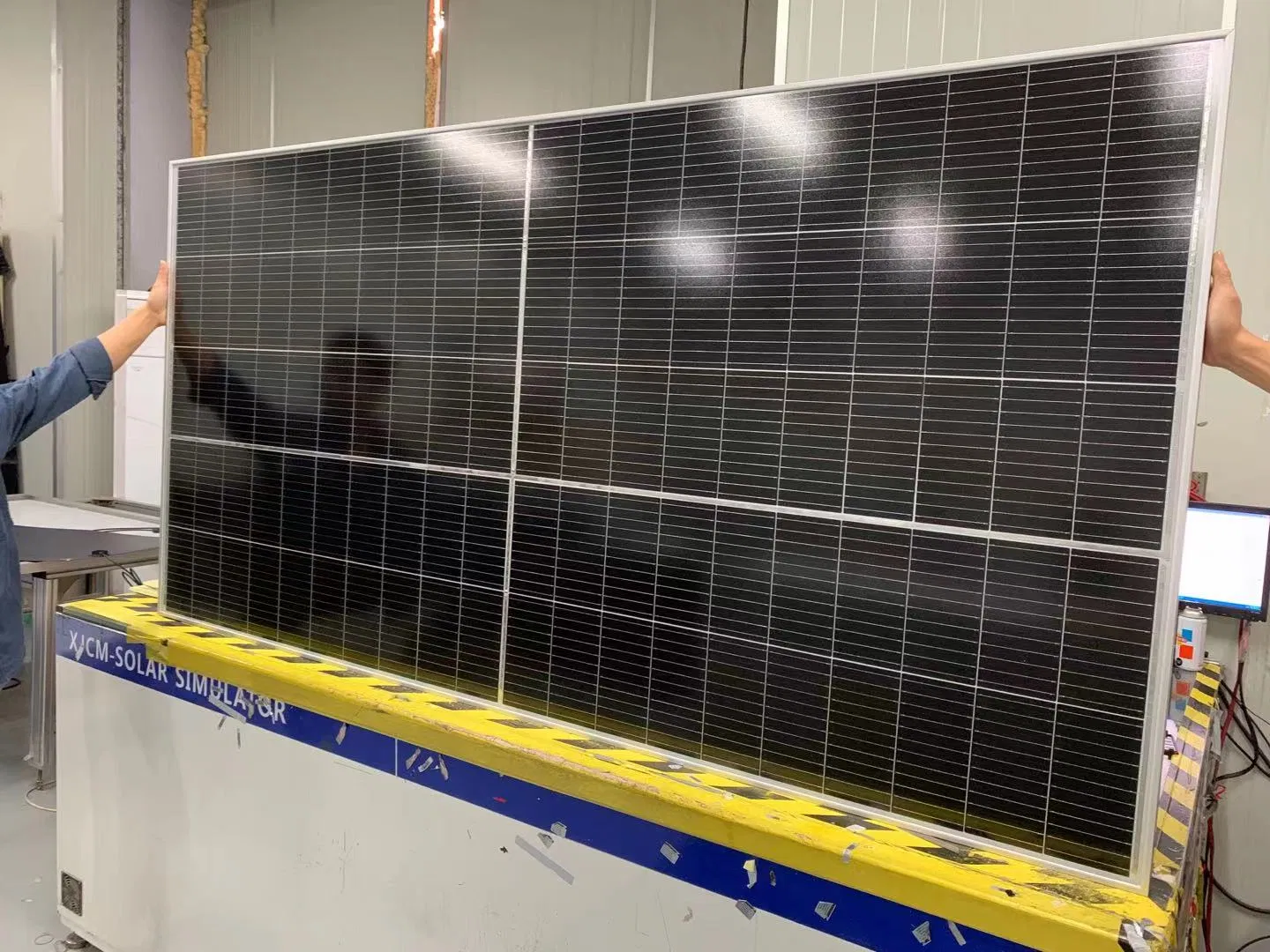

HIGH QUALITY CONTROLFully automated production with strict testing for every panel.

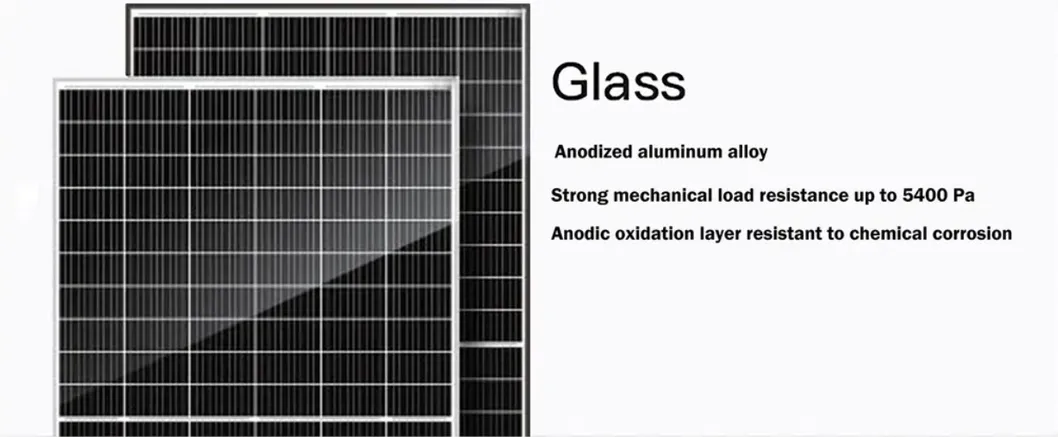

DURABLE DESIGNAnodized aluminium alloy frame with 2400pa wind and 5400pa snow load capacity.
IP68 PROTECTIONEquipped with waterproof junction box for reliable outdoor operation.

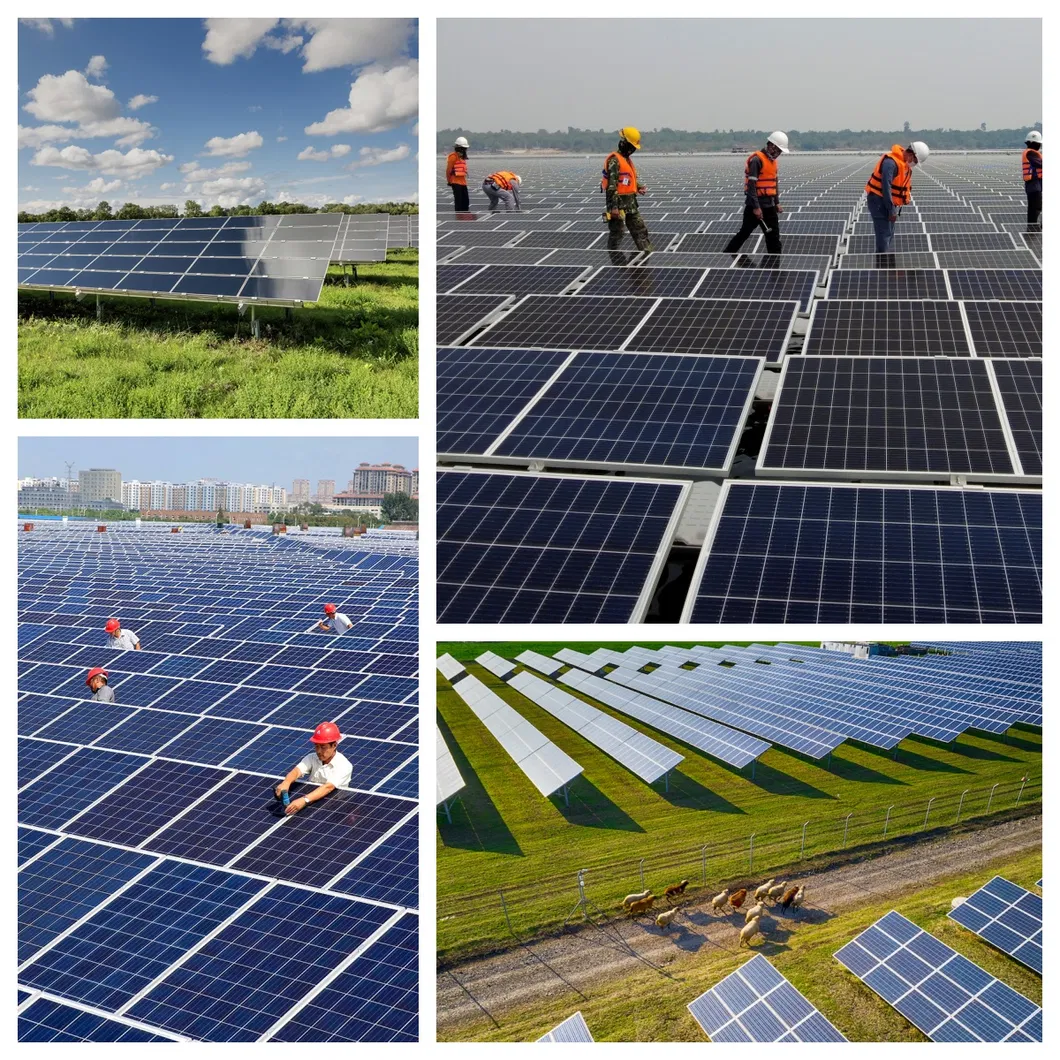

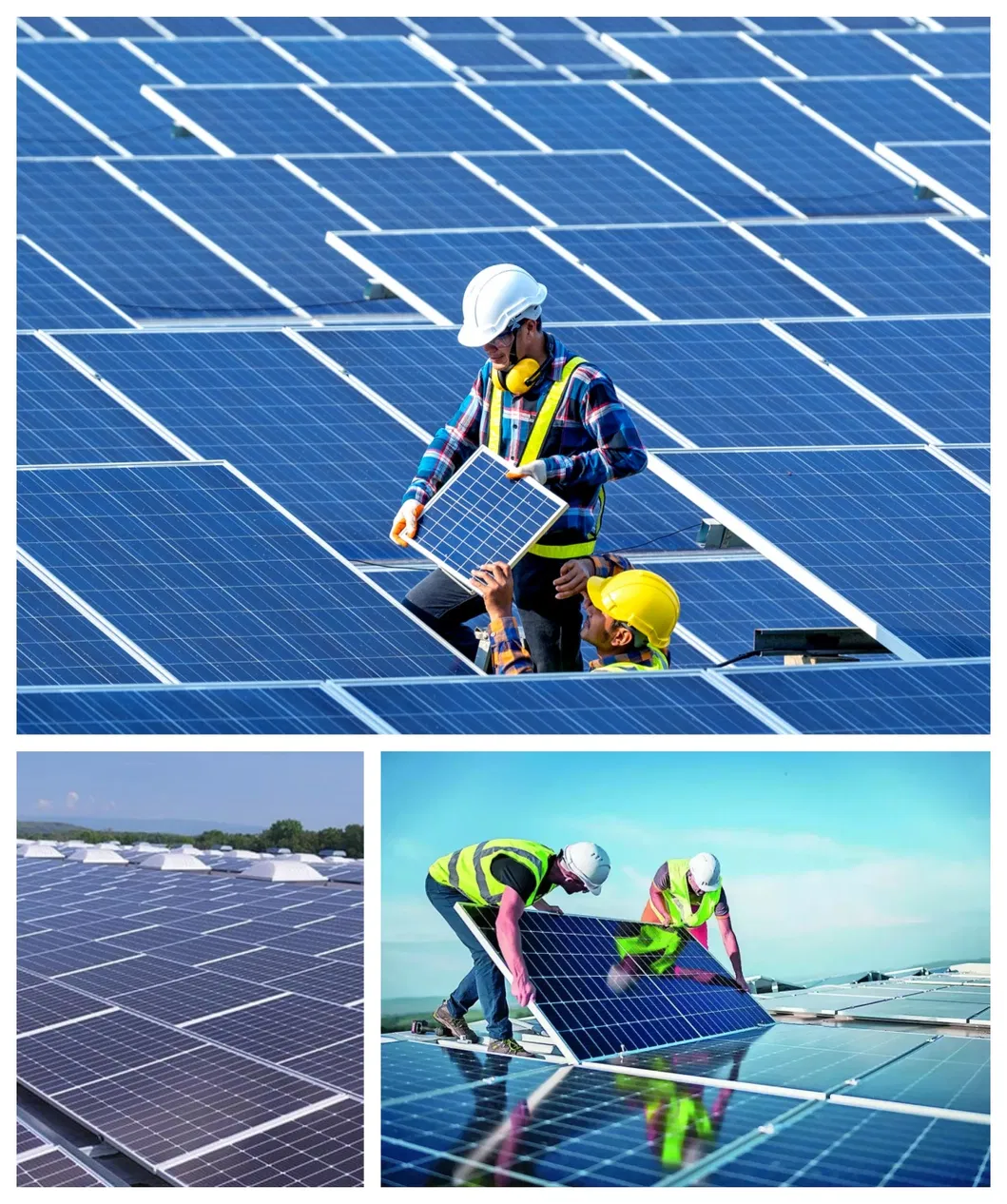

Project Cases
Certifications & Packaging
Modules per Pallet31 Pieces
Modules per 40' Container620 Pieces
Operating Temperature-40ºC~+85ºC
Frequently Asked Questions
How is the quality of the solar panels guaranteed?
We ensure quality through always providing a pre-production sample before mass production and conducting a final strict inspection before every shipment.
What type of solar cells are used in these modules?
These panels use Monocrystalline Silicon Grade A solar cells (182*182mm) with 10bb half-cut technology for maximum efficiency.
What is the weather resistance rating for these panels?
The panels feature an IP68 waterproof junction box and are rated to withstand wind loads up to 2400pa and snow loads up to 5400pa.
What are the available power options and their efficiency?
The modules range from 530W to 550W, with a module efficiency reaching over 21.5% for the highest-rated models.
What delivery and payment terms are accepted?
We accept delivery terms such as FOB, CFR, CIF, and EXW. Accepted payment methods include T/T, L/C, and Credit Card in USD, EUR, or CNY.
Is the frame customizable in terms of color?
Yes, the anodized aluminium alloy frame is available in both Silver and Black color options to meet different project requirements.
