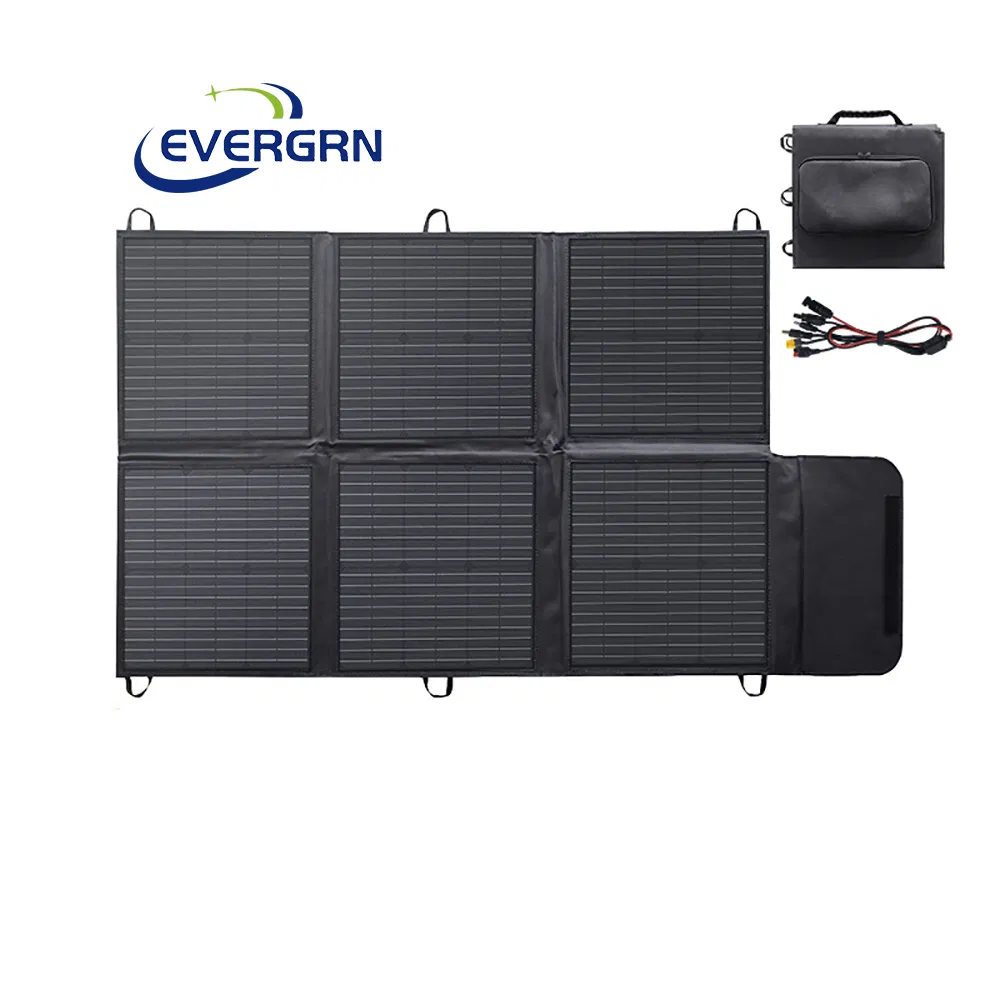

Foldable Portable Flexible Solar Panel 120W PV Photovoltaic Panels for Solar Panel Kit Energy Power System

Still deciding? Get samples of $ !
Order Sample

Product Description

Product Overview
Foldable Portable Flexible Solar Panel 120W
A high-efficiency PV photovoltaic panel designed for solar panel kits and energy power systems. Perfect for mobile off-grid applications.
Flexible solar panels offer the benefits of a traditional solar system in a more portable package. Unlike rigid solar panels used in home installations, these are thinner alternatives for off-grid and mobile installations. While not intended to power an entire house, they provide adequate power for boats, RVs, campers, or camping sites.
These ultra-thin, lightweight panels are easily installed and bendable, making them ideal for curved roofs or windows. Typical installation involves adhesive tape mounting, offering a simpler alternative to stiff mounting racks.

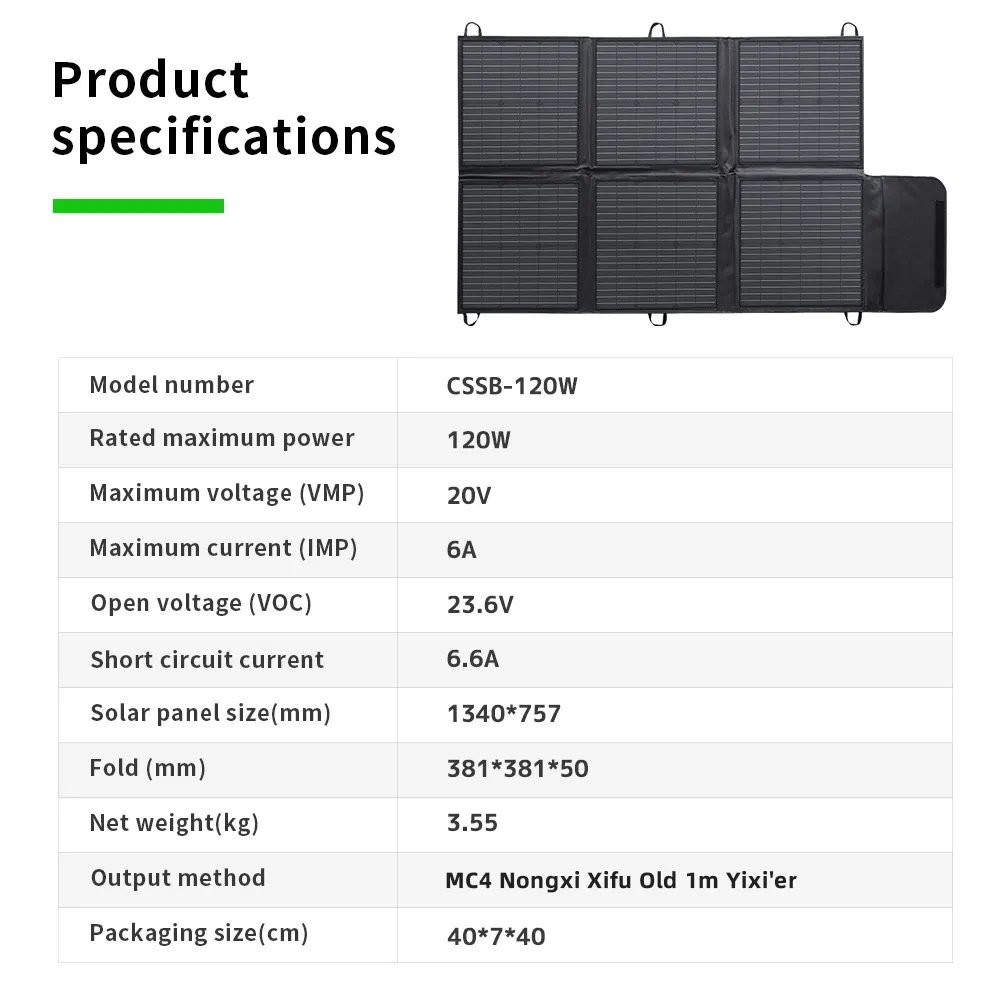

Technical Specifications
Parameter Details
Model NO.CSSB-120W
Maximum Power (Pmax)120W
Maximum Power Voltage (Vmp)20V
Maximum Power Current (Imp)6A
Open Circuit Voltage (Voc)23.6V
Cell Efficiency22.5%
MaterialMonocrystalline Silicon
Number of Cells108
Waterproof RatingIP67
Dimension (Expanded)1340*757mm
Dimension (Folded)380*370*50mm
Weight3.2kg - 3.55kg
Output PortMC4 Connector
Operating Temp Range-40℃~85℃
Foldable Solar Panel Overview

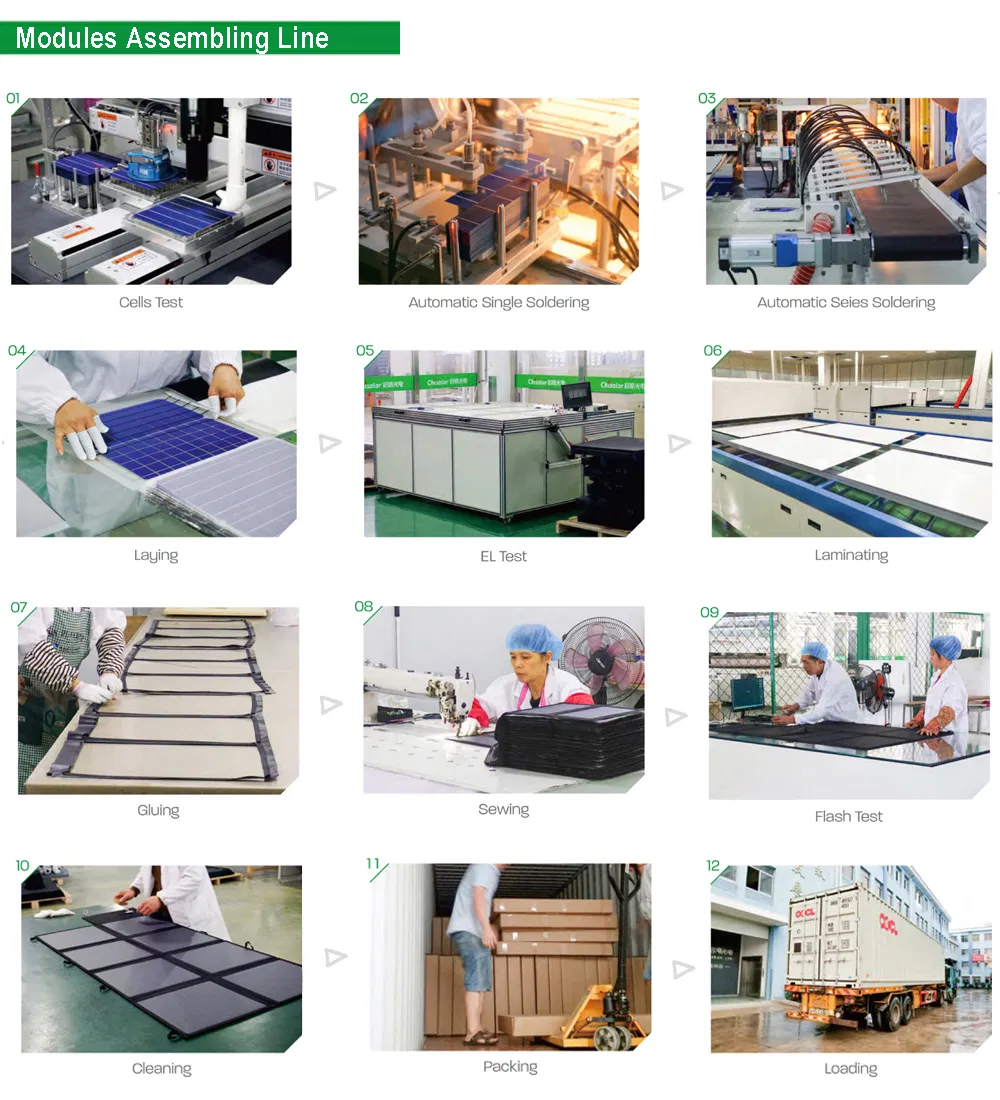

Solar Panel Details
Detailed Product Visuals
Product Detail 1

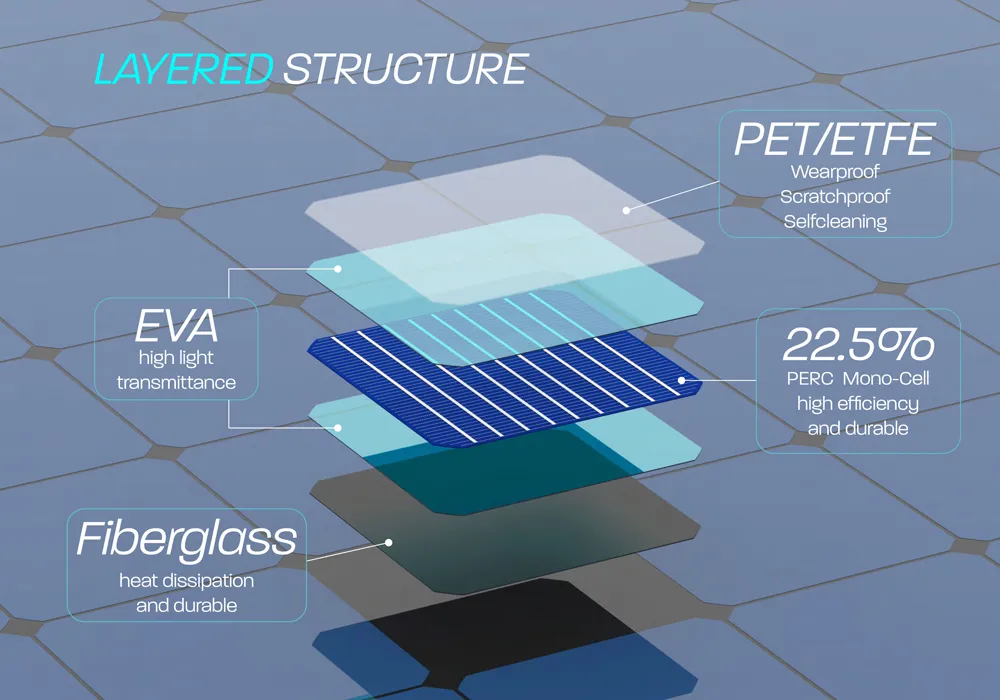

Product Detail 2
Product Detail 3
Product Detail 4

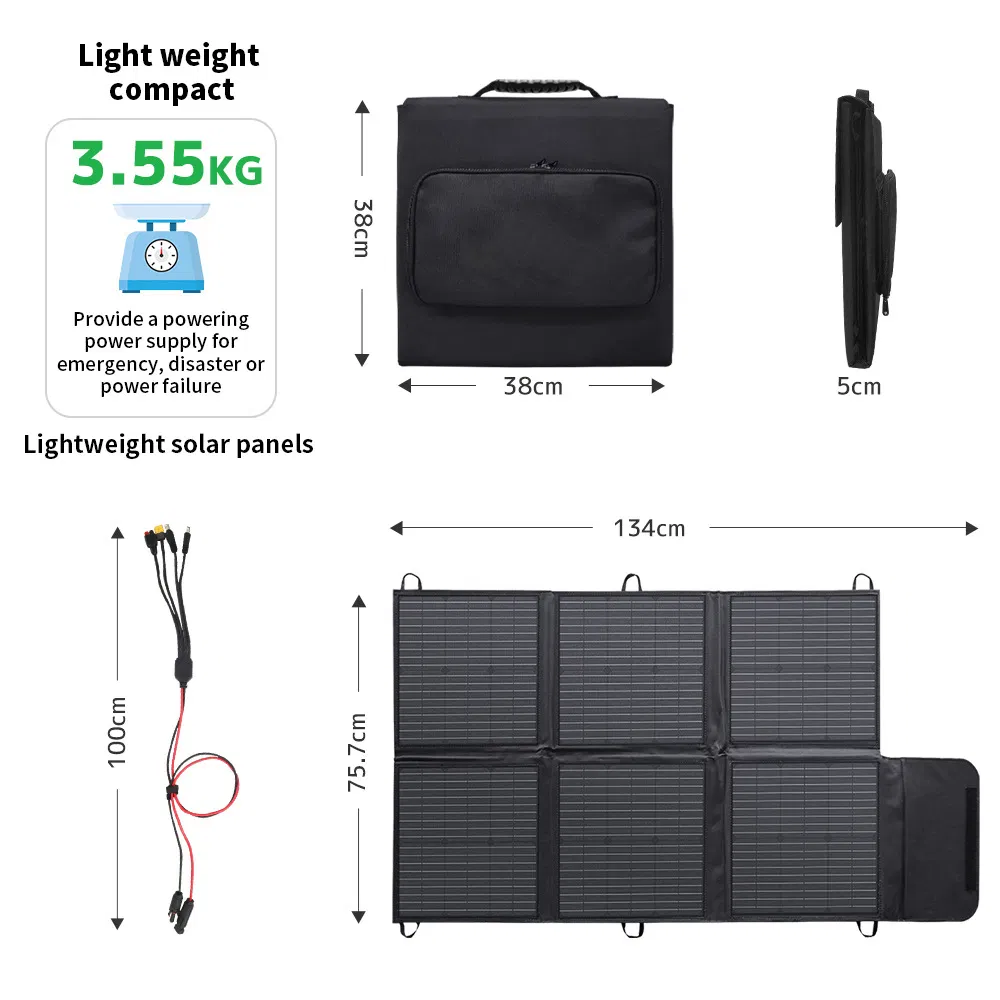

Product Detail 5

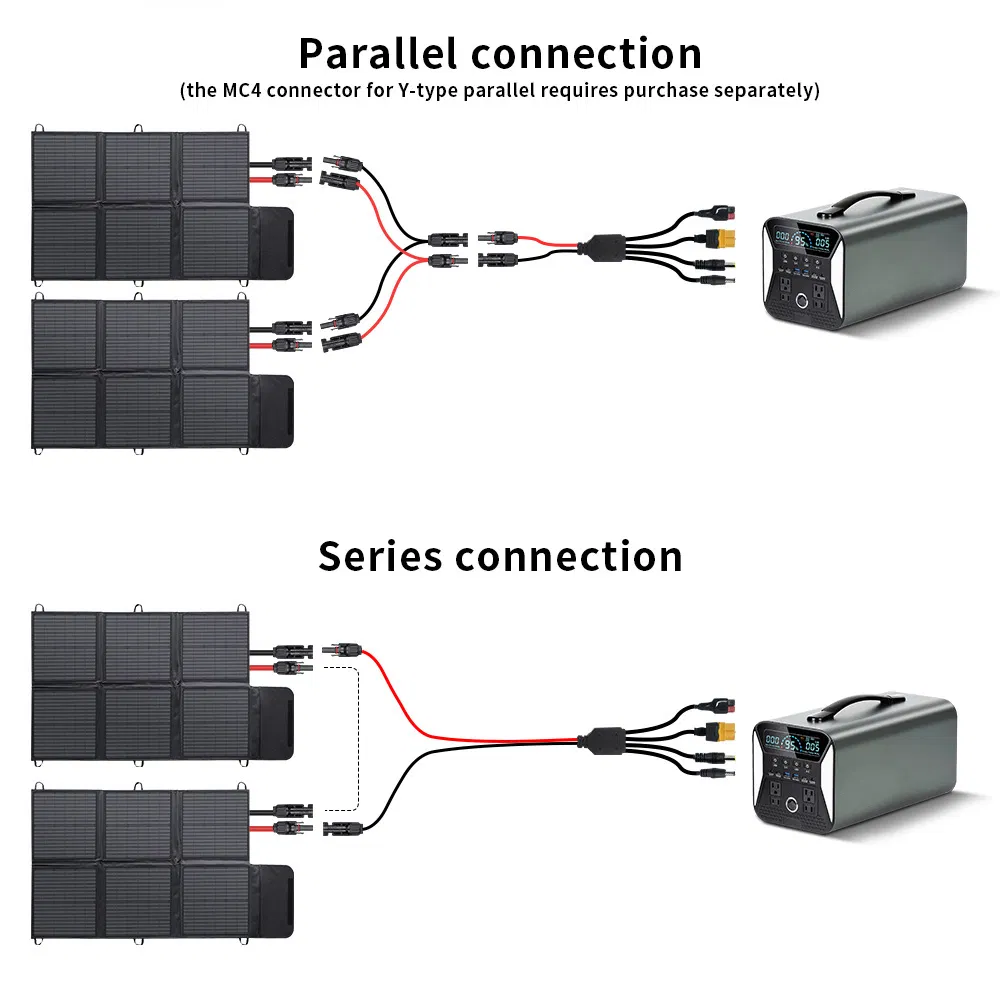

Product Detail 6
Quality Assurance & Certifications
Our products meet international standards ensuring reliability and safety for outdoor use.
CE RoHS ISO Certifications
Packaging & Logistics
Package Size40.00cm * 40.00cm * 6.00cm
Package Gross Weight4.550kg
Transport PackageCarton
Shipping Logistics
Frequently Asked Questions (FAQ)
Q1: Can this 120W solar panel power my home appliances?
This portable panel is designed primarily for off-grid mobile use such as RVs, boats, and camping. It is ideal for charging batteries, portable power stations, and small electronic devices rather than running a full household.
Q2: What is the energy conversion efficiency of the cells?
The panel utilizes high-quality Monocrystalline Silicon cells with a conversion efficiency of up to 22.5%.
Q3: Is the panel waterproof and suitable for marine environments?
Yes, the panel is rated IP67 waterproof, making it highly resistant to dust and water splashes, suitable for use on boats and in humid outdoor conditions.
Q4: How do I mount the flexible solar panel?
Because it is ultra-thin and lightweight, it can be easily mounted on curved surfaces like RV roofs using industrial-strength adhesive tape or via the integrated eyelets.
Q5: What are the folded dimensions for transport?
The panel is extremely portable, folding down to approximately 380*370*50mm, making it easy to store in a vehicle or carry by hand.
Q6: What type of connector does the panel use?
The panel comes equipped with standard MC4 connectors, ensuring compatibility with most solar charge controllers and portable power stations on the market.
