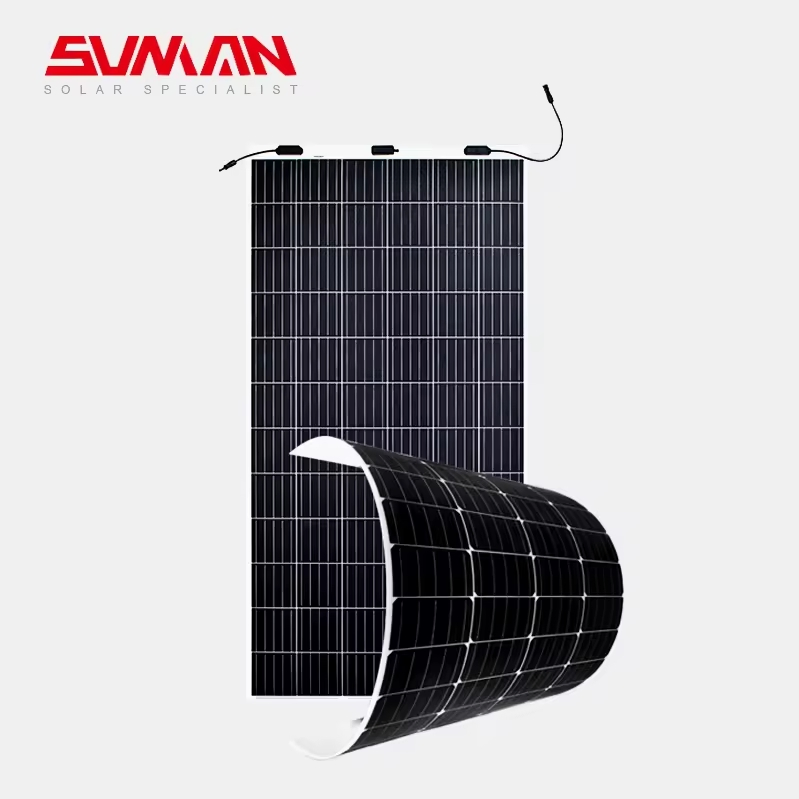

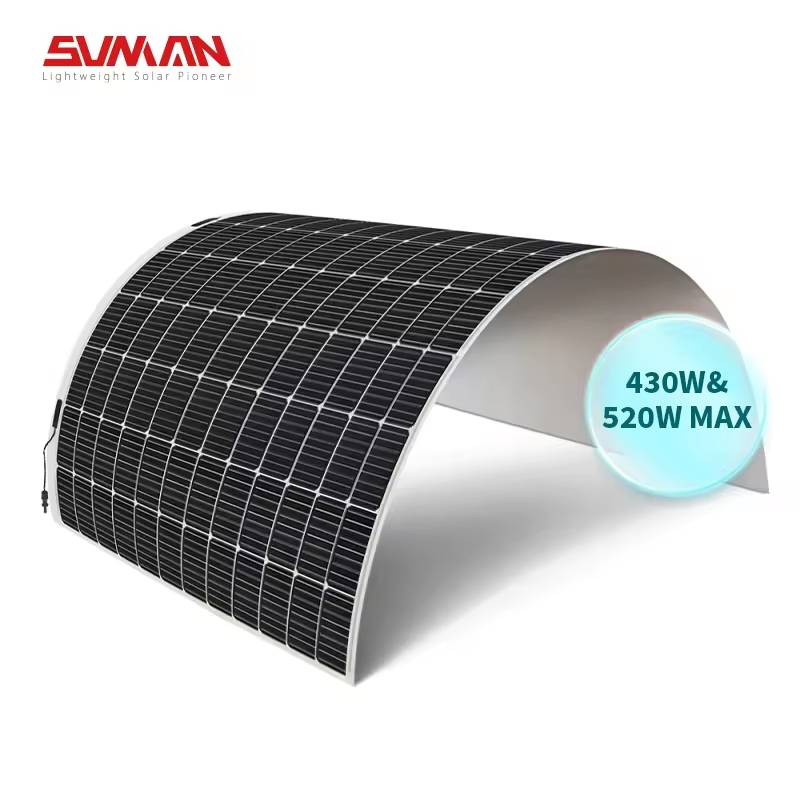

Flexible Solar Panel Mono Solar Panel 520W High Efficiency Bifacial Technology Solar Cells Module for Wholesale

Customization: Available
After-sales Service: Yes
Warranty: 25 Years

Product Description

Basic Information
Model NO.
ZXF520J-12X12UW
Number of Cells
144PCS
Application
Light Industry
Condition
New
Certification
ISO
Material
Monocrystalline Silicon
Frame
Frameless
Connector
Mc4 Compatible
Feature
a+Perc Cell
Maximum Power
520W
Package Size
224.60cm * 119.70cm * 20.00cm
Gross Weight
8.600kg
Product Description

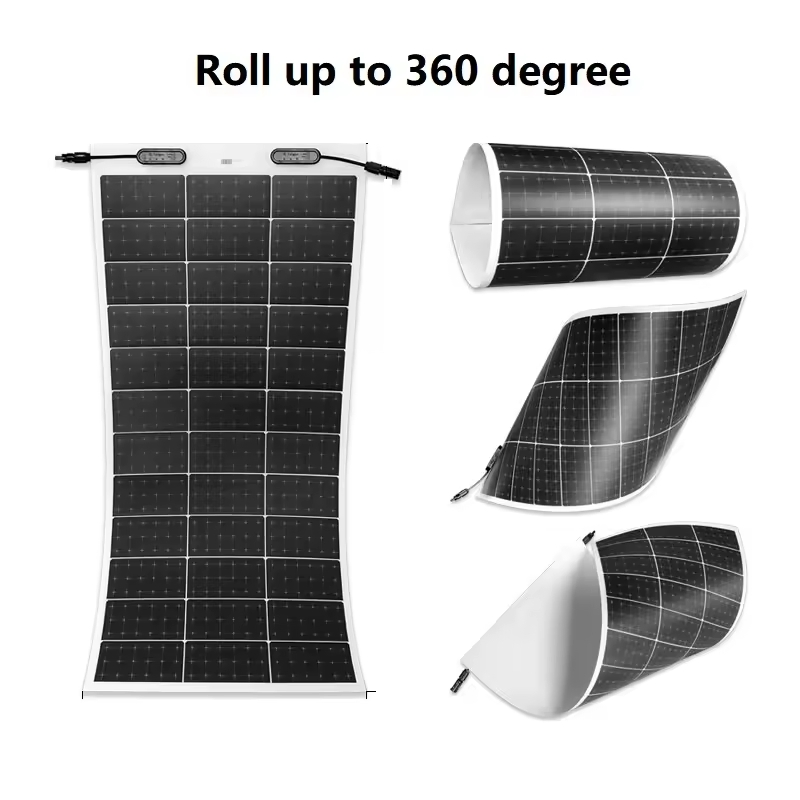

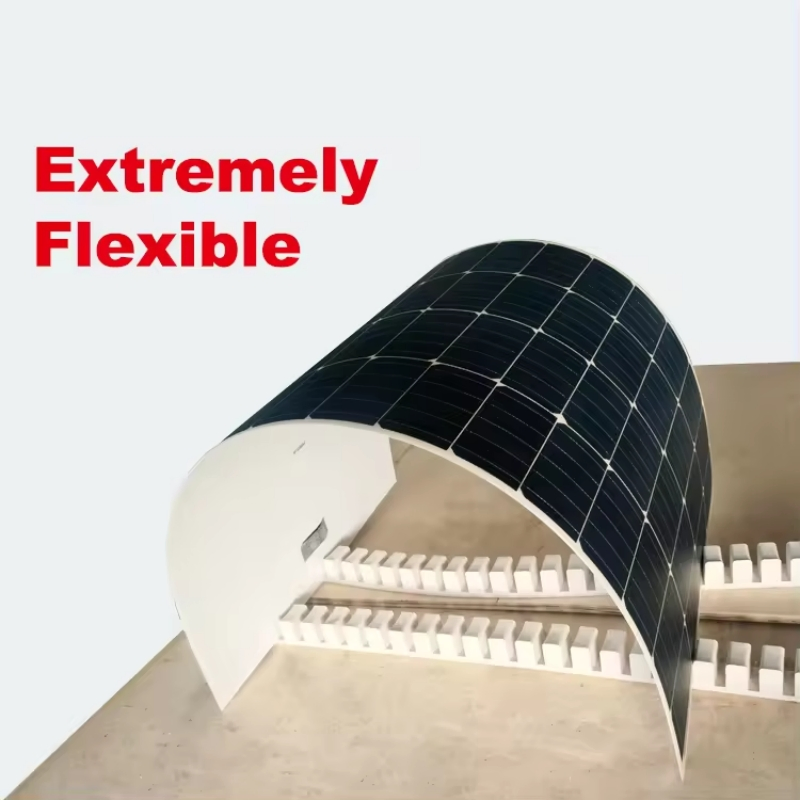

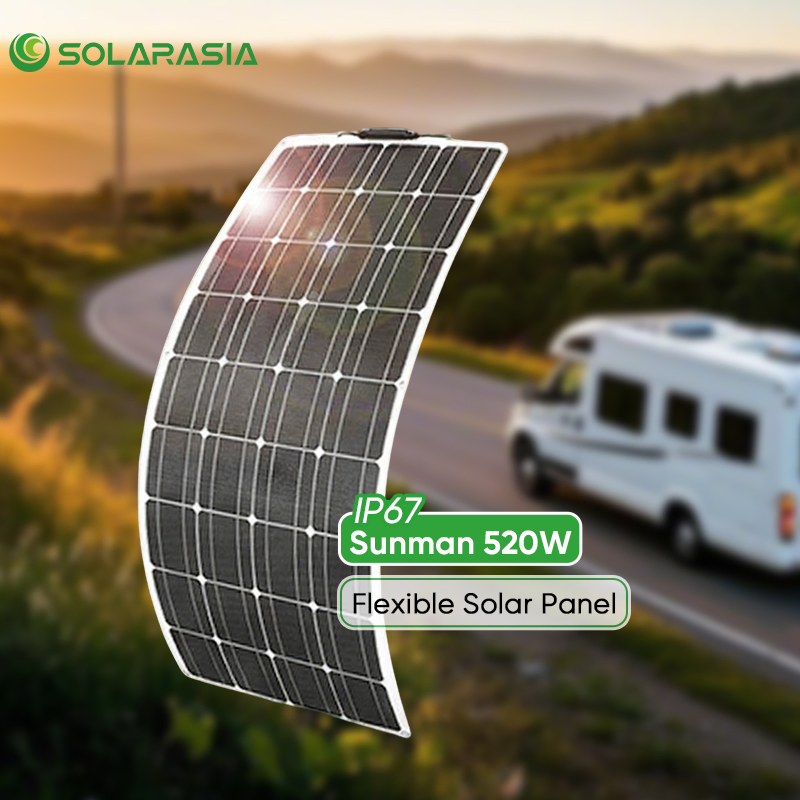

Flexible Solar Panel 520W
Solar Module Features
High Efficiency Technology

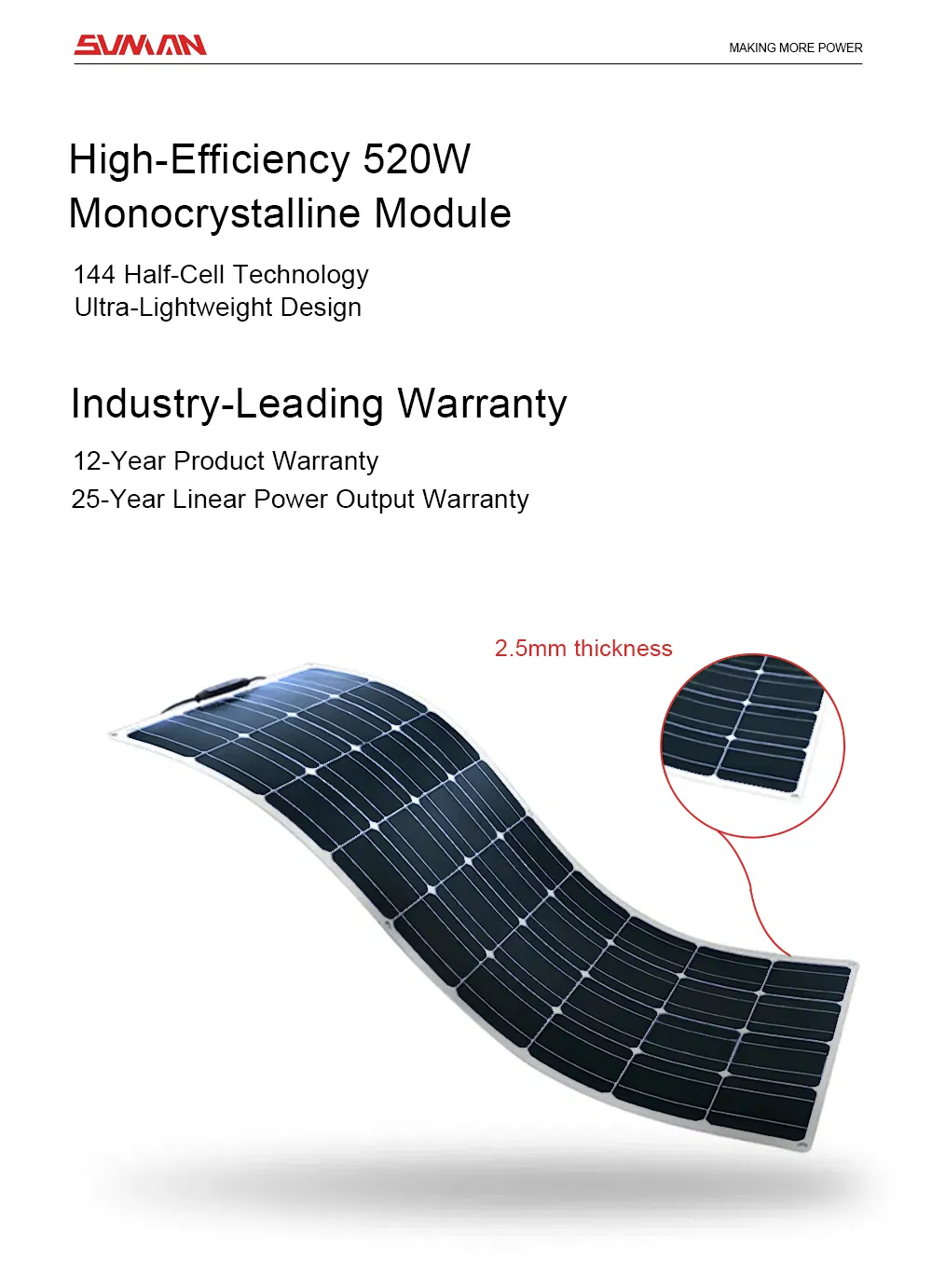

Module Details
Product Parameters
Electrical Characteristics (STC)
Maximum Power (Pmax)520W
Maximum Power Voltage (Vmp)42.3V
Maximum Power Current (Imp)12.31A
Open-Circuit Voltage (Voc)49.5V
Short-circuit Current (Isc)13.56A
Module Efficiency (%)19.3%
Operating Temperature-40ºC to 85ºC
Maximum System Voltage1500 V DC (IEC)

Mechanical Characteristics
Solar CellMonocrystalline silicon (166mm half cell)
No. Of Cells144 (12x12)
Module Dimensions2246x1197x2 mm
Weight8.6kg
BacksheetWhite
J-boxIP 68 rated
Output Cables4.0 mm², (+)450 / (-)450 mm
ConnectorMC4 compatible

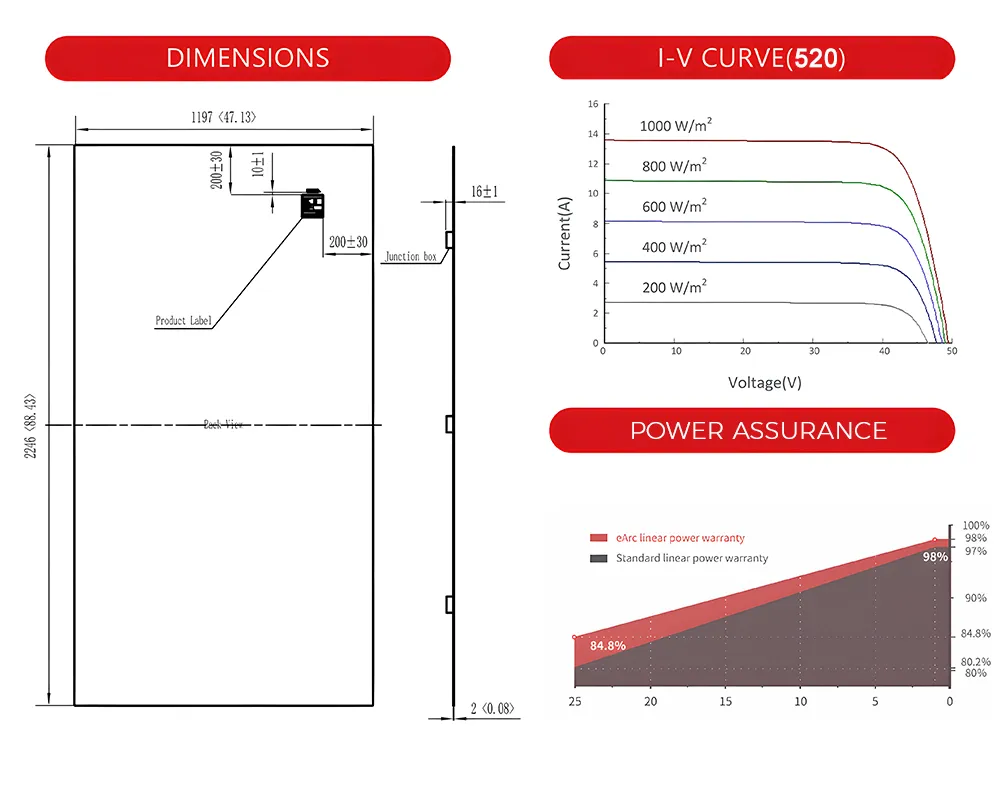

Dimensional Drawing
Project Cases

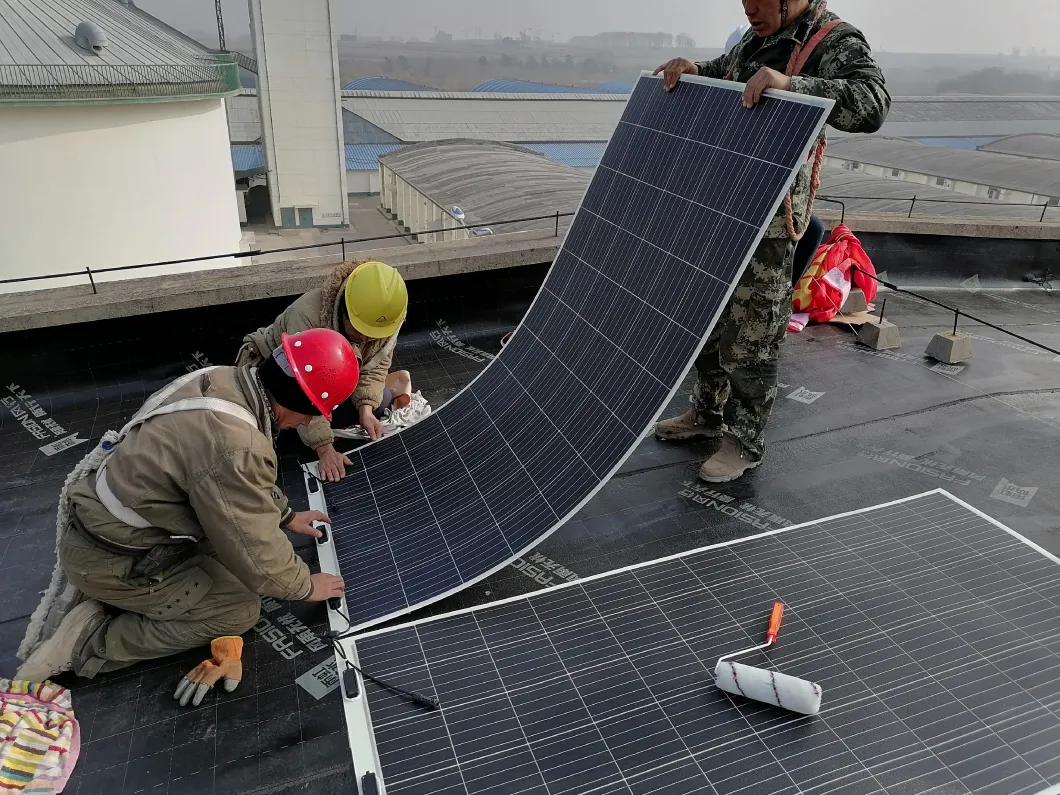

Project Case 1

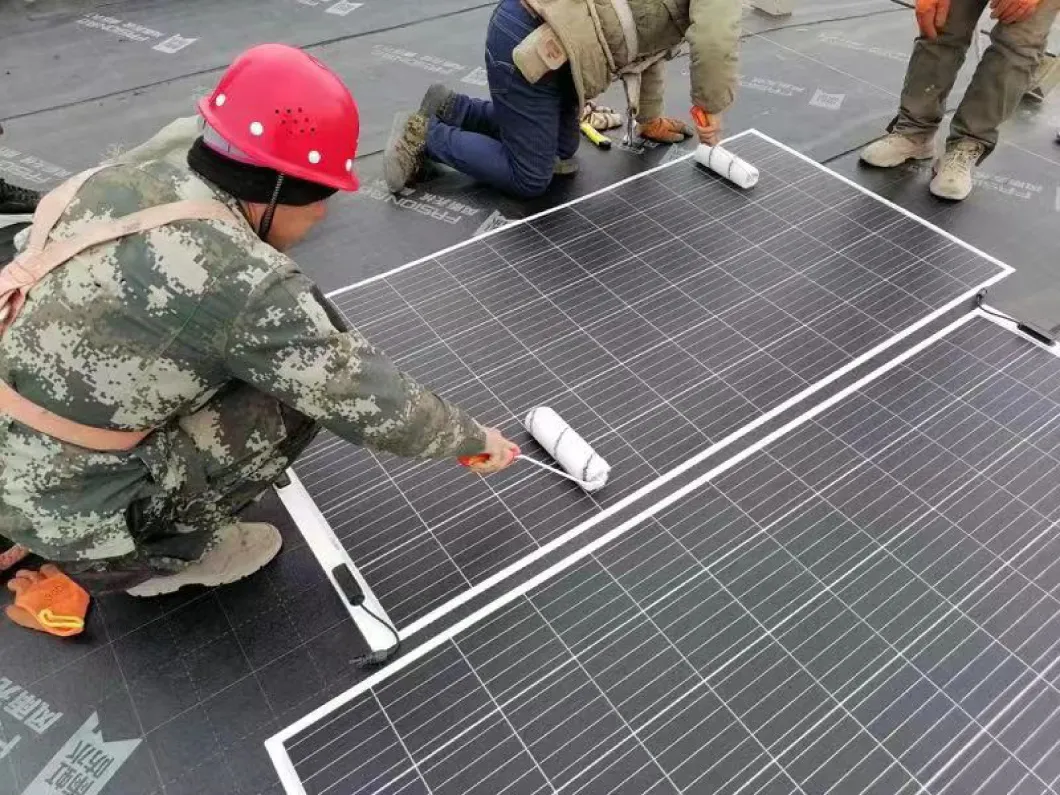

Project Case 2

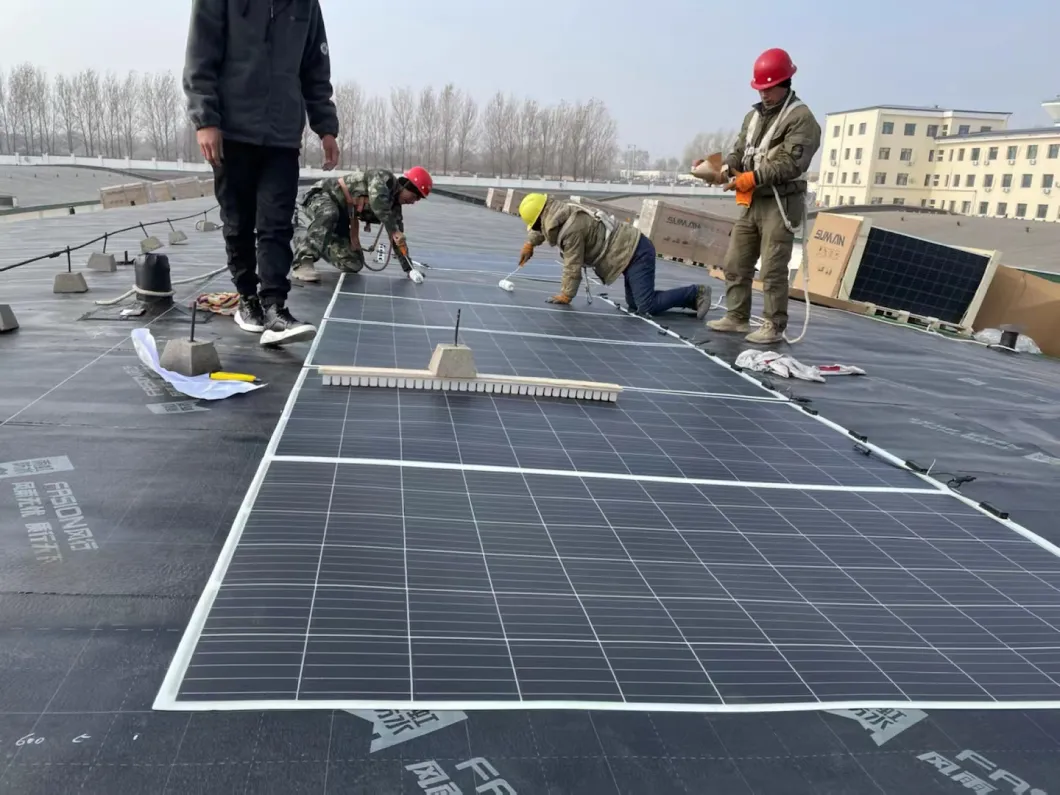

Project Case 3

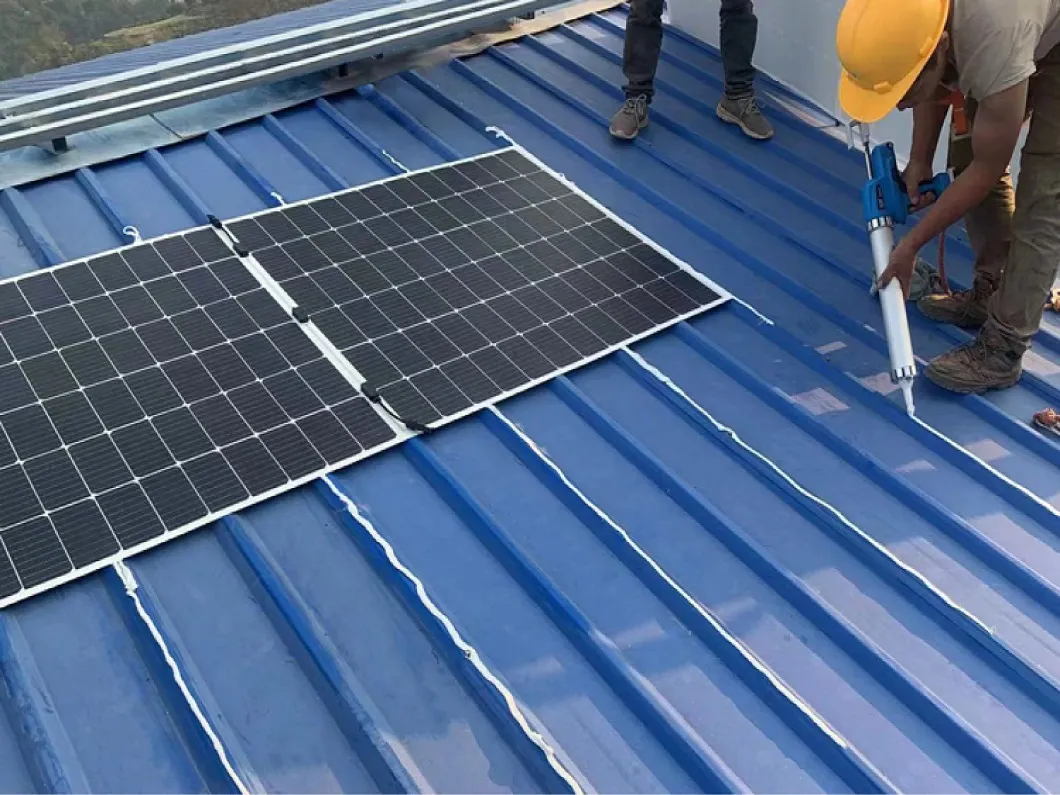

Project Case 4
Packaging & Shipping

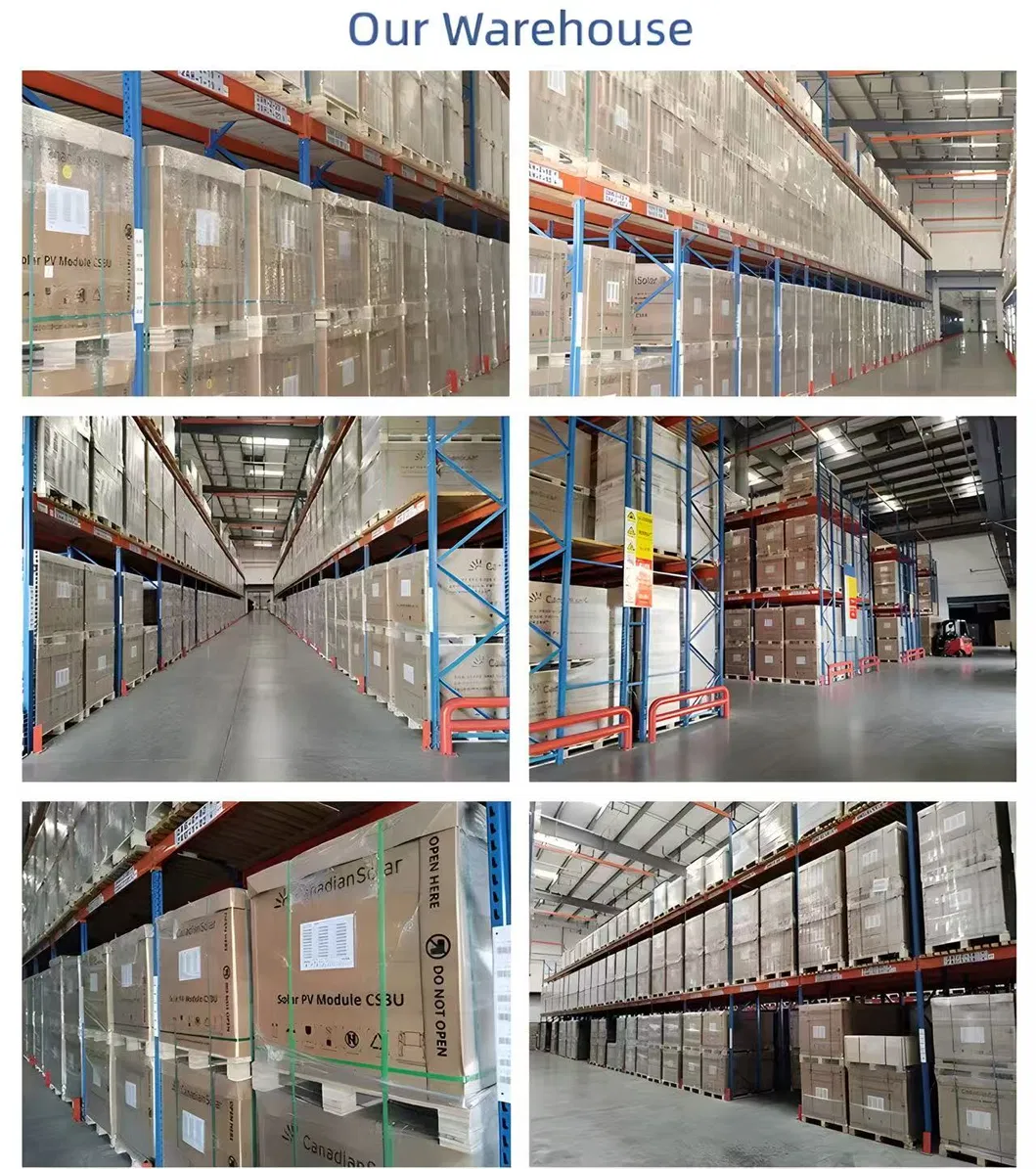

Packaging Methods
Certifications
Product Certifications
Factory Overview
Factory Facility 1
Factory Facility 2
Frequently Asked Questions
How to choose the right solar panel for my needs?
Please provide your specific power requirements and installation environment, and our technical team will recommend the most suitable panel configuration for your project.
What is the difference between Monocrystalline and Polycrystalline panels?
Monocrystalline panels offer higher efficiency and a sleeker look as they are made from high-grade silicon. Polycrystalline panels are typically more cost-effective but require slightly more space for the same power output.
What is the standard delivery timeline?
Standard samples are typically ready within 7 days. For bulk wholesale orders, the delivery time is approximately 15 days depending on the order volume.
What kind of warranty is provided for these panels?
We provide a 10-year product warranty along with a 25-year linear output power warranty to ensure long-term performance and reliability.
How do you handle technical support?
Our professional engineering team provides comprehensive technical support. We offer 24-hour online assistance to resolve any operational queries within a rapid timeframe.
Are the flexible panels compatible with existing systems?
Yes, our panels utilize MC4 compatible connectors and standard PV technology cables, making them easy to integrate with most existing solar controllers and inverters.
