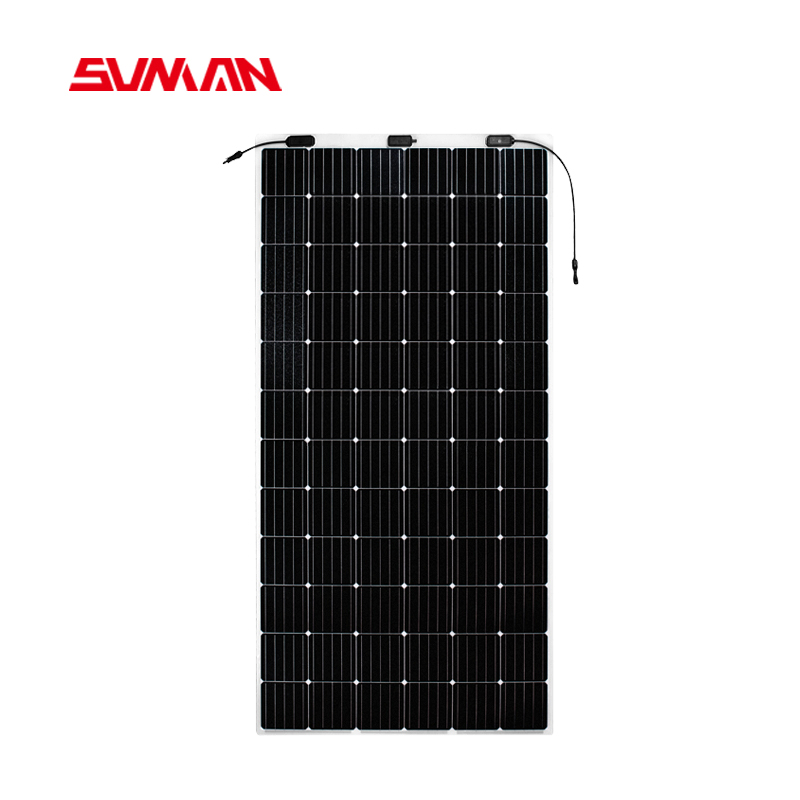

Factory Price Sunman Flexible Solar Panel 250W 365W 430W 500W 520W Lightweight Monocrystalline Flexible Solar Panel for Solar Panel System with Adhesive

1 / 5

Factory Price Sunman Flexible Solar Panel 250W 365W 430W 500W 520W Lightweight Monocrystalline Flexible Solar Panel for Solar Panel System with Adhesive

Customization:	Available
After-sales Service:	Yes
Warranty:	25 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

SMF430F-12X12UW

Number of Cells

144cells

Application

Light Industry

Certification

ISO, CE, TUV

Material

Monocrystalline Silicon

Module Size

2054*1080*2mm

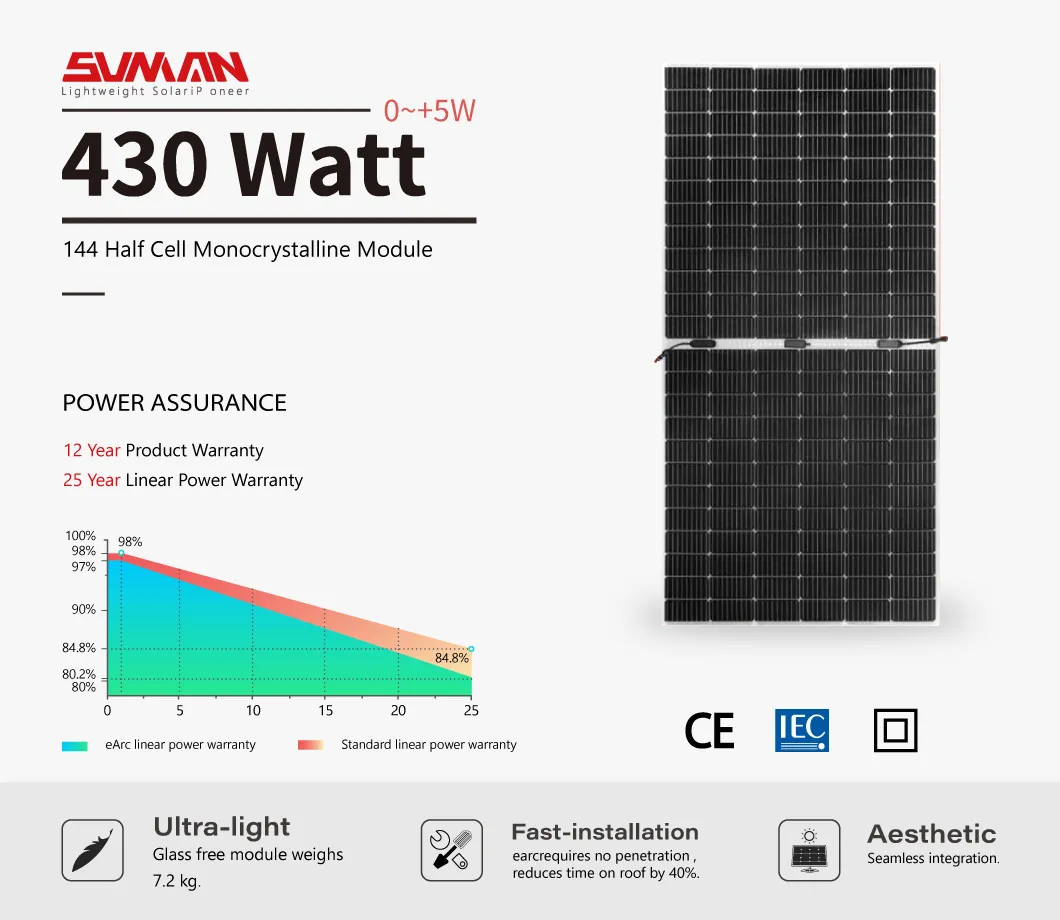

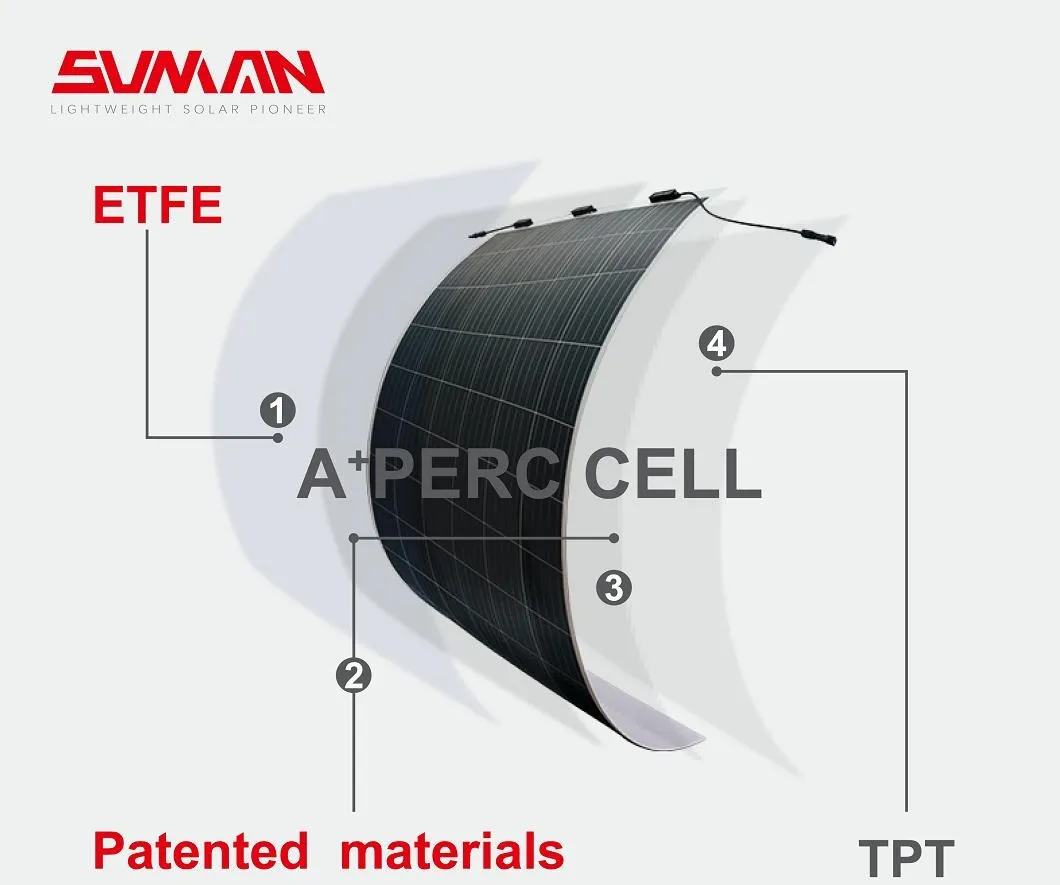

Product Highlights

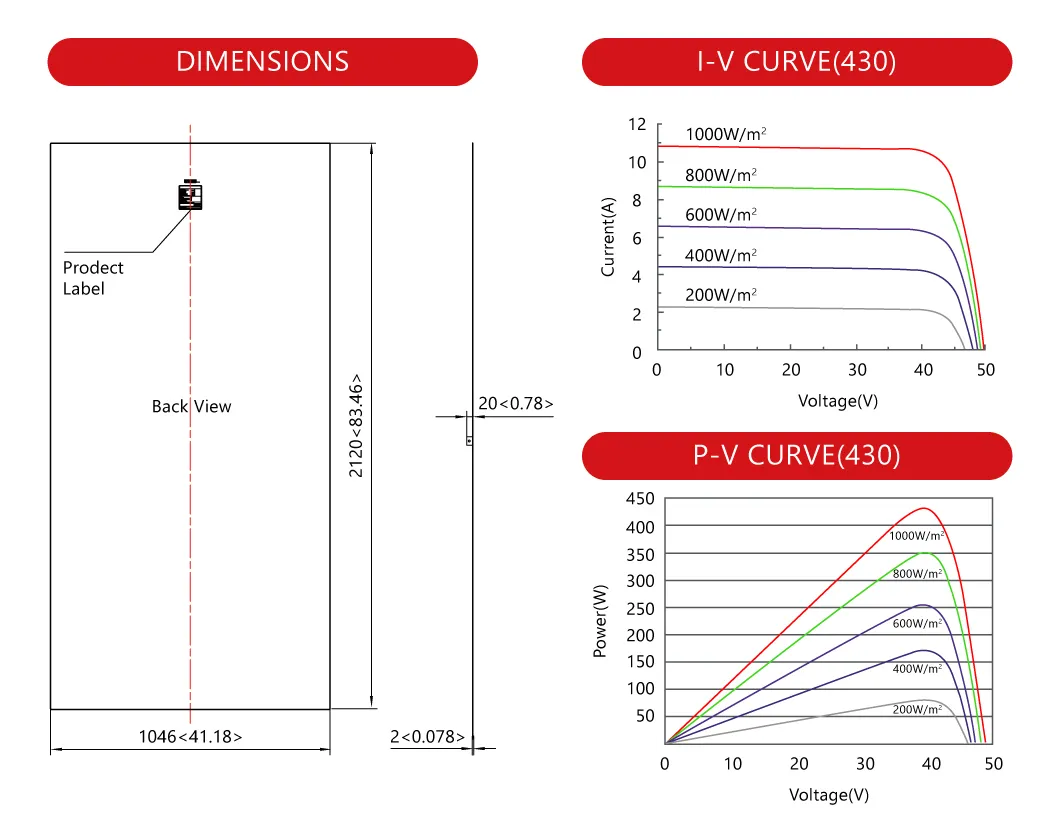

Technical Parameters (STC)

Maximum Power (Pmax)	430W
Maximum Power Voltage (Vmp)	42.0V
Maximum Power Current (Imp)	10.24A
Open-circuit Voltage (Voc)	49.8V
Short-circuit Current (Isc)	10.74A
Module Efficiency	19.2%
Operating Temp	-40ºC to 85ºC
Weight	7.3KG
Dimensions	212010462mm

Authorization Certificate

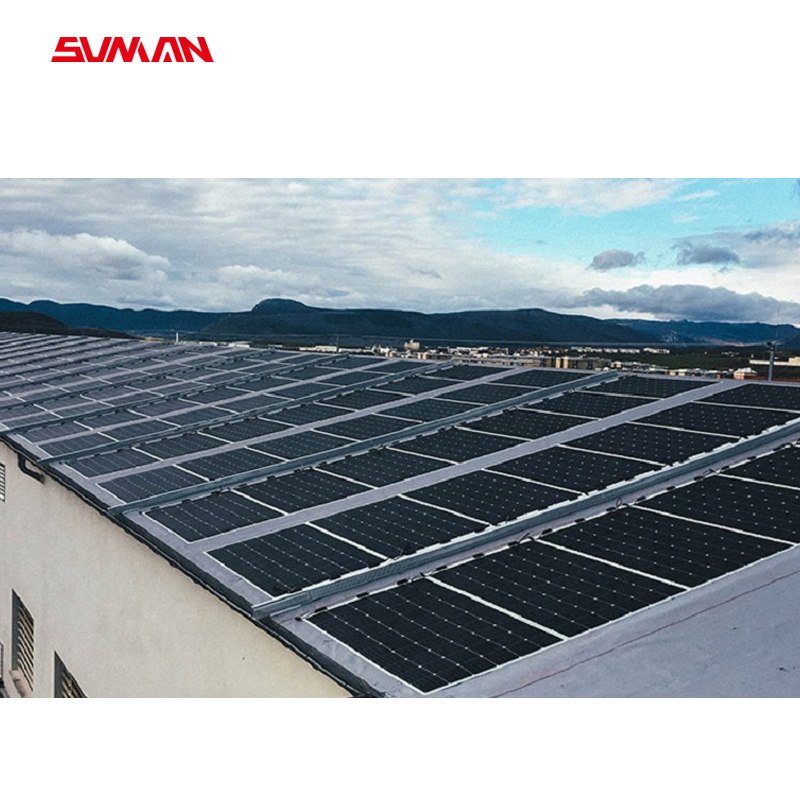

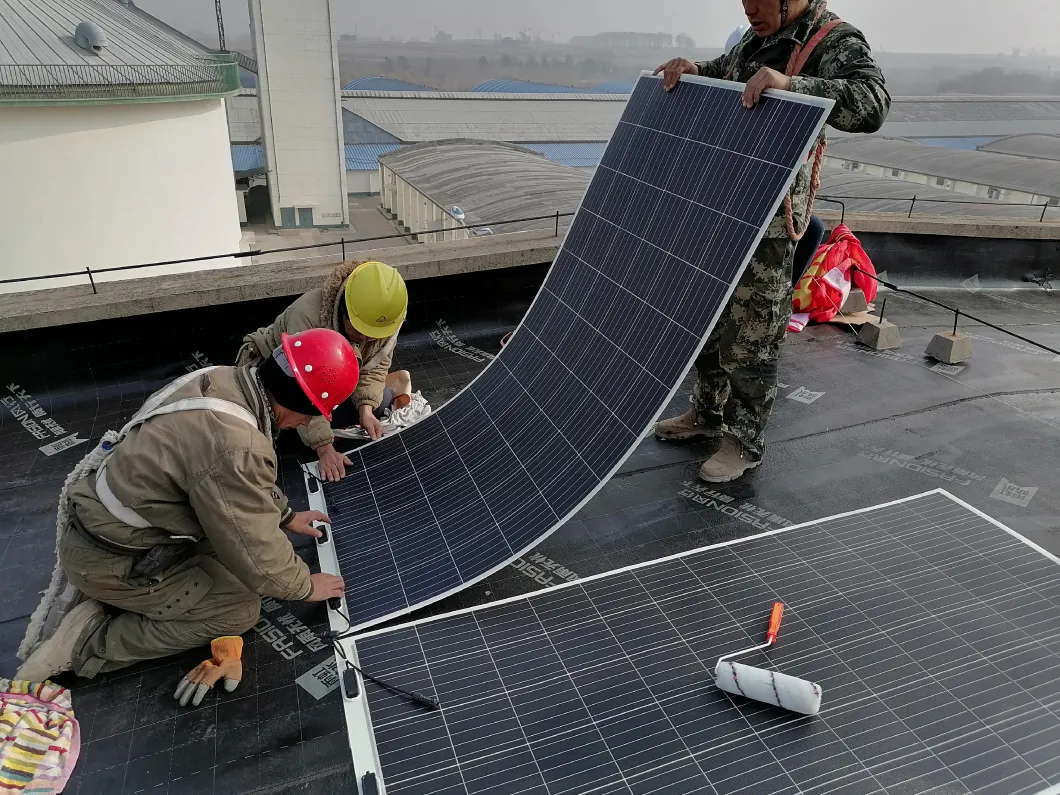

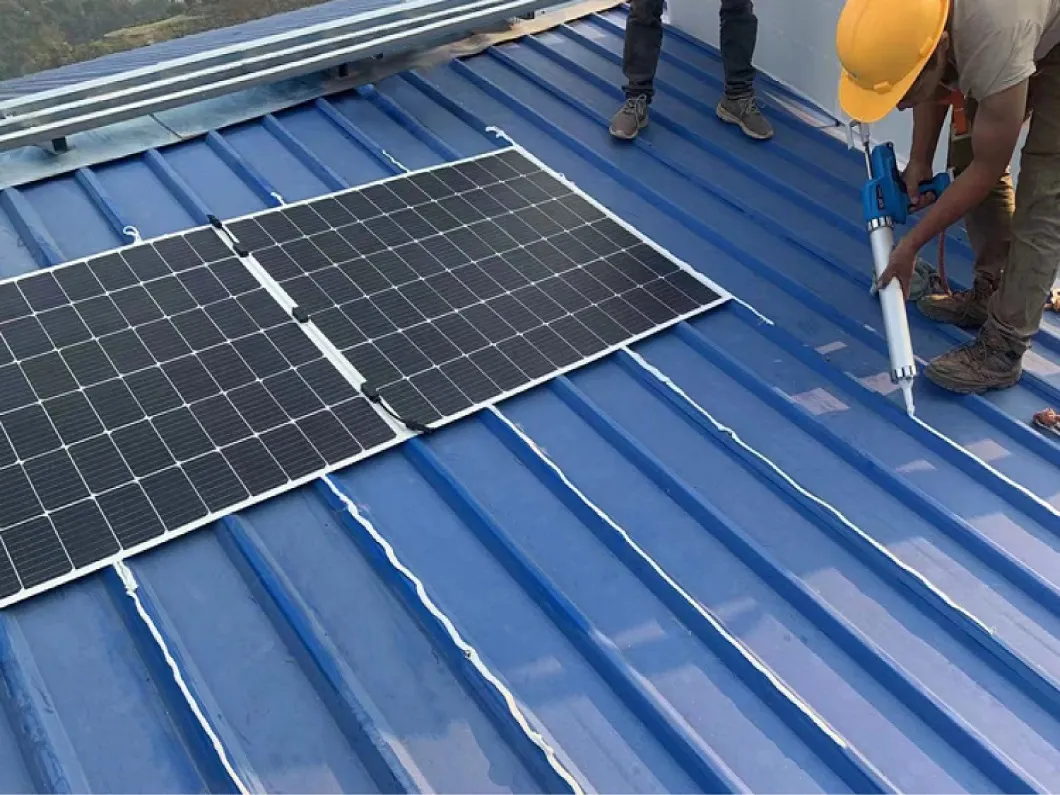

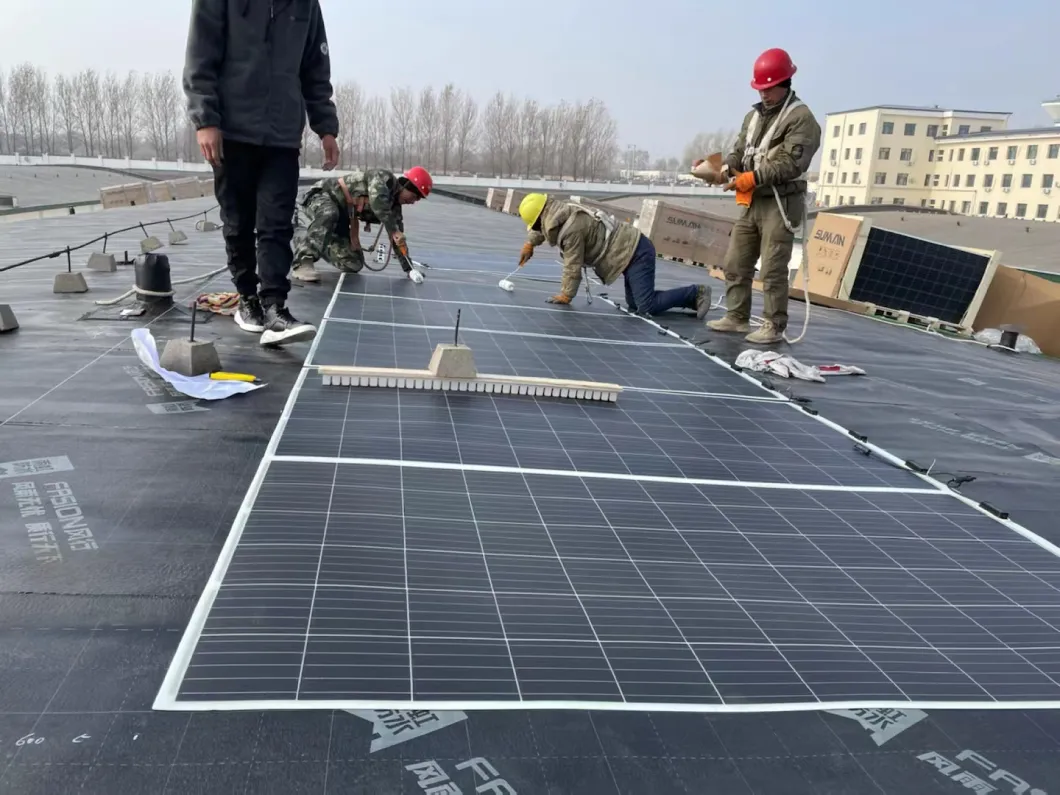

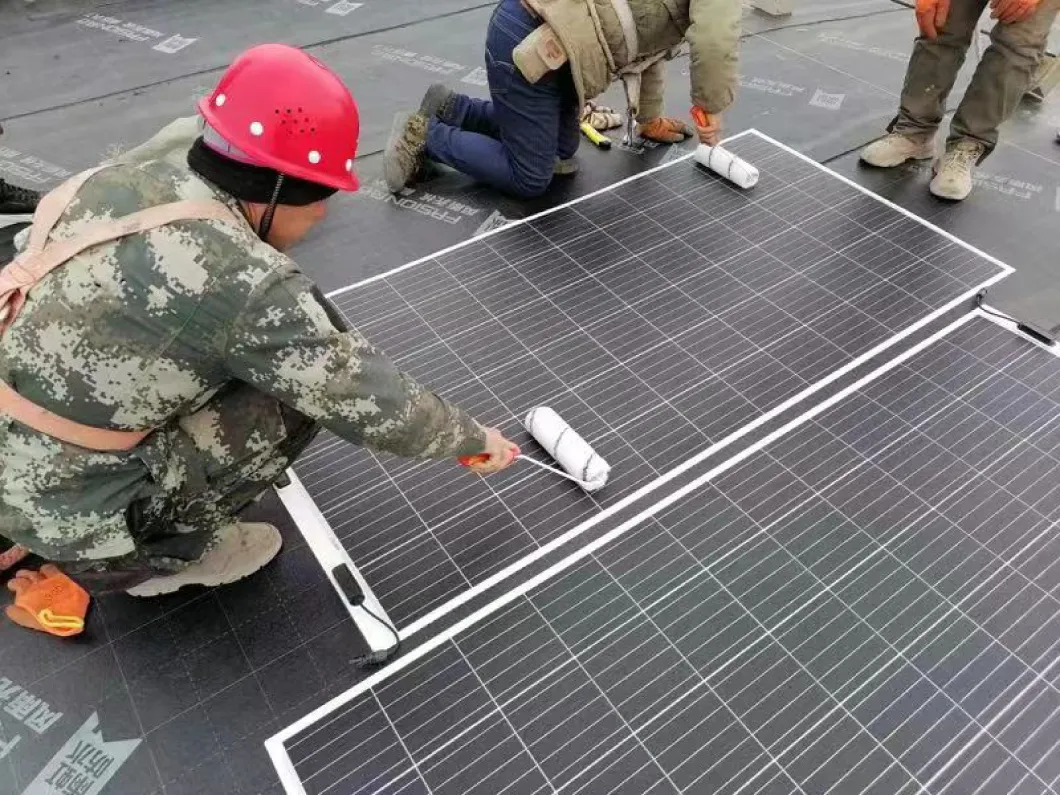

Project Case Gallery

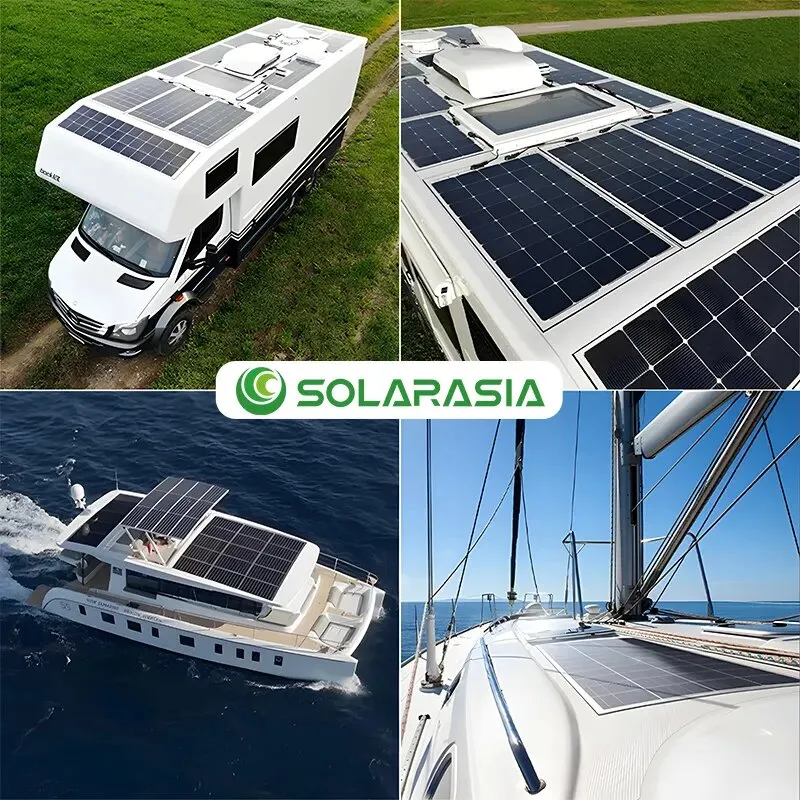

Versatile Applications

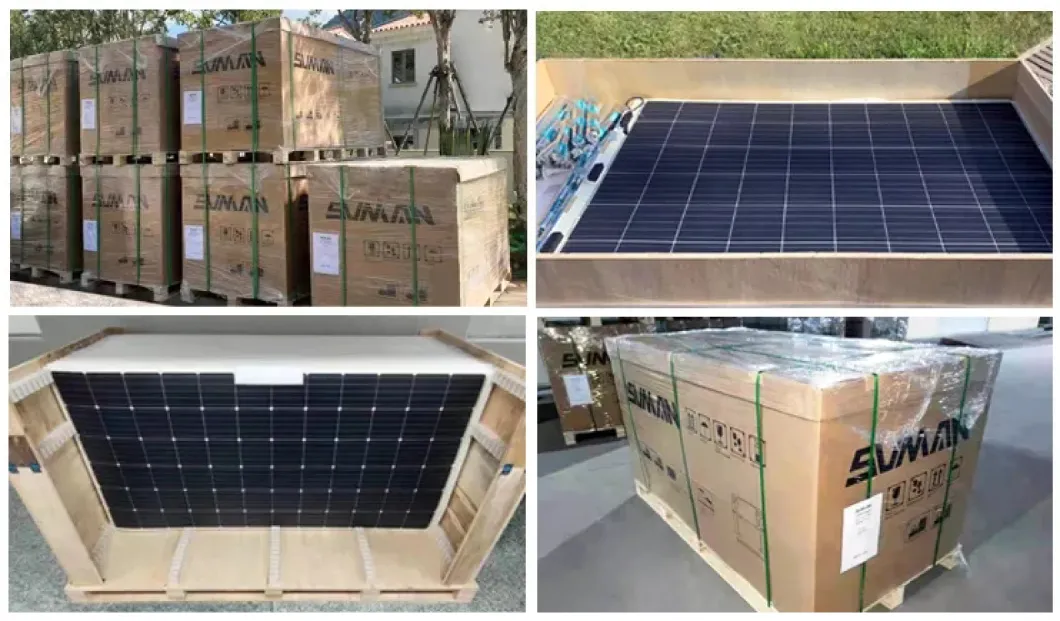

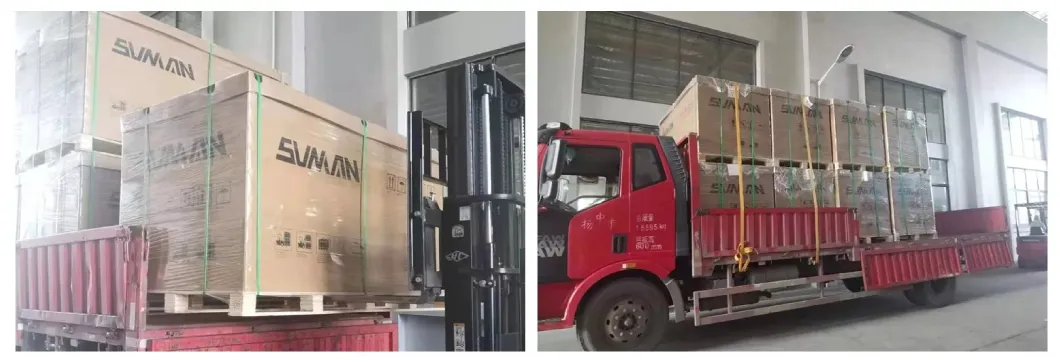

Packaging & Shipping

Frequently Asked Questions

What are the advantages of flexible solar panels compared to traditional glass panels?

Flexible panels are lightweight, thin, and bendable (up to 30°), making them ideal for curved or uneven surfaces such as RV rooftops, boats, or tents. They're also easier to install and transport.

Is the flexible panel durable and weather-resistant?

Yes, it is IP67 waterproof and features high-strength composite materials. It can withstand wind loads up to 2400Pa and snow loads up to 5400Pa, ensuring reliable performance in harsh environments.

Can it be used for off-grid systems?

Absolutely. It's designed for off-grid solar systems such as RVs, boats, cabins, and remote equipment. It can be paired with solar controllers, batteries, and inverters.

Does the panel have international certifications?

Yes, our panels are certified with CE, TUV, IEC 61215, IEC 61730, and ISO standards, ensuring safety and compliance with global market requirements.

What kind of connectors does the panel use?

The panel uses MC4-compatible connectors, which are widely accepted and compatible with most solar charge controllers and inverters on the market.

How is the flexible panel installed?

It supports multiple installation methods such as adhesive bonding, Velcro, or zip ties. There's no need to drill holes, protecting your mounting surfaces.
