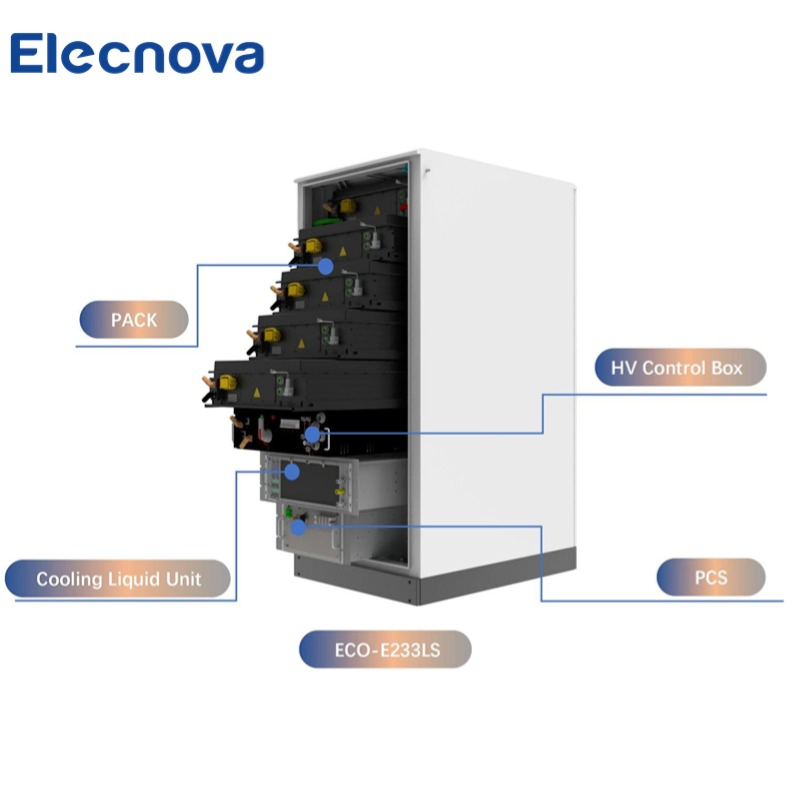

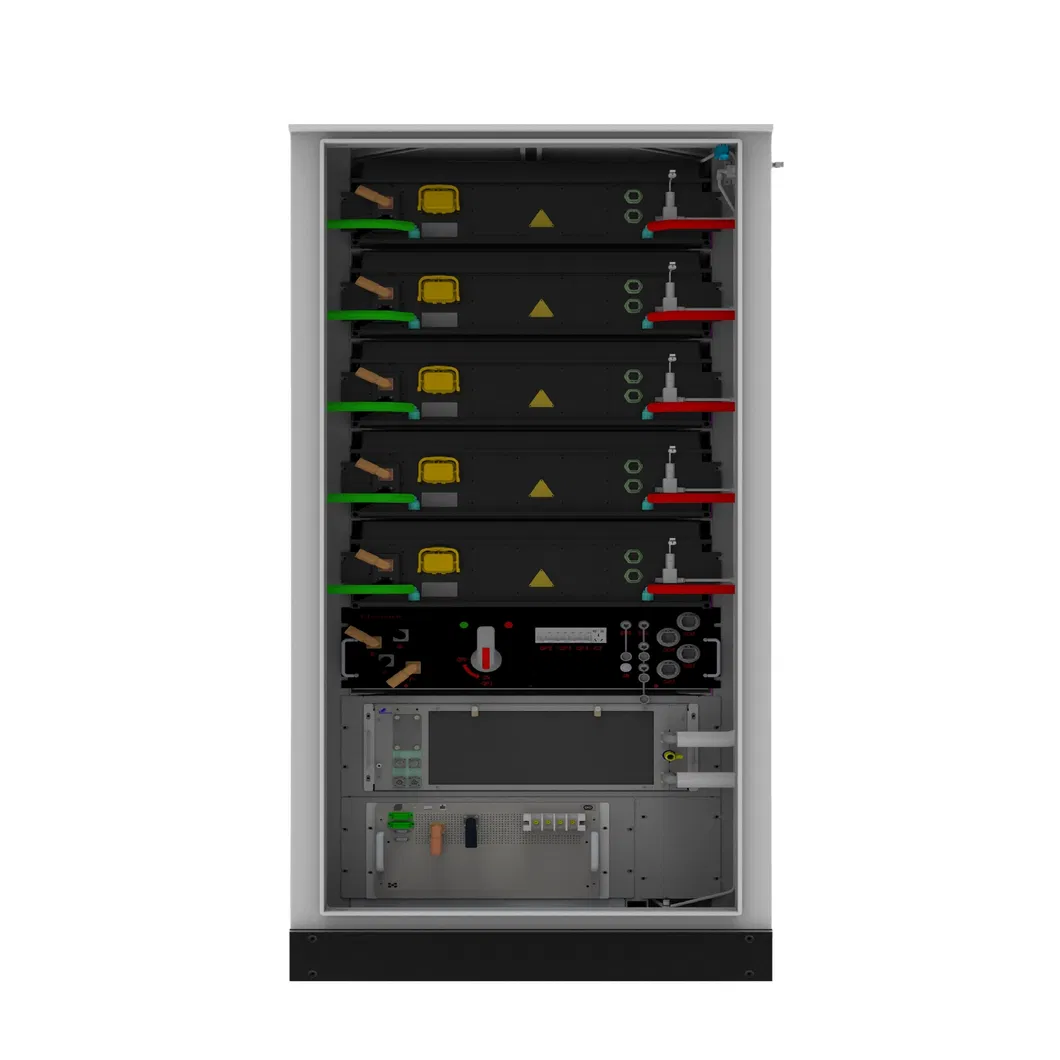

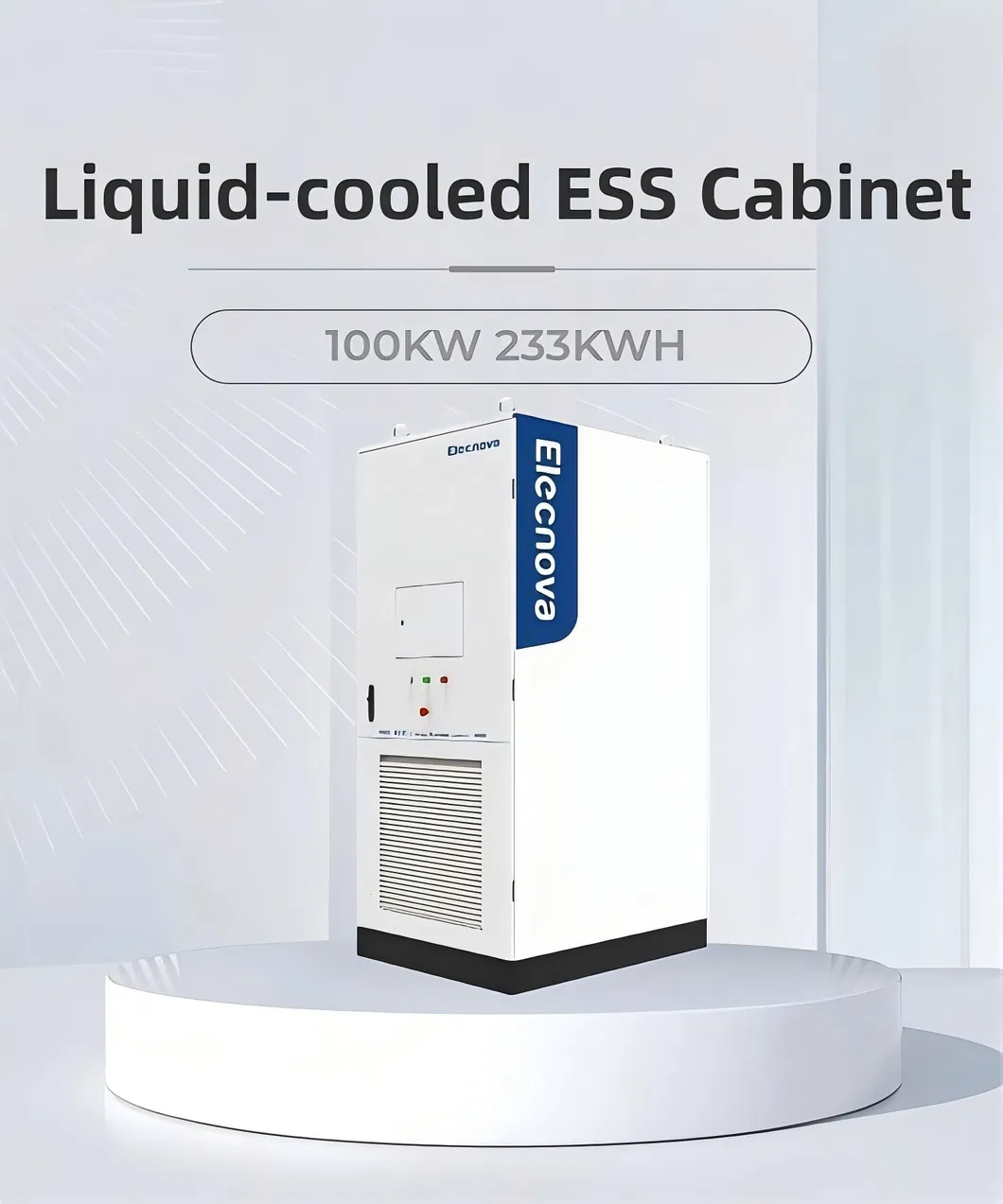

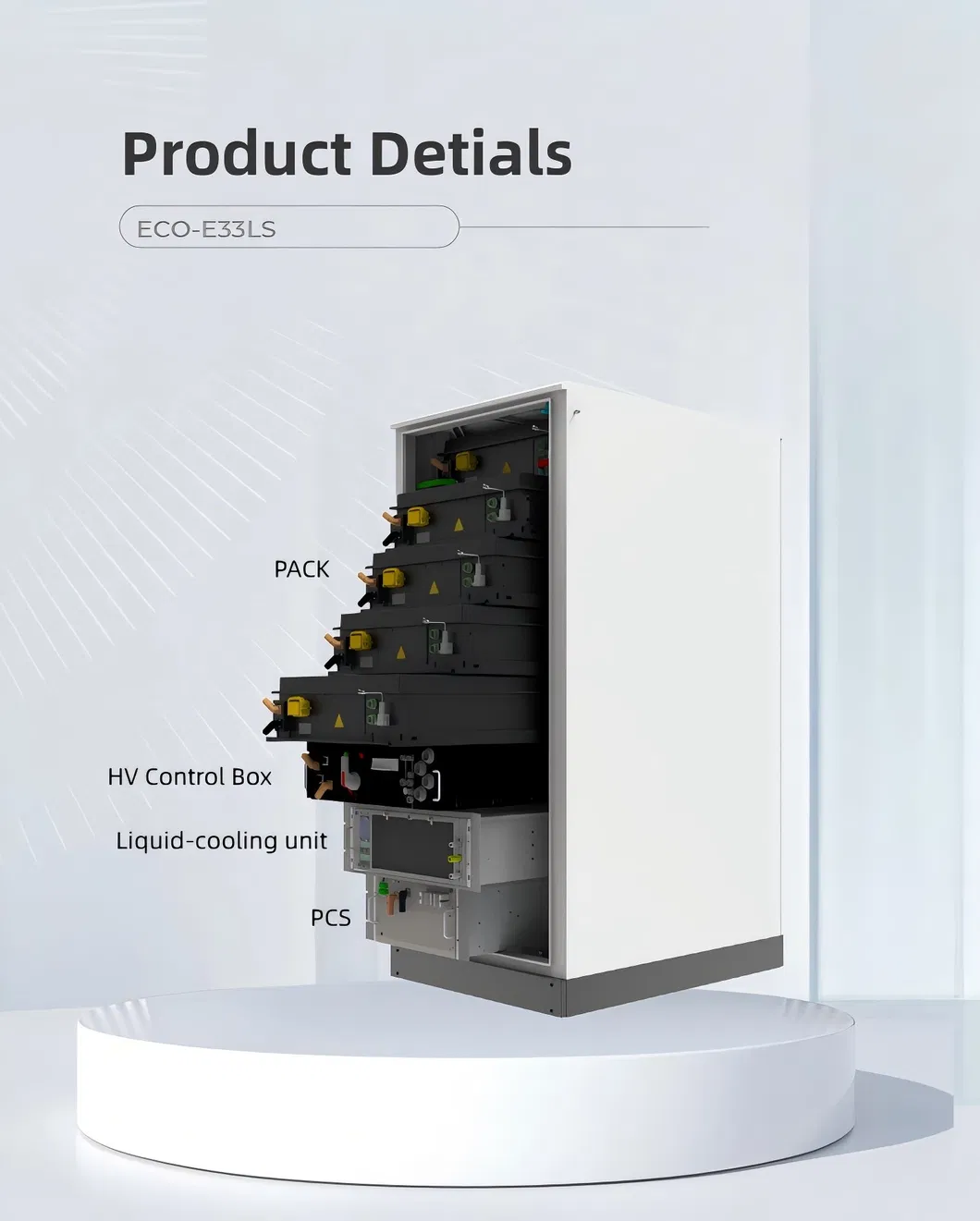

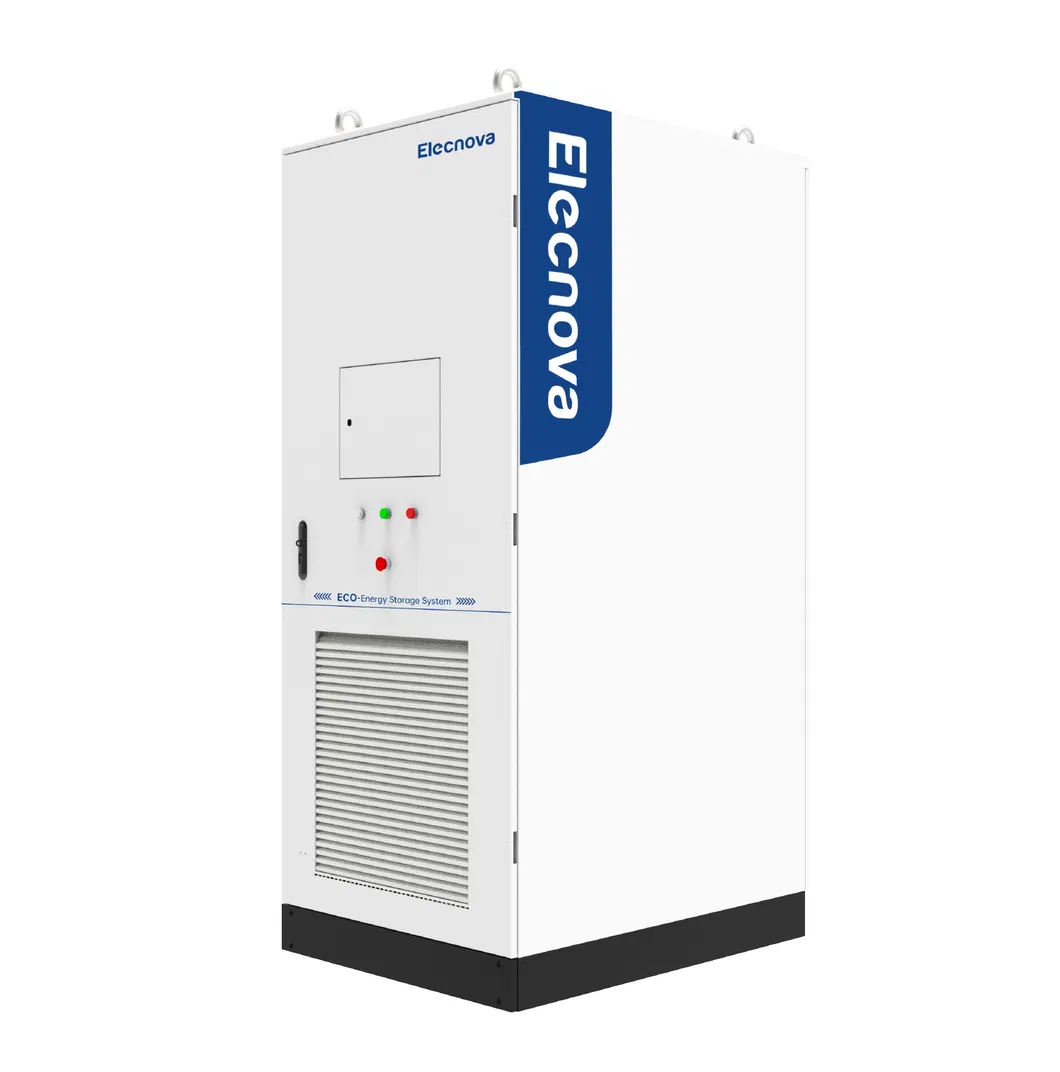

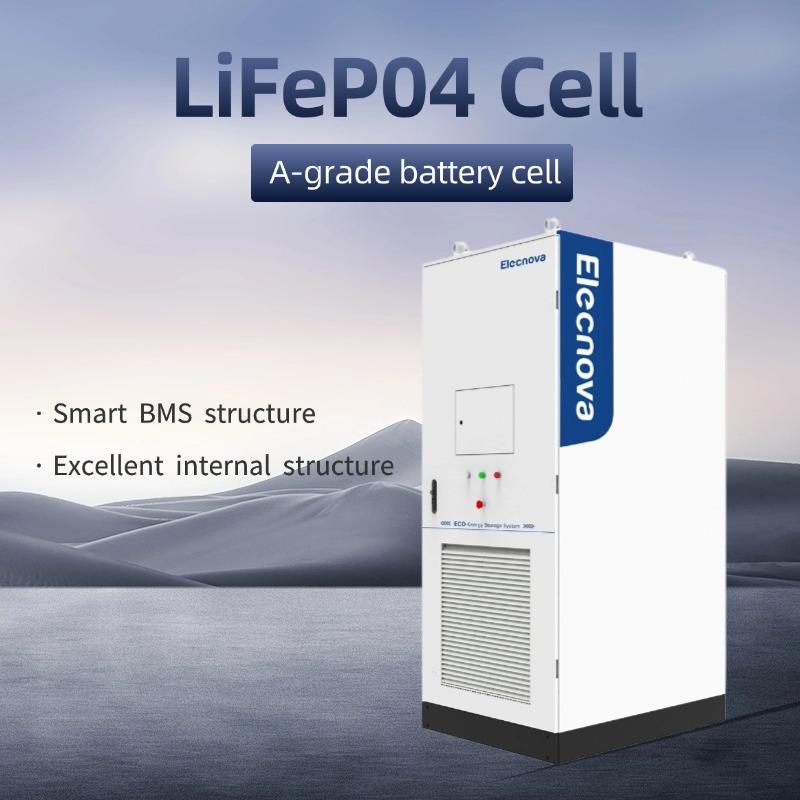

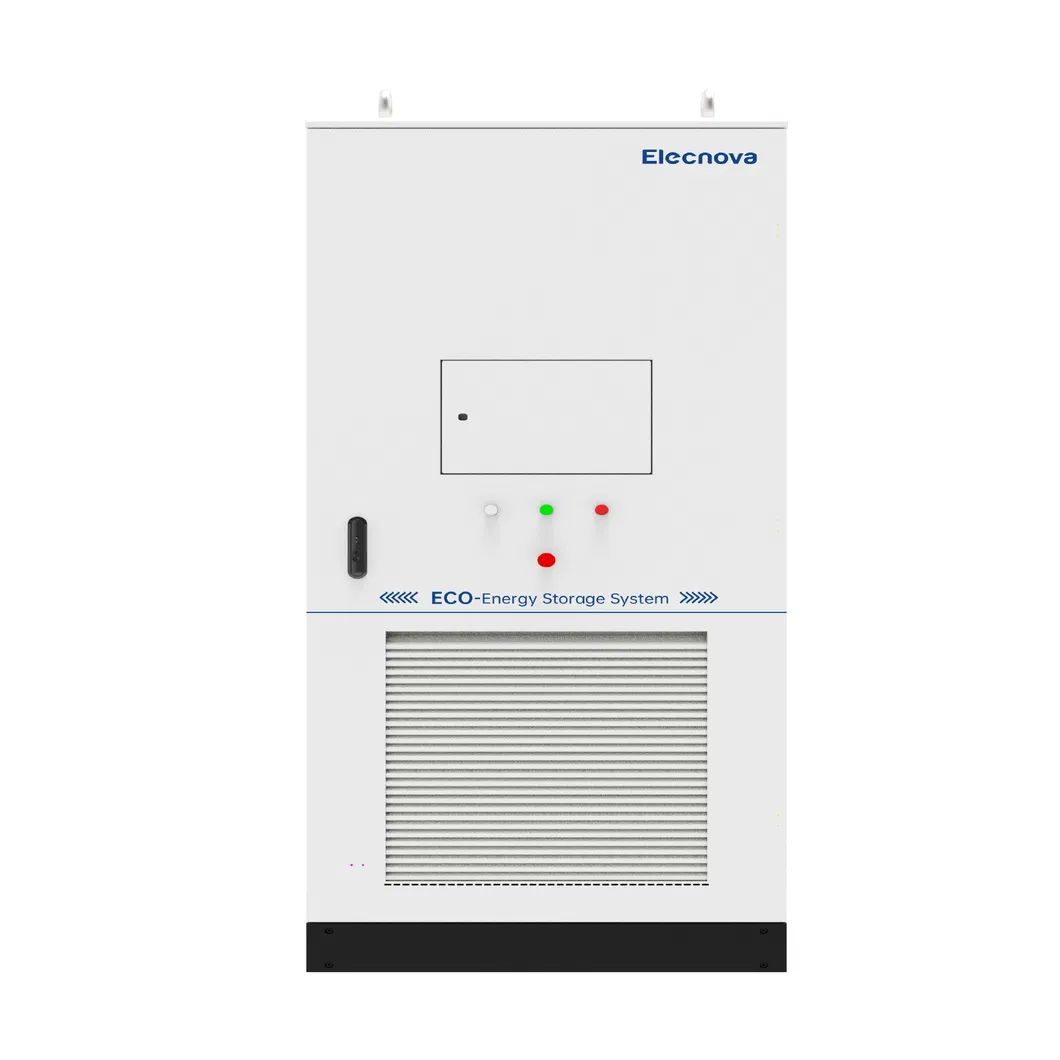

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
Easy integration for various scenarios.
Up to 233kWh energy density.
Independent power restoration capability.
Conversion efficiency: 99% | IP65 rated.

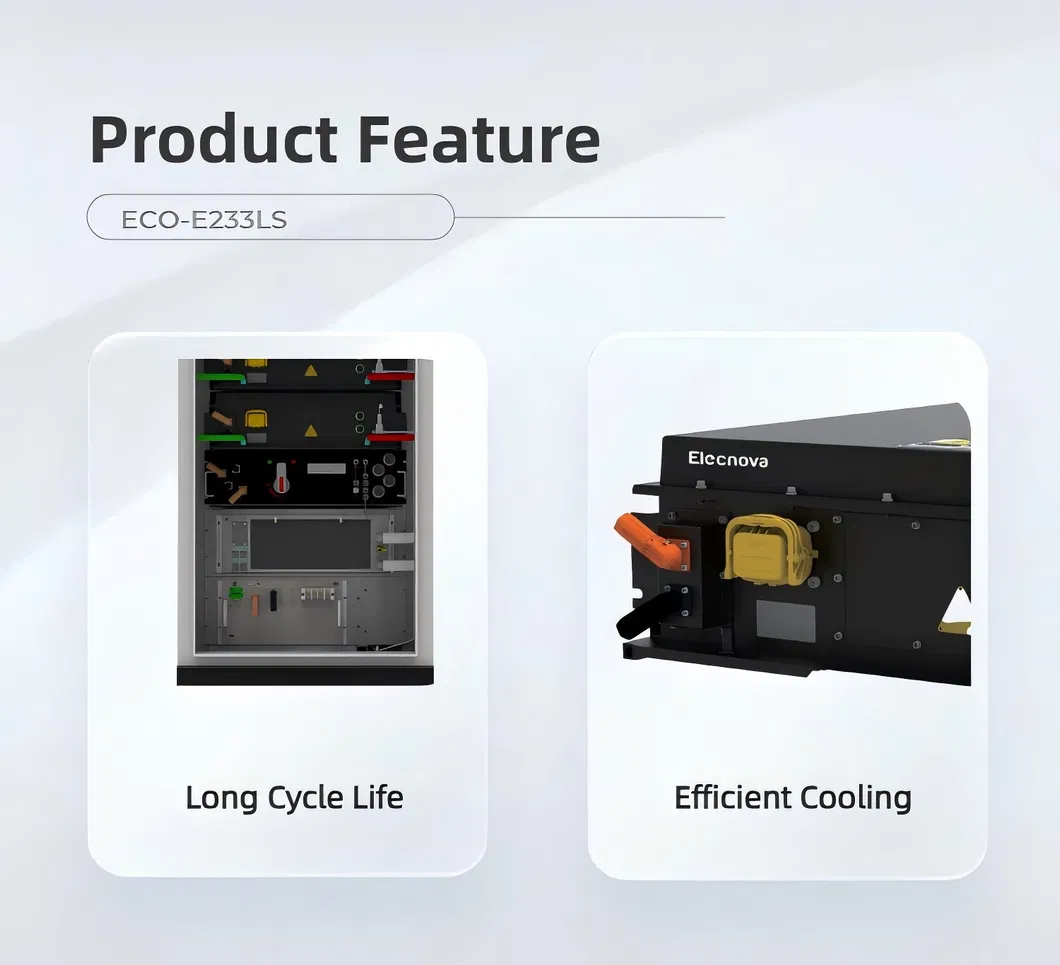

Active thermal management | 8,000+ cycles.
SOC Accuracy Error < 5% | 100ms sampling.

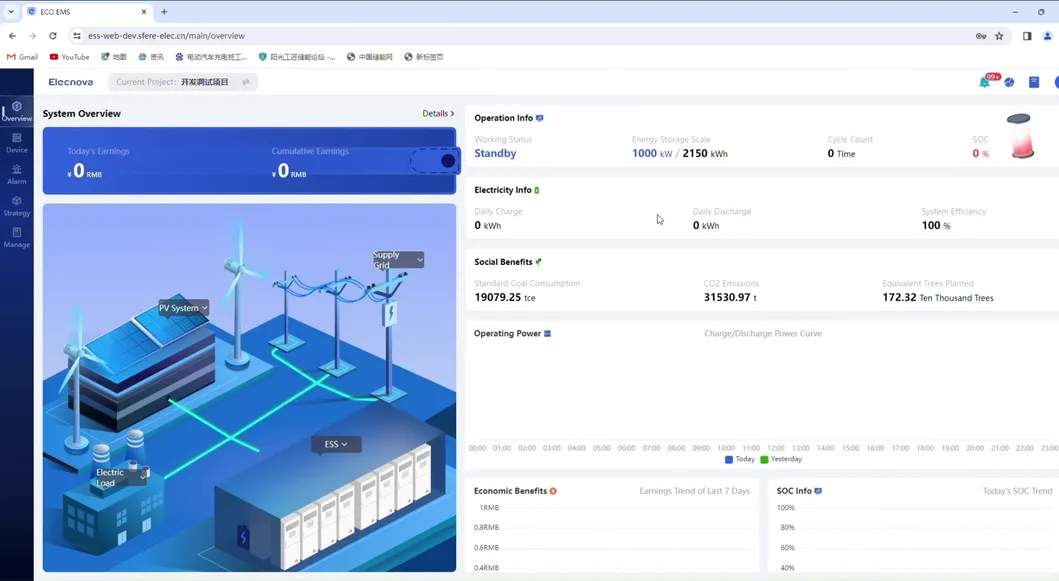

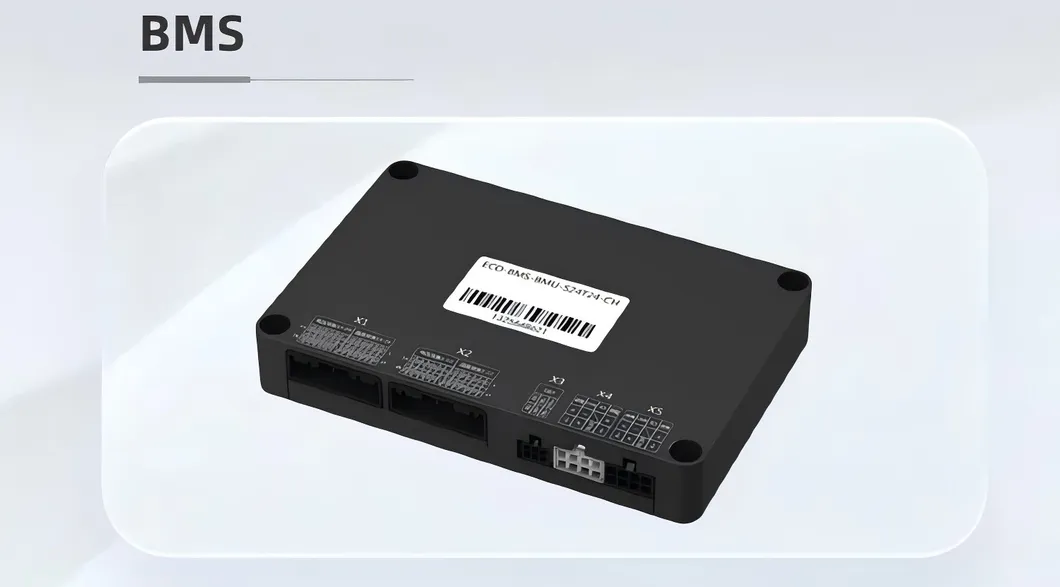

PCS & BMS Monitoring | Energy Arbitrage.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP280Ah |
| PACK Capacity | 46.592kWh/1P52S |
| Battery System | 232.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| PACK Ingress Rating | IP65 |

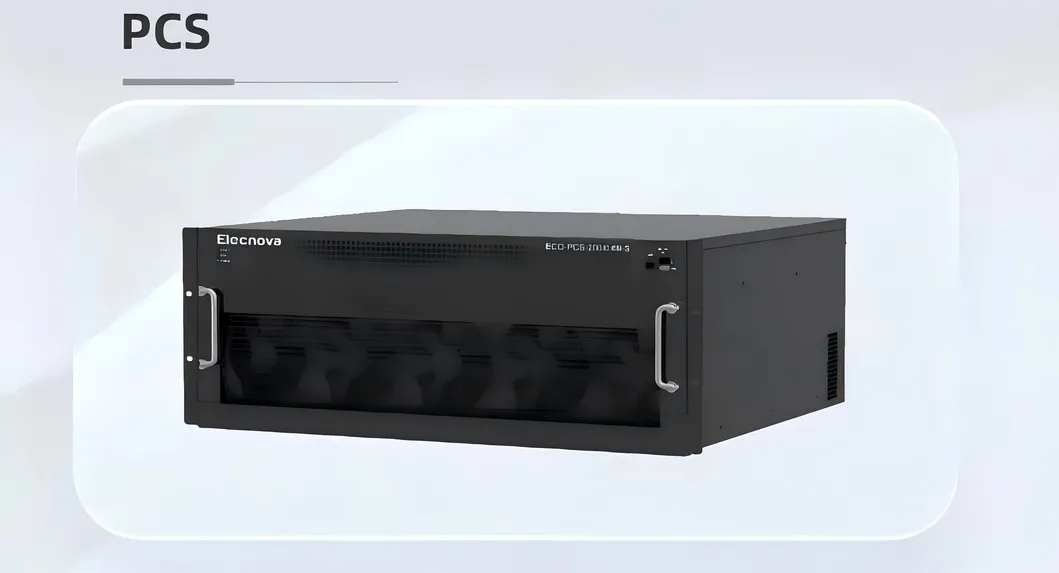

| AC Side Specifications | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| Nominal Voltage | 400Vac/3P+N+PE |
| Nominal Frequency | 50/60 Hz |

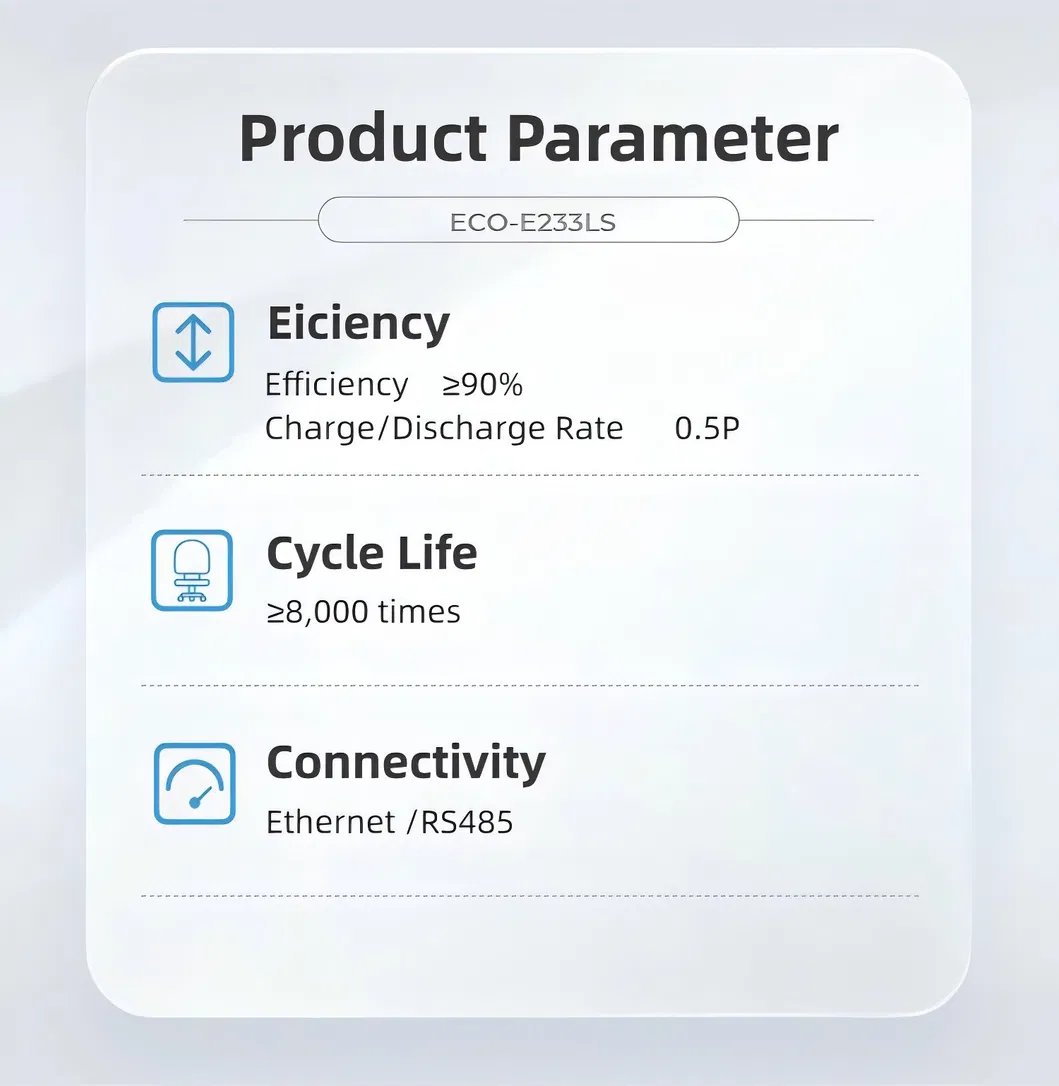

| General Data | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |

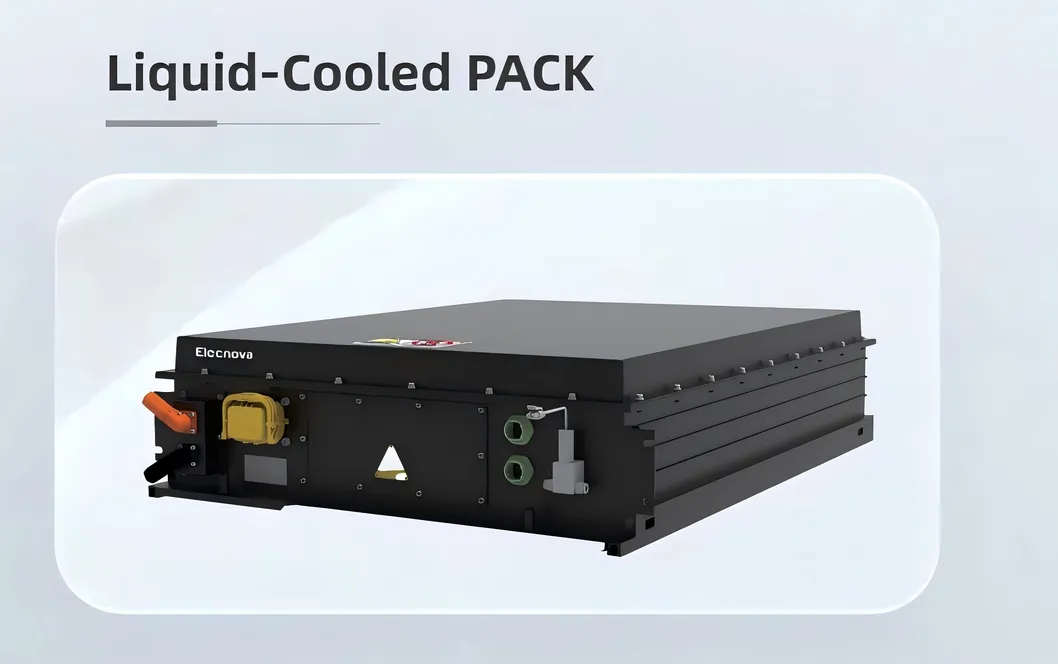

| Cooling | Active liquid cooling |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |
| Weight | 2,570kg |

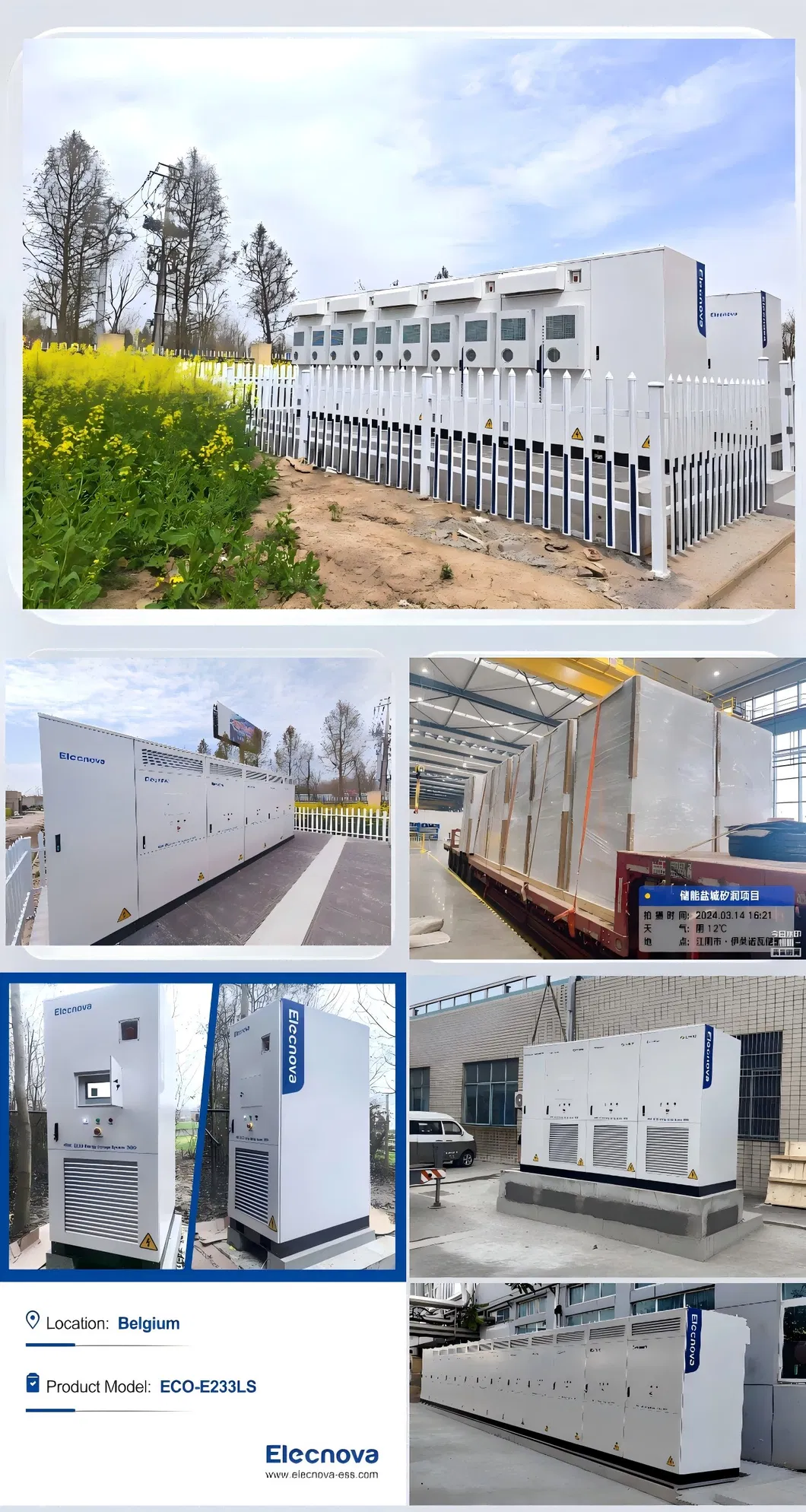

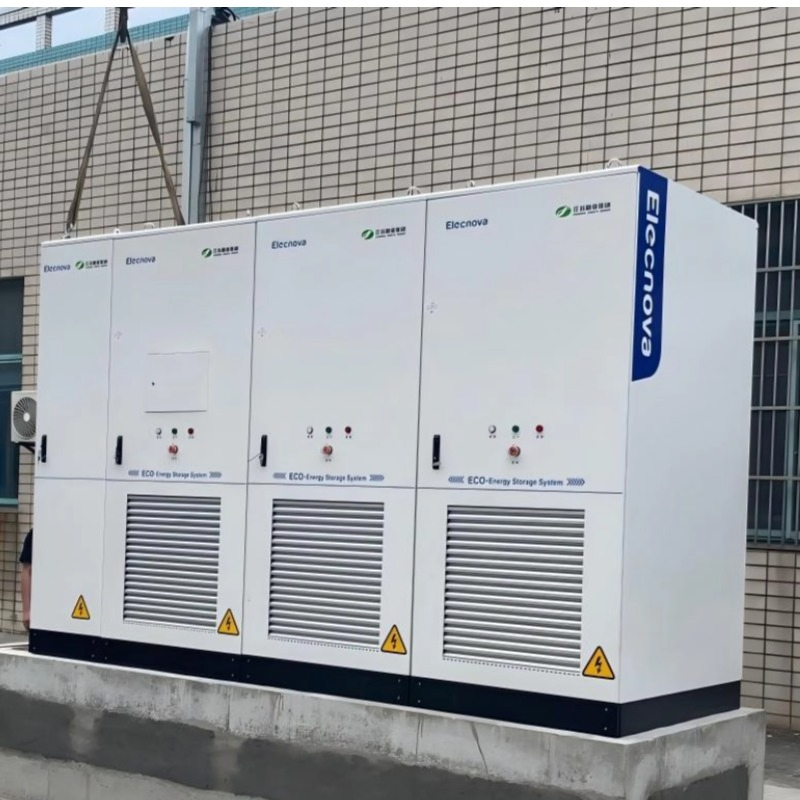

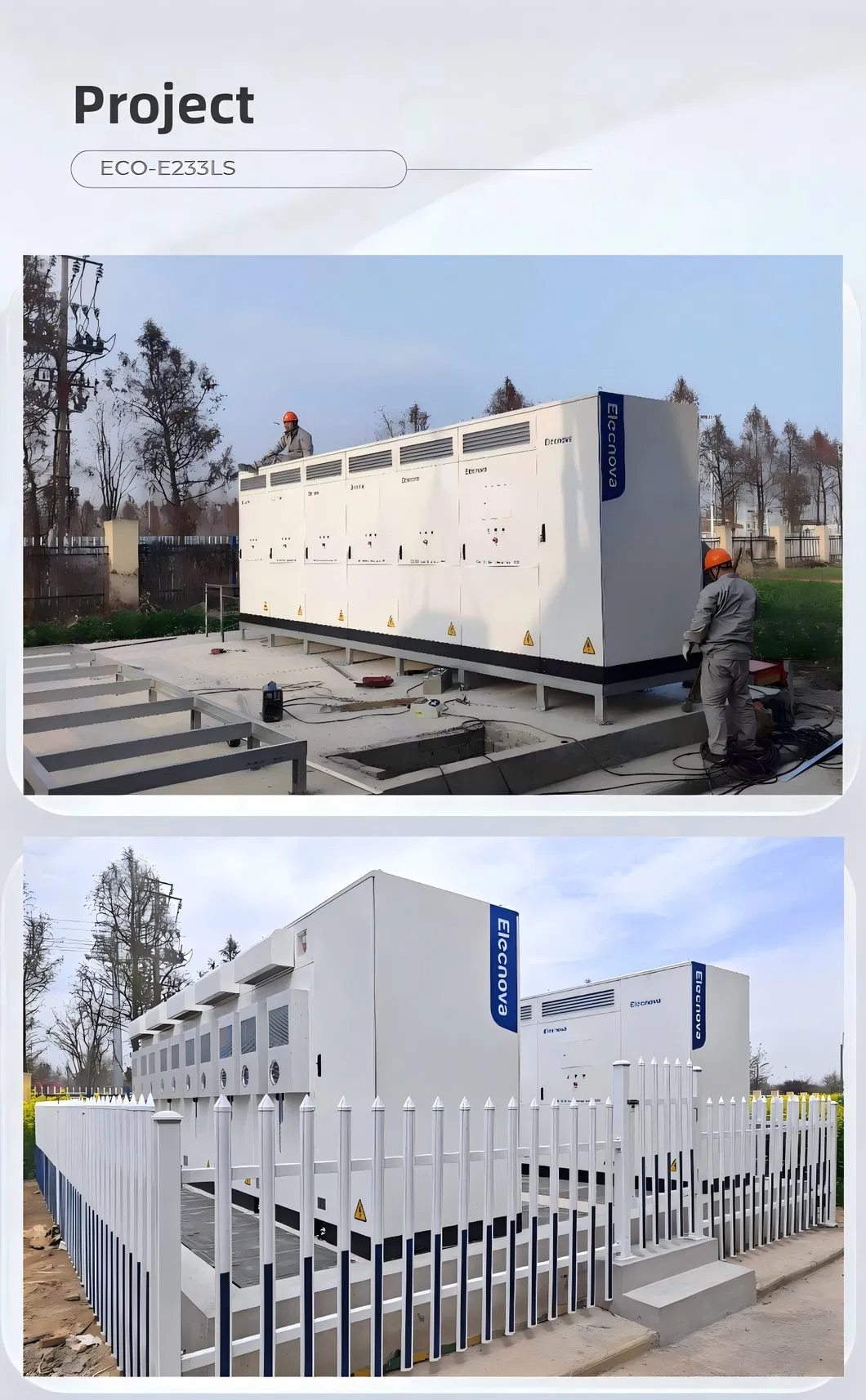

Our energy storage projects are successfully connected to the grid globally. These projects adopt advanced energy storage technology and equipment, ensuring high efficiency, stability, and safety for industrial and commercial users.
We are a technology-based enterprise focusing on overall solutions for energy storage systems. Our company has the full supporting capability for system integration of PACK, PCS, and BMS. We are committed to providing high-quality customized products for power generation, grid-side, and user-side applications.
