Overview & Basic Info
Model NO.
Single-axis Bracket-005
Certification
GB, ISO, CE, RoHS
Application
Commercial / Residential
Material
Hot-Dipped Galvanized Steel
System Type
Linked / Independent Type
Tracking Accuracy
≤2° (Configurable)
Max Wind Speed
24m/s (Operating) / 37m/s (Safe)
Operating Temp
-40℃ ~ +75℃
Product Description

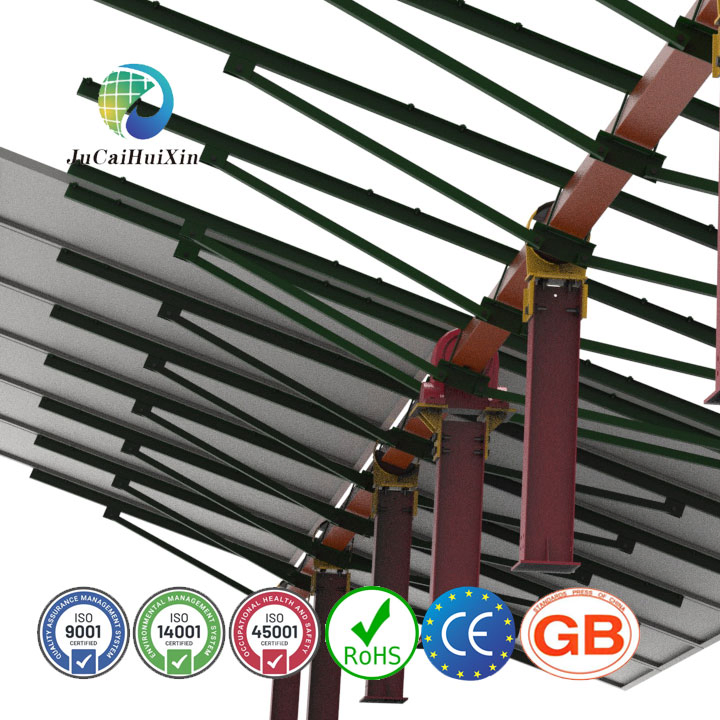

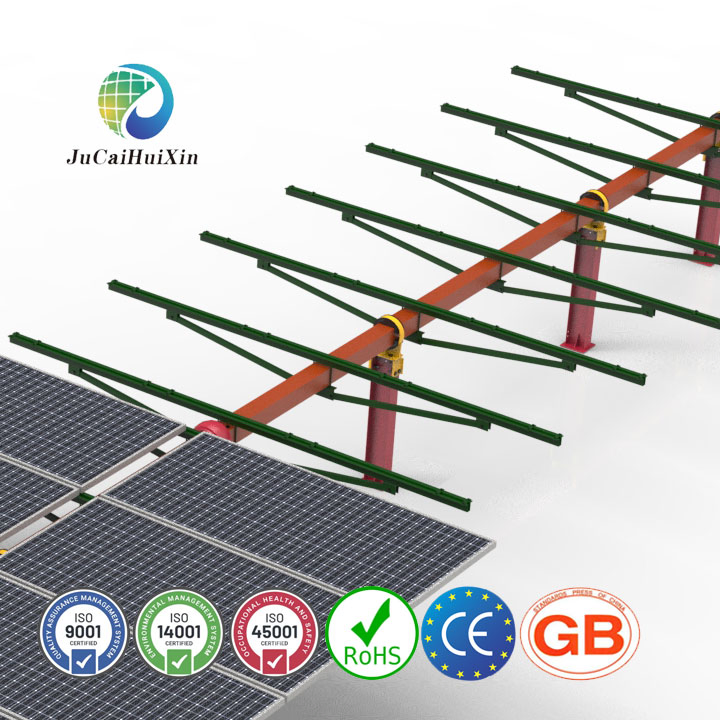

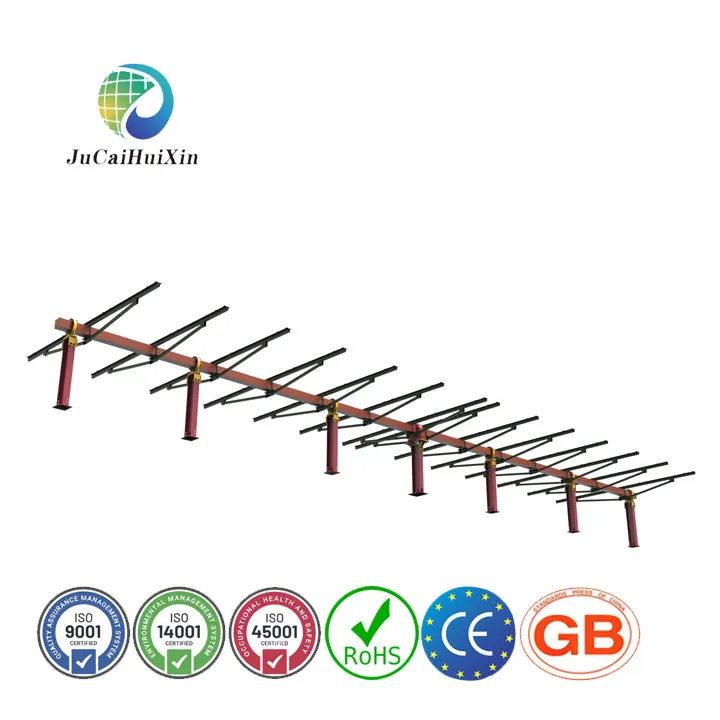

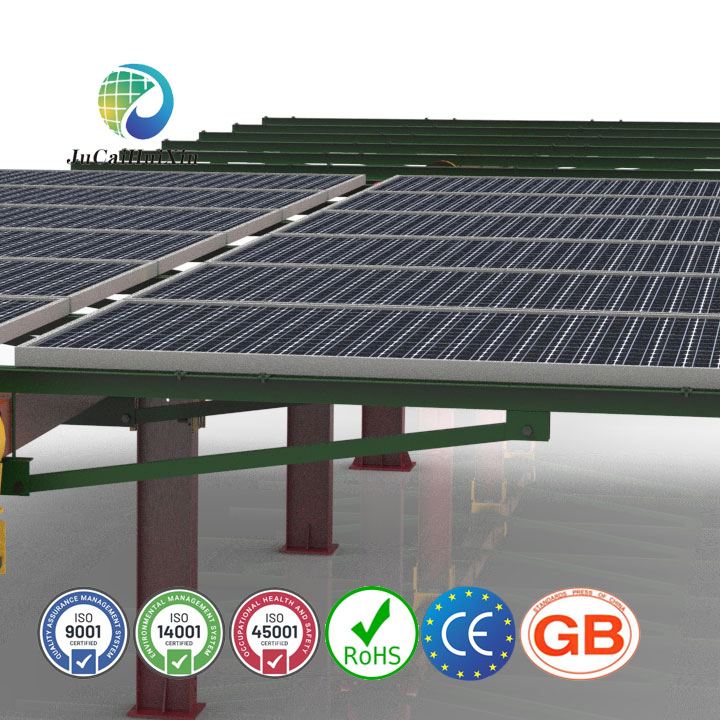

Our Durable Steel Frame Residential Single Axis Solar Tracker System is designed for easy installation and optimal sun exposure. By tracking the sun's movement throughout the day, it increases energy production by up to 25% compared to fixed solar panels. This high-efficiency system is ideal for both ground and residential rooftop applications.
| System type | Independent Drive |
| NO. of Panel | 2-10 Piece (≤23 sq.m.) |
| Power Consumption | 5.0Kwh/set/year |
| Tracking Accuracy | 0.1°-2° (Adjustable) |
| Control Model | Time + GPS Control |
| Azimuth Range | ±45ºC |

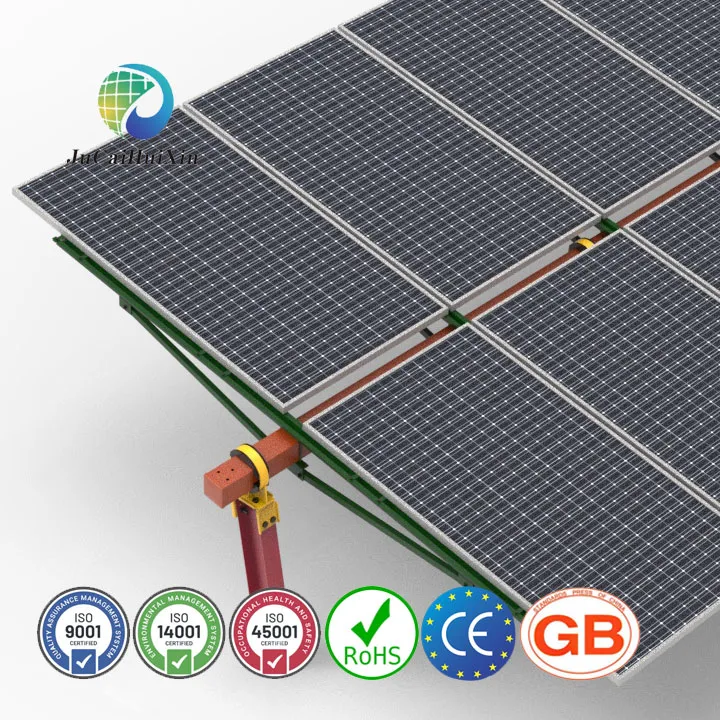

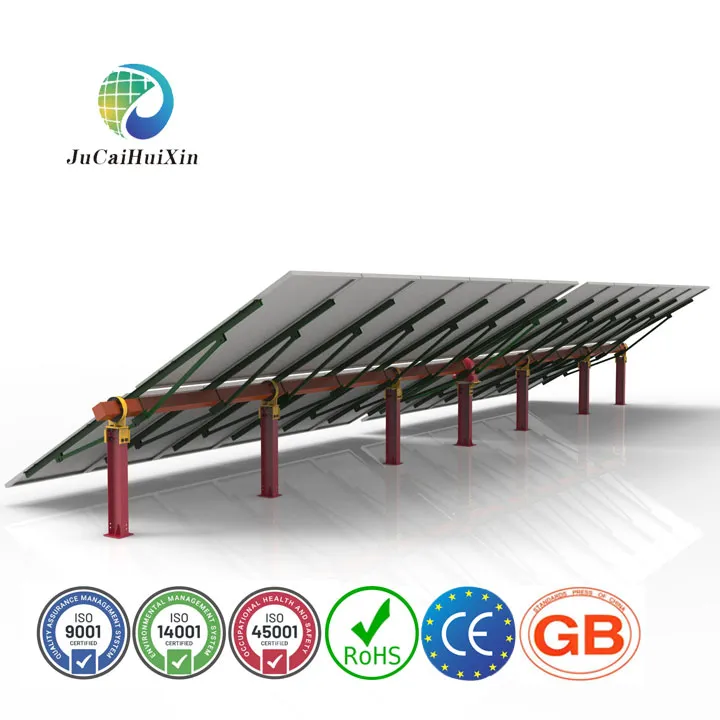

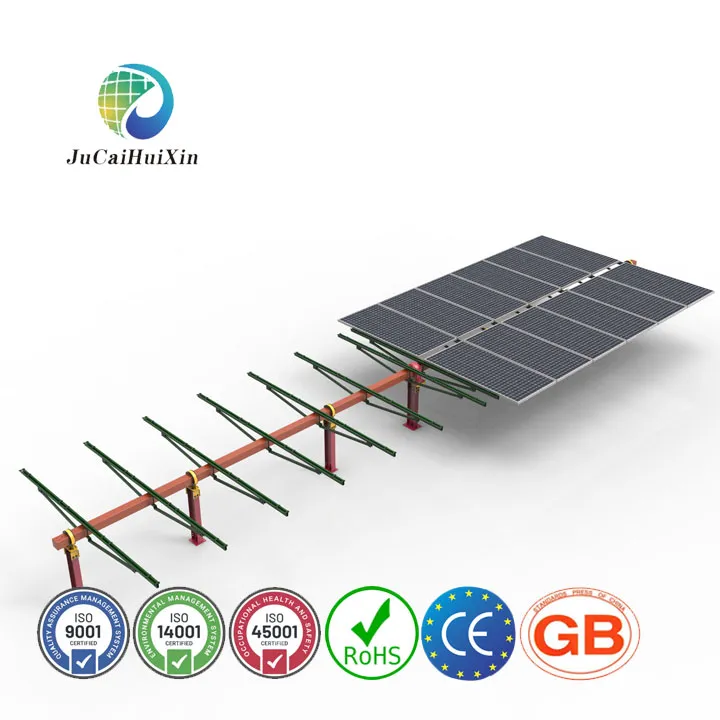

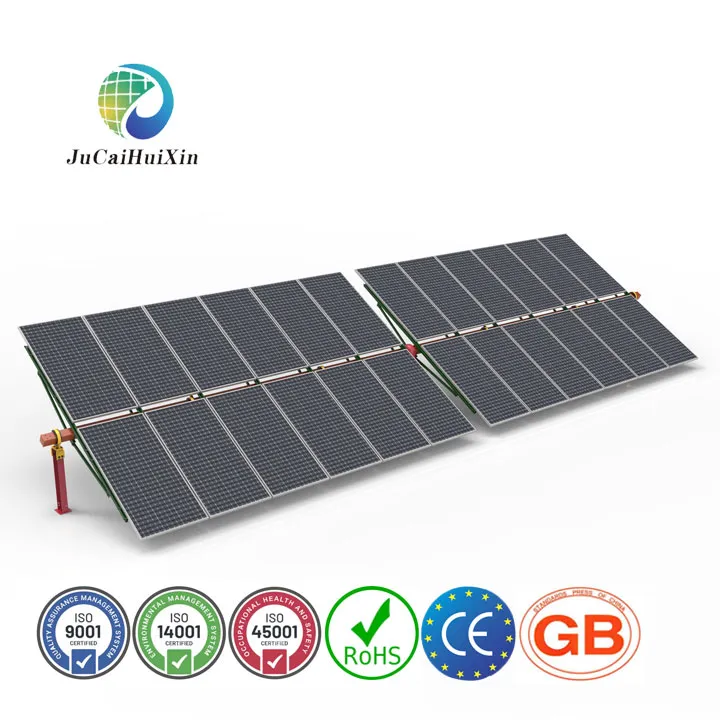

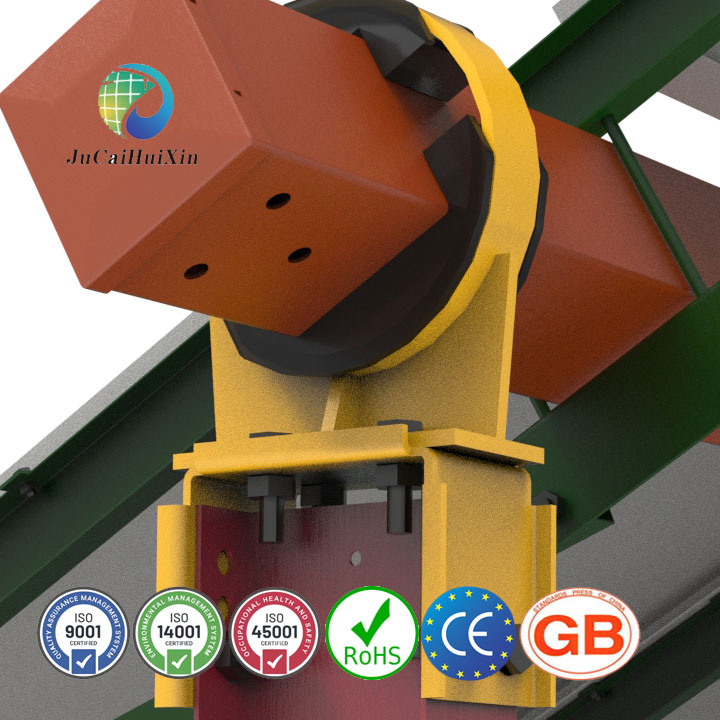

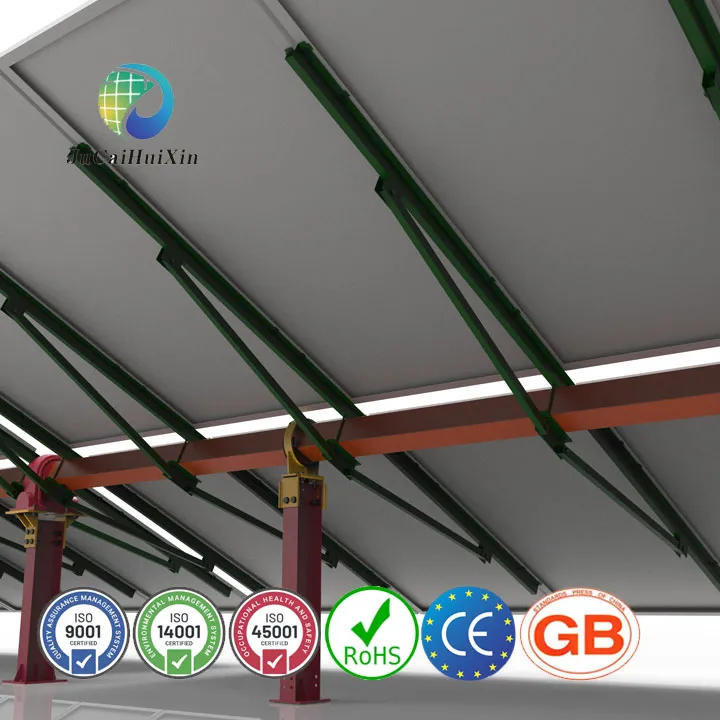

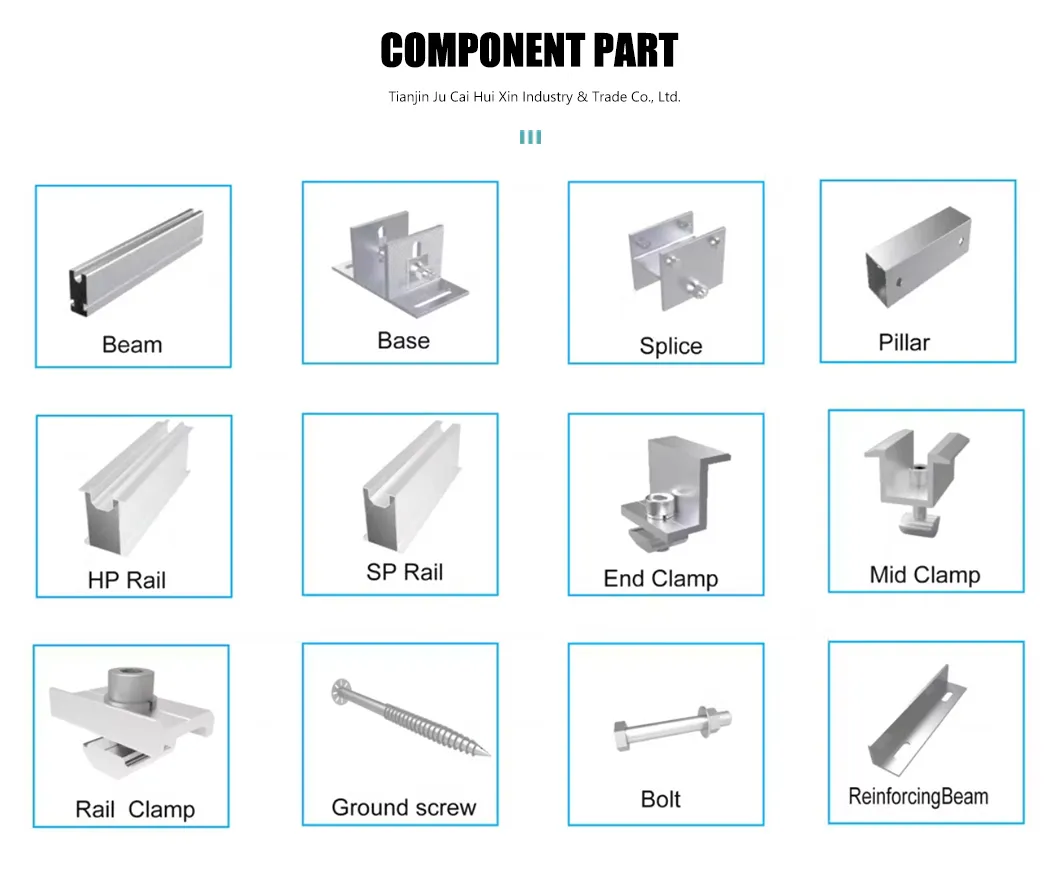

Detailed Component Showcase
Installation & Maintenance
🛠 Installation Steps
1. Site Preparation
Clear debris, level ground, or reinforce rooftop. Anchor with concrete footings or roof-mounted brackets.
2. Frame Assembly
Bolt pre-assembled sections following numbered guides (typical time: 1-2 hours).
3. Panel & Motor Setup
Attach solar panels to tracking rails, connect motor/controller, and align sensors southward.
4. System Calibration
Use the mobile app to test tracking accuracy and set tilt presets.
⚙️ Maintenance Tips
- Monthly: Clean panels and check bolt tightness.
- Seasonal: Lubricate motor gears (grease included) and reset tilt angle for winter/summer.
- Post-Storm: Inspect for structural damage and recalibrate tracking alignment.

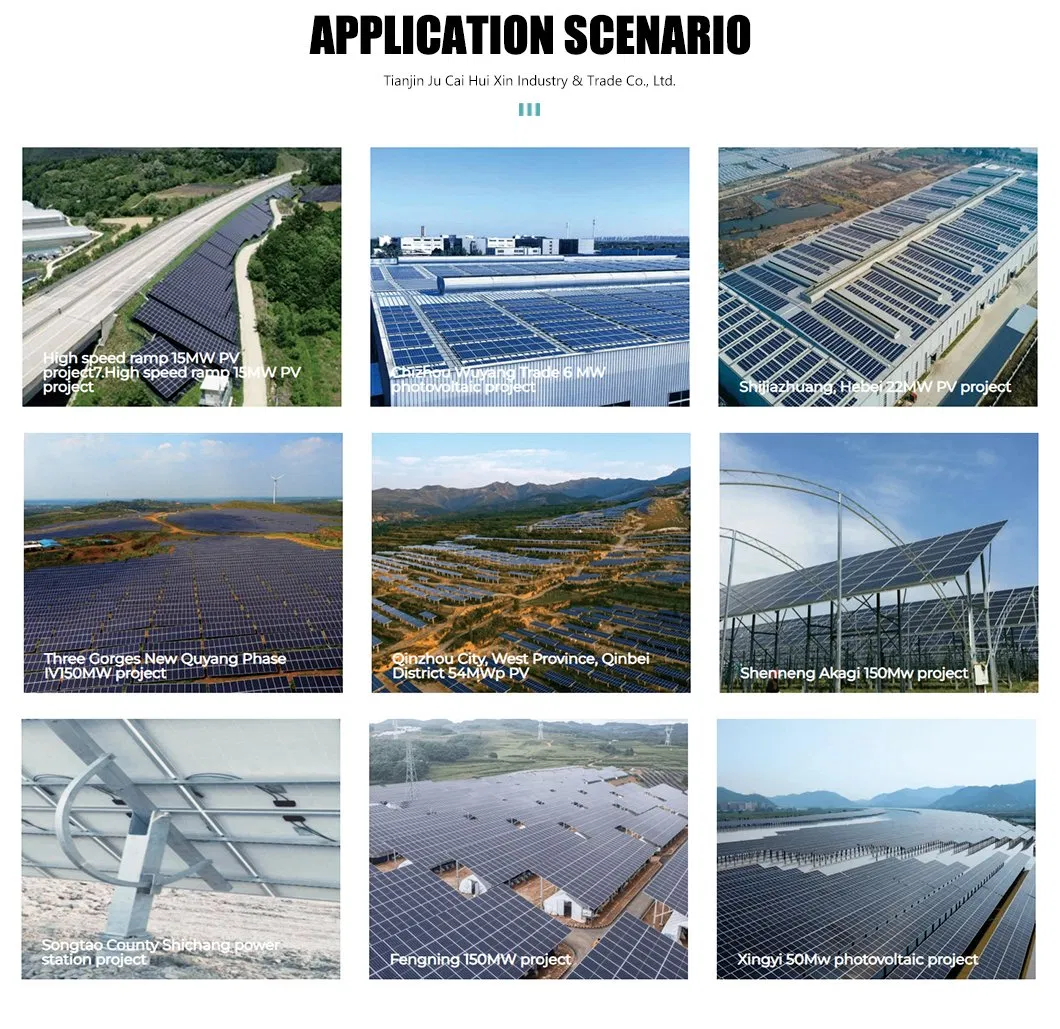

Wide Applications
- Residential Rooftops: Maximize energy output on limited roof space.
- Backyard Solar Farms: Ground-mounted setups for off-grid homes.
- Cabins & Tiny Homes: Lightweight design for remote or mobile installations.
- Pool Heating & EV Charging: Sustainable energy for 24/7 power needs.
- Storm-Prone Areas: Reinforced steel structure to withstand heavy loads.
Quality Assurance & Logistics
Frequently Asked Questions
Q1: How much space do I need for installation?
A: Minimum 10m² for ground mounts. Roof installations depend on panel size.
Q2: Can I install it myself?
A: Yes! The modular design and step-by-step manual enable DIY installation. Professional help is optional.
Q3: Does it work during cloudy days?
A: Yes! The system uses GPS-based algorithms to estimate sun position even in low light.
Q4: What if the motor fails?
A: You can switch to manual mode via the hand crank (included) while awaiting repairs.
Q5: Is it compatible with my existing solar panels?
A: It fits most residential panels (max 2.2m x 1.1m per panel).
Q6: How much power does the tracker consume?
A: Only 5-10W daily — less than 1% of the energy it generates!
