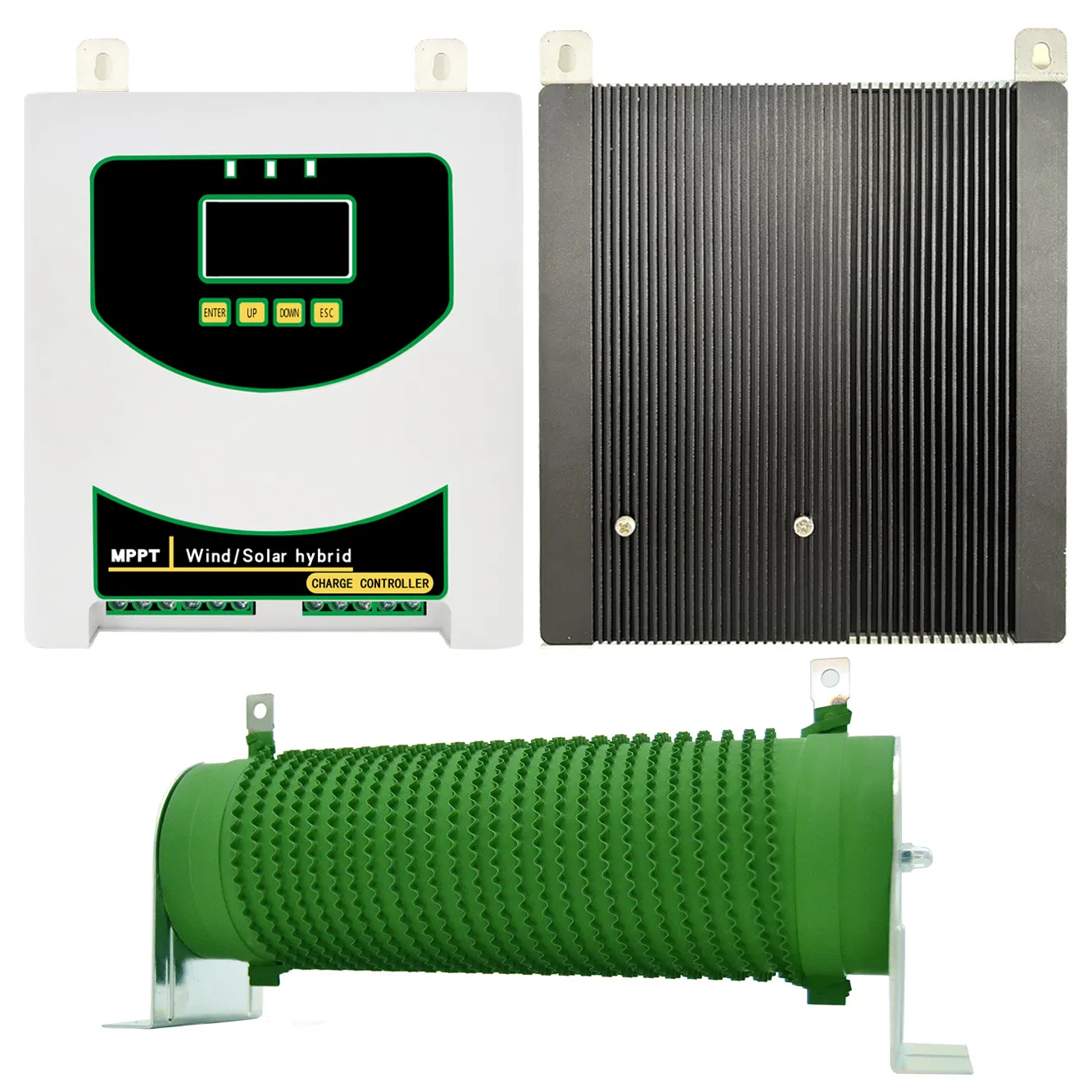

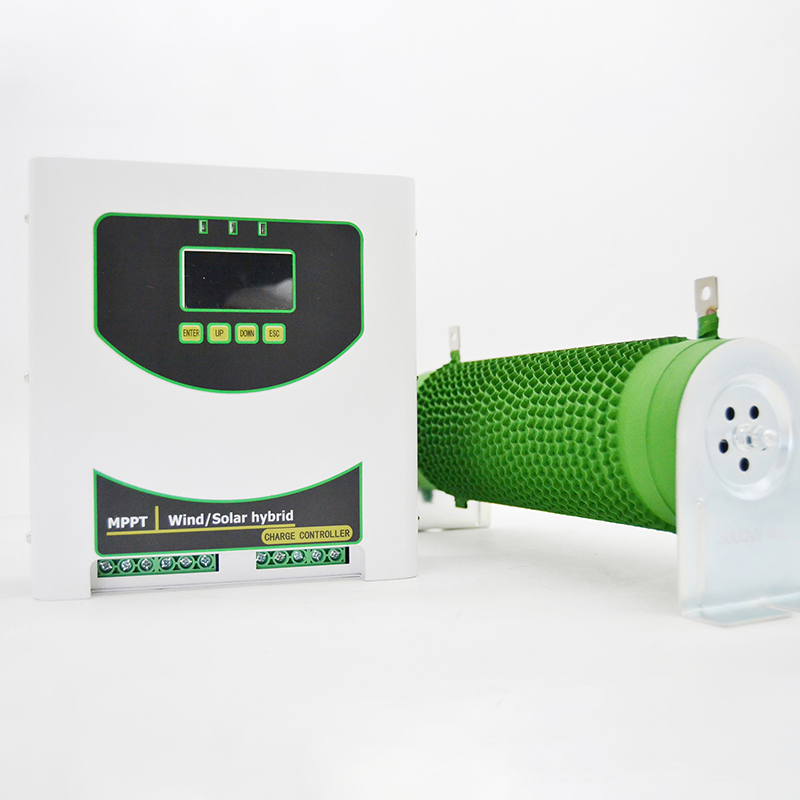

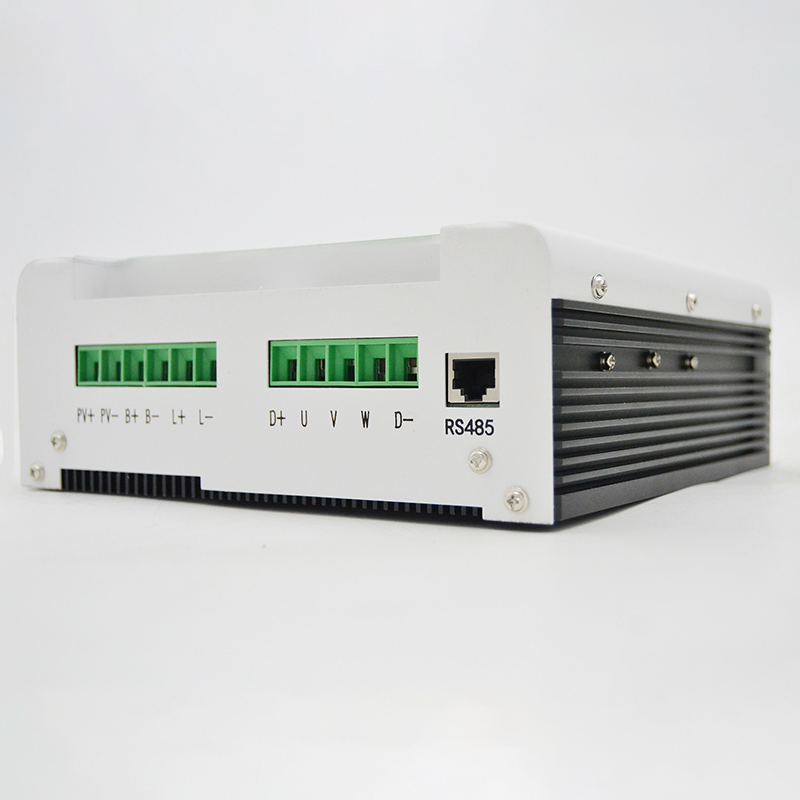

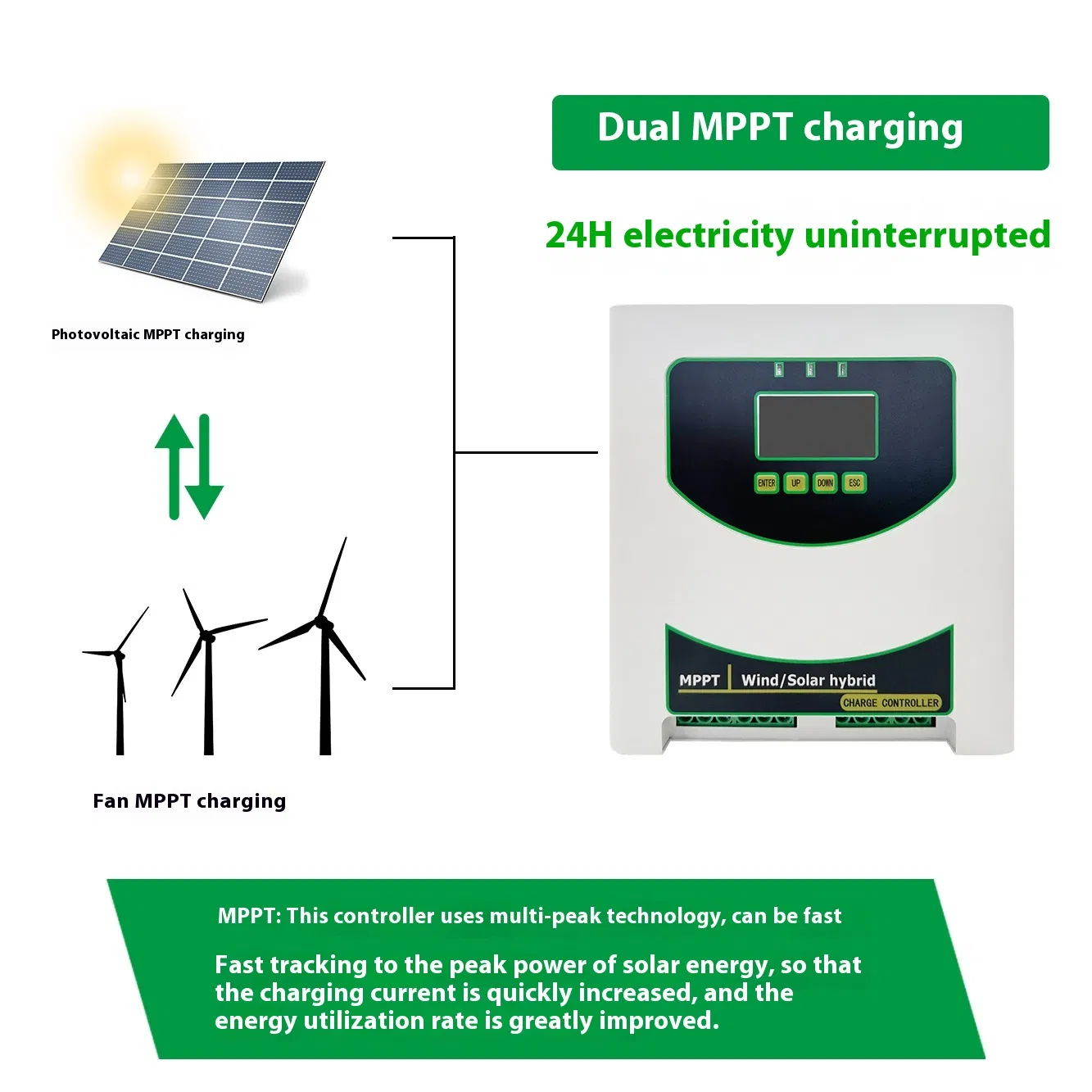

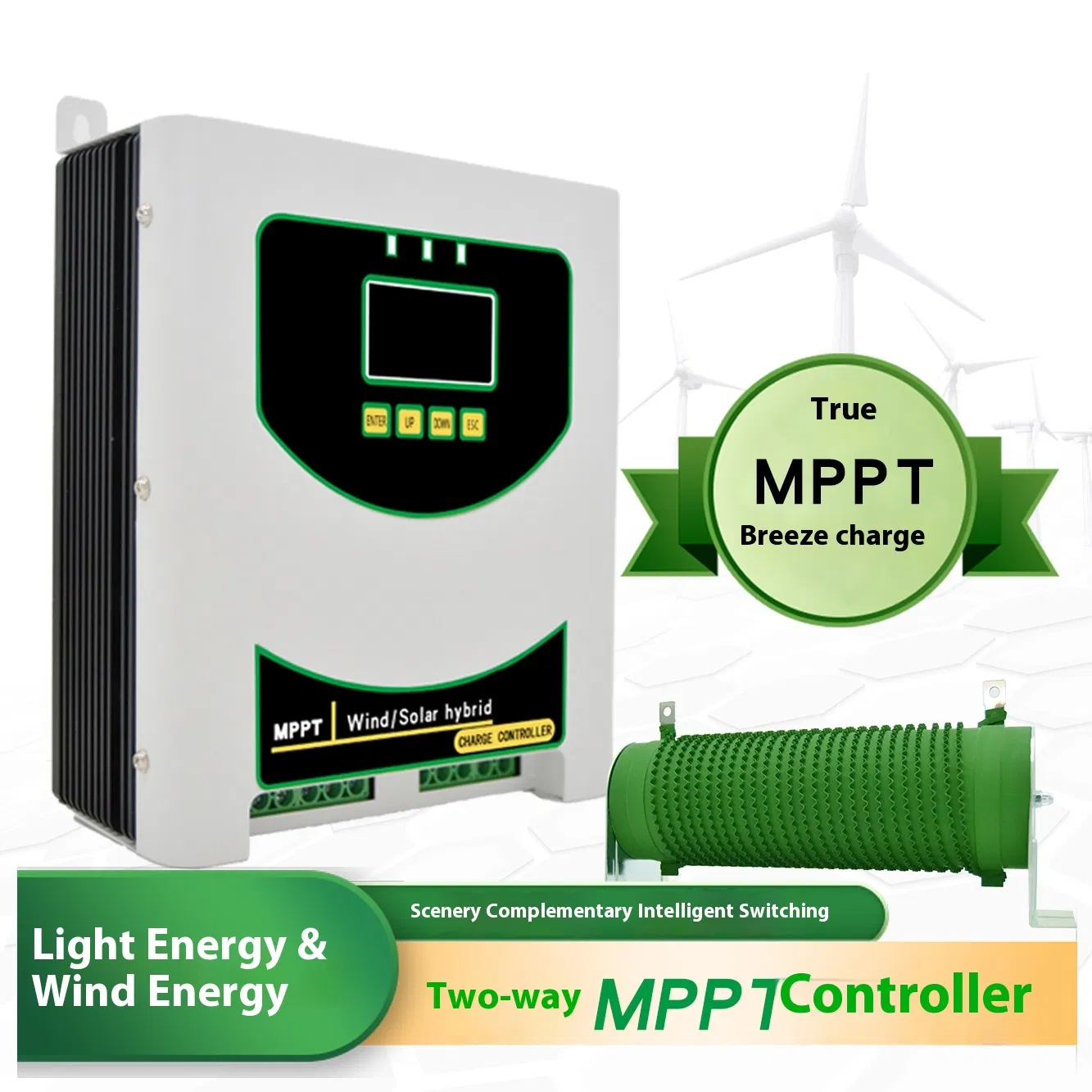

Dual MPPT Channel Wind Turbine Power 24V 800W 1000W 1500W Wind Solar Hybrid Charge Controller
Dual MPPT Channel Wind Turbine Power 24V 800W 1000W 1500W Wind Solar Hybrid Charge Controller
Dual MPPT Channel Wind Turbine Power 24V 800W 1000W 1500W Wind Solar Hybrid Charge Controller
Dual MPPT Channel Wind Turbine Power 24V 800W 1000W 1500W Wind Solar Hybrid Charge Controller
Dual MPPT Channel Wind Turbine Power 24V 800W 1000W 1500W Wind Solar Hybrid Charge Controller
1 / 5
Dual MPPT Channel Wind Turbine Power 24V 800W 1000W 1500W Wind Solar Hybrid Charge Controller
Dual MPPT Channel Wind Turbine Power 24V 800W 1000W 1500W Wind Solar Hybrid Charge Controller
Dual MPPT Channel Wind Turbine Power 24V 800W 1000W 1500W Wind Solar Hybrid Charge Controller
Dual MPPT Channel Wind Turbine Power 24V 800W 1000W 1500W Wind Solar Hybrid Charge Controller
Dual MPPT Channel Wind Turbine Power 24V 800W 1000W 1500W Wind Solar Hybrid Charge Controller

Dual MPPT Channel Wind Turbine Power 24V 800W 1000W 1500W Wind Solar Hybrid Charge Controller

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Info & Overview

Model NO.
JN-T-MPPT-W1000/S1000-24
Condition
New
Certification
ISO, CB, CE
Application
Solar/Wind System Controller
Rated Voltage
24V
Charge Mode
Dual MPPT Wind Solar Hybrid
Max Charging Current
40A
Communication
RS 485 Optional
Weight
3kg
Package Size
43.30cm * 40.30cm * 15.00cm
★

Product Features

Dual MPPT Channel Wind Turbine & Solar Hybrid Charge Controller (24V 800W-1500W)
  • Color screen design for comprehensive information display and user-friendly interface.
  • Advanced MPPT control algorithm ensures efficient charging even at low wind speeds.
  • Photovoltaic charging utilizes MPPT technology with tracking efficiency ≥ 99.5%, increasing efficiency by 15-20% over PWM.
  • RS485 communication support for unified integrated management and secondary development.
  • Mobile phone APP monitoring available for viewing and setting parameters (optional).
  • Comprehensive protection functions including overcharge, over-discharge, and overload protection.
  • Selectable charging modes for Lead-acid, ternary lithium, lithium iron phosphate, and custom batteries.
  • Flexible load control methods with adjustable output power and time settings.
  • Adaptive day and night identification for wide environmental adaptability.
  • Battery activation function: Can activate BMS protected lithium batteries via wind/PV input to resume normal charging.
📷

Detailed Photos

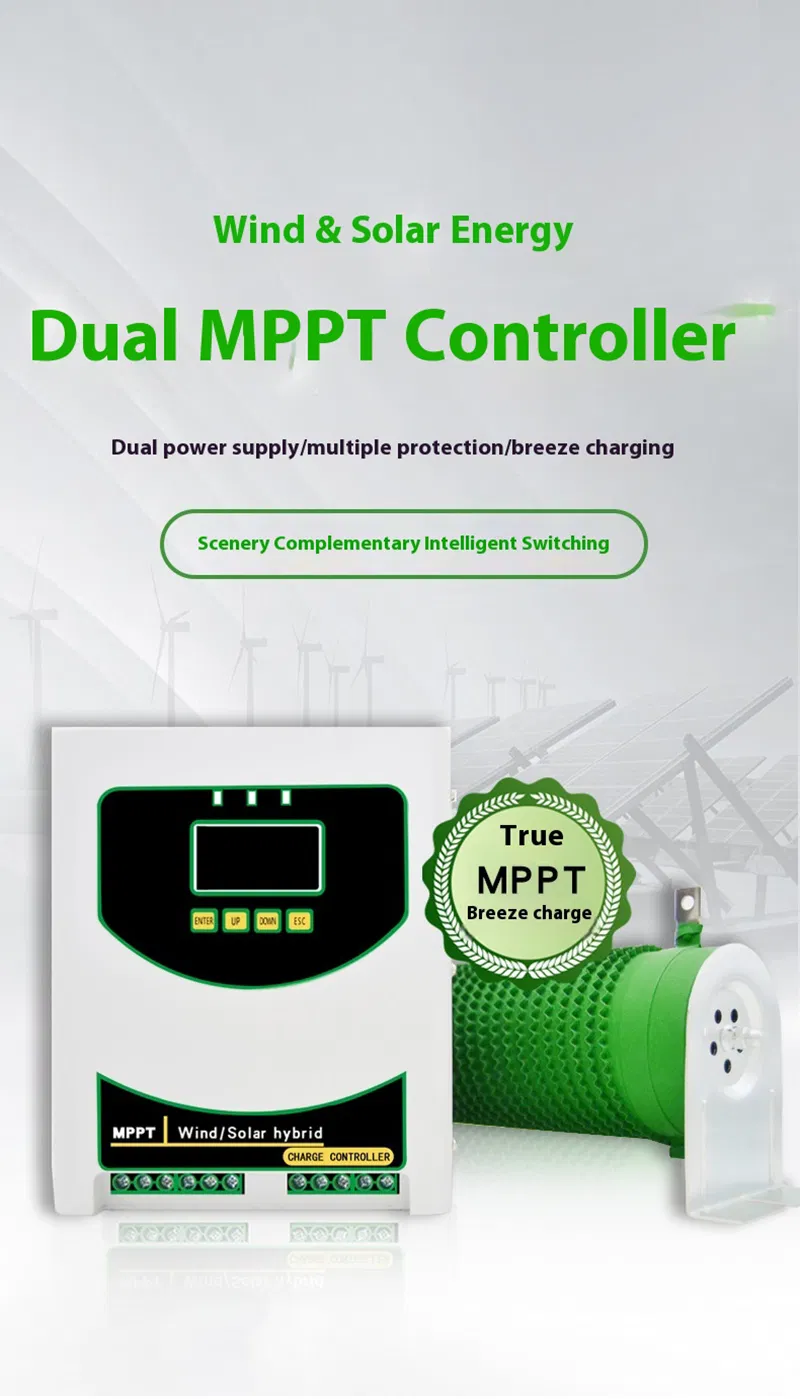

Controller Detail 1
Controller Detail 2

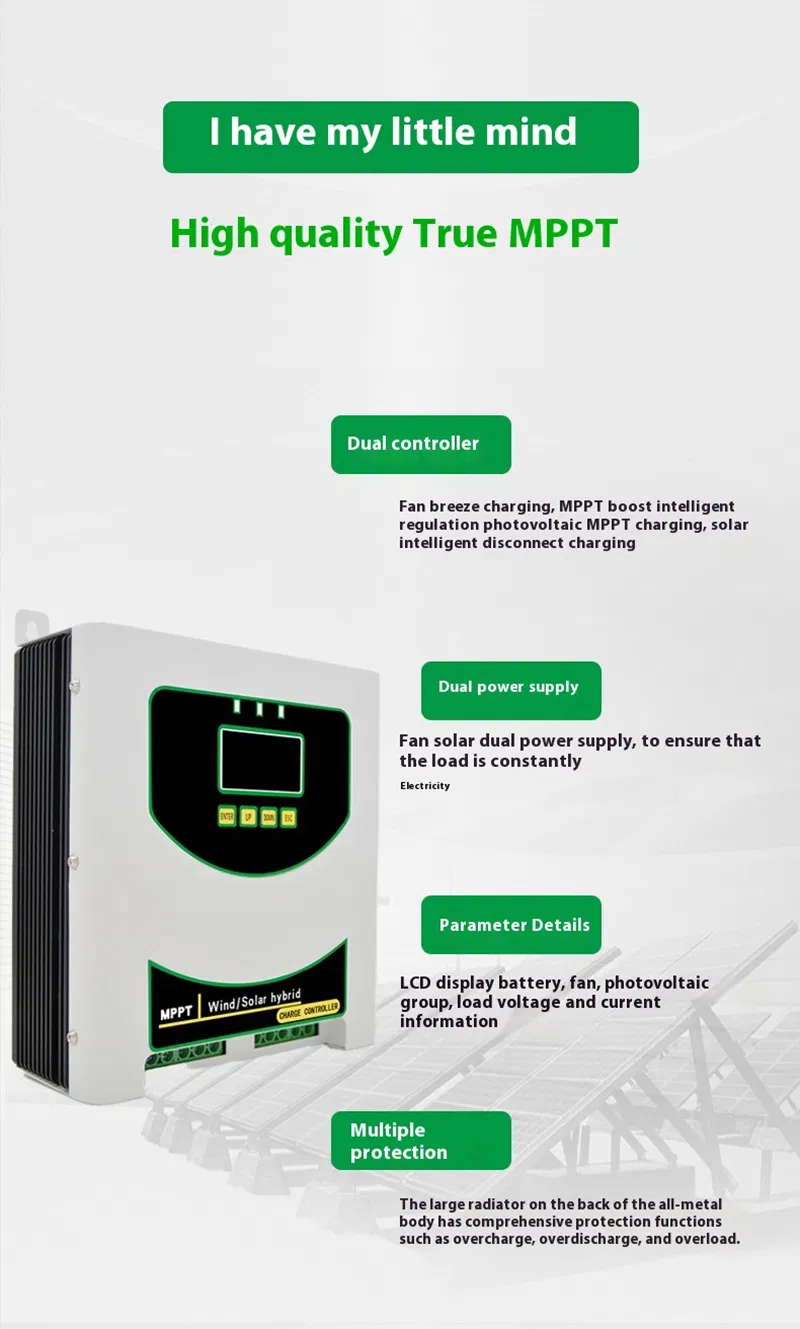

Controller Detail 3

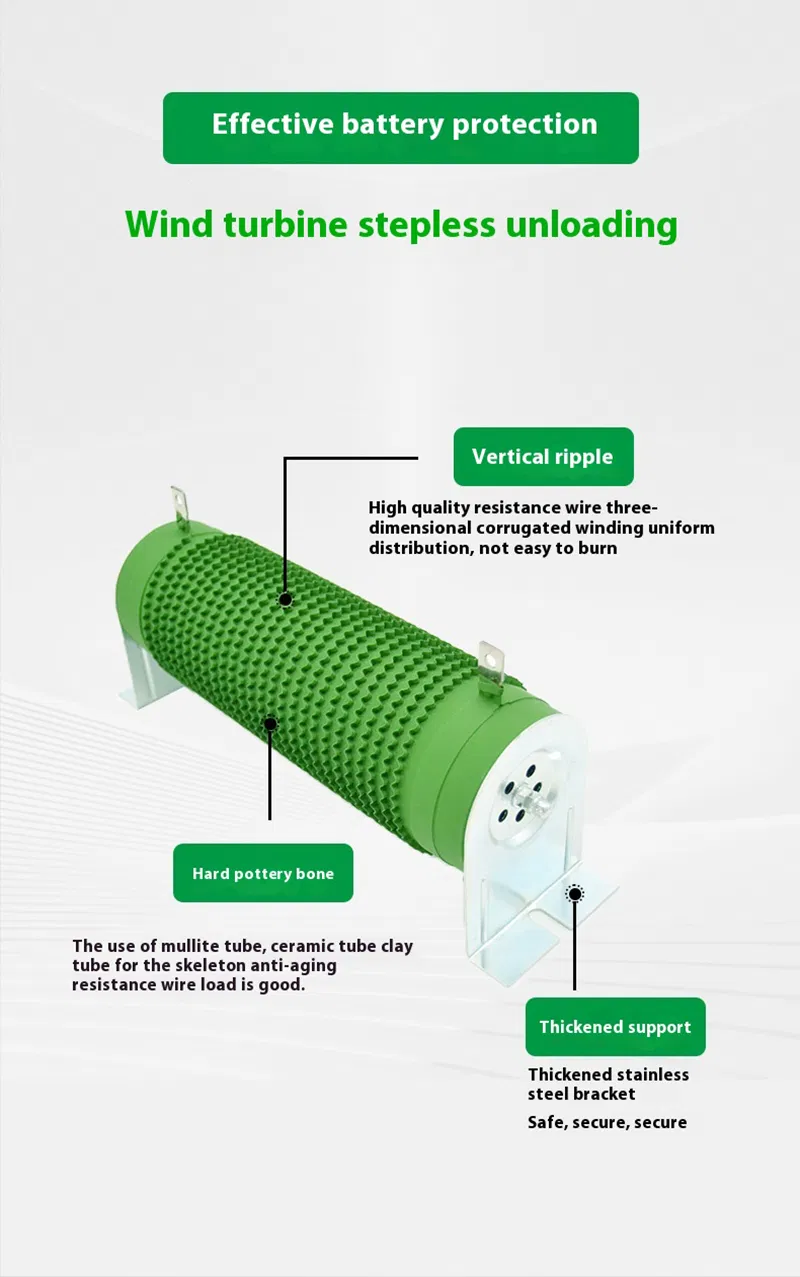

Controller Detail 4

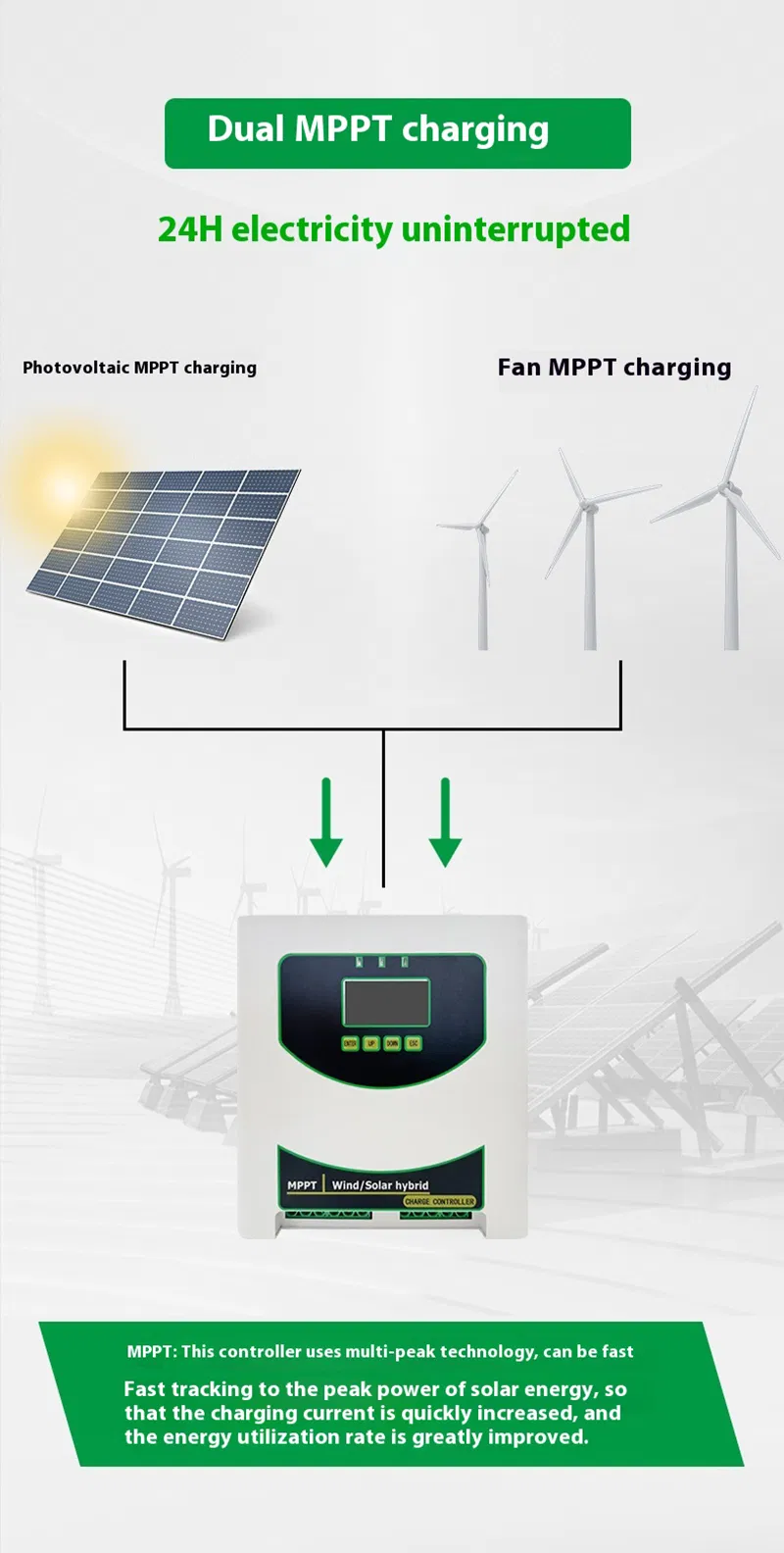

Controller Detail 5

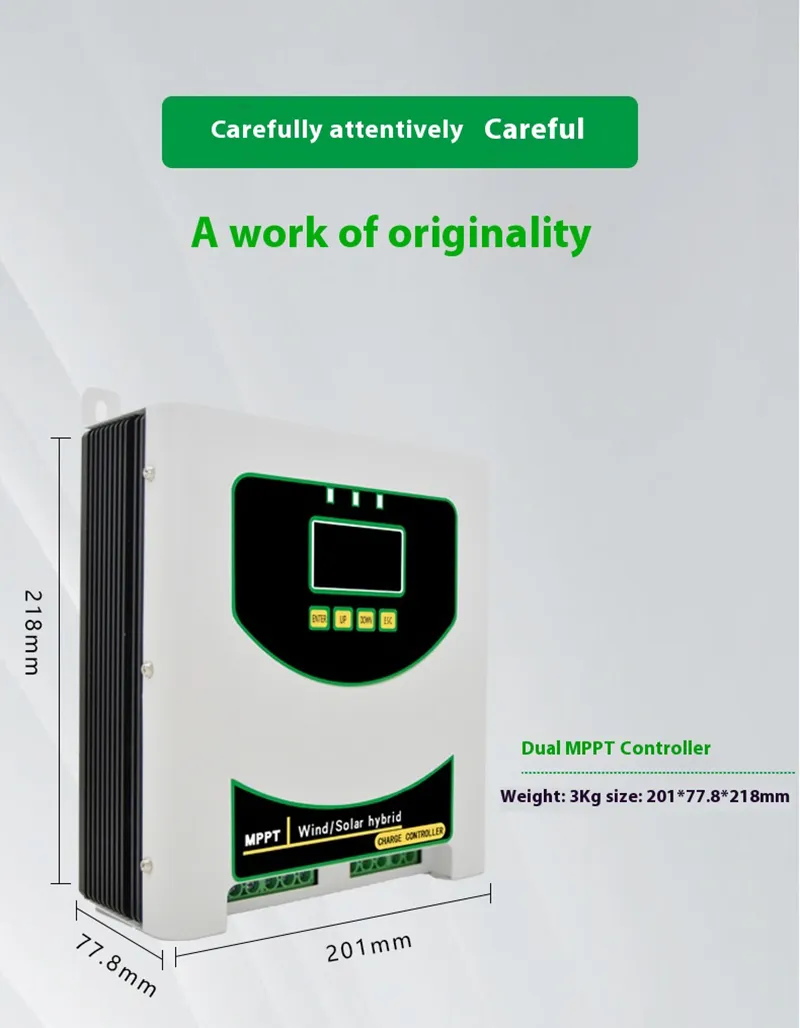

Controller Detail 6

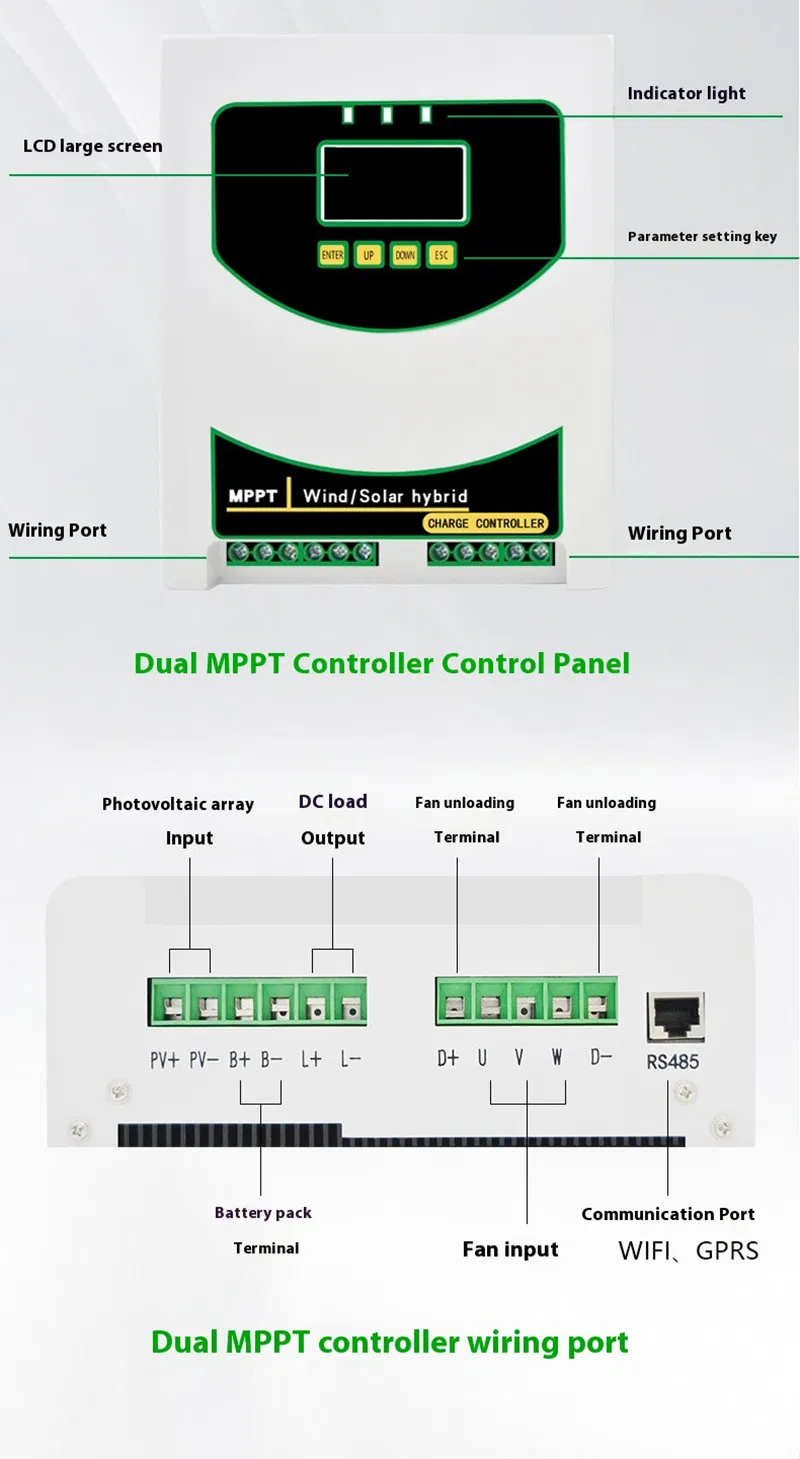

Controller Detail 7

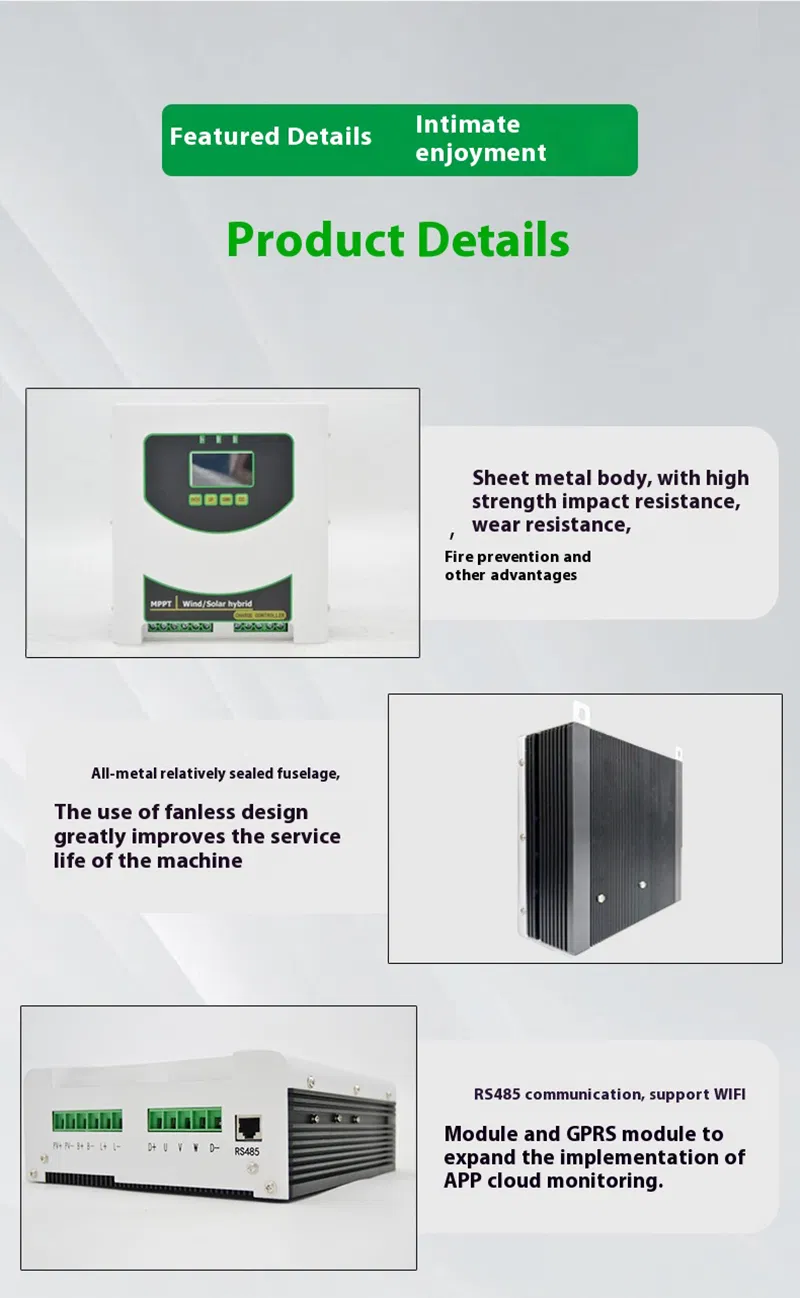

Controller Detail 8

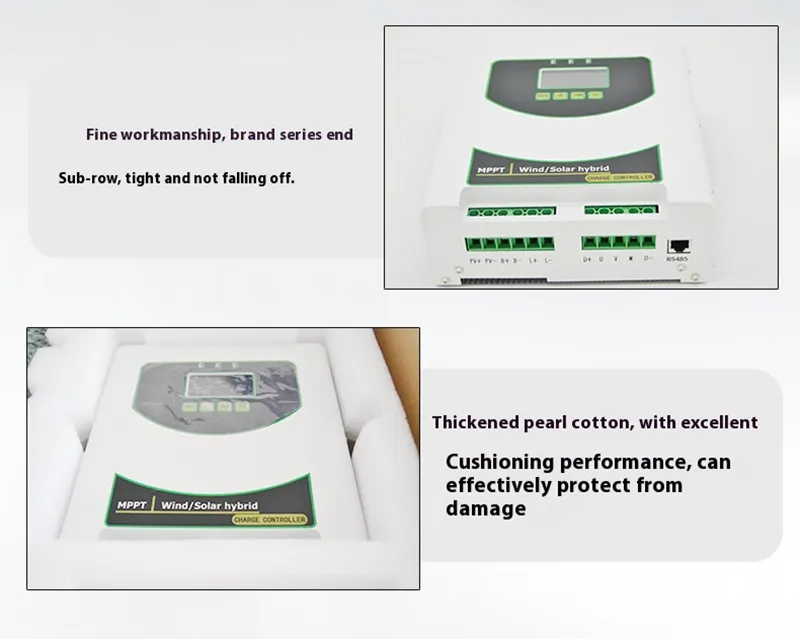

Controller Detail 9

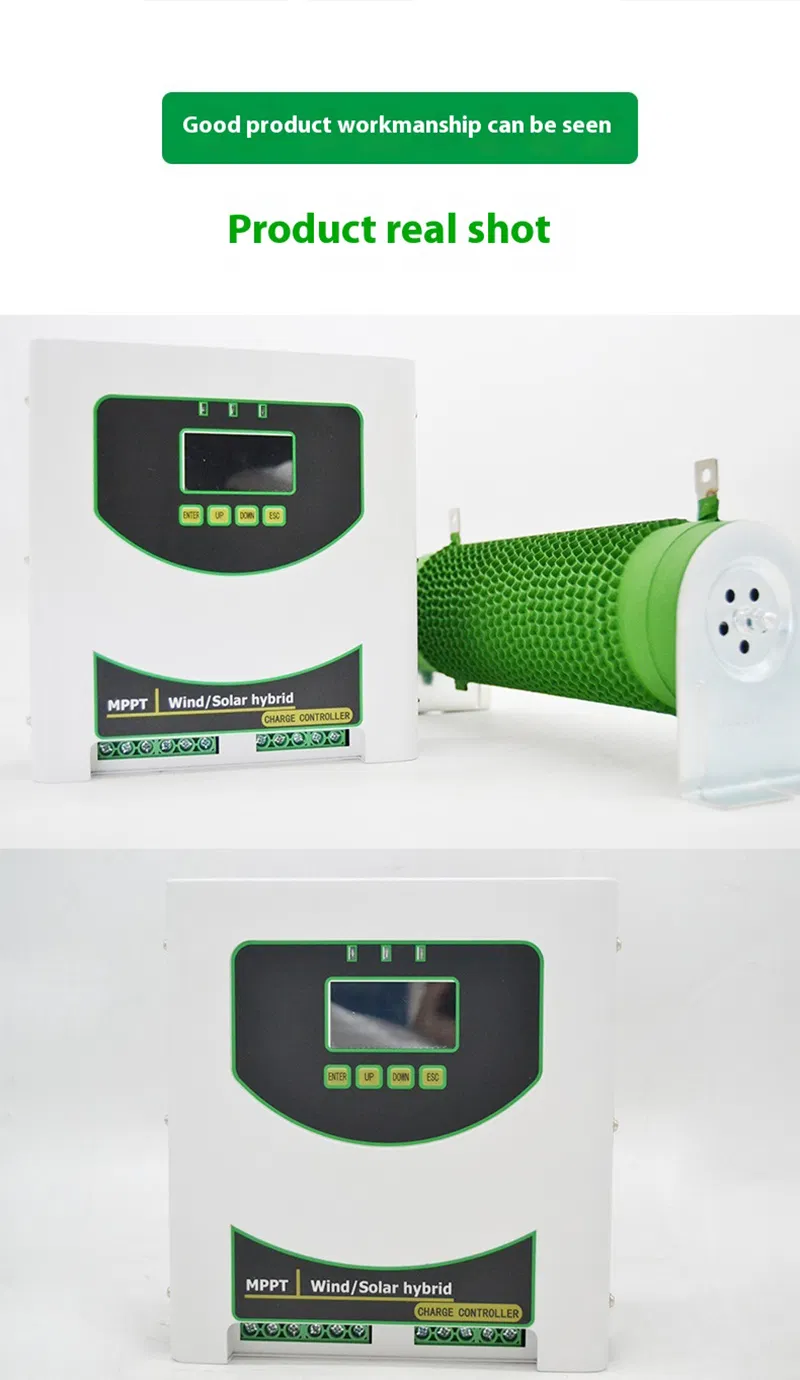

Controller Detail 10

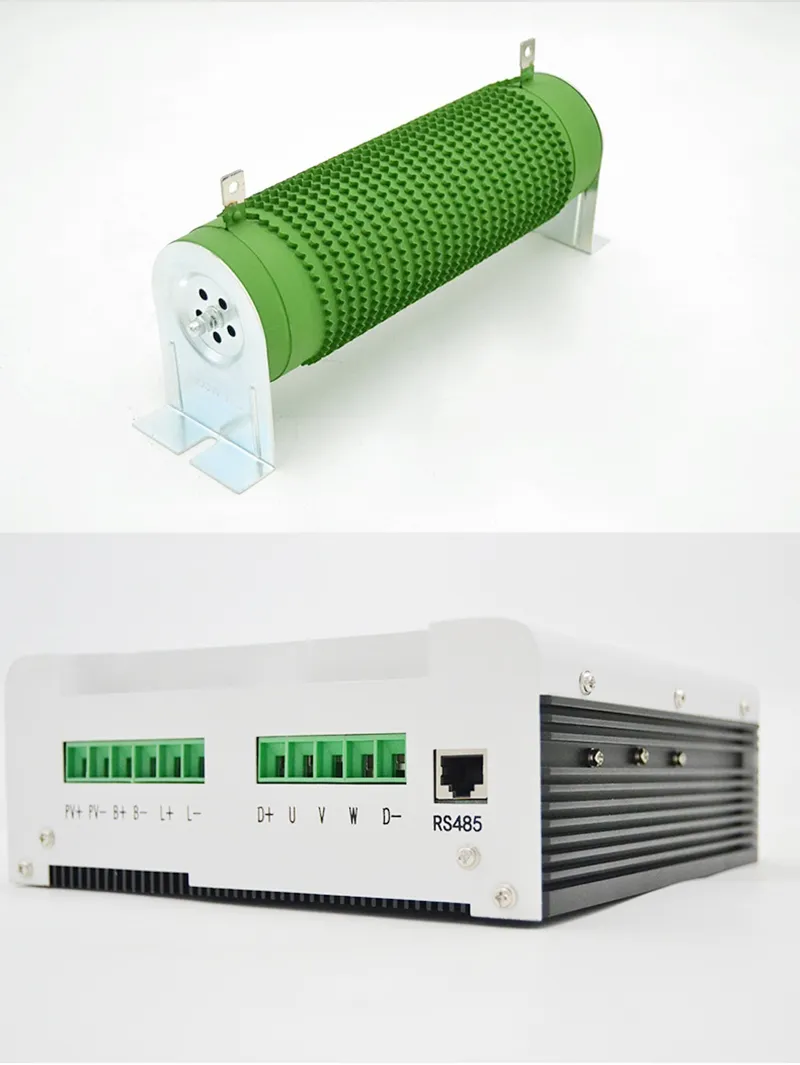

Controller Detail 11
📋

Technical Parameters

Parameter Name W500/S800-12 W800/S800-12 W800/S1000-24 W1000/S1000-24 W1500/S1500-24 W1500/S2000-48 W2000/S2000-48 W3000/S1500-48
System Voltage 12V 24V 48V
Max PV Open Circuit Voltage 100V 145V 145V
Max PV Module Power ≤800W ≤800W ≤1000W ≤1000W ≤1500W ≤2000W ≤2000W ≤1500W
Rated Fan Voltage 12V 24V 48V
Wind Turbine Power ≤500W ≤800W ≤800W ≤1000W ≤1500W ≤1500W ≤2000W ≤3000W
DC Load Current ≤25A
Note: The controller supports 12V/24V/48V automatic identification. Please ensure the connected power does not exceed the maximum ratings for your system voltage to avoid damage.
🌐

Application Areas

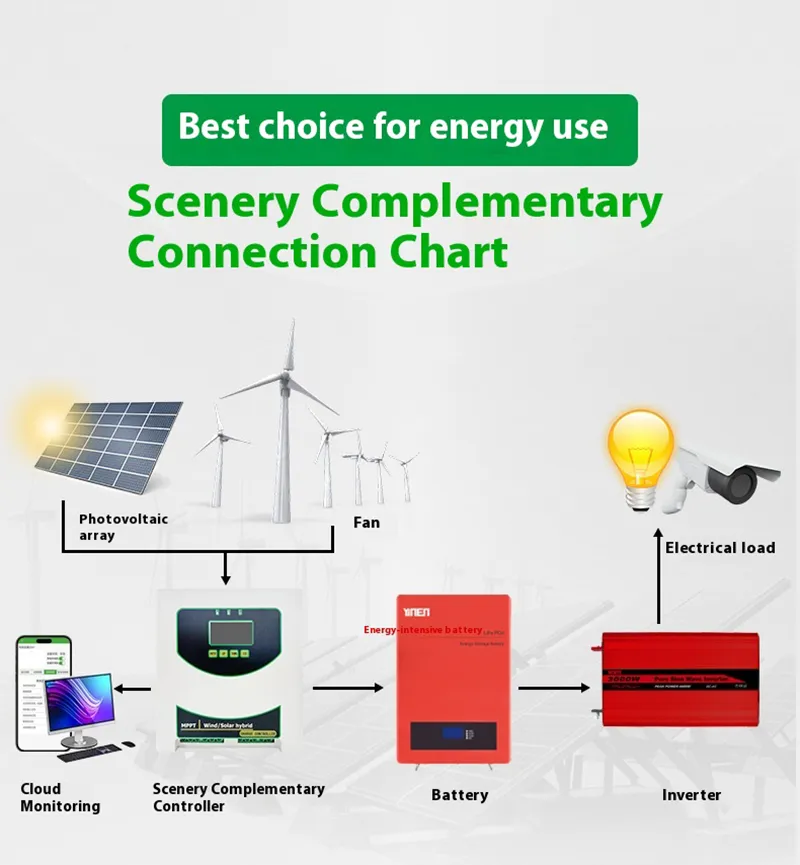

Application 1

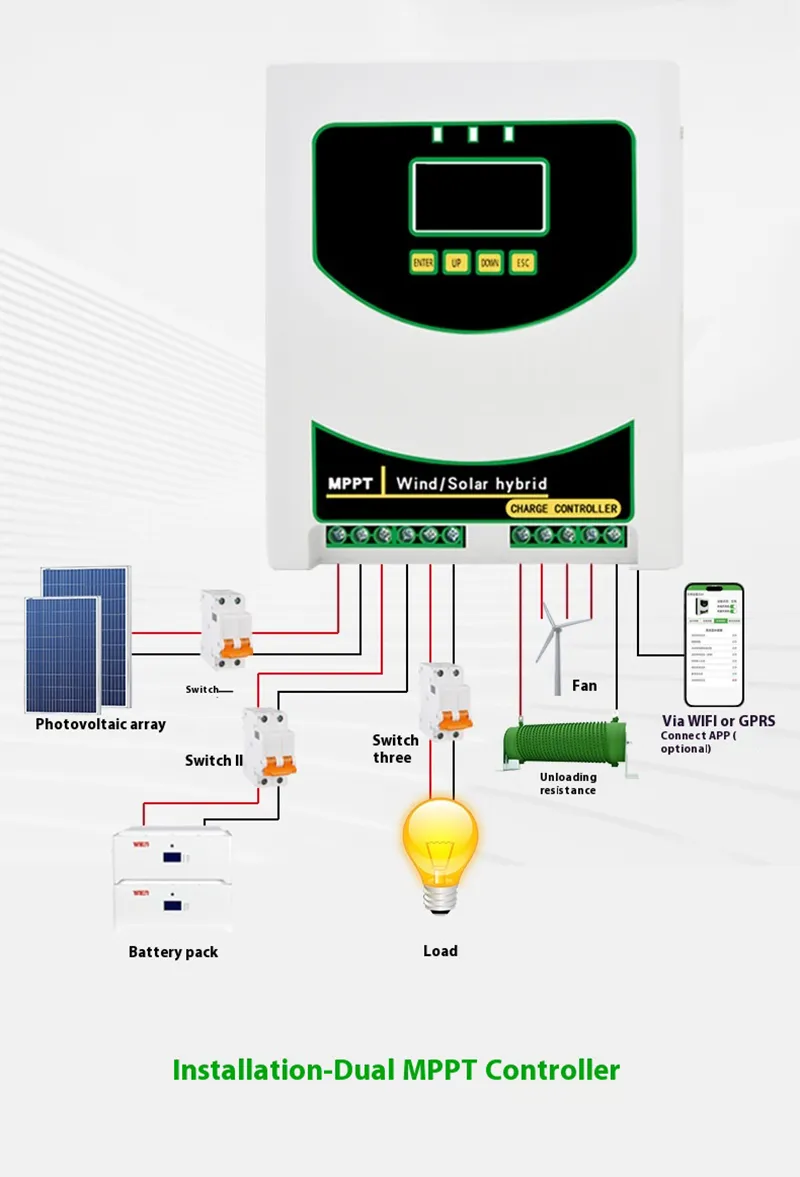

Application 2

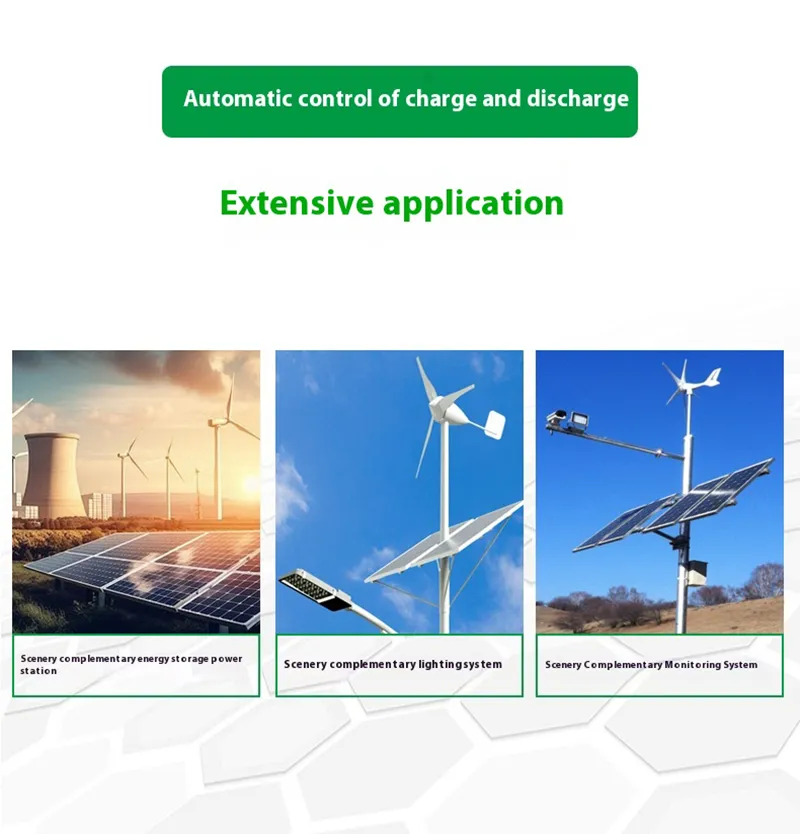

Application 3
🏢

Manufacturing & Facility

Facility 1

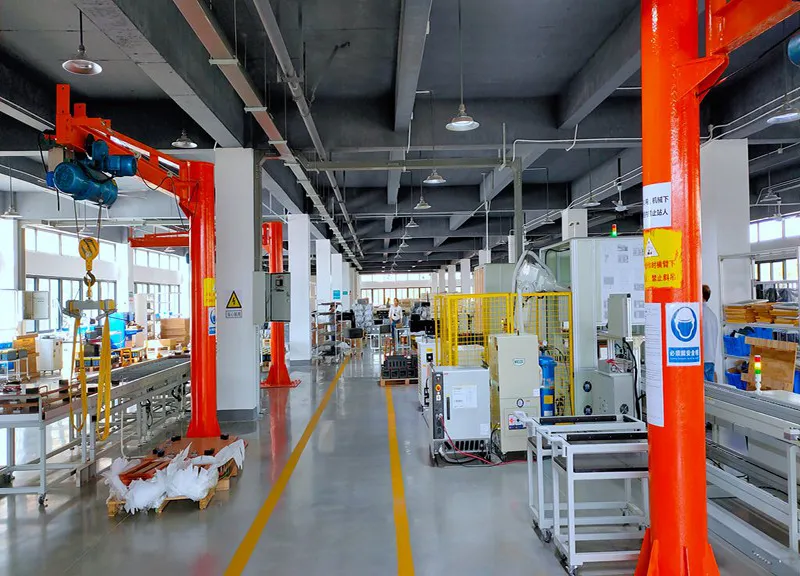

Facility 2

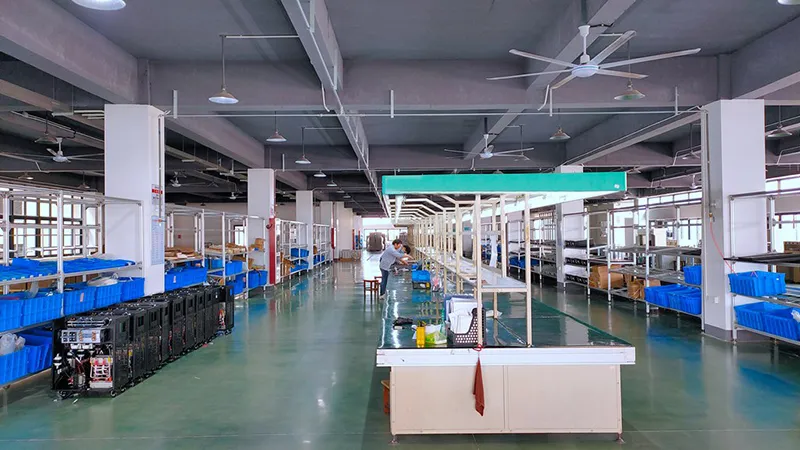

Facility 3
📜

Certifications

Certifications
?

Frequently Asked Questions

What types of batteries does this controller support?
The controller supports four main types: Lead-acid, ternary lithium, lithium iron phosphate, and custom battery settings.
Can the controller charge batteries at low wind speeds?
Yes, it uses a specialized MPPT control algorithm for the fan channel to ensure efficient charging even during low wind conditions.
How efficient is the PV (Solar) charging?
The PV charging utilizes advanced MPPT tracking technology with an efficiency of no less than 99.5%, which is 15-20% higher than traditional PWM controllers.
Is remote monitoring available?
Yes, you can view and set operating parameters through a mobile phone APP (optional) and it also supports RS485 communication.
What is the "Battery Activation" function?
This function allows the controller to use wind or solar power to activate a lithium battery pack's BMS if it has entered under-voltage protection, allowing charging to resume.
Is the system voltage manually set?
The machine features automatic identification for 12V, 24V, and 48V battery systems by default.
