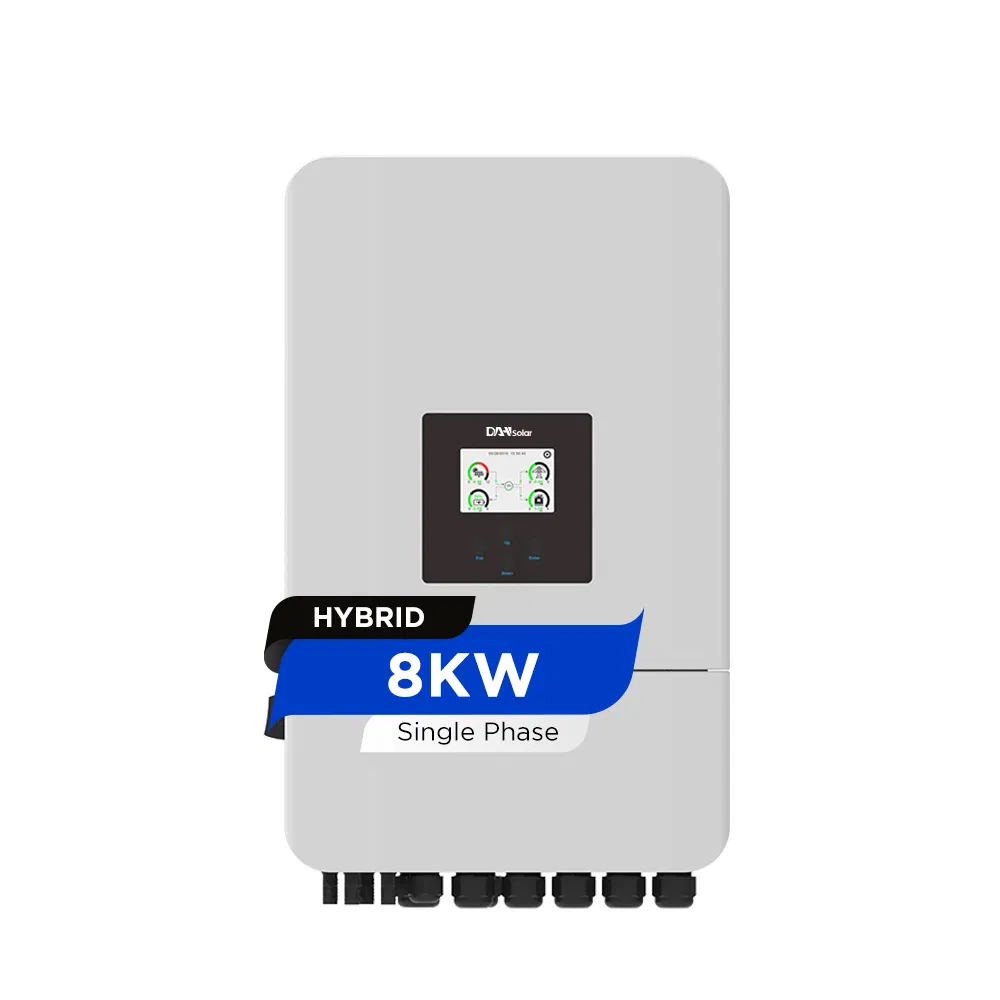

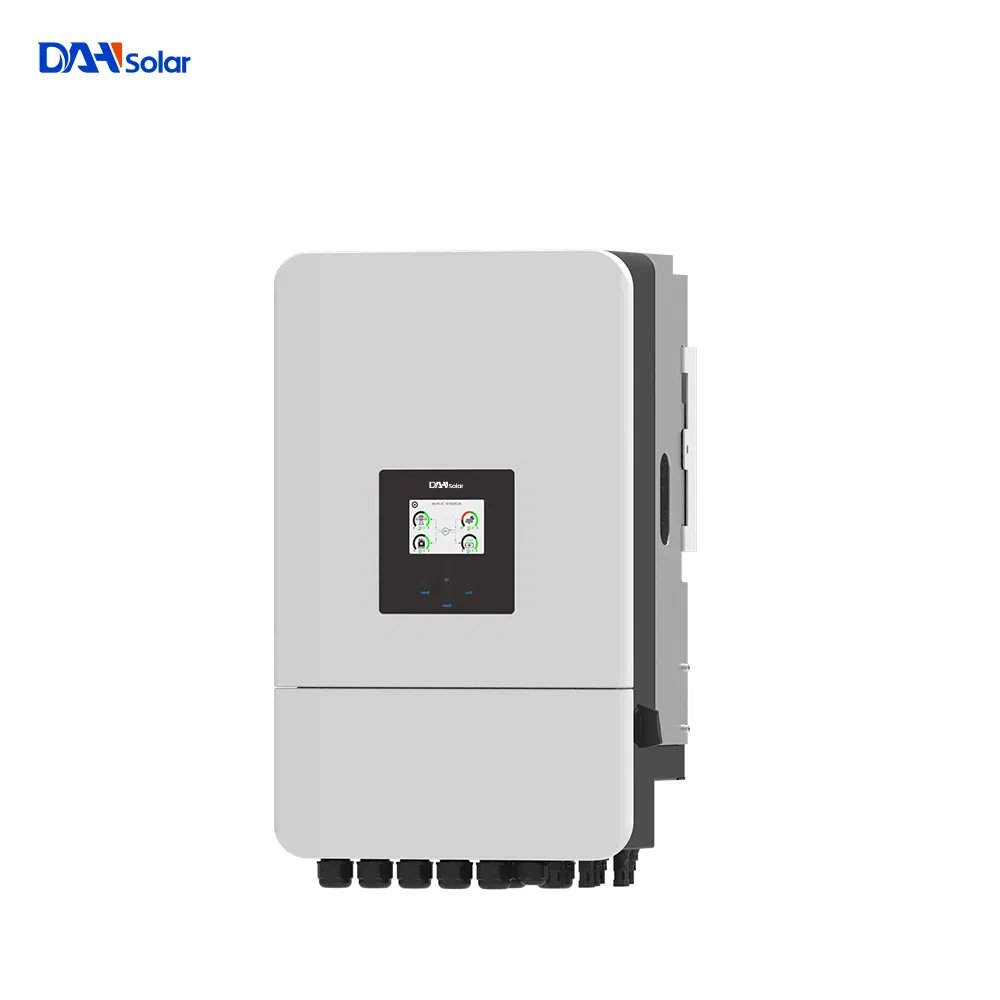

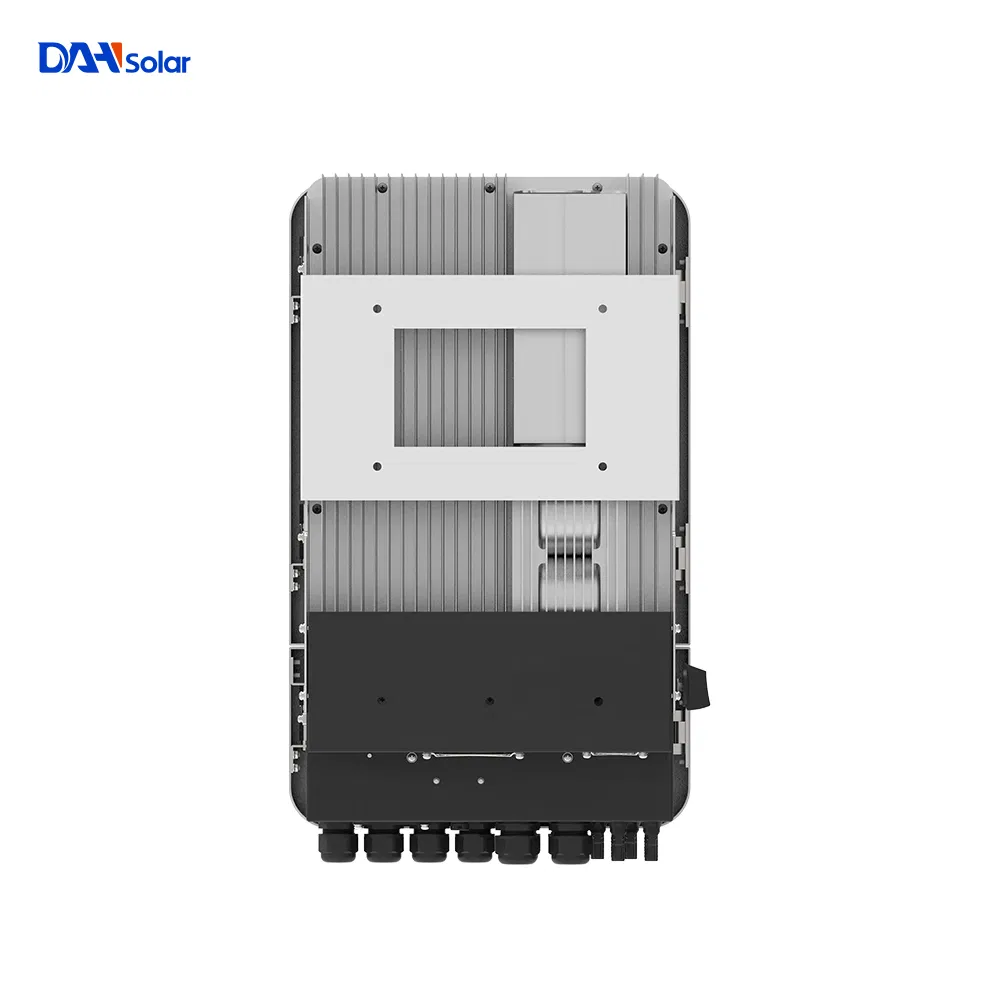

Deye 8kw Hybrid Inverter Sun-8K-Sg05lp1-EU-Sm2 Solar Inverters

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

SUN-8K-SG05LP1-EU-SM2

Nature of Source Flow

Active Inverter

Phase

Single

Output Power

6000W

Certification

SAA, CE, ROHS, ISO9001

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Half-Bridge Type

Nature of Wave String

Sine Wave Inverter

MPPT Efficiency

99.9%

Ingress Protection

IP 65

Monitor Mode

GPRS/WiFi/Bluetooth/4G/LAN(Optional)

Product Description

Smart Monitoring Platform
Thanks to the smart monitoring platform, full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.

Technical Specifications

Model	3.6K-SG05	5K-SG05	6K-SG05	7K-SG05	7.6K-SG05	8K-SG05
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Voltage Range (V)	40-60
Max. Charging Current (A)	90	120	135	175	190	190
PV String Input Data
Max PV Input Power (W)	4680	6500	7800	10000	9880	10400
Max PV Input Voltage (V)	500
MPPT Voltage Range (V)	150-425
AC Input/Output Data
Rated Output Power (W)	3600	5000	6000	7000	7600	8000
Max Apparent Power (VA)	3960	5500	6600	7700	8360	8800
Grid Connection	L+N+PE, 220V/230V
Efficiency & Protection
Max Efficiency	97.6%
MPPT Efficiency	>99%
Protection	DC Reverse Polarity, AC Overcurrent, AC Overvoltage, Short Circuit, Thermal Protection, Islanding Protection

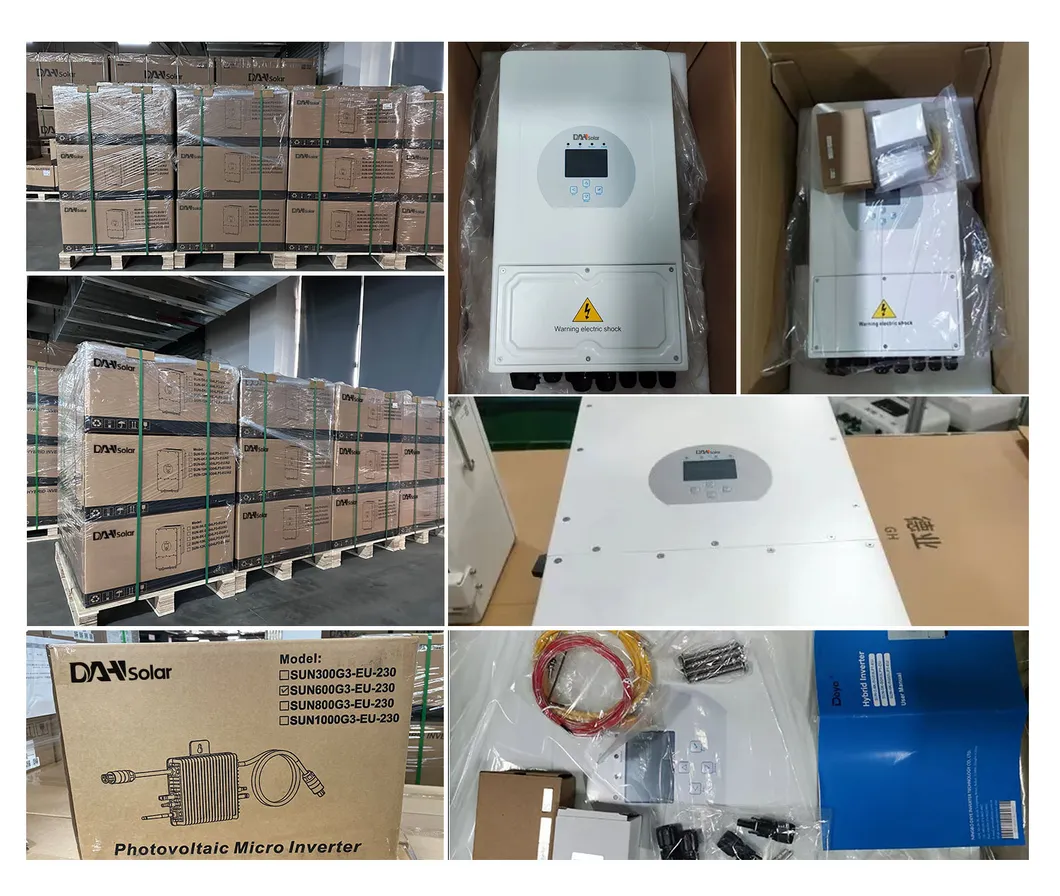

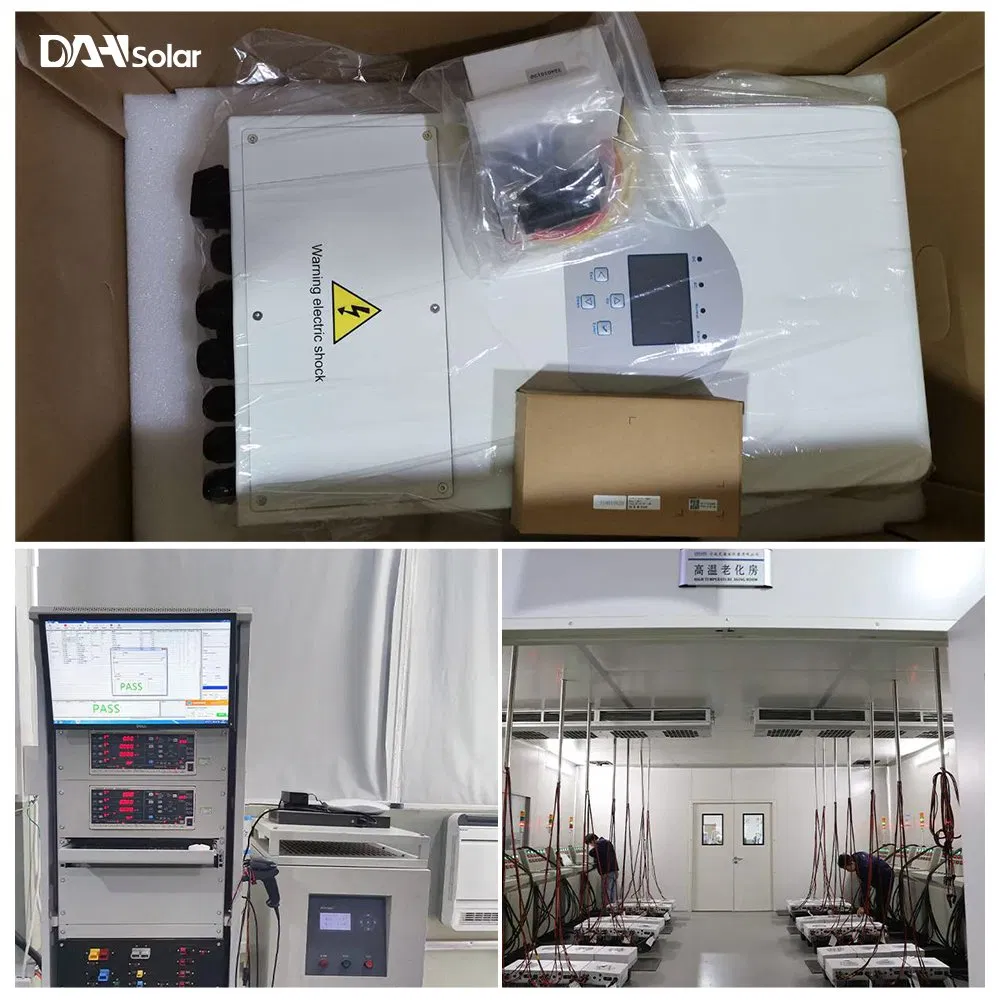

Packaging & Logistics

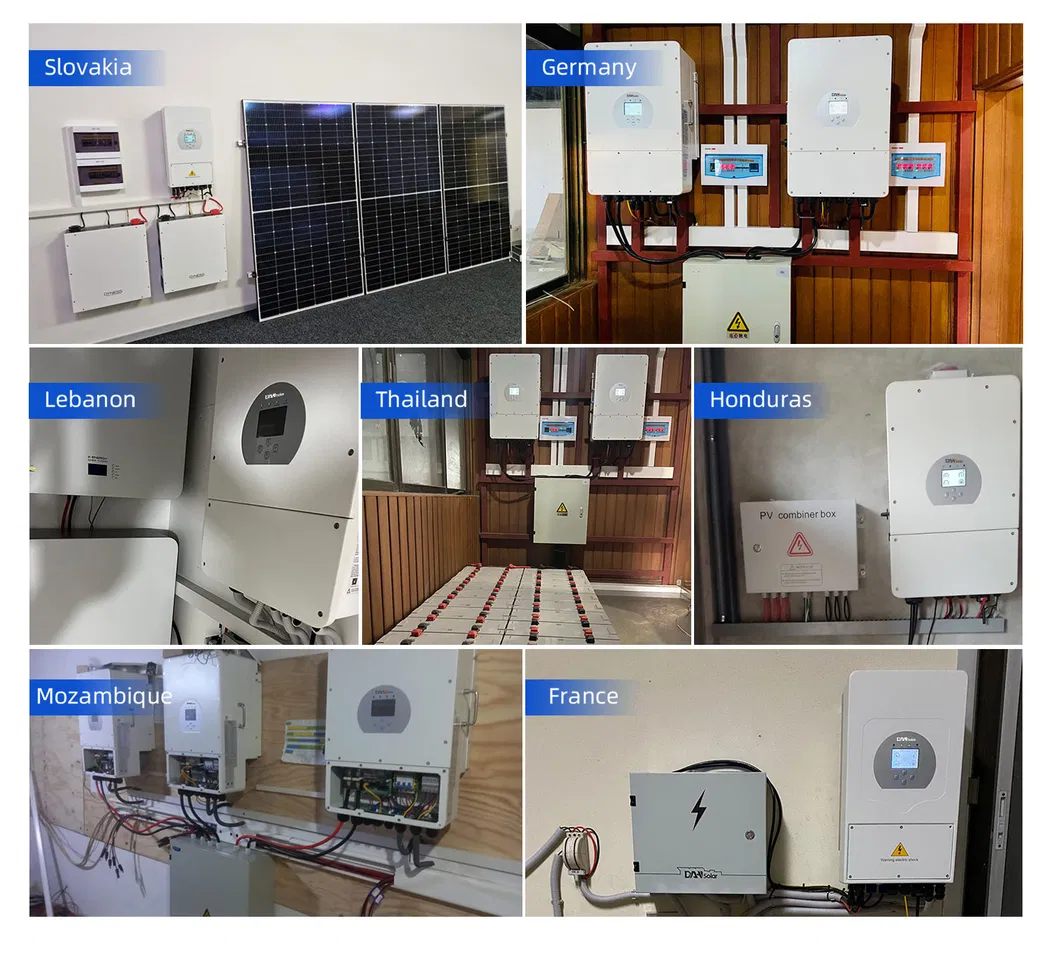

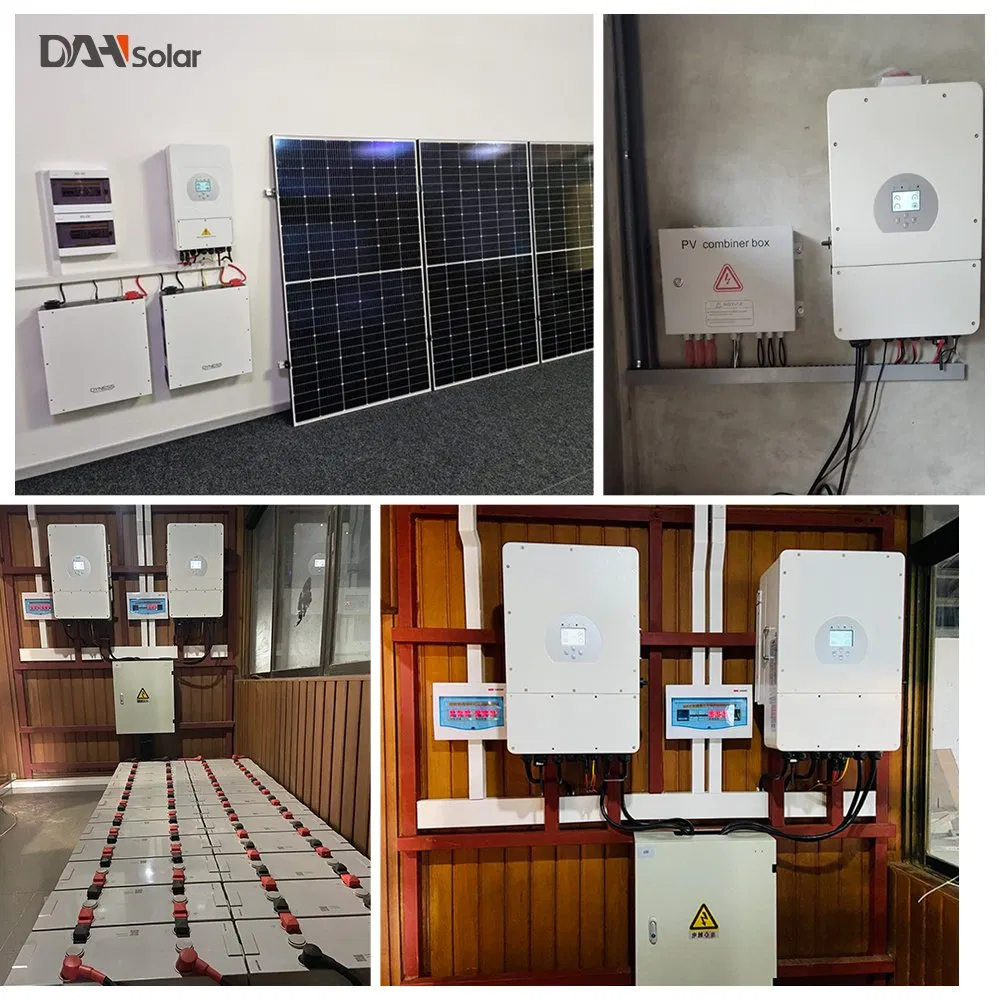

Project Showcase

Frequently Asked Questions

What types of batteries are compatible with this hybrid inverter?

The inverter is designed to work with both Lead-acid and Lithium-ion batteries, featuring a self-adaption strategy to BMS.

Is the inverter suitable for outdoor installation?

Yes, the unit has an IP65 ingress protection rating, making it highly resistant to dust and water for outdoor durability.

Does the system support remote monitoring and management?

Absolutely. It supports various monitoring modes including GPRS, WiFi, Bluetooth, 4G, and LAN, allowing for remote parameter settings and firmware updates.

What is the peak power capability for off-grid use?

The inverter can handle a peak power surge of up to 2 times its rated power for 10 seconds in off-grid mode.

What is the typical efficiency of the MPPT tracker?

The MPPT trackers are highly efficient, achieving over 99.9% efficiency to maximize solar energy harvest.

What is the standard warranty period for this product?

The product typically comes with a warranty of 5 to 10 years, depending on the final installation site and specific policy terms.
