Basic Information Overview
Model NO.JGN-220W
ApplicationIndustrial
ConditionNew
CertificationCE
MaterialMonocrystalline Silicon
Power220W/Customized
Voltage18V/20V/Customized
Junction BoxCompatible Mc4
HS Code8541430000
Capacity50MW/Year

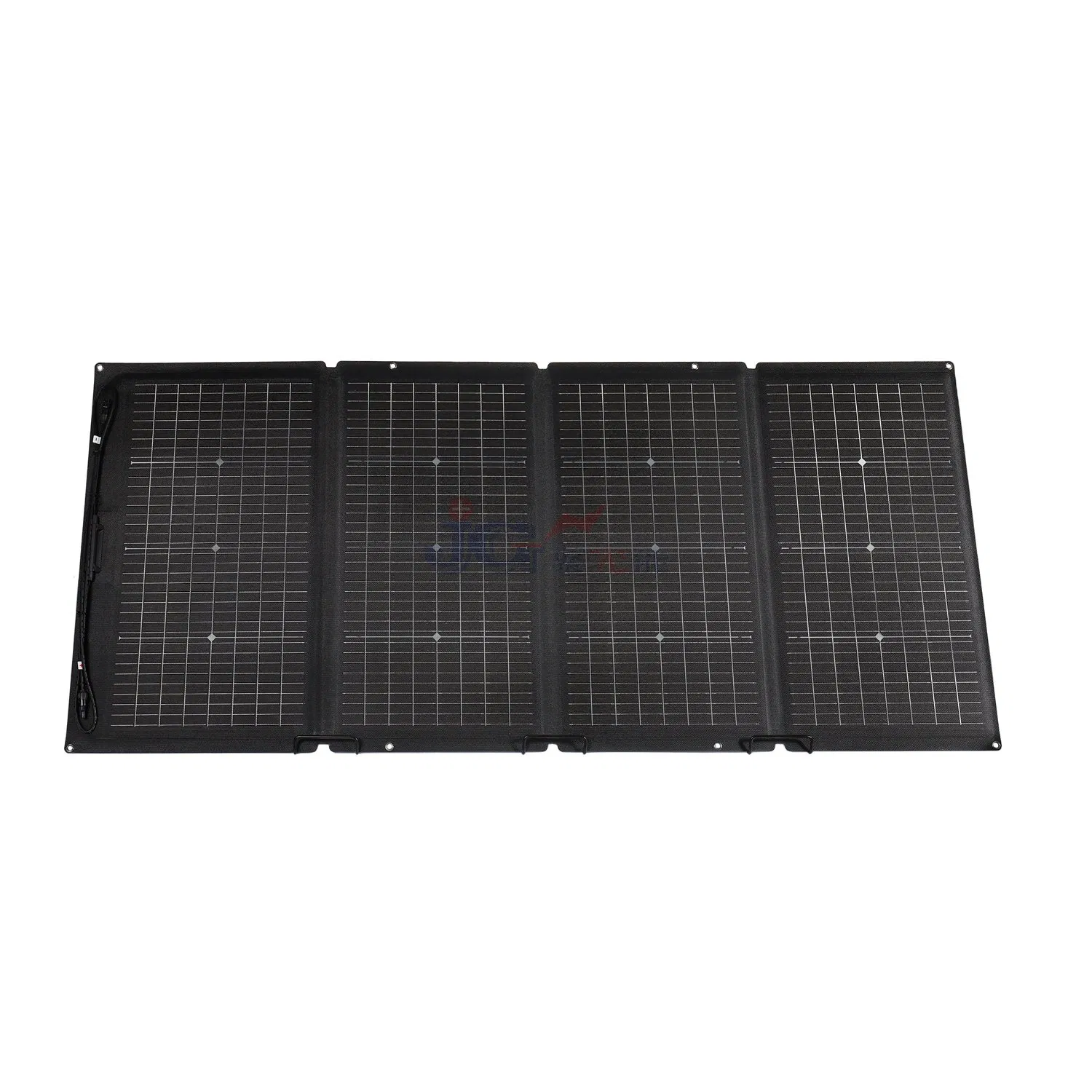

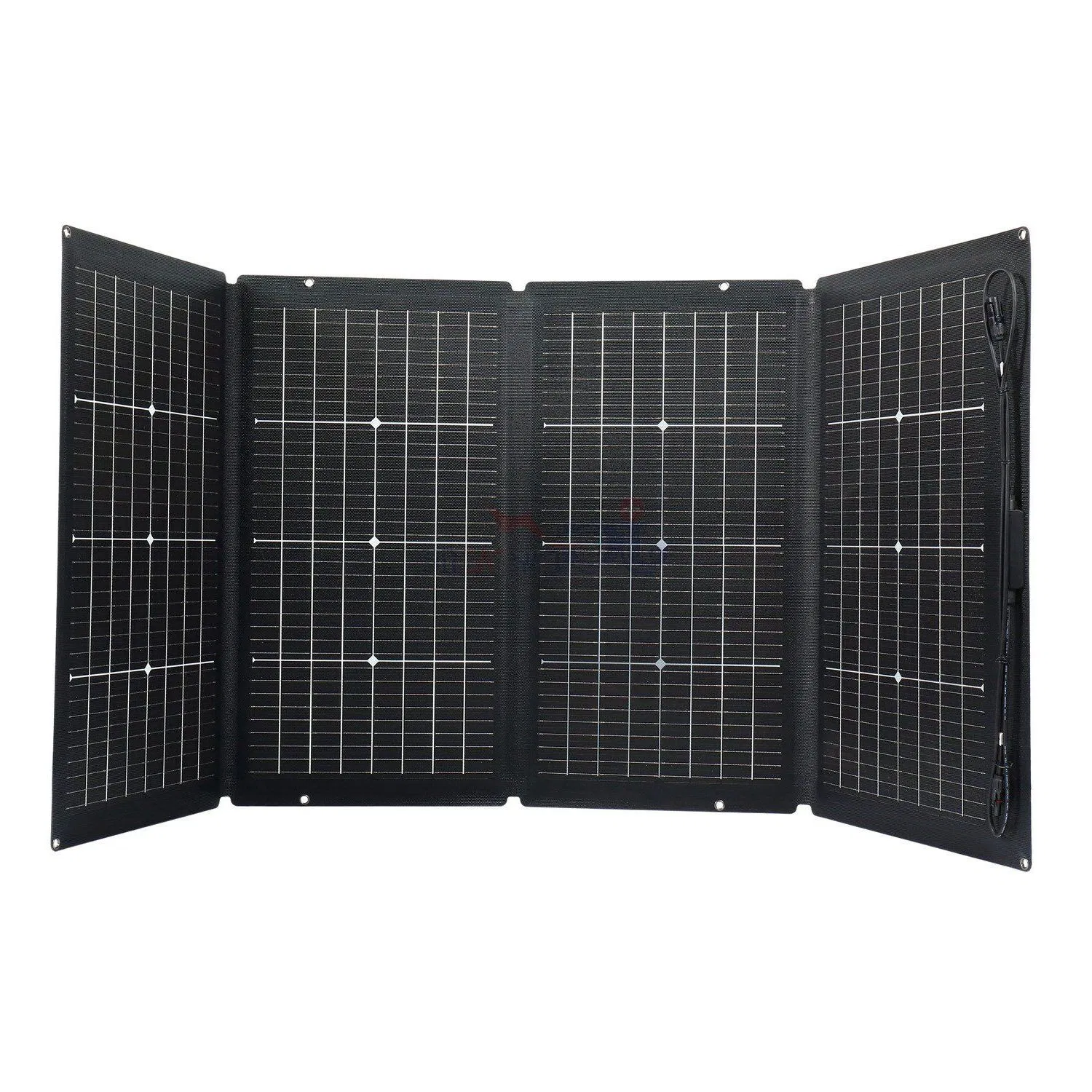

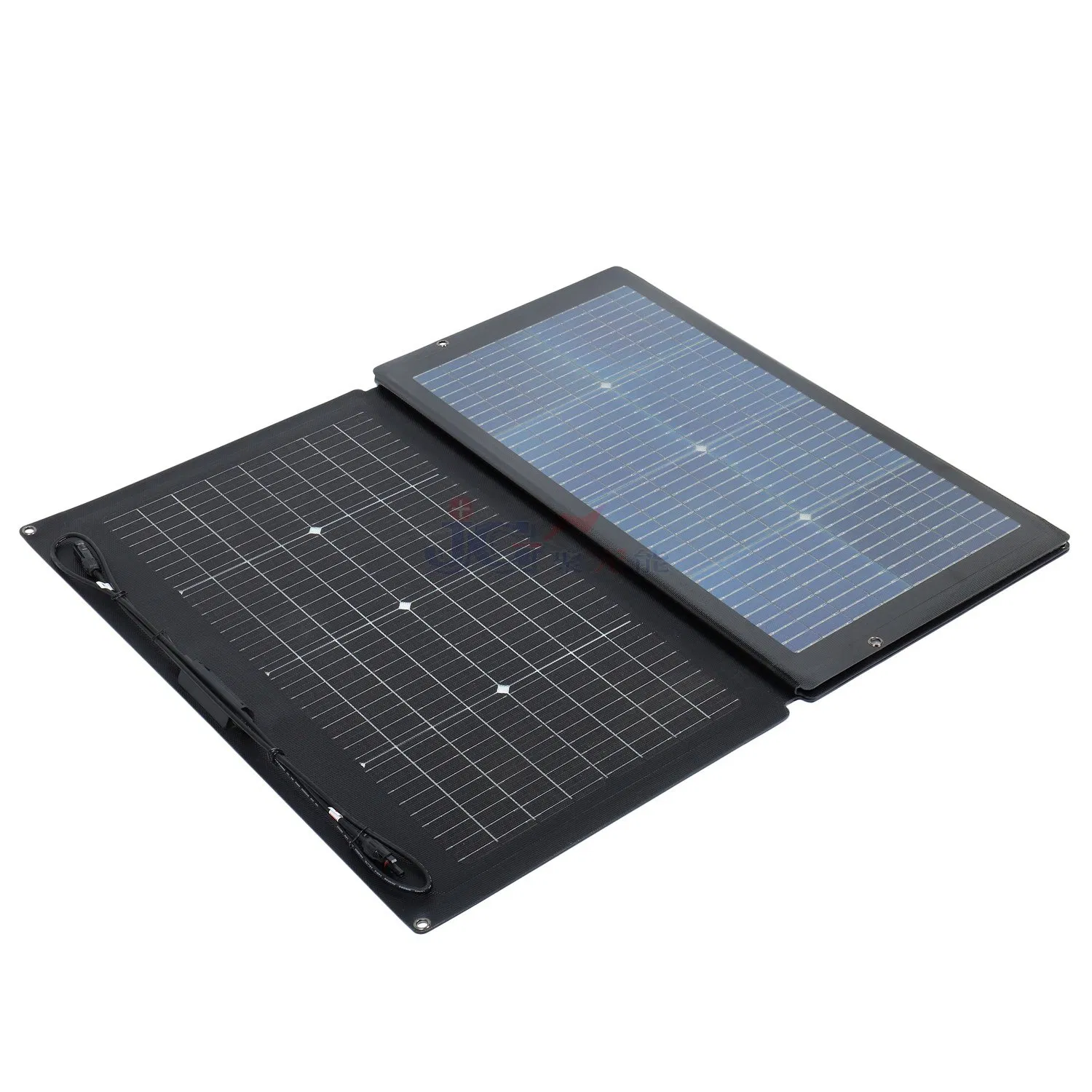

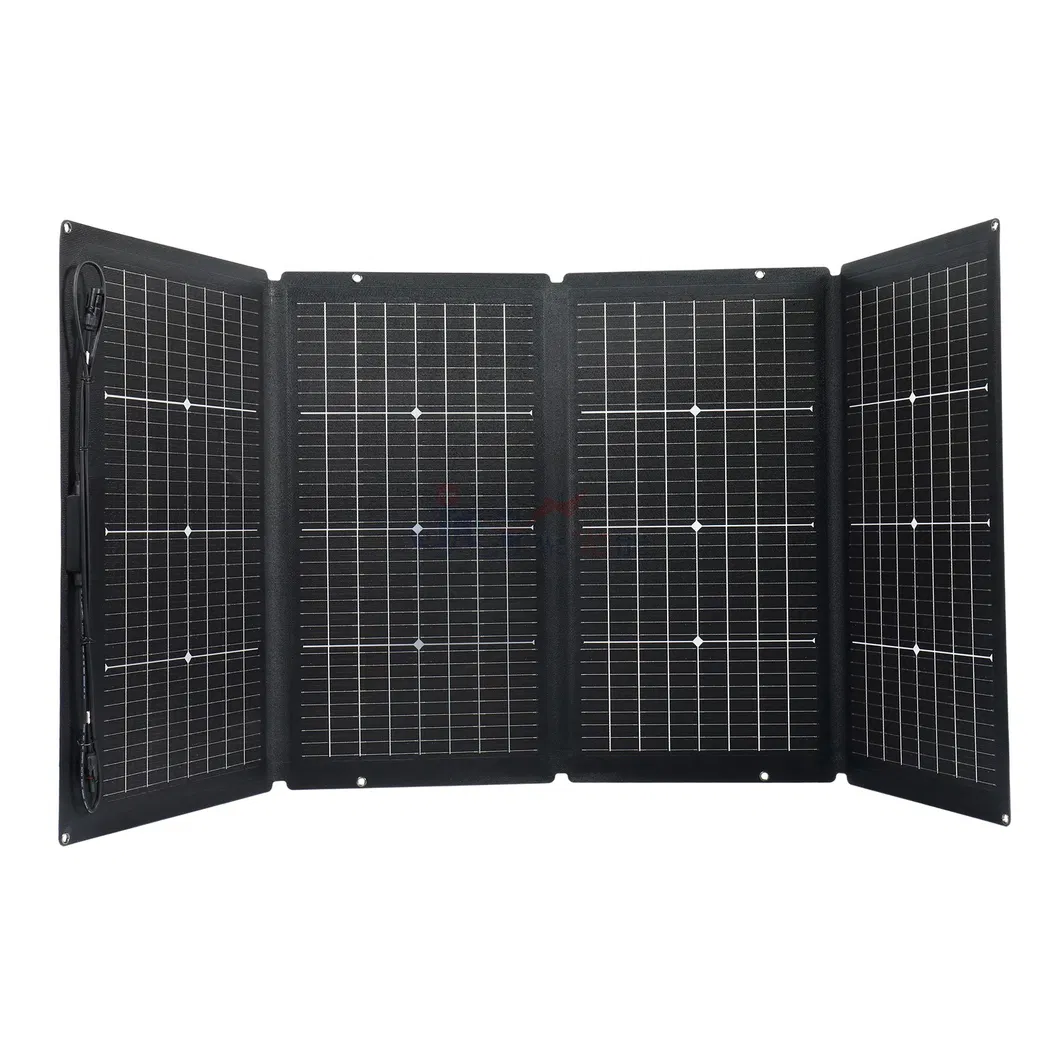

Customized 220W Bifacial Portable Solar Panel
Sealed modules with ETFE provide a high transmit rate. Combined with EVA resin and a durable backsheet, these panels are designed for extended outdoor use and harsh environments.

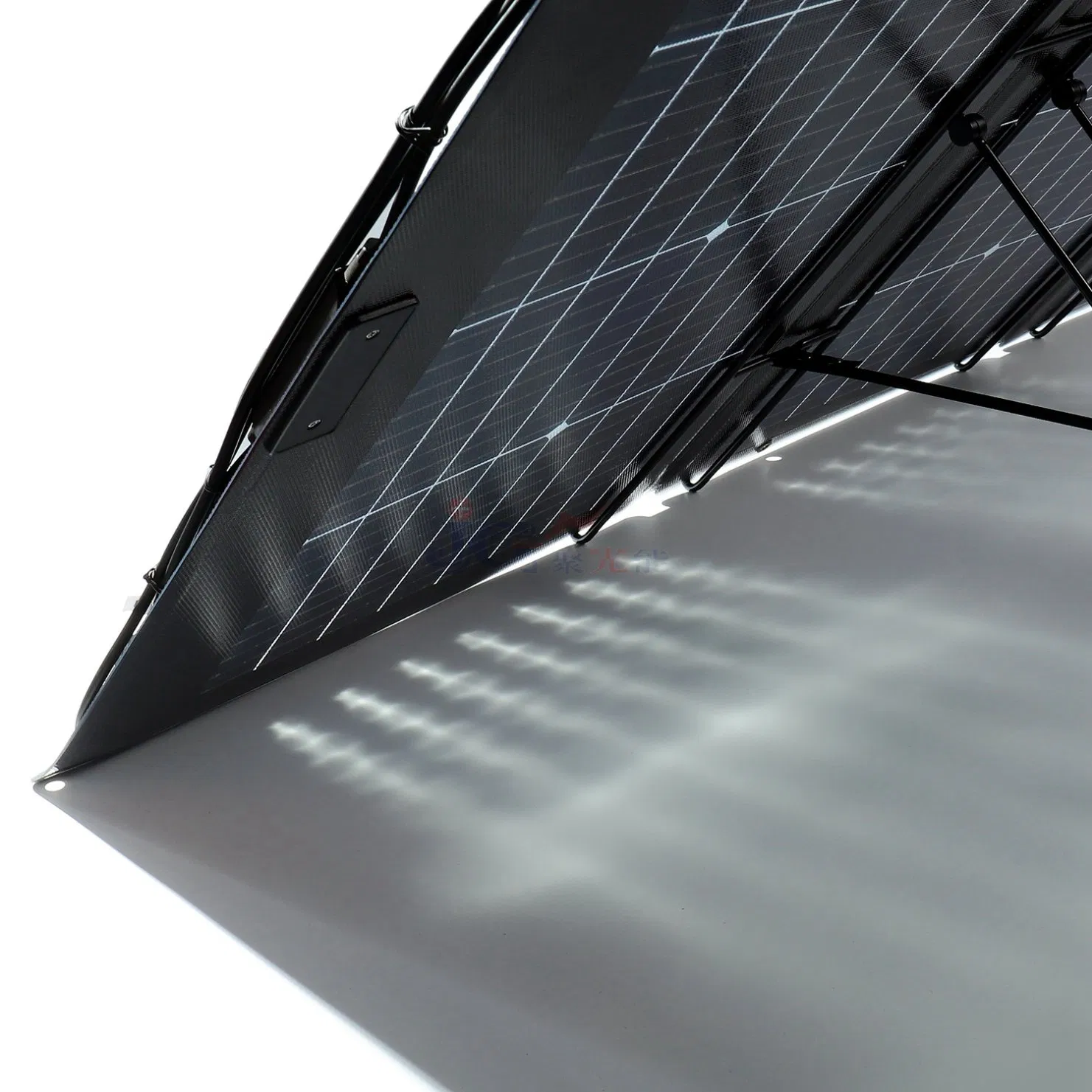

The unique bifacial design allows it to capture sunlight from both sides, maximizing energy generation potential. Charge your devices faster wherever you go.
| Model number | J-220W |
| Peak power / Pm(W) | 220W |
| Open circuit voltage / Voc(V) | 24 |
| Max. power voltage / Vmp(V) | 18V/20V/Customized |
| Max. power current / Imp(A) | 11 |
| Solar cell | Monocrystalline / Sunpower solar cells |
| Encapsulation | ETFE laminated |
| Protection degree | Optional ≥IP65 |
| Standard Conditions | Irradiance: 1000W/m2, Temp: 25ºC, AM: 1.5 |
Our Advantages
Professional manufacturer specializing in solar panels from 0.1W to 400W+.
Over 30 years of expertise in solar panel production and technology.
Comprehensive product range: PET/PCB laminated, Epoxy resin, and Tempered glass panels.
High-efficiency semi-flexible and portable foldable solar modules.
Frequently Asked Questions
What are the benefits of a bifacial solar panel?
Bifacial solar panels can capture sunlight from both the front and the back surfaces. This design significantly increases the total energy output, especially when placed on reflective surfaces like sand, white roofs, or snow.
How durable is the ETFE coating?
ETFE (Ethylene Tetrafluoroethylene) is highly durable, UV resistant, and has high light transparency. It is much more resilient than standard PET coatings, making it ideal for long-term outdoor and industrial applications.
Can the specifications be customized for my project?
Yes, we offer customization for power output (W), voltage (V), dimensions, and connector types to meet specific industrial or personal requirements.
Is the 220W solar panel truly portable?

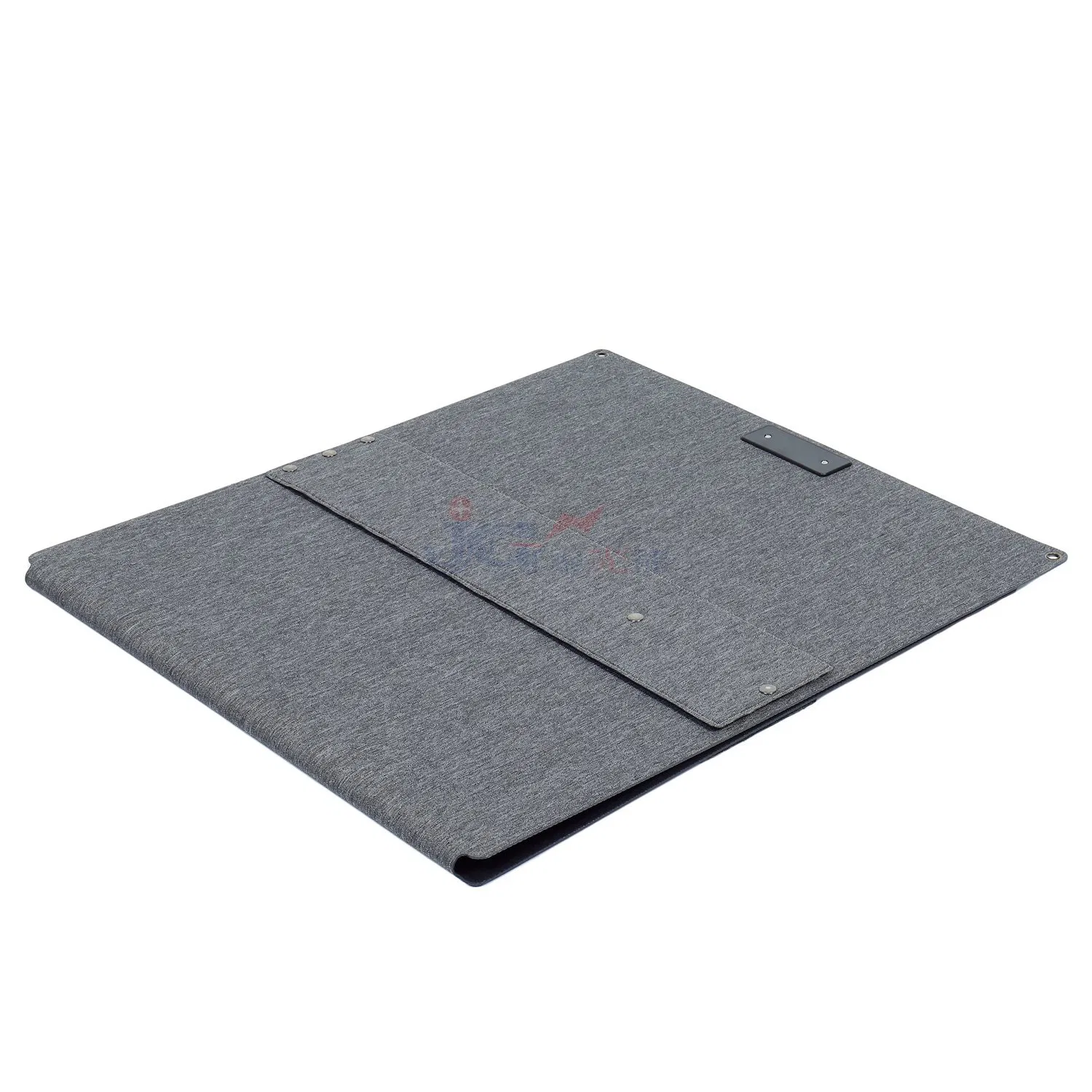

Absolutely. Despite its high power output, the panel is designed to be foldable and lightweight, making it easy to transport for camping, hiking, or remote industrial work.
What is the protection rating of the junction box?
The standard junction box is designed for outdoor compatibility, with optional upgrades available to reach IP65 or higher water and dust resistance ratings.
What testing conditions are used for the 220W rating?
The power rating is determined under Standard Testing Conditions (STC): an irradiance of 1000W/m², a cell temperature of 25ºC, and an air mass (AM) of 1.5.
