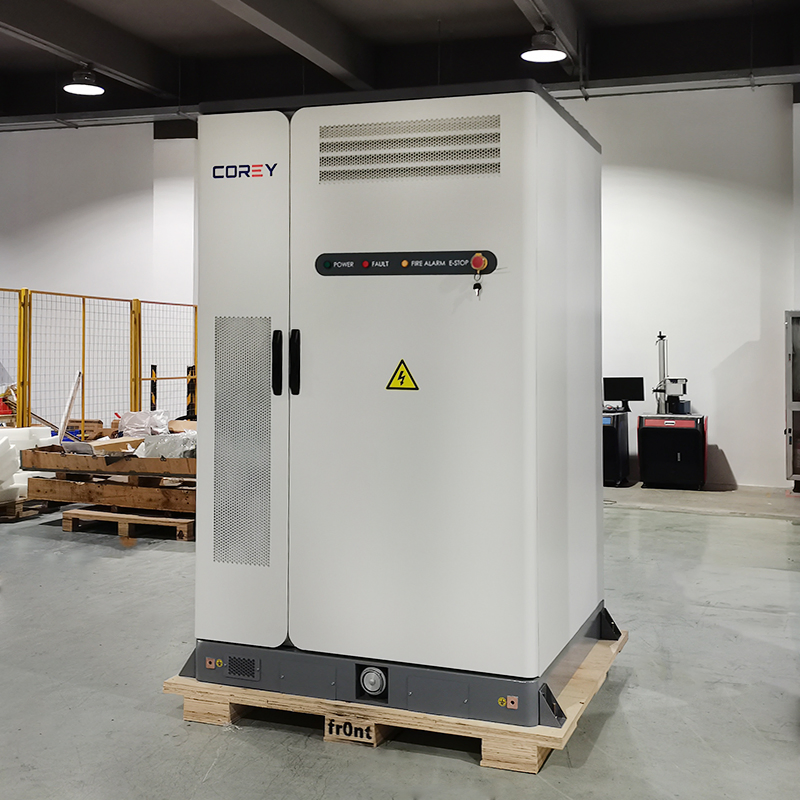

Commercial Solar Panel Industrial Solar System 233kwh Battery Cooling System Storage Battery Container

1 / 5

Commercial Solar Panel Industrial Solar System 233kwh Battery Cooling System Storage Battery Container

Customization:	Available
Container Size:	L1560mmD1380mmH2385mm
Weight:	2600kg

Send Inquiry

Product Description

Basic Information

Model NO.

233

Nominal Voltage

230V/400V

Warranty

5 years

Nominal Capacity

233kWh

Cycle Life

9000

Battery Type

LiFePO4

Grid Connection

Hybrid Grid

Cooling Method

Intelligent Liquid Cooling

Protection Level

IP54

Dimensions

1560mm * 1380mm * 2385mm

Product Description

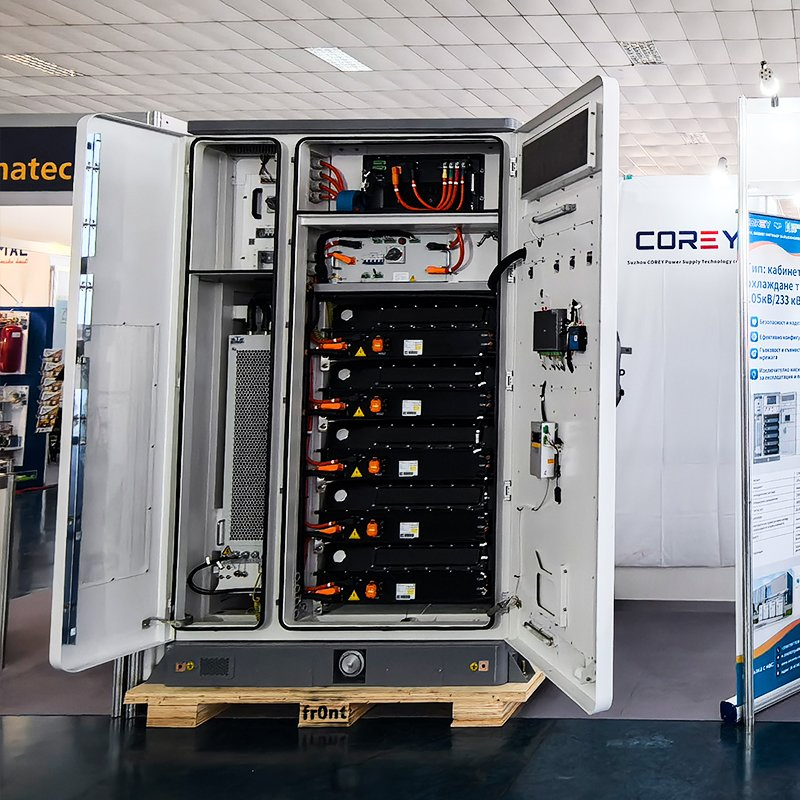

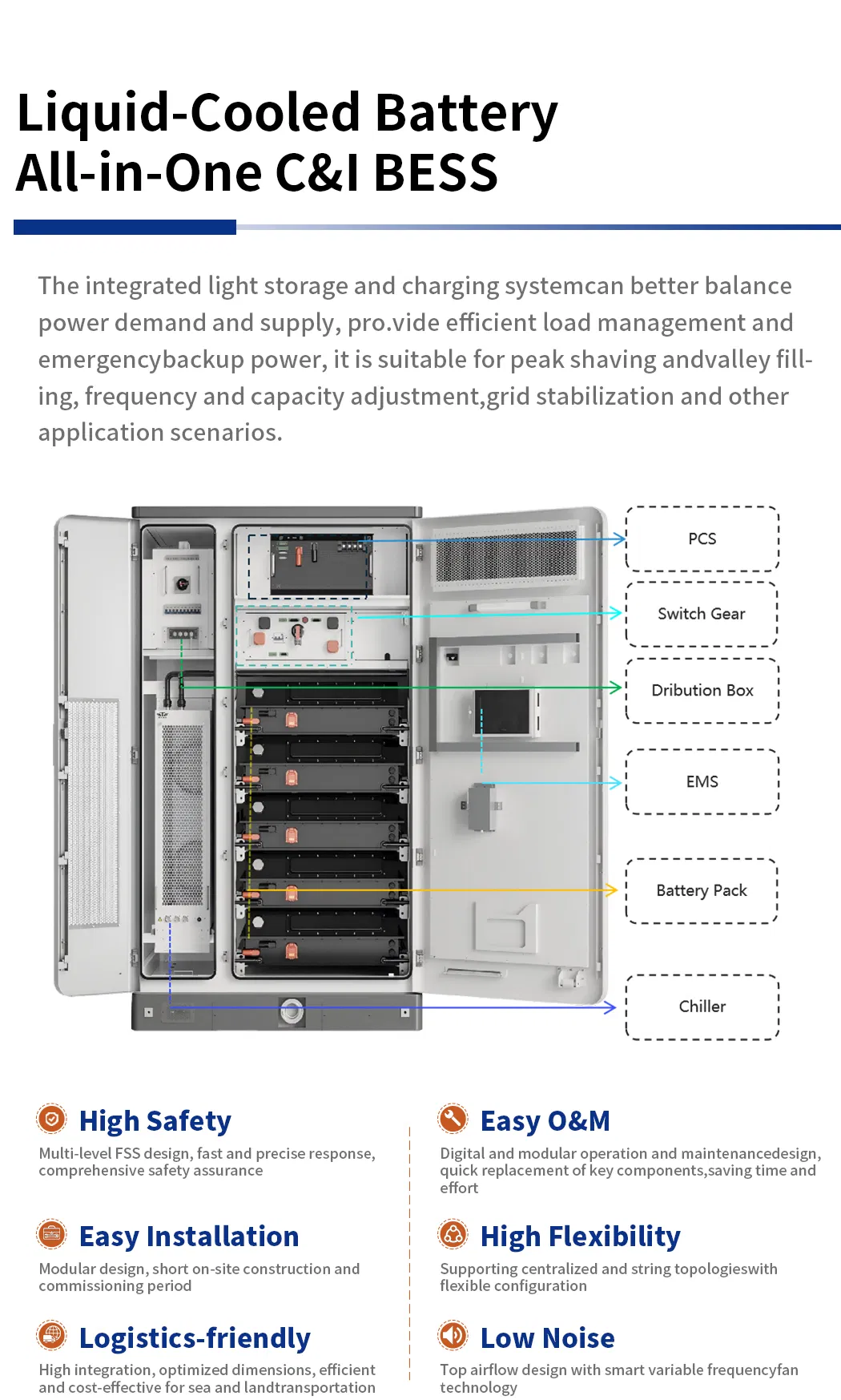

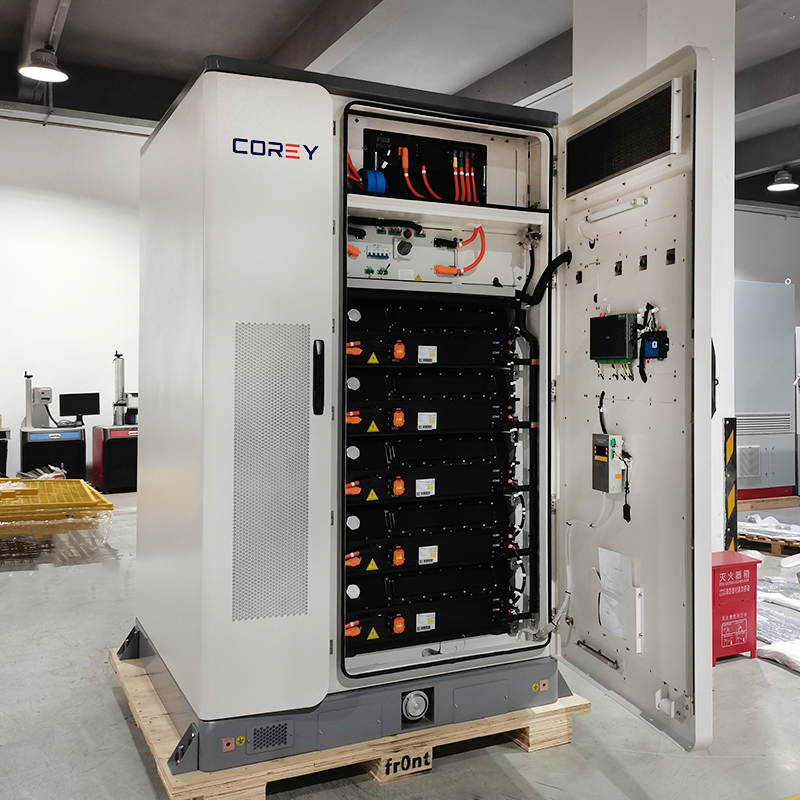

Our commercial and industrial storage cabinet system utilizes a multi-stage protection design for battery packs and clusters to effectively isolate faults and prevent spread. The divided system design and three-tier intelligent fire safety design minimize fire risks, ensuring the safety of personnel and assets.

Safe and Reliable Serves as an emergency backup power source to ensure continuous operation under various conditions.

Flexible Configuration Modular design allows for easy expansion and customization. Convenient for rapid installation.

High Efficiency Optimizes energy usage and significantly reduces operational costs for industrial facilities.

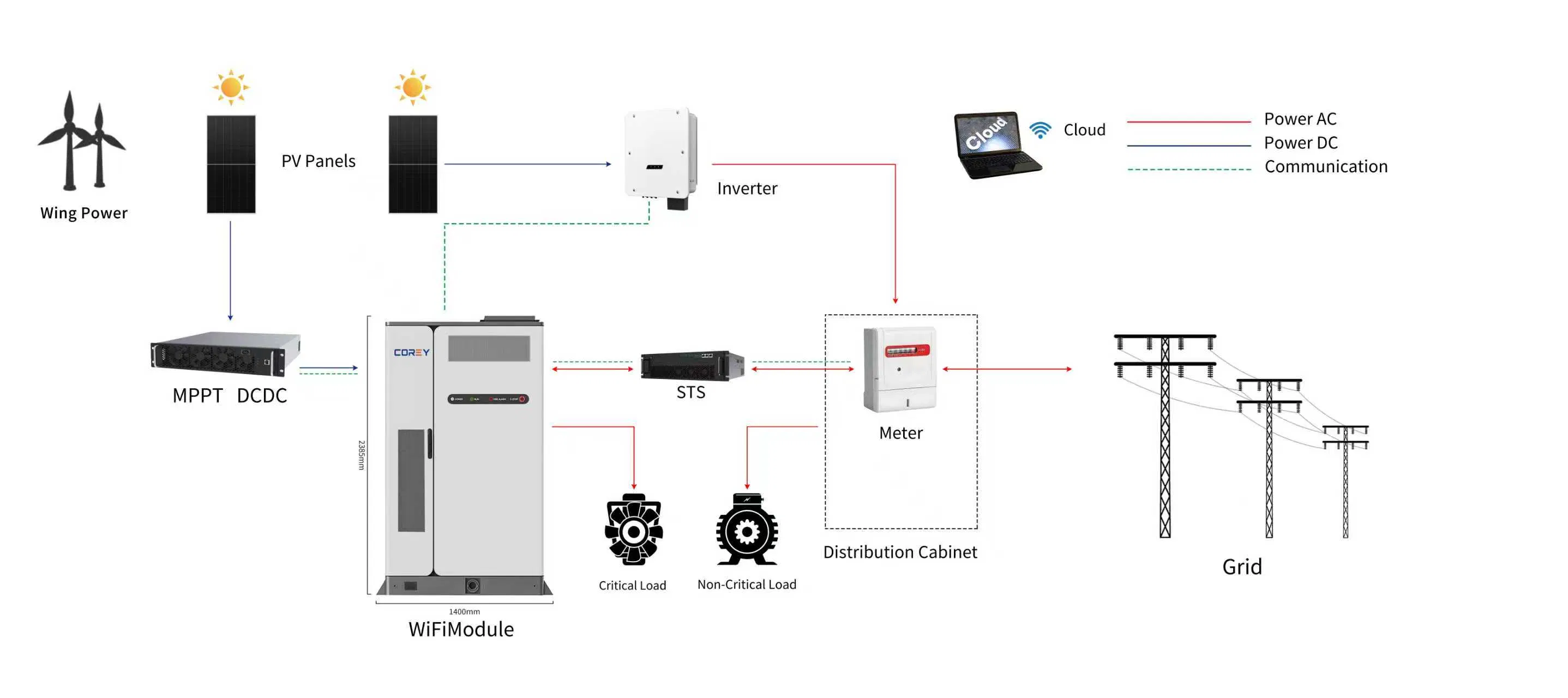

Grid-friendly Supports seamless grid-connected and off-grid switching with multiple protection layers.

Technical Parameters

System Parameter		233CE
Battery Specs	Battery Cell	LFP (LiFePO4) 3.2V 280Ah
	System Capacity	233kWh
	Rated Power	105kW
	Cooling Method	Intelligent Liquid Cooling
	Fire Fighting	Aerosol + Water Fire Protection
	Operating Temperature	-20ºC to 50ºC (Discharge)
AC Side	Rated Voltage	230V/400V (±15%)
	Rated Frequency	50/60 Hz
	Maximum Current	167A
	Switching Time	20ms (Optional)
Environment	Protection Level	IP54 / C4 Anti-corrosion

Applications & Projects

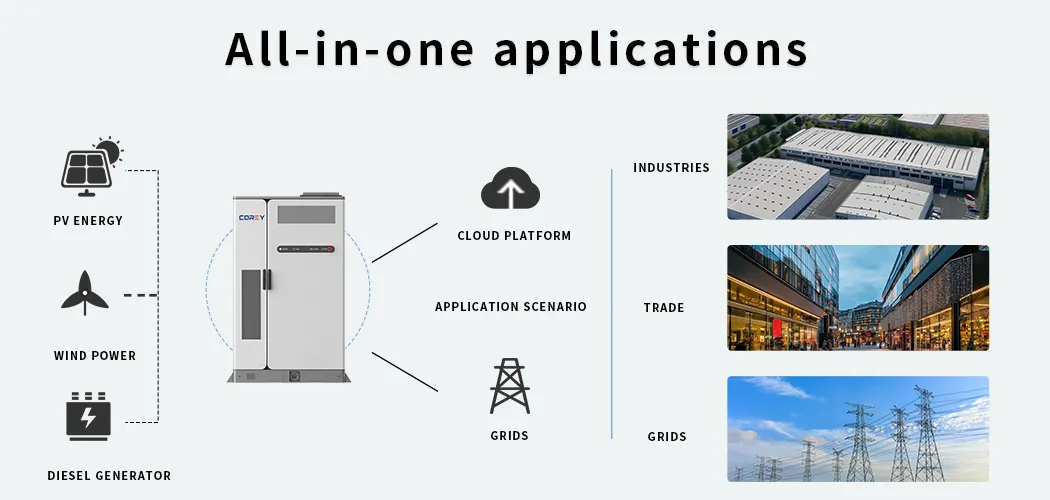

Ideal for commercial buildings, manufacturing plants, remote areas, and regions experiencing power instability.

Project Success:

Frequently Asked Questions

What is the total capacity of this energy storage system?

This specific model offers a nominal capacity of 233kWh, designed for commercial and industrial scale energy management.

What type of battery chemistry is used?

The system utilizes LiFePO4 (Lithium Iron Phosphate) technology, known for its high safety standards and long cycle life of up to 9000 cycles.

How is the battery temperature regulated?

The system features an Intelligent Liquid Cooling method, which ensures optimal operating temperatures and extends the lifespan of the battery cells.

Is the system suitable for outdoor installation?

Yes, it has an IP54 protection rating and C4 anti-corrosion level, making it robust enough for various outdoor industrial environments.

How fast can it switch during a power outage?

The system supports automatic on-grid and off-grid switching with a response time as fast as 20ms (optional configuration).

What safety certifications does the system hold?

The system complies with multiple international standards including UN38.3, EN 62619, VDE 4105, and IEC certifications for grid connection and safety.
