Commercial Br Solar Hybrid Inverter Storage System LiFePO4 Container Battery with ISO

Customization:	Available
After-sales Service:	After- Sales Service
Warranty:	3 Years, 5 Years

Send Inquiry

Product Description

📋

Basic Specifications

Condition

New

Certification

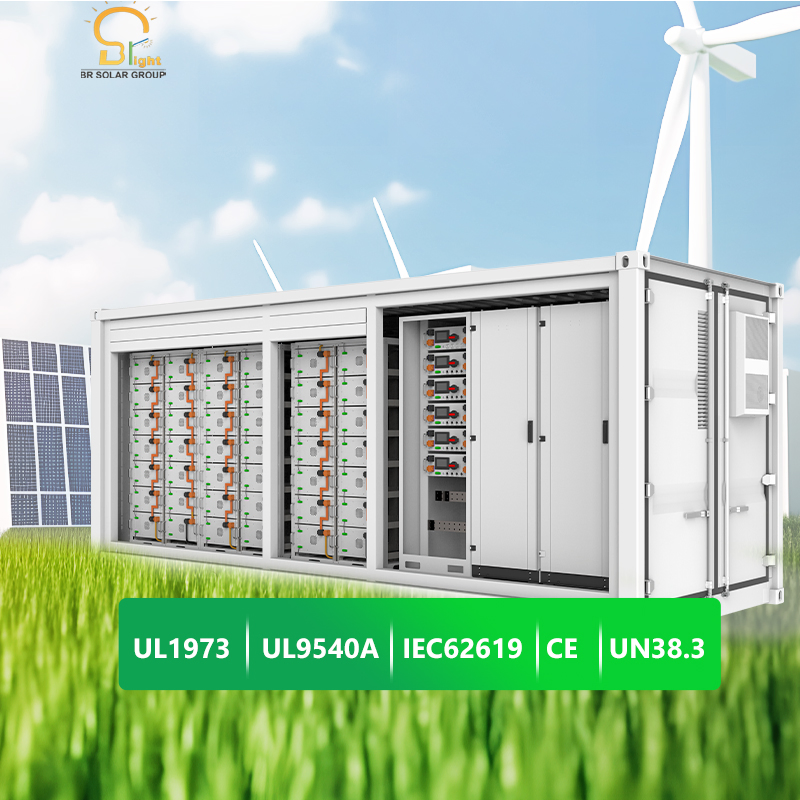

ISO, CE

Application

Home, Industrial, Commercial, School, Factory

Specification

100kwh, 233kwh

Cell Type

Lithium Iron Phosphate(LFP)

Cell Parameter

3.2V/314ah

Cooling

Liquid Cooling

Protection Class

IP55

Charge/Discharge

0.5c

Rated Capacity

5.01 Mwh

Rated Voltage

1331.2V

Origin

China

📦

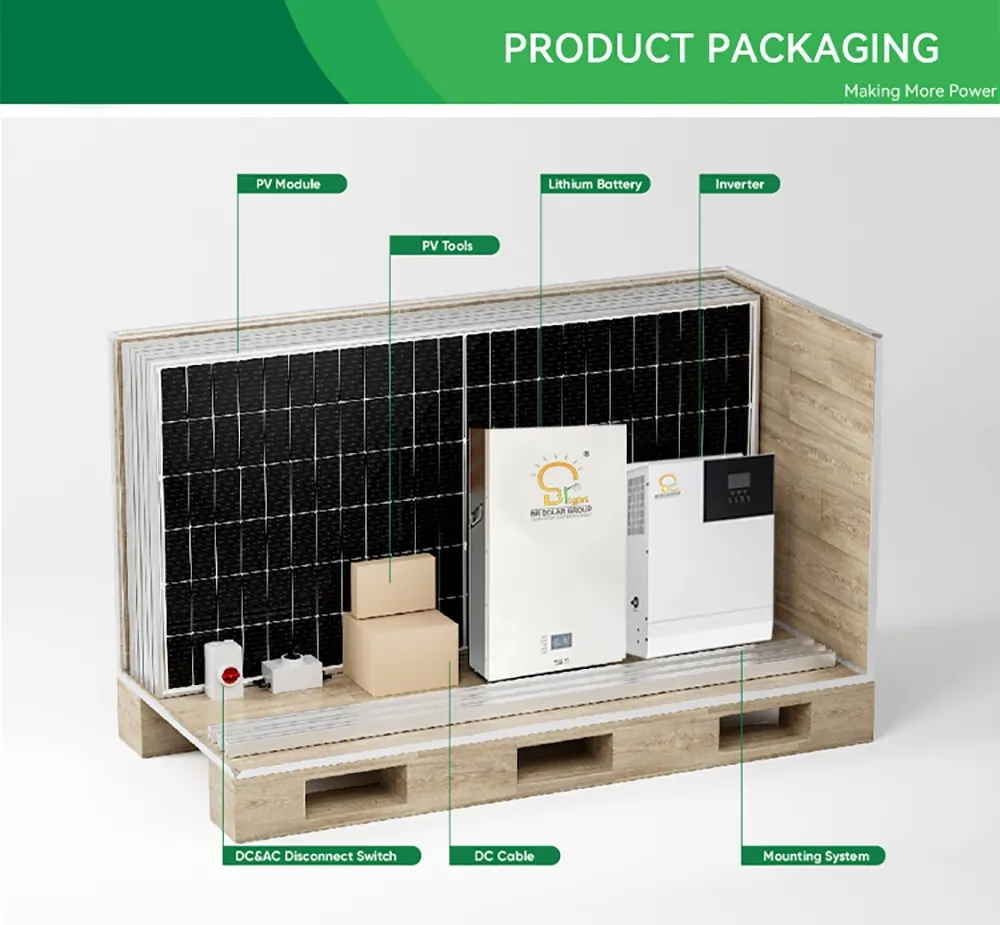

Packaging & Delivery

Package Size

110.00cm * 140.00cm * 238.00cm

Gross Weight

2000.000kg

Transport Package

Carton and Pallet

💡

Product Description

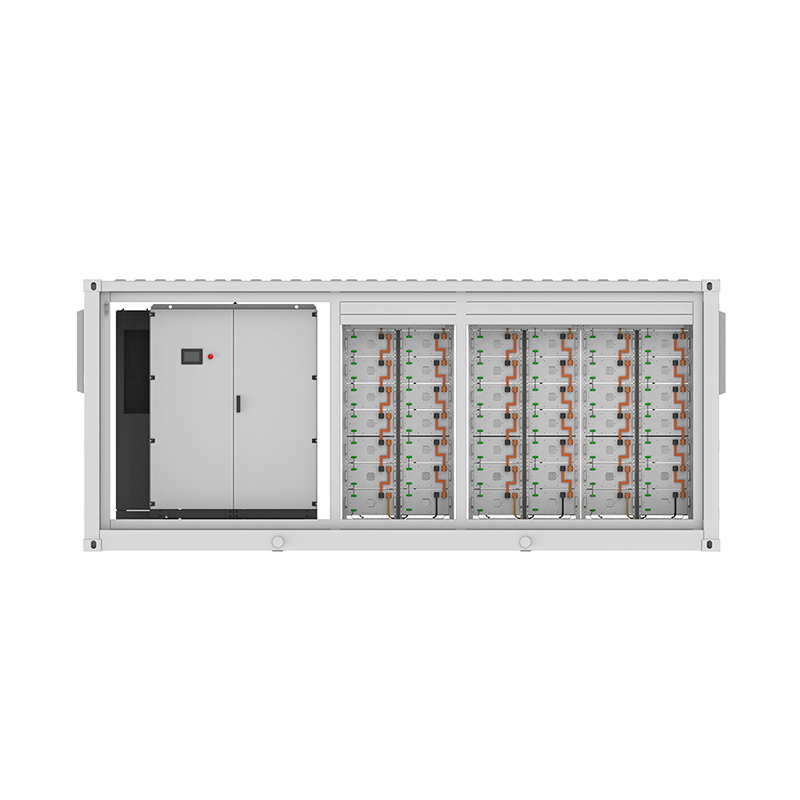

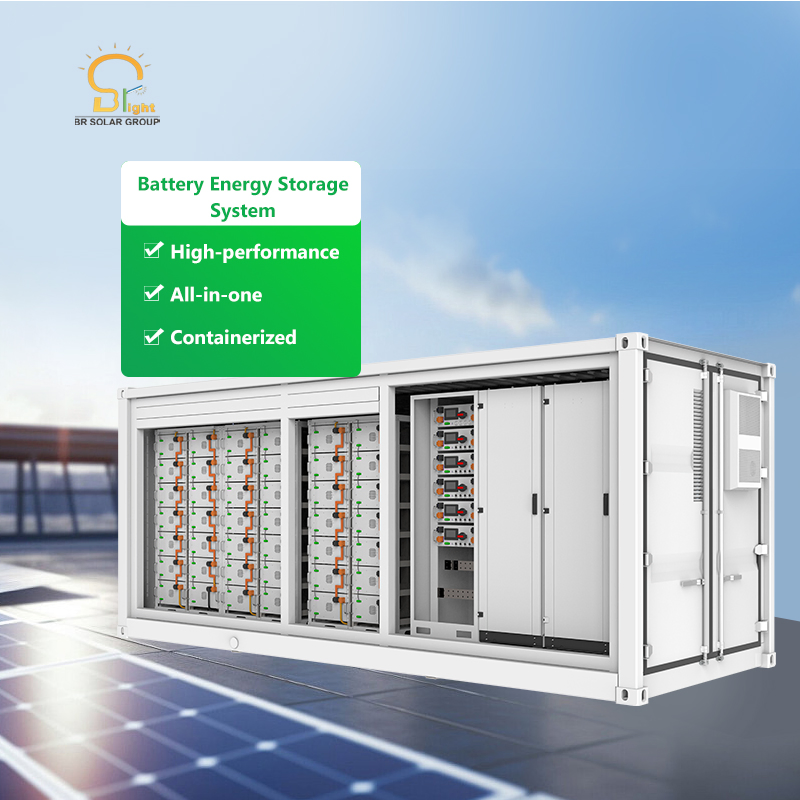

Hybrid Inverter Storage System LiFePO4 Container Battery

Items	Parameters
Type of cell	Lithium Iron Phosphate(LFP)
Cell parameter	3.2V/314Ah
Max. charge/discharge power	0.5C
Configuration of system	1P416S×12
Rated capacity	5.01 MWh
Rated voltage	1331.2V
Voltage range	1164.8~1497.6V

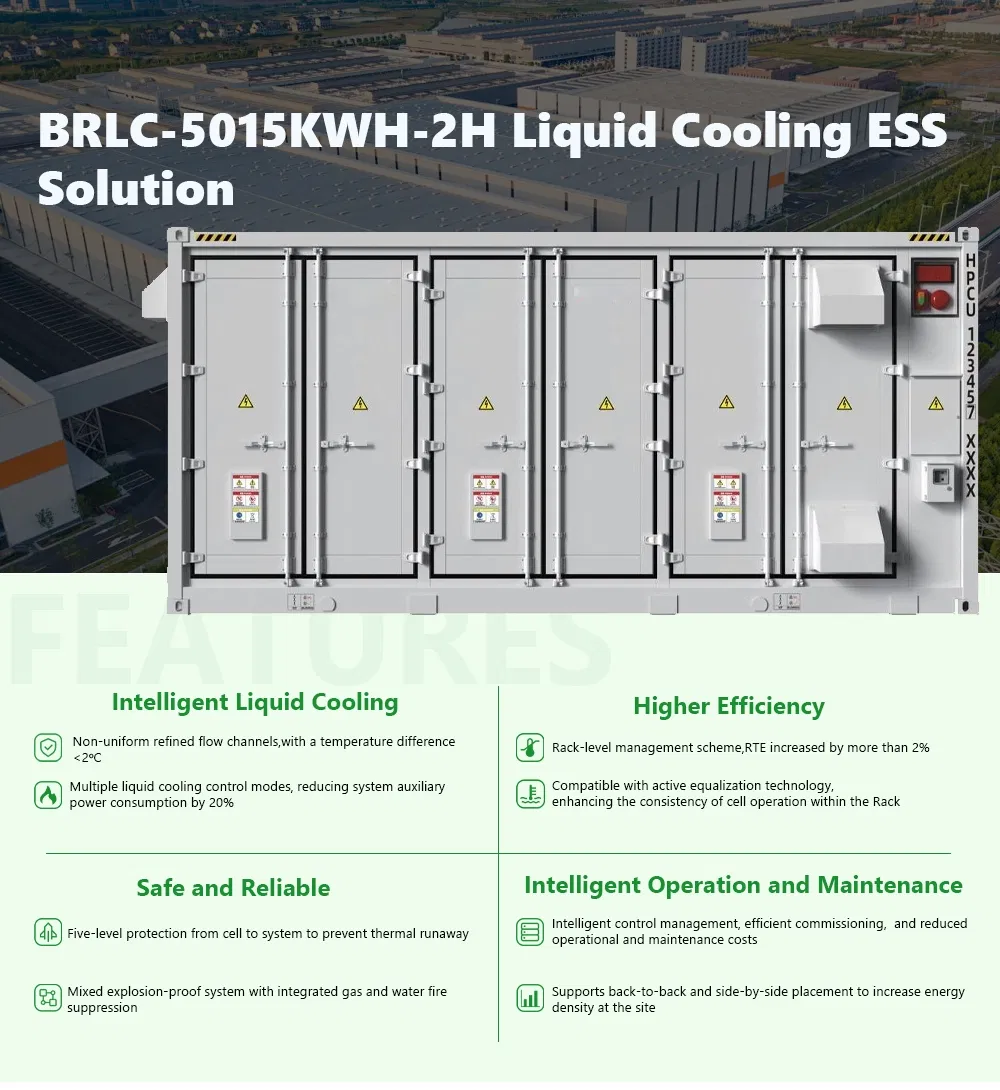

Cooling method	Liquid Cooling
Operating temperature	−30~50ºC
Humidity	≤95%RH, no condensation
Altitude	≤3000m
Noise level	≤80dB(A), @1m / 75dB(optional)
IP grade	IP55
Corrosion-proof grade	C4/C5(optional)
Fire protection	Temperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communication	Ethernet/CAN/RS485
Dimension(L×W×H)	6058×2438×2896mm
Weight	≈42000 kg

❓

Frequently Asked Questions

Q1: What type of battery cells are used in this system? A: The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, known for their safety, long cycle life, and thermal stability.

Q2: How does the cooling system work? A: This containerized battery system uses an advanced Liquid Cooling method to ensure uniform temperature distribution and high efficiency during operation.

Q3: What are the main safety and fire protection features? A: The system is equipped with a comprehensive safety suite including temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, and fire extinguishing gas.

Q4: Can the system be installed in harsh environmental conditions? A: Yes, with an IP55 protection grade and an optional C4/C5 corrosion-proof rating, the system is designed to operate in various industrial and outdoor environments.

Q5: What is the maximum altitude for installation? A: The system is designed to function effectively at altitudes up to 3000 meters above sea level.

Q6: Which communication interfaces are supported? A: It features standard external communication interfaces including Ethernet, CAN, and RS485 for seamless integration with monitoring systems.
