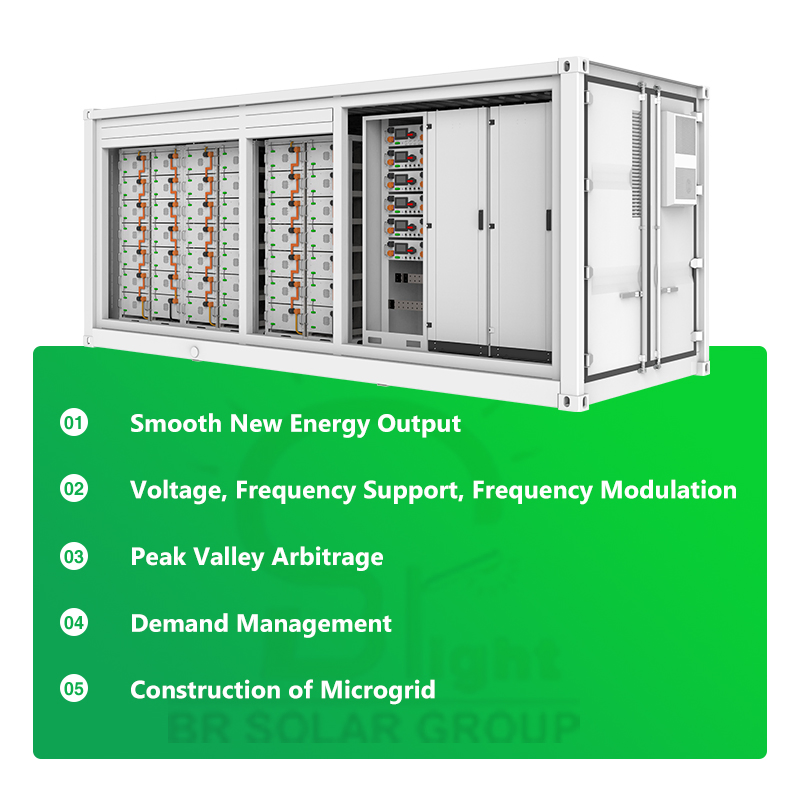

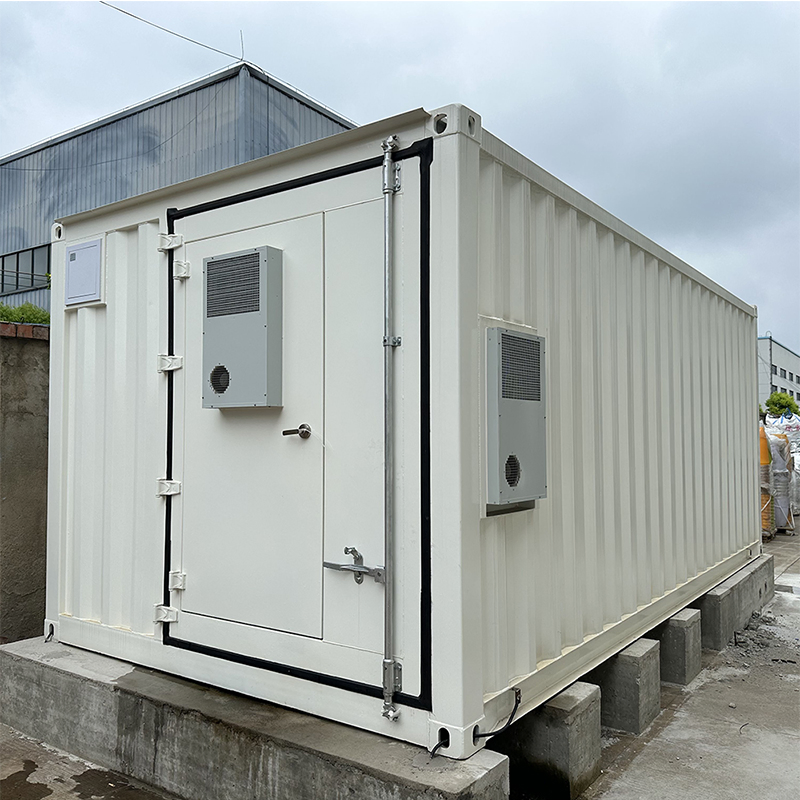

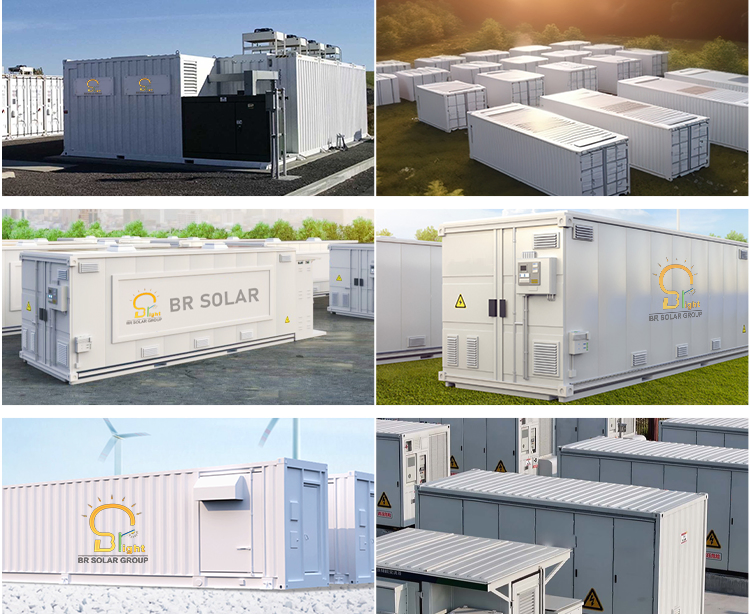

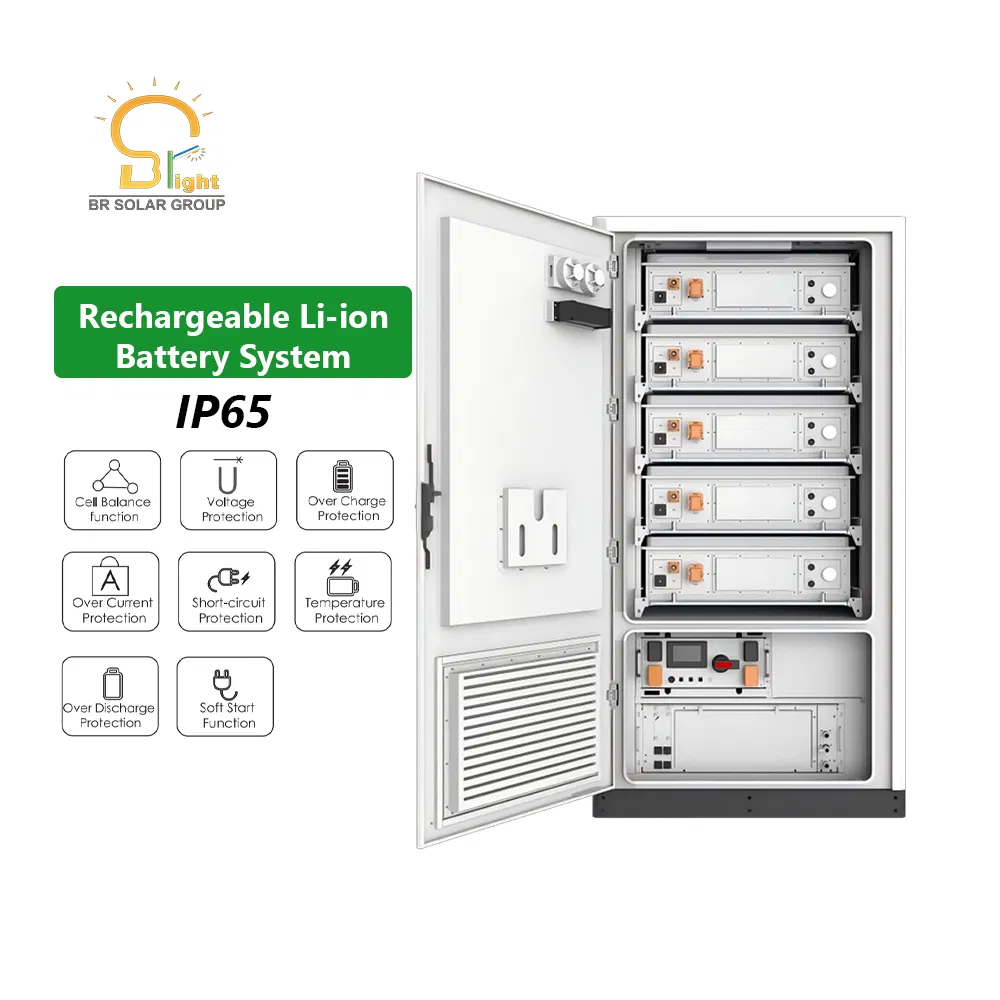

New Commercial Br Carton and Pallet Solar Battery Hybrid Inverter Storage System
New Commercial Br Carton and Pallet Solar Battery Hybrid Inverter Storage System
New Commercial Br Carton and Pallet Solar Battery Hybrid Inverter Storage System
New Commercial Br Carton and Pallet Solar Battery Hybrid Inverter Storage System
New Commercial Br Carton and Pallet Solar Battery Hybrid Inverter Storage System
1 / 5
New Commercial Br Carton and Pallet Solar Battery Hybrid Inverter Storage System
New Commercial Br Carton and Pallet Solar Battery Hybrid Inverter Storage System
New Commercial Br Carton and Pallet Solar Battery Hybrid Inverter Storage System
New Commercial Br Carton and Pallet Solar Battery Hybrid Inverter Storage System
New Commercial Br Carton and Pallet Solar Battery Hybrid Inverter Storage System

New Commercial Br Carton and Pallet Solar Battery Hybrid Inverter Storage System

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

Basic Information

Condition:
New
Certification:
ISO, CE
Application:
Home, Industrial, Commercial, School, Factory
Specification:
100kwh, 233kwh
Cell Type:
Lithium Iron Phosphate (LFP)
Cell Parameter:
3.2V/314ah
Cooling:
Liquid Cooling
Protection:
IP55
Max Power:
0.5c
Rated Capacity:
5.01 Mwh
Rated Voltage:
1331.2V
Origin:
China

Packaging & Delivery

Package Size:
110.00cm * 140.00cm * 238.00cm
Gross Weight:
2000.000kg
Transport:
Carton and Pallet

Product Description

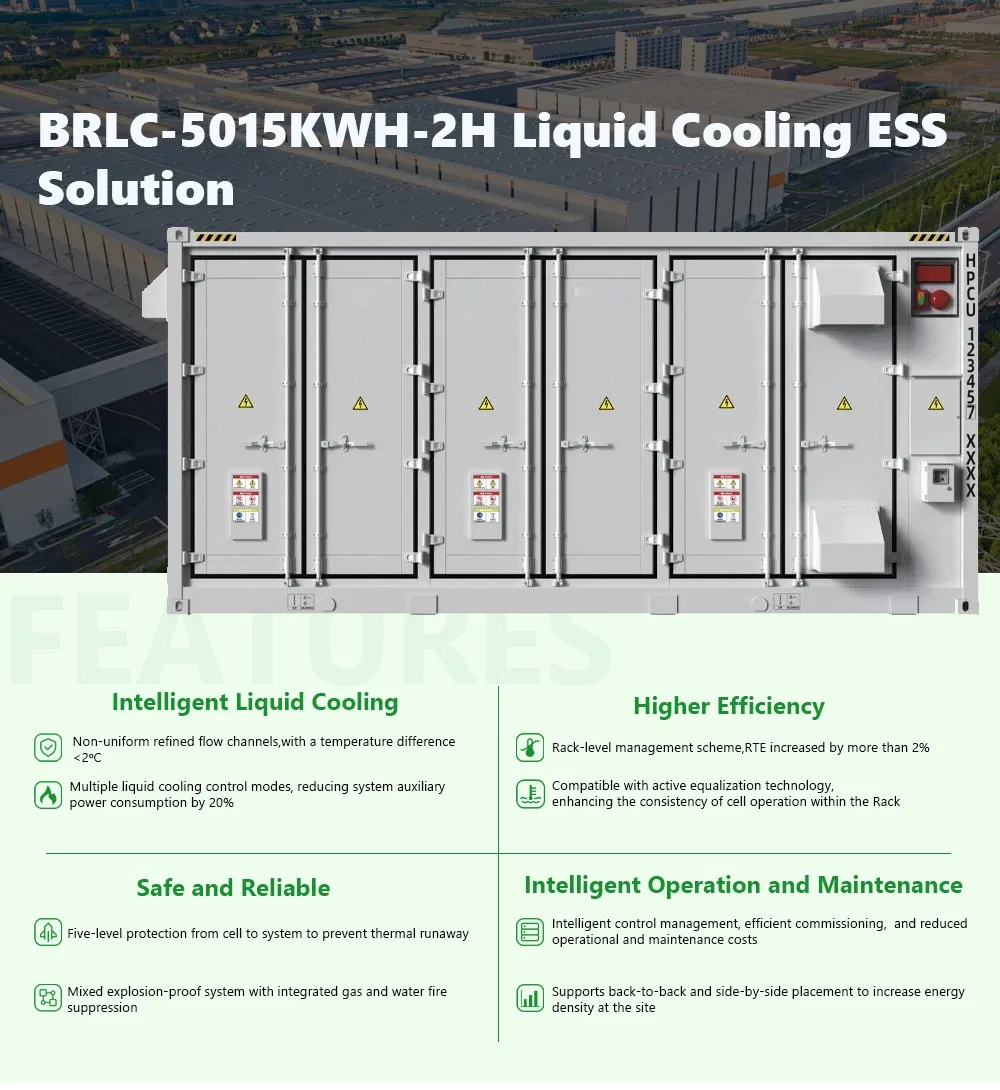

Solar Battery Hybrid Inverter Storage System
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Storage temperature−20~45ºC
Corrosion-proof gradeC4/C5(optional)
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
Communication interfaceEthernet/CAN/RS485
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg
Technical Details 1

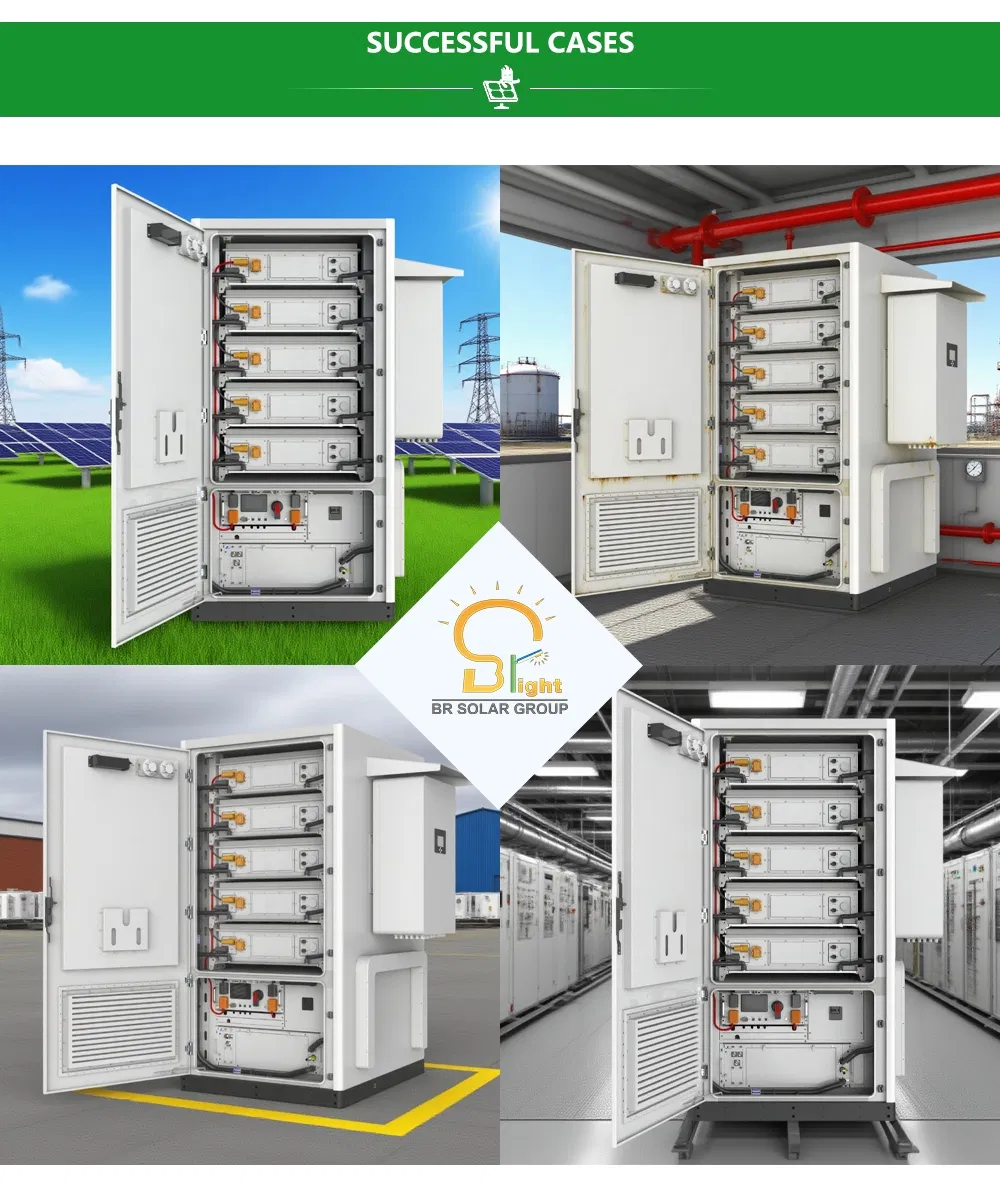

Technical Details 2
Technical Details 3
Technical Details 4

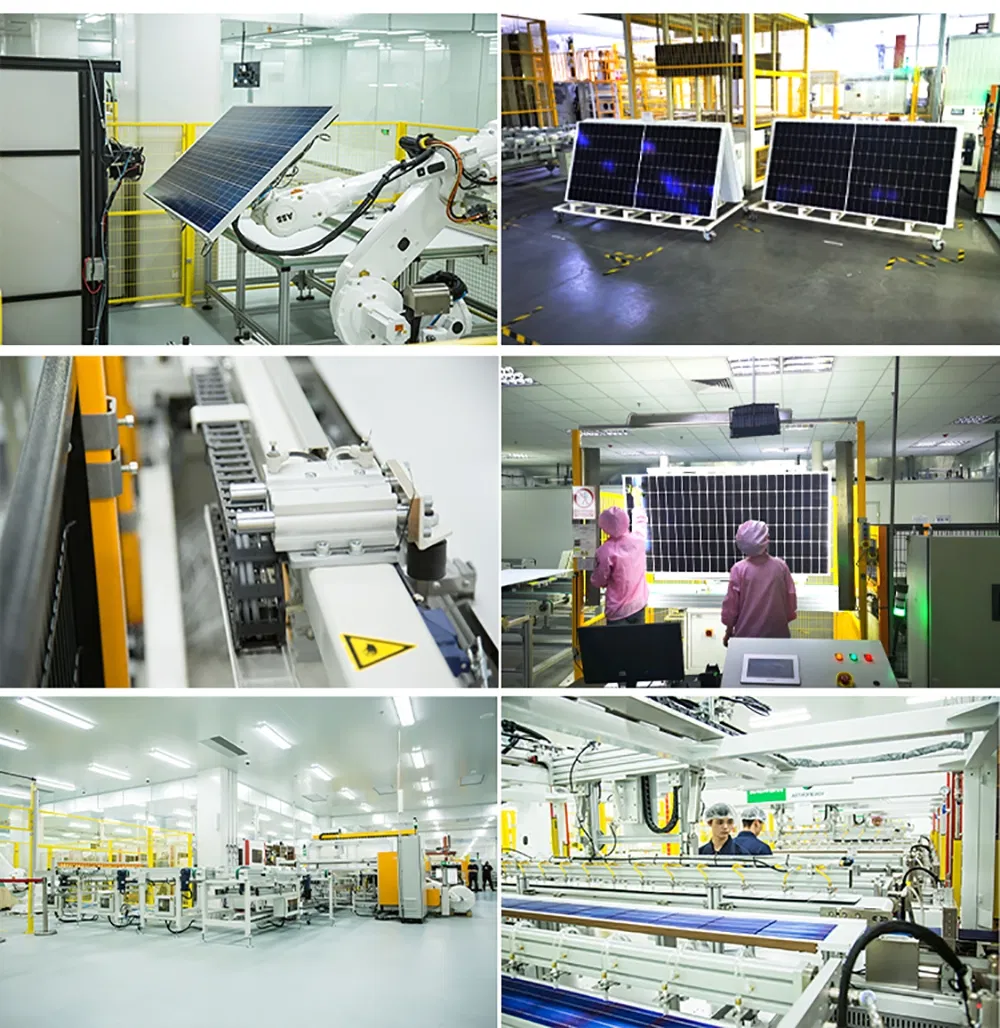

Technical Details 5
Technical Details 6
Technical Details 7
Technical Details 8

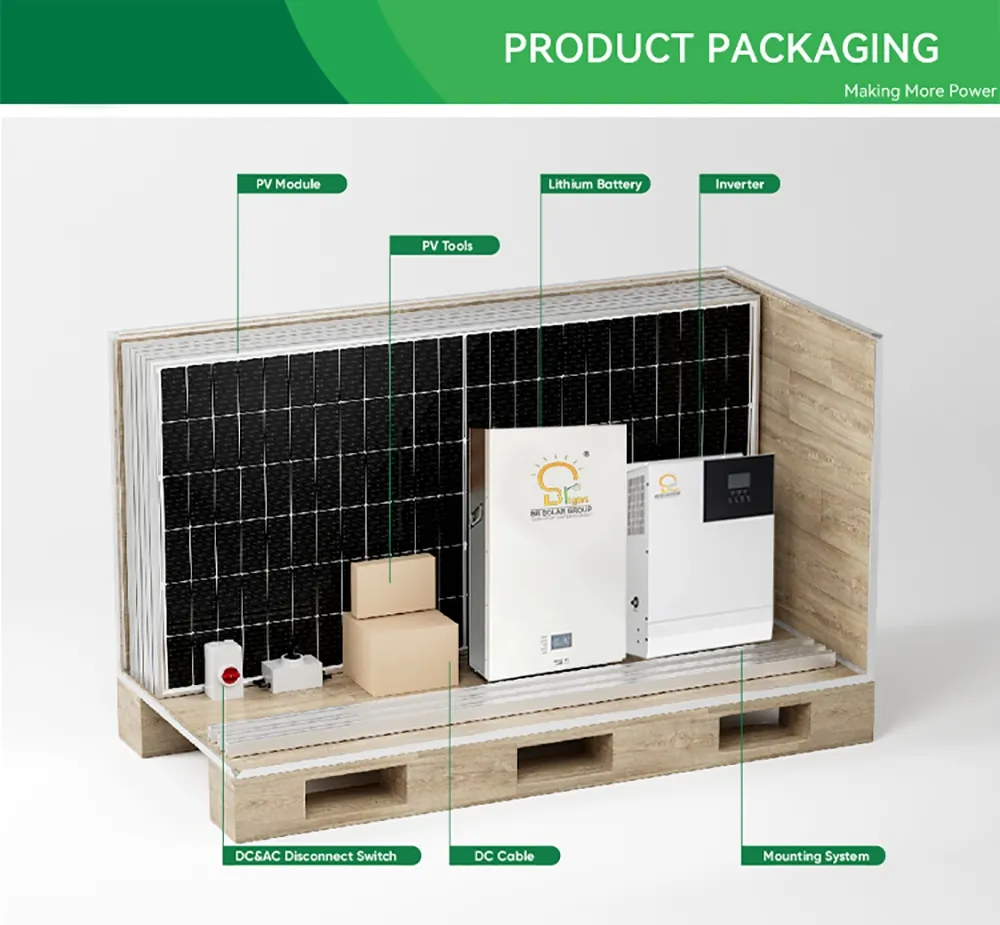

Technical Details 9

Frequently Asked Questions

What type of battery cells are used in this system?
The system utilizes Lithium Iron Phosphate (LFP) cells, specifically 3.2V/314Ah parameters, known for their safety and long life cycle.
What is the protection rating and cooling method?
The system features an IP55 protection grade and employs advanced Liquid Cooling technology to maintain optimal operating temperatures.
Can the system operate in extreme temperatures and high altitudes?
Yes, it is designed to operate in temperatures ranging from -30ºC to 50ºC and can function effectively at altitudes up to 3000 meters.
What safety and fire protection features are included?
It includes a comprehensive safety suite: temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, fire extinguishing gas, and a water sprinkler system.
What are the communication interfaces available for monitoring?
The system supports multiple external communication interfaces including Ethernet, CAN, and RS485 for seamless integration and monitoring.
What is the rated capacity and voltage of the system?
The system has a high rated capacity of 5.01 MWh with a rated voltage of 1331.2V.
