China 10V 20W Solar Panel Portable Home Kits

1 / 5

China 10V 20W Solar Panel Portable Home Kits

Customization:	Available
Condition:	New
Application:	Home, Camping and So on

Send Inquiry

Product Description

Basic Specifications

Model NO.

SS-M04

Solar Panel

10V 20W Polycrystalline Silicon

Battery

6.4V 6000mAh LiFePO4

Flexibility

Portable

Warranty

2 Years

Life

50000 Hrs

Sample

Available

Origin

China

HS Code

8507600090

Product Details

10V 20W Portable Solar Power Lighting System PV Panel for Home and Outdoor Use with FM Radio

Model NO.	SS-M04
Solar Panel	10V 20W Polycrystalline silicon solar panel with 6m cable
Battery	6.4V 6000mAh LiFePO4
Light Source	4pcs * 2W LED Lamp
Input/Output	Solar Input / DC & USB Output
DC Output	4 Ports (DC6.4V 1A = 6.4W)
USB Output	2 Ports (5V 1A)
Full-Charged Time	5-6 hours
Working Time	4.5-9 Hours
Protection	Overcharge and Overdischarge Protection

Ten Key Features

1. Trickle current, constant current, and constant voltage charging modes for optimal lithium iron phosphate battery management.

2. Complete charge management for single-section LiFePO4 batteries.

3. Trickling charge function specifically for deep discharge batteries.

4. Wide input voltage range: from 6.5V to 15V.

5. Integrated Maximum Power Point Tracking (MPPT) function for solar panels.

6. Simple one-button start mechanism.

7. Safety shut-off: Long press for 3 seconds to prevent accidental power down.

8. Dedicated USB output overcurrent protection.

9. LED lamps equipped with overcurrent and short circuit protection.

10. Real-time red light flashing prompts for charging, discharging, and under-voltage status.

Advantages & Package

Sustainable and renewable green energy source.
High safety standards with environmentally friendly LiFePO4 battery technology.
Ideal solution for rural areas or outdoor activities without grid electricity.
OEM customization available.

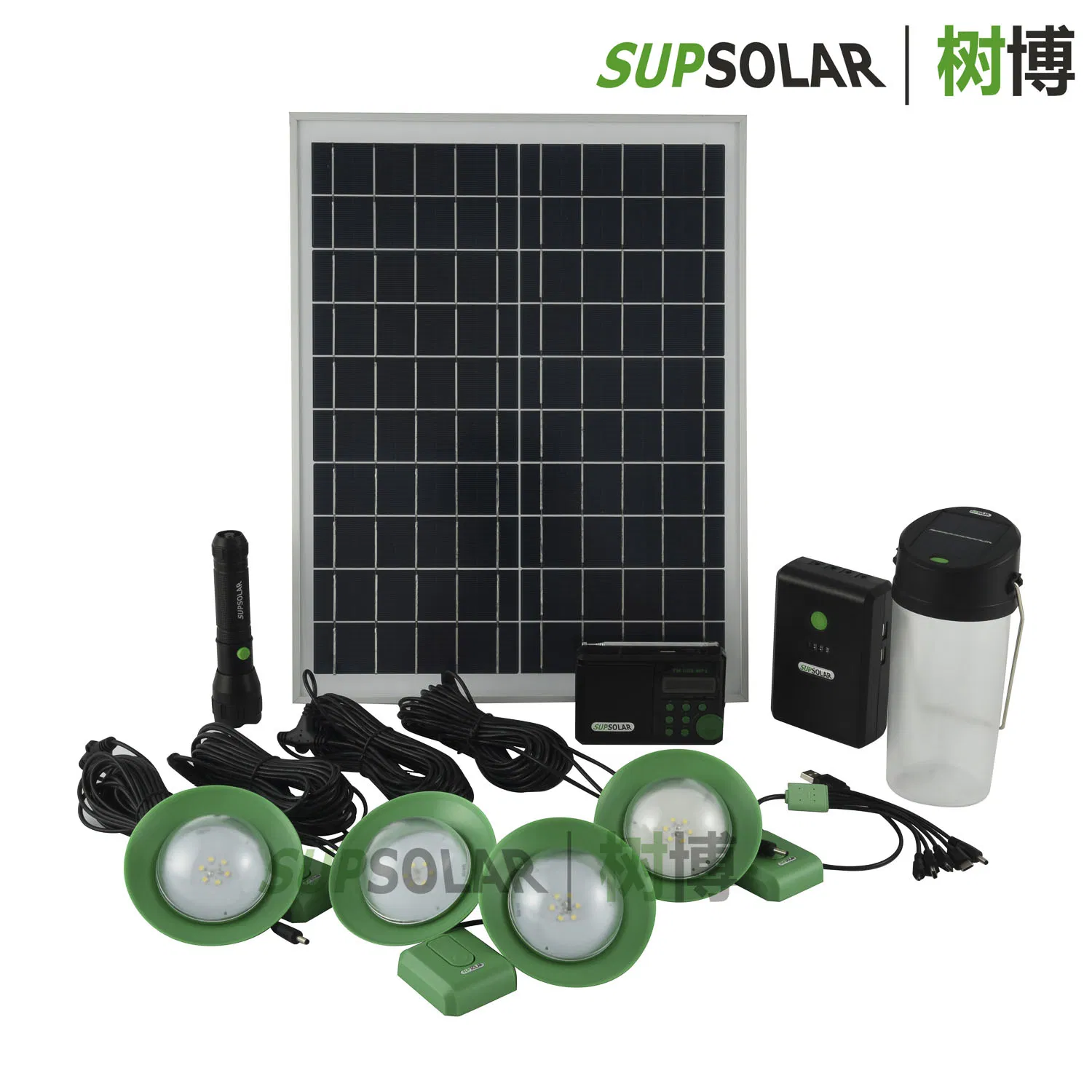

Package Includes:

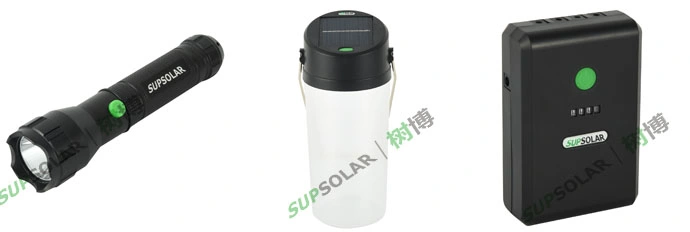

1pc x 6.4V 6000mAh Control box
1pc x 10V 20W Solar panel

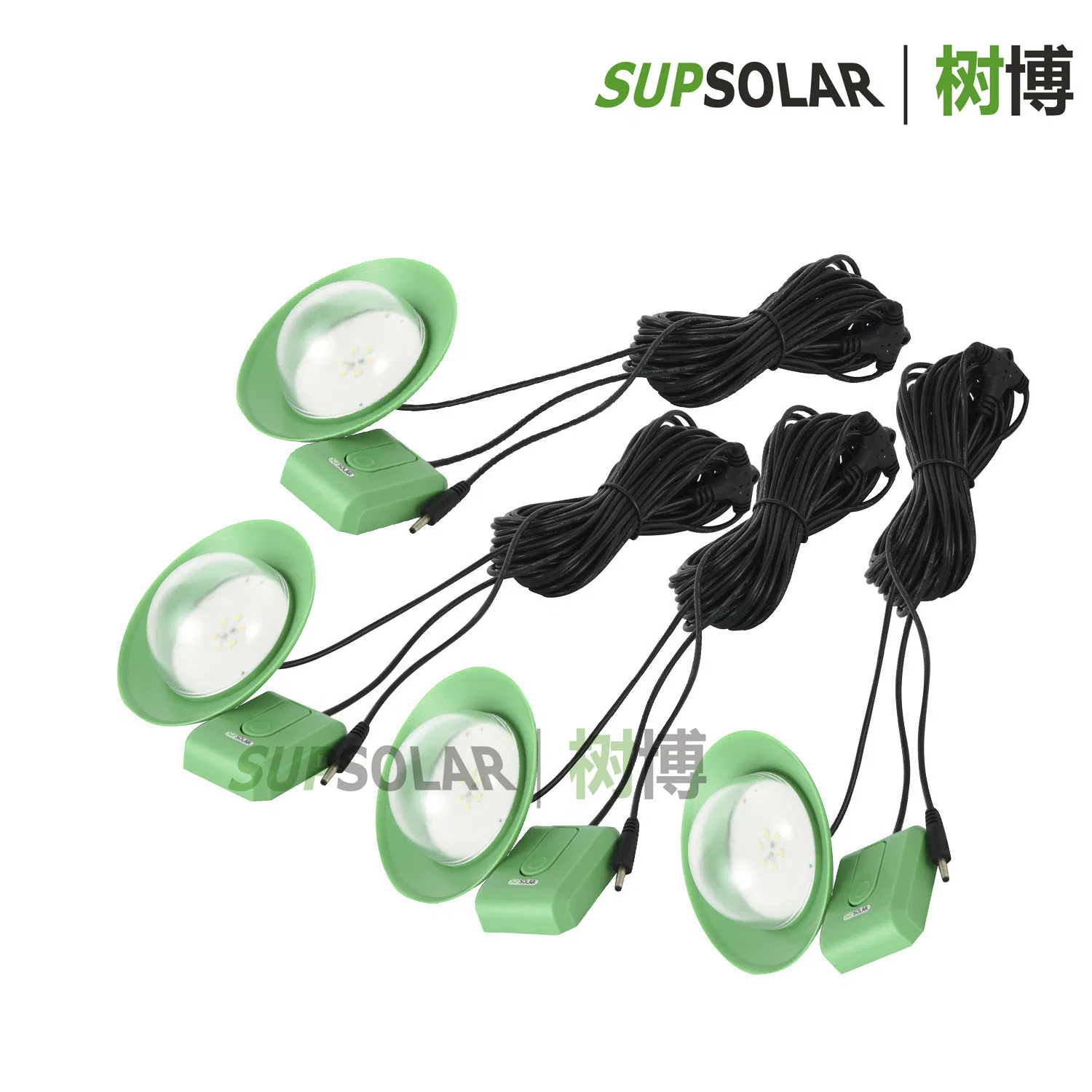

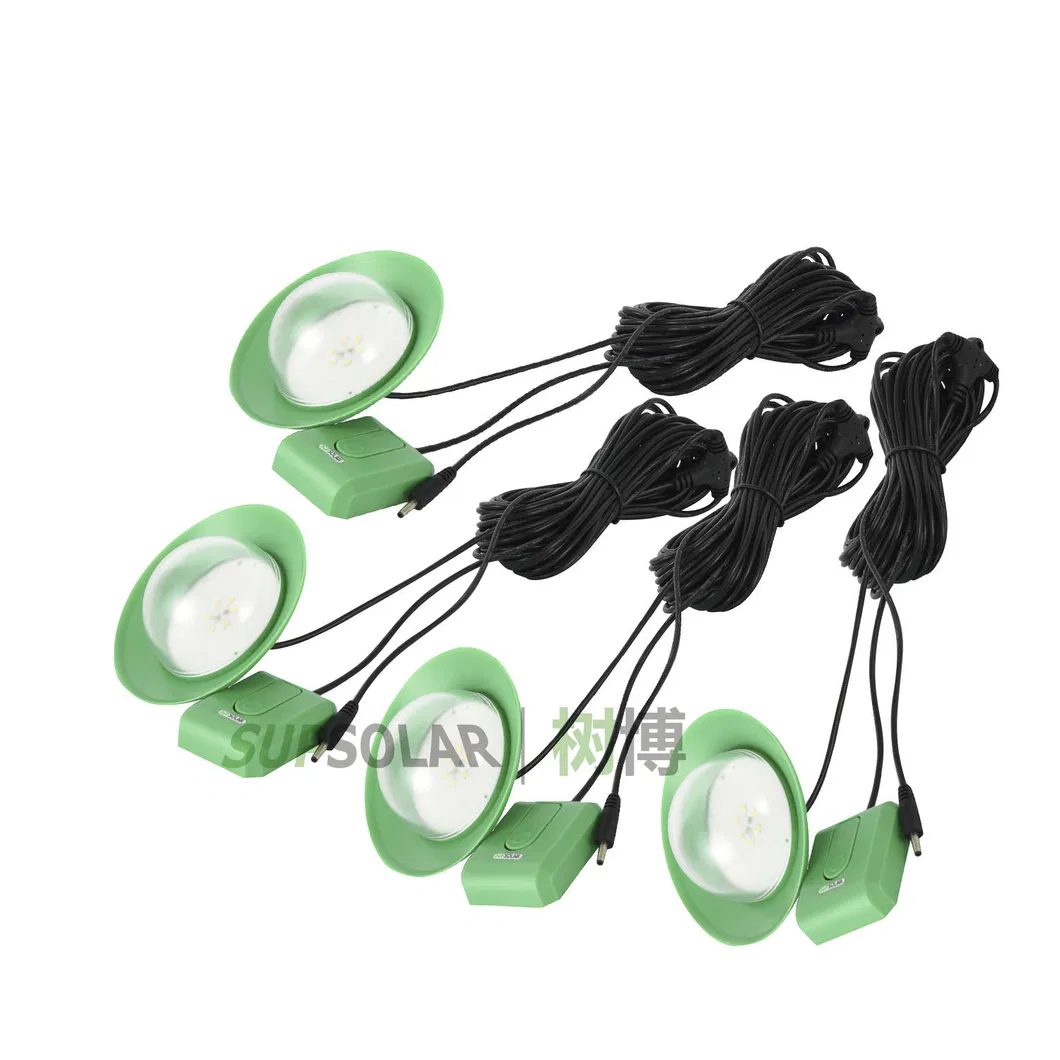

4pcs x 2W LED lighting lamps

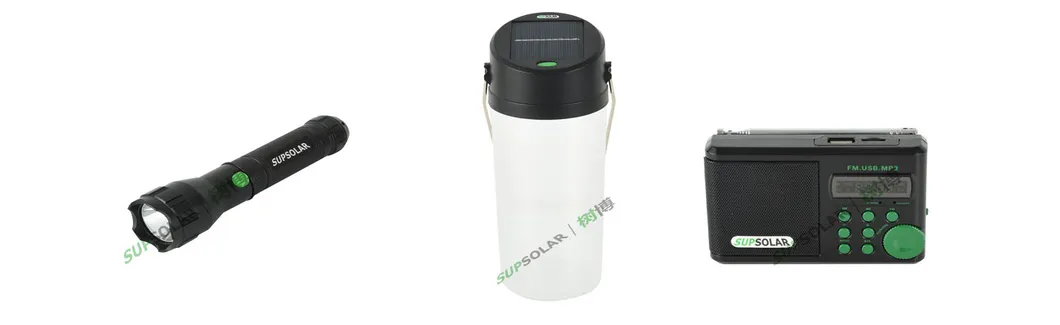

1pc x Lantern
1pc x Torch

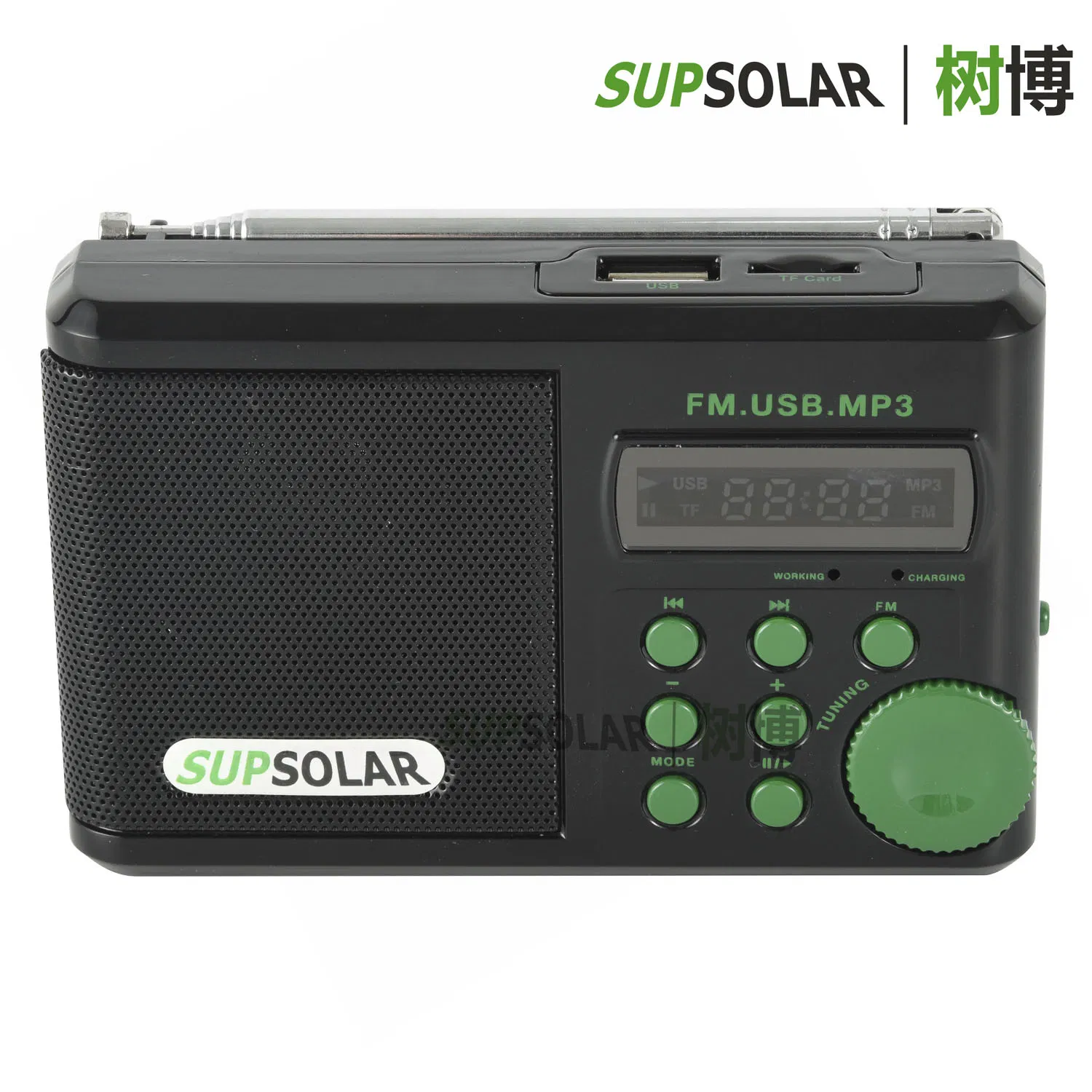

1pc x Radio

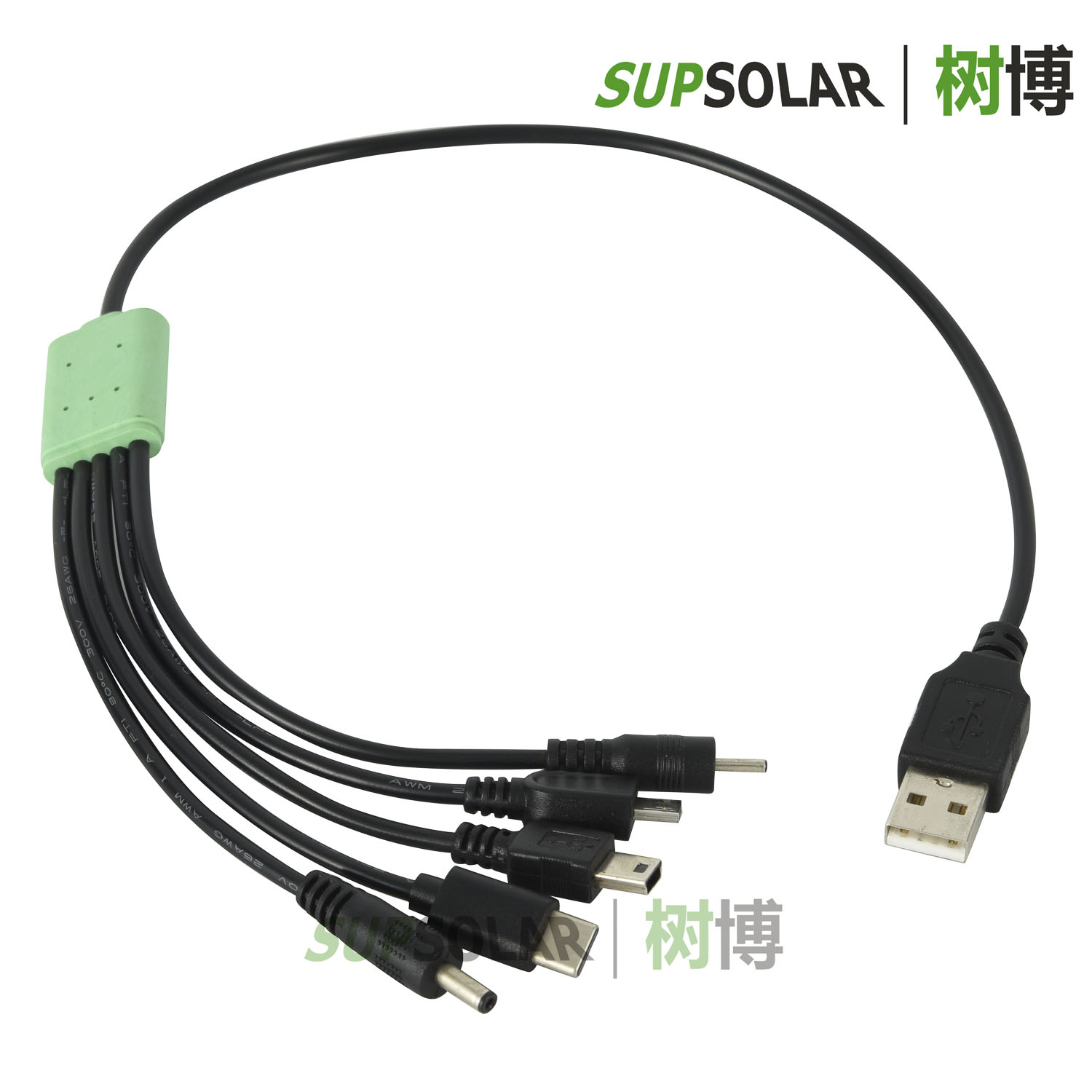

1pc x Multi-function Mobile Phone USB charger wire
10pcs x Screws

Frequently Asked Questions

How long does it take to fully charge the system?

Under standard sunlight, the system takes approximately 5-6 hours to reach a full charge via the 20W solar panel.

What is the battery type and its lifespan?

The system uses a high-safety LiFePO4 (Lithium Iron Phosphate) battery with a 6.4V 6000mAh capacity, designed for long-term durability with a life rating of up to 50,000 hours.

Can I charge my mobile phone with this system?

Yes, the control box features two USB output ports (5V 1A) and includes a multi-function USB charger wire compatible with various mobile devices.

How many light sources are included in the kit?

The kit includes 4 pieces of 2W LED lamps, plus an additional lantern and a torch for versatile lighting options.

Does the system provide any safety protection?

Absolutely. It includes overcharge and overdischarge protection for the battery, as well as overcurrent and short circuit protection for the USB outputs and LED lamps.

Is the solar system suitable for outdoor use?

Yes, it is designed for portability and can operate in temperatures ranging from -10°C to 50°C, making it perfect for home backup, camping, and rural use.
