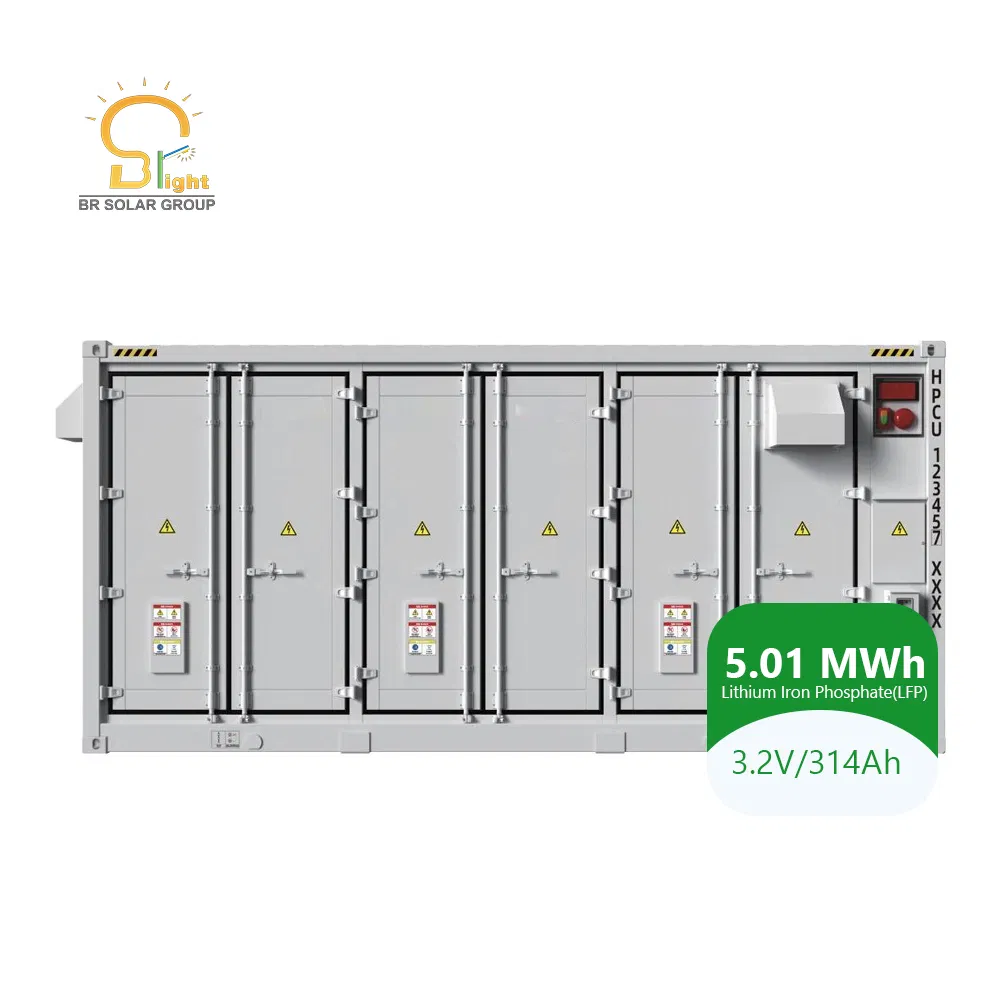

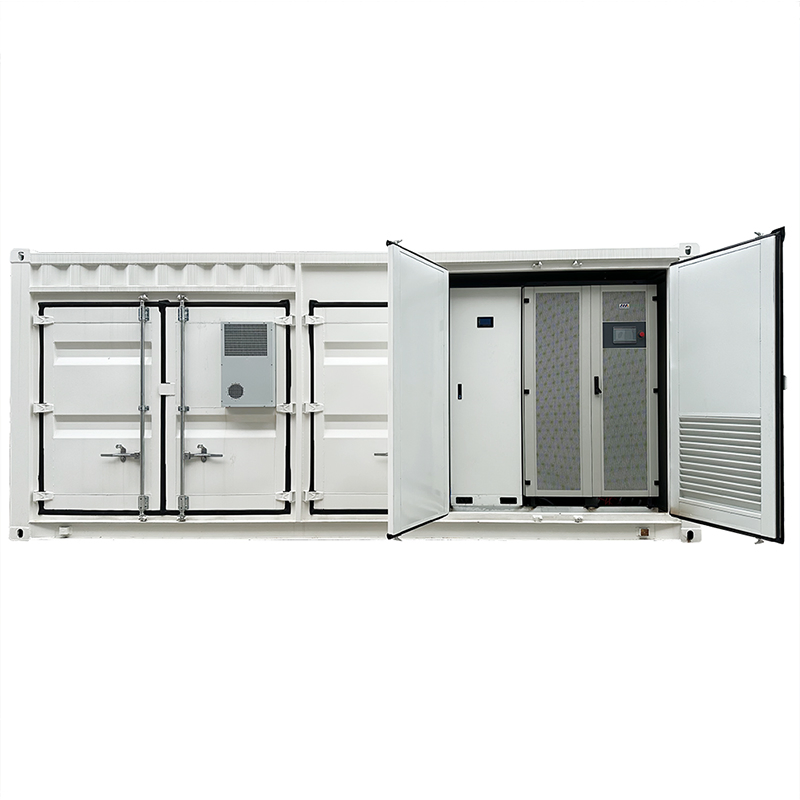

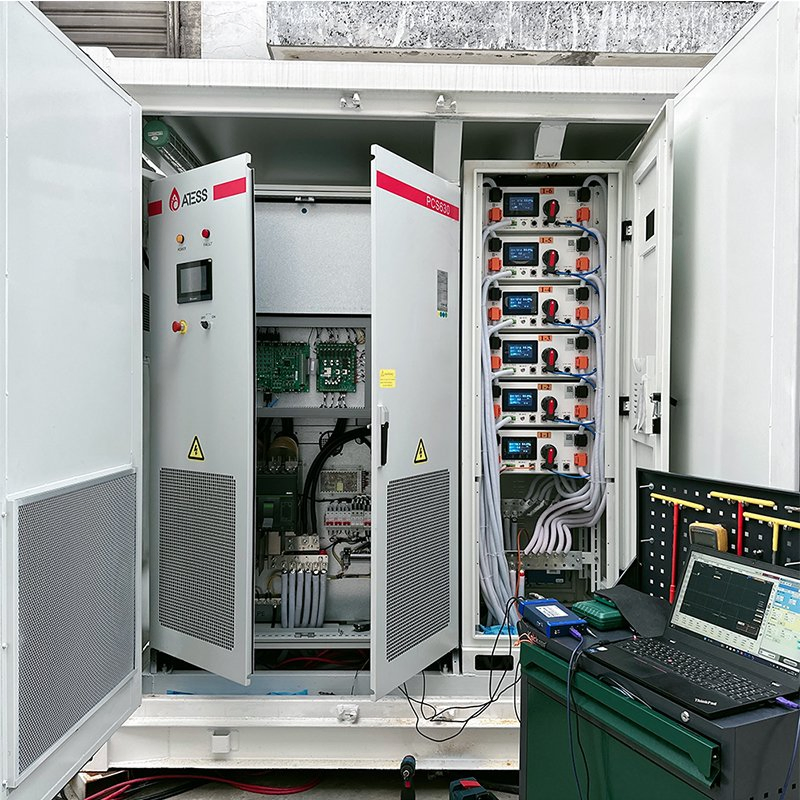

1331.2V CE Approved Br Carton and Pallet Hybrid Inverter Solar Storage System
1331.2V CE Approved Br Carton and Pallet Hybrid Inverter Solar Storage System
1331.2V CE Approved Br Carton and Pallet Hybrid Inverter Solar Storage System
1331.2V CE Approved Br Carton and Pallet Hybrid Inverter Solar Storage System
1331.2V CE Approved Br Carton and Pallet Hybrid Inverter Solar Storage System
1 / 5
1331.2V CE Approved Br Carton and Pallet Hybrid Inverter Solar Storage System
1331.2V CE Approved Br Carton and Pallet Hybrid Inverter Solar Storage System
1331.2V CE Approved Br Carton and Pallet Hybrid Inverter Solar Storage System
1331.2V CE Approved Br Carton and Pallet Hybrid Inverter Solar Storage System
1331.2V CE Approved Br Carton and Pallet Hybrid Inverter Solar Storage System

1331.2V CE Approved Br Carton and Pallet Hybrid Inverter Solar Storage System

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

📊

Basic Specifications

Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial, School, Factory
Specification
100kwh, 233kwh
Cell Type
Lithium Iron Phosphate(LFP)
Cell Parameter
3.2V/314ah
Cooling
Liquid Cooling
Protection Class
IP55
Max. Charge Power
0.5c
System Config
1p416sx12
Rated Capacity
5.01 Mwh
Rated Voltage
1331.2V
Voltage Range
1164.8~1497.6V
Origin
China
HS Code
8501310000
Capacity
1000 set/Month
📦

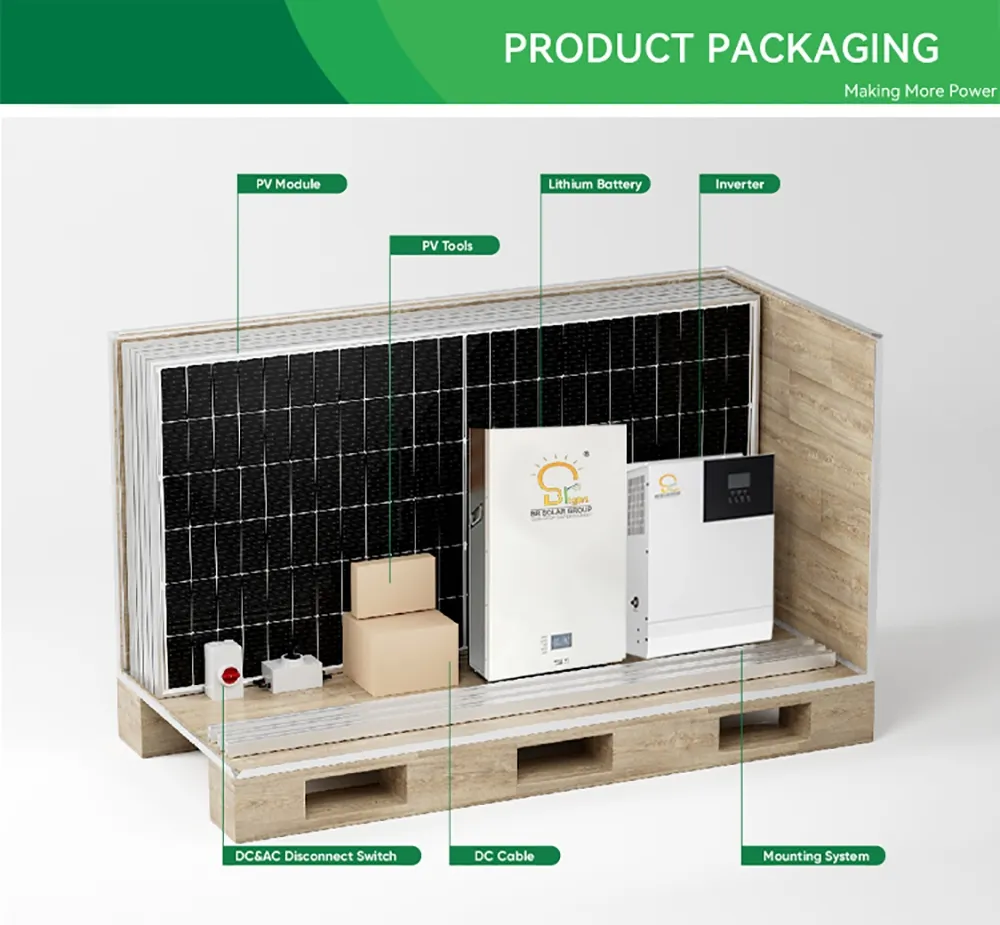

Packaging & Delivery

Package Size
110.00cm * 140.00cm * 238.00cm
Gross Weight
2000.000kg
Package Type
Carton and Pallet
🛠️

Technical Parameters

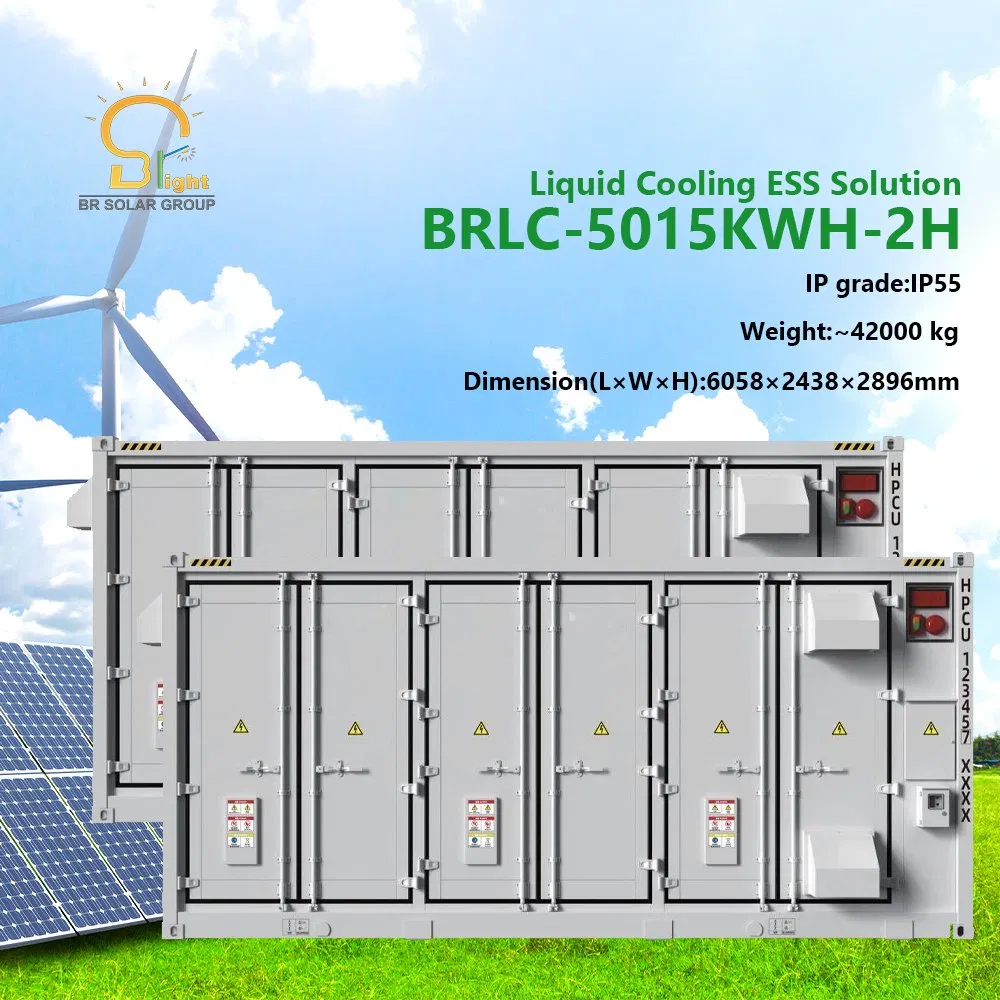

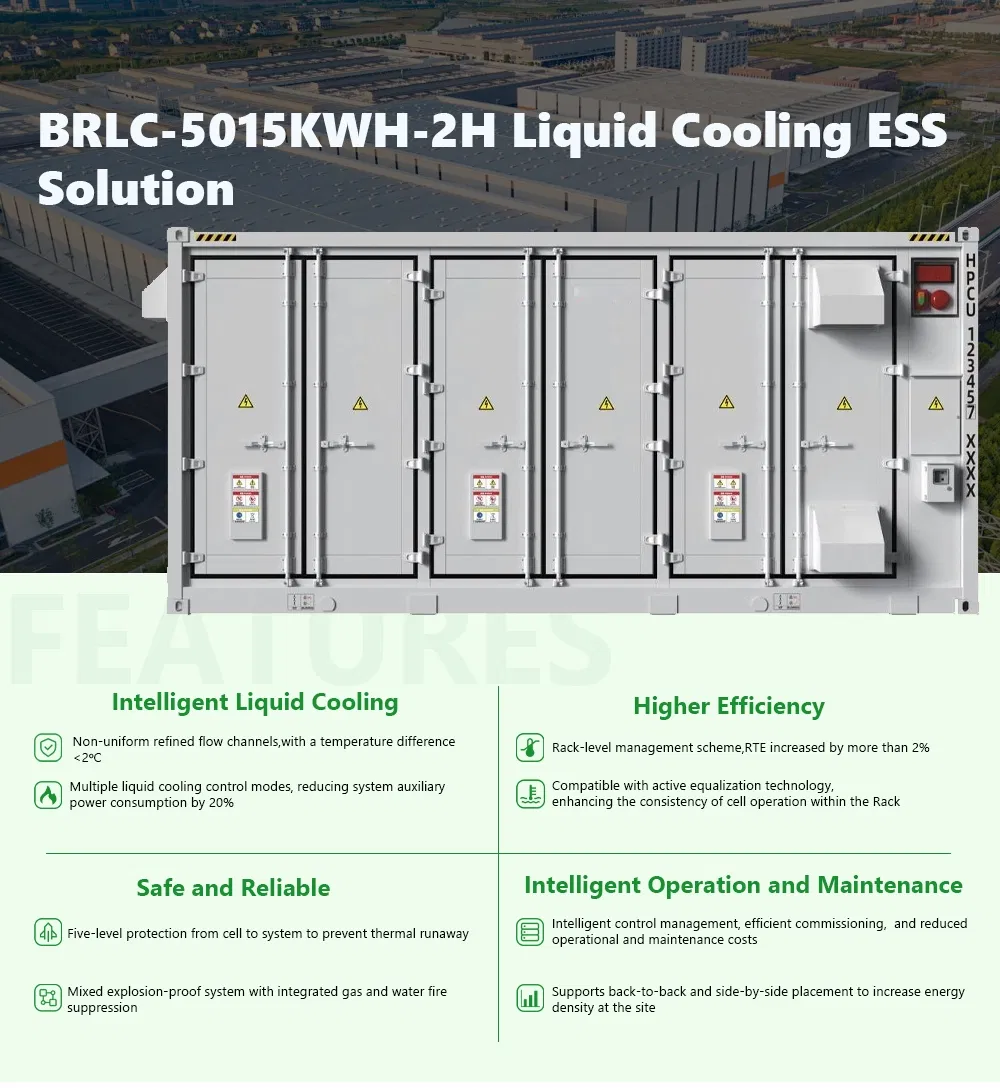

Solar Storage System Overview
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
Communication interfaceEthernet/CAN/RS485
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg
🖼️

Product Gallery

Detail View 1
Detail View 2
Main Unit
Module 1
Module 2
Module 3
Structure 1
Structure 2
Structure 3
❓

Frequently Asked Questions

What is the advantage of using Lithium Iron Phosphate (LFP) cells?
LFP cells offer superior thermal stability, a longer cycle life, and enhanced safety compared to other lithium chemistries, making them ideal for high-capacity storage.
How does the liquid cooling system benefit the energy storage unit?
Liquid cooling ensures uniform temperature distribution across the battery cells, which improves efficiency, prevents overheating, and significantly extends the lifespan of the system.
What safety features are integrated into this system?
The system includes a comprehensive fire protection suite featuring temperature sensors, smoke and gas detectors, deflagration venting, and automated fire extinguishing mechanisms.
Is the system suitable for outdoor installation?
Yes, with an IP55 protection rating and an operating temperature range from −30 to 50ºC, it is designed to withstand various outdoor environmental conditions.
What communication interfaces are supported for monitoring?
The unit supports Ethernet, CAN, and RS485 interfaces, allowing for seamless integration into existing industrial or commercial monitoring and control systems.
