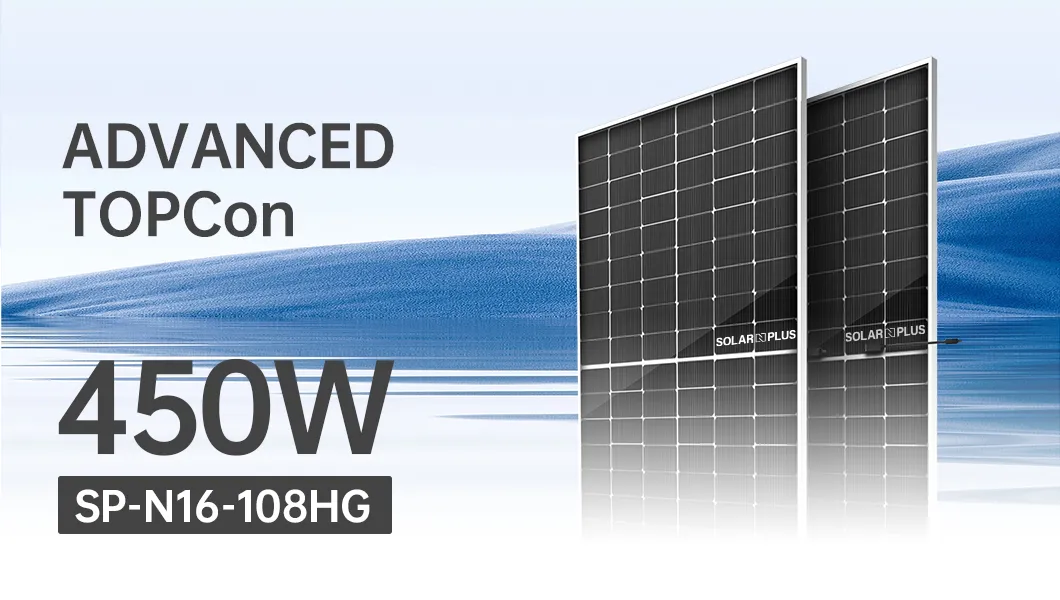

| Model NO. | SP-N16-108HG420W-450W |
|---|---|
| Number of Cells | 108 PCS |
| Application | Residential and Commercial Rooftop |
| Certification | ISO, CE, TUV/IEC/Sec/Bis/Jepa/Retie/Inmetro |
| Material | Polycrystalline Silicon |
| Weight | 24kg |
| Maximum System Voltage | DC1500V (IEC) |
| Mechanical Load | 5400PA/2400PA |
| Dimensions | 1722*1134*30mm |

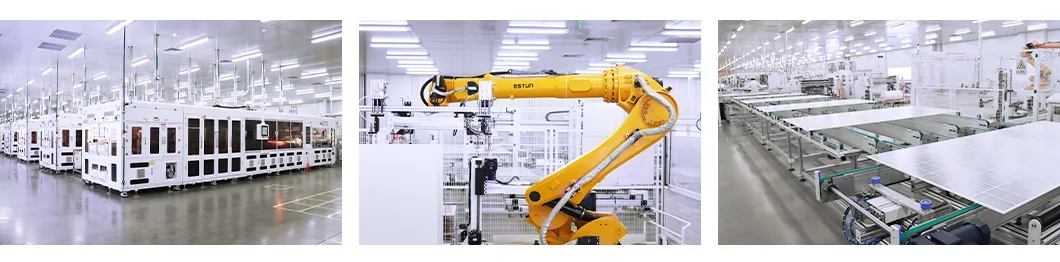

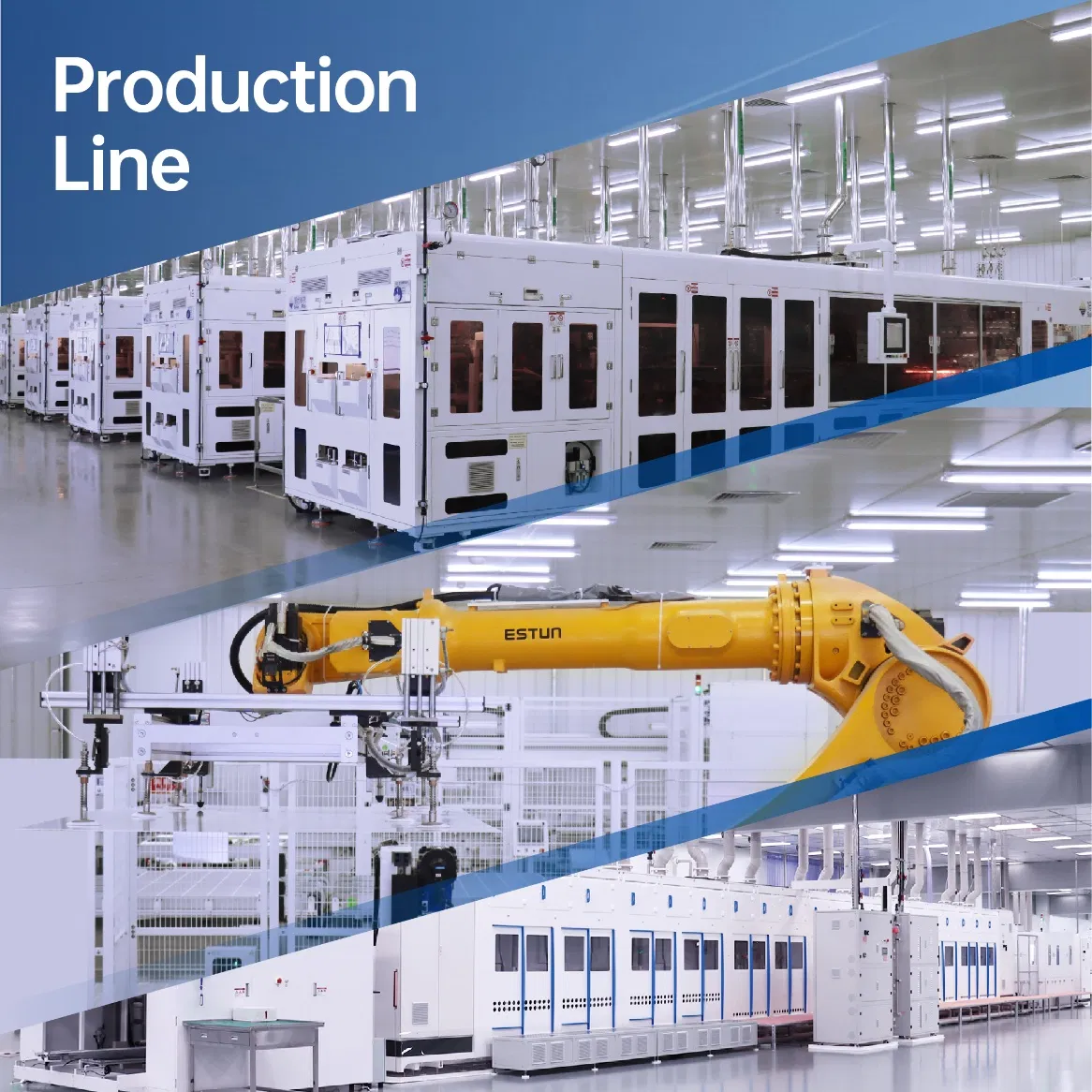

| Production Capacity | 10gw/Year |
This series module features TOPCon 108 cells, with a maximum power output of 450W and an impressive efficiency rate of up to 23%. These modules exhibit minimal degradation and a low temperature coefficient, ensuring consistent high power production in any environment.

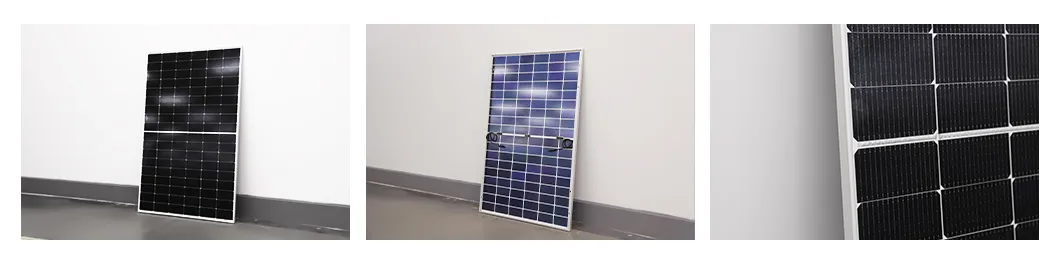

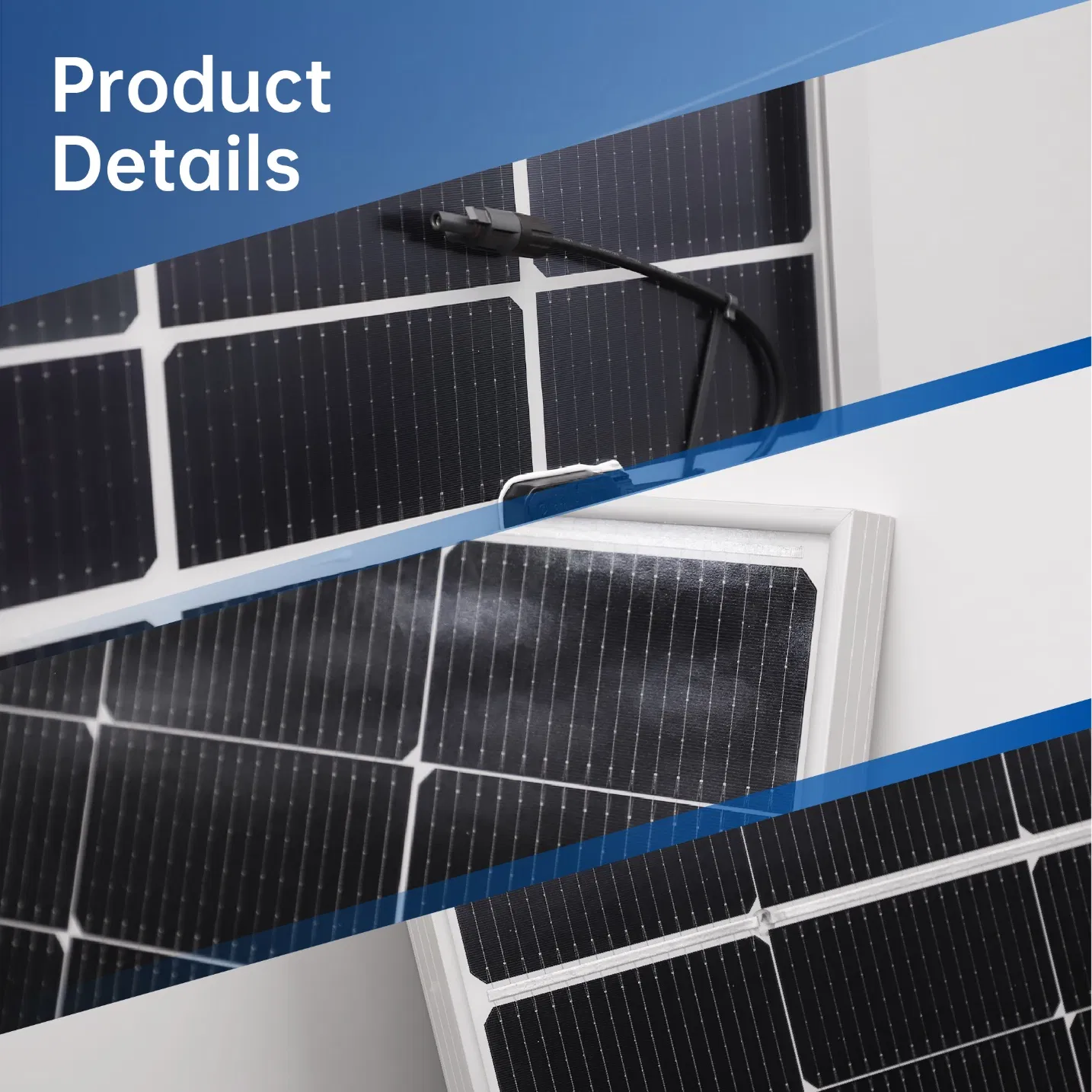

Designed for excellence, the bifacial double glass N-type construction provides unmatched reliability. The products are backed by a 15-year product warranty and a 30-year power warranty.
| Maximum Power (Pm) | 430W | 435W | 440W | 445W | 450W |
|---|---|---|---|---|---|
| Maximum Power Voltage (Vm) | 33.7V | 33.9V | 34.1V | 34.3V | 34.5V |
| Maximum Power Current (Im) | 12.76A | 12.83A | 12.91A | 12.98A | 13.05A |
| Open Circuit Voltage (Voc) | 39.25V | 39.45V | 39.65V | 39.85V | 40.05V |
| Module Efficiency | 22.0% | 22.3% | 22.5% | 22.8% | 23.0% |

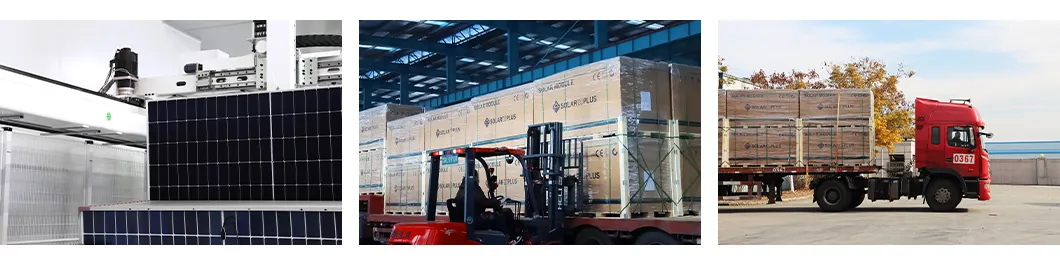

| Container Type | 40'HC |
|---|---|
| Pieces per Pallet | 36 pcs |
| Packaging Box Size | 1779 × 1145 × 1260mm |
| Pieces per Container | 936 pcs |
| Gross Weight | 28,000.00kg |
