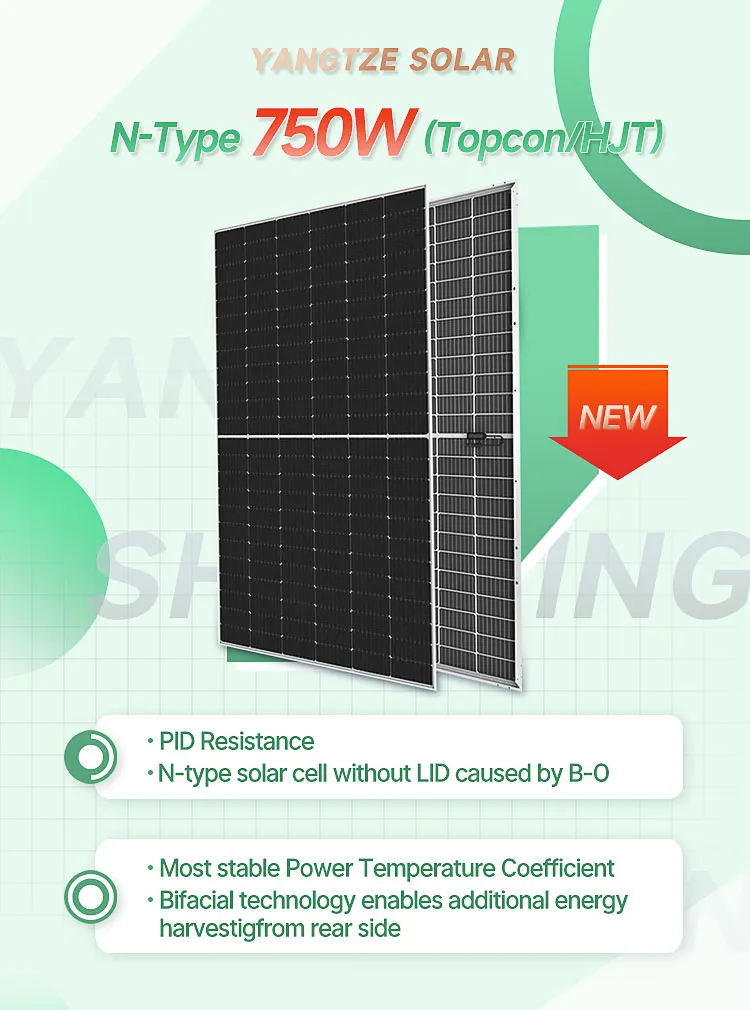

750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology

1 / 5

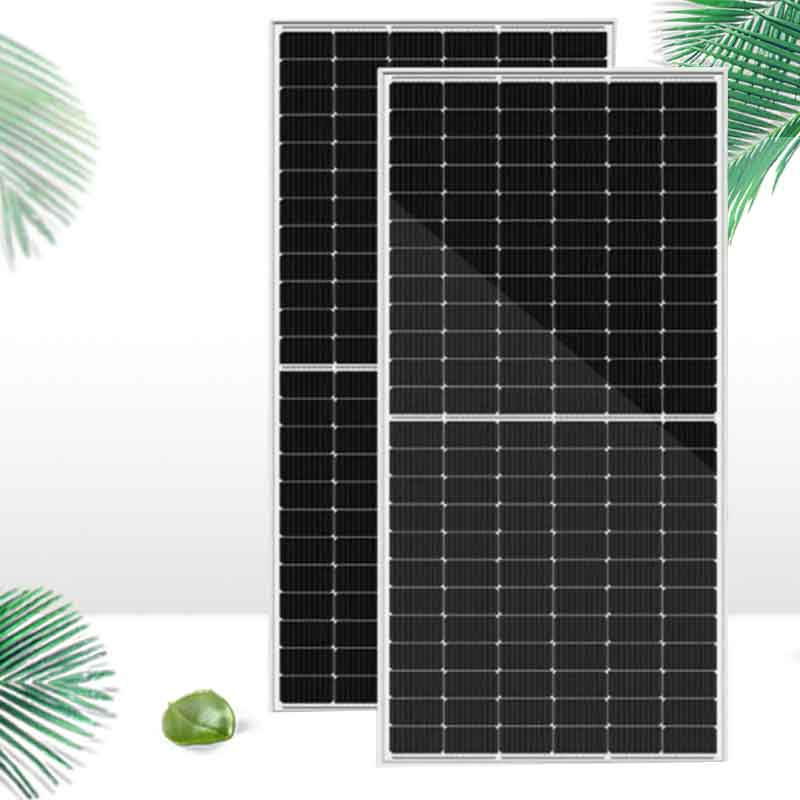

750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:YS750M-132

Number of Cells:66

Application:Industrial

Certification:ISO, CE

Material:Monocrystalline Silicon

Frame:Anodized Aluminium Alloy

Junction Box:IP68 Waterproof

Solar Cell:Mono 210X210 mm Cell

Front Cover:3.2mm Tempered Glass

Size:2384*1303*35mm

Connector:MC4 Compatible

Weight:36kg

Specification:750W

Production Cap.:12000 Pieces /Week

750W Bifacial TOPCon N-Type Panel

750W A-Grade Bifacial Solar Panel with Double Glass TOPCon N-Type Technology

Model Type	YS710M-132	YS720M-132	YS730M-132	YS740M-132	YS750M-132
Max Power (STC)	710W	720W	730W	740W	750W
Max Power Voltage (Vmp)	40.48V	40.86V	41.04V	41.34V	41.52V
Max Power Current (Imp)	17.54A	17.62A	17.78A	17.9A	18.06A
Open Circuit Voltage (Voc)	45.55V	45.85V	46.15V	46.45V	46.75V
Short Circuit Current (Isc)	18.45A	18.54A	18.66A	18.79A	18.92A
Module Efficiency	22.85%	23.17%	23.5%	23.82%	24.14%

Manufacturing Excellence

Established since 1994 with 300MW annual production capacity.
Solar power range from 3W to 750W for Monocrystalline and Polycrystalline panels.
10 years workmanship and materials warranty.
Linear power output warranty: 90% for 10 years and 80% for 25 years.
100% EL (Electroluminescence) testing before packaging and shipping.
Products certified by TUV (Germany) and CE for international quality standards.
Extensive experience in exporting to over 150 countries worldwide.

Frequently Asked Questions

What are the advantages of N-type TOPCon technology?

N-type TOPCon technology offers higher conversion efficiency (up to 24.14% for this model), lower degradation rates, and better performance in low-light conditions compared to traditional P-type cells.

How does the bifacial double glass design benefit the user?

Bifacial panels can generate electricity from both the front and the back side by absorbing reflected light from the ground, significantly increasing the total energy yield. Double glass provides superior durability and resistance to moisture.

Are these panels suitable for harsh industrial environments?

Yes, with an IP68 waterproof junction box and a heavy-duty anodized aluminum alloy frame, these panels are designed to withstand extreme weather conditions, including high wind loads and snow pressure.

What is the warranty period for the 750W solar panels?

These panels come with a 10-year total workmanship and materials warranty, along with a 25-year linear power output warranty ensuring at least 80% performance after 25 years.

What kind of testing do the panels undergo before delivery?

Every single panel undergoes a 100% EL (Electroluminescence) test to detect any micro-cracks or defects, ensuring that only A-grade quality modules are shipped to customers.

What are the dimensions and weight of the YS750M-132 model?

The module measures 2384mm x 1303mm x 35mm and weighs approximately 36kg, making it a powerful solution for large-scale industrial and utility solar projects.
