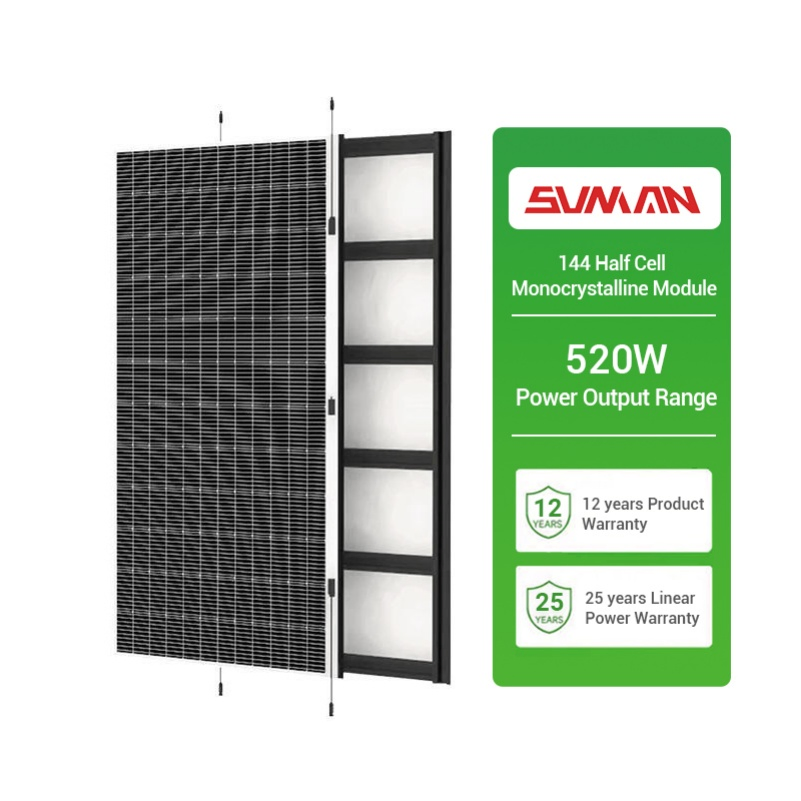

| Model NO. | SMF520J-12X12UW |

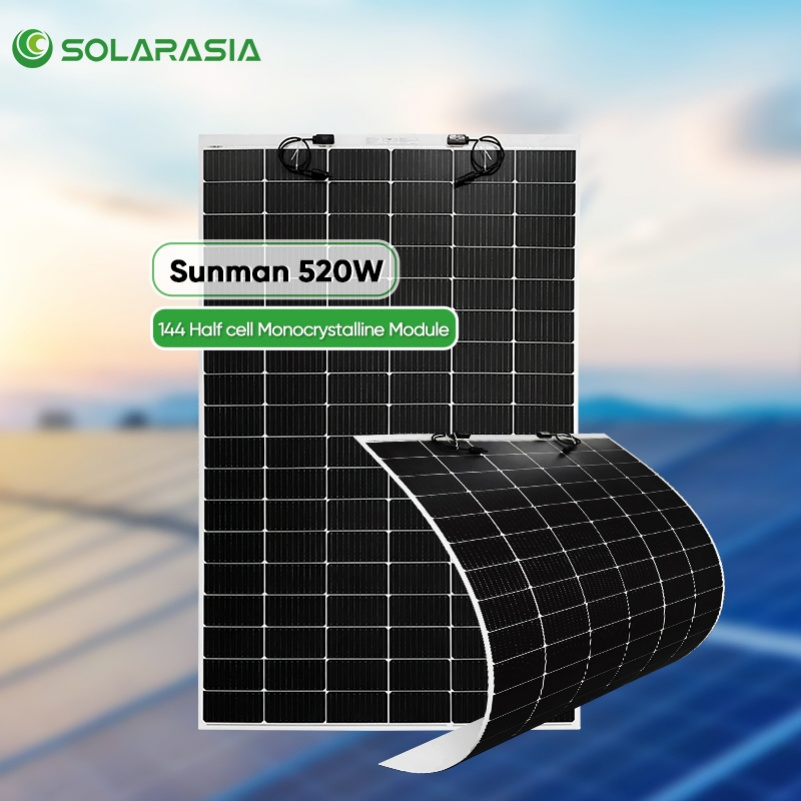

| Number of Cells | 144 cells |
| Application | Homeuse |
| Condition | New |
| Certification | ISO, CE, TUV |
| Material | Monocrystalline Silicon |

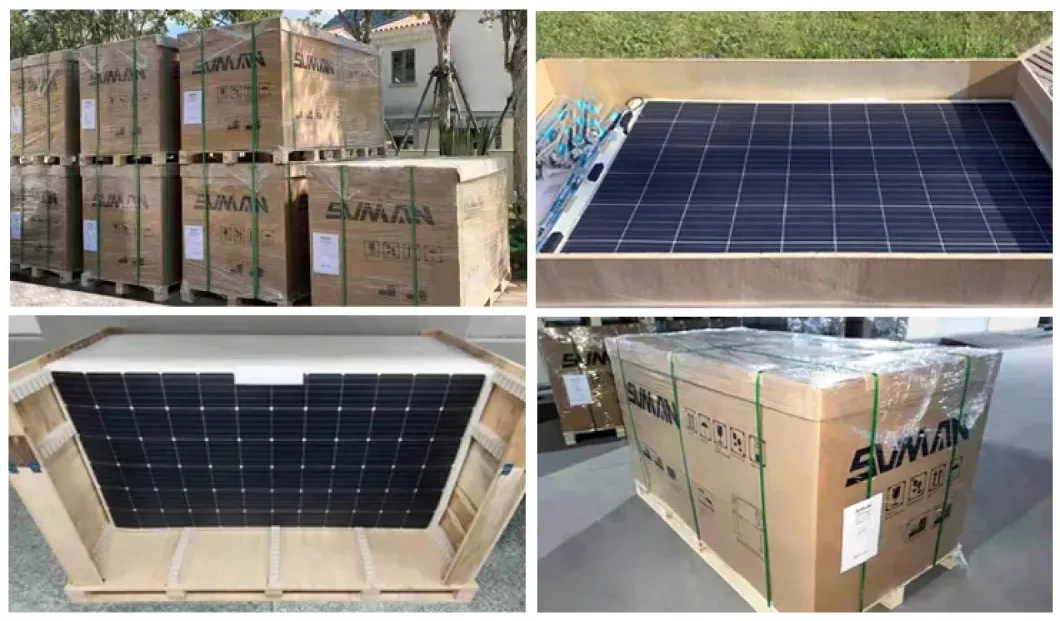

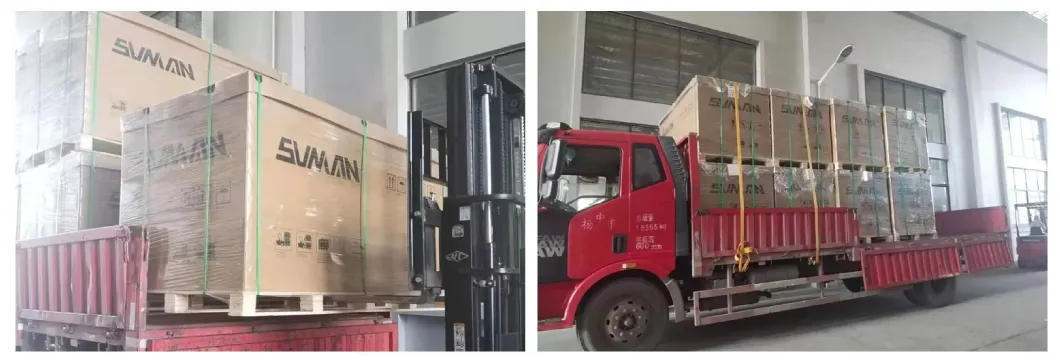

| Transport Package | 66PCS/Pallets |
| Specification | 2246*1197*2mm |
| Origin | China |
| HS Code | 8541402000 |
| Production Capacity | 200,000,000 watt/Week |
| Package Size | 215.00cm * 110.00cm * 20.00cm |
| Package Gross Weight | 80.000kg |

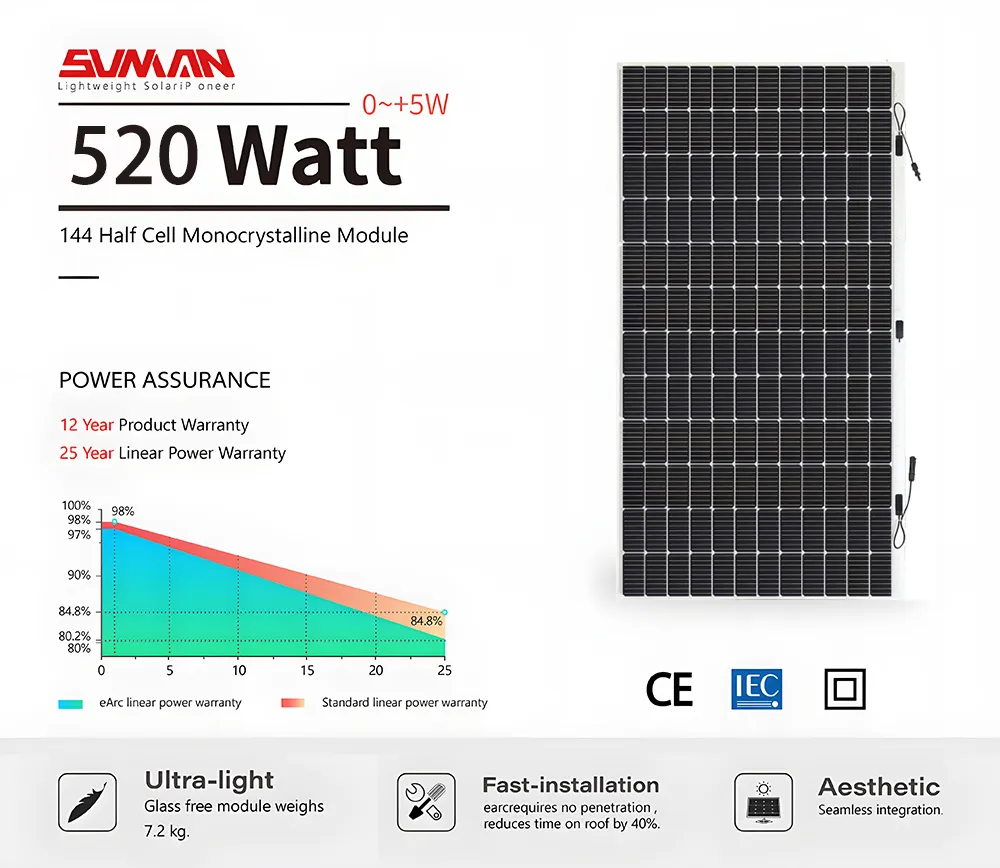

| Specification Item | Technical Data (SMF520J-12X12UW) |
|---|---|

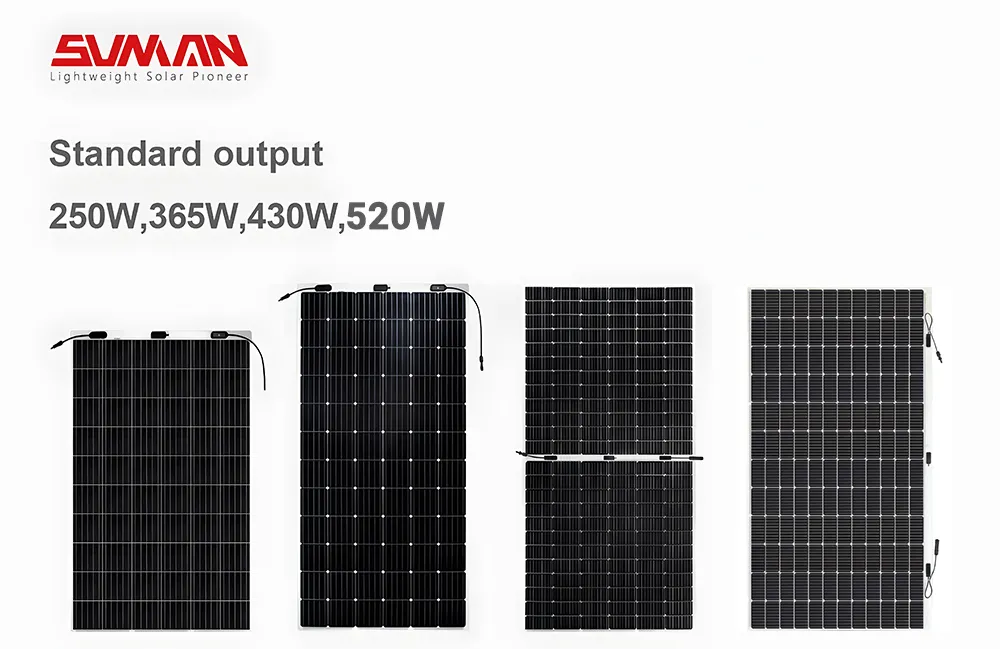

| Maximum Power (Pmax) | 520W |
| Maximum Power Voltage (Vmp) | 42.3V |
| Maximum Power Current (Imp) | 12.31A |
| Open-circuit Voltage (Voc) | 49.5V |
| Short-circuit Current (Isc) | 13.56A |
| Module Efficiency (%) | 19.3% |
| Operating Temperature | -40ºC to 85ºC |
| Maximum System Voltage | 1500V DC(IEC) |
| Maximum Series Fuse Rating | 25A |
| Weight | 8.6KG |
| Size | 2246*1197*2mm |
| STC Conditions | Irradiance 1000W/m2, Cell 25ºC, AM=1.5 |
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less.
A3: Delivery time 7 days for sample; 15 days for bulk order.
A4: Generally warranty for solar panel is 10 years, also we offer 25 years linear output power warranty.
A5: We have a professional engineer team that can provide the best support based on your requirements. We offer 24-hour online service to solve any problems within 1 hour.

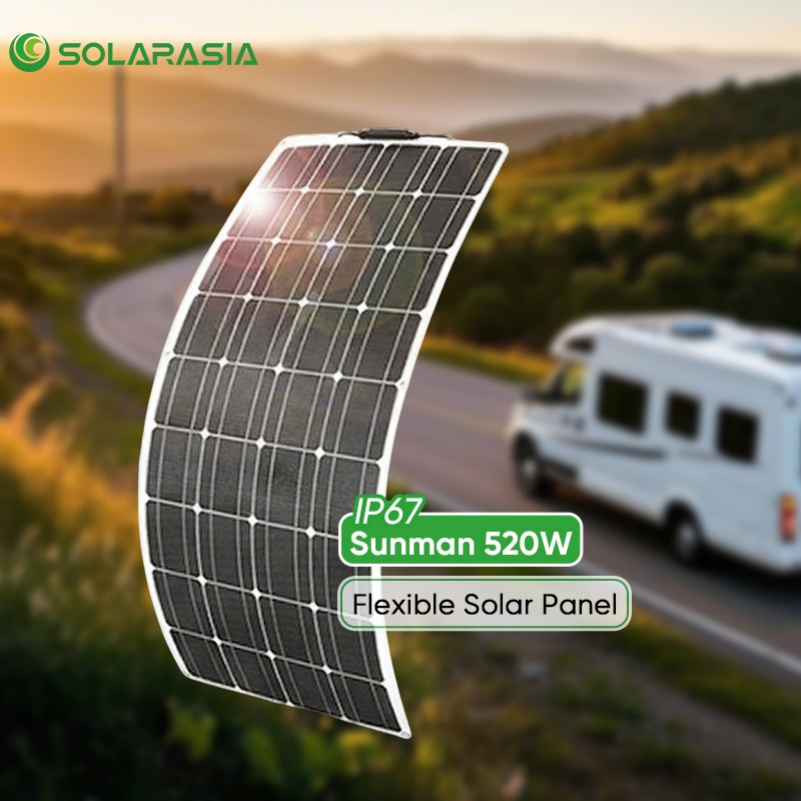

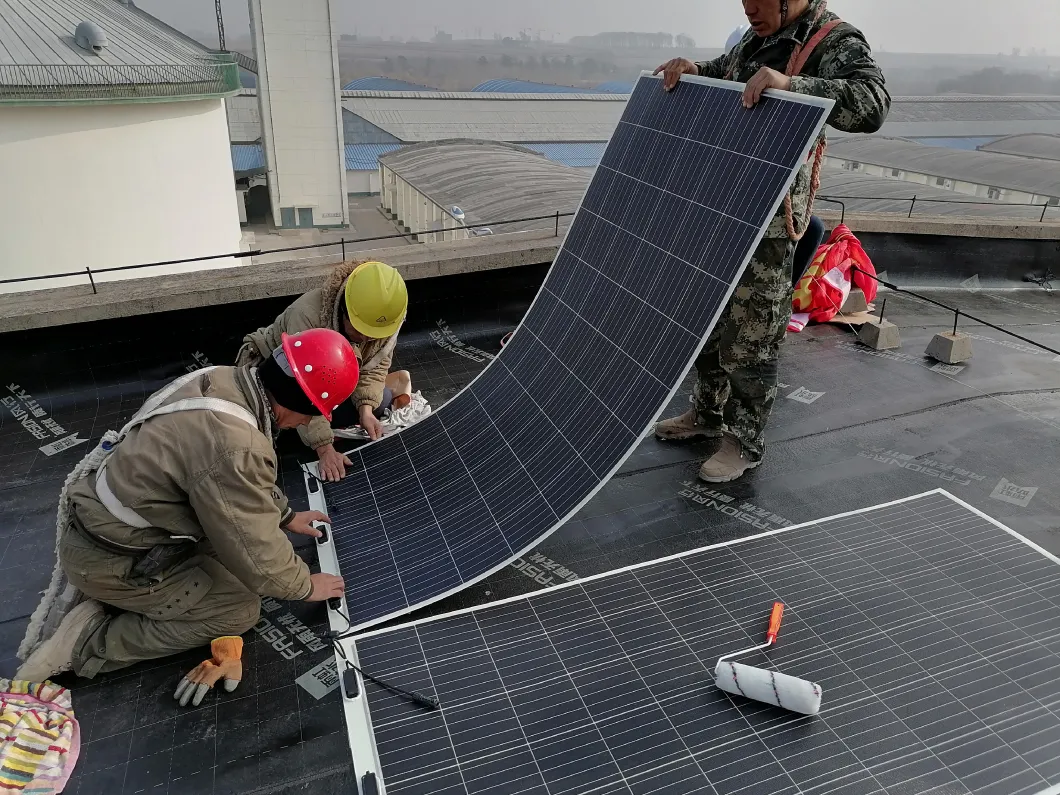

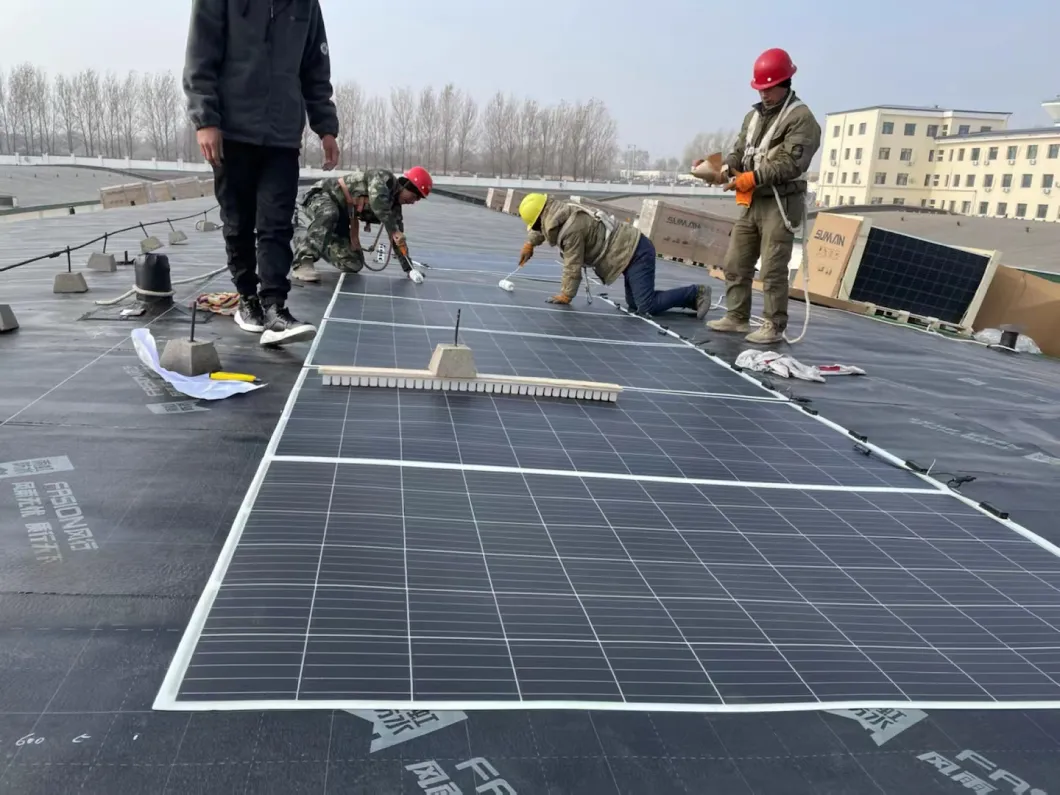

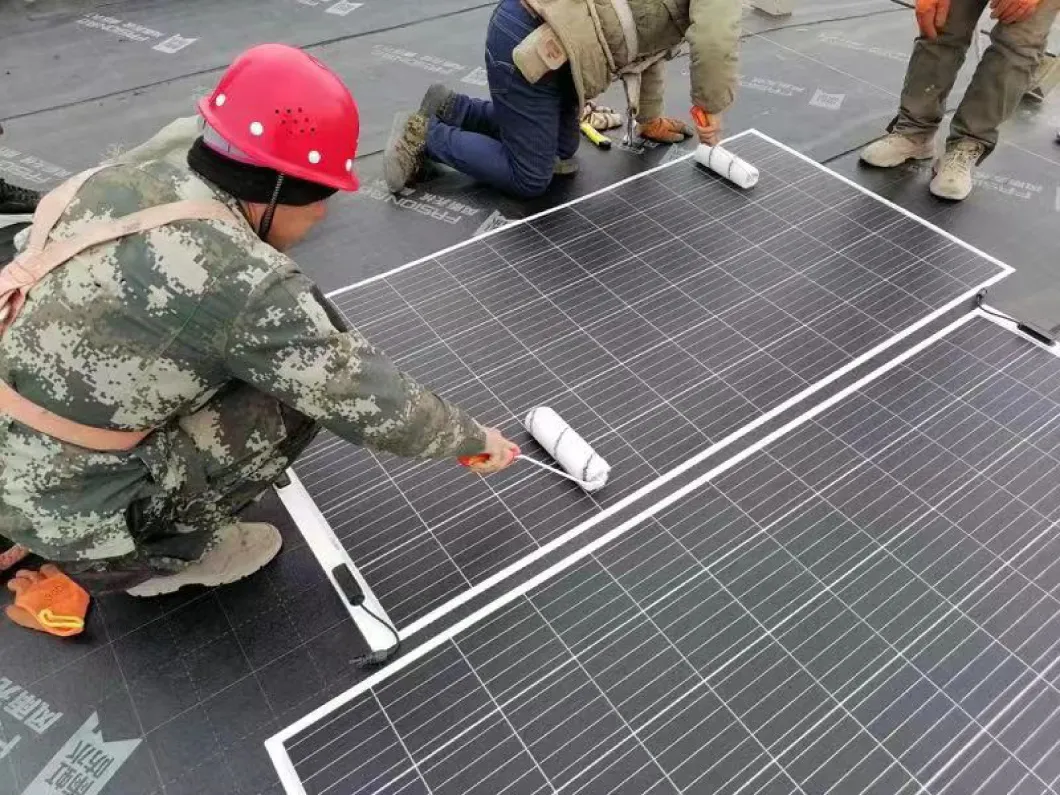

A6: Yes, our flexible panels are designed to be waterproof and highly efficient, suitable for various environments including house systems and mobile applications.
