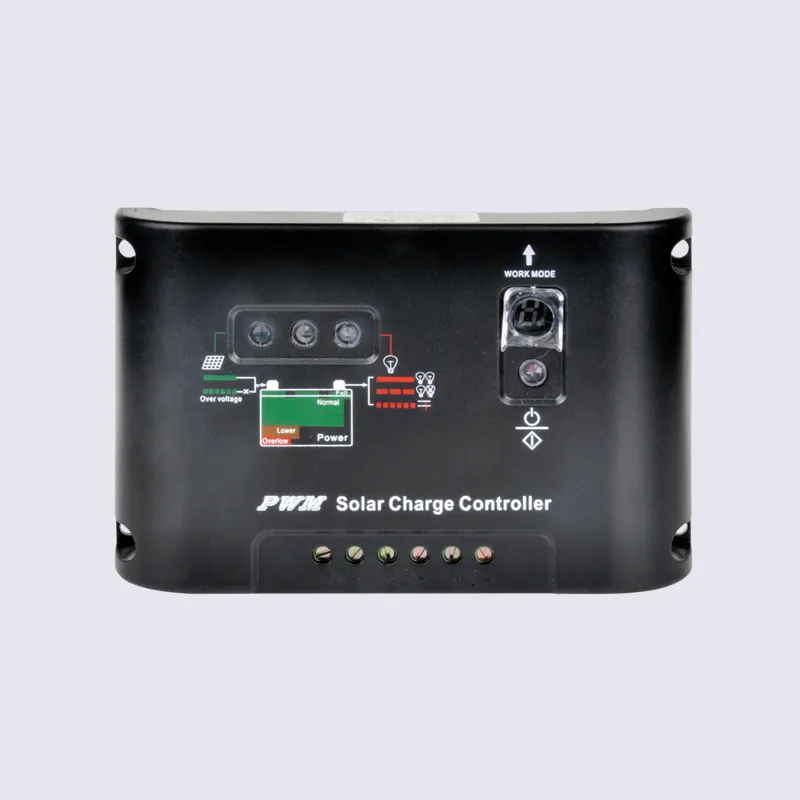

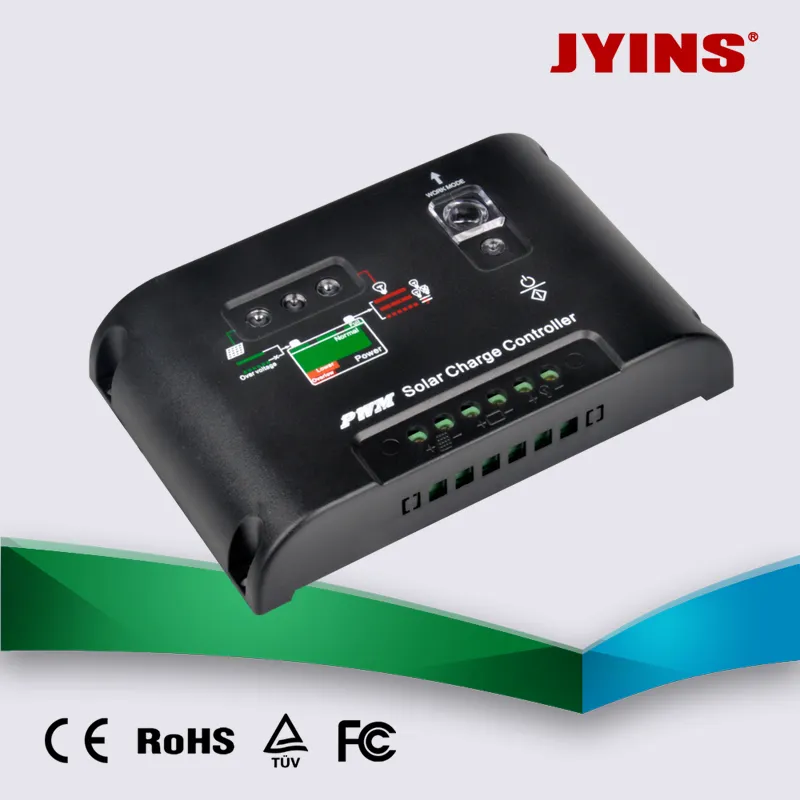

12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller

1 / 3

12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller

Customization:	Available
Condition:	New
Certification:	ISO, CE

Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.

Application

Collector Controller, Solar System Controller, Charger Controller, Lighting Controller

Rated Voltage

12V/24V Automatic

Control Mode

PWM

Warranty

18 Months

Approval

CE & RoHS

Dimension

140*90.5*28.5mm

Weight

210g

Capacity

10000 PCS/Month

HS Code

8504403090

☀

Product Description

12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller

⚙

Technical Parameters

Model	KT1205	KT1210	KT1215	KT1220
Rated charging current	5A	10A	15A	20A
Rated discharging current	5A	10A	15A	20A
System voltage	12V/24V Auto adapt
Stand-by lost	<5mA
Max solar panel voltage	21V
Float charging	13.8V
Discharge stop voltage	11.2V
Operating temperature	-35ºC to +55ºC

Attention:
1. All voltage are for 12V system, please multiply by 2 if using 24V system.
2. Voltage tolerance: 1%.
3. Specifications are subject to change without prior notice.

✔

Why Choose Our Solutions

Frequently Asked Questions

Would you accept to use our logo?

If you have good quantity, it is absolutely no problem to do OEM.

Does the controller connect with solar system?

Yes. It combines unique features to work perfectly with solar systems, and can also be used in office equipment, household items, and power tools.

What kind of certificates do you have?

Our products have already achieved CE and ROHS. Other certificates can be applied for as per your requirements.

How long is the warranty?

We provide a standard warranty of 18 months.

What are the accepted payment methods?

We accept PayPal, Western Union, and T/T. We are open to other convenient payment methods as well.

What is your monthly production capacity?

It depends on the model. For smaller capacity relay types, it can reach near 200,000pcs, and for larger capacities, near 30,000pcs.
