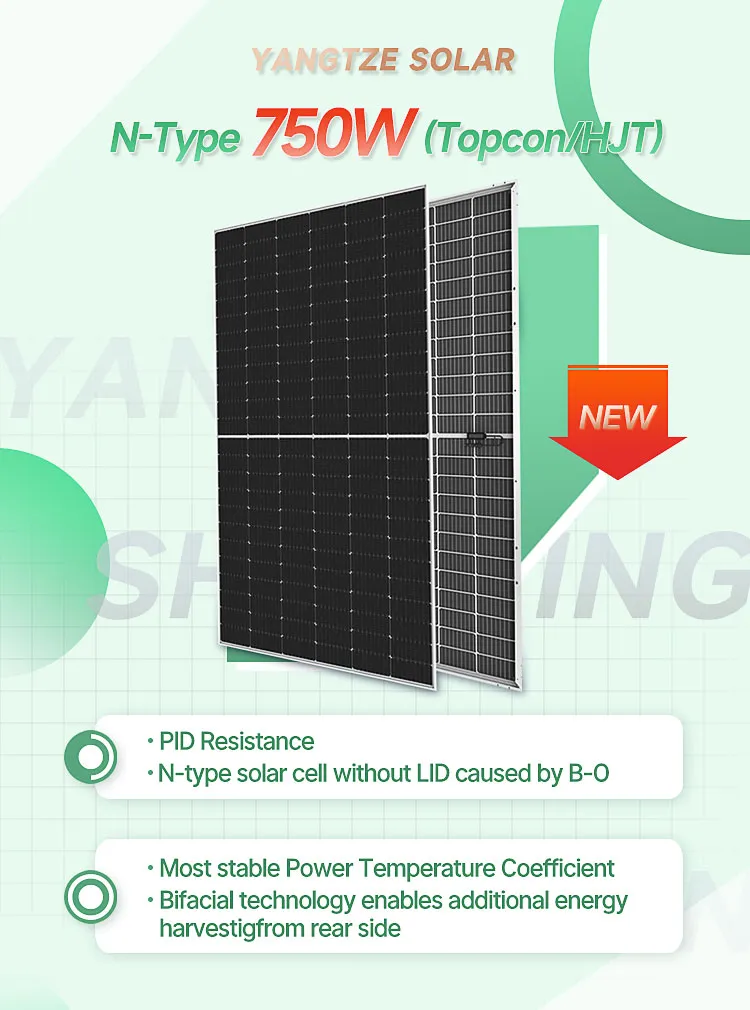

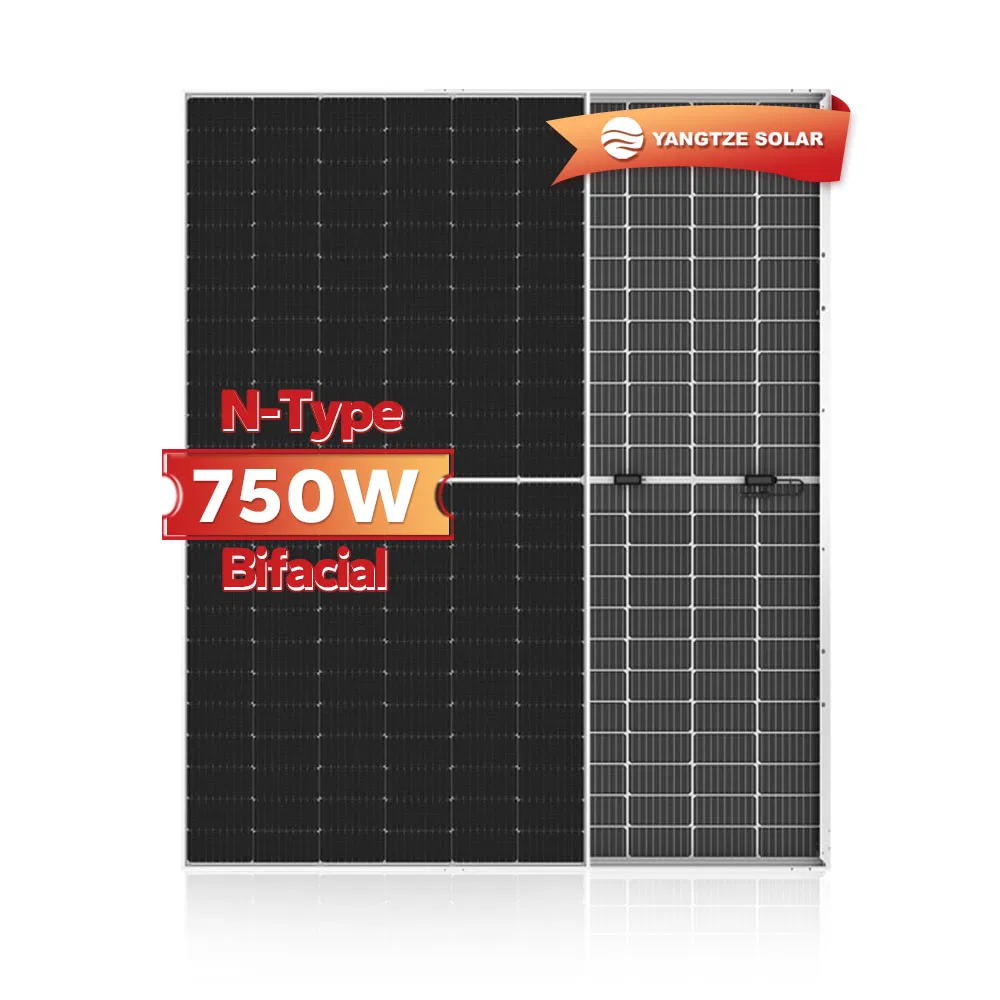

750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency

1 / 5

750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

YS750M-132

Number of Cells

132PCS

Application

Industrial

Condition

New

Certification

ISO, CE, TUV, Cec, IEC61215, IEC61730

Material

Monocrystalline Silicon

Frame

Anodized Aluminium Alloy

Junction Box

IP67 Waterproof

Solar Cell

Mono 210*210mm Cell

Front Cover

3.2mm High Transmission Low Iron Tempered Glass

Connector

Mc4 Compatible Connector

Backsheet Color

White / Black / Transparent

Frame Color

Silvery or Black

Weight

35kg

Specification

2400*1303*35mm

Origin

China

☀️ Product Description

Model Type	YS710M-132	YS720M-132	YS730M-132	YS740M-132	YS750M-132
Rated Max Power (STC)	710W	720W	730W	740W	750W
Max Power Voltage (Vmp)	40.48V	40.86V	41.04V	41.34V	41.52V
Max Power Current (Imp)	17.54A	17.62A	17.78A	17.9A	18.06A
Open Circuit Voltage (Voc)	45.55V	45.85V	46.15V	46.45V	46.75V
Short Circuit Current (Isc)	18.45A	18.54A	18.66A	18.79A	18.92A
Module Efficiency	22.85%	23.17%	23.5%	23.82%	24.14%

STC: Irradiance 1000W/m², Cell Temperature 25°C, Spectra at AM1.5

NOCT: Irradiance 800W/m², Ambient Temperature 20°C, Spectra at AM1.5, Wind at 1m/s

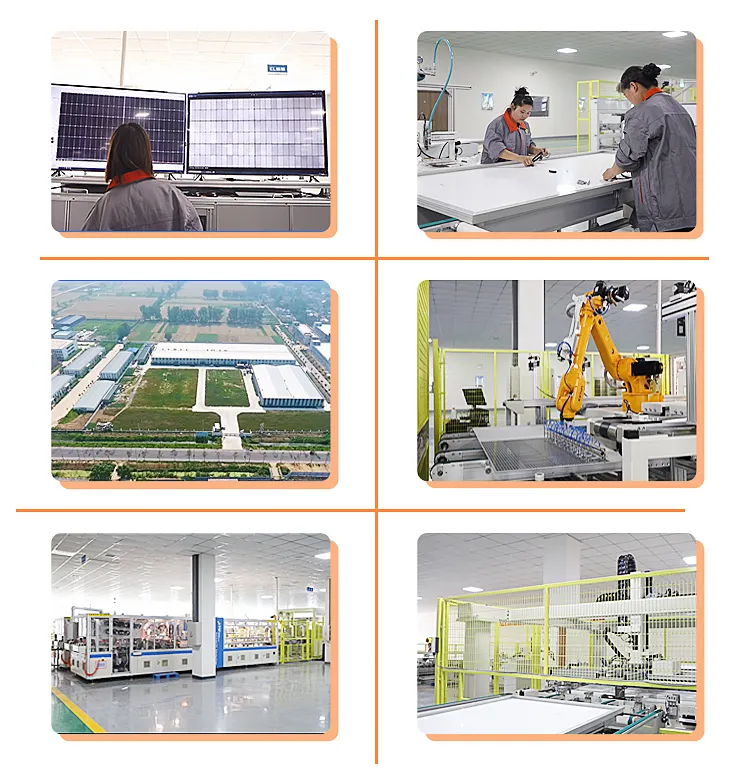

🏭 Production Highlights

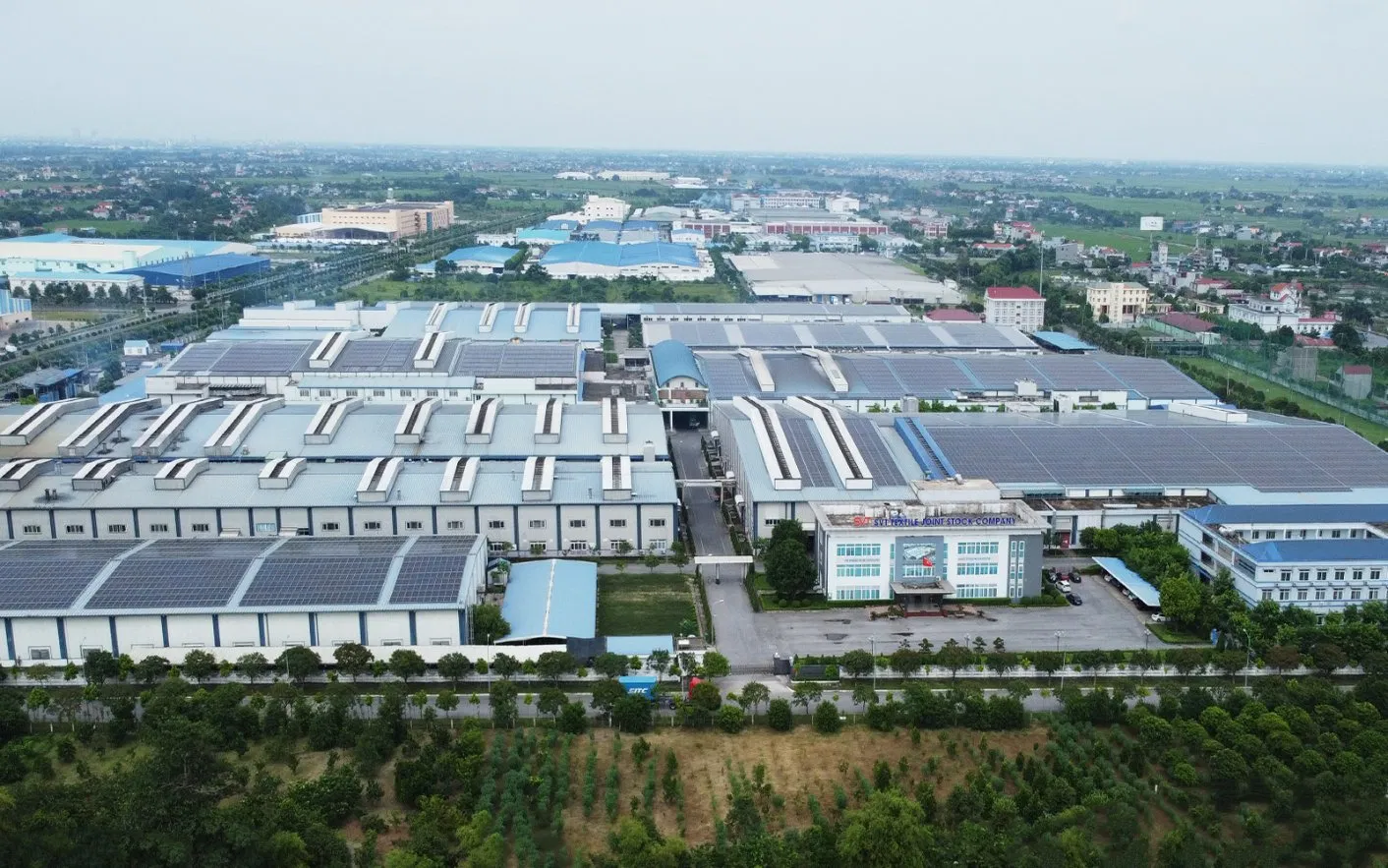

300MW solar panel production capacity
Panel power range from 3W to 750W (Mono/Poly)
10 years workmanship and materials warranty
25 years linear power output warranty (80%)
100% EL test before packaging and shipping
Products exported to more than 150 countries
Certified by TUV (Germany) and CE
Turn-key solar systems offered for efficiency

📦 Logistics & Quality

FAQ

1. What is the efficiency of the N-Type Topcon solar panels? Our 750W modules reach an impressive efficiency of up to 24.14%, utilizing advanced monocrystalline technology for maximum power harvest.

2. How durable are these panels against environmental factors? The panels feature IP67 waterproof junction boxes and 3.2mm high-transmission tempered glass, designed to operate in temperatures from -40°C to +85°C.

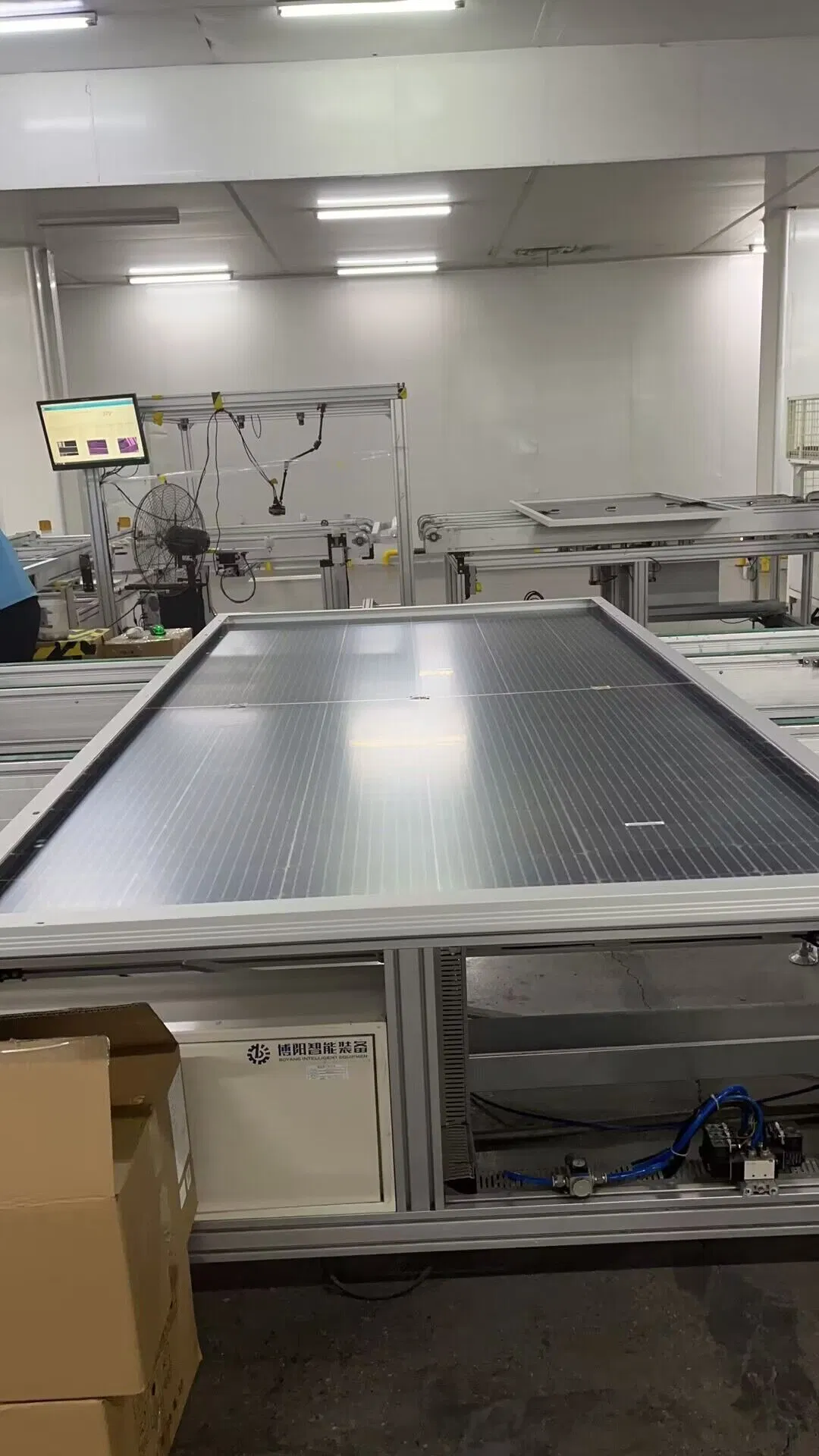

3. Do you provide quality assurance testing? Yes, 100% EL (Electroluminescence) testing is performed on every module before packaging to ensure there are no micro-cracks or defects.

4. What is the warranty period for these solar modules? We offer a 10-year warranty on materials and workmanship, along with a 25-year linear power output warranty.

5. Are these panels suitable for large-scale industrial projects? Absolutely. With a 750W high-power output and 1500V system voltage compatibility, they are specifically optimized for commercial and industrial applications.

6. Can I customize the frame or backsheet color? Yes, we support OEM orders with options for silvery or black frames and white, black, or transparent backsheets to meet your design needs.
