Product Description

i

Basic Specifications

Model NO.
YS700M-66
Number of Cells
132 PCS
Application
Industrial
Condition
New
Certification
ISO, CE, TUV, Cec, IEC61215, IEC61730
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Waterproof
Solar Cell
Mono 210*105mm Half Cell
Front Cover
3.2mm High Transmission Low Iron Tempered Glass
Size
2400*1303*35mm
Connector
Mc4 Compatible Connector
Weight
36 Kg
Origin
China
P

Product Description

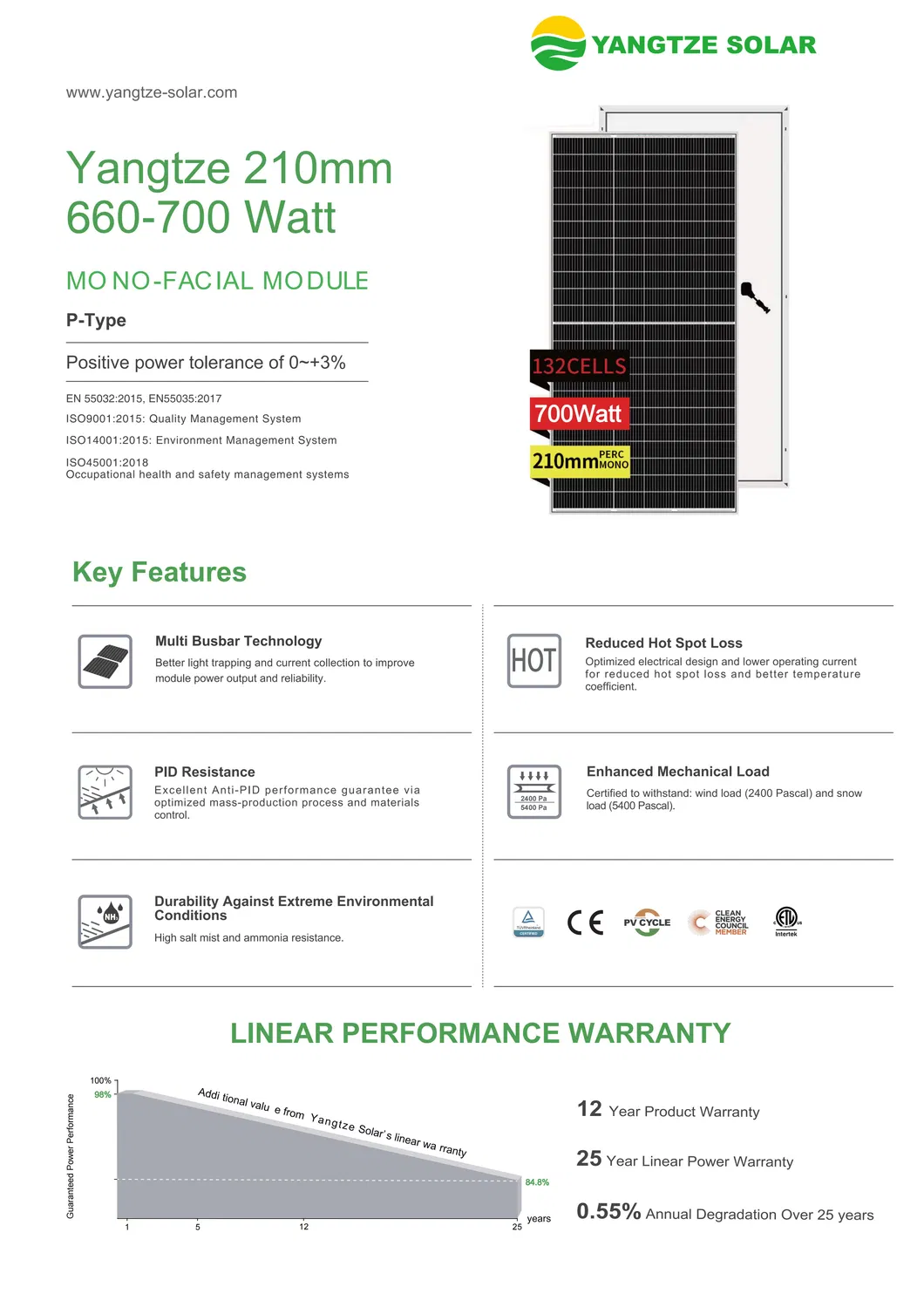

700W Solar Panel Detail 1

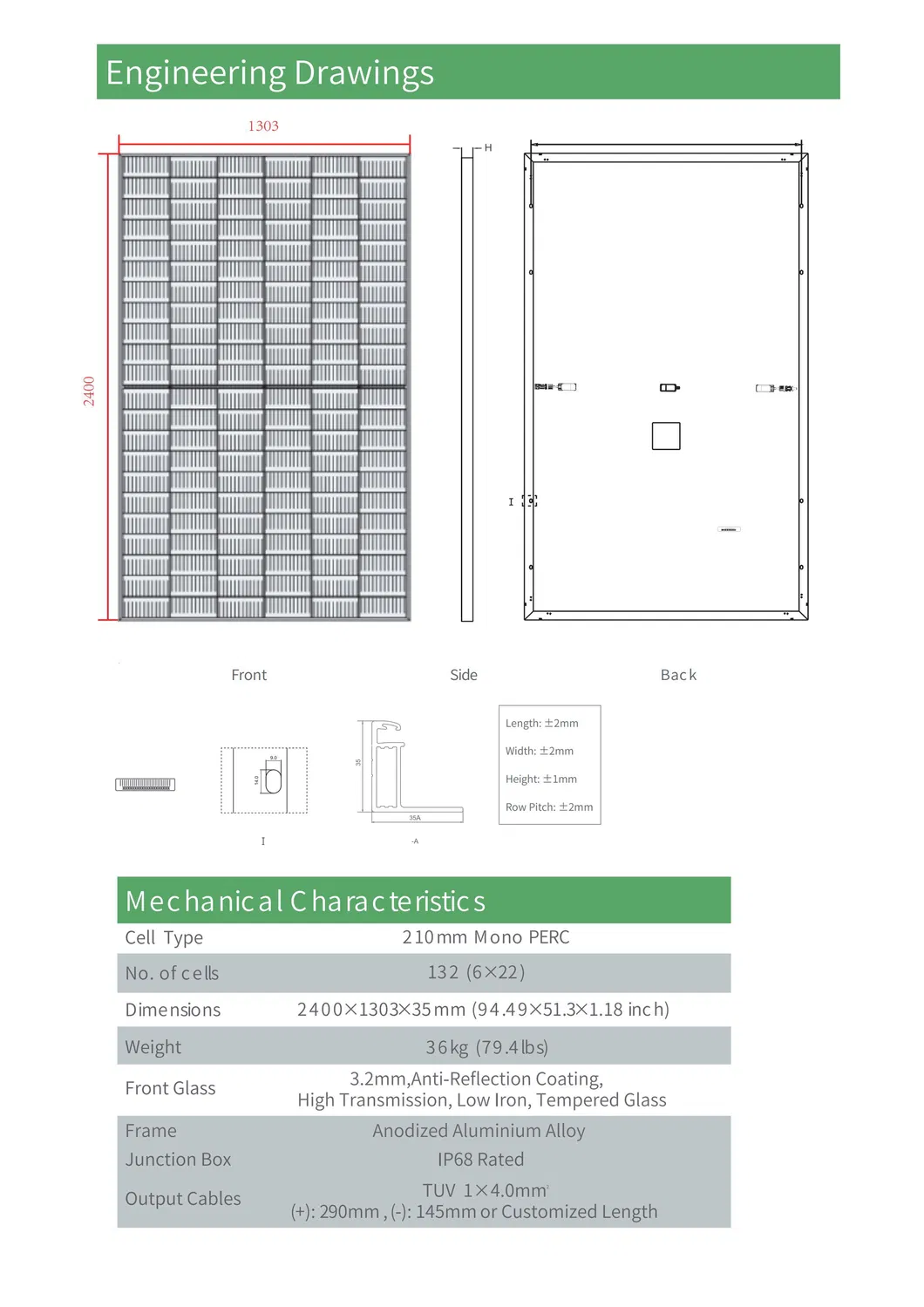

700W Solar Panel Detail 2
Model Type YS660M-66 YS670M-66 YS680M-66 YS690M-66 YS700M-66
Rated Max Power (STC) 660W 670W 680W 690W 700W
Max Power Voltage (Vmp) 38.38V 38.68V 38.98V 39.28V 39.58V
Max Power Current (Imp) 17.20A 17.33A 17.45A 17.57A 17.69A
Open Circuit Voltage (Voc) 45.55V 45.85V 46.15V 46.45V 46.75V
Short Circuit Current (Isc) 18.45A 18.54A 18.66A 18.79A 18.92A
Module Efficiency 21.1% 21.4% 21.7% 22.0% 22.3%

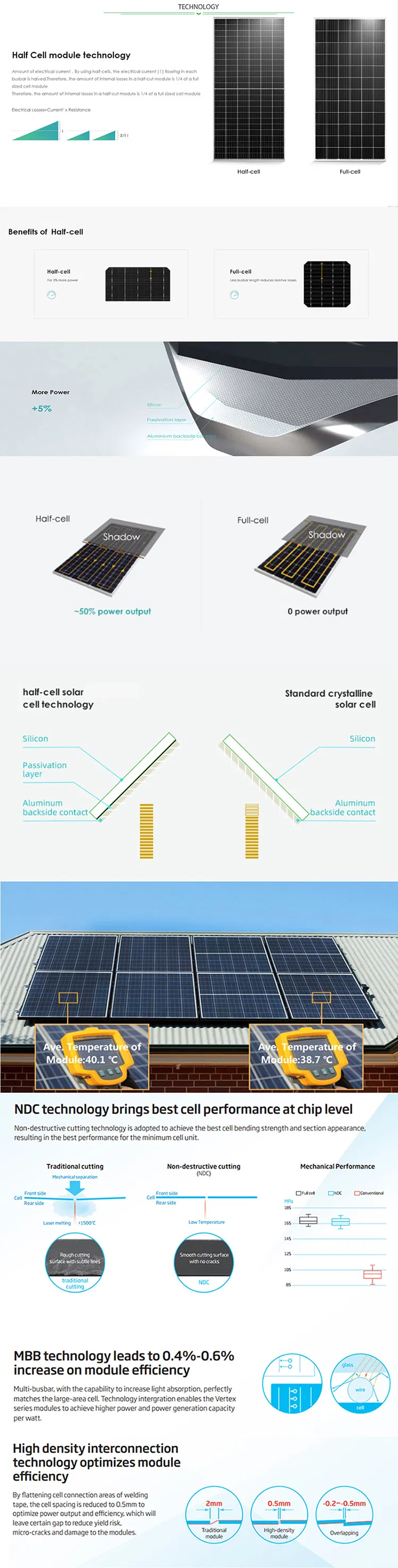

Technical Specs
F

Professional Manufacturing

  • Founded in 1994, 300MW solar panel production capacity, range 3W to 800W.
  • 10 years workmanship and materials warranty.
  • 25 years linear power output warranty (80% output).
  • 100% EL test before packaging and shipping to ensure zero defects.
  • Products exported to more than 150 countries worldwide.
  • Certified by TUV (Germany) and CE for international safety standards.
  • Turn-key solar systems offered to save time and cost for clients.
Factory Facility 1

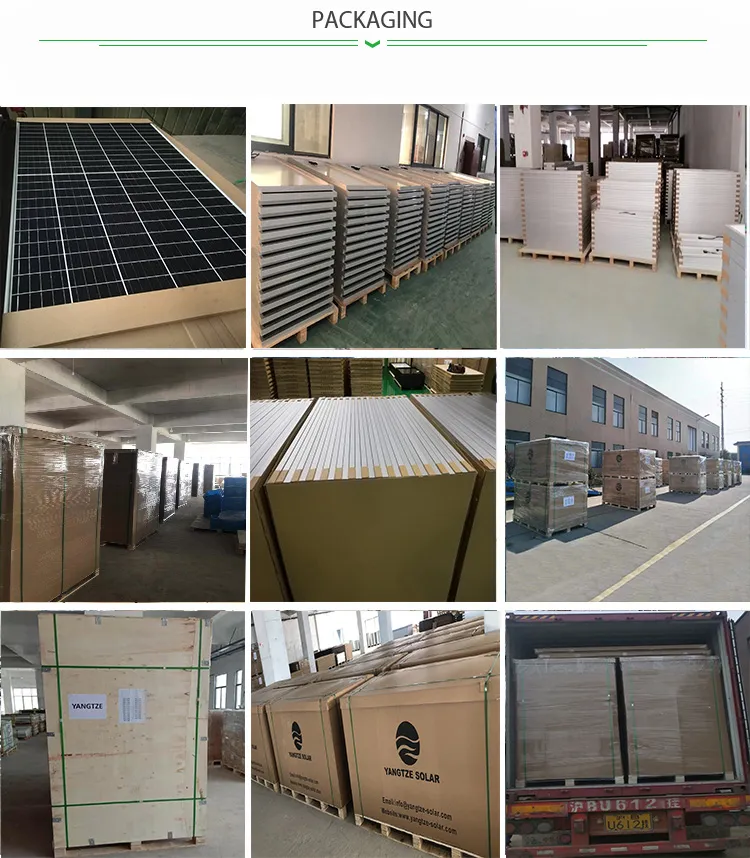

Factory Facility 2

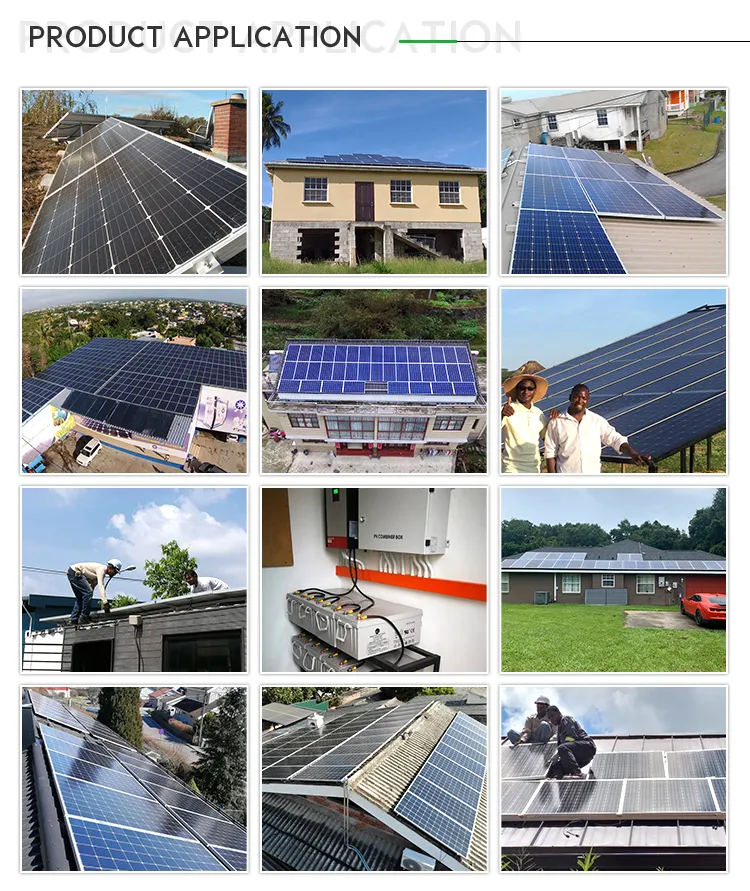

Factory Facility 3
Certification 1
Certification 2
Certification 3
?

Frequently Asked Questions

What is the power range of these solar panels?
These monocrystalline panels range from 660W up to a maximum of 700W, utilizing high-efficiency 210mm half-cell technology.
What kind of warranty is provided?
We provide a 10-year total workmanship and materials warranty, along with a 25-year linear power output warranty (guaranteeing 80% output after 25 years).
Are the solar panels tested before shipping?
Yes, 100% EL (Electroluminescence) testing is performed on every panel before packaging and shipping to ensure no micro-cracks or defects.
What certifications do these panels hold?
The products are certified by TUV (Germany), CE, ISO, TUV, Cec, IEC61215, and IEC61730, ensuring they meet global quality standards.
Can these panels be used for industrial projects?
Absolutely. These high-power panels are specifically designed for industrial applications and large-scale solar power systems.
What is the benefit of the IP68 junction box?
The IP68 rating provides the highest level of protection against dust and water ingress, ensuring the longevity and safety of the electrical connections in harsh environments.
