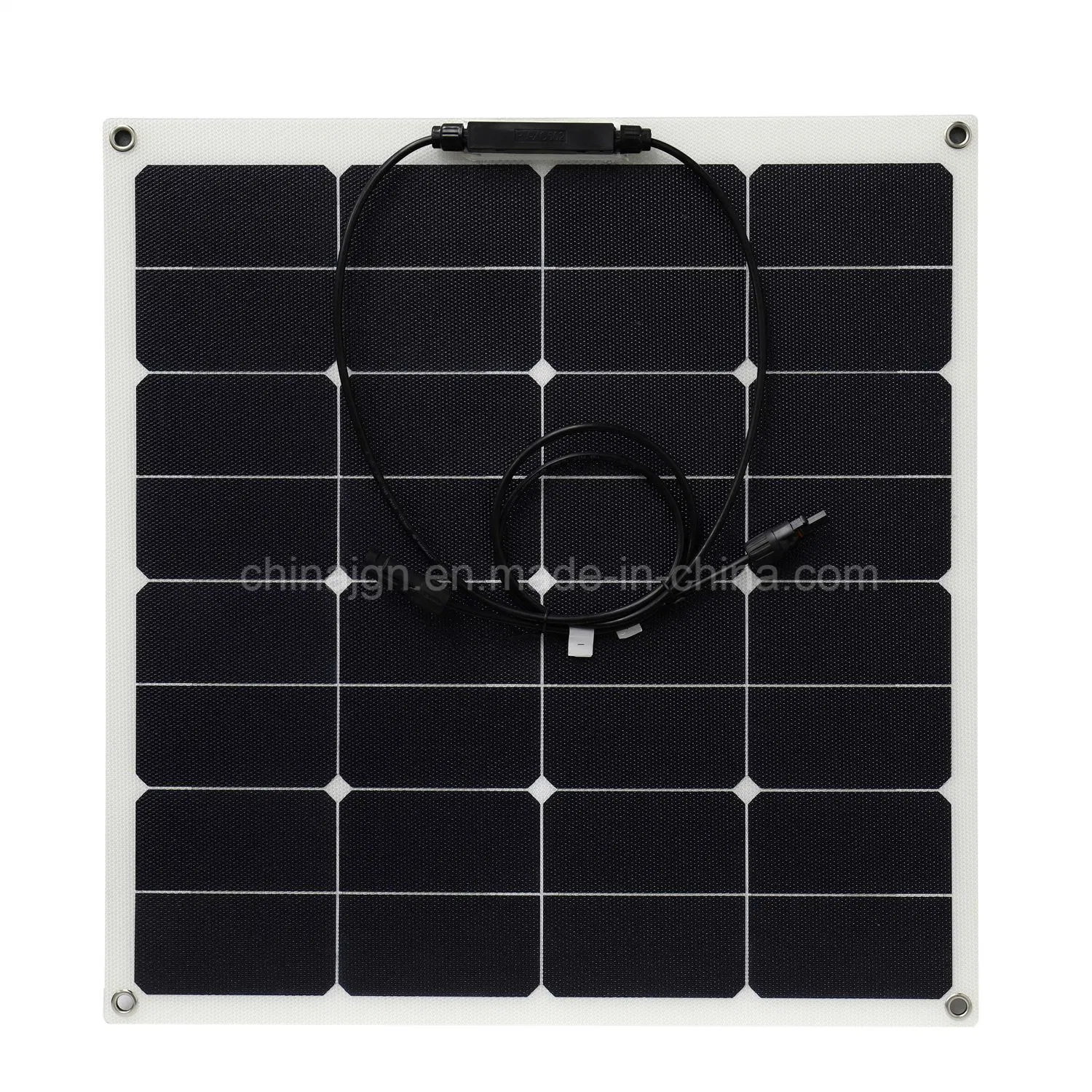

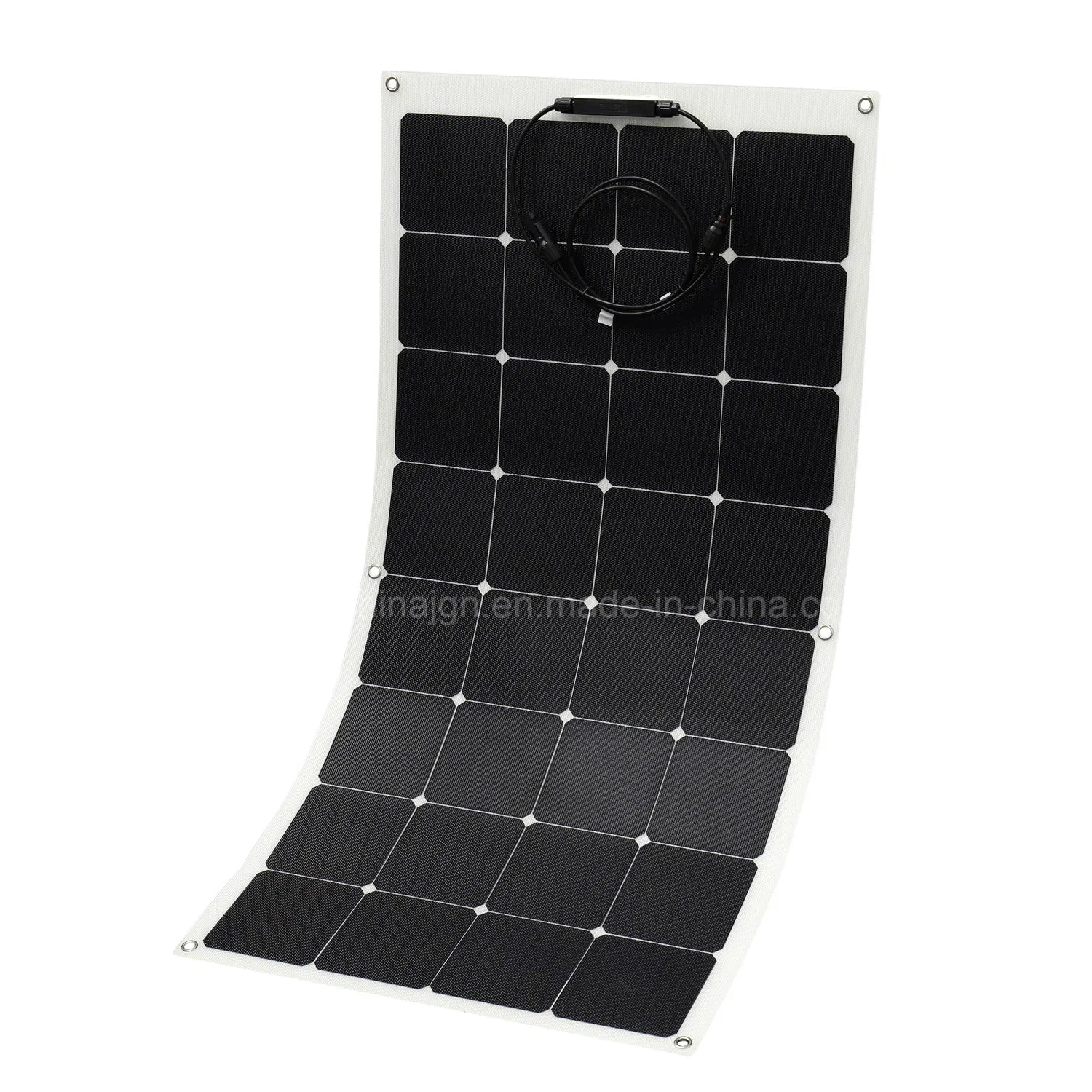

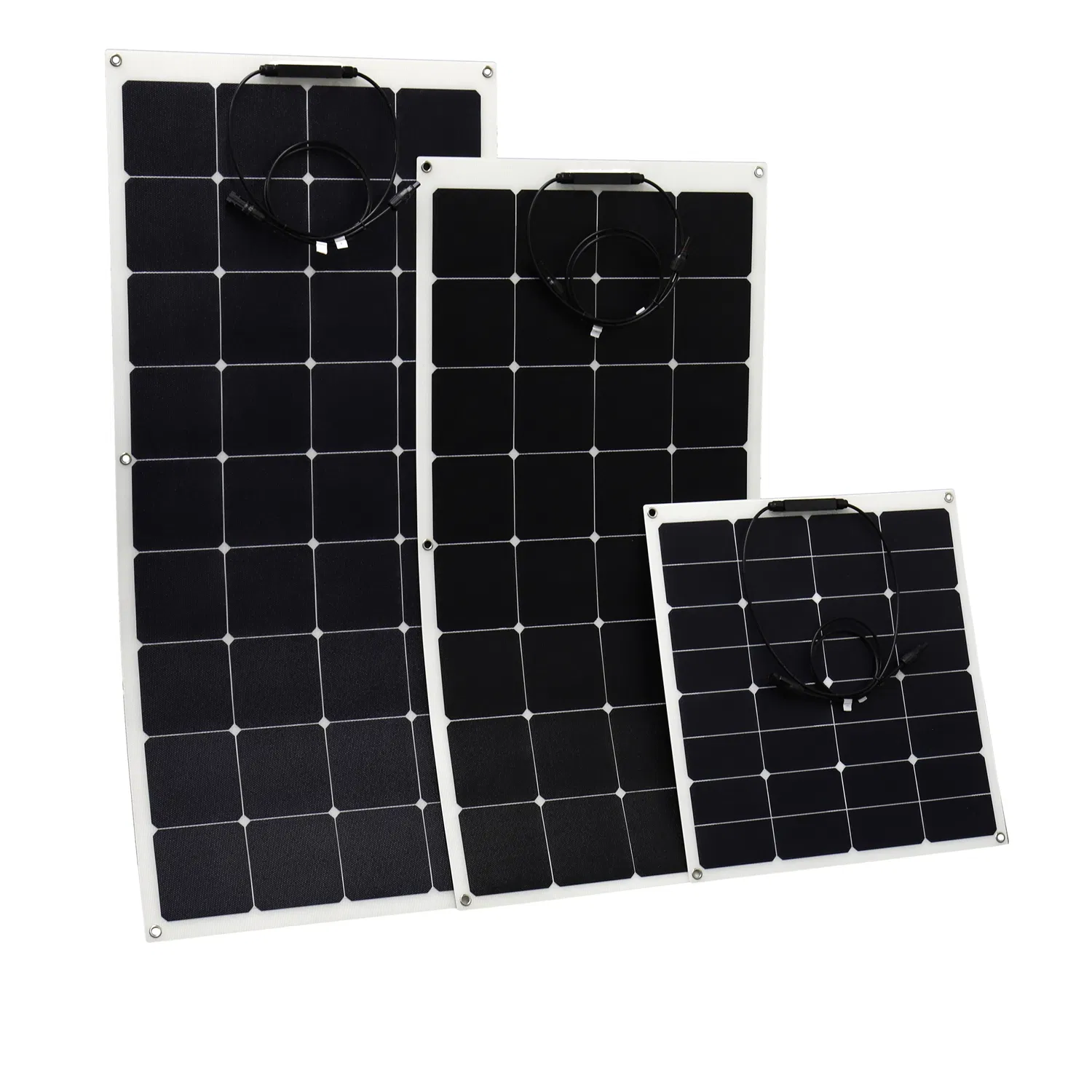

50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
1 / 5
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)

50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Overview
Model NO.
JGN-50W-SPFE
Application
Solar Boats, Solar Rvs, Solar Golf Carts
Condition
New
Certification
ISO, CE, RoHS
Material
Sunpower Solar Cell
Weight
Light & Semi-Flexible
Solar Cell
Sunpower/Mono
Color
White/Black Optional
Size
Customized
Specification
560mm*540mm*3mm
Production Capacity
50MW/Year
💡 Product Description
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)

Description:

  • Semi-flexible solar panel is used widely on yacht, boat, RV, golf carts etc.
  • Revolution on producing technology of solar panel cutting 70% weight from standard rigid solar panel.
  • We import Sunpower® Solar cells directly, featuring 22%-25% high efficiency.

Key Features:

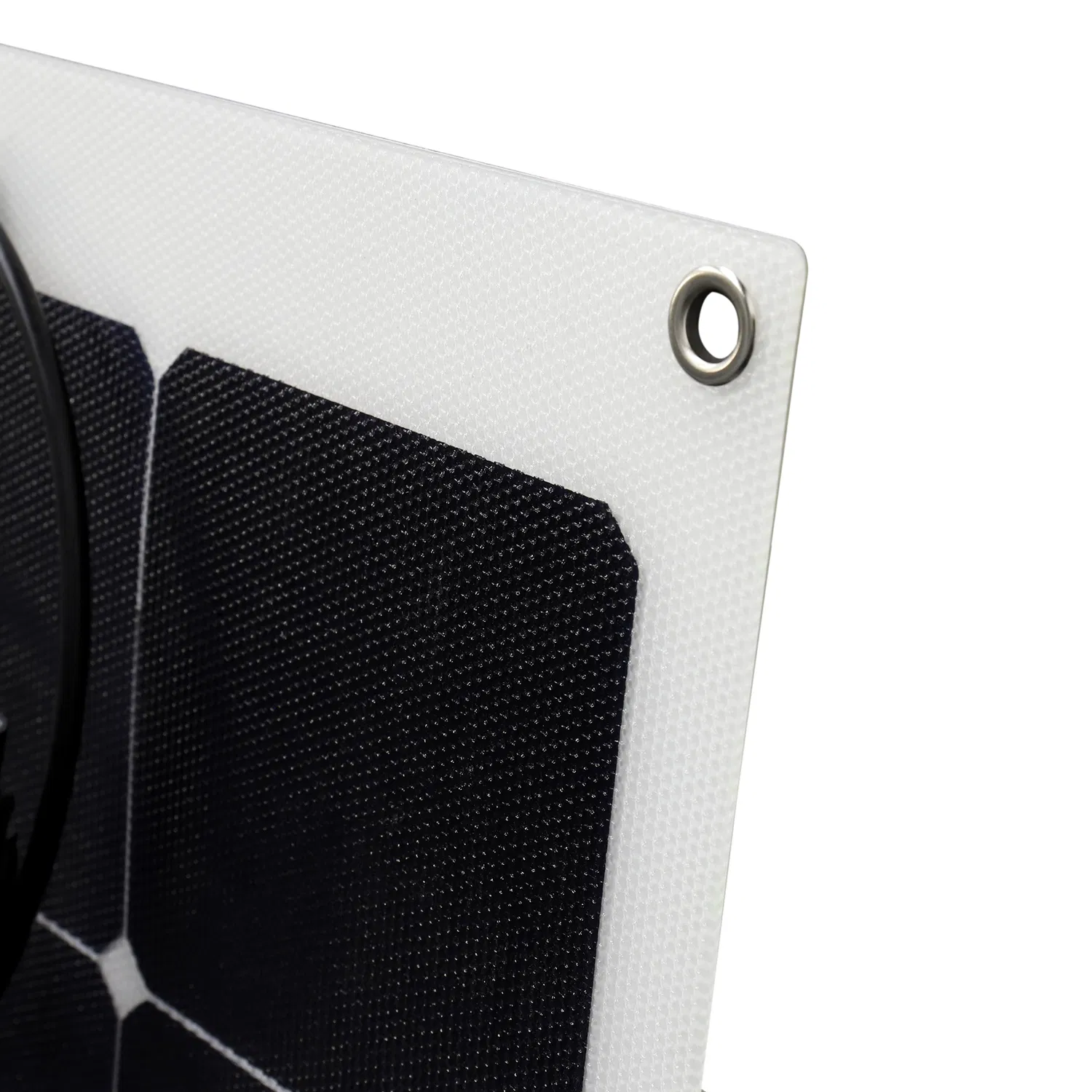

  • Stainless grommets on the corners for easy installation.
  • Semi flexible and the bedding angle up to 30 degrees.
  • Light weight and thin for easier carry, contain no glass or aluminum.
  • Thickness only 2.5~3mm for easy joint to your yacht or RV roof.

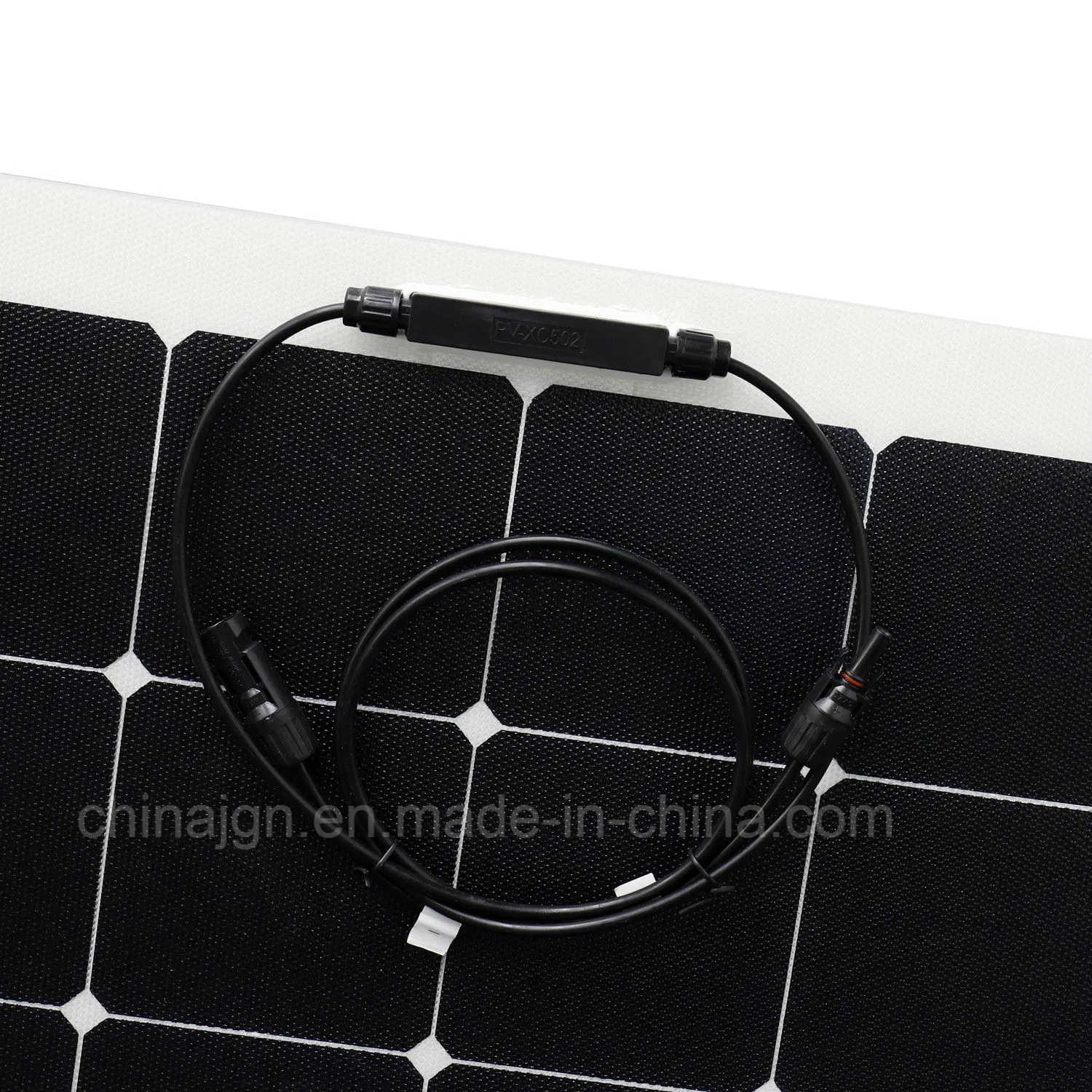

  • Pencil type junction box (IP65) with built-in diode.
📊 Product Parameters
Model numberJGN-50W-SPFE
Peak power / Pm(W)50±5%
Max. power voltage / Vmp(V)16.7
Max. power current / Imp(A)3.00
Open circuit voltage / Voc(V)20.8
Short circuit current / Isc(A)3.23
Solar cell efficiency22.00% around.
Dimensions(L*W*T)560*540*3.0mm.
Solar cell size & ConnectionSunpower solar cells, 32-cell in series.
Encapsulation methodETFE laminated
Junction boxOptional
Standard Testing ConditionsIrradiance:1000W/m2, Cell temperature:25ºC, AM:1.5.
LifespanOver 8 years.
Product CertificationsCE, RoHS.
🖼️ Product Display

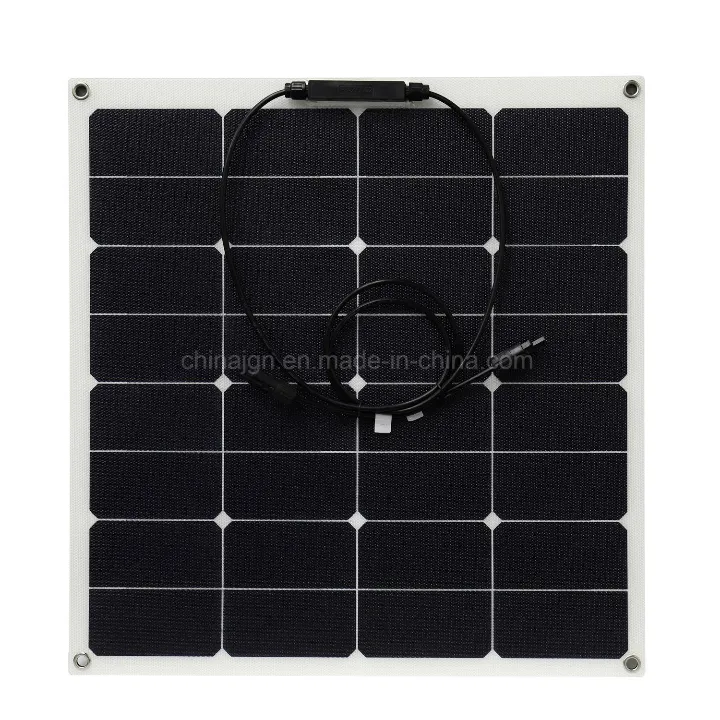

50W Solar Panel View 1

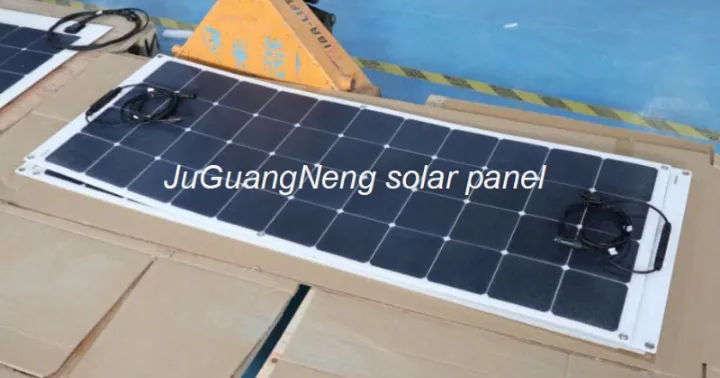

50W Solar Panel View 2

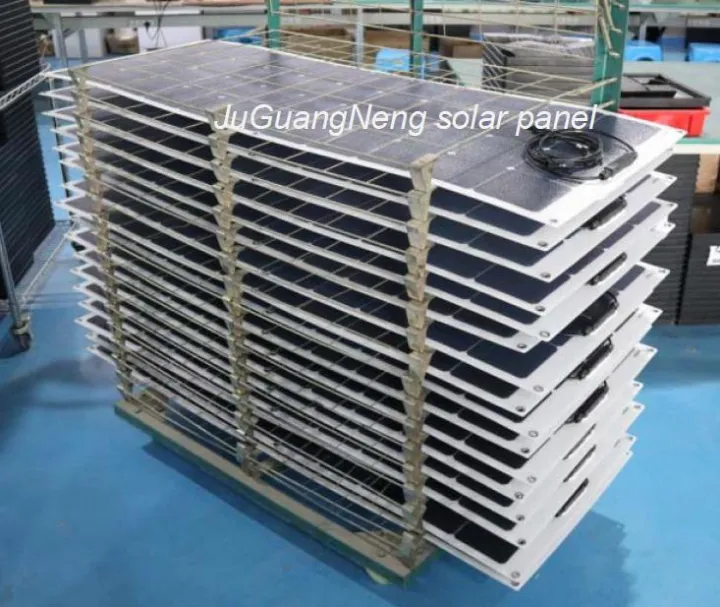

50W Solar Panel View 3

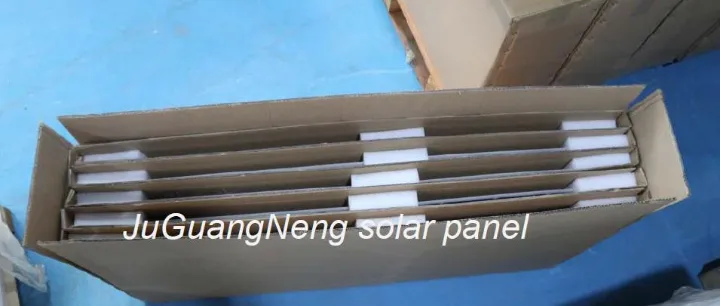

50W Solar Panel View 4
⭐ Our Advantages

A professional manufacturer specialized in various solar panels from 0.1W to 400W+ with 30-year production experiences.

Our qualified products cover:

  • Small watt solar panels (PET/PCB laminated and Epoxy resin).
  • Tempered glass solar panels (0.1W-400W+).
  • Semi-flexible solar panels (5W-400W+) with SUNPOWER/mono solar cells.
  • 10W-400W+ Portable Foldable solar panels.

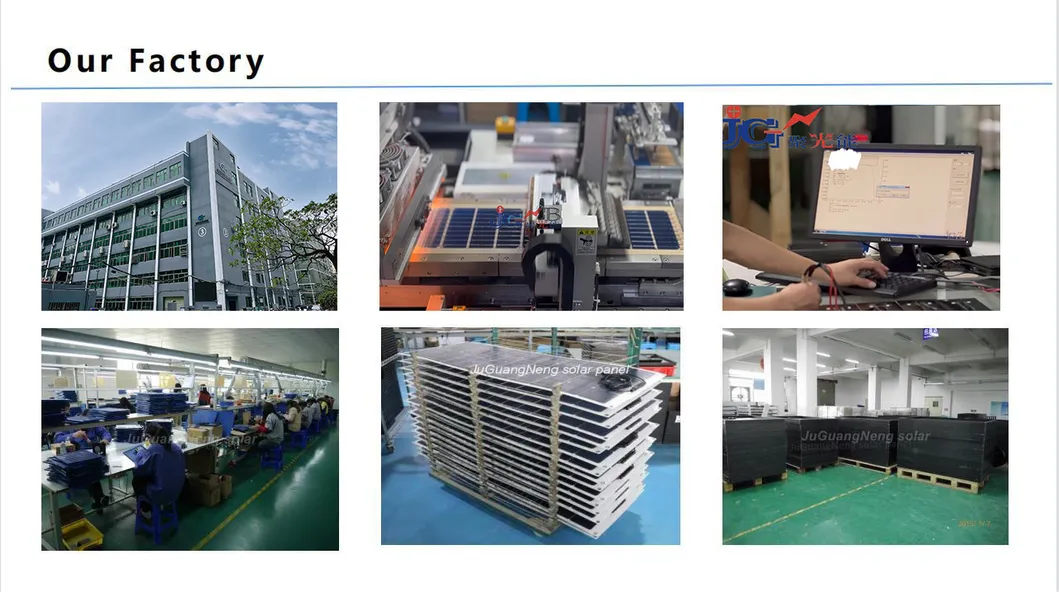

Manufacturing Capability
📜 Certifications

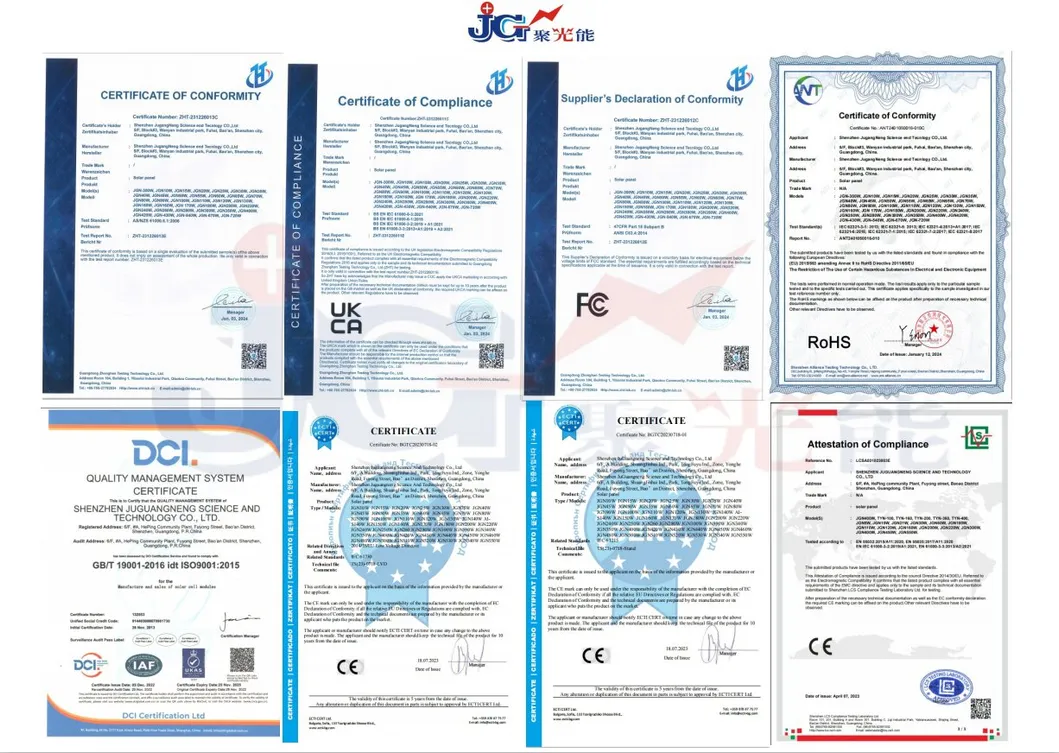

Solar Certifications
📦 Packaging & Shipping

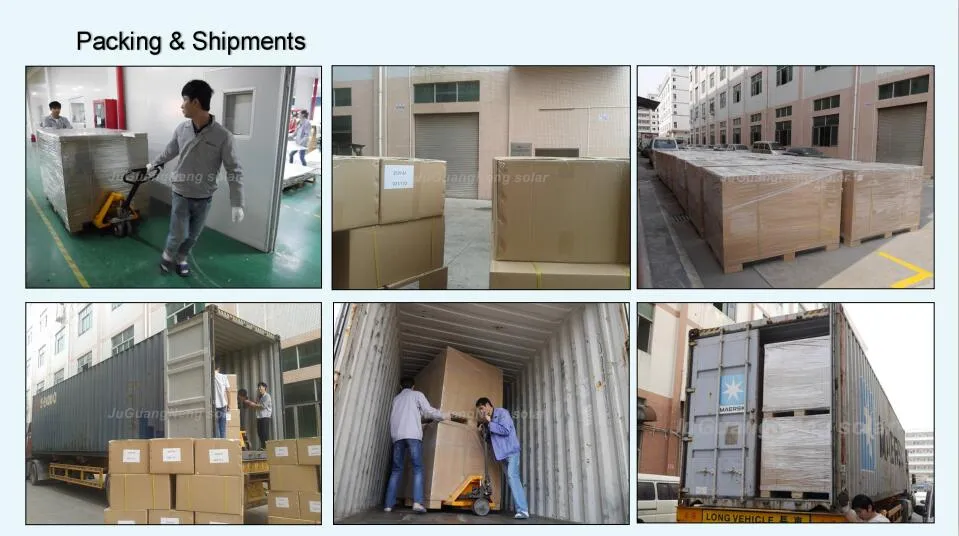

Packaging Detail 1
Packaging Detail 2
❓ Frequently Asked Questions
1. Can this semi-flexible solar panel be installed on curved surfaces?
Yes, the panel is designed to be semi-flexible and can handle a bedding angle of up to 30 degrees, making it perfect for RV roofs and boat decks.
2. What type of solar cells are used in this panel?
We use high-efficiency Sunpower solar cells, which offer an efficiency rate of between 22% and 25%.
3. Is the solar panel waterproof and durable for marine use?
Yes, the panel features an ETFE laminated surface and an IP65 rated junction box, making it highly resistant to salt water and harsh marine environments.
4. How do I install the panel?
The panel comes with stainless grommets on the corners, allowing for easy mounting via screws or ties. Its light weight also allows for adhesive bonding.
5. What is the lifespan of this ETFE solar panel?
Under standard conditions, these panels have a lifespan of over 8 years thanks to the high-quality ETFE encapsulation technology.
