Model NO.:XD-ESS
Output Type:DC to AC Solar Generator
System:Off-Grid system
Certification:CE, ISO, Test Report
Power:300W/500W/1000W
Application:Home/Industrial/Office/Solar Power System
Output Efficiency:>99%
Rated Output Voltage:110VAC - 240VAC

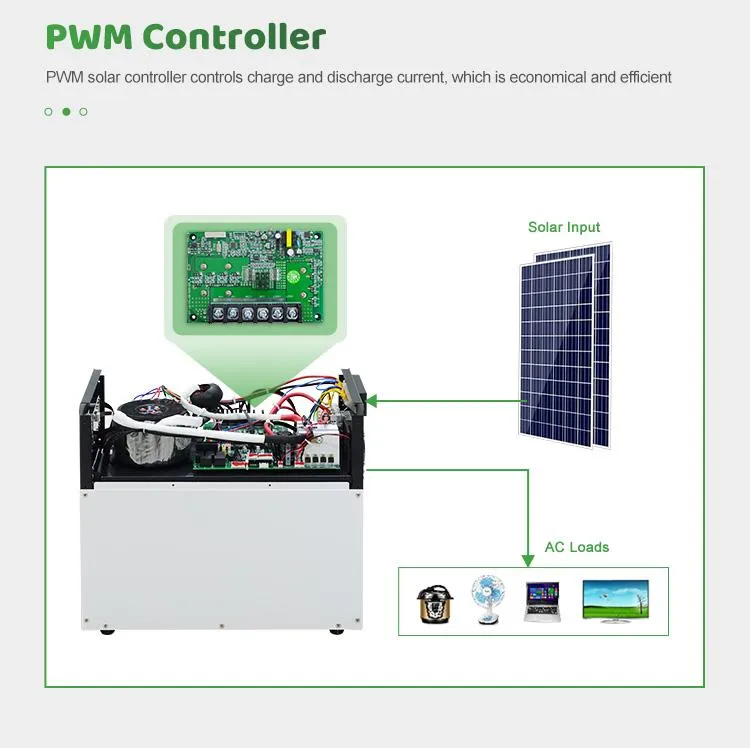

Charging Mode:PWM Built-in
Battery Type:Lithium / Lead Acid Battery
Display:LCD+LED Display
Protection:Overload/Short Circuit/Temperature
1
3 times peak power, excellent loading capability.
2
Combine inverter/solar controller/battery all in one.
3

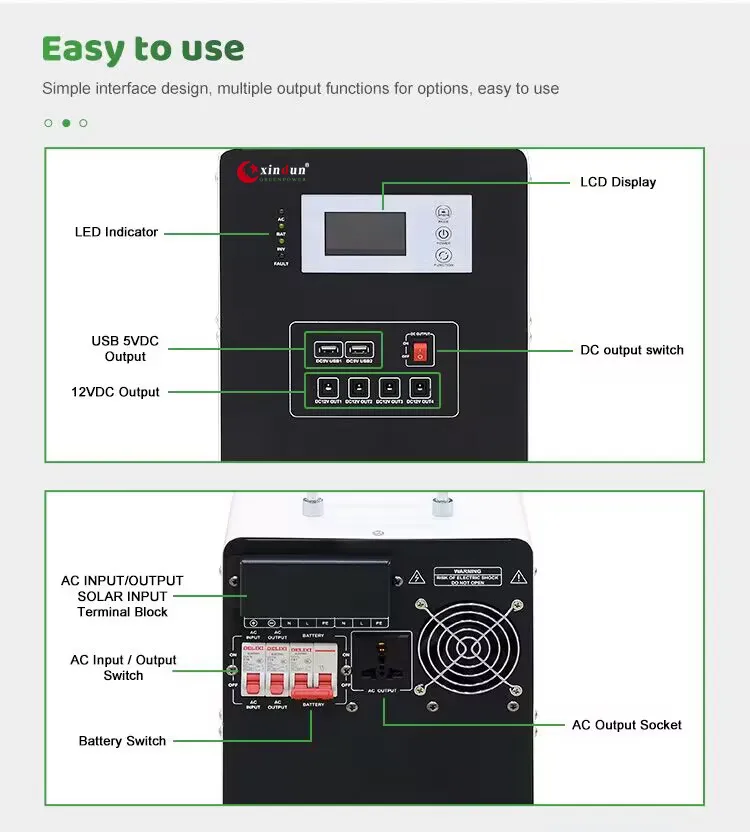

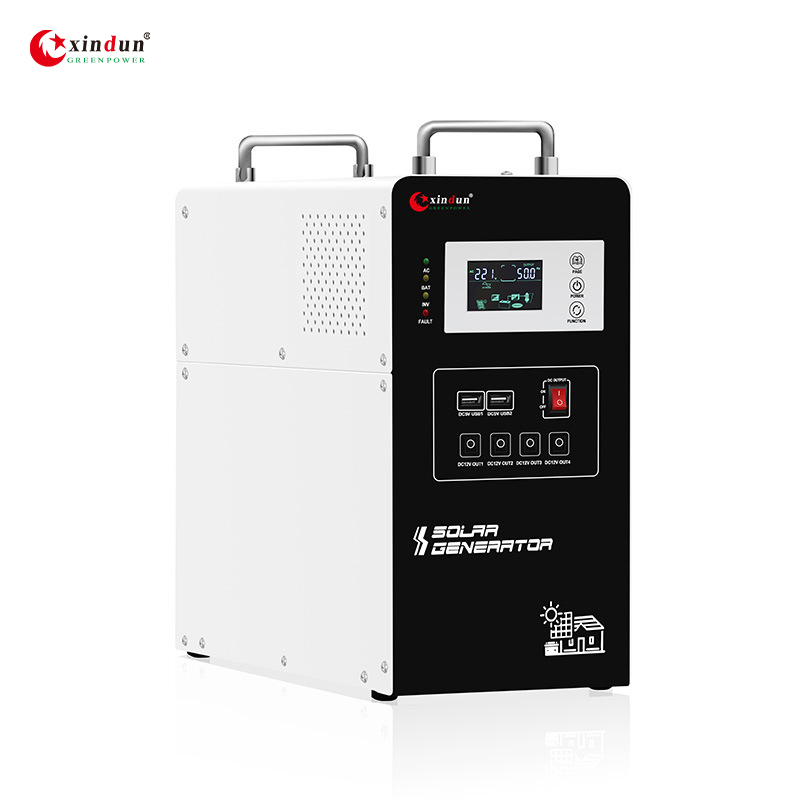

Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.
4
Working mode AC prior/ECO mode/Solar prior selectable.
5
AC charging current 0-10A selectable.
6
LVD/HVD/Charging voltage adjustable, suitable for kinds of battery.
7
Adding fault code to monitor real-time work situations.
8
Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9

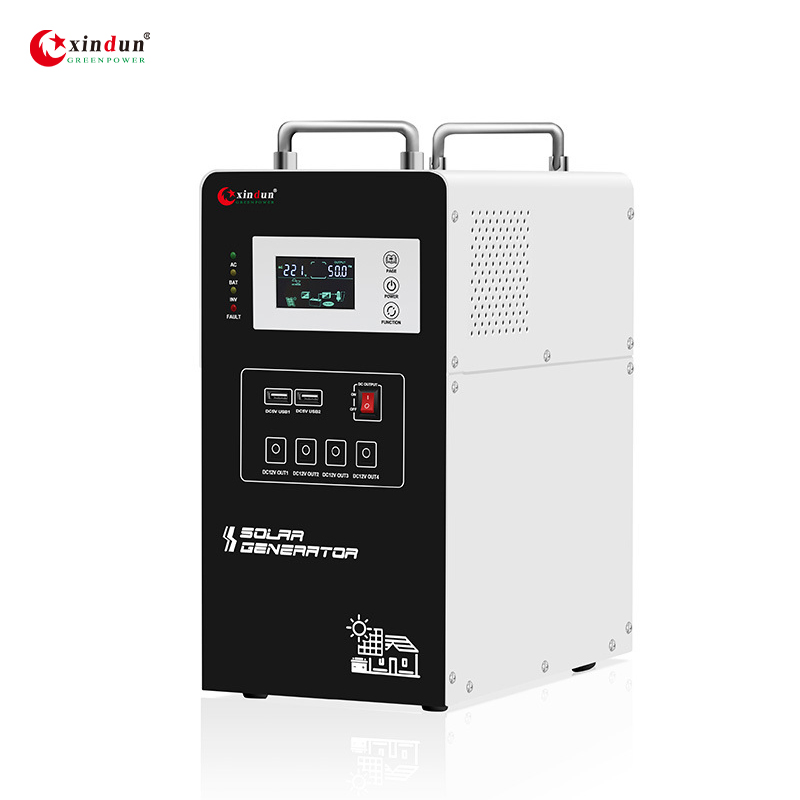

Digital LCD and LED for visualization of equipment status.
10
Inbuilt automatic AC charger and AC mains switcher, switch time ≤ 4ms.
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Frequently Asked Questions
Q1: What is the peak power capacity of the XD-ESS solar generator?
A: The generator features 3 times peak power capacity, allowing it to handle high-startup loads efficiently (e.g., 300W rated can reach 900VA peak).
Q2: Can I use different types of batteries with this system?
A: Yes, the system is designed with adjustable LVD/HVD and charging voltages, making it suitable for both Lithium and Lead-Acid batteries.
Q3: How many output ports are available for external devices?
A: The unit provides multiple output options including 2 AC output sockets, 4 DC 12V ports, and 2 USB ports for various charging needs.
Q4: What are the primary working modes of the inverter?
A: Users can select between three modes: AC Priority mode (d1), ECO mode (d2), and Solar Priority mode (d3) based on their energy needs.
Q5: How fast is the transfer time when the power source switches?
A: The inbuilt automatic AC mains switcher ensures a very fast transfer time of ≤ 4ms, preventing equipment downtime.
Q6: Is the output wave safe for sensitive electronics?
A: Yes, it provides a continuous stable pure sine wave output with an inbuilt AVR stabilizer, which is safe for all types of sensitive electronic equipment.
