📋 Basic Information
Certification
ISO, CE, TUV, Cec, IEC61215, IEC61730
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box
IP67 Waterproof
Solar Cell
Poly 156X156mm Cell
Front Cover
3.2mm High Transmission Low Iron Tempered Glass
Connector
Mc4 Compatible Connector
Backsheet Color
White or Black or Transparent
Frame Color
Silvery or Black
Production Capacity
12000 Pieces /Week
☀ Product Description

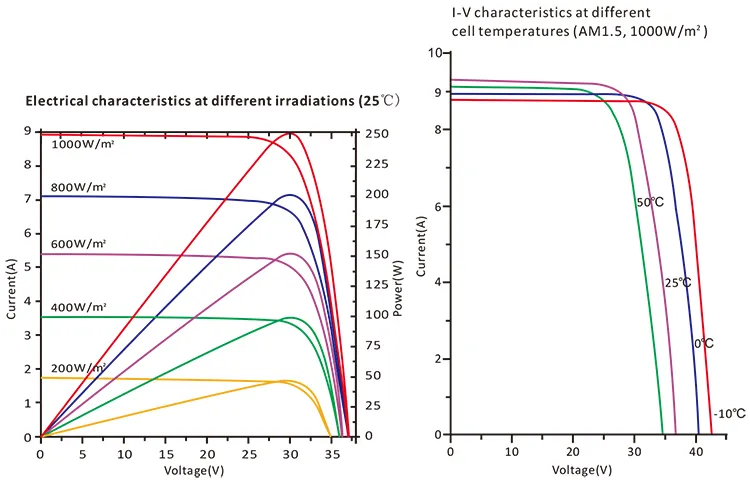

| Rated Max Power (STC) |
270W | 280W | 290W | 295W | 300W | 310W | 320W |
| Max Power Voltage (Vmp) |
31.5V | 31.8V | 32.2V | 32.4V | 32.6V | 33.0V | 33.4V |
| Max Power Current (Imp) |
8.57A | 8.81A | 9.01A | 9.10A | 9.24A | 9.40A | 9.58A |
| Open Circuit Voltage (Voc) |
37.6V | 38.0V | 38.4V | 39.7V | 40.1V | 40.5V | 40.9V |
| Short Circuit Current (Isc) |
9.20A | 9.45A | 9.68A | 6.61A | 9.72A | 9.92A | 10.14A |
| Module Efficiency |
16.60% | 17.20% | 17.90% | 18.02% | 18.44% | 19.05% | 19.67% |

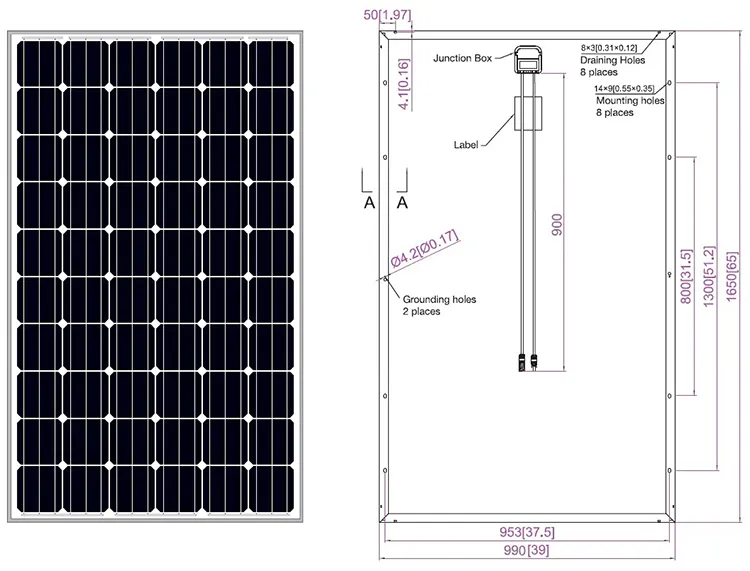

| Mechanical Parameters |
| Cell Type |
Mono-crystalline 156x156mm (6inch) |
| Dimension |
1640x992x35mm |
| Glass |
3.2mm, High Transmission, Low Iron, Tempered Glass |
| Junction Box |
IP65 & IP67 Rated |
| Connector |
MC4 Compatible |
💎 Key Features & Advantages
✔
High capacity solar panel production range from 3W to 360W for both poly and mono types.
✔
10 years workmanship warranty; 25 years linear power output warranty (80%).
✔

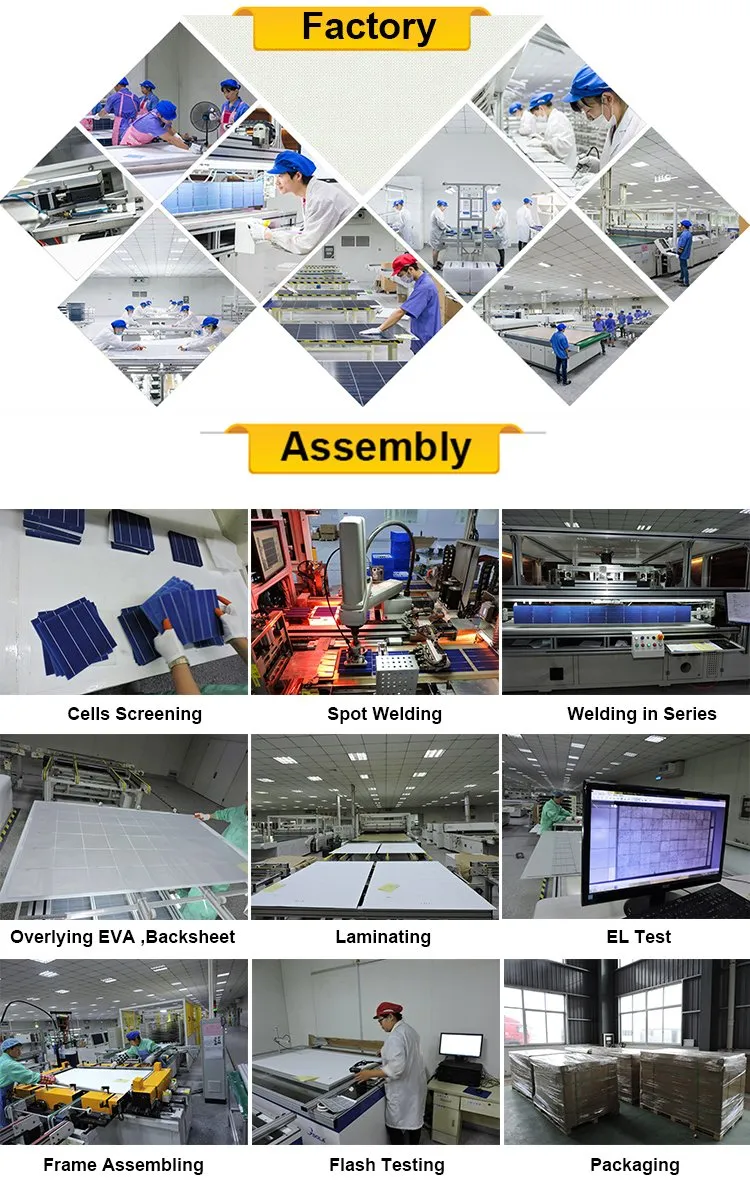

100% EL test conducted before packaging and shipping for quality assurance.
✔
Products certified by TUV (Germany) and CE for international standards.
✔
Turn-key solar system solutions available to save time and cost for clients.
✔
Extensive experience in international solar project construction.
❓ Frequently Asked Questions

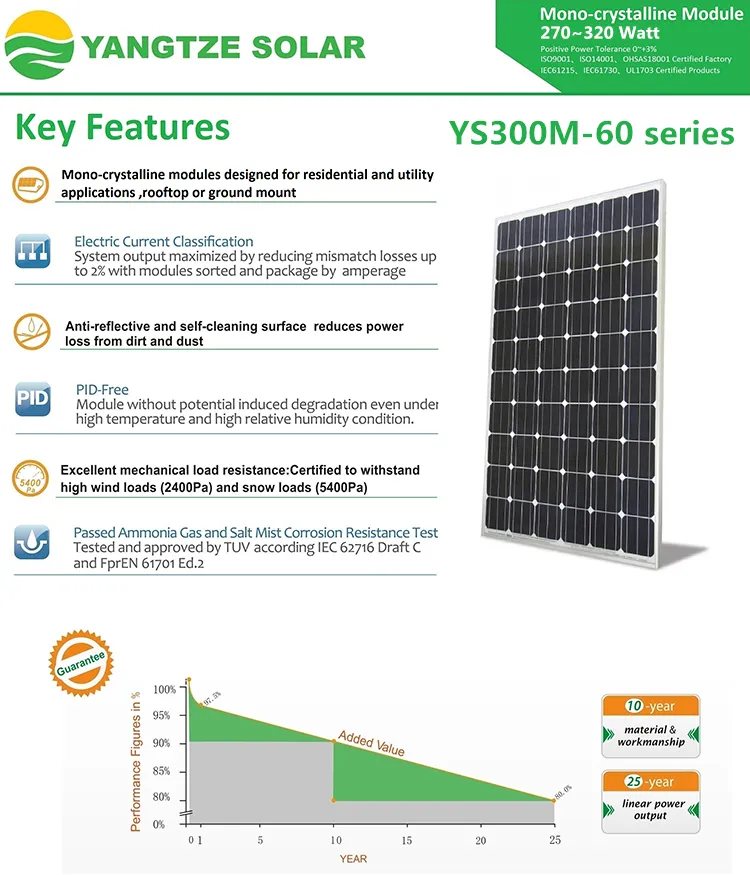

1. What is the efficiency of the YS300M-60 solar panel?
The YS300M-60 module features an efficiency of approximately 18.44%, utilizing high-quality monocrystalline silicon cells.
2. Is the junction box waterproof?
Yes, the solar panel is equipped with an IP67 rated junction box, providing excellent protection against water and dust in harsh environments.
3. What kind of glass is used on the front?
We use 3.2mm high-transmission, low-iron tempered glass which is designed to withstand impact while maximizing light absorption.
4. Can these panels be used for industrial applications?

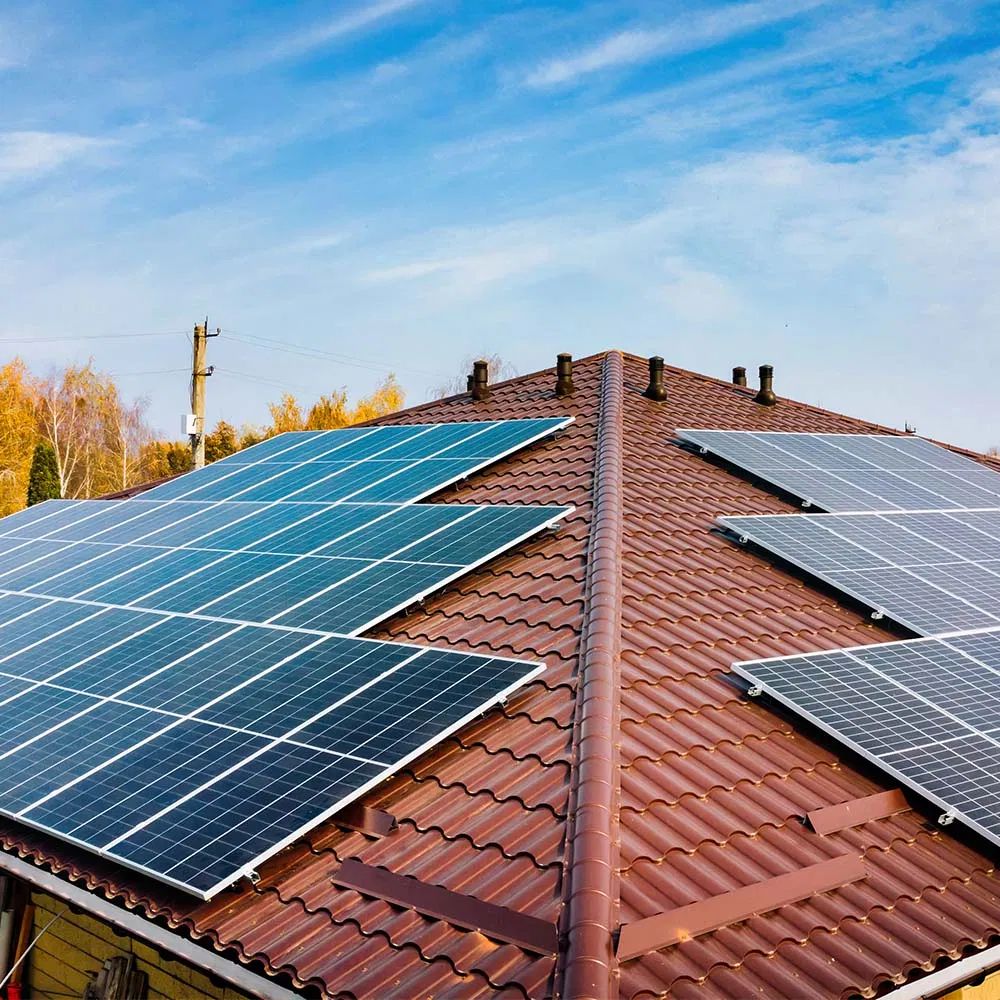

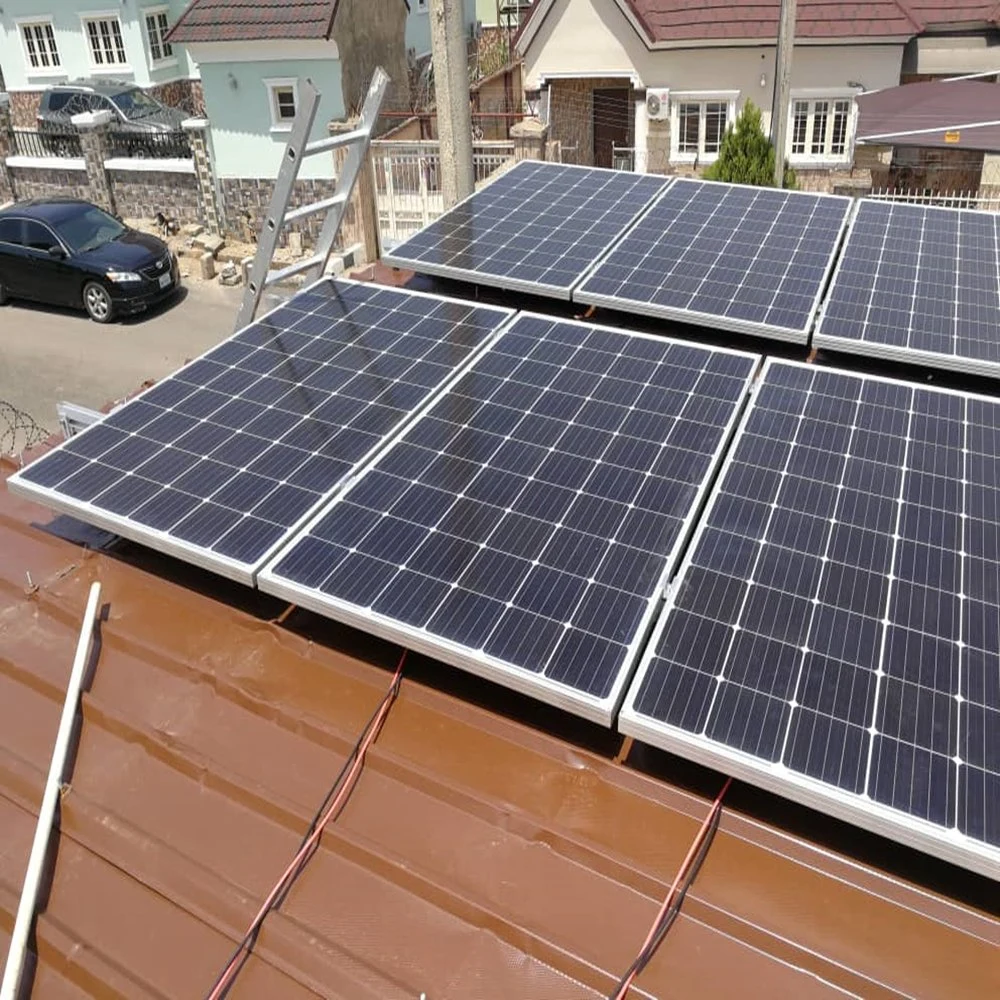

Absolutely. These panels are specifically designed for industrial and large-scale applications, as well as residential rooftops.
5. What is the standard warranty for these modules?
We offer a 10-year total workmanship warranty and a 25-year linear power output warranty ensuring at least 80% performance.
6. Are the panels tested before shipment?
Yes, 100% of our panels undergo EL (Electroluminescence) testing before packaging to ensure there are no micro-cracks or defects.
