What is an off-grid system?
Off-grid solar energy systems, also known as stand-alone solar systems, operate independently of the public utility grid. They are ideal for remote areas without access to public power or regions where the grid is unstable.
Applications range from Residential to Commercial and Industrial sectors. Systems are fully customizable from 1kW up to 200kW.

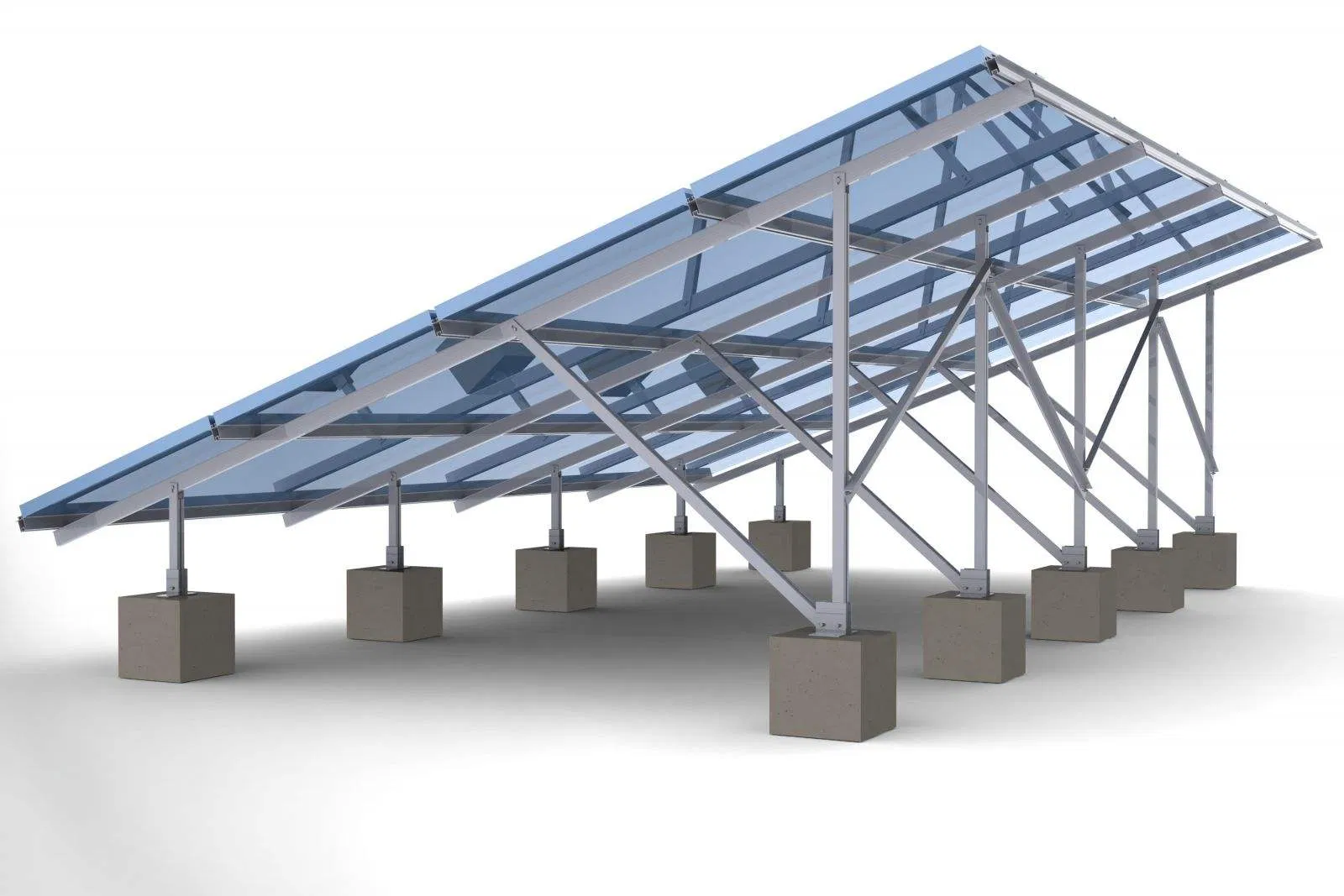

A complete off-grid system typically includes high-efficiency solar panels, connectors, specialized off-grid inverters, battery storage (Lithium or Gel), and a robust mounting structure.

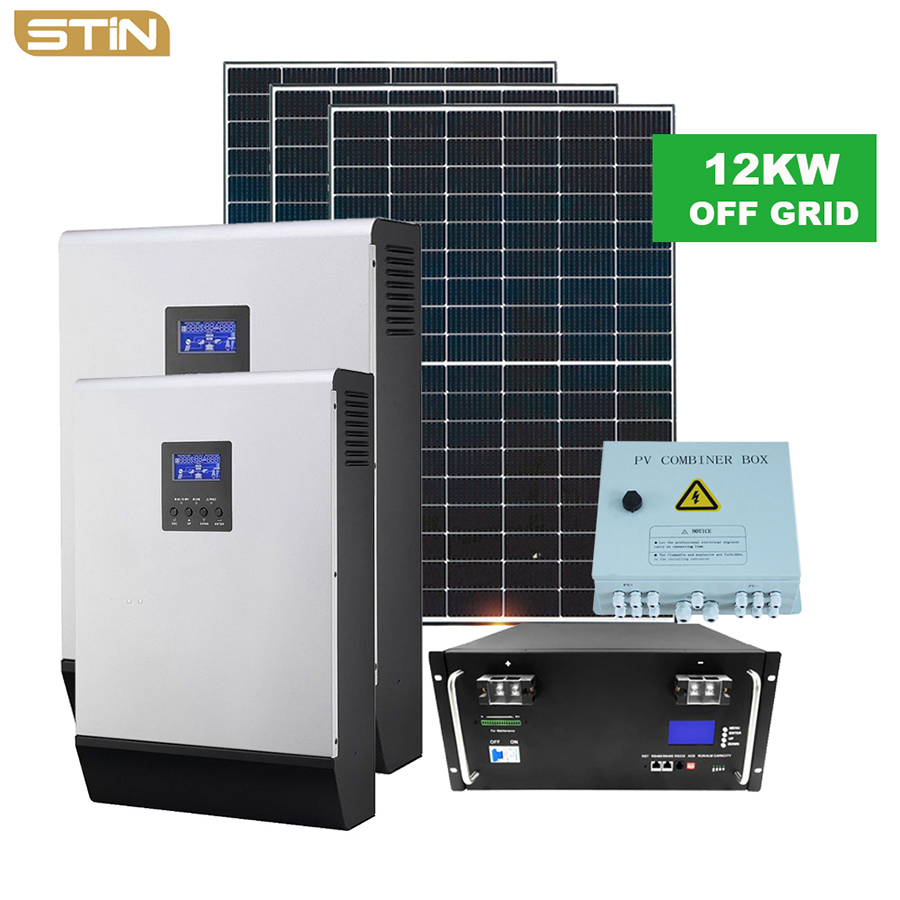

| 12000W Off-Grid Photovoltaic System (48VDC) | |||
|---|---|---|---|
| Part | Specification | Qty | Remarks |
| Solar Panel | Mono 410W | 27 PCS | 3 series x 9 parallel |

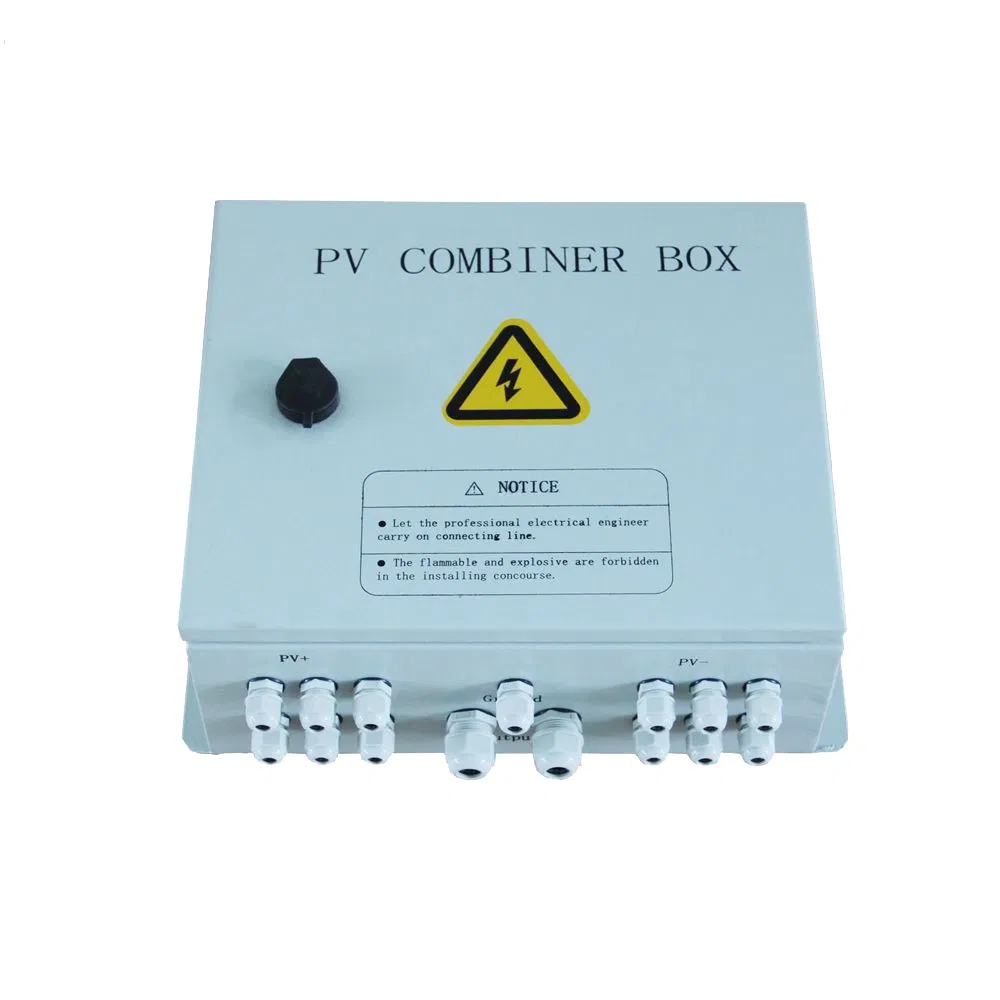

| Combiner Box | 3 inputs, 1 output | 3 SETS | - |

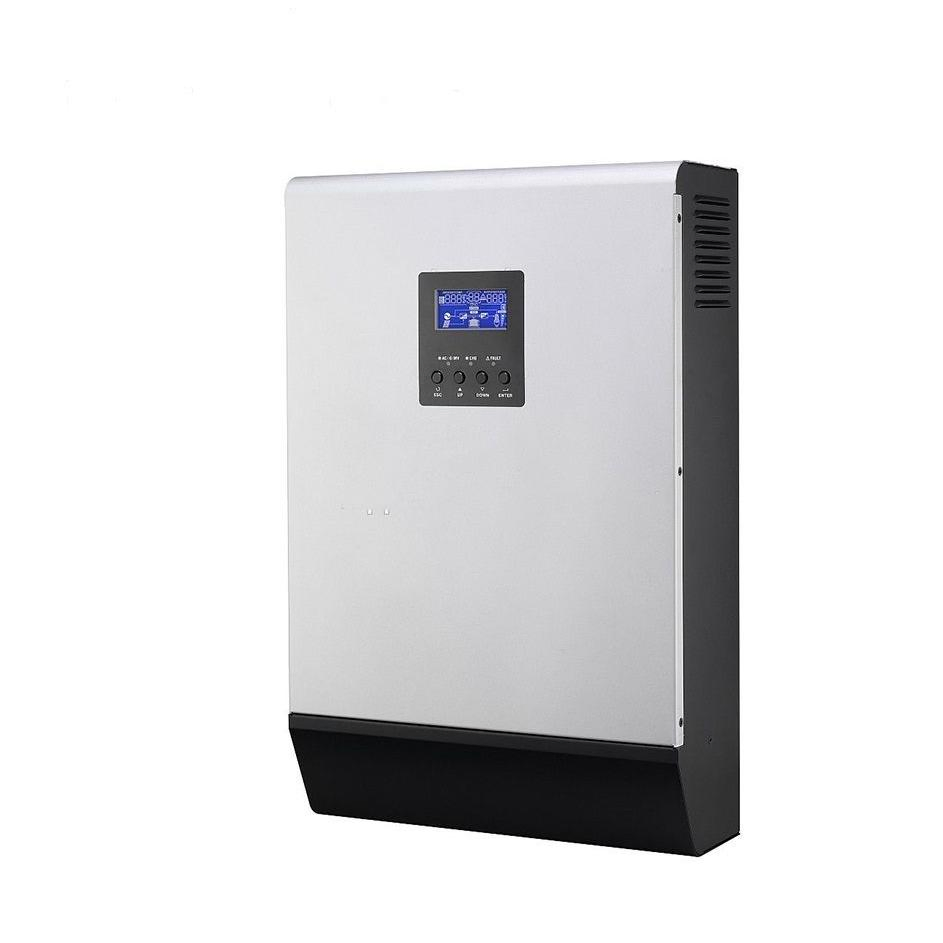

| Inverter | 4000W with MPPT | 3 PCS | Parallel connection |
| LiFePo4 Battery | 48V-100AH | 6 PCS | Supports 9kW load for 3h |

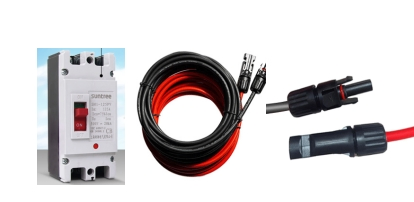

| Cables | 4mm² / 10mm² / 35mm² | 1SET | Complete PV & BVR kit |
| 16000W Off-Grid Photovoltaic System (48VDC) | |||
|---|---|---|---|
| Part | Specification | Qty | Remarks |
| Solar Panel | Mono 410W | 36 PCS | 3 series x 12 parallel |
| Combiner Box | 3 inputs, 1 output | 4 SETS | - |
| Inverter | 4000W with MPPT | 4 PCS | Parallel connection |
| LiFePo4 Battery | 48V-100AH | 8 PCS | Supports 12kW load for 3h |
| 24000W Off-Grid Photovoltaic System (48VDC) | |||
|---|---|---|---|
| Part | Specification | Qty | Remarks |
| Solar Panel | Mono 410W | 54 PCS | 3 series x 18 parallel |
| Combiner Box | 3 inputs, 1 output | 6 SETS | - |
| Inverter | 4000W with MPPT | 6 PCS | Parallel connection |
| LiFePo4 Battery | 48V-100AH | 12 PCS | Supports 18kW load for 3h |

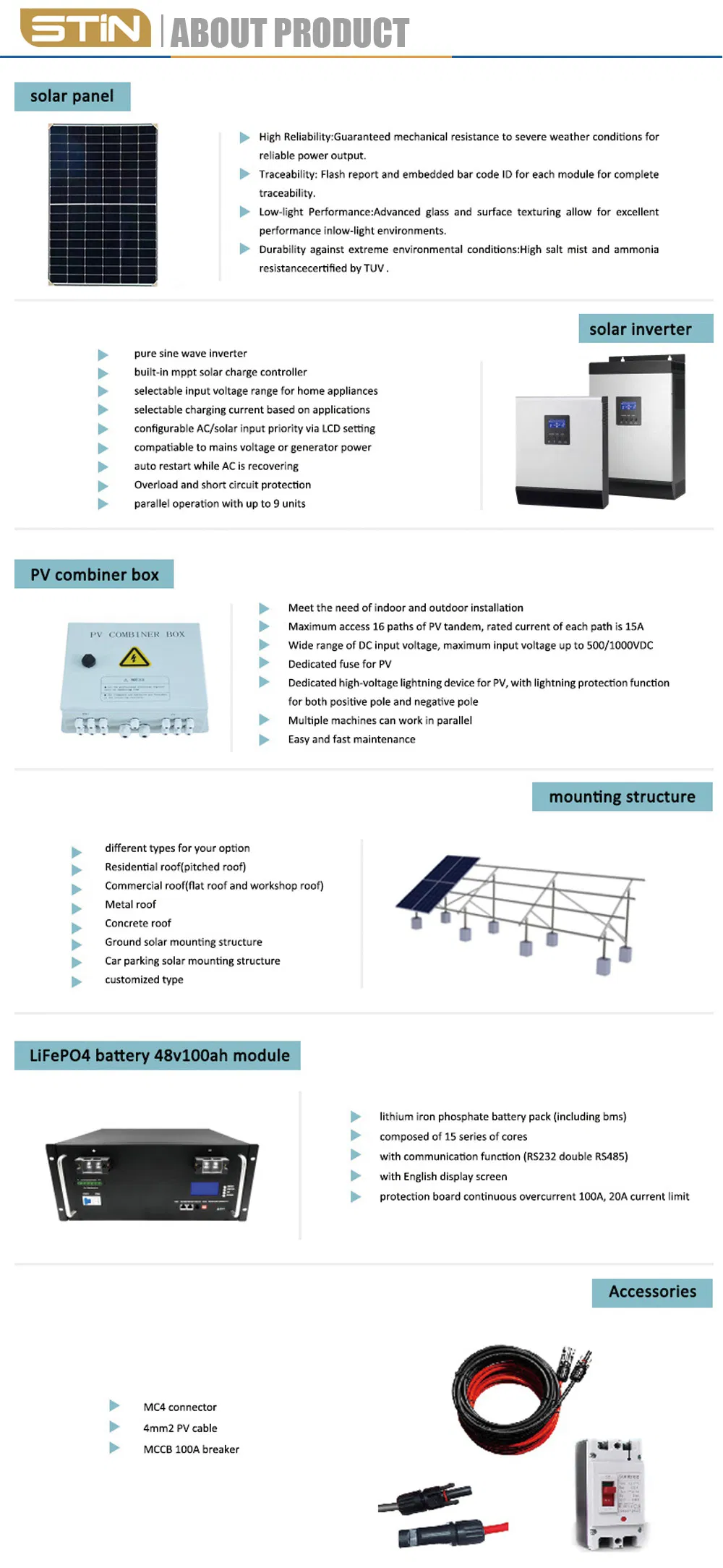

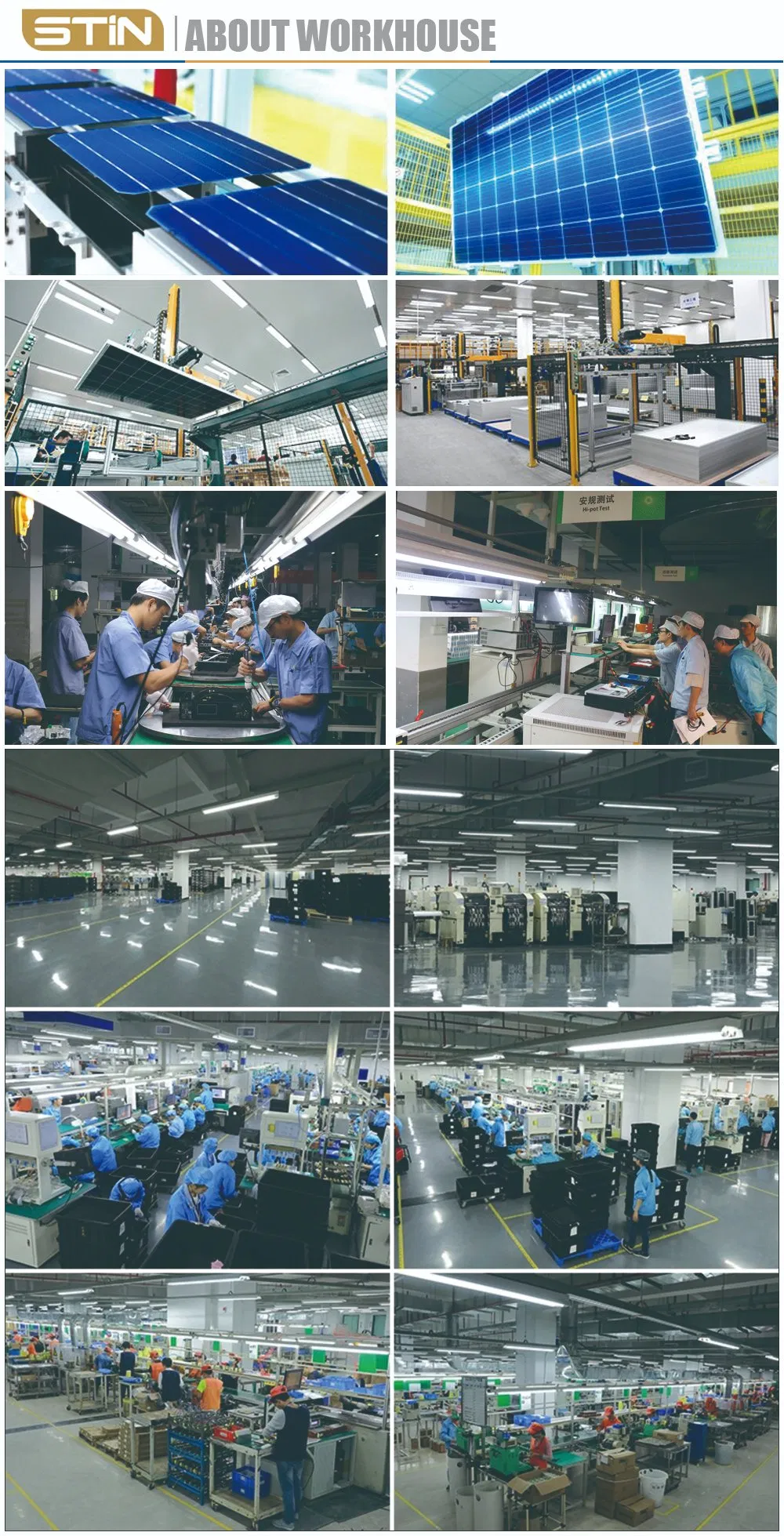

Our solution focuses on sustainable clean energy through comprehensive system integration. We specialize in product development, production, and full-service solar solutions. Our product range includes high-efficiency solar panels, turn-key completed on-grid, off-grid, and hybrid systems, lithium-ion batteries, and advanced MPPT charge controllers.
We are committed to delivering reliable, cost-effective solar energy solutions globally, supported by expert teams in design, quality control, and technical inspection.
