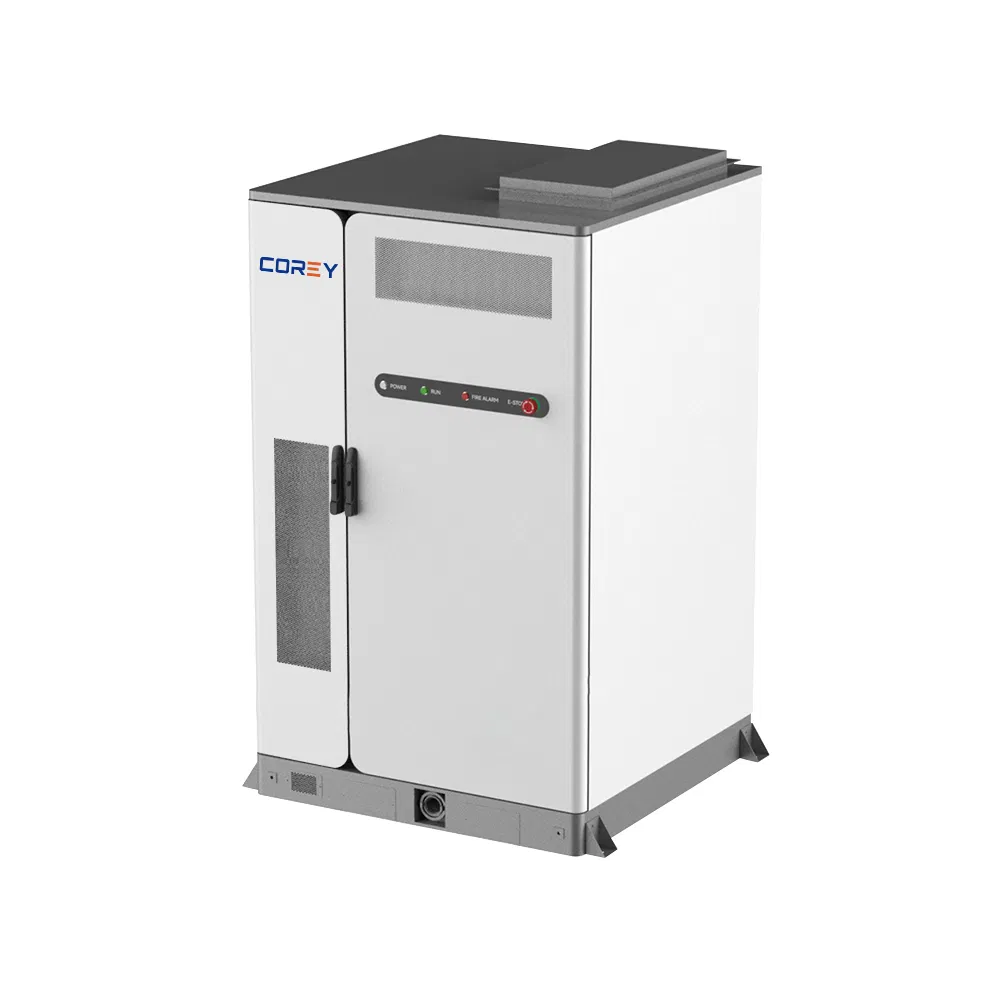

| Model NO. | Corey-233 | Nominal Voltage | 230V/400V |
| Warranty | 5 years | Nominal Capacity | 233kWh |
| Cycle Life | 9000 | Battery Type | LiFePO4 |
| Grid Connection | Hybrid Grid | Protection Level | IP54 |
| Cooling Method | Intelligent Liquid Cooling | Discharge Depth | 95% Dod |
| AC Rated Voltage | 230V/400V(±15%) | AC Rated Frequency | 50/60 Hz |
| Package Size | 166.00cm * 153.00cm * 260.00cm |
|---|---|
| Package Gross Weight | 2600.000kg |
Intelligent energy storage + peak shaving and valley filling, saving 30% of annual electricity bills.
Based on German wholesale time-of-use prices, the difference between peak and off-peak is approx 0.238 euros per kWh. With a daily charge-discharge cycle, net income can reach 7,447 euros per year, with a static payback period of approximately 4.4 years.
| Project Analysis | Unit | Numerical Value |
|---|---|---|
| System Capacity | kWh | 100 |
| Total Investment | € | 32,609 |
| Peak and Valley Differential | €/kwh | 0.238 |
| Annual Electricity Bill Savings | €/year | 8,099 |
| Annual Net Income | €/year | 7,447 |
| Static Payback Period | Year | 4.4 |

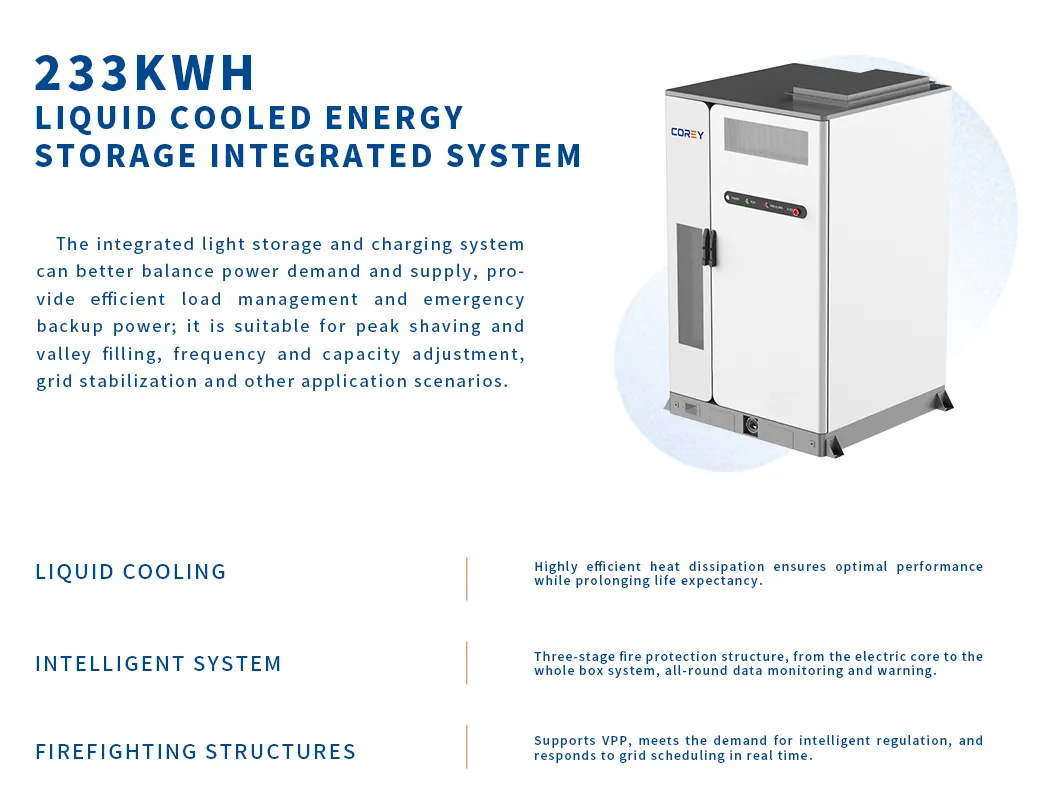

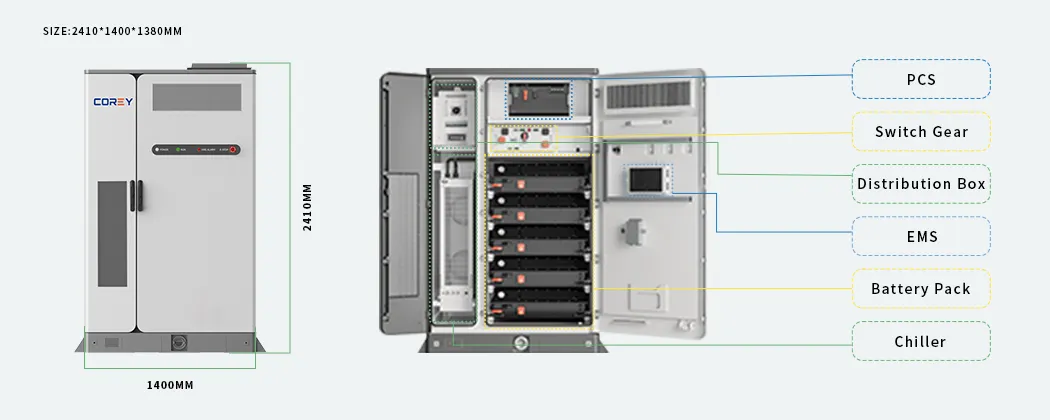

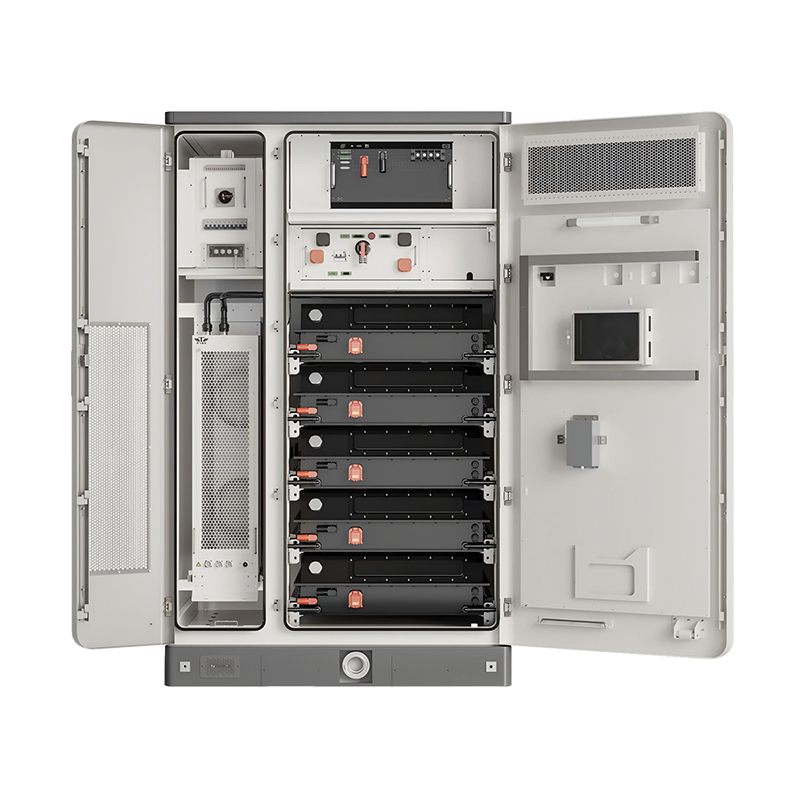

Industrial and commercial energy storage cabinets use an integrated design with high flexibility. This ensures companies can easily expand storage capacity to meet growing demand or adapt to operational changes.
| Model | COREY 233CE | |
| System | Battery Cell | LFP (LiFePO4) 3.2V 280Ah |
| Rated Power | 105kW | |
| Cooling Method | Intelligent Liquid Cooling | |
| Fire Fighting | Aerosol + Water Fire Protection | |
| AC Side | Rated Voltage | 230V/400V |
| Maximum Current | 167A | |
| Switching Time | 20ms (Optional) | |
| DC Side | Rated Voltage | 832V |
| Voltage Range | 728~936V | |
| Discharge Depth | 95% DOD | |

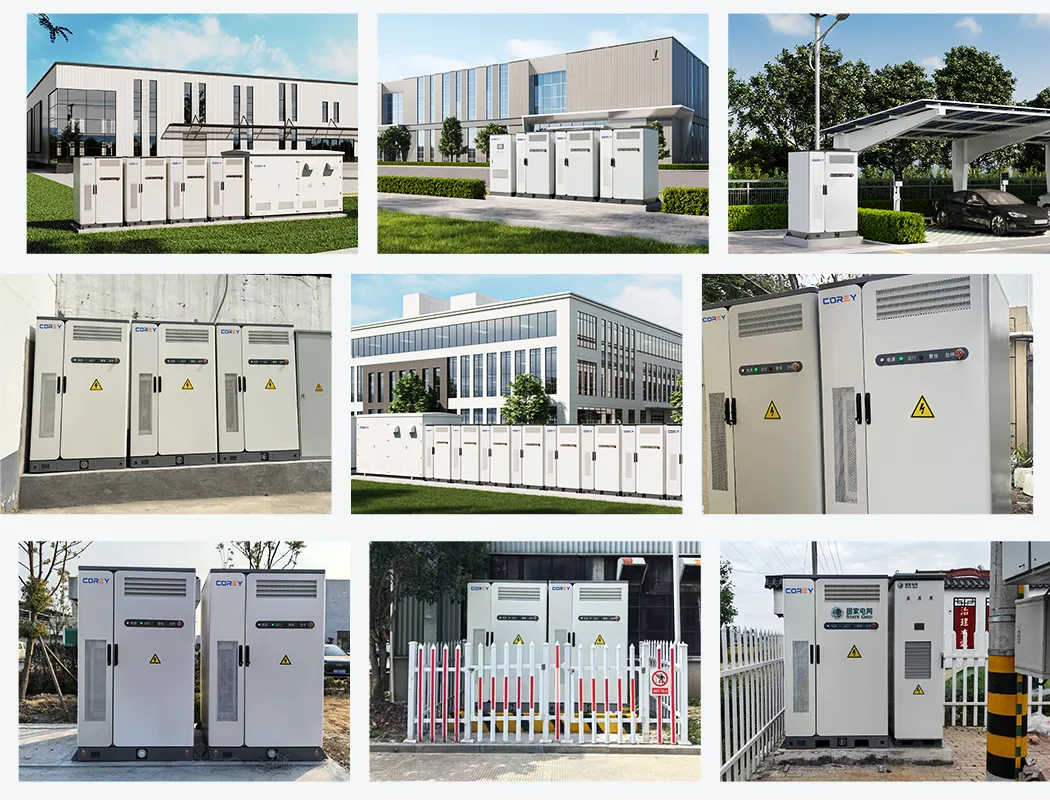

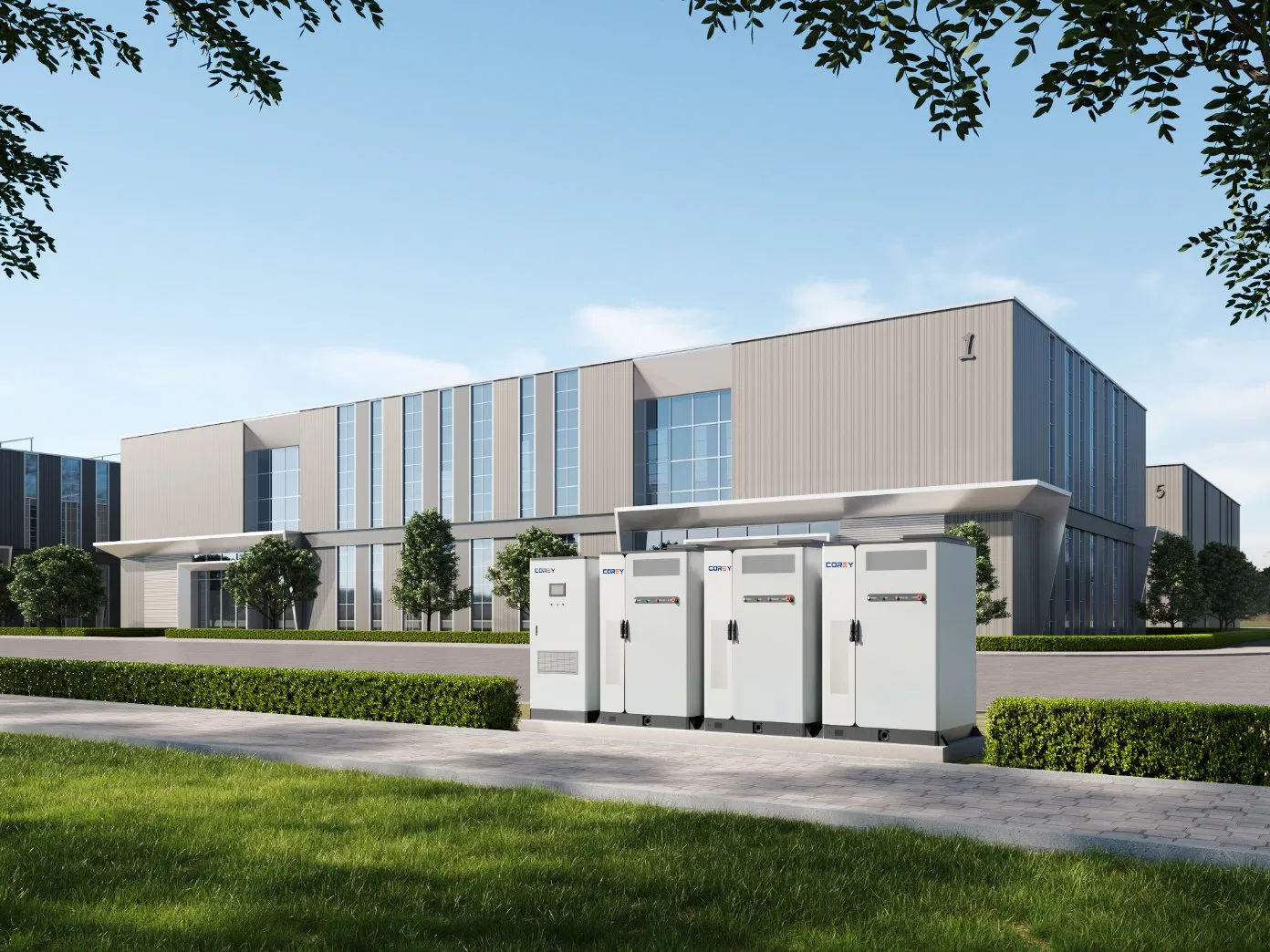

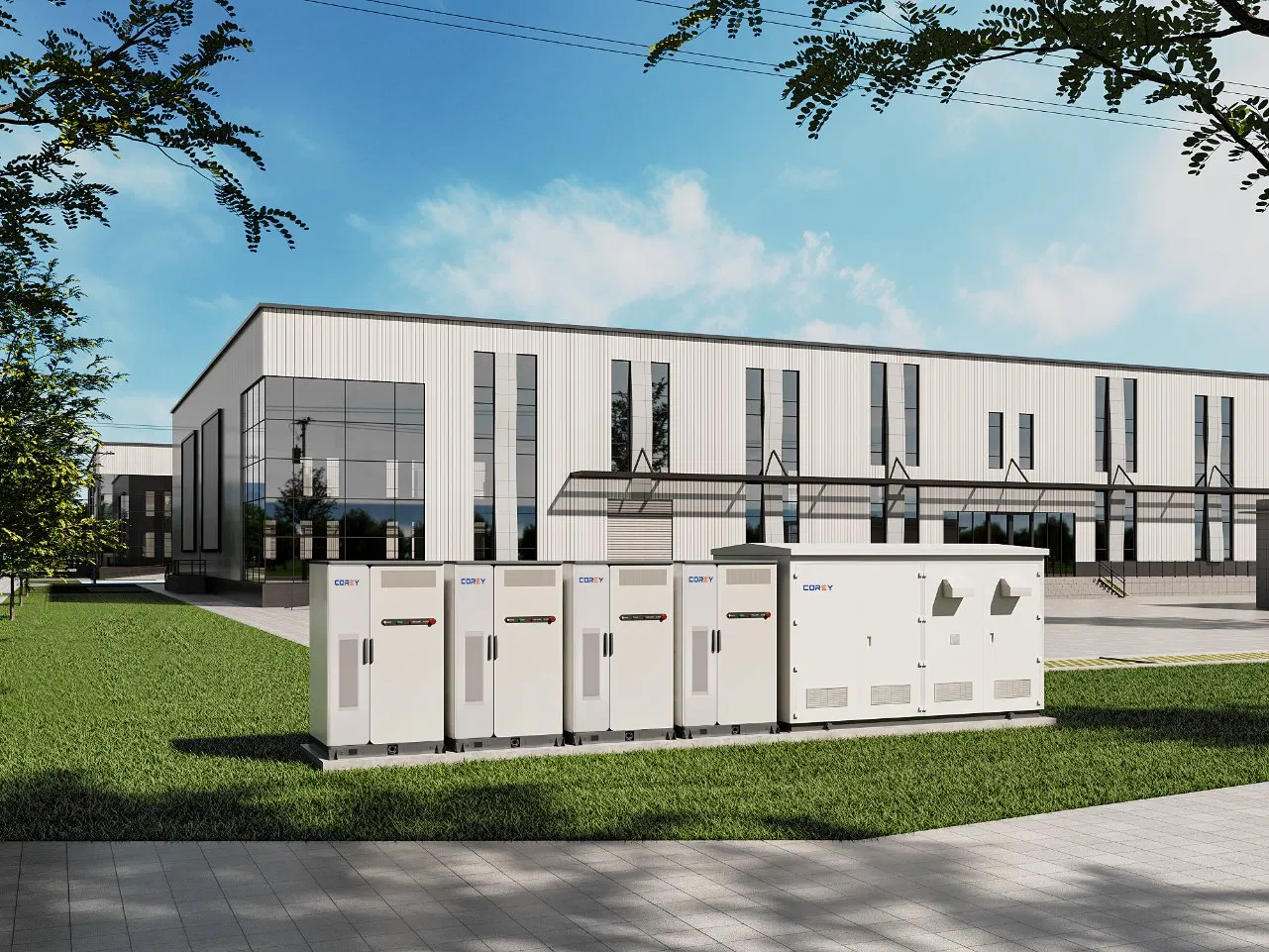

Ideal for factory buildings, commercial complexes, areas with power shortages, and remote regions.
