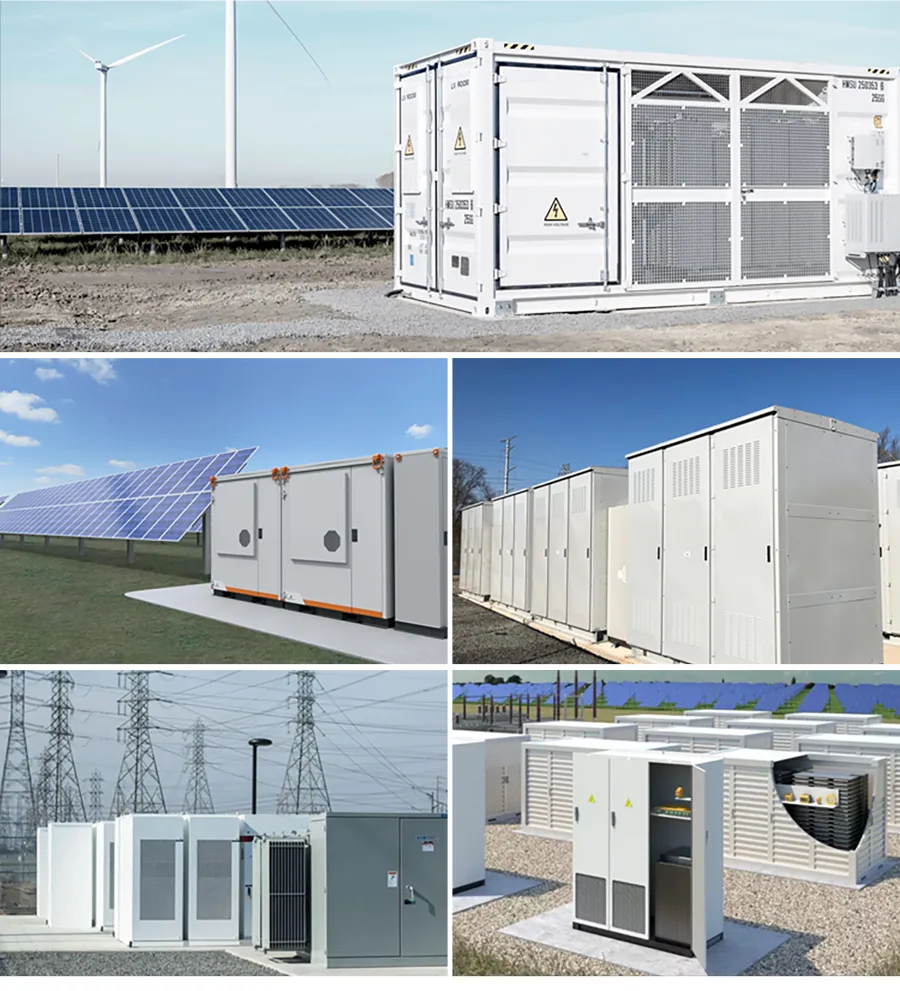

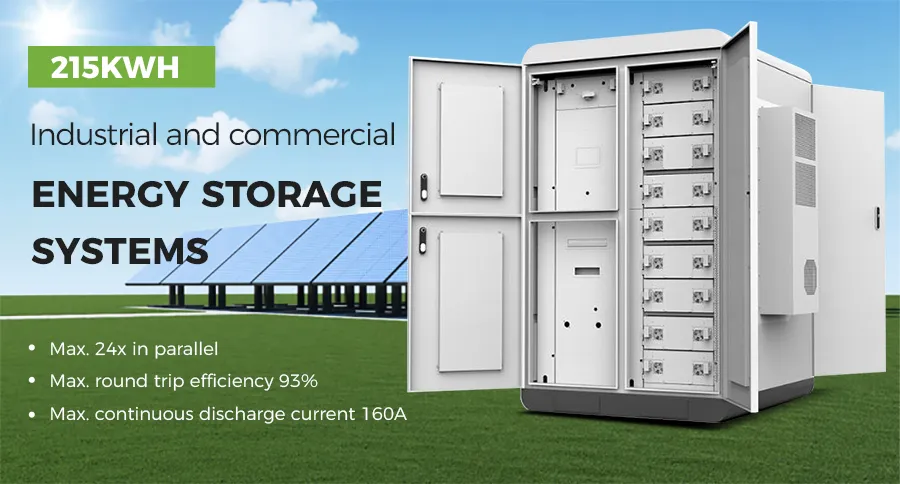

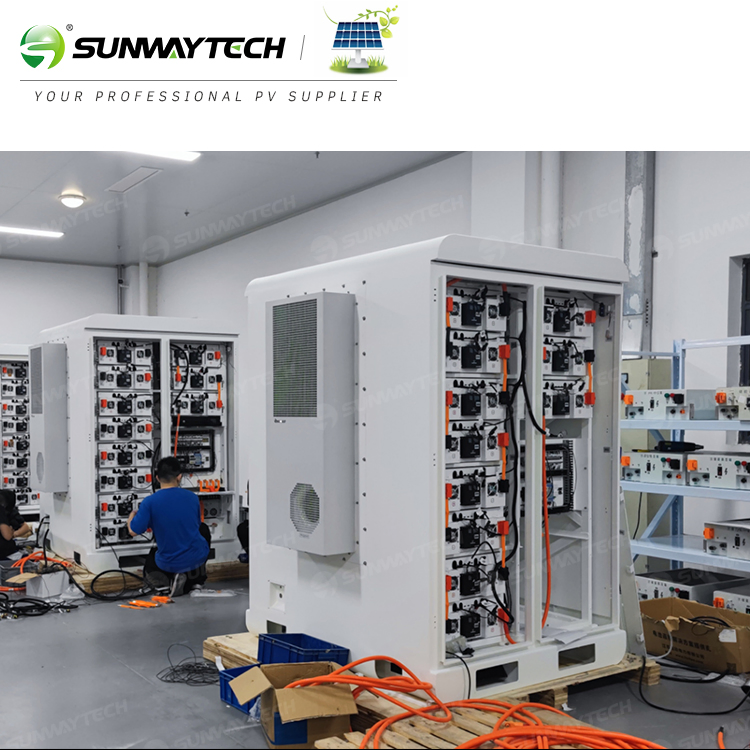

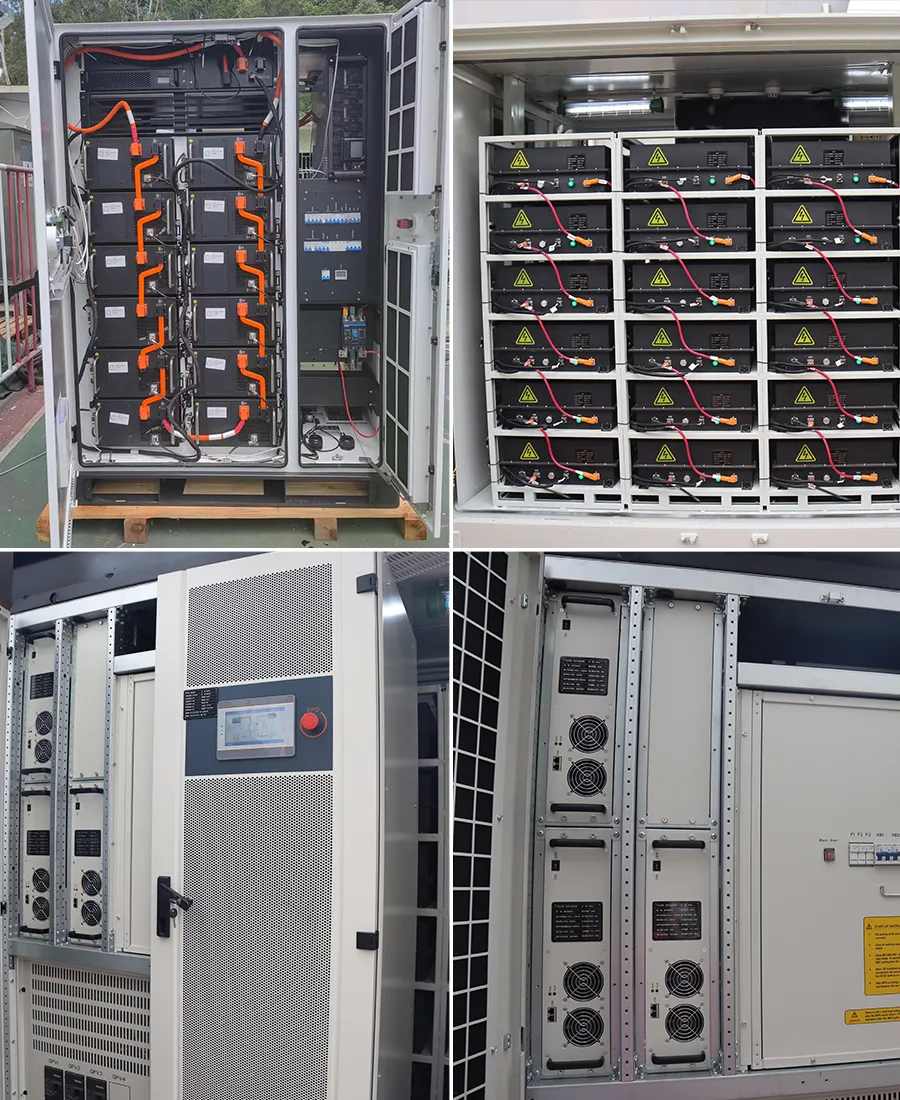

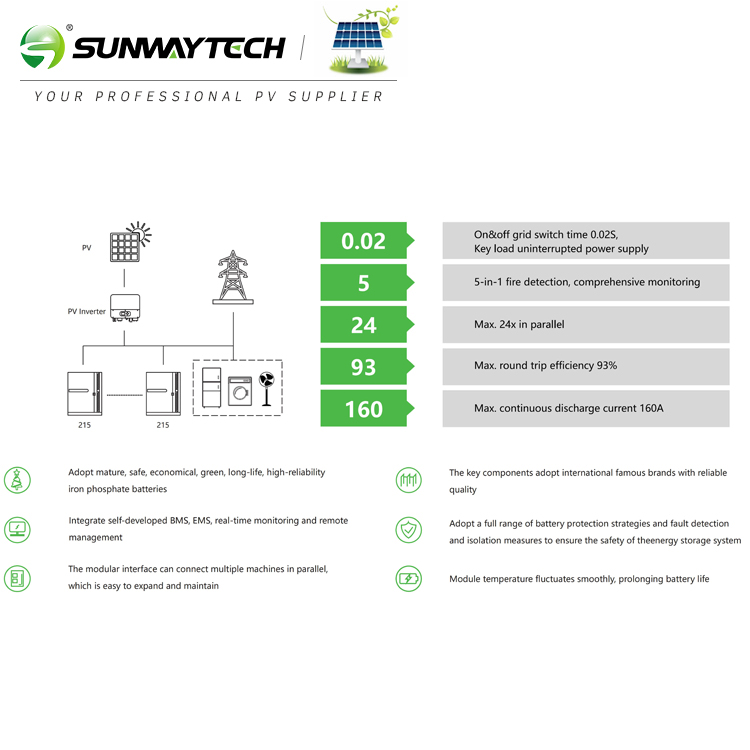

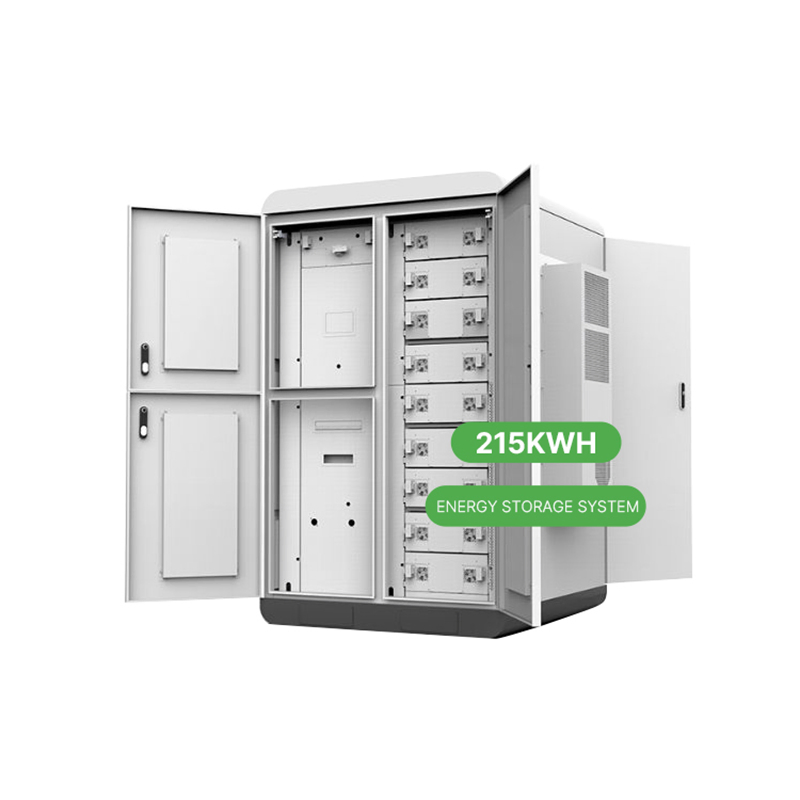

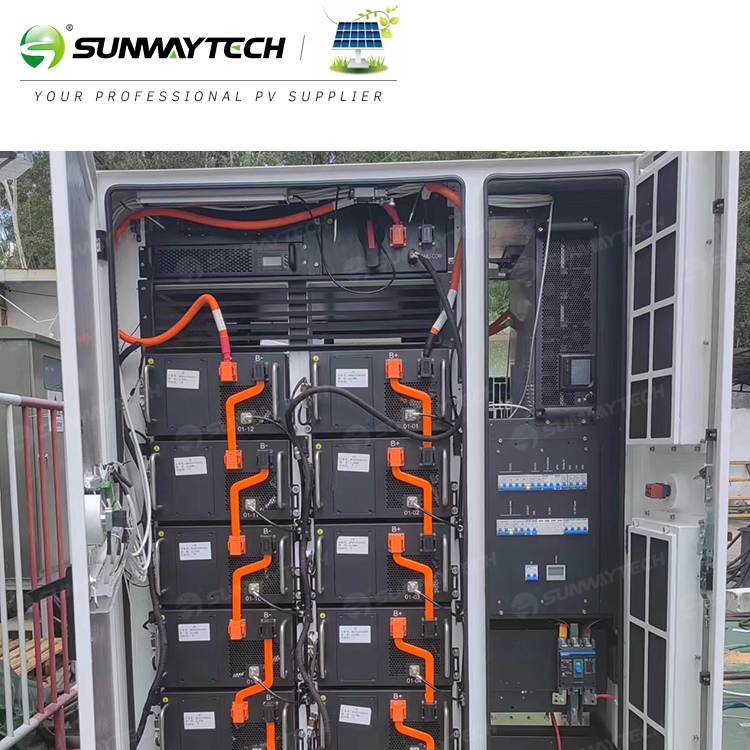

The 215 commercial & industrial energy storage system adopts the all-in-one design concept. The cabinet is integrated with a battery management system (BMS), energy management system (EMS), modular power conversion system (PCS), and fire protection system. The system's capacity is up to 215 kWh and the power is up to 100 kW. The modular design allows for flexible expansion, adapting to various scenarios such as power expansion, backup power supply, and black start.
| Rated Battery Capacity(kWh) | 215kWh |
| Rated Voltage(V) | 768V |
| Voltage Range(Vdc) | 720-840V |
| Charge and Discharge Rate(P) | ≤0.5 |
| Max. Round Trip Efficiency | 93% |
| DOD | 95% |
| Cooling Strategy | Industrial Air Conditioning |
| Cycle Lifetime at EOL 80% | ≥8000 cycles |
| Fire Fighting System | Perfluorohexanone |
| Rated Power(kW) | 100 |
| Rated AC Voltage(Vac) | 380/400 |
| AC Voltage Range | -15%~+10% |
| Size(W*D*H mm) | 1520*1270*2117 |
| Weight(T) | 2.6 |
| Enclosure Protection Rating | IP55 |
| Operating Temperature Range(°C) | -20 to +55 (>45 derating) |
| Operating Humidity Range | 0-95% |
| Maximum Working Altitude(m) | ≤4000 (>2000 derating) |
| Communication Interface | RS485, Ethernet |
| Protocol | Modbus RTU, Modbus TCP, IEC 104 |

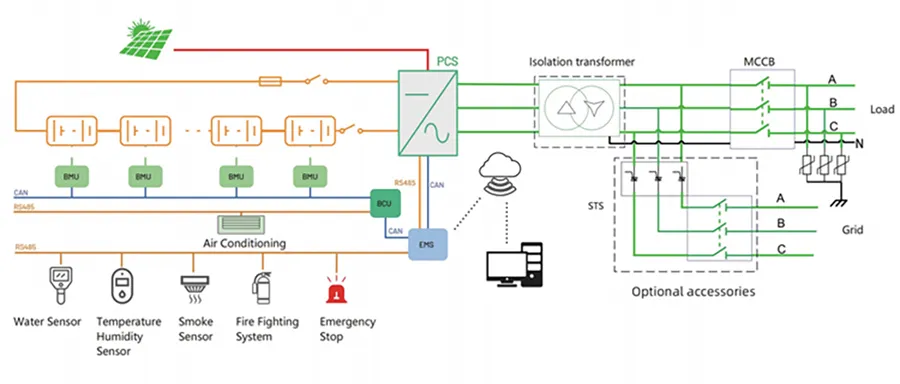

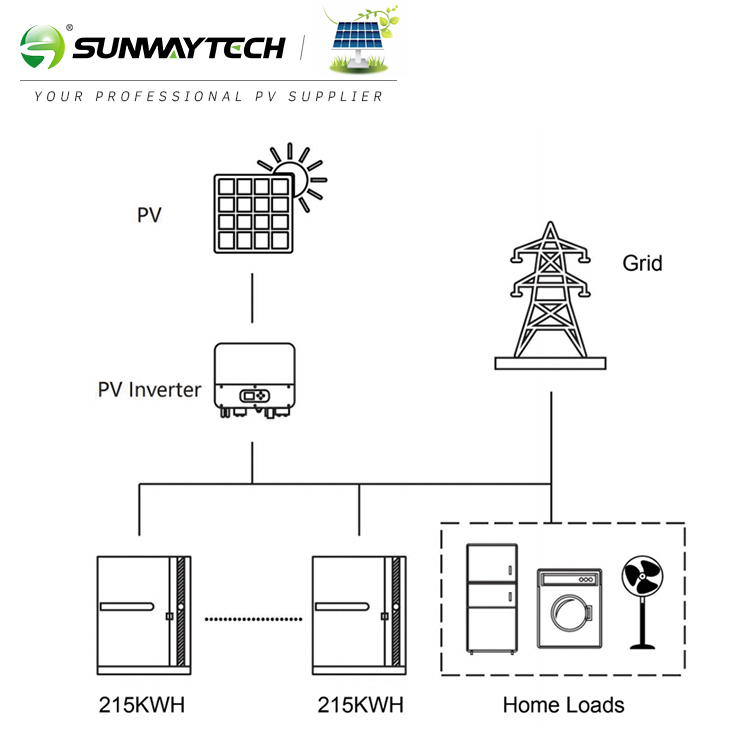

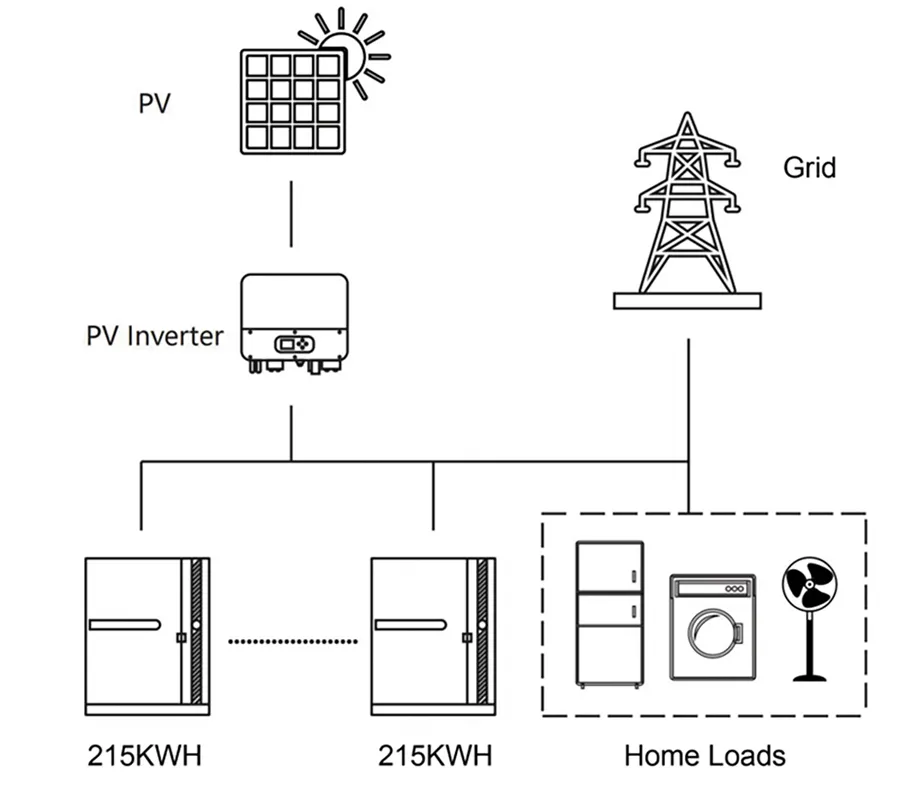

This commercial energy storage system stores excess energy generated by solar panels during the day. The power conditioning system (PCS) converts DC electricity into AC electricity for use by industrial and household appliances. Featuring an isolation transformer for safety and MCB for grid connection, the system is designed for both efficiency and compliance with global regulations.
