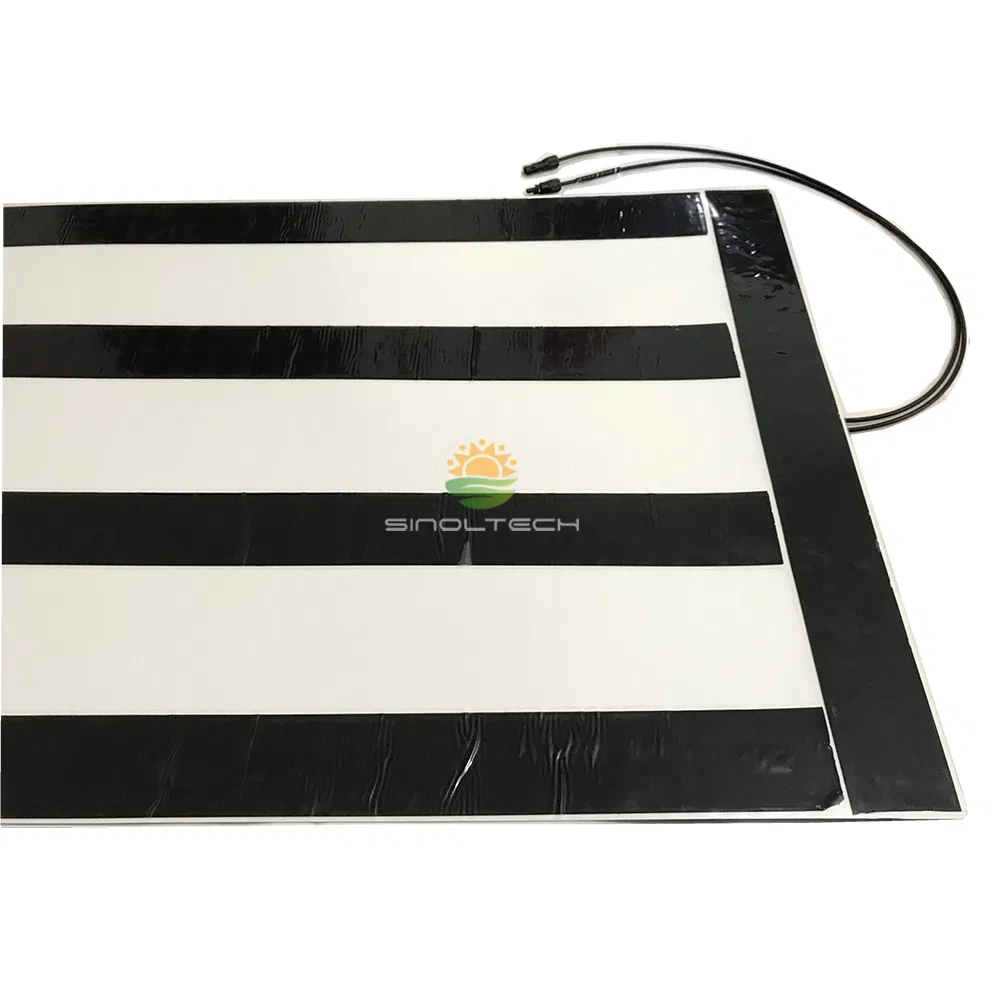

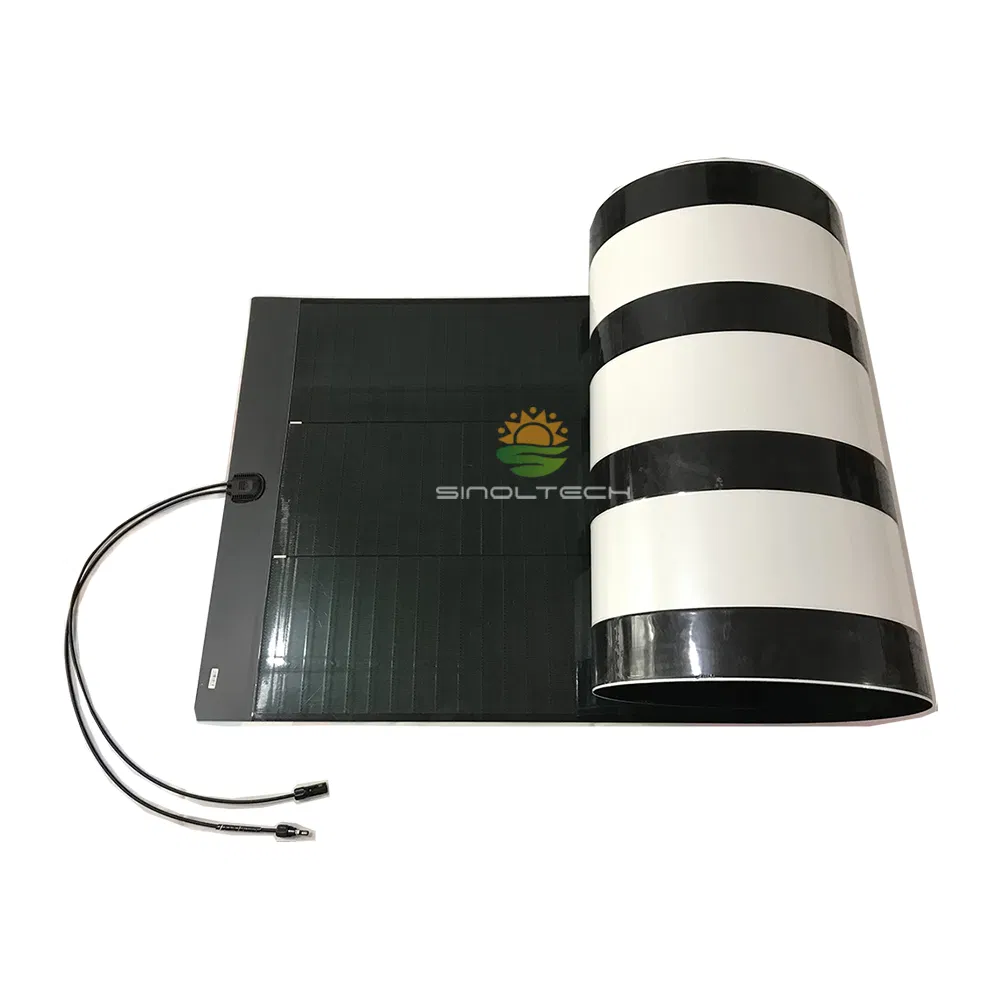

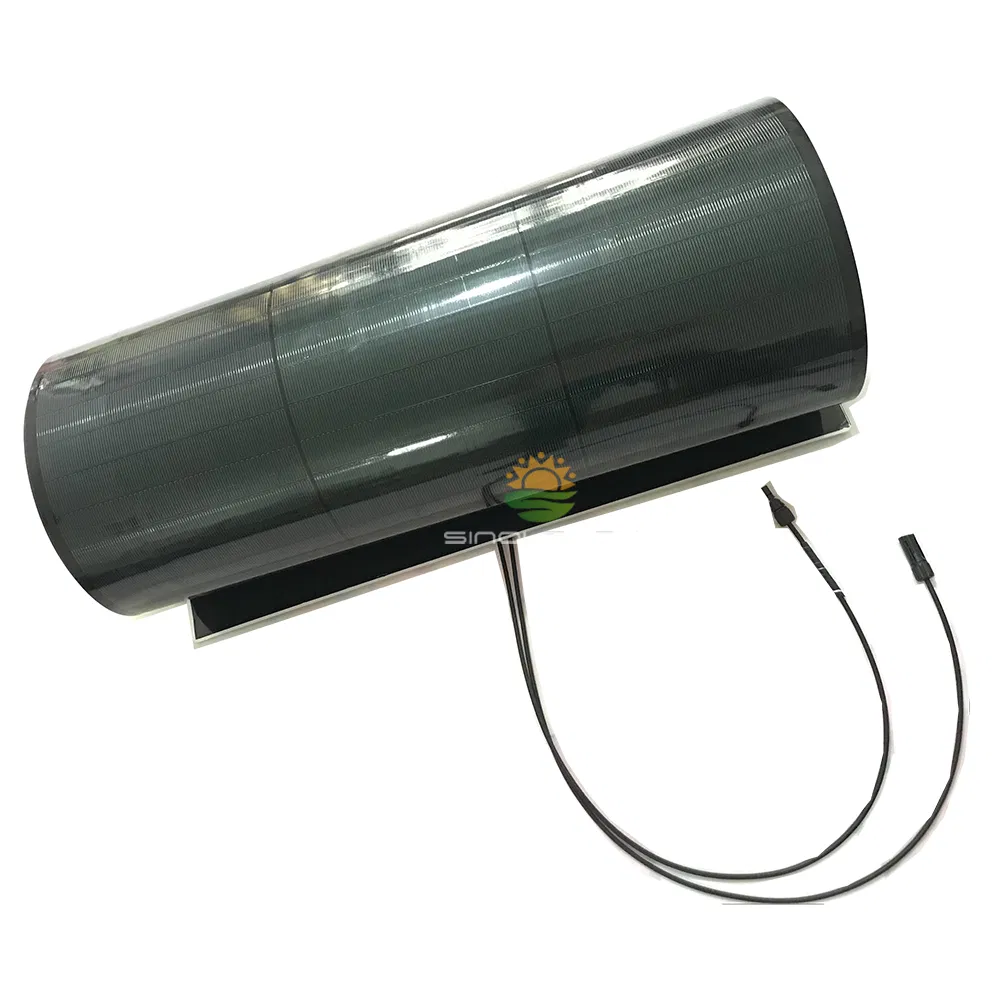

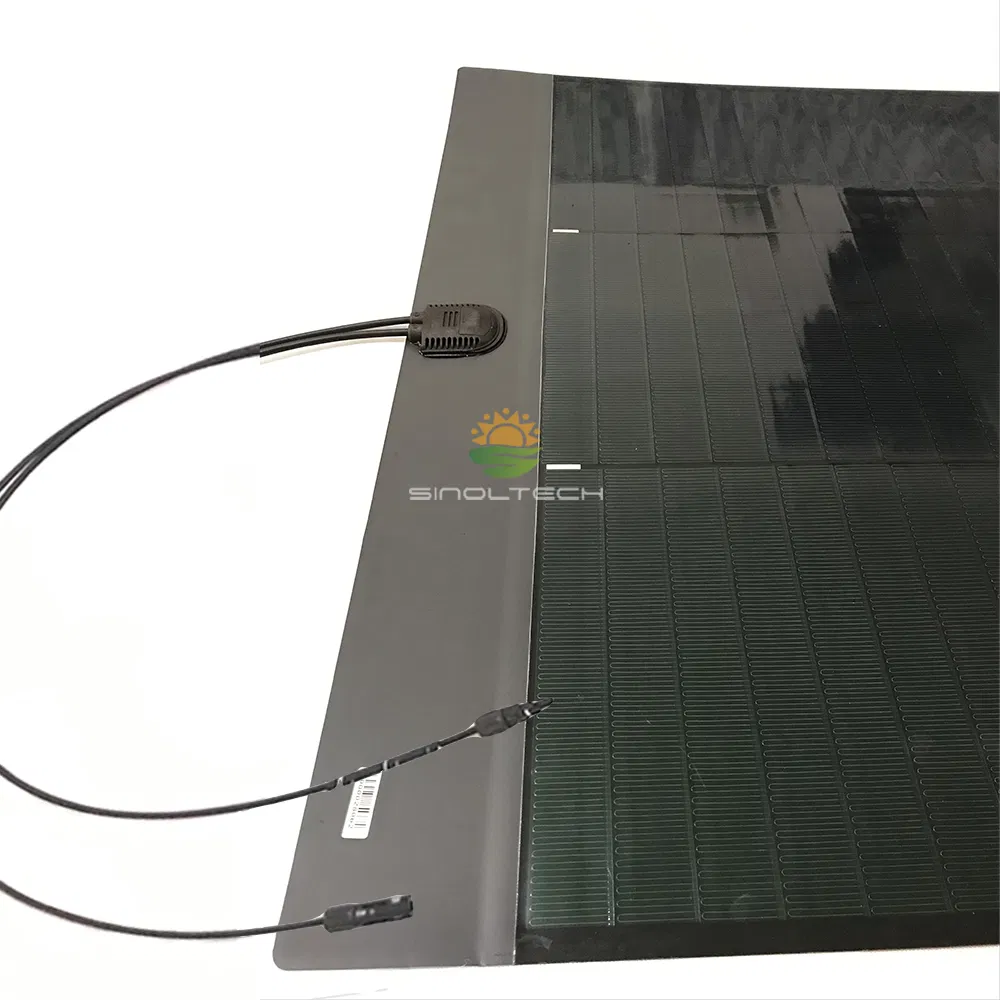

210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
1 / 5
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)
210W CIGS Flexible Solar Panel (Flex-03M-1.7M)

210W CIGS Flexible Solar Panel (Flex-03M-1.7M)

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Product Overview

210W CIGS Flexible Solar Panel (Flex-03M-1.7M)

Model NO.
Flex-03M-1.7M
Number of Cells
1
Capacity Rating
210W
Material
Amorphous Silicon
Efficiency
14.2%
Certification
CE, IEC
Dimensions
1710mm x 973mm
Weight
3.4 Kg (without adhesive)
Technology & Innovation

CIGS Technology: Our flexible solar panel adopts CIGS technology, which has an aperture efficiency as high as 17%, rivaling that of rigid glass panels.

Production Process: We utilize high-grade stainless steel foil and an advanced semiconductor deposition process (PVD) to produce controlled, stable, and powerful flexible stainless steel CIGS cells. The cells are protected by special water barrier plastics and an internal aluminum film backsheet to ensure long-term durability and prevent erosion.

Key Benefits:
  • Lightweight: Less than 2.4 kg/m². Perfect for structures with low load limitations.
  • Powerful: Highest efficiency flexible thin-film CIGS modules in production today.
  • Easy Installation: Peel-and-stick application eliminates penetrations and reduces leak risks.
  • Flexible: Conforms to curved surfaces, enabling power generation on non-traditional areas.
  • Disaster Resistant: Shatterproof, 2.5mm thin, with excellent wind and seismic resistance.
  • Reliable: Unique redundant interconnect design for industry-leading reliability.
Product Parameters
Capacity Rating Pmax 210W 220W 230W 240W
Module Aperture Efficiency % 14.2% 14.9% 15.6% 16.3%
Maximum Power Voltage Vmpp 18.1V 18.8V 19.4V 20.0V
Maximum Power Current Impp 11.6A 11.8A 11.9A 12.0A
Open Circuit Voltage Voc 23.2V 23.7V 24.2V 24.7V
Short Circuit Current Isc 14.0A 13.9A 13.7A 13.6A

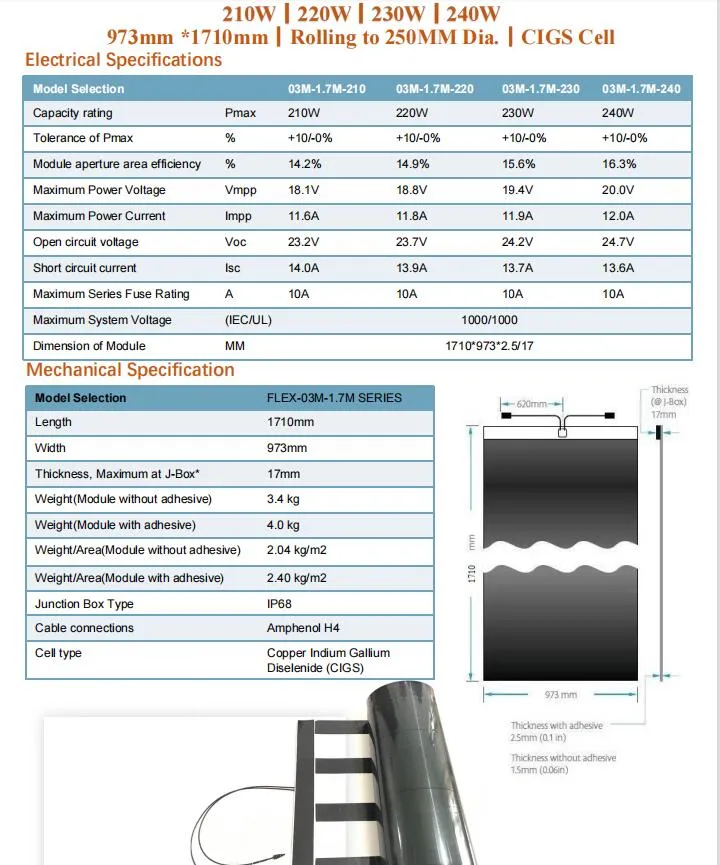

Data Sheet for CIGS Thin Film PV Flexible Panels:

Data Sheet
Detailed Photos

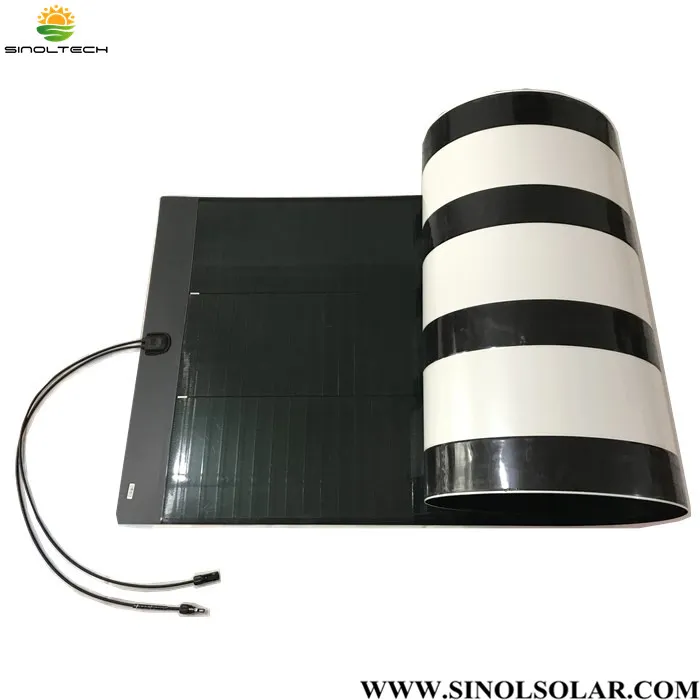

Product Detail 1

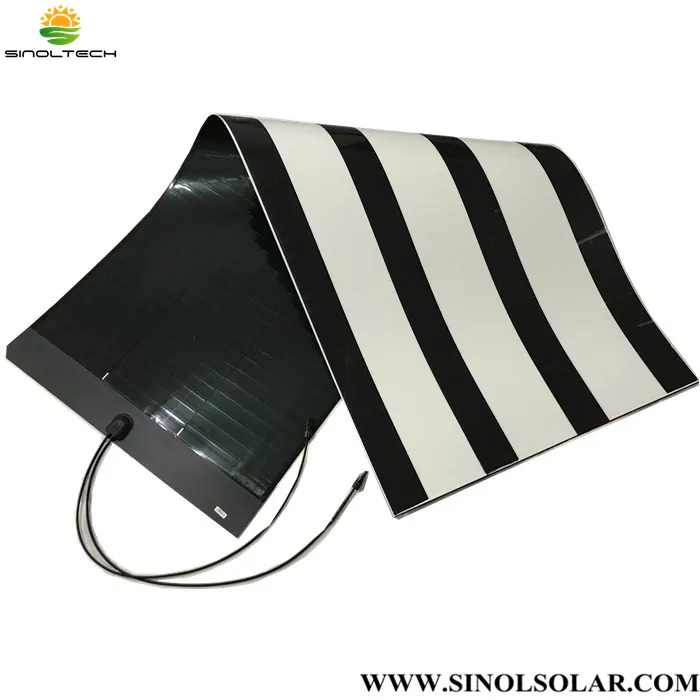

Product Detail 2

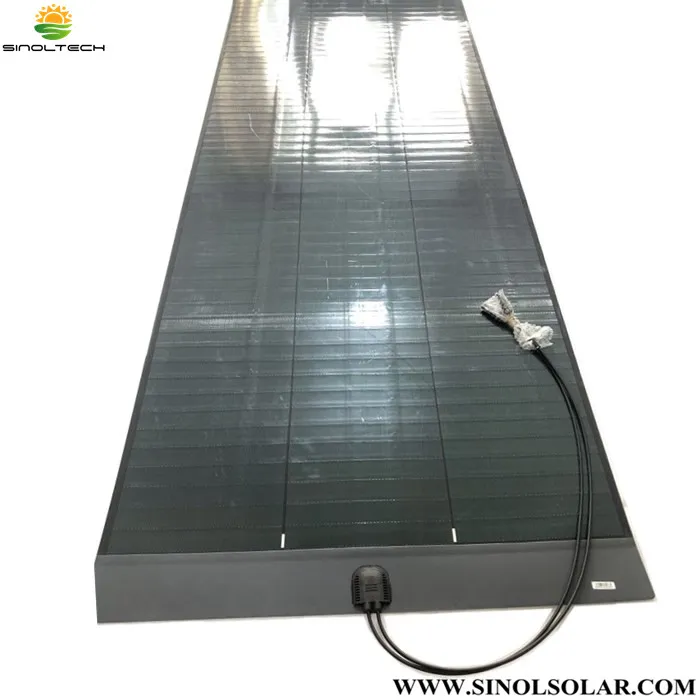

Product Detail 3

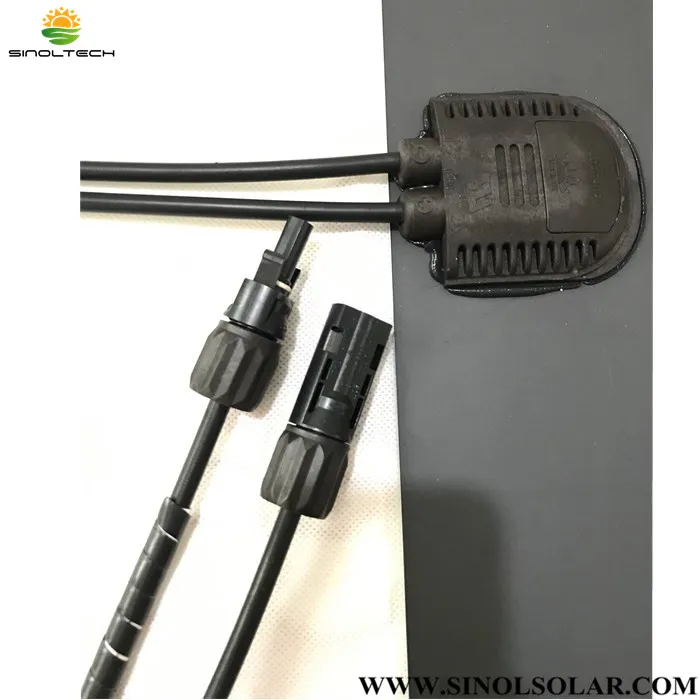

Product Detail 4
Application Cases

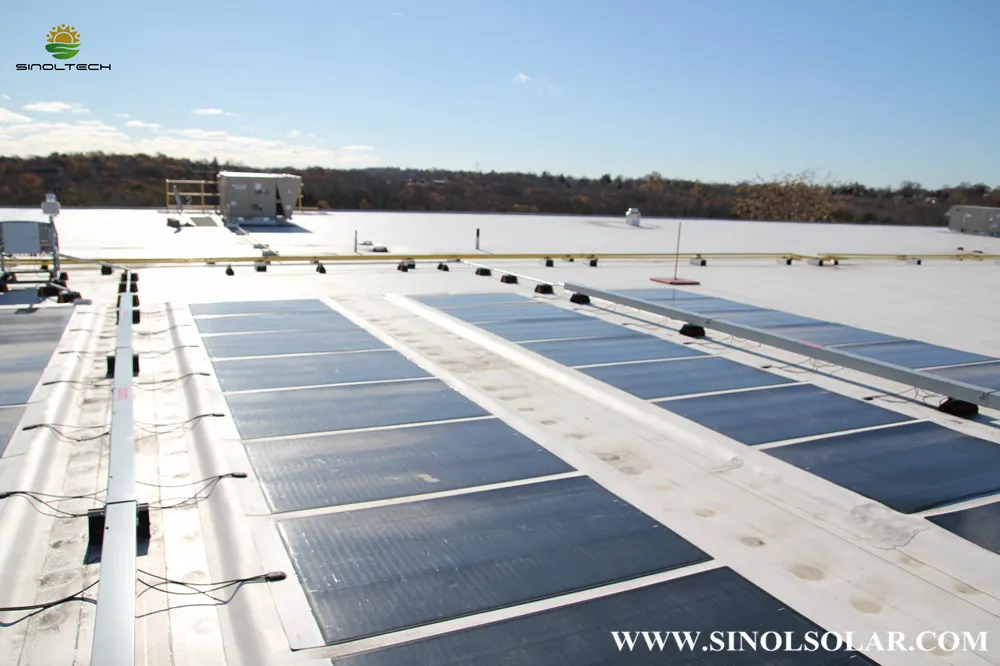

Application 1

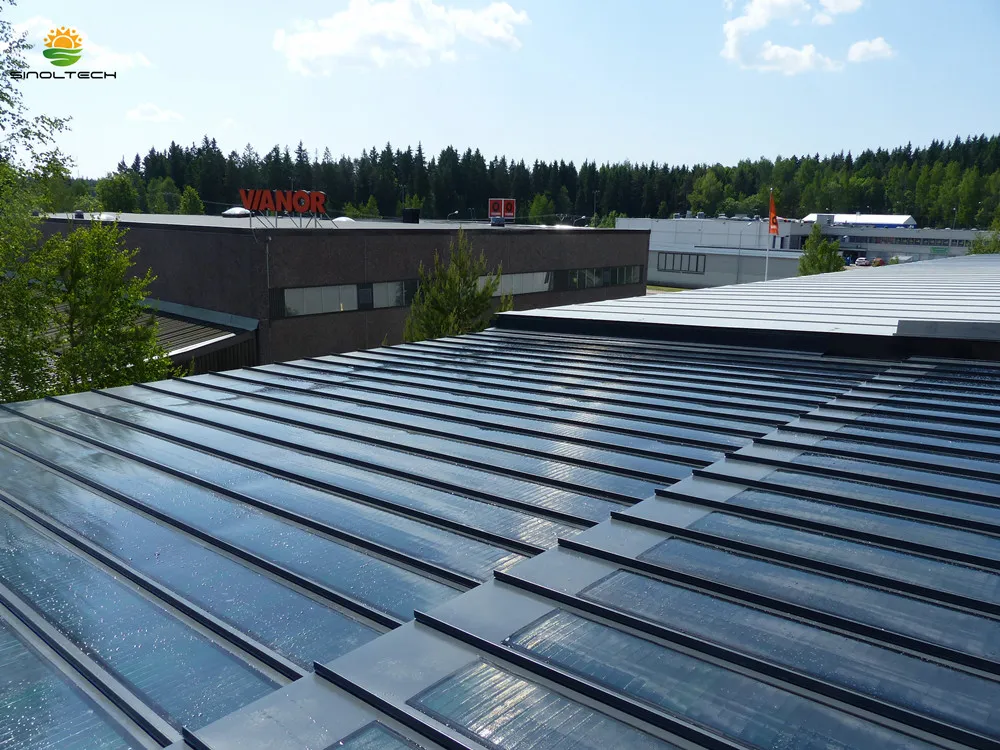

Application 2

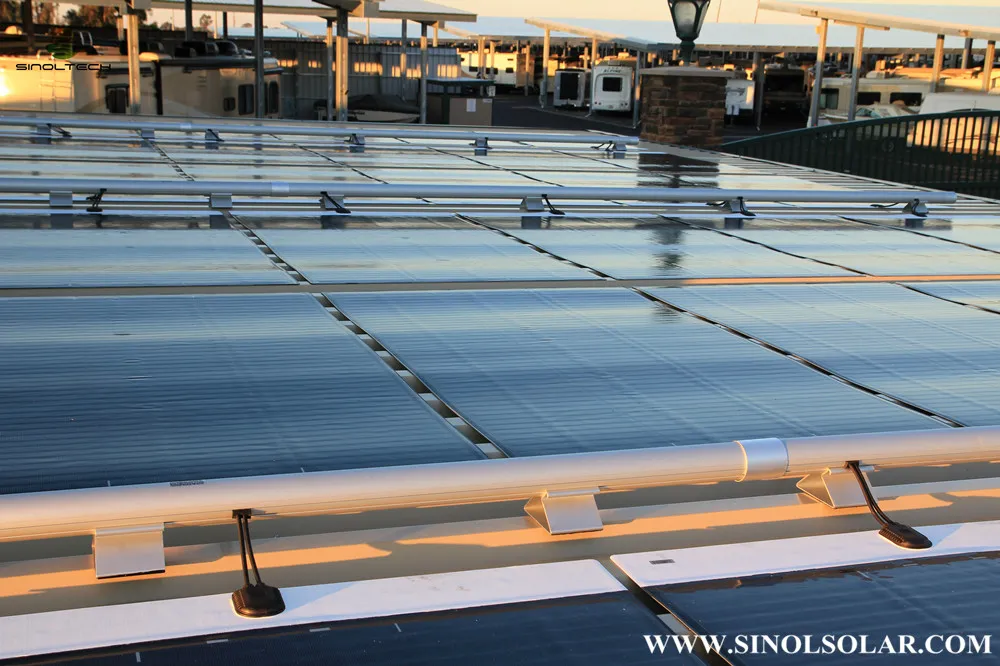

Application 3

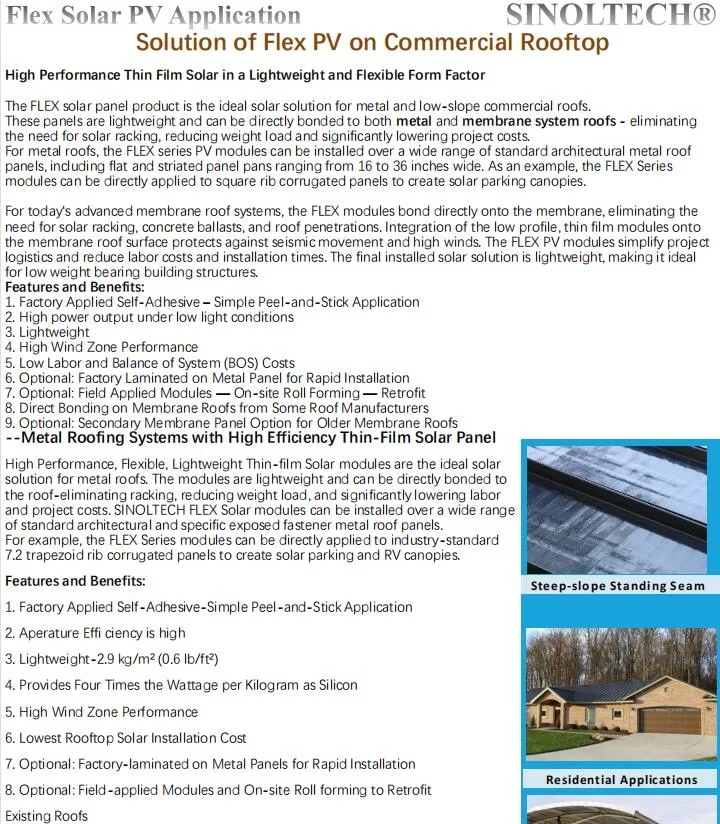

Application 4
Application 5

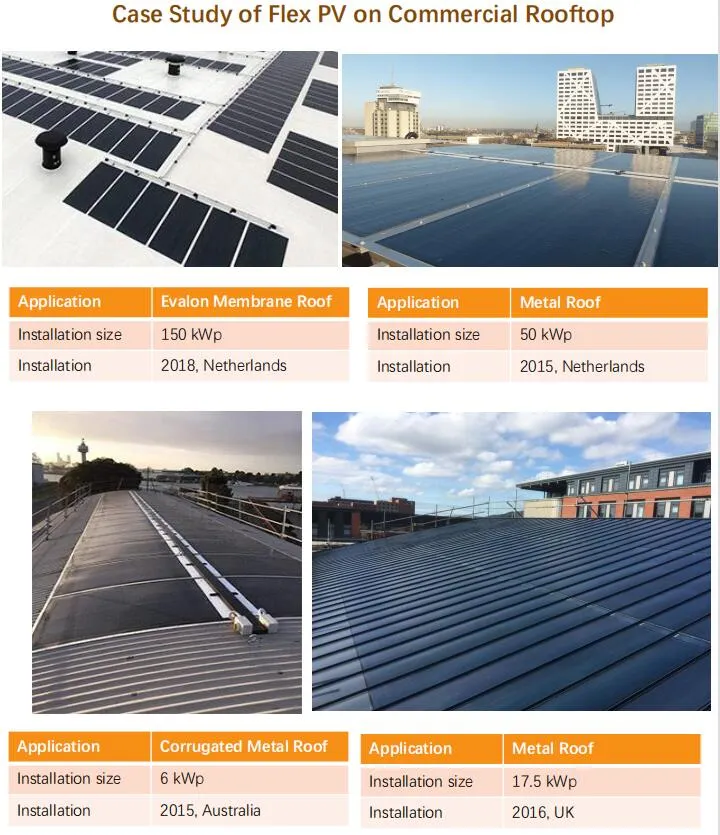

Application 6

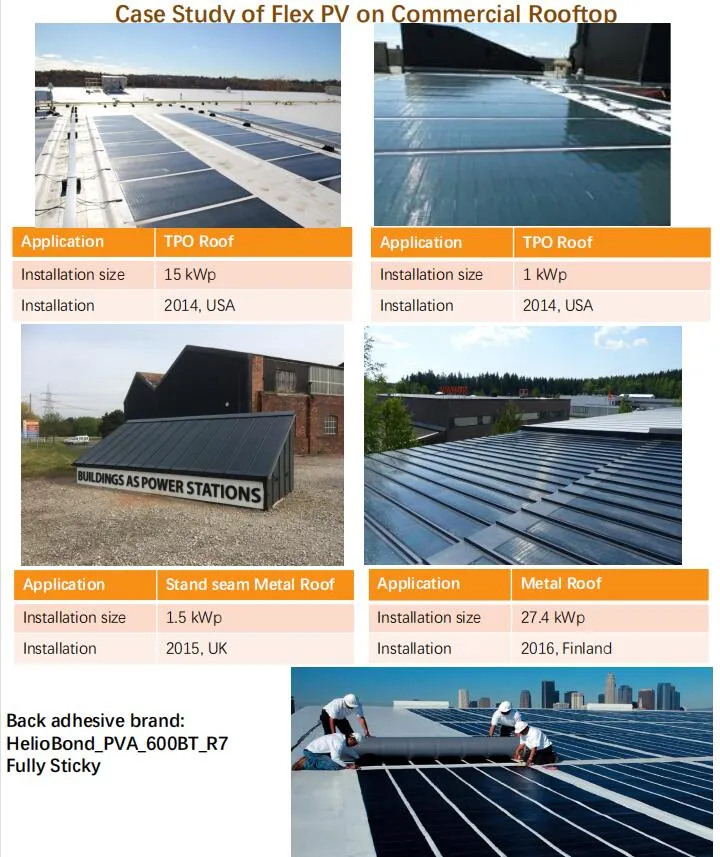

Application 7
Frequently Asked Questions
What makes CIGS technology different from traditional panels?
CIGS (Copper Indium Gallium Diselenide) technology allows for high efficiency in a thin, flexible form factor, providing excellent power output without the weight or fragility of rigid glass panels.
How are these flexible panels installed?
These modules feature a "peel-and-stick" application using a special adhesive backsheet, allowing for fast installation without penetrations or the need for heavy racking systems.
Can these panels be used on curved surfaces?
Yes, the flexibility of the module allows it to conform to curved surfaces, making it ideal for RVs, trucks, autos, and uniquely shaped architectural roofs.
Are the panels durable against extreme weather?
Absolutely. They are shatterproof and provide excellent resistance to wind and seismic activity. The water barrier plastics ensure long-term protection against environmental factors.
What is the weight advantage of these modules?
They weigh less than 2.4 kg/m², which is significantly lighter than traditional silicon panels, making them the best solution for structures with low dead load limits.
What kind of warranty is provided?
The panels typically come with a 5-year workmanship warranty and a 10/25 year warranty against power loss.
