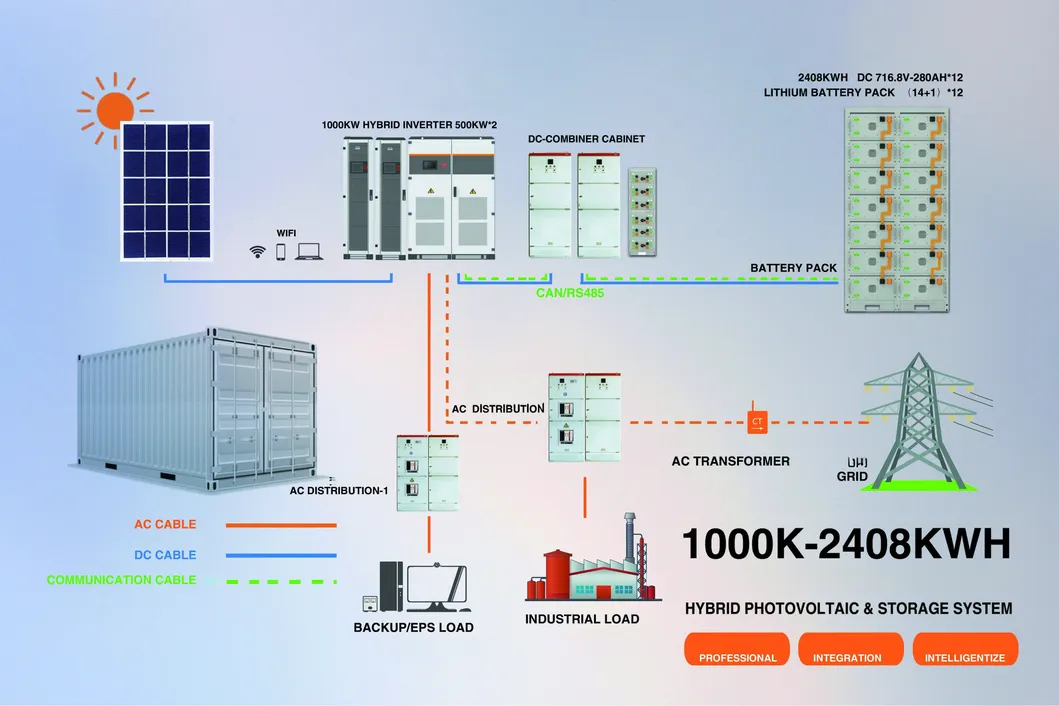

This is a working principle diagram of a solar energy storage system, showing the process from solar power generation to energy storage, use and grid connection. The components and their functions are as follows:
| Component | Function Description |
|---|---|
| Solar Panel | Converts solar energy into direct current. |
| PV Combiner Box | Collects the direct current from multiple panels and outputs it uniformly. |
| Bess with Inverter | Stores electrical energy. The inverter converts direct current into alternating current and manages charging/discharging. |
| Generator | Backup power source, supplementary or emergency power supply. |
| Load | Equipment or place that consumes electrical energy. |
| Electric Meter | Measures electrical energy and monitors grid exchange. |
| Grid | Realizes grid connection, purchase or sale of electricity. |
| System Parameters | |
|---|---|
| Norminal Voltage | 716.8V |
| Norminal Capacity | 280Ah / 200kWh |
| Dimensions | 1626*1245*2175mm |
| Weight | 2200KG |
| Protection Class | IP55 |
| Cycle Life | 5000 Times |
| Design Life | 10 Years+ |
Small size, light weight, saves floor space and installation costs. Whole system transportation is pre-installed for efficiency.
Low failure rate, low operation and maintenance costs. Remotely guide configuration and data analysis.
Online customer service responsive to any questions. Professional and considerate after-sales service.
Our facility features a modern exhibition hall and advanced production workshops focusing on new energy business and rigorous quality control.
