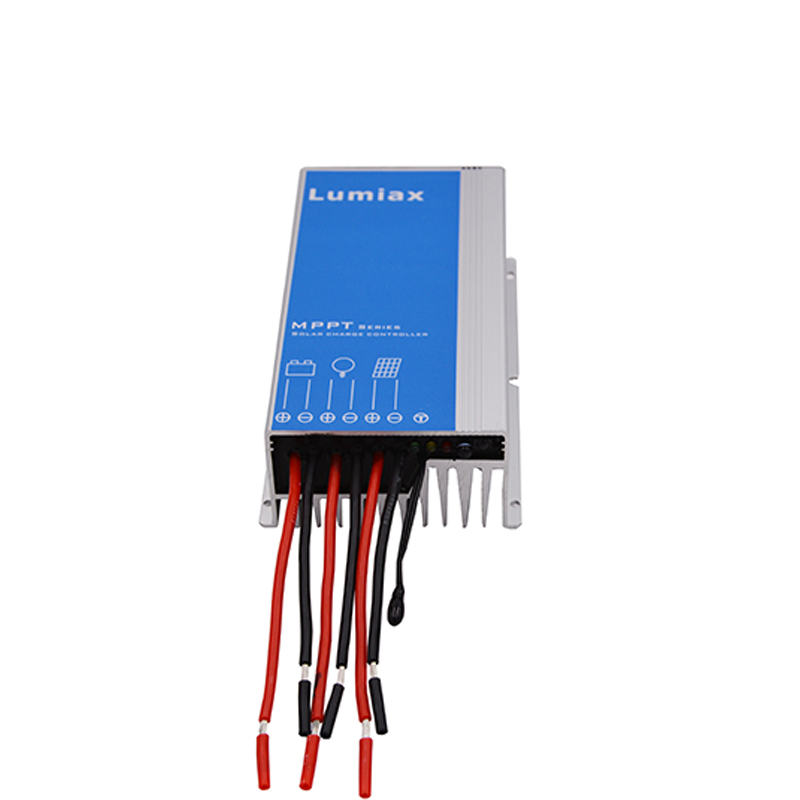

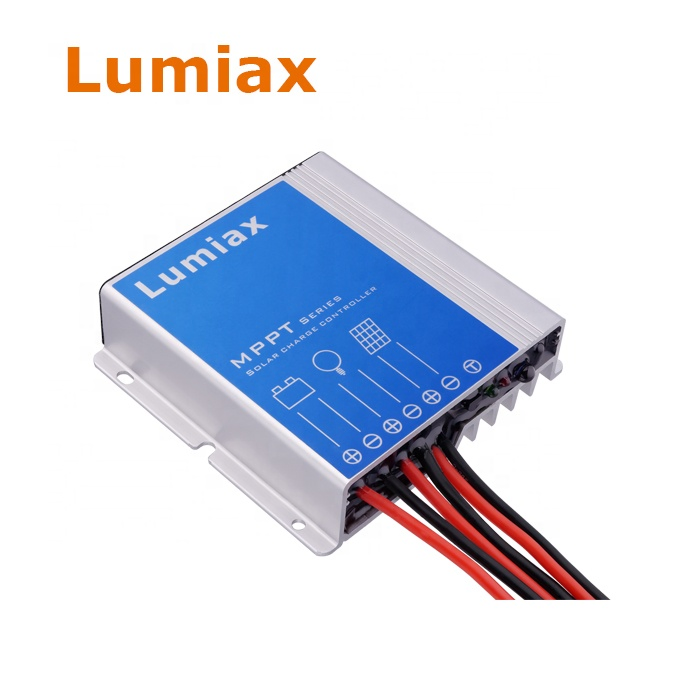

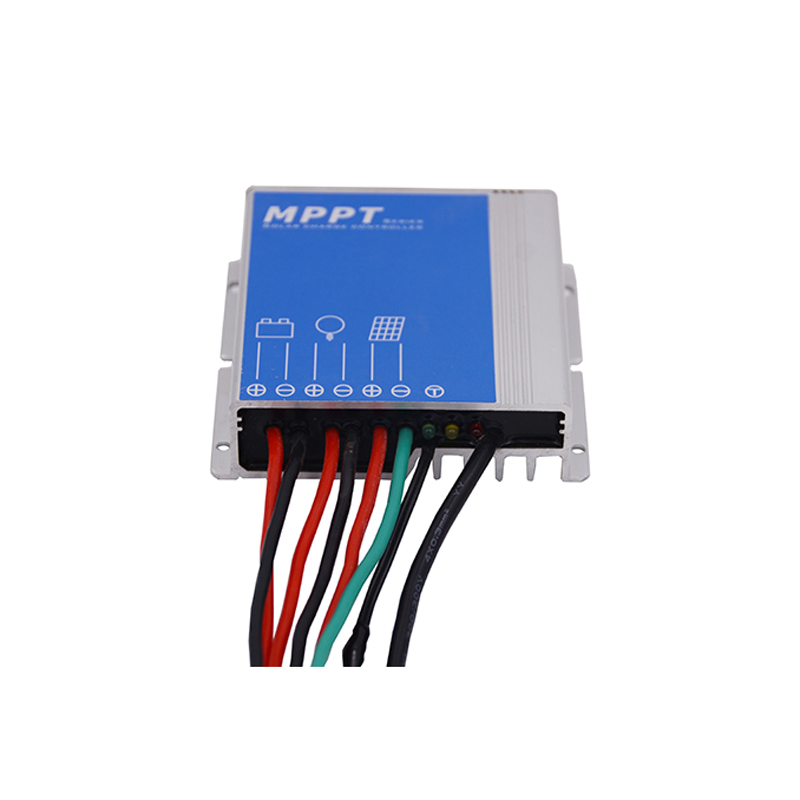

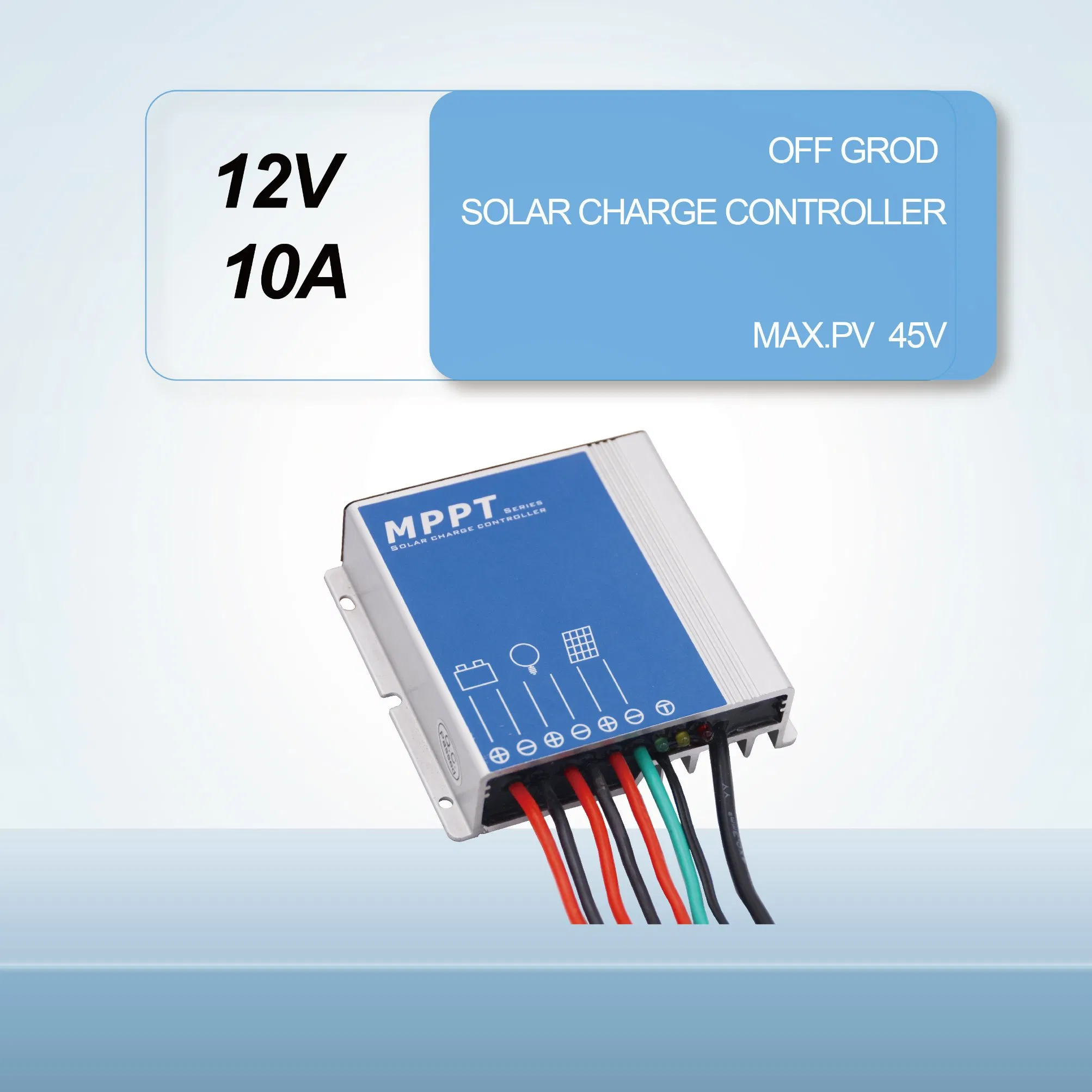

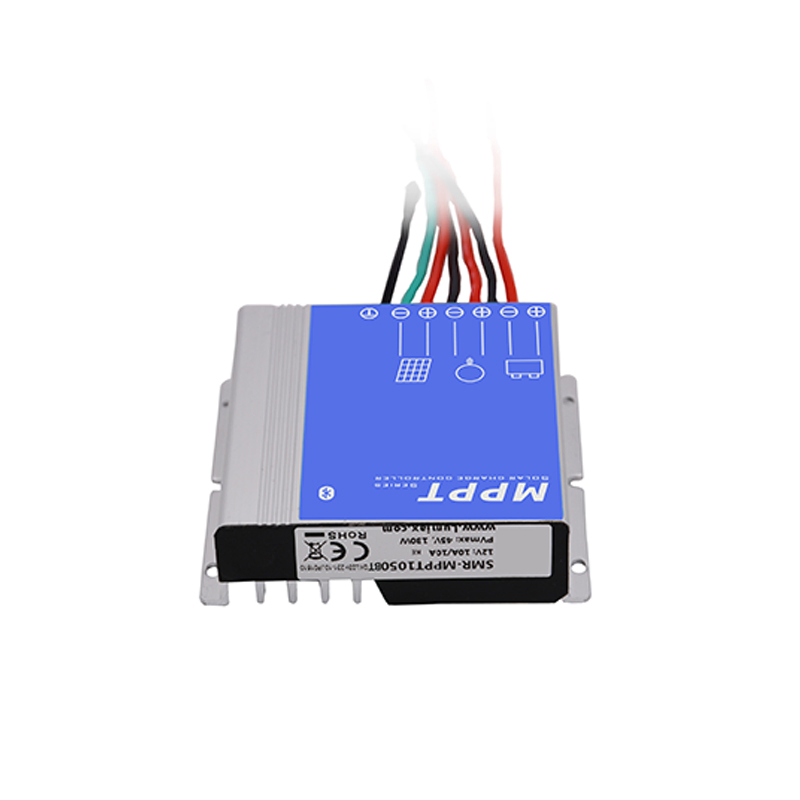

12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
1 / 5
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT
12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT

12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT

Customization: Available
After-sales Service: Installation and Debugging Guide
Warranty: 1
Send Inquiry

Product Description

🔘 Basic Information
Model NO.
SMR-MPPT Serise
Condition
New
Certification
ISO, CE, RoHS, FCC
Application
Solar System Controller, Charger Controller, Lighting Controller
Rated Voltage
12V/24V
Max Tracking Efficiency
99.9%
Max Charge Conversion
96.5%/97.5%
Max Volt on PV
45V/55V
Battery Type
Lithium, Liquid, Gel, AGM (Programmable)
Protection Degree
IP67
Charging Current
10A; 15A; 20A
Communication
Infared/RS485/BT
HS Code
9032899099
Production Capacity
1,500,000 PCS/Year
📦 Packaging & Delivery
Package Size
20.00cm * 15.00cm * 10.00cm
Gross Weight
2.000kg
Lead Time
31 days (1 - 2000 Pieces)

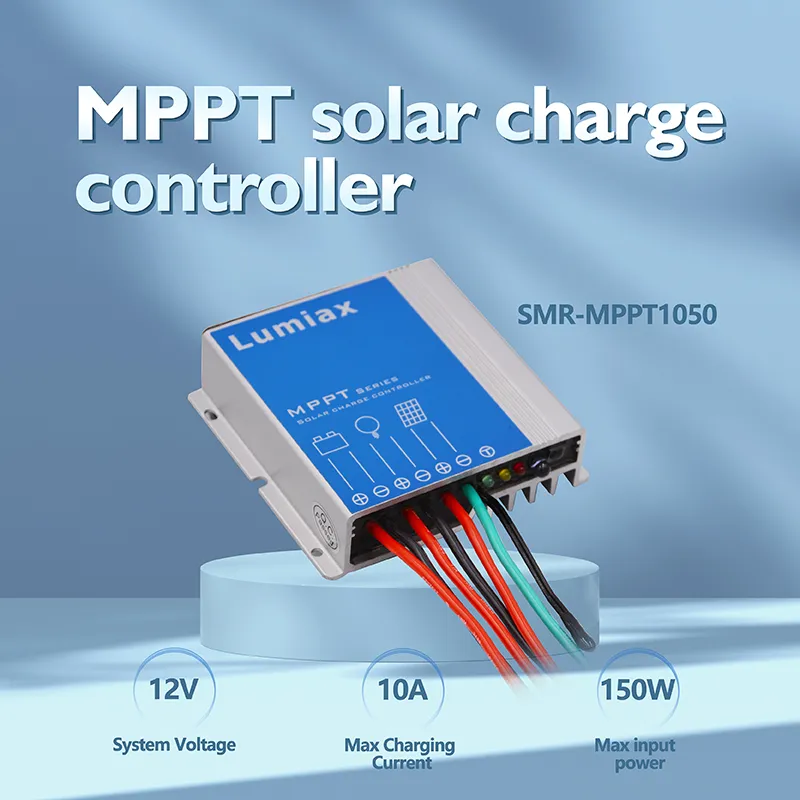

Solar Charge Controller
Controller Interface
📊 Product Parameters
Item SMR-MPPT1050/RS485 SMR-MPPT1575/RS485 SMR-MPPT2075/RS485
Max Charging Current 10A 15A 20A
System Voltage 12V 12V/24V Auto Recognition
Max Input Power 130W 200W/400W 260W/520W
Max Volt on Bat. Terminal 25V 35V
Battery Type Lithium, Liquid, Gel, AGM (Default: Gel)
Max Tracking Efficiency >99.9%
Max Charge Conversion 96.5% 97.5%
Communication Infared/RS485/BT

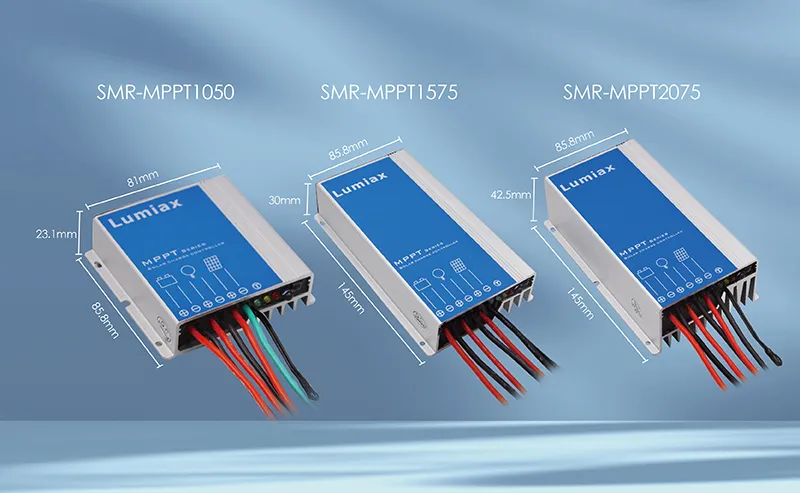

Dimensions 85.8*81*23.1mm 85.5*145*30mm 85.5*145*42.5mm
Protection Degree IP67

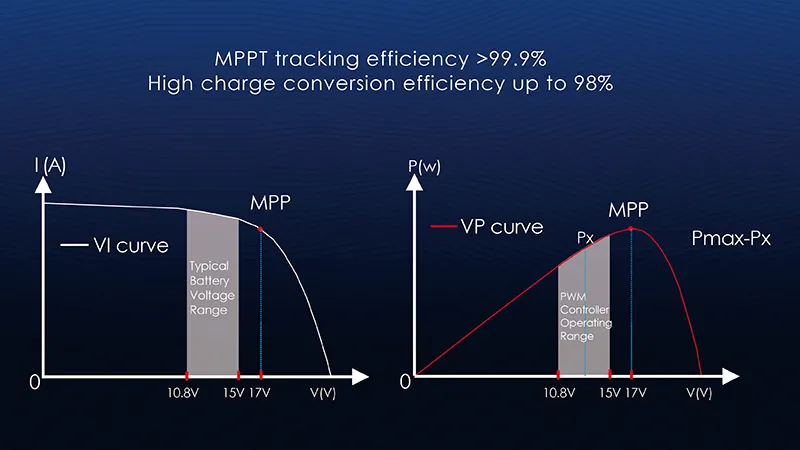

Efficiency Chart
📝 Product Description

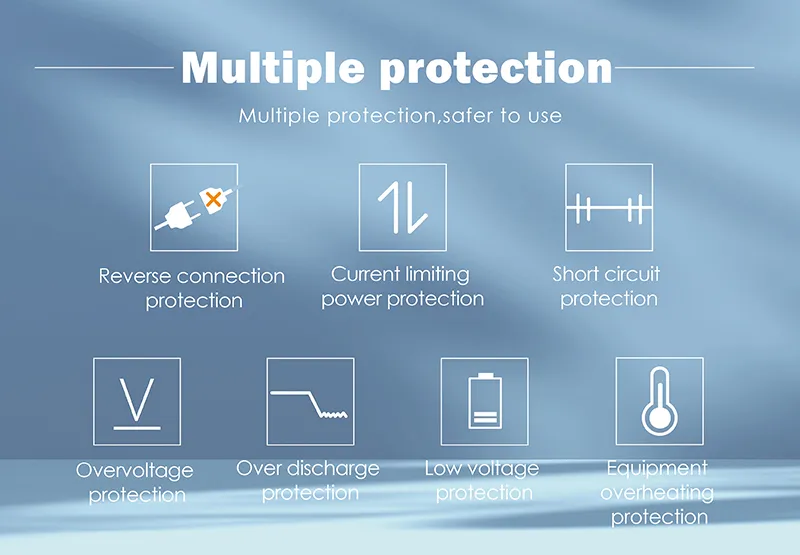

Details 1
Details 2

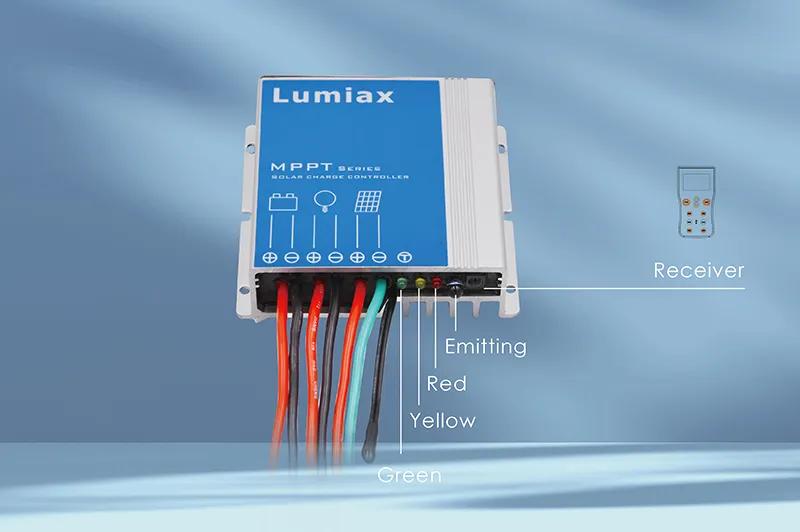

Details 3

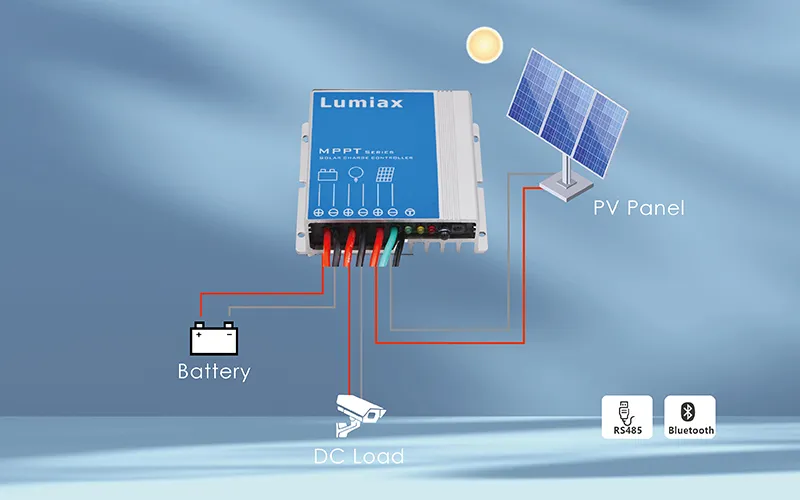

Details 4

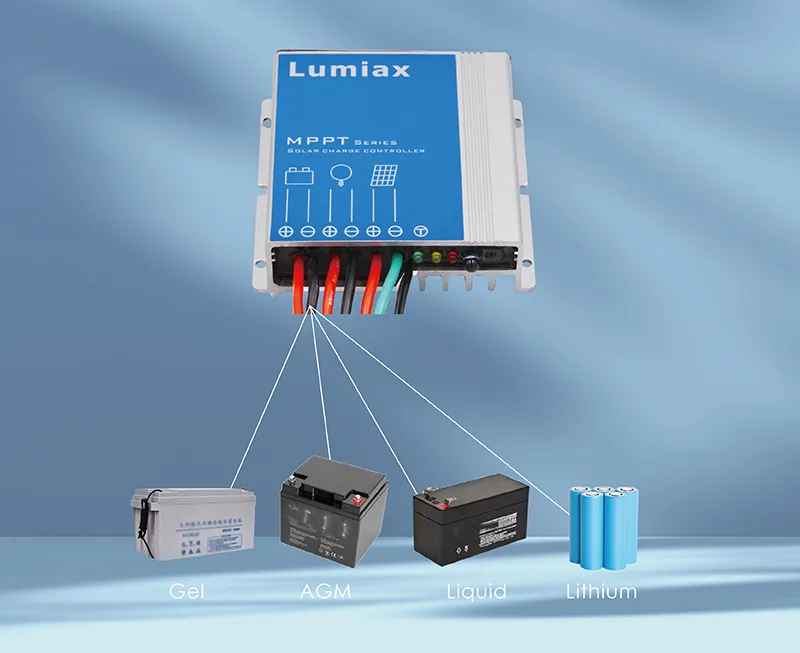

Details 5
⭐ Our Advantages
Advantage 1
Advantage 2
📜 Certifications
Certificates
🏢 Facility Overview
Factory 1

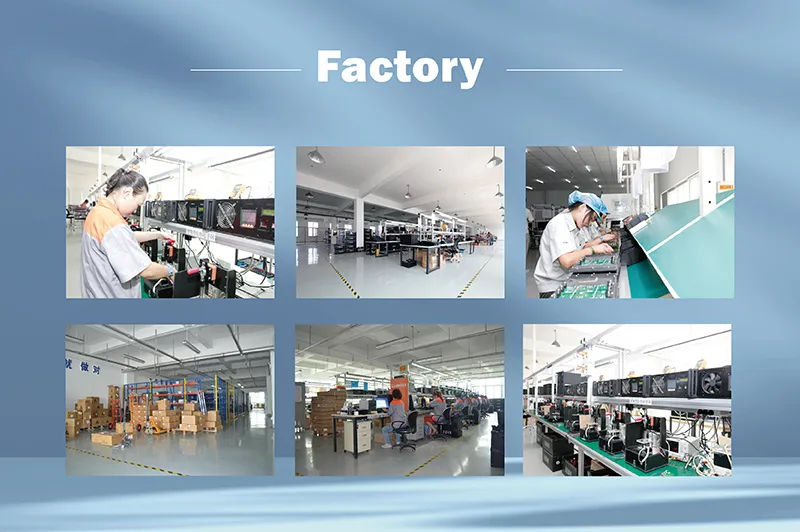

Factory 2
Factory 3
Production Line

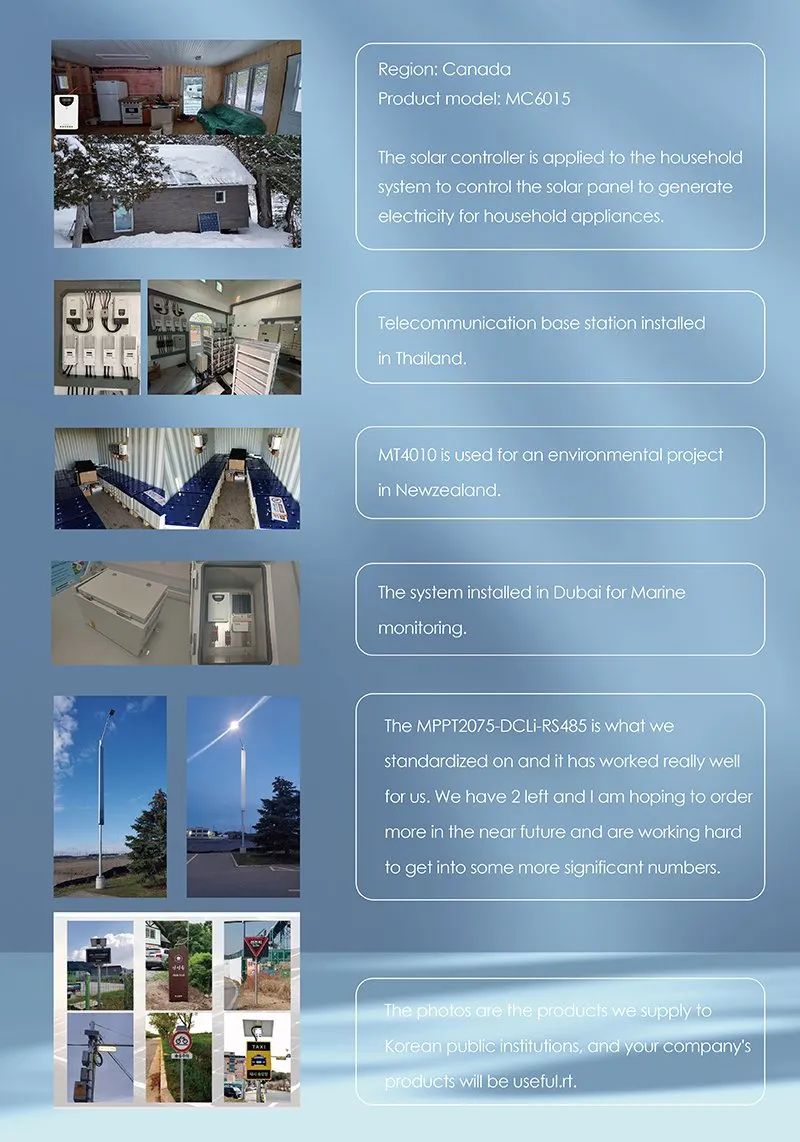

Quality Control
❓ Frequently Asked Questions
What types of batteries does this controller support?
The SMR-MPPT series supports Lithium, Liquid, Gel, and AGM batteries. It is also programmable to suit specific battery requirements.
What is the maximum tracking efficiency of the MPPT?
The controller boasts a high tracking efficiency of over 99.9%, ensuring maximum energy harvest from your solar panels.
Is the controller suitable for outdoor use?
Yes, it features an IP67 protection degree, making it highly resistant to dust and water, ideal for harsh environments.
Does the controller support 24V systems?
The 15A and 20A models support 12V/24V automatic recognition. The 10A model is designed for 12V systems.
What communication methods are available?
The series supports Infrared, RS485, and Bluetooth (BT) for easy monitoring and configuration.
Can the charging voltage be programmed?
Yes, parameters such as Boost Voltage, Equalization Voltage, and Float Voltage are all programmable via the supported communication interfaces.
