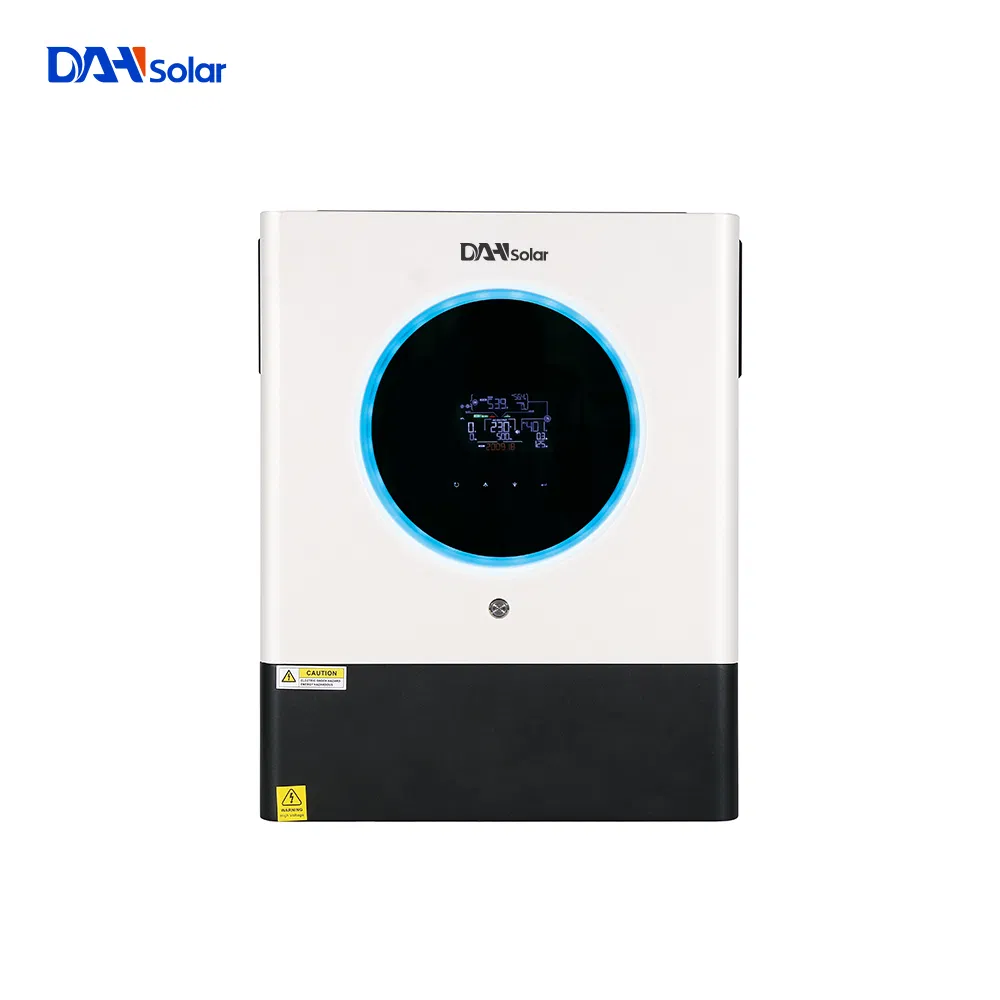

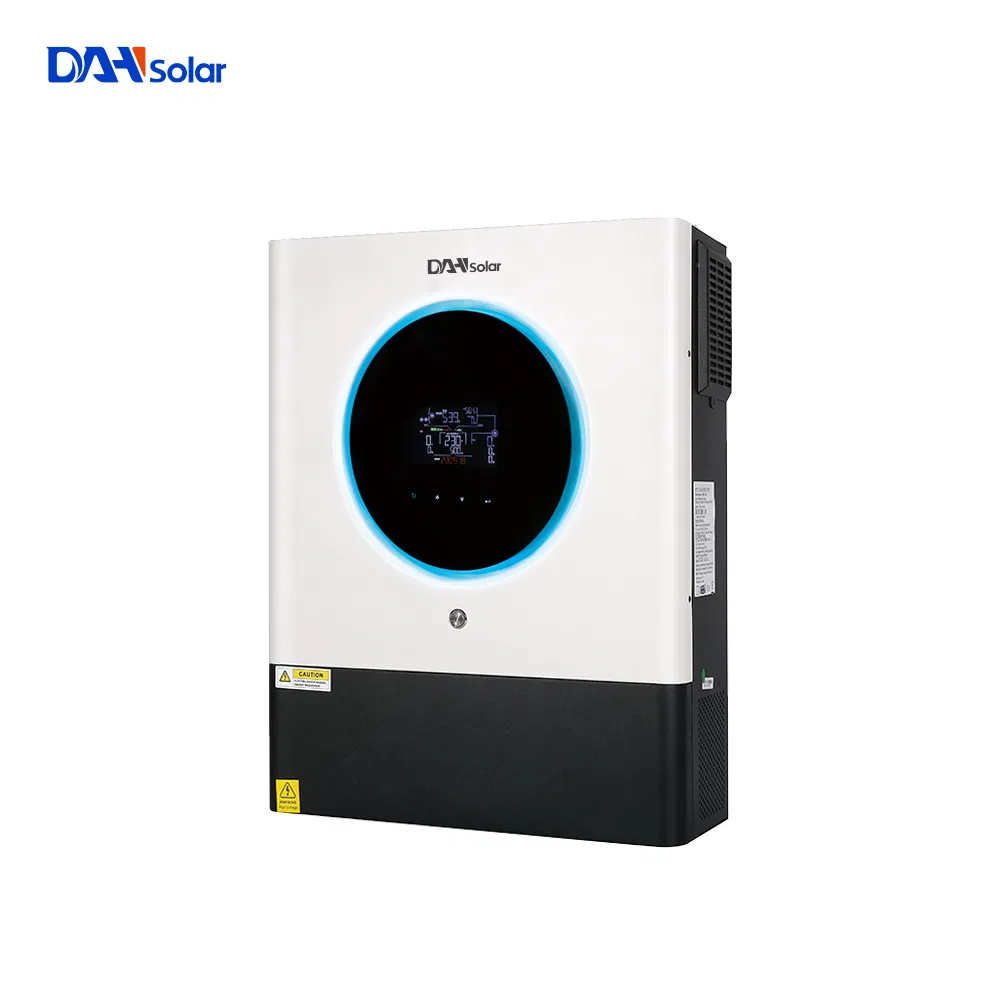

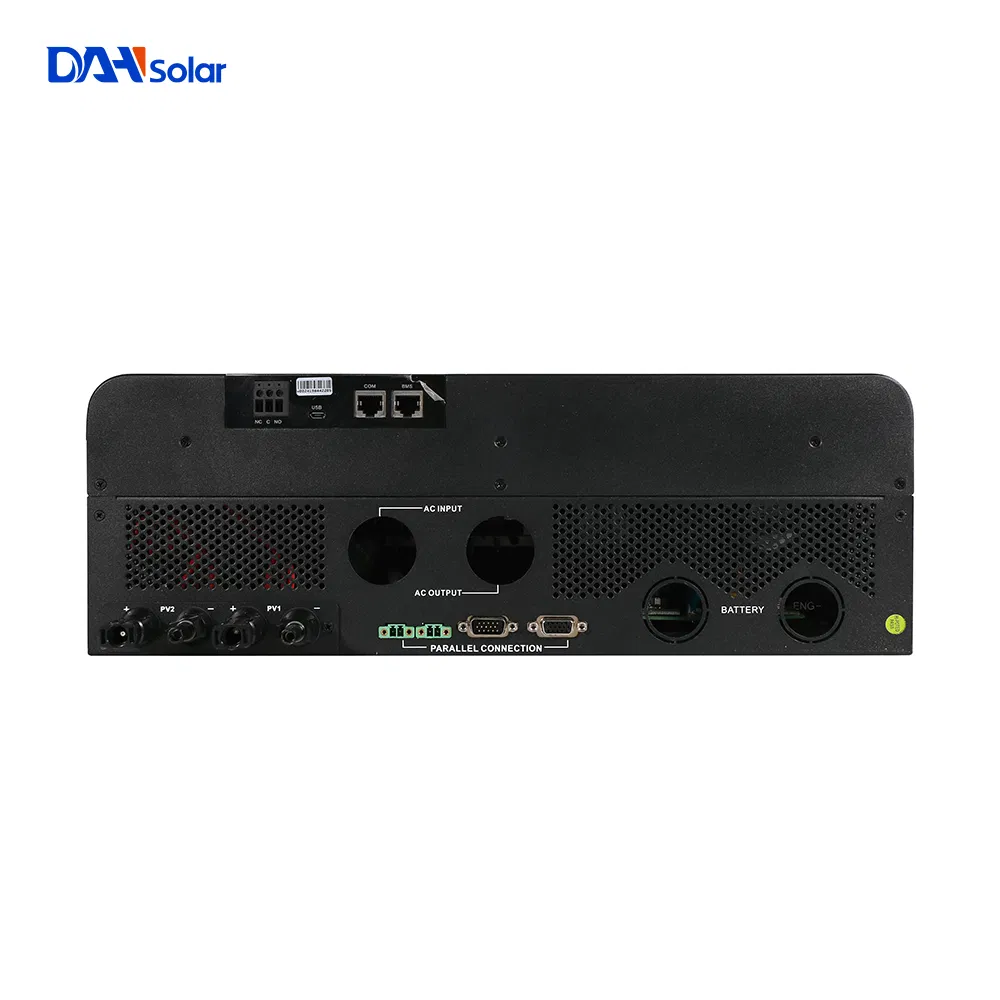

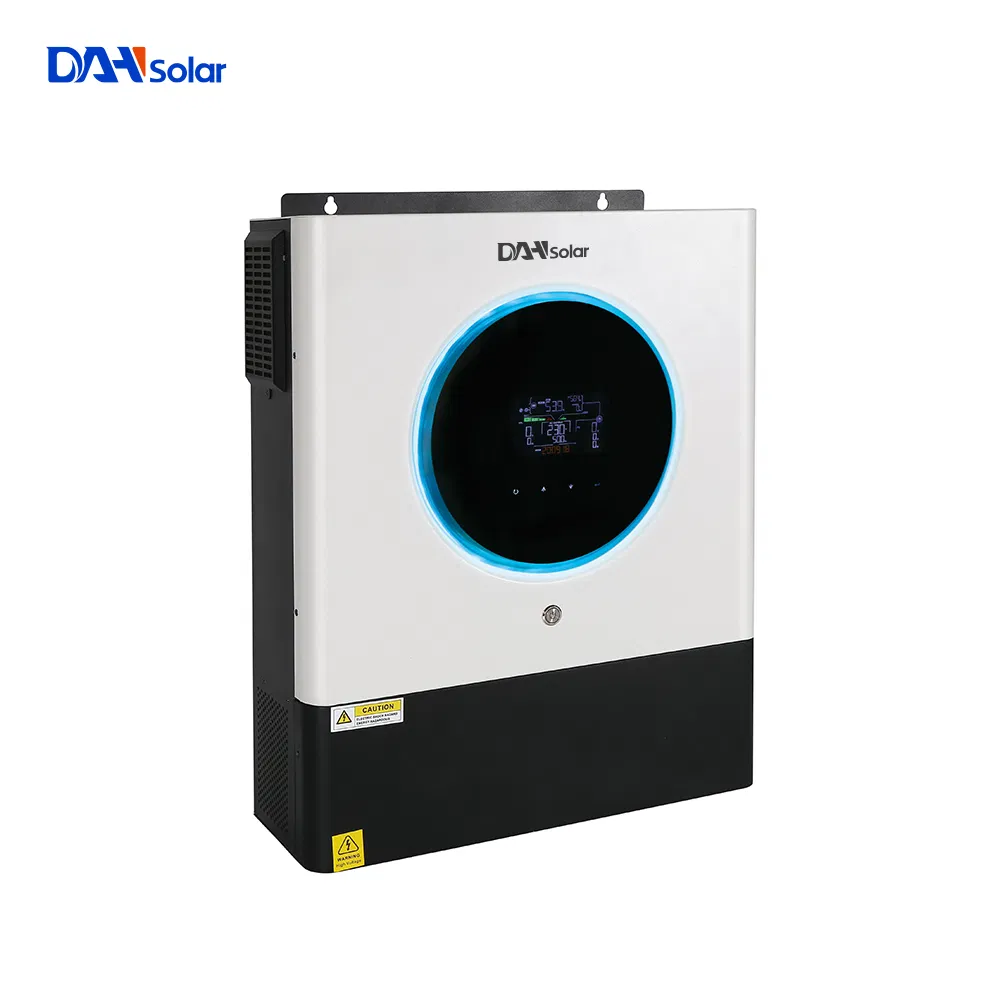

11000W Inversor Solar Single Phase 11kw off Grid Solar Inverter Low Voltage

1 / 5

11000W Inversor Solar Single Phase 11kw off Grid Solar Inverter Low Voltage

Customization:	Available
After-sales Service:	Yes
Warranty:	2 Years

Send Inquiry

Product Description

📋

Basic Product Specifications

Model NO.

MAX/MAX II (8-11kw)

Nature of Source

Pure Sine Wave

Phase

Single Phase

Output Power

8-11kw

Certification

Type

DC/AC Inverters

Power Source

Solar Power

Parallel Capacity

Yes, up to 6 Units

No Load Power

<70W

Transfer Time

15ms (PC) / 20ms (Home Appliances)

Operating Temp

-10°C to 50°C

Solar Charger

MPPT

⚡

Product Description

Model	MAX II 8000	MAX II 11000
Rated Power	8000VA/8000W	11000VA/11000W
Parallel Capability	Yes, 6 units
INPUT
Voltage	230 VAC
Voltage Range	170-280VAC (PC) / 90-280VAC (Appliances)
OUTPUT
Surge Power	16000VA	22000VA
Waveform	Pure sine wave
SOLAR & AC CHARGER
Max PV Array Power	8000W (4000Wx2)	11000W (5500Wx2)
Max Solar Charge Current	150A
PHYSICAL
Net Weight (kgs)	19	21

🏆

Technical Certification & Quality

Full line of international authoritative certificates such as CE, TUV, SGS, IEC, MCS, INMETRO, etc. are available. The Full Screen PV Module technology has global patents in more than 18 countries.

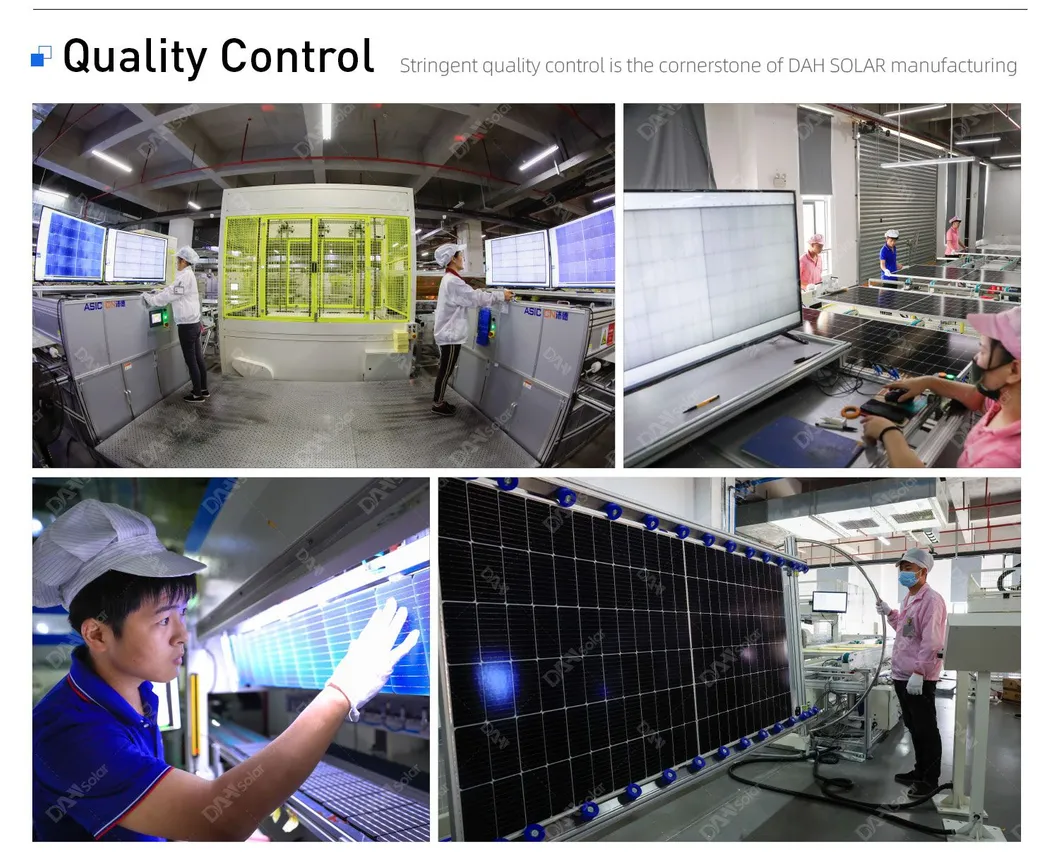

During more than 20 production processes, each unit is quality tested and inspected with 2 times EL tests by professional and precise instruments.

🌍

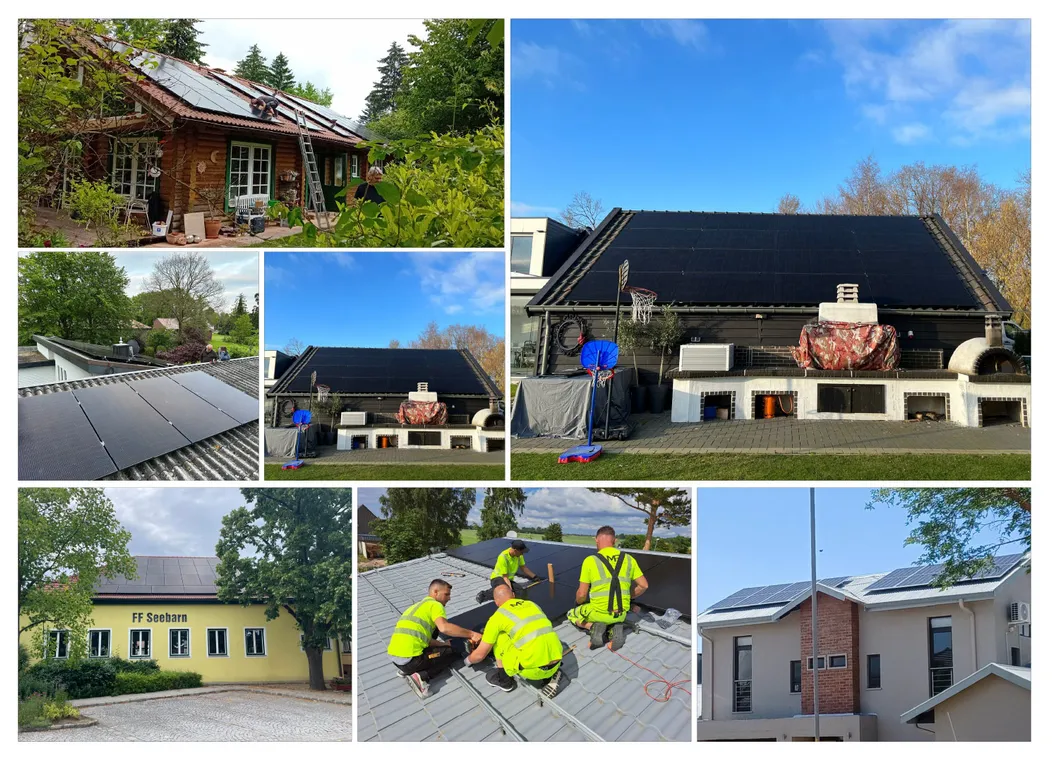

Global Projects & Exhibitions

Solar systems have been exported to more than 100 countries. With rich experience in designing, exporting, and installation, local engineering teams provide timely service.

❓

Frequently Asked Questions

How many units can be connected in parallel?

The system supports parallel capability for up to 6 units, allowing for scalable power output.

What is the advantage of a Pure Sine Wave inverter?

Pure Sine Wave inverters provide clean, high-quality power identical to the grid, ensuring safety for sensitive electronics like laptops and medical equipment.

Does this inverter support lithium batteries?

Yes, it features various communication interfaces like RS485 and RS232 to integrate with different battery management systems.

What is the maximum solar input voltage?

The maximum PV array open circuit voltage is 500VDC, with an MPPT operating range of 90-450VDC.

Is the inverter suitable for high-temperature environments?

The operating temperature range is -10°C to 50°C, making it suitable for a wide variety of climates.

What certifications does the product hold?

The product is fully CE certified and complies with international safety and quality standards.
