Model NO.:Corey233
Nominal Voltage:230V/400V
Warranty:5 years
Nominal Capacity:233kWh
Cycle Life:9000
Battery Type:LiFePO4
Grid Connection:Hybrid Grid
Cooling Method:Intelligent Liquid Cooling
Protection Level:IP54
AC Rated Voltage:230V/400V(±15%)
AC Maximum Current:167A
Specification:1560mm * 1380mm * 2385mm
Profit Model & Investment Recovery
Commercial and Industrial Energy Storage products help recoup investments through various efficient strategies:
📈 Peak-Valley Arbitrage
Buying low-cost electricity during off-peak hours and discharging it during peak periods to reduce energy costs.
⚡ Load Management
Optimizing demand to minimize short-term peak loads, lowering demand charges and enhancing revenue.
🔄 Demand Response
Voluntarily reducing consumption during power shortages to support grid stability and earn incentives.
🔋 Backup Power
Providing emergency power to critical loads during outages, ensuring business continuity.
Product Advantages
- Safe and Reliable: Emergency backup power ensures continuous operation.
- Flexible Configuration: Modular design for easy expansion and customization.
- High Efficiency: Optimized energy usage to significantly reduce costs.
- Intelligent O&M: Reduced maintenance costs through smart monitoring.
- Grid-friendly: Smooth grid-connected/off-grid switching with multiple protections.
Technical Parameters
| Parameter Name |
COREY 233CE Specification |
| System |
Battery Cell |
LFP(LiFePO4) 3.2V 280Ah |
| System Capacity |
233kWh |
| Rated Power |
105kW |
| Fire Fighting |
Aerosol + Water Fire Protection |
| AC Side |
Rated Voltage |
230V/400V(±15%) |
| Rated Frequency |
50/60 Hz |
| Maximum Current |
167A |
| DC Side |
Rated Voltage |
832V |
3

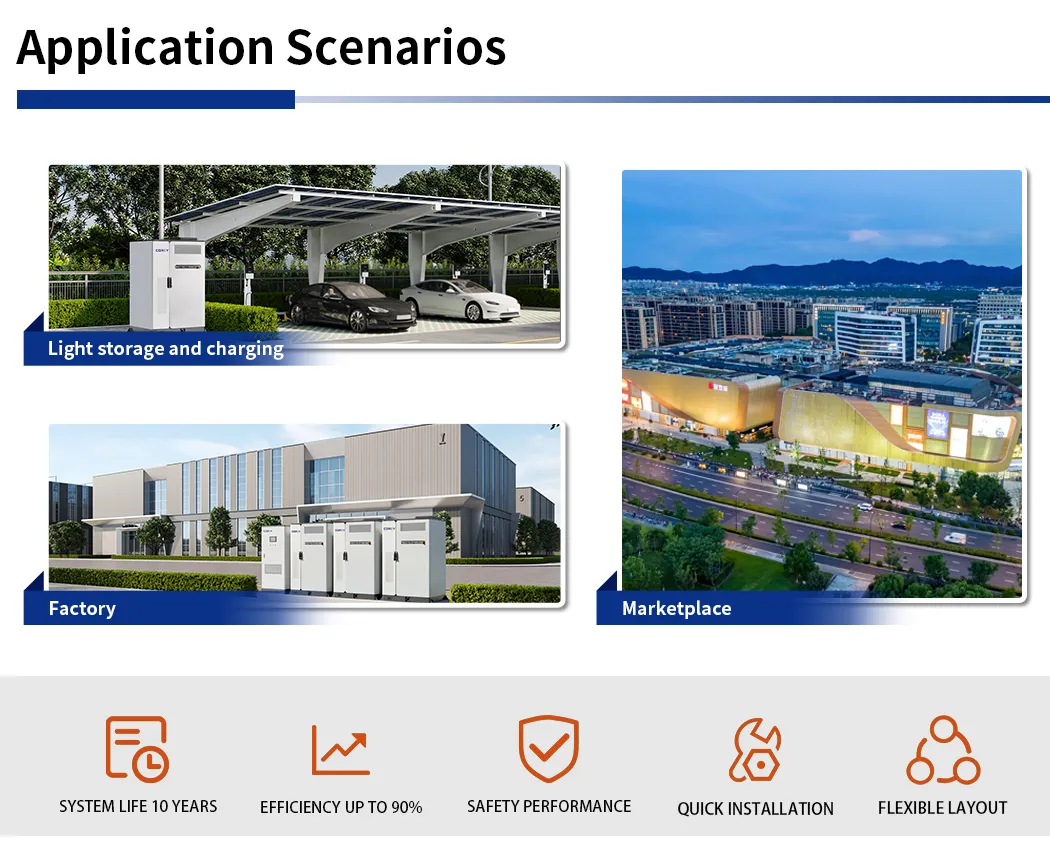

Project Case & Application
Our solutions are widely applied in commercial buildings, factory buildings, remote areas, and regions experiencing power shortages.
Established in 2014, the group initially focused on automated intelligent equipment with laser welding technologies for lithium battery modules. Today, it provides one-stop green power station solutions, including Microgrid, Photovoltaic, and Energy Storage projects.
Dedicated to becoming a global leading microgrid solution provider, the company aims to promote the clean energy transformation and help build zero-carbon power systems for a stable and safe power supply.
?
Frequently Asked Questions
Q1: What is the expected cycle life of the Corey233 system?
A: The system features LiFePO4 battery technology with a cycle life of up to 9,000 cycles, ensuring long-term durability.

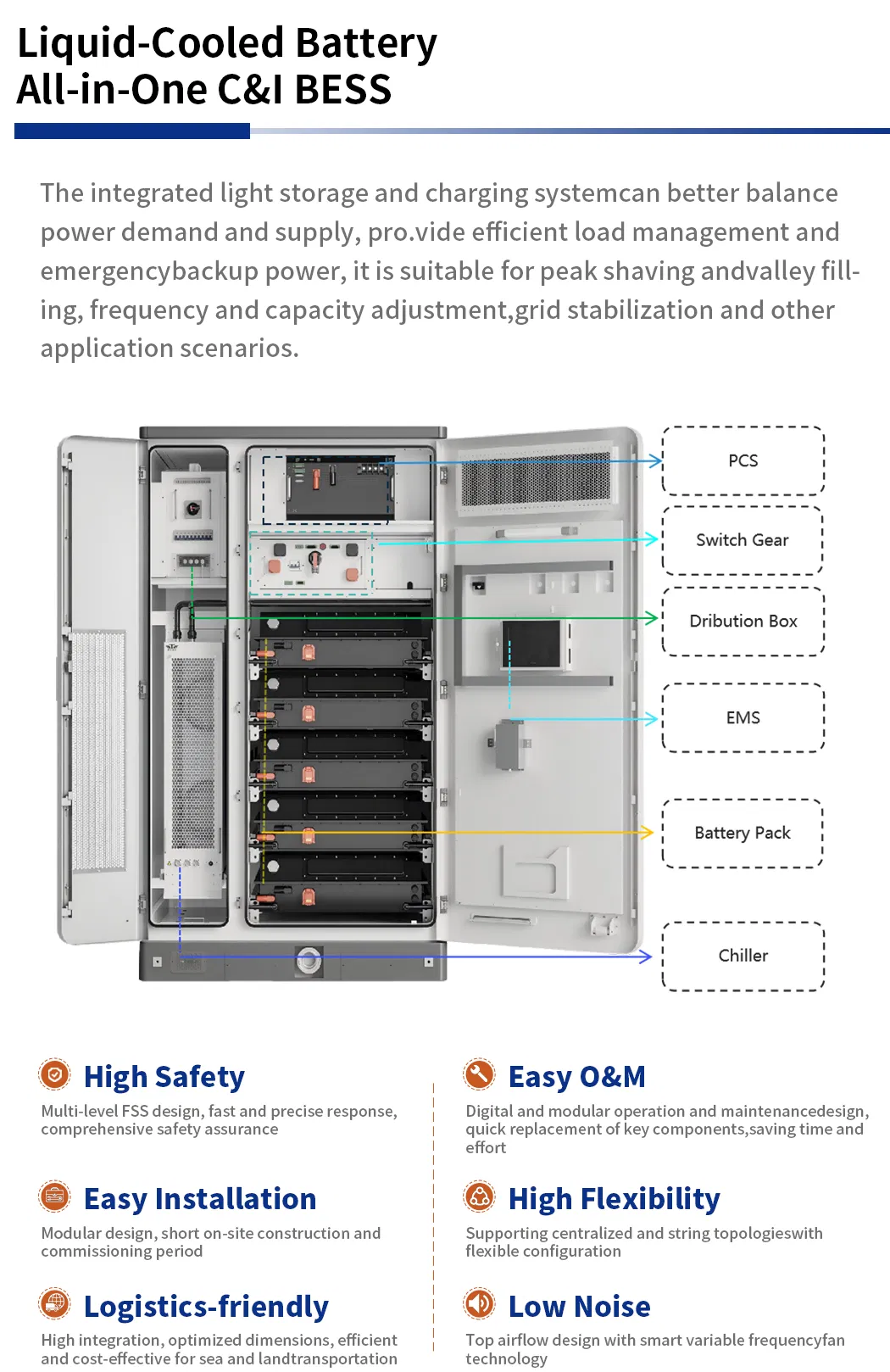

Q2: How does the liquid cooling system benefit the battery?
A: Intelligent liquid cooling maintains an optimal battery temperature (25ºC±2ºC), which enhances efficiency, safety, and extends the battery life.
Q3: Can this system be used for off-grid applications?
A: Yes, it supports hybrid grid connections and offers an optional automatic on-grid and off-grid switching time of 20ms.

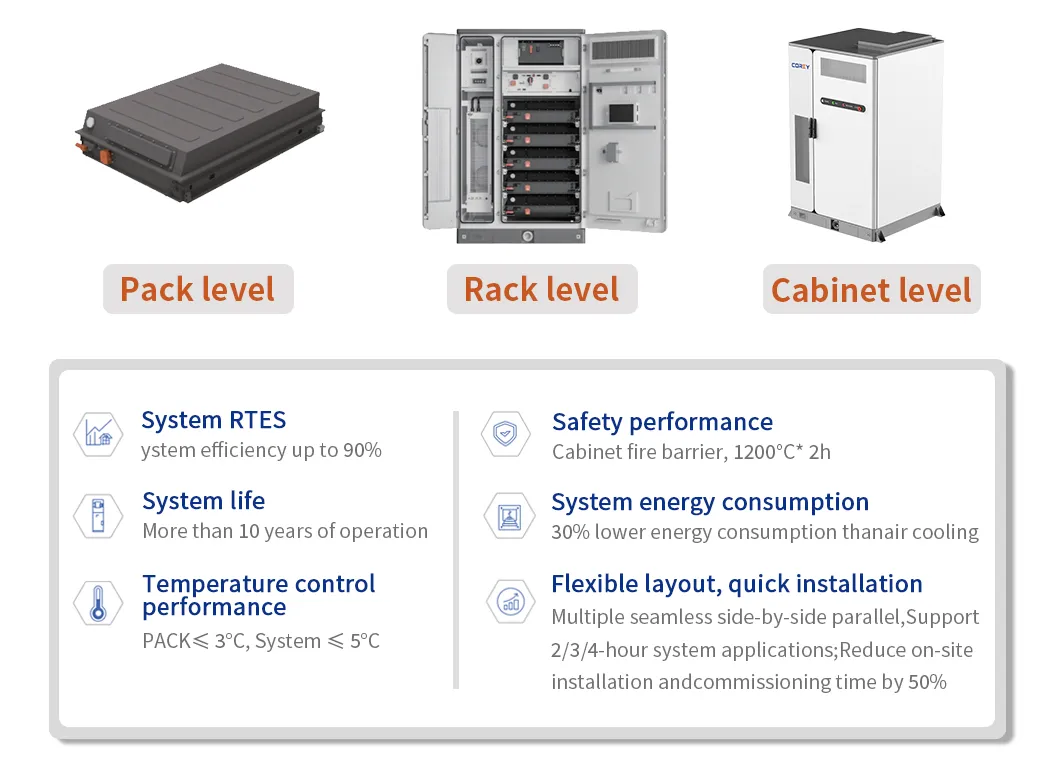

Q4: What fire safety measures are integrated into the cabinet?
A: The system uses a multi-level approach including aerosol protection at the pack and cluster levels, plus water fire protection at the cabinet level.
Q5: What is the warranty period for this energy storage solution?
A: The product comes with a standard 5-year warranty, covering the core components of the energy storage system.
Q6: Is the system suitable for harsh outdoor environments?
A: Yes, with an IP54 protection level and C4 anti-corrosion rating, it is designed to withstand various industrial and commercial outdoor conditions.
