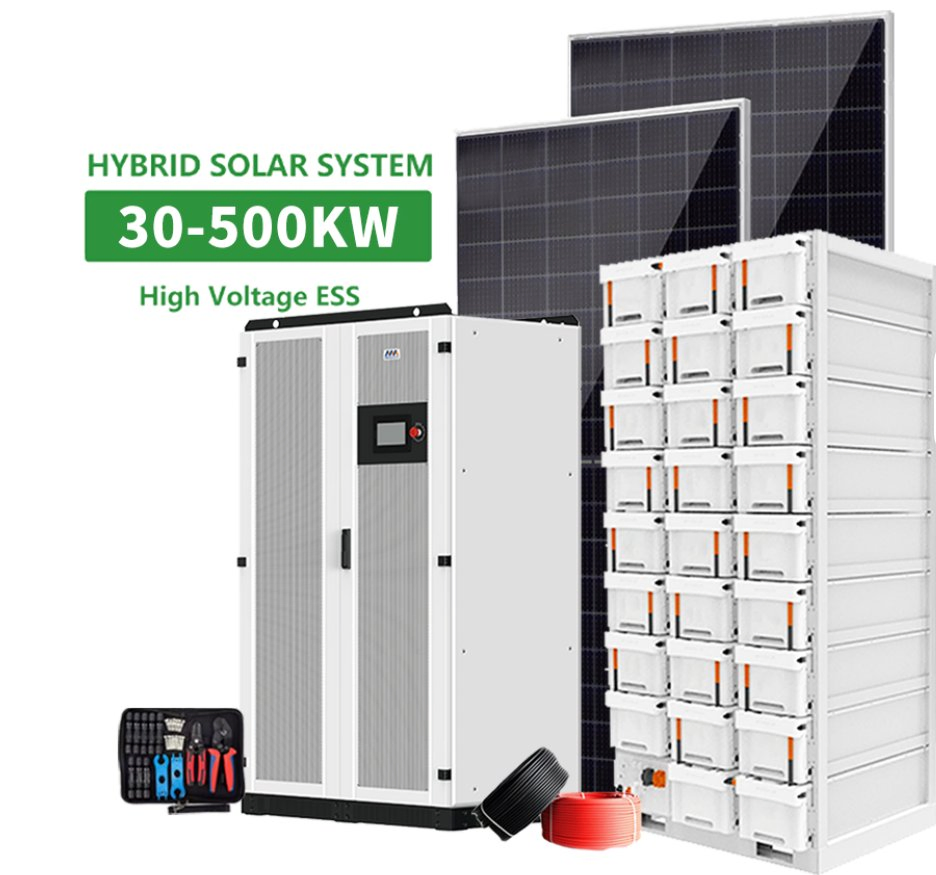

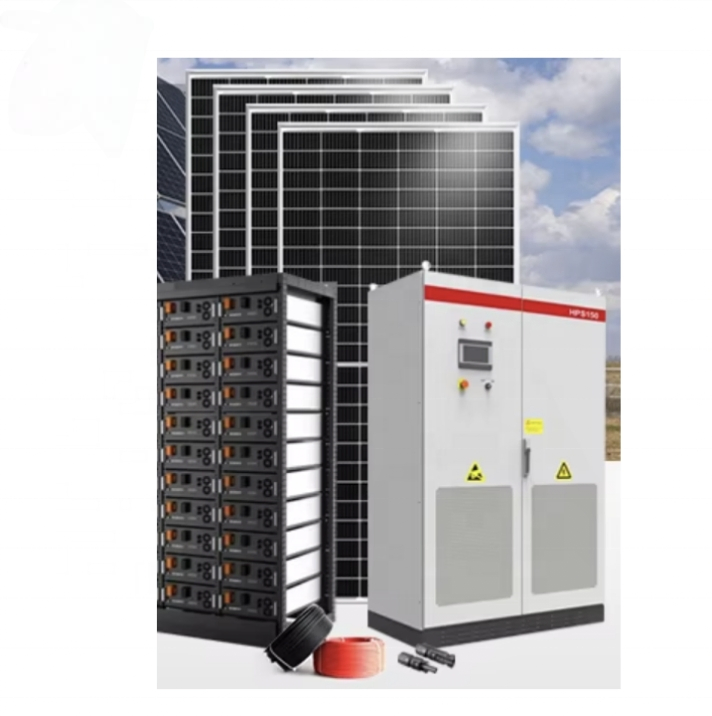

100 Kw Hybrid Solar Energy System All-in-One Solar Power Kit with Battery Storage System Solar Photovoltaic Grid Power System Solar Photovoltaic Plant

Customization: Available
After-sales Service: 1
Warranty: 15

Product Description

Basic Information
Model NO.
30-500 KW
Condition
New
Certification
ISO, CE, IEC UL
Application
Home, Industrial, Commercial
Specification
Normal, Customized
Package
Carton
Origin
China
Capacity
3gw/Year
Product Description

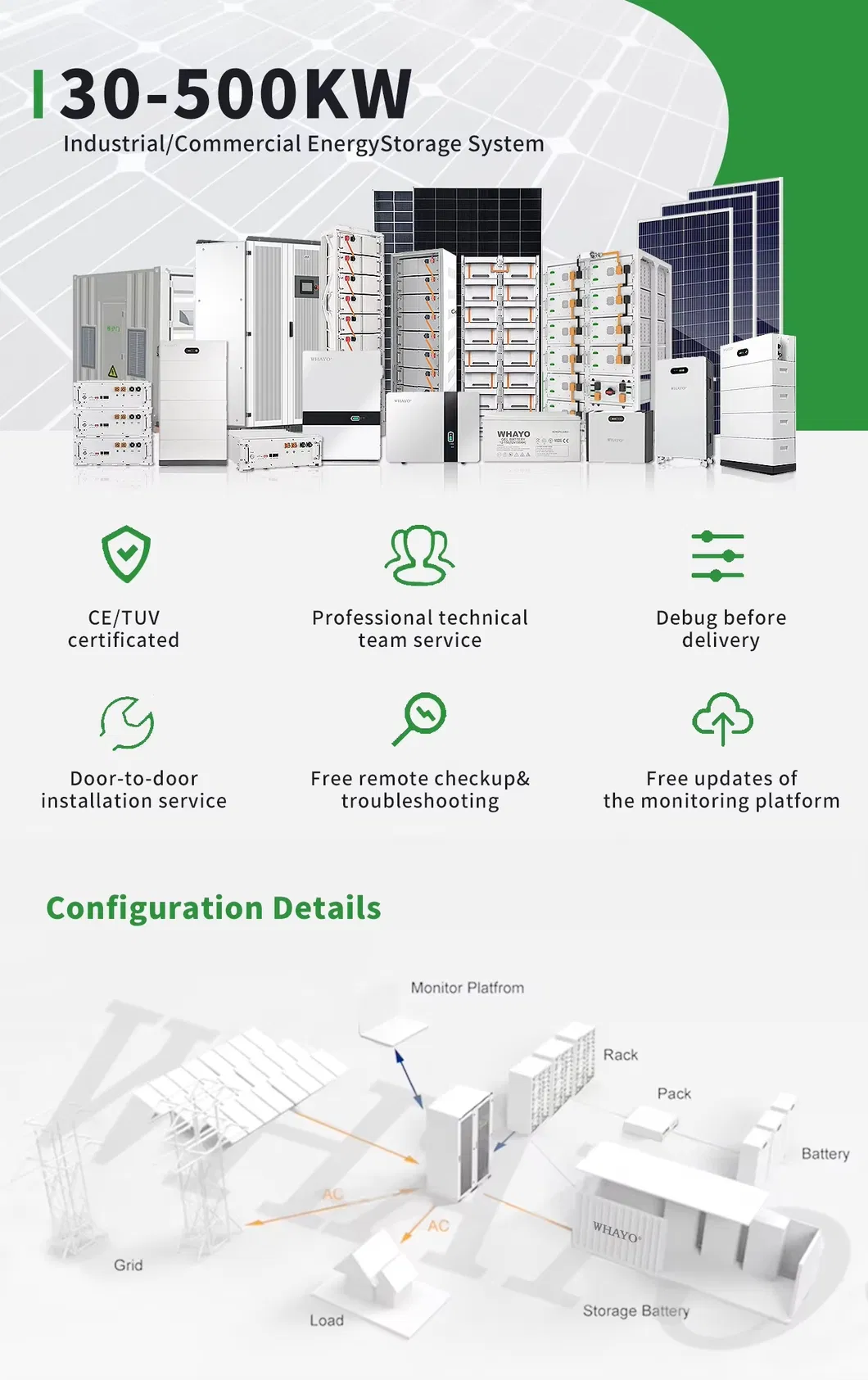

Hybrid Solar Energy System Overview
⚙️ Product Parameters
Model TH-30K-HY TH-50K-HY TH-100K-HY
Solar Panel Mono 560W / 54PCS Mono 560W / 90PCS Mono 560W / 100PCS
PV Combiner Box 3 Input 1 Output 5 Input 1 Output 5 Input 1 Output / 2PCS
Hybrid Inverter 30KW 50KW 100KW
Lithium Battery 61.44KWH (51.2V100AH x 12) 102.4KWH (51.2V100AH x 20) 204.8KWH (51.2V100AH x 40)
Protection High-voltage Box / 1PC High-voltage Box / 2PC High-voltage Box / 4PC
Cables & Connectors 4mm2 PV Cable 400m 4mm2 PV Cable 600m 4mm2 PV Cable 1000m
Model TH-150K-HY TH-250K-HY TH-500K-HY
Solar Panel Mono 560W / 270PCS Mono 560W / 450PCS Mono 560W / 900PCS
PV Combiner Box 5 Input 1 Output / 3PCS 5 Input 1 Output / 5PC 5 Input 1 Output / 10PCS
Hybrid Inverter 150KW 250KW 500KW
Lithium Battery 315.392KWH 516.096KWH 1032.192KWH
Container System Customized 10ft/20ft Container with fire extinguishing, lighting, and air-conditioning

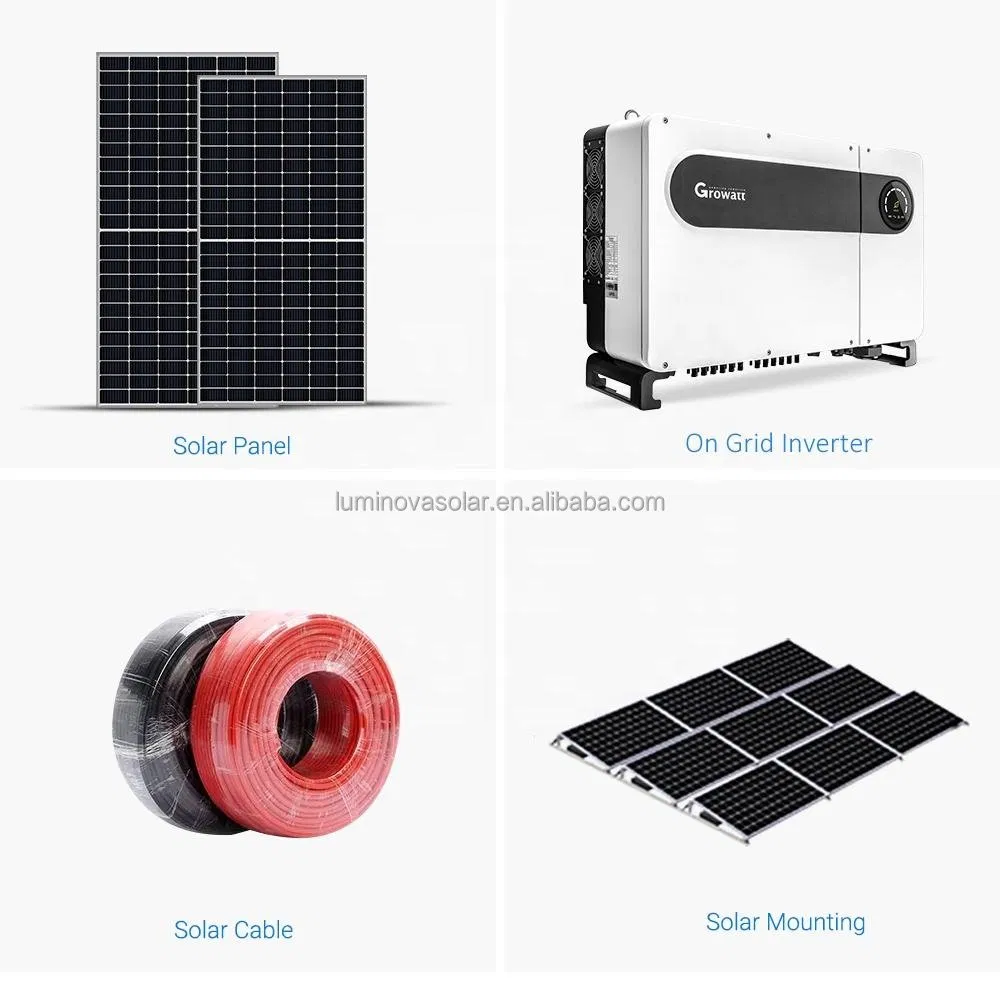

Core Components

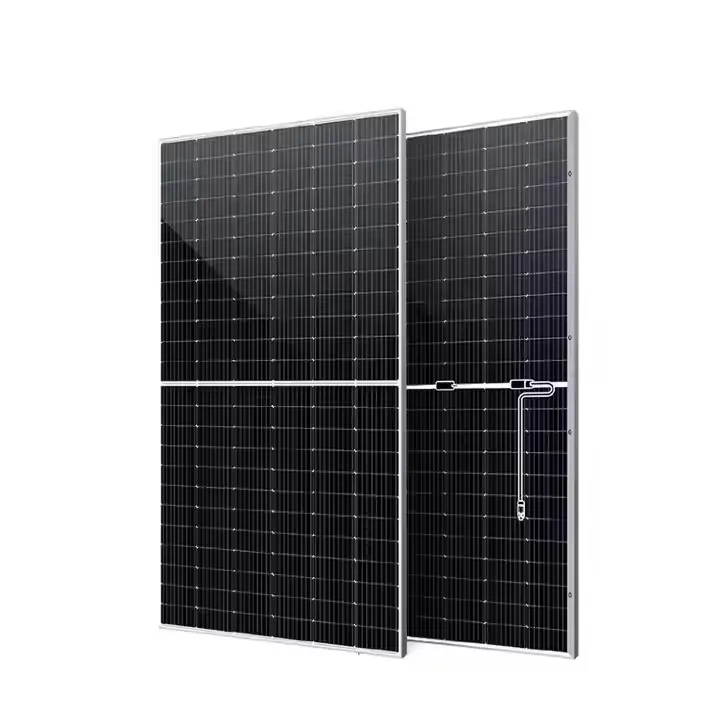

Mono Solar Panel
Mono 580W Solar Panel
• Bifacial Dual Glass
• Max Power: 42.59V / 13.62A
• Dimensions: 2278x1134x30/35mm

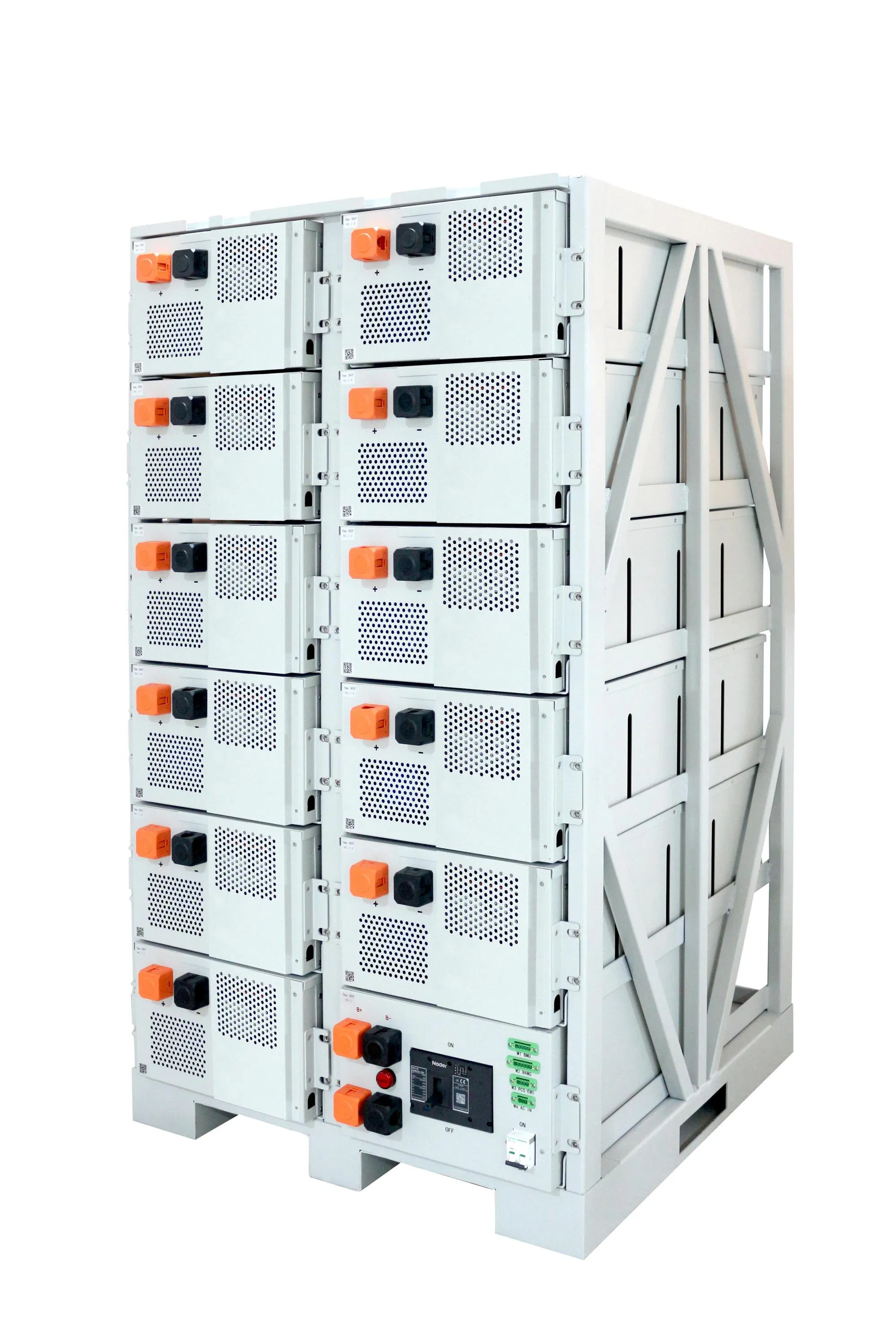

High Voltage Battery
High Voltage Lithium Battery
• Safe LiFePO4 Technology
• Max 20 Modules in Series
• Flexible Outdoor/Indoor Solution

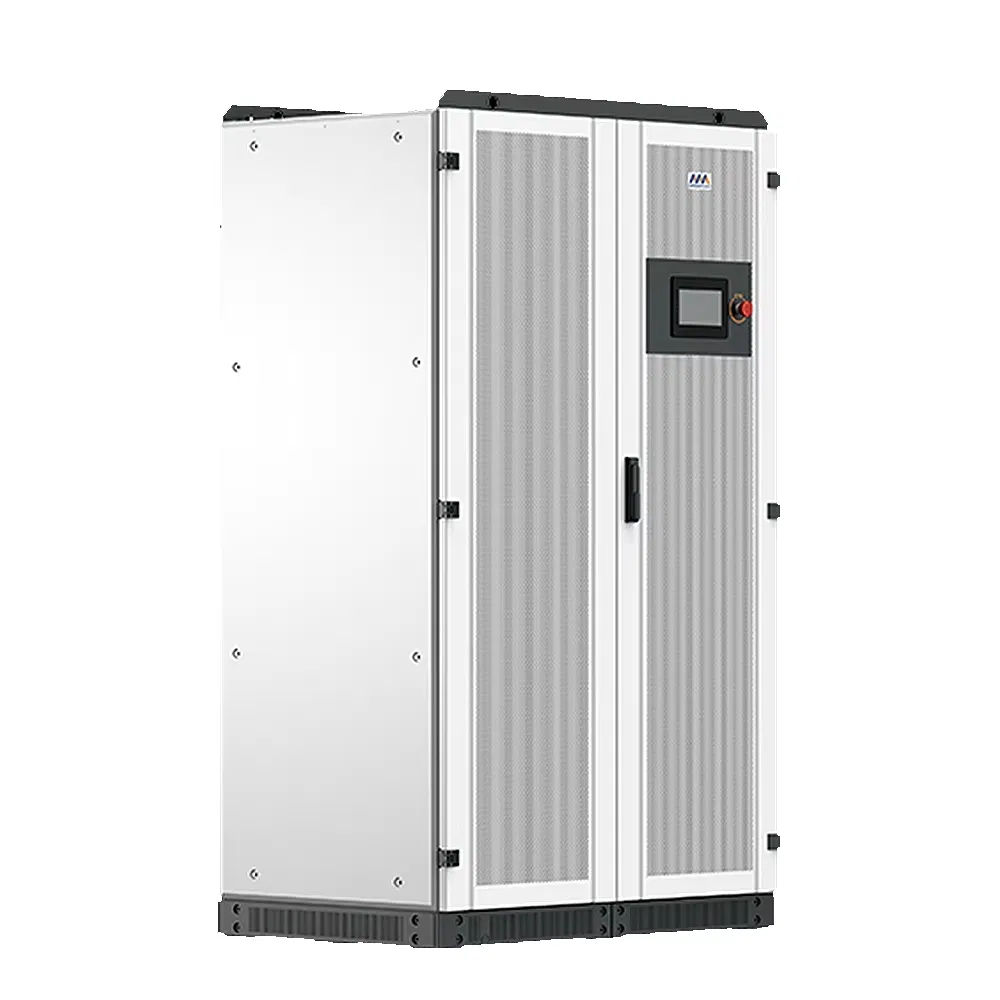

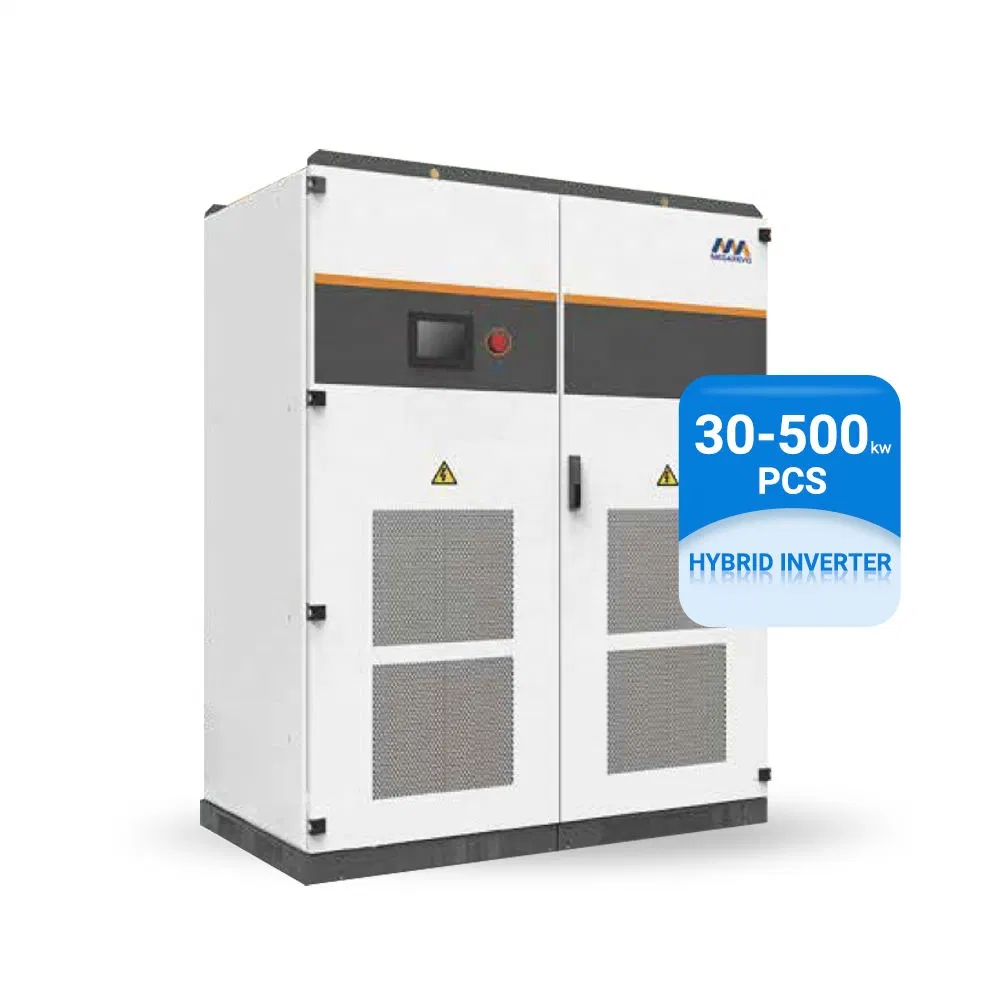

Hybrid Inverter
MPS Hybrid Inverter
• Support 100% Unbalance
• Parallel Connection Ready
• Range: 30KW - 500KW

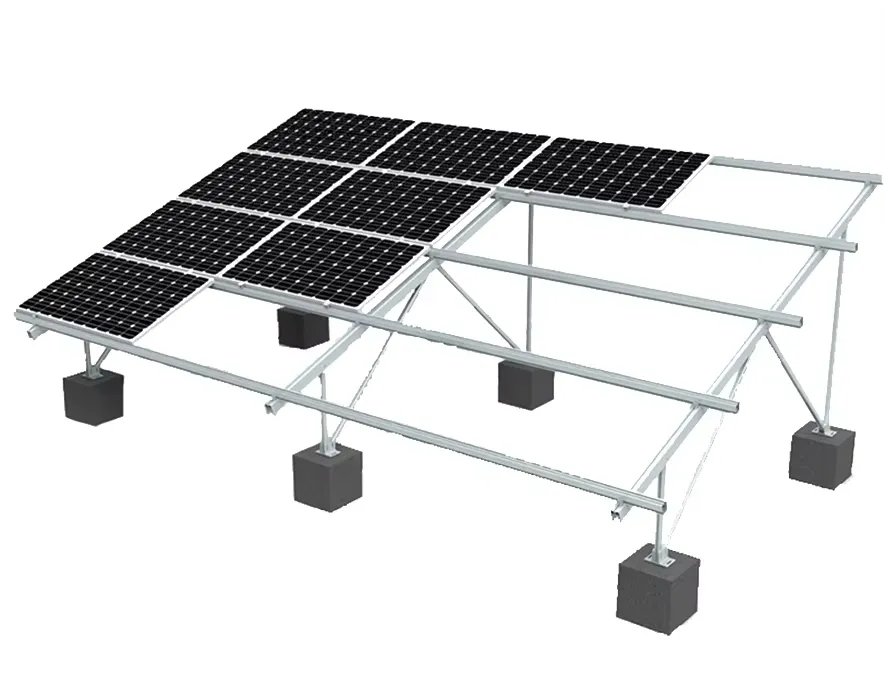

Mounting System
PV Mounting Solutions
• Ground & Pitched Roof
• Carports & Vertical Walls
• Flat Roof Aluminum Structures
Packing & Project Cases

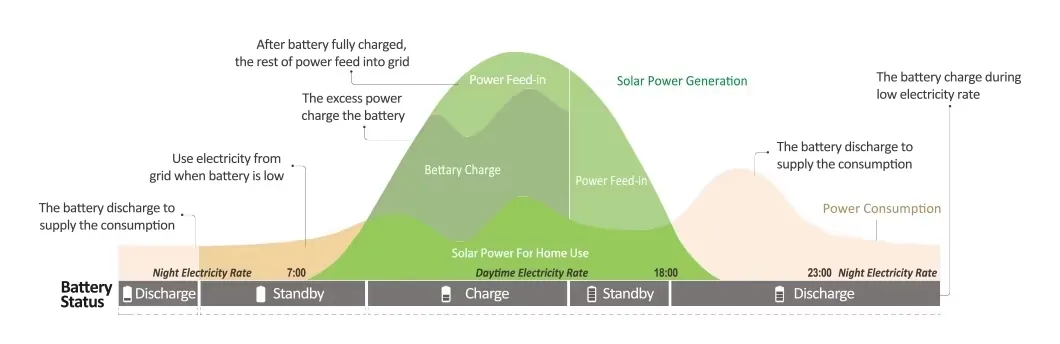

System Layout

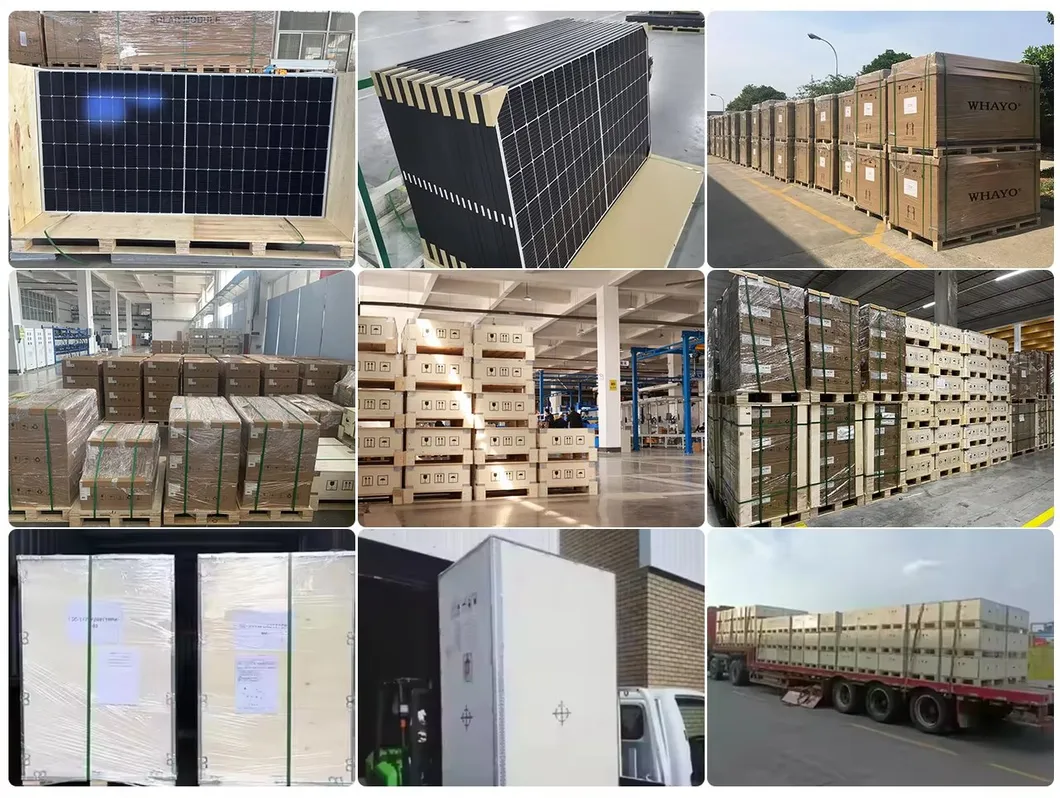

Packing and Delivery

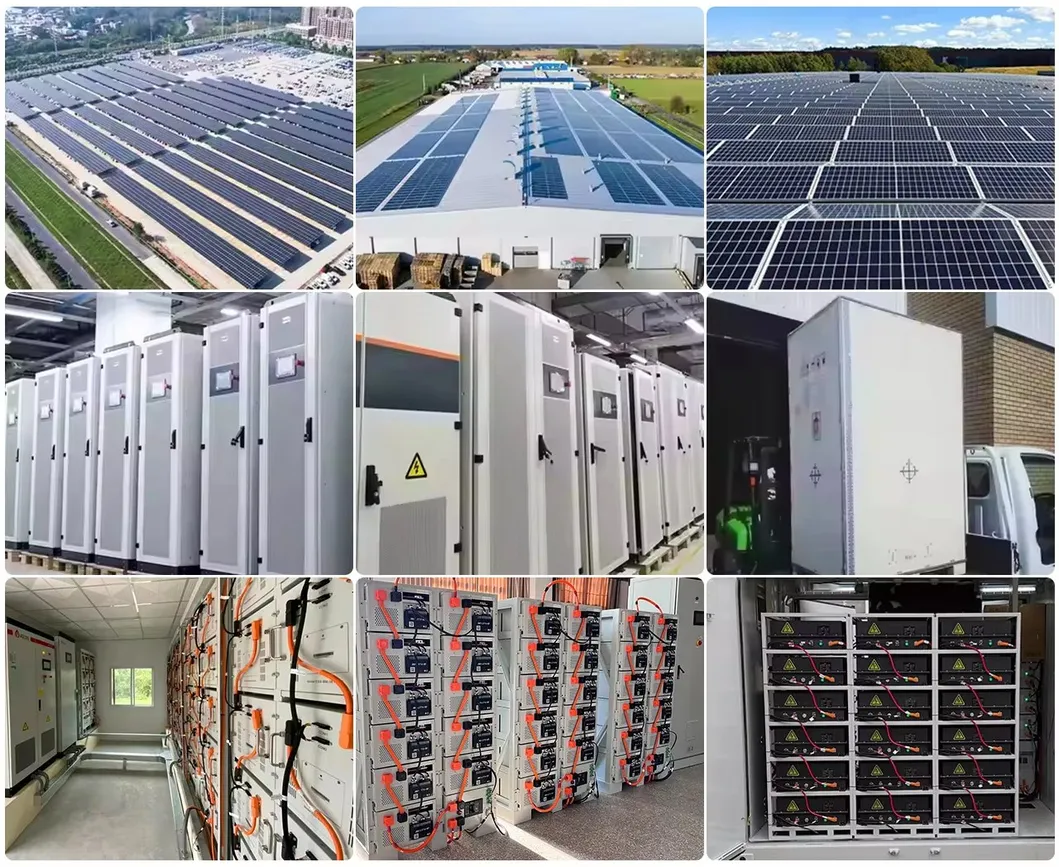

Project Cases
Frequently Asked Questions
Q1: What is the power range available for this hybrid solar system?
A: The system is highly scalable, offering power capacities ranging from 30KW up to 500KW to meet home, industrial, and commercial needs.
Q2: What type of batteries are used in the storage system?
A: We use high-voltage LiFePO4 (Lithium Iron Phosphate) battery packs, which are known for their safety, reliability, and long cycle life.
Q3: Can the system be customized for specific roof types?
A: Yes, we provide customized mounting supports for various scenarios, including pitched roofs, flat roofs, ground installations, and even solar carports.
Q4: Does the inverter support unbalanced loads?
A: Yes, our hybrid inverters support 100% unbalance and can be connected in parallel for easy system expansion.
Q5: What certifications do the products hold?
A: The entire system and its components are certified by ISO, CE, IEC, and UL, ensuring international quality and safety standards.
Q6: Is there a solution for large-scale industrial storage?
A: For large-scale needs, we offer customized 10ft or 20ft containerized solutions equipped with fire extinguishing systems and climate control.
