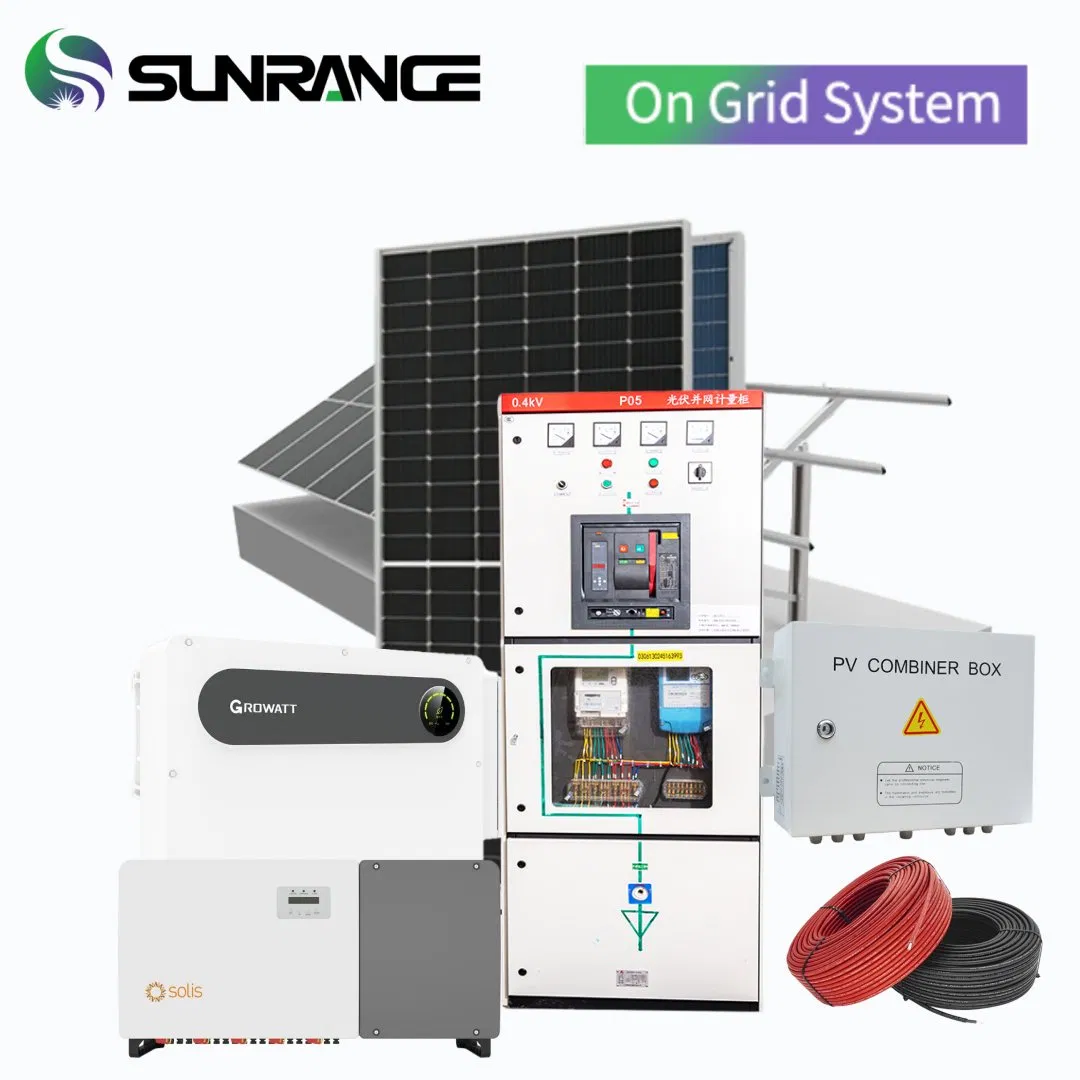

| On Grid Solar System Configuration (Three Phase 50KW-1MW) | ||||
|---|---|---|---|---|
| Components | SR50KW-ON | SR100KW-ON | SR500KW-ON | SR1MW-ON |
| 580W Solar Panel | 90 Pieces | 180 Pieces | 900 Pieces | 1800 Pieces |
| DC Combiner Box | 1 Piece | 1 Piece | 5 Pieces | 10 Pieces |

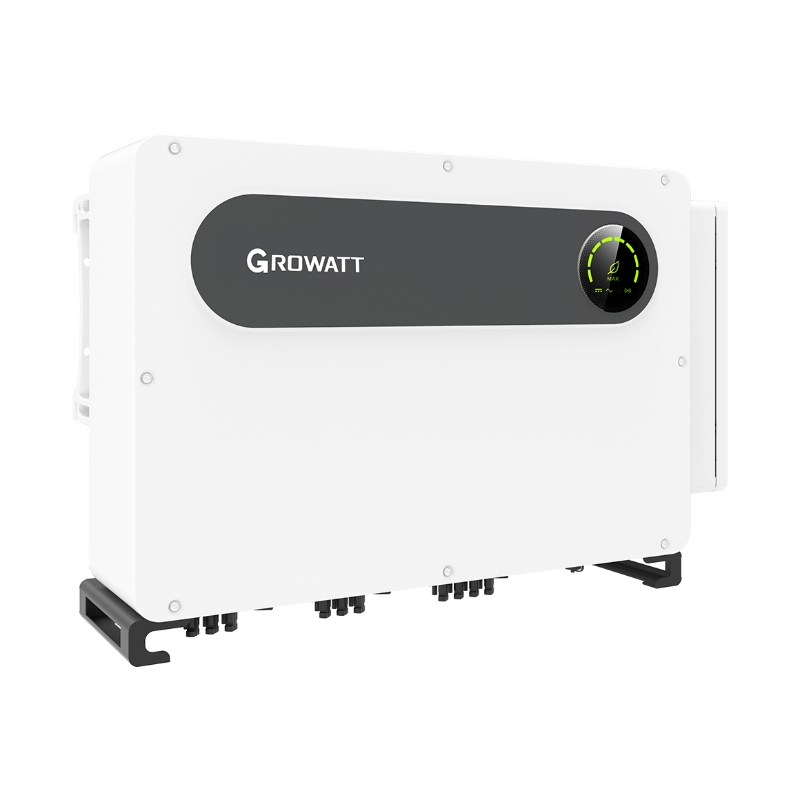

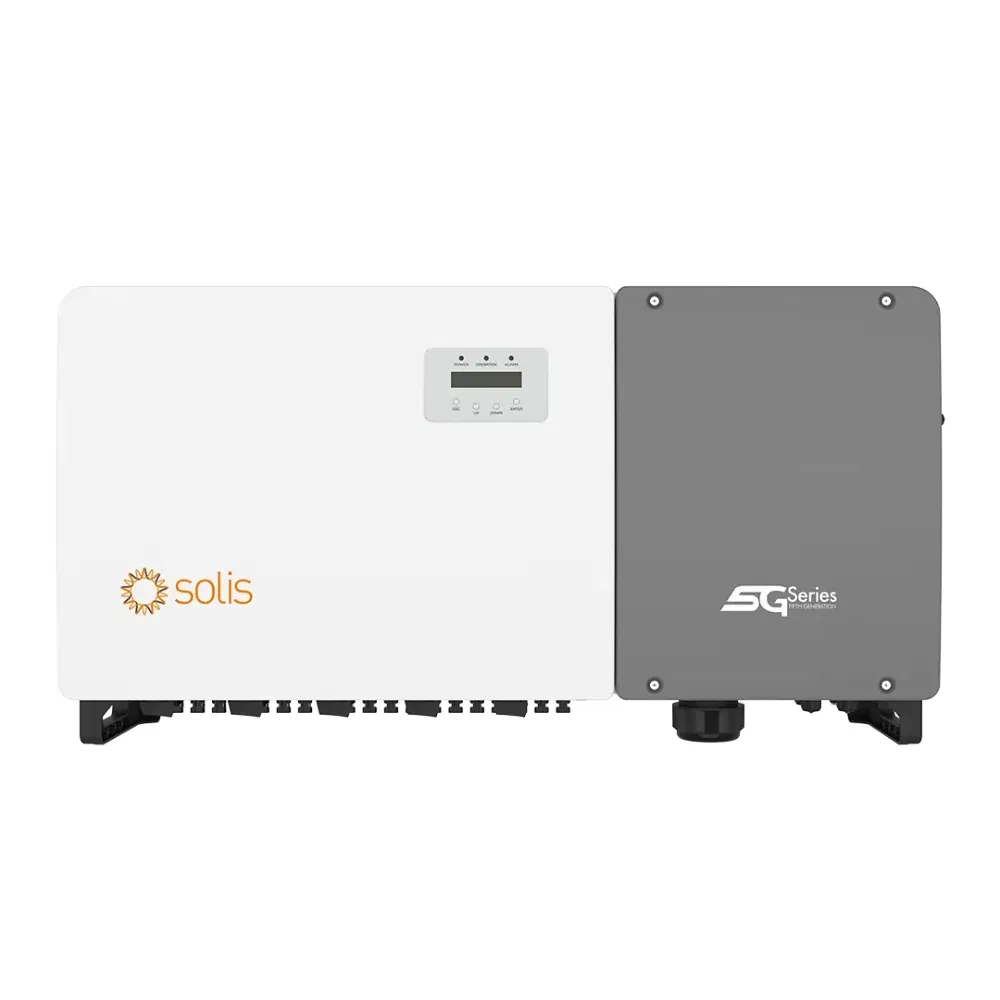

| Grid Tied Inverter | 1pcs 50KW | 1pcs 100KW | 5pcs 100KW | 10pcs 100KW |
| DC Cable 4mm2 | 600 Meters | 1200 Meters | 6000 Meters | 12000 Meters |
| MC4 Connector | 30 Pairs | 50 Pairs | 250 Pairs | 500 Pairs |
| Mounting System | Customized Product Based On Installation Roof/Ground | |||
| PV Installation Tools | 1 Set | 1 Set | 1 Set | 1 Set |

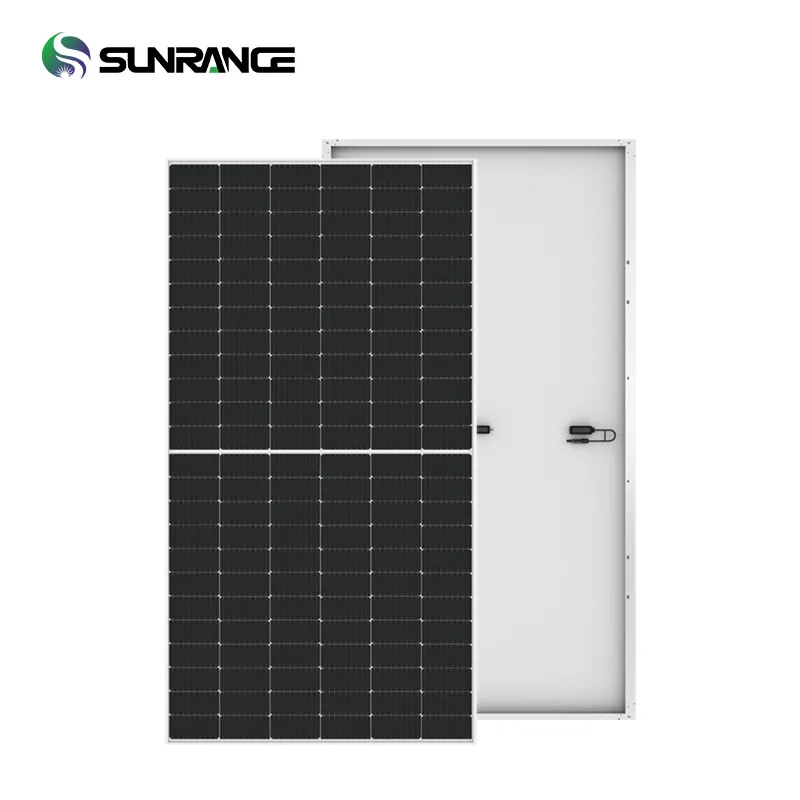

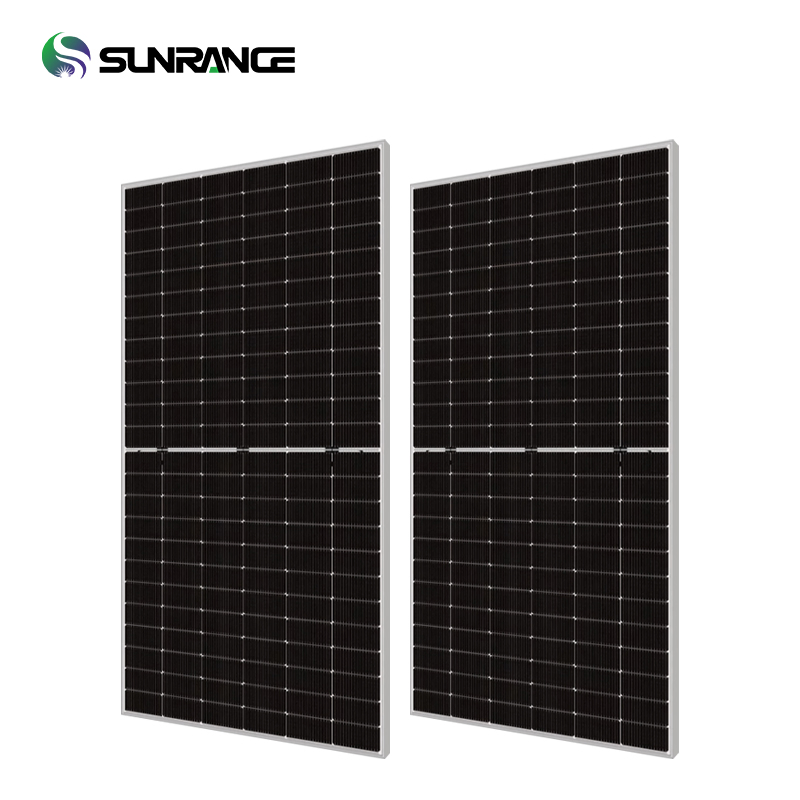

Model: SR72P-580N
Maximum power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Short Circuit Current (lsc): 14.33A
Voltage at Maximum power (Vmpp): 43.09V
Current Maximum Power (lmpp): 13.46A
Module Efficiency: 22.44%

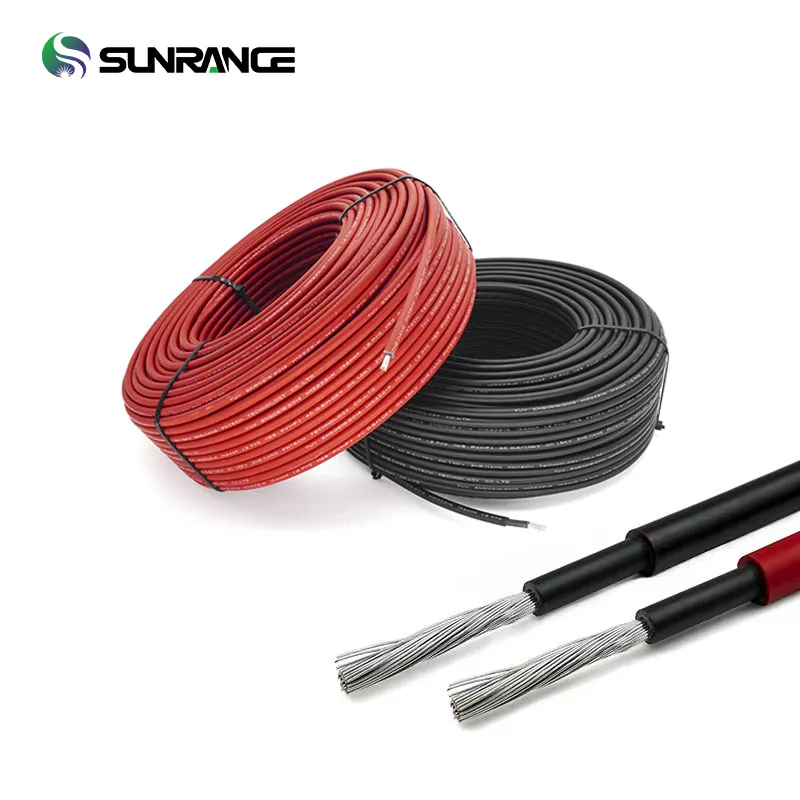

Cross Section: 4mm2; 6mm2; 10mm2 Optional
Rated Voltage: 600vDC/1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black (Standard), Red (Optional)
Lifetime: ≤25 Years

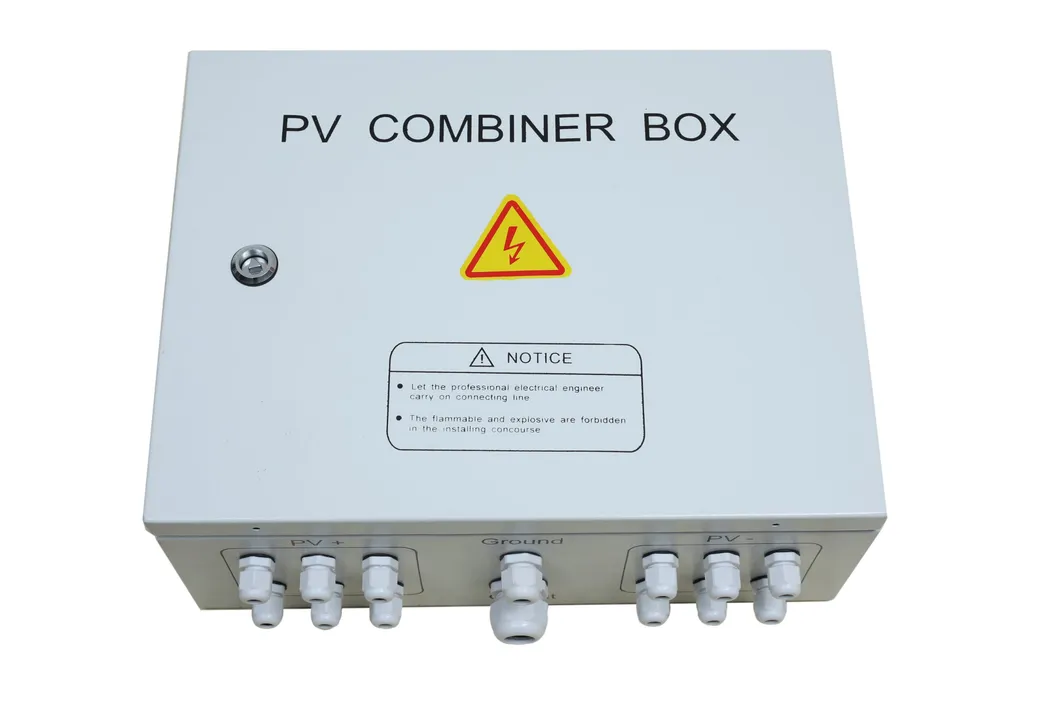

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20, M25, MC4
Rated Current: 16A, 20A
We are an emerging brand in the photovoltaic industry with customers located on all continents. We provide the highest quality products and professional services, offering diverse design solutions for large, medium, and small-scale requirements. We continue to develop and improve technology to bring a better energy experience to our global users.
