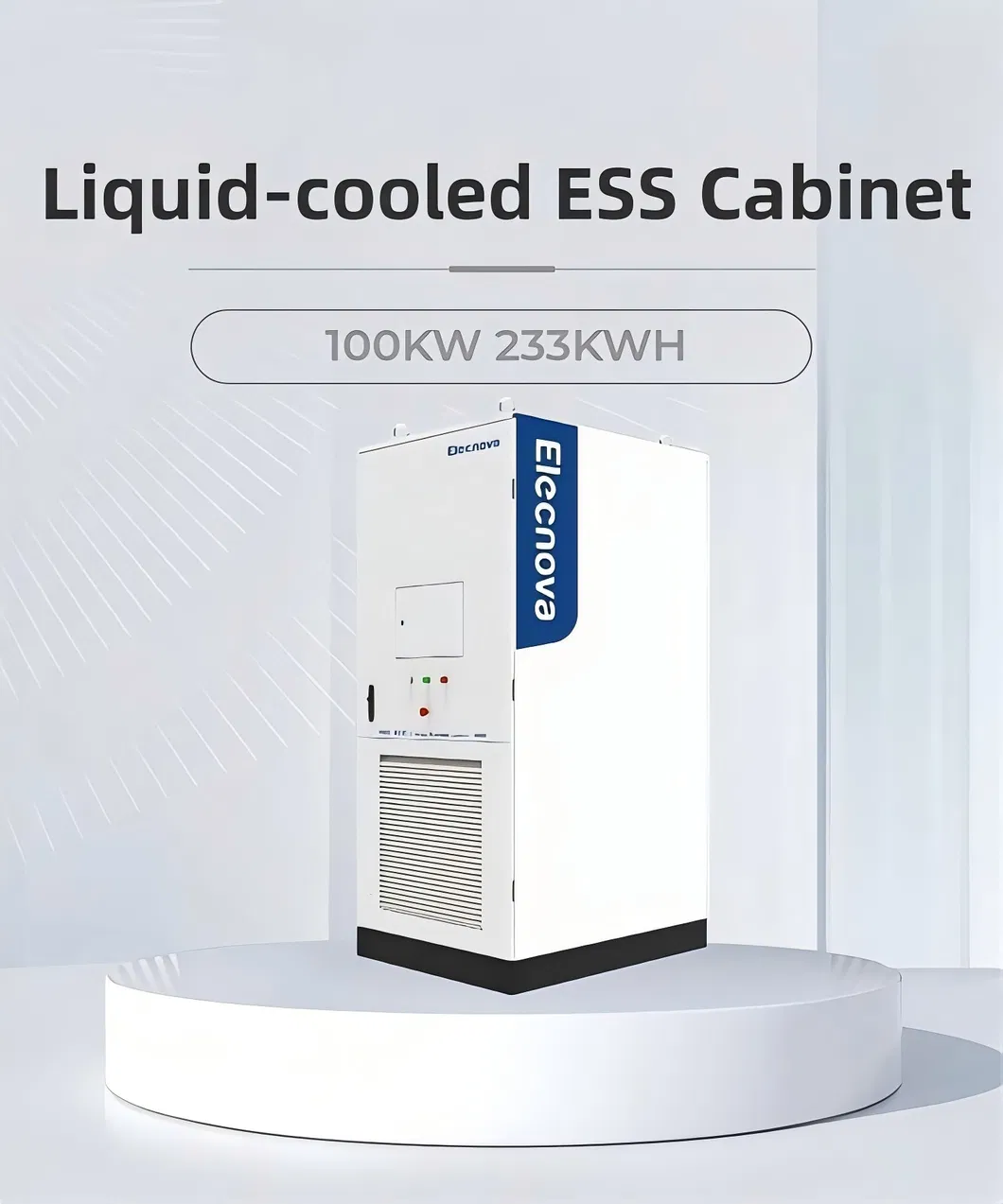

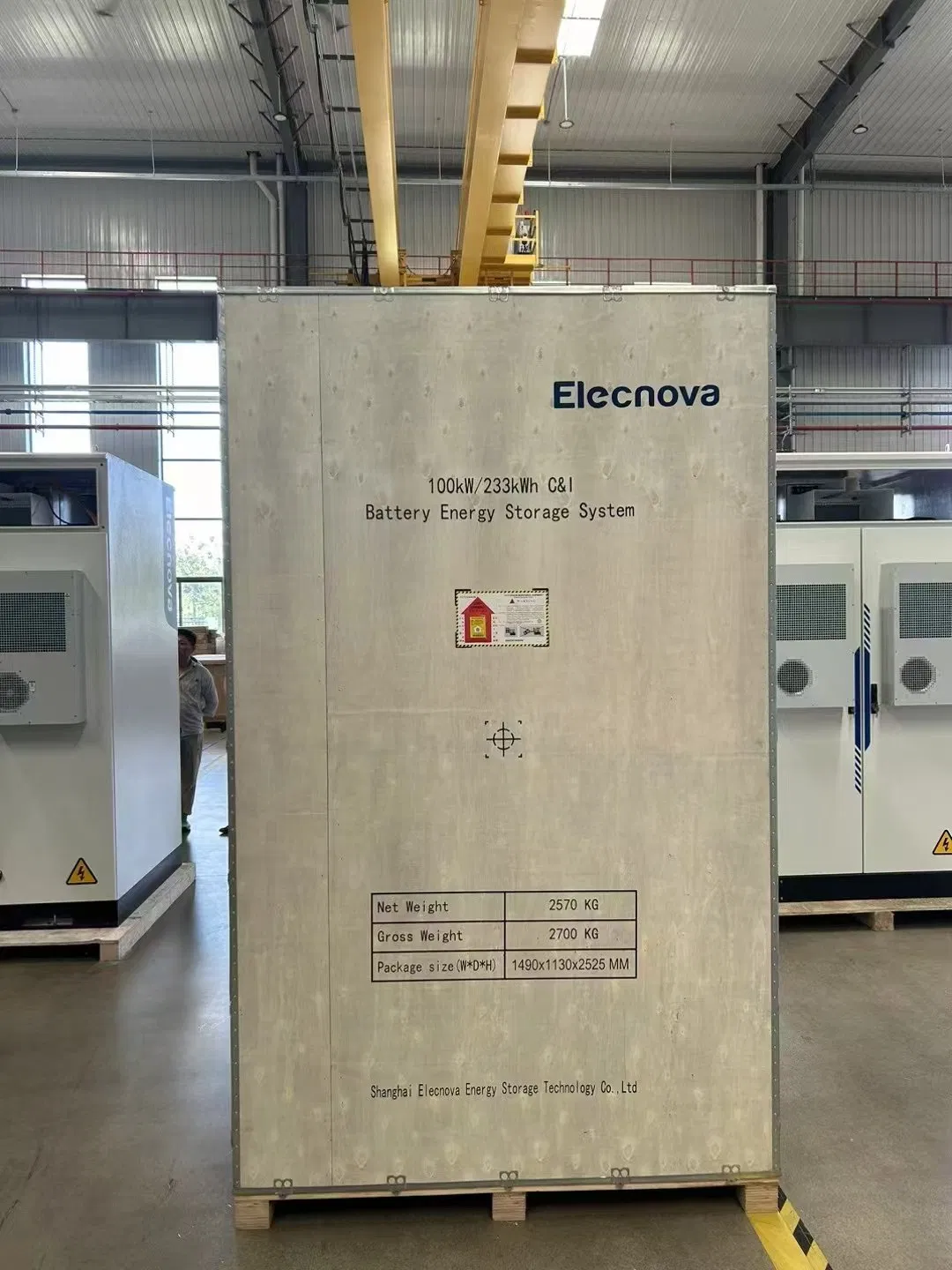

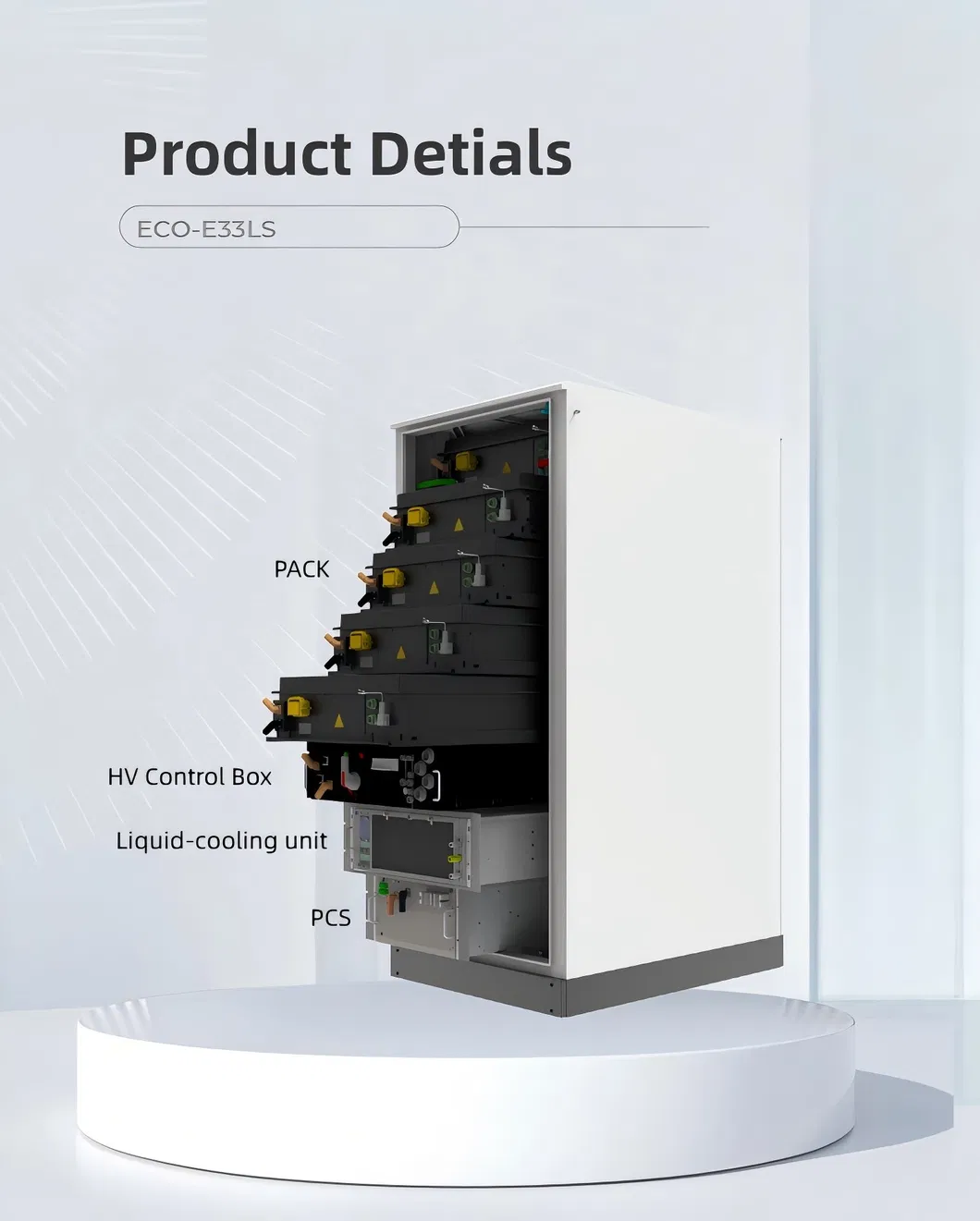

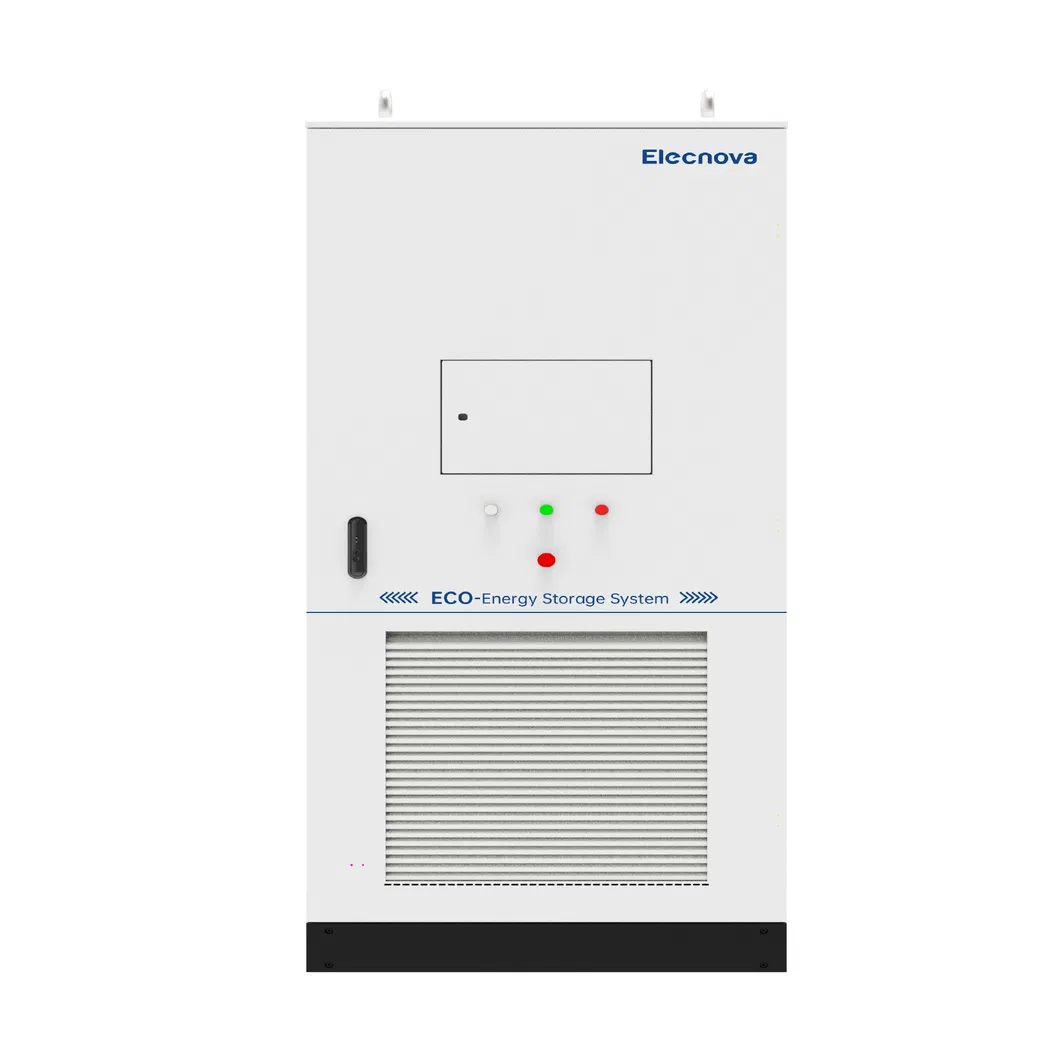

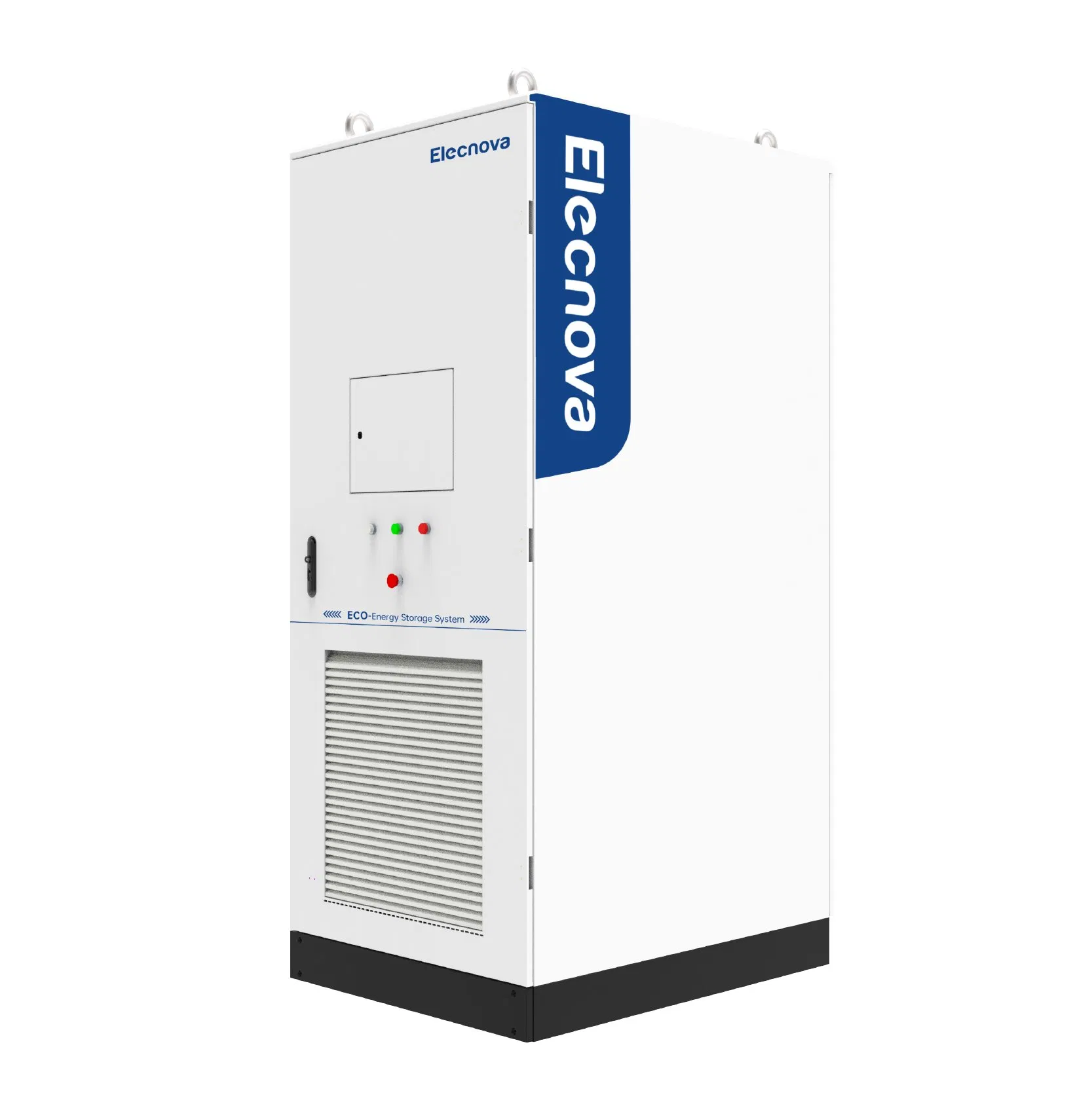

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is maintained at less than 3°C, which significantly improves the consistency of cell temperature and extends the battery life.

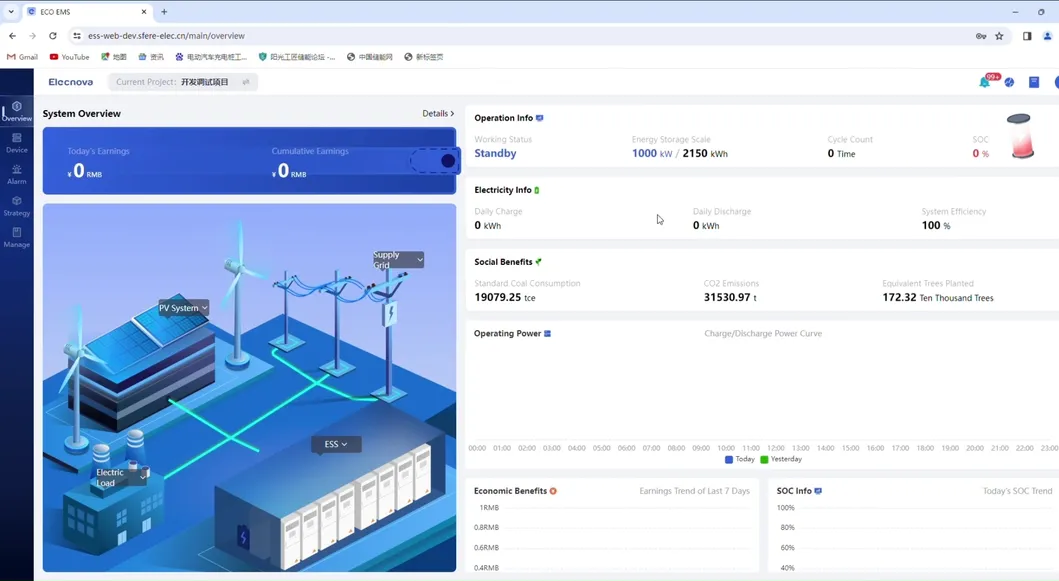

Advanced Monitoring & Efficiency: Conversion efficiency reaches 99% with IP65 rating. The system features ms-level on/off-grid switching and active thermal management for a designated 10-year lifespan.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP 280Ah |
| Battery System | 232.96kWh / 1P260S |
| Voltage Range | 728~936Vdc |
| PACK Ingress Rating | IP65 |
| AC Side Specifications | |

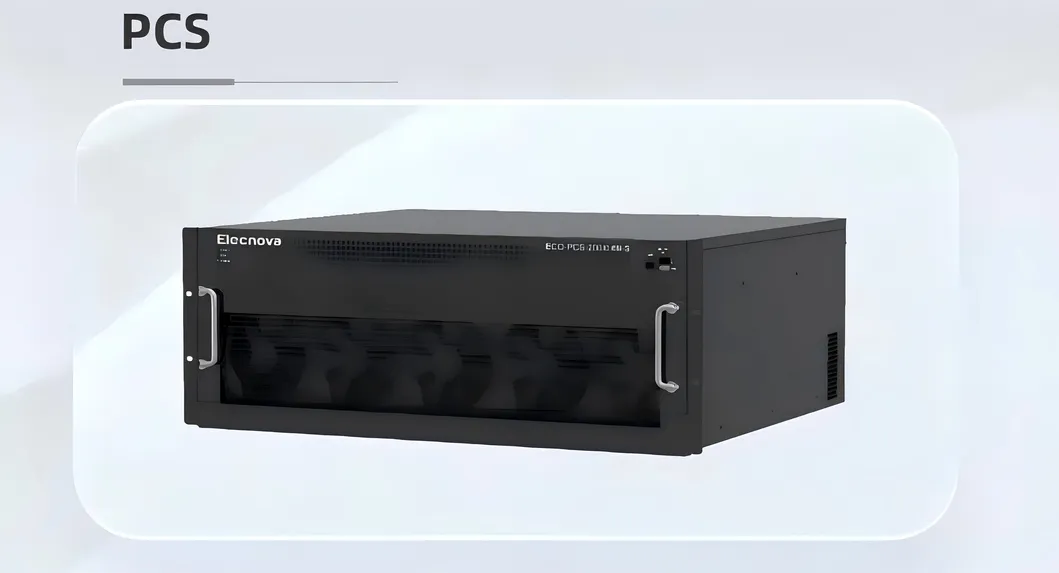

| Rated Power | 100kW |
| Max. Power | 110kW |
| Nominal Voltage | 400Vac / 3P+N+PE |
| Nominal Frequency | 50/60 Hz |
| General Data | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |

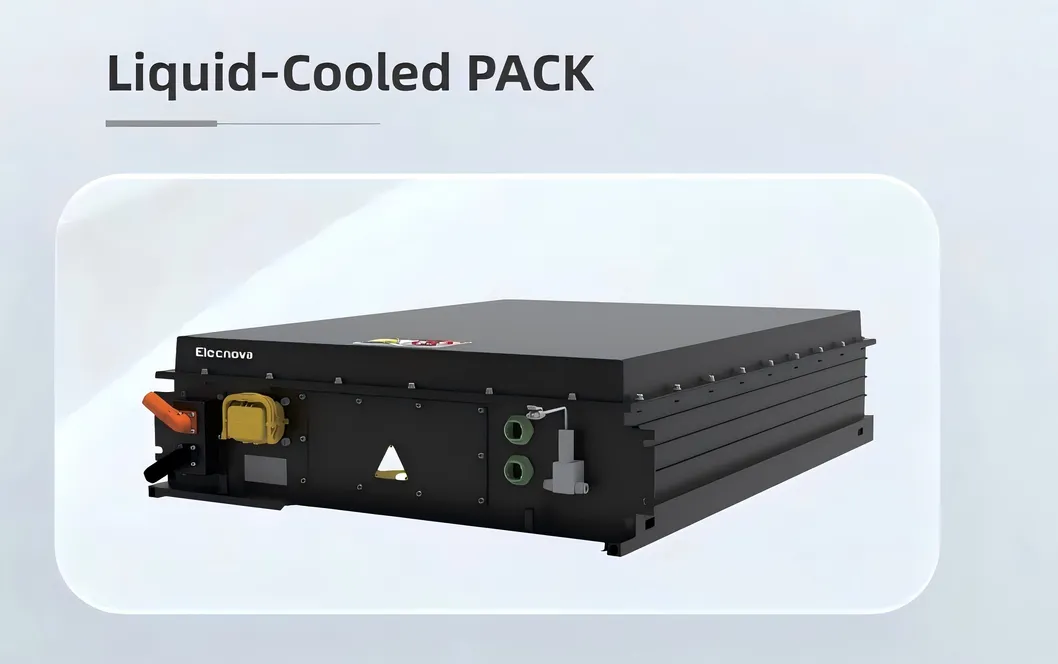

| Cooling Method | Active liquid cooling |
| Operating Temperature | -25ºC to 55ºC |
| Fire Safety | Aerosol / NOVEC1230 |
| Weight | 2,570kg |

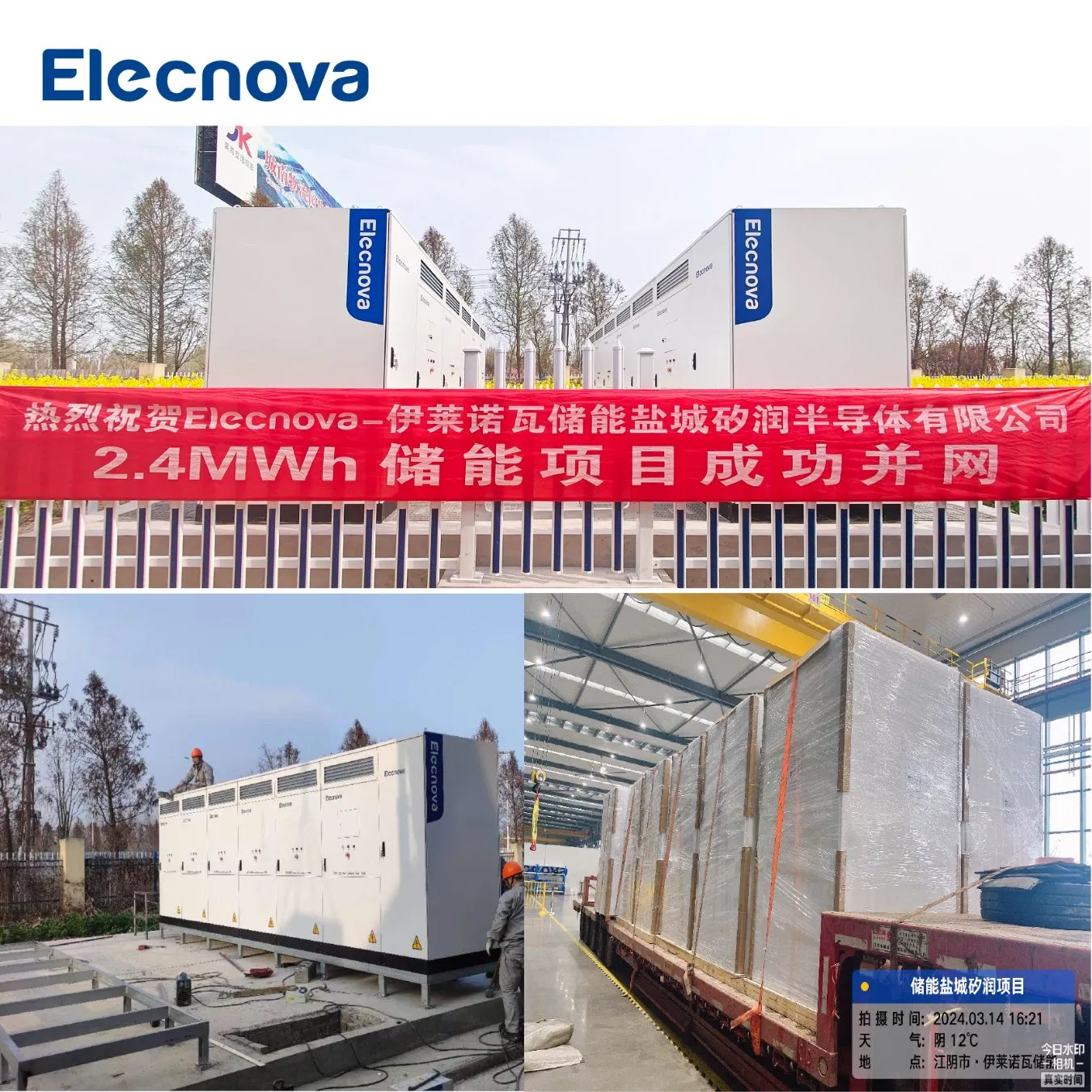

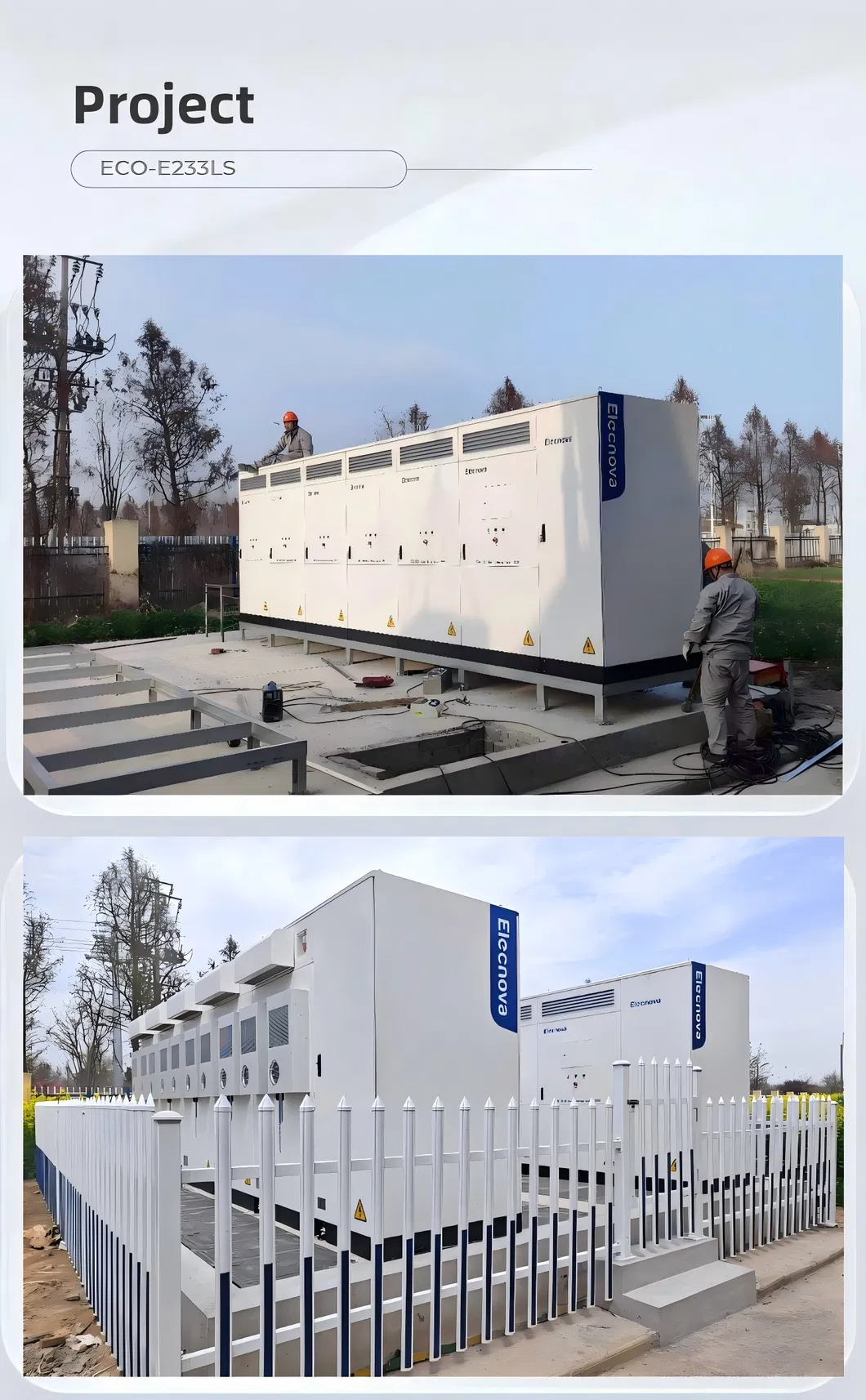

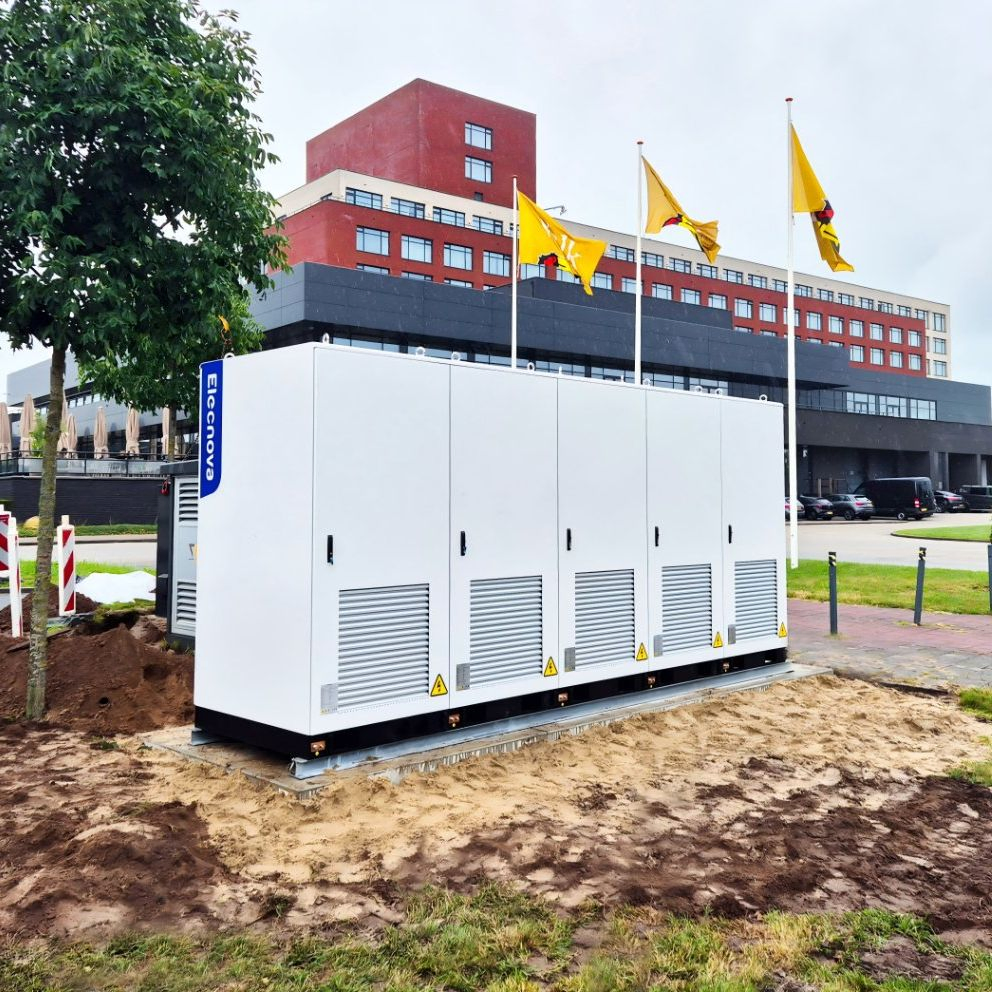

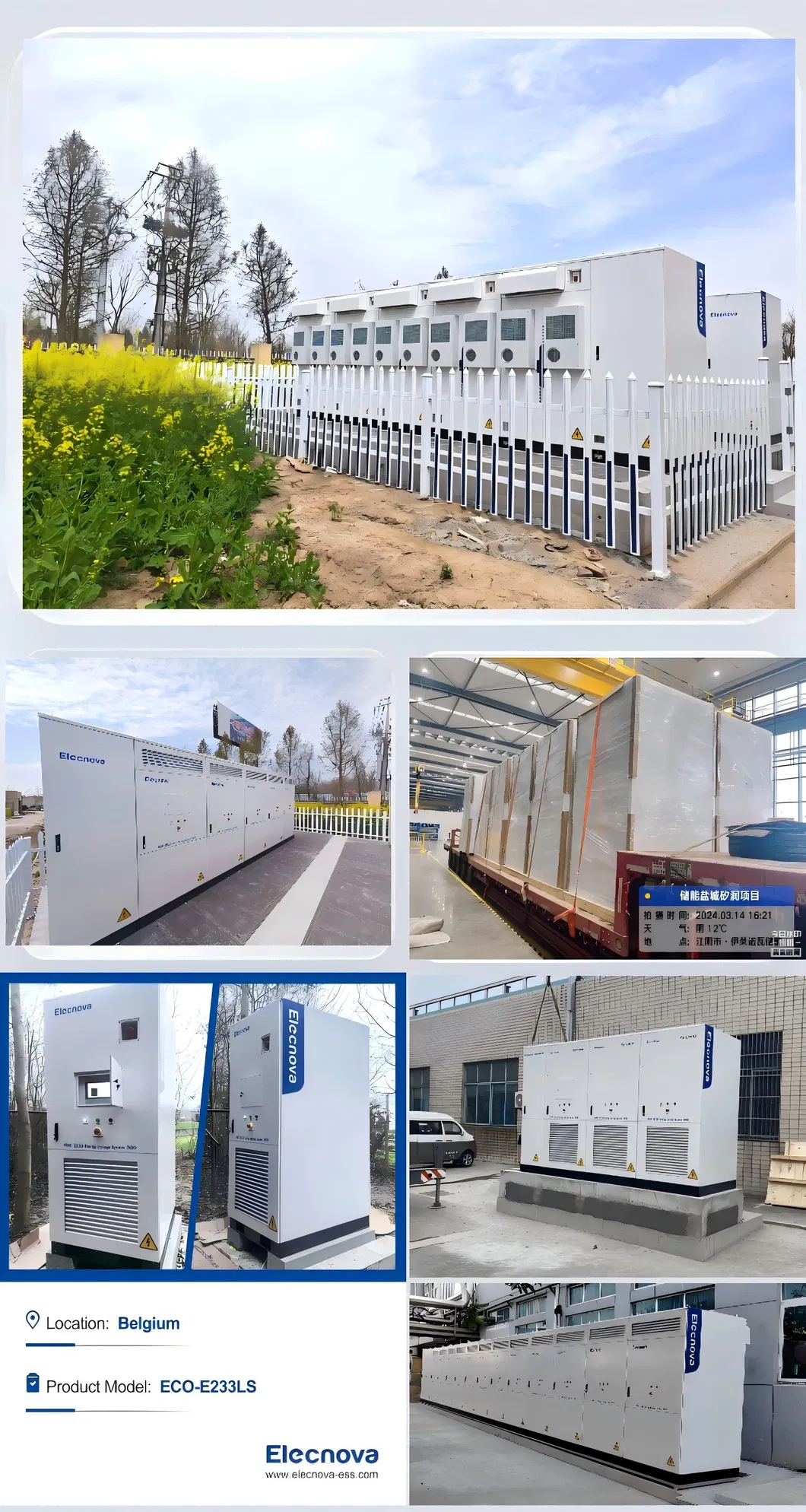

This system is ideal for microgrid energy storage, PV-plus ESS, and large-scale industrial projects. Recent successful grid connections include 2.4MWh projects utilizing this advanced high-efficiency liquid-cooled technology.
